1 Imprint (German)
Bresser GmbH
Gutenbergstr. 2
46414 Rhede
Germany
www.bresser.de
For any warranty claims or service enquiries, please refer to
the information on "Warranty" and "Service" in this docu-
mentation. We apologize for any inconvenience caused by
the fact that we cannot process enquiries or submissions
sent directly to the manufacturer's address.
Errors and technical changes excepted.
© 2021 Bresser GmbH
All rights reserved.
The reproduction of this documentation - even in extracts -
in any form (e.g. photocopy, print, etc.) as well as the use
and distribution by means of electronic systems (e.g. image
file, website, etc.) without the prior written permission of the
manufacturer is prohibited.
The designations and brand names of the respective com-
panies used in this documentation are generally protected
by trade, trademark and/or patent law in Germany, the
European Union and/or other countries.
2 Validity note
This documentation is valid for the products with the follow-
ing article numbers:
7007201

5 / 40
Manual version: 0521
Manual designation:
Manual_7007201_ClimaTemp-TB_en-
de_BRESSER_v052021a
Always provide information when requesting service.
3 About this Instruction Manual
NOTICE
These operating instructions are to be considered a
component of the device.
Read the safety instructions and the operating manual care-
fully before using this device.
Keep this instruction manual in a safe place for future refer-
ence. When the device is sold or given to someone else,
the instruction manual must be provided to the new owner/
user of the product.
4 General safety instructions
DANGER
Danger of suffocation!
Improper use of this product may result in suffocation, espe-
cially for children. It is therefore imperative that you observe
the following safety information.
• Keep packaging materials (plastic bags, rubber bands,
etc.) away from children! There is a danger of choking!
• This product contains small parts that can be swal-
lowed by children! Choking hazard!

6 / 40
DANGER
Risk of an electric shock!
This device contains electronic parts that are powered by a
power source (AC adapter and/or batteries). Improper use
of this product may result in electric shock. Electric shock
can cause serious or fatal injuries. It is therefore imperative
that you observe the following safety information.
• Never leave children unattended when handling the
device! Follow the instructions carefully and do not at-
tempt to power this device with anything other than
power sources recommended in this instruction
manual, otherwise there is a danger of an electric
shock!
DANGER
Explosion hazard!
Improper use of this product may result in fire. It is essential
that you observe the following safety information in order to
avoid fires.
• Do not expose the device to high temperatures. Use
only the recommended batteries. Do not short-circuit
the device or batteries, or throw them into a fire! Ex-
cessive heat or improper handling could trigger a short-
circuit, a fire or an explosion!
NOTICE
Danger of material damage!
Improper handling may result in damage to the unit and/or
accessories. Therefore, use the device only in accordance
with the following safety information.

7 / 40
• Do not disassemble the device! In the event of a defect,
please contact your dealer. They will contact the Ser-
vice Center and can arrange the return of this device
for repair if necessary.
• Do not immerse the unit in water!
• Do not expose the device to impacts, vibrations, dust,
constant high temperatures or excessive humidity. This
can result in malfunctions, short-circuits or damage to
the batteries and components.
• Use only the recommended batteries. Always replace
weak or empty batteries with a new, complete set of
batteries at full capacity. Do not use batteries from dif-
ferent brands or types or with different capacities. Re-
move batteries from the device if it is not to be used for
a longer period of time!
NOTICE
Risk of voltage damage!
The manufacturer is not liable for damage related to improp-
erly installed batteries!

8 / 40
5 Parts overview and scope of
delivery
1
2
13
9
12
11
10 6
5
4
7
8
14
15
20
16
17
19
18
3
A
B
Illustration1: All parts of base station (top) and wireless sensor
(bottom)
1 Housing (weather station) 2 Colour display
3 SNZ/LIGHT button (set
snooze function / display
brightness)
4 UP/CF key (increase value
or change between °C and
°F)
5 MODE button (switch
between current time and
alarm time display or setting
mode)
6 DOWN/RCC button (de-
crease value or initiate RCC
signal reception)
7 Battery compartment cover
(weather station)
8 Stand, fold-out

9 / 40
9 Battery compartment
(weather station)
10 CH button (channel selection)
11 ALARM button (enable
wake-up alarm)
12 ALERT button (temperature
alarm setting)
13 Wall mount fixture 14 Housing (wireless sensor)
15 Data transmission function
light
16 Wall mount fixture
17 RESET button (reset all set-
tings)
18 Slider for channel selection
(set transmission channel 1,
2 or 3)
19 Battery compartment (wire-
less sensor)
20 Battery compartment cover
(wireless sensor)
Delivery content:
Base station (A), radio sensor (B)
Required batteries (not included):
5 pcs. batteries (Type AAA/LR03, 1.5V)

10 / 40
6 Screen display
119
17
18
20
21
16
4
3
2
5
6
7
8
10
911
14
15
13
12
Illustration2: Screen display of the base station
1 Graphical weather fore-
cast display (24 hours)
2 Standard: Current time,
Alarm: Wake-up time
3 Symbol for the radio
signal
4 Symbol for active day-
light saving time
5 Symbol for active wake-
up alarm (wake-up time
1, 2 or both)
6 Weekday information
7 Current date (day/
month)
8 Current air pressure
value

11 / 40
9 Air pressure measuring
unit (in HPA)
10 Symbol for air pressure
tendency (rising, con-
stant or falling)

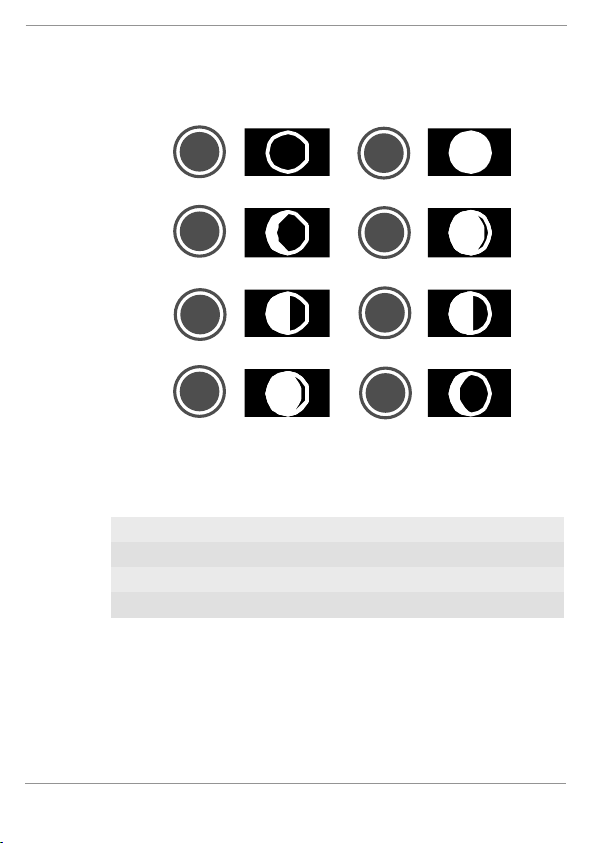

11 Moon phase 12 Symbol for active max-
imum or minimum in-
door temperature alarm
13 Indoor humidity (in %) 14 Symbol for indoor tem-
perature alarm (function
see 12)
15 Indoor temperature (°C
or °F)
16 Symbol for active max-
imum or minimum out-
door temperature alarm
17 Outdoor humidity (in %) 18 Symbol for outdoor tem-
perature alarm (function
see 16)
19 Outdoor temperature
(°C or °F)
20 Current wireless sensor
channel (1, 2 or 3)
21 Transmission signal in-
formation (current wire-
less sensor)
7 Before commissioning
NOTICE
Avoid connection faults!
In order to avoid connection problems between the devices,
the following points must be observed during commission-
ing.
1. Place the base unit (receiver) and sensor (transmitter)
as close together as possible.

12 / 40
2. Connect the power supply to the base unit and wait un-
til the indoor temperature is displayed.
3. Establish power supply for the sensor.
4. Set up/operate the base unit and sensor within the ef-
fective transmission range.
5. Make sure that the base unit and the radio sensor are
set to the same channel.
When changing the batteries, always remove the batteries
in both the base unit and the sensor and reinsert them in
the correct order so that the radio connection can be re-es-
tablished. If one of the two devices is operated via a mains
power connection, the power connection for this device
must also be disconnected briefly when changing the bat-
tery. If, for example, only the batteries in the sensor are re-
placed, the signal cannot be received or can no longer be
received correctly.
Note that the actual range depends on the building materi-
als used in the building and the position of the base unit and
outdoor sensor. External influences (various radio transmit-
ters and other sources of interference) can greatly reduce
the possible range. In such cases, we recommend finding
other locations for both the base unit and the outdoor
sensor. Sometimes a shift of just a few centimetres is
enough!
8 Setting up power supply
Base unit
1. Remove the battery compartment cover.
2. Insert the batteries into the battery compartment. En-
sure that the battery polarity (+/-) is correct.
3. Replace the battery compartment cover.

13 / 40
4. Wait until the indoor temperature is displayed on the
base station.
Remote sensor
5. Remove the battery compartment cover.
6. Insert the batteries into the battery compartment. En-
sure that the battery polarity (+/-) is correct.
7. Move the CH slide control to the position for the desired
transmission channel (setting CH1, CH2 or CH3 with
screen display).
8. Replace the battery compartment cover.
NOTICE!When operating one outdoor sensor, channel 1
is recommended as the default setting.
9 Automatic time setting
After the powering it on, the unit automatically searches for
the radio signal. It takes about 3-8 minutes to complete this
process.
If the radio signal is received correctly, the date and time
are set automatically and the reception symbol is displayed.
If no radio signal is received, proceed as follows:
1. Press the RCC button for approx. 2 seconds to initiate
the reception of the radio signal again.
2. If no radio signal is still received, the time must be set
manually.
10 Manual time setting
1. In normal display mode, press the MODE button for
about 3 seconds to enter the time settings mode.

14 / 40
2. Digits to be set are flashing.
3. Press UP/CF or DOWN/RCC button to change the
value.
4. Press the MODE button to confirm the and switch to
the next setting.
5. Settings sequence: Time zone > Hours > Minutes >
Year > Month > Day > Language
6. Finally, press the MODE button to save the settings
and exit settings mode.
11 Alarm setting
1. Press the MODE button repeatedly to select the de-
sired alarm function: AL1 or AL2. The display changes
according to the set alarm time.
2. Press the MODE button for about 3 seconds to switch
to the setting mode for the corresponding alarm time.
3. The value to be set flashes.
4. Press the UP/CF or DOWN/RCC button to change the
value.
5. Press the MODE button to confirm the and switch to
the next setting.
6. Settings sequence: Hours > Minutes
7. Finally, press the MODE button to save the settings
and exit settings mode.
8. In normal display mode, press the MODE button to dis-
play the desired alarm time.
9. To activate the alarm, press the ALARM button when
the alarm time is selected until the corresponding alarm
symbol (alarm clock) is displayed.

15 / 40
10. To deactivate the alarm, press the ALARM button when
the alarm time is selected until the corresponding alarm
symbol (alarm clock) is no longer displayed.
12 Snooze function
1. Press the SNZ/LIGHT button for about 3 seconds to
enter the snooze time interval setting. The preset digit
flashes (03-20 minutes)
2. Press the UP/CF or DOWN/RCC button to change the
value.
3. Finally, press the SNZ/LIGHT button to save the set-
tings and exit settings mode.
4. When the alarm sounds, press the SNZ/LIGHT button
to activate the snooze function. The alarm will sound
again at the end of the previously set time interval.
5. When the alarm sounds, press any other button to stop
the alarm until the set alarm time is reached again.
13 Receiving measurements
automatically
Once the power supply is enabled, the base station will dis-
play the measurement readings for indoors. Readings from
the outdoor sensor will be displayed within 3 minutes after
powering it on.
If no signal is received, proceed as follows:
Press the CH button for about 3 seconds to initate reception
of measurements again.

16 / 40
14 Display change
In normal display mode, press the DOWN/RCC button to
toggle the time display between 12-hour or 24-hour mode
(AM/PM time information is displayed or hidden accordingly)
In normal display mode, press the UP/CF button to toggle
between °C and °F when displaying the temperature unit.
In normal display mode, press the CH button several times
to display channels 1, 2, 3 or automatically alternating one
after another.
NOTICE!The display of values for different channels re-
quires the connection of several suitable wireless
sensors (not included).
In normal display mode, press the ALERT button several
times to display the set temperature alarm values one after
another.
15 HI/LO Alert
Set highest/lowest value alarm
1. In normal display mode, press the ALERT button for
about 3 seconds to enter the temperature alarm set-
tings mode. The first value to be set flashes.
2. Press the UP/CF or DOWN/RCC button to change the
value.
3. Press the ALERT button to confirm and switch to the
next setting.the next setting.
4. Settings sequence: Maximum outdoor temperature
value > Minimum outdoor temperature value > Max-
imum indoor temperature value > Minimum indoor tem-
perature value

17 / 40
5. Finally, press the ALERT button to save the settings
and return to normal mode.
Enable or disable highest/lowest value alarm
6. In normal display mode, press the ALERT button re-
peatedly to select the desired temperature alarm type
(HIGH or LOW). The temperature alarm type is dis-
played below the range info (cottage with OUT or IN).
7. When the temperature alarm is selected, press the UP/
CF button to enable or disable the alarm. When the
temperature alarm is enabled, the alarm symbol (bell)
appears next to the respective temperature alarm type
(HIGH or LOW).
8. The temperature alarm sounds as soon as the preset
temperature is reached for the respective range (IN or
OUT).
9. Press any key to stop the alarm.
16 Moon phases
This weather station is able to display the moon phases for
the northern hemisphere. Here the moon grows from the
right. This is because the sunlit side of the moon in the
northern hemisphere moves from right to left. The following
table shows the representations of the moon phases.

18 / 40
1
2
3
4
5
6
7
8
Illustration3: Moon phases for the northern hemispere.
1 New moon 2 Waxing crescent
3 First quarter 4 Waxing gibbous
5 Full moon 6 Waning gibbous
7 Third quarter 8 Waning crescent
17 Trend arrow indicators
The air pressure trend for the next 60 minutes is indicated
by corresponding arrows next to the current air pressure
value:

19 / 40
123
1 rising 2 stable:
3 falling
18 EC declaration of conformity
A "Declaration of conformity" in accordance with the
applicable directives and corresponding standards
has been prepared by Bresser GmbH. The full text of
the EC declaration of conformity is available at the
following Internet address: www.bresser.de/
download/7007201/CE/7007201_CE.pdf
19 UKCA Declaration of Conformity
Bresser GmbH has issued a "Declaration of Con-
formity" in accordance with applicable guidelines and
corresponding standards. The full text of the UKCA
declaration of conformity is available at the following
internet address: www.bresser.de/
download/7007201/UKCA/7007201_UKCA.pdf
Bresser UK Ltd. • Suite 3G, Eden House, Enter-
prise Way, Edenbridge, Kent TN8 6Hf, Great Britain

20 / 40
20 Warranty
The regular warranty period is 5 years and starts on the day
of purchase. For full warranty terms and services, please
visit www.bresser.de/warranty_terms.
21 Disposal
Dispose of the packaging materials properly, accord-
ing to their type, such as paper or cardboard. Contact
your local waste-disposal service or environmental au-
thority for information on the proper disposal.
Do not dispose of electronic devices in the household
garbage!
According to the European Directive 2012/19/EU on
Waste Electrical and Electronic Equipment and its
transposition into national law, used electrical equip-
ment must be collected separately and recycled in an
environmentally sound manner.
Batteries and rechargeable batteries must not be dis-
posed of with household waste. You are legally obliged
to return used batteries and accumulators and can re-
turn the batteries after use either in our sales outlet or
in the immediate vicinity (e.g. in the trade or in muni-
cipal collection points) free of charge.
Batteries and accumulators are marked with a crossed-
out dustbin and the chemical symbol of the pollutant,
"Cd" stands for cadmium, "Hg" stands for mercury and
"Pb" stands for lead.
