Bresser MeteoTemp BF User manual

Weather Station ·
MeteoTemp BF
EN Instruction manual

DE
Besuchen Sie unsere Website über den folgenden QR Code oder Weblink um weitere
Informationen zu diesem Produkt oder die verfügbaren Übersetzungen dieser Anleitung
zu nden.
EN
Visit our website via the following QR Code or web link to nd further information on this
product or the available translations of these instructions.
FR
Si vous souhaitez obtenir plus d’informations concernant ce produit ou rechercher ce
mode d’emploi en d’autres langues, rendez-vous sur notre site Internet en utilisant le
code QR ou le lien correspondant.
NL
Bezoek onze internetpagina via de volgende QR-code of weblink, voor meer informatie
over dit product of de beschikbare vertalingen van deze gebruiksaanwijzing.
ES
¿Desearía recibir unas instrucciones de uso completas sobre este producto en un idioma
determinado? Entonces visite nuestra página web utilizando el siguiente enlace (código
QR) para ver las versiones disponibles.
IT
Desidera ricevere informazioni esaustive su questo prodotto in una lingua specica?
Venga a visitare il nostro sito Web al seguente link (codice QR Code) per conoscere le
versioni disponibili.
www.bresser.de/P7007511
www.bresser.de/warranty_terms
GARANTIE · WARRANTY · GARANTÍA · GARANZIA
RECYCLAGE (TRIMAN/FRANCE)

3
Table of contents
1 Imprint ..................................................................................................... 5
2 Validity note ............................................................................................ 5
3 Features ................................................................................................... 6
4 About this Instruction Manual ............................................................. 6
5 General safety instructions...................................................................7
6 Parts overview and scope of delivery ................................................ 10
7 Screen display ....................................................................................... 11
8 Before commissioning ......................................................................... 12
9 Power supply.........................................................................................13
10 Battery level indicator ......................................................................... 14
11 Automatic time setting........................................................................ 15
12 Manual time setting............................................................................. 15
13 Alarm setting ........................................................................................ 16
14 Snooze function .................................................................................... 17
15 Temperature/humidity alert setting .................................................17
16 Receiving measurements automatically........................................... 18
17 Display change °C/°F ............................................................................18
18 Weekday display ................................................................................... 19
19 Clima indicator...................................................................................... 19

4
20 Weather trend.........................................................................................20
21 Connecting remote sensors ..................................................................20
22 MAX/MIN weather data.........................................................................21
23 Backlight/Display dimming...................................................................21
24 Disposal....................................................................................................21
25 Technical data.........................................................................................22
26 Warranty..................................................................................................23
27 EC declaration of conformity ................................................................23
28 UKCA declaration of conformity ...........................................................23

5 / 28
1 Imprint
Bresser GmbH
Gutenbergstr. 2
46414 Rhede
Germany
www.bresser.de
For any warranty claims or service inquiries, please refer to
the information on "Warranty" and "Service" in this docu-
mentation. We ask for your understanding that unsolicited
returns cannot be processed.
Errors and technical changes excepted.
© 2023 Bresser GmbH
All rights reserved.
The reproduction of this documentation - even in extracts -
in any form (e.g. photocopy, print, etc.) as well as the use
and distribution by means of electronic systems (e.g. image
file, website, etc.) without the prior written permission of
the manufacturer is prohibited.
The designations and brand names of the respective com-
panies used in this documentation are generally protected
by trade, trademark and/or patent law in Germany, the
European Union and/or other countries.
2 Validity note
This documentation is valid for the products with the follow-
ing article numbers:
7007511
Manual version: 0623
Manual designation:
Manual_7007511_MeteoTemp-BF_en_BRESSER_v062023a
Always provide information when requesting service.

6 / 28
3 Features
• Weather forecast, temperature and humidity
• Indoor comfort indicator and mould warning function
• Alarm function for temperature and humidity
• Heat index and dew point
• Min./max. value memory
• DCF time (12- or 24-hour display) and date
• Alarm
• Can be placed on a tabletop or mounted to the wall
• Dimensions: 146.7 x 93.5 x 20 mm
• Batteries: 3x AAA (Station), 2x AAA (Sensor)
• Incl.: Outdoor sensor
4 About this Instruction Manual
NOTICE
These operating instructions are to be considered a
component of the device.
Read the safety instructions and the instruction manual
carefully before using this device.
Keep these instruction manual in a safe place for future ref-
erence. If the device is sold or passed on, the instruction
manual must be passed on to any subsequent owner/user
of the product.

7 / 28
5 General safety instructions
DANGER
Risk of an electric shock!
This device contains electronic parts that are powered by a
power source (AC adapter and/or batteries). Improper use
of this product may result in electric shock. Electric shock
can cause serious or fatal injuries. It is therefore imperative
that you observe the following safety information.
• Never leave children unattended when handling the
device! Follow the instructions carefully and do not at-
tempt to power this device with anything other than
power sources recommended in this instruction
manual, otherwise there is a danger of an electric
shock!
• Disconnect the power supply by pulling the mains plug
when the appliance is not in use, in case of a longer in-
terruption of operation and before any maintenance
and cleaning work.
• Place your device so that it can be disconnected from
the power supply at any time. The power outlet should
always be near your appliance and should be easily ac-
cessible, as the plug of the power cord serves as a dis-
connect device from the mains supply.
• To disconnect the unit from the mains, always pull the
mains plug and never pull the cable!
• Check this device, cables and connections for damage
before use.
• Never attempt to operate a damaged device, or a
device with damaged electrical parts! Damaged parts
must be replaced immediately by an authorized service
agent.

8 / 28
• Operate the device only in a completely dry environ-
ment and do not touch the device with wet or damp
body parts.
DANGER
Danger of suffocation!
Improper use of this product may result in suffocation, es-
pecially for children. It is therefore imperative that you ob-
serve the following safety information.
• Keep packaging materials (plastic bags, rubber bands,
etc.) away from children! There is a danger of choking!
• This product contains small parts that can be swal-
lowed by children! Choking hazard!
DANGER
Explosion hazard!
Improper use of this product may result in fire. It is essen-
tial that you observe the following safety information in or-
der to avoid fires.
• Do not expose the device to high temperatures. Use
only the supplied AC adapter or the recommended bat-
teries. Do not short-circuit the device or batteries or
dispose of in fire! Excessive heat and improper hand-
ling can cause short circuits, fires and even explosions!
NOTICE
Danger of material damage!
Improper handling may result in damage to the unit and/or
accessories. Therefore, use the device only in accordance
with the following safety information.

9 / 28
• Do not disassemble the device! In the event of a defect,
please contact your dealer. They will contact the Service
Center and can arrange the return of this device for re-
pair if necessary.
• Do not expose the device to high temperatures and
protect it from water and high humidity.
• Do not immerse the unit in water!
• Do not subject the device to excessive vibrations.
• Only use accessories and spare parts for this device
that comply with the technical specifications.
• Use only the recommended batteries. Always replace
weak or empty batteries with a new, complete set of
batteries at full capacity. Do not use batteries from dif-
ferent brands or types or with different capacities. Re-
move batteries from the device if it is not to be used for
a longer period of time!
• Do not use rechargeable batteries (accumulators).
NOTICE
Danger of voltage damage!
The manufacturer accepts no liability for voltage damage as
a result of incorrectly inserted batteries, or the use of an un-
suitable mains adapter!

10 / 28
6 Parts overview and scope of delivery
11
9
12
10
8654
7
3
13
14
15
12
A
17
B
18
19
20
23
22
21
24
16
29
25
26
C
D
26
28
Illustration1: All parts of the base station (top), the sensors (bottom right) and the
AC power adapter (bottom left) in overview.
1 Display frame 2 Snooze/Light key
3 Display area “Indoor” 4 [UP] Touch key
5 [DOWN] Touch key 6 [ALERT] Touch key
7 Display area “Forecast” 8 [CH] Touch key
9 [SET] touch key 10 Display area "Outdoor”
11 Display area "Time/Date” 12 Wall mount fixture
13 Ventilation slits 14 Stand, foldable
15 Battery compartment 16 Battery compartment cover
17 Power connection socket 18 LCD display
19 Function indicator 20 Wall mount fixture
21 [RESET] knob 22 Channel selector switch
23 Battery compartment 24 Battery compartment cover

11 / 28
25 Euro plug adapter 26 UK plug adapter
27 Adapter fixture 28 Locking knob
29 DC barrel connector
Scope of delivery:
1 x base station (A), 1 x outdoor sensor (B), 1 x AC power ad-
apter (C) with 2 x plug adapters (D)
Also required (not included):
2 pcs. Batteries type AAA/LR03 (sensor), 3 pcs. Batteries type
AAA/LR03 (base station, optional)
7 Screen display
D13
D6
D5
D3
D1 D2 D4
D7 D9
D11
D10
D8
D14
D12
D22
D15
D20
D16
D17
D19
D23
D12
D24
D12
D15
D21
D17
D18
D8 D11
D8 D11
D8
D11

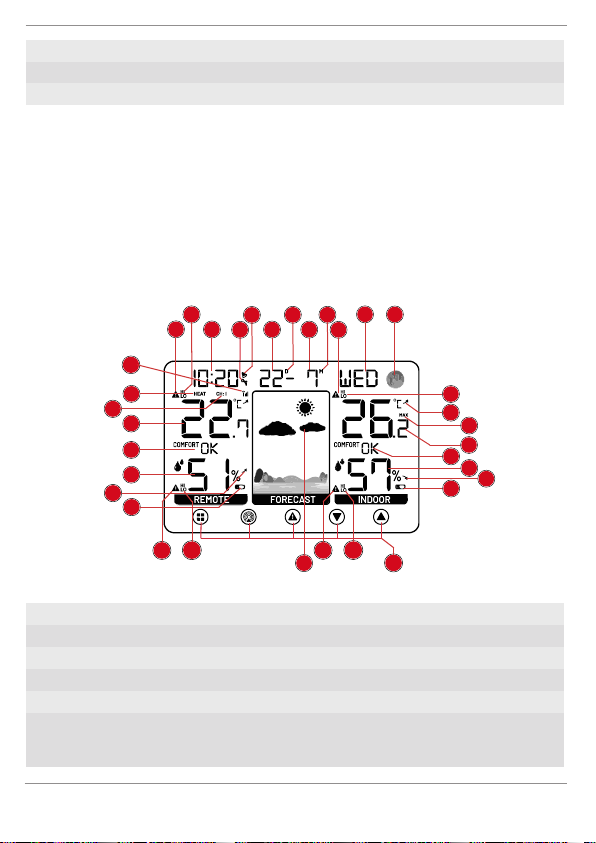

Illustration2: Display options on the base station
D1 Time / alarm time D2 Radio controlled clock symbol
D3 Alarm clock icon D4 Date (day)*
D5 Info icon "Tag D6 Date (month)*
D7 Month" info icon D8 Warning symbol for D11
D9 Weekday** D10 Moon phase
D11 Info when the highest (HI) or
lowest (LO) warning value is
reached
D12 Trend arrow (rising, falling, con-
stant)

12 / 28
D13 Info on highest (MAX) or lowest
(MIN) value
D14 Indoor temperature (°C or °F se-
lectable)
D15 Climate indicator D16 Indoor humidity (in %)
D17 Battery level indicator D18 Touch control panels
D19 Weather forecast (24 hours) D20 Outdoor humidity (in %)
D21 Outdoor temperature (°C or °F se-
lectable)
D22 Selected sensor channel
D23 Heat Index (HEAT) or Dew Point
(DEW)
D24 Symbol for quality of signal
transmission
*Values can be exchanged against each other; **display de-
pends on language setting; ***more info in parts overview
8 Before commissioning
NOTICE
Avoid connection faults!
In order to avoid connection problems between the devices,
the following points must be observed during commission-
ing.
1. Place the base unit (receiver) and sensor (transmitter)
as close together as possible.
2. Connect the power supply to the base unit and wait un-
til the indoor temperature is displayed.
3. Establish power supply for the sensor.
4. Set up/operate the base unit and sensor within the ef-
fective transmission range.
5. Make sure that the base unit and the radio sensor are
set to the same channel.
When changing the batteries, always remove the batteries
from both the base unit and the sensor and reinsert them in
the correct order so that the radio link can be re-estab-
lished. If one of the two devices is operated via a mains
power connection, the power connection must also be
briefly disconnected for this device when the batteries are

13 / 28
changed. If, for example, only the batteries in the sensor
are replaced, the signal may subsequently not be received
at all or not be received correctly.
Note that the actual range depends on the respective con-
struction materials used for the buildings as well as the re-
spective position of the base unit and the outdoor sensor.
External influences (various radio transmitters and other
sources of interference) can greatly reduce the possible
range. In such cases, we recommend finding other locations
for both the base unit and the outdoor sensor. Sometimes
moving the sensor by just a few centimeters is enough!
9 Power supply
NOTICE!The base unit can be operated both with the sup-
plied power adapter or with batteries.
Base unit
1. Press and hold the locking button on the adapter fix-
ture of the AC power adapter. At the same time, insert
the desired plug adapter into the adapter fixture and
screw it in as far as it will go in the "LOCK" direction .
Release the locking knob.
2. Insert the DC barrel connector into the connection
socket on the base unit.
ATTENTION! Make sure that the plug adapter is firmly
and securely fastened in the adapter fixture of the AC
power adapter before proceeding!
3. Insert the AC power adapter with the previously moun-
ted the plug into the power outlet.
4. The device is powered on directly.
5. Wait until indoor temperature is displayed on the base
unit.

14 / 28
6. To replace the plug adapter, hold down the locking but-
ton and turn the plug adapter in the "OPEN" direction
and remove it from the adapter holder. Then perform
step 1 to mount another plug adapter.
NOTE: Alternatively, operation using batteries (2 x AAA/
LR03) is also possible. The display goes into sleep mode
during battery operation and can be activated by press-
ing the snooze button for approx. 15 sec. To do this, pro-
ceed as follows:
7. Remove the battery compartment cover.
8. Insert batteries into the battery compartment. Make
sure that the batteries are correctly aligned (+/- poles).
9. Replace the battery compartment cover.
10. Wait until indoor temperature is displayed on the base
unit.
Wireless sensors
11. Remove the battery compartment cover.
12. Insert the batteries into the battery compartment.
Make sure that the batteries are correctly aligned (+/-
poles).
13. Move CH slider to the position for the desired transmis-
sion channel (setting CH1, CH2 or CH3 with indication
on the display).
NOTE: When operating an outdoor sensor, channel 1 is
recommended as the default setting.
14. Replace the battery compartment cover.
10 Battery level indicator
1. When the level of the batteries in the base station or in
the wireless sensor reaches a critical level, the battery
level symbol appears in the appropriate area on the
display.

15 / 28
2. When replacing one set of batteries, always remove the
batteries from the other part of the unit and reinsert
them in the correct order (see chapter "Setting up
power supply"). Replace the batteries to be changed in
the corresponding part of the device with a completely
new set with full capacity. This ensures that the connec-
tion between the devices will be reestablished again
correctly.
11 Automatic time setting
After the power has been restored, the unit automatically
searches for the radio signal. It takes approximately 3-8
minutes for this process to be completed.
If the radio signal is received correctly, the date and time
are set automatically and the reception symbol is displayed.
If no radio signal has been received, proceed as follows:
1. Press the UP button for approx. 2 seconds to initiate
the reception of the radio signal again.
2. Press the UP button for approx. 2 seconds to initiate
the reception of the radio signal again.
3. If still no radio signal is received, the time must be set
manually.
12 Manual time setting
1. Press the [SET] key for approx. 2 seconds to enter the
time setting mode.
2. Digits to be set are flashing.
3. Press [UP] or [DOWN] key to change the value.
4. Press the [SET] key to confirm and switch to the next
setting.
5. Sequence of settings: 12/24 > time zone > hours >
minutes > day/month display change > year > month >
day > language > temperature unit

16 / 28
6. Finally, press the [SET] key to save the settings and exit
setting mode.
NOTICE!If no key has been pressed for 20 seconds, the set-
ting mode is automatically exited. The changes made up to
that point are saved.
13 Alarm setting
Setting the alarm time
1. In the normal display mode, press the [SET] key re-
peatedly to switch to the alarm time display (AL).
2. Press the [SET] key for about 2 seconds to enter the
alarm time settings mode.
3. The digits to be set for the alarm time flash at the posi-
tion where the time is displayed in the normal display
mode.
4. Press [UP] or [DOWN] key to set the desired value.
5. Press the [SET] key to confirm and switch to the next
setting.
6. Sequence of the settings: Hours > minutes
7. Finally, press the [SET] key to save the settings and exit
settings mode.
Enable/disable the alarm
8. In the normal display mode, press the [SET] key re-
peatedly to switch to the alarm time display (AL).
9. Press the [UP] or [DOWN] key to activate the wake-up
call. The symbol is shown on the display.
10. Press the [UP] or [DOWN] key again to deactivate the
wake-up call. The symbol is no longer shown on the
display.

17 / 28
14 Snooze function
1. When the alarm sounds, press the snooze/light key to
activate the snooze function. The alarm sounds again
after 5 minutes.
2. When the alarm sounds, press any other key to stop
the alarm until the set alarm time is reached again.
3. If no key is pressed, the alarm is automatically switched
off after 2 minutes.
NOTICE!The wake-up call starts with a short beep. Several
short beeps follow if the wake-up call is active for more
than 20 minutes.
15 Temperature/humidity alert setting
1. Press and hold the [ALERT] key for about 3 seconds in
the normal time display mode to enter the temperature
alarm setting mode.
2. Digits to be set are flashing.
3. Press [UP] or [DOWN] key to change the value.
4. Press the [ALERT] key to confirm and switch to the next
setting.
5. Sequence of settings: Outdoor temperature upper limit
> Outdoor temperature lower limit > Outdoor humidity
upper limit > Outdoor humidity lower limit > Indoor
temperature upper limit > Indoor temperature lower
limit > Indoor humidity upper limit > Indoor humidity
lower limit > Exit.
6. If no setting has been made after 10 seconds, the tem-
perature setting mode is automatically closed. The set-
tings made up to that point are saved.
Activate/deactivate temperature alarm
7. In the normal display mode, press the [ALERT] key to
switch to the temperature alarm mode.

18 / 28
8. Press the [UP] or [DOWN] key to activate or deactivate
the temperature alarm. The warning symbol is dis-
played for the activated range.
9. If one of the set limit values is reached, the symbol for
the temperature alarm flashes and a warning tone (two
beeps per second) sounds for about 5 seconds. This is
repeated at intervals of 1 minute each until the temper-
ature falls below the limit value again.
10. When the alarm sounds, press any key to stop the
alarm.
16 Receiving measurements automatically
Once the power supply is enabled, the base station will dis-
play the measurement readings for indoors. Readings from
the outdoor sensor will be displayed within 3 minutes after
powering it on.
If no signal is received, proceed as follows:
Press the CH button for about 3 seconds to initate reception
of measurements again.
17 Display change °C/°F
The temperature is shown on the base station display in °C
by default. To change the temperature unit, proceed as fol-
lows.
1. In normal display mode, press the [SET] key for approx.
3 seconds to enter the setting mode. The setting for the
12/24-hour mode flashes.
2. Press the [SET] key several times until the temperature
unit flashes.
3. Press the [UP] or [DOWN] key to toggle between °C and
°F.
4. Finally, press the [SET] key to save the settings and exit
the setting mode.

19 / 28
18 Weekday display
This weather station shows on the display the first three let-
ters of the respective weekday in the selected language. Ex-
ample: MON = Monday, TUE = Tuesday etc
19 Clima indicator
This weather station displays indoor and outdoor climate
comfort level info based on measured humidity.
Display Humidity
Too dry 1%~25%
Dry 26%~39%
Comfort OK 40%~75%
Wet 76%~83%
Too wet 84%~99%
In addition, the weather station calculates the potential
danger of mold growth and also displays this information
for indoor and outdoor use.
Temperature Humidity Display
T<9.4°C
(T<49°F)
H 0
49%<=H<=78% 0
79%<=H<=87% 0
H>=88% 0
9.4°C <=T<=26.6°C
(49°F <=T<=79.9°F)
H 0
49%<=H<=78% LOW
79%<=H<=87% MED
H>=88% MED
26.7°C<=T<=30.5°C)
(80°F <=T<=86.9°F)
H LOW
49%<=H<=78% LOW
79%<=H<=87% MED
H>=88% HI
30.6°C <=T<=40°C
(87°F <=T<=104°F)
H LOW
49%<=H<=78% MED

20 / 28
Temperature Humidity Display
79%<=H<=87% MED
H>=88% HI
T>=40.1°C
(T>=104.1°F)
H 0
20 Weather trend
F1 F2 F3 F3F4 F5F5 F6F6
Illustration3: Graphical representation of the weather trend
F1 Sunny F2 Partly sunny
F3 Cloudy F4 Rainy
F5 Stormy F6 Snow
21 Connecting remote sensors
The Weather Station can display the readings from up to 3
wireless sensors* of the same type. Each radio sensor must
be set to a separate channel. Proceed as follows to set the
channel:
1. Remove the battery compartment cover of the wireless
sensor.
2. Set the channel selection switch to the desired channel
(1, 2 or 3).
3. Re-attach the battery compartment cover.
4. Press the [CH] key on the base station several times to
display the measured values for the individual chan-
nels. The selected channel is shown in the display.
