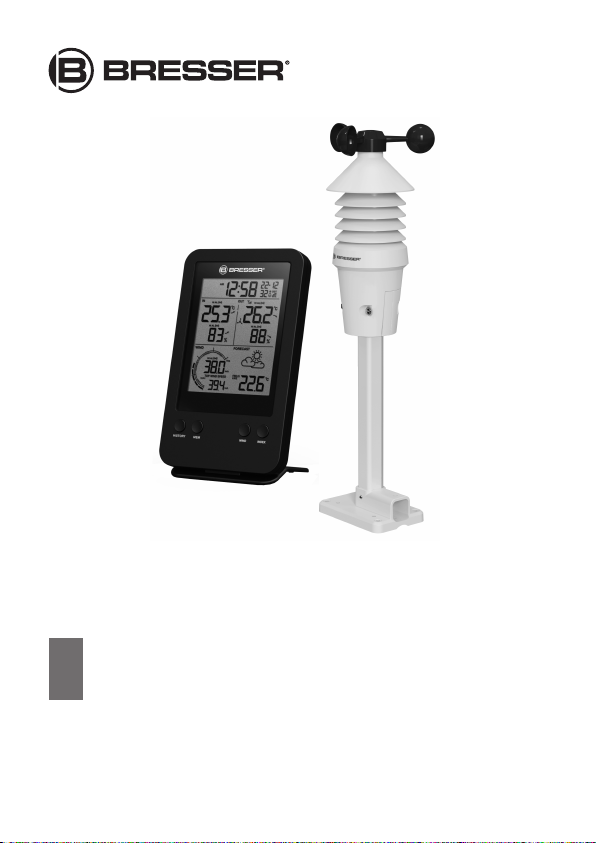

Bresser Wind Gauge Pro User manual

Weather Station · Wetterstation ·
Wind Gauge Pro · Windmesser Pro
EN Instruction manual
DE Bedienungsanleitung

DE
Besuchen Sie unsere Website über den folgenden QR Code oder Weblink um weitere
Informationen zu diesem Produkt oder die verfügbaren Übersetzungen dieser Anleitung zu
finden.
EN
Visit our website via the following QR Code or web link to find further information on this
product or the available translations of these instructions.
FR
Si vous souhaitez obtenir plus d’informations concernant ce produit ou rechercher ce mode
d’emploi en d’autres langues, rendez-vous sur notre site Internet en utilisant le code QR ou le
lien correspondant.
NL
Bezoek onze internetpagina via de volgende QR-code of weblink, voor meer informatie over dit
product of de beschikbare vertalingen van deze gebruiksaanwijzing.
IT
Desidera ricevere informazioni esaustive su questo prodotto in una lingua specifica? Venga
a visitare il nostro sito Web al seguente link (codice QR Code) per conoscere le versioni
disponibili.
ES
¿Desearía recibir unas instrucciones de uso completas sobre este producto en un idioma
determinado? Entonces visite nuestra página web utilizando el siguiente enlace (código QR)
para ver las versiones disponibles.
CA
Voleu una guia detallada d'aquest producte en un idioma específic? Visiteu el nostre lloc web
a través del següent enllaç (codi QR) per accedir a les versions disponibles.
PT
Deseja um manual detalhado deste produto numa determinada língua? Visite a nossa Website
através da seguinte ligação (QR Code) das versões disponíveis.
www.bresser.de/P7002531
www.bresser.de/warranty_terms
GARANTIE · WARRANTY · GARANTÍA · GARANZIA
DE
Besuchen Sie unsere Website über den folgenden QR Code oder Weblink um weitere
Informationen zu diesem Produkt oder die verfügbaren Übersetzungen dieser Anleitung zu
finden.
EN
Visit our website via the following QR Code or web link to find further information on this
product or the available translations of these instructions.
FR
Si vous souhaitez obtenir plus d’informations concernant ce produit ou rechercher ce mode
d’emploi en d’autres langues, rendez-vous sur notre site Internet en utilisant le code QR ou le
lien correspondant.
NL
Bezoek onze internetpagina via de volgende QR-code of weblink, voor meer informatie over dit
product of de beschikbare vertalingen van deze gebruiksaanwijzing.
IT
Desidera ricevere informazioni esaustive su questo prodotto in una lingua specifica? Venga
a visitare il nostro sito Web al seguente link (codice QR Code) per conoscere le versioni
disponibili.
ES
¿Desearía recibir unas instrucciones de uso completas sobre este producto en un idioma
determinado? Entonces visite nuestra página web utilizando el siguiente enlace (código QR)
para ver las versiones disponibles.
CA
Voleu una guia detallada d'aquest producte en un idioma específic? Visiteu el nostre lloc web
a través del següent enllaç (codi QR) per accedir a les versions disponibles.
PT
Deseja um manual detalhado deste produto numa determinada língua? Visite a nossa Website
através da seguinte ligação (QR Code) das versões disponíveis.
www.bresser.de/P7002531
www.bresser.de/warranty_terms
GARANTIE · WARRANTY · GARANTÍA · GARANZIA

3
Table of contents
1 Imprint (German) .................................................................. 5
2 Validity note .......................................................................... 5
3 About this Instruction Manual............................................. 6
4 General safety instructions ................................................. 6
5 Parts overview and delivery content - base station.......... 9
6 Parts overview and delivery content - windmeter........... 11
7 Scope of delivery................................................................ 12
8 Screen display .................................................................... 13
9 Before starting operation................................................... 14
10 Setting up power supply.................................................... 15
11 Attaching rubber linings.................................................... 16
12 Windmeter installation and mounting .............................. 16
13 Automatic time setting....................................................... 18
14 Manual time setting and other user defined settings ..... 18
15 Alarm setting....................................................................... 19
16 Snooze function.................................................................. 19
17 Receiving measurements automatically .......................... 20

4
18 Setting the ice pre-alarm .....................................................20
19 MAX/MIN Weather data ........................................................20
20 HI/LO Alert.............................................................................21
21 History data...........................................................................23
22 Weather Trend ......................................................................23
23 Trend arrow indicators.........................................................23
24 Feels like temperature .........................................................24
25 Wind chill factor....................................................................24
26 Heat index .............................................................................24
27 Dew point ..............................................................................25
28 Beaufort scale.......................................................................26
29 EC declaration of conformity ..............................................27
30 UKCA Declaration of Conformity........................................27
31 Disposal ................................................................................28

5 / 60
1 Imprint (German)
Bresser GmbH
Gutenbergstr. 2
46414 Rhede
Germany
http://www.bresser.de
For any warranty claims or service enquiries, please refer to
the information on "Warranty" and "Service" in this docu-
mentation. We apologize for any inconvenience caused by
the fact that we cannot process enquiries or submissions
sent directly to the manufacturer's address.
Errors and technical changes excepted.
© 2021 Bresser GmbH
All rights reserved.
The reproduction of this documentation - even in extracts -
in any form (e.g. photocopy, print, etc.) as well as the use
and distribution by means of electronic systems (e.g. image
file, website, etc.) without the prior written permission of the
manufacturer is prohibited.
The designations and brand names of the respective com-
panies used in this documentation are generally protected
by trade, trademark and/or patent law in Germany, the
European Union and/or other countries.
2 Validity note
This documentation is valid for the products with the follow-
ing article numbers:
7002531

6 / 60
Manual version: 0321
Manual designation:
Manual_7002531_Wind-gauge-Windmesser_en-
de_BRESSER_v032021a
Always provide information when requesting service.
3 About this Instruction Manual
NOTICE
These operating instructions are to be considered a
component of the device.
Read the safety instructions and the operating manual care-
fully before using this device.
Keep this instruction manual in a safe place for future refer-
ence. When the device is sold or given to someone else,
the instruction manual must be provided to the new owner/
user of the product.
4 General safety instructions
DANGER
Danger of suffocation!
Improper use of this product may result in suffocation, espe-
cially for children. It is therefore imperative that you observe
the following safety information.
• Keep packaging materials (plastic bags, rubber bands,
etc.) away from children! There is a danger of choking!
• This product contains small parts that can be swal-
lowed by children! Choking hazard!

7 / 60
DANGER
Risk of an electric shock!
This device contains electronic parts that are powered by a
power source (AC adapter and/or batteries). Improper use
of this product may result in electric shock. Electric shock
can cause serious or fatal injuries. It is therefore imperative
that you observe the following safety information.
• Never leave children unattended when handling the
device! Follow the instructions carefully and do not at-
tempt to power this device with anything other than
power sources recommended in this instruction
manual, otherwise there is a danger of an electric
shock!
DANGER
Explosion hazard!
Improper use of this product may result in fire. It is essential
that you observe the following safety information in order to
avoid fires.
• Do not expose the device to high temperatures. Use
only the recommended batteries. Do not short-circuit
the device or batteries, or throw them into a fire! Ex-
cessive heat or improper handling could trigger a short-
circuit, a fire or an explosion!
NOTICE
Danger of material damage!
Improper handling may result in damage to the unit and/or
accessories. Therefore, use the device only in accordance
with the following safety information.

8 / 60
• Do not disassemble the device! In the event of a defect,
please contact your dealer. They will contact the Ser-
vice Center and can arrange the return of this device
for repair if necessary.
• Do not immerse the unit in water!
• Do not expose the device to impacts, vibrations, dust,
constant high temperatures or excessive humidity. This
can result in malfunctions, short-circuits or damage to
the batteries and components.
• Use only the recommended batteries. Always replace
weak or empty batteries with a new, complete set of
batteries at full capacity. Do not use batteries from dif-
ferent brands or types or with different capacities. Re-
move batteries from the device if it is not to be used for
a longer period of time!
NOTICE
Risk of voltage damage!
The manufacturer is not liable for damage related to improp-
erly installed batteries!

9 / 60
5 Parts overview and delivery
content - base station
1
2
7
9
8
10
11
12
19
3
4
5
6
15
18
17
16
14
13
20
21
A
B

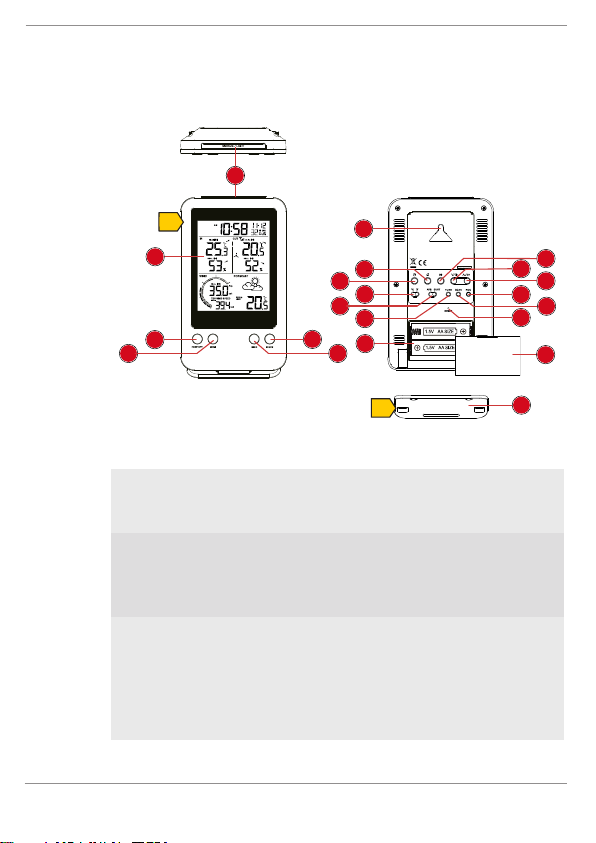

Illustration1: All parts of the base station
1 SNOOZE/LIGHT button
(snooze function and
backlight)
2 Display
3 HISTORY button (show
hourly records for tem-
perature, humidity and
wind speed)
4 MEM button (show re-
corded data)
5 INDEX button (display
change between 'feels
like' temperature, dew
point, heat index and
wind chill index)
6 WIND button (wind
speed unit setting or dis-
play change between
hourly, daily, monthly
and yearly top wind
speed)

10 / 60
7 Wall mount 8 ALARM button (alarm
time setting)
9 CLOCK button (manual
time and date setting)
10 °C/°F slider (display
change betw. °C and °F)
11 AVG/GUST slider (dis-
play change between
average wind speed
(AVG) and gust wind
speed (GUST).
12 TUNE button (calibra-
tion of base station and
sensor)
13 ALERT button (set tem-
perature and humidity
alarm)
14 DOWN/Contrast button
(decrease value setting
or change display con-
trast)
15 UP/CH button (increase
value setting or select
sensor channel)
16 RCC button (enable or
disable RCC signal)
17 SCAN button (initiate
sensor transmission)
18 RESET button (reset all
settings)
19 Battery compartment 20 Battery compartment
cover
21 Stand, removable
Scope of delivery
Base unit (A), stand (B)
Recommended batteries (not included):2 pcs. of Mignon
batteries (1.5V AA type)

11 / 60
6 Parts overview and delivery
content - windmeter
2
3
4
10
1
12
11
3
6
7
5
4
9
13
C
12 17
15
14
16
11
4
8
Illustration2: All parts of the windmeter
1 Wind cups 2 Upper housing part
3 Bottom housing part 4 Thick fully threaded screw
5 LED Status indicator (flashes
during data transmission)
6 Radiation protection slats
7 Battery compartment 8 RESET button (reset all set-
tings)
9 Battery compartment cover 10 Rod clamp on bottom hous-
ing part
11 Thick nut 12 Mounting rod

12 / 60
13 Mounting base (for vertical
and horizontal assembly of
the mounting rod)
14 Thin nut
15 Thin partly threaded screw 16 Tube clamp (counterpart)
17 Rubber pads
Scope of delivery
Windmeter (C), 2x thin partly threaded screw with nut, 4x
thick fully threaded screw with nut and ring washer
Recommended batteries (not included):
3 pcs. of Mignon batteries (1.5V AA type) Mignon batteries
(1.5V, AA type)
7 Scope of delivery
Base unit (A), stand (B), windmeter (C), mounting material
incl. screws
Recommended batteries (not included)
Station: 2 pcs. Mignon batteries (1.5V, AA type)
Sensor: 3 pcs. Mignon batteries (1.5V, AA type)

13 / 60
8 Screen display
123
5
4
6
7
10
8
9
11
12
13
14
15
19 16
20 18
17
21
22
23
24

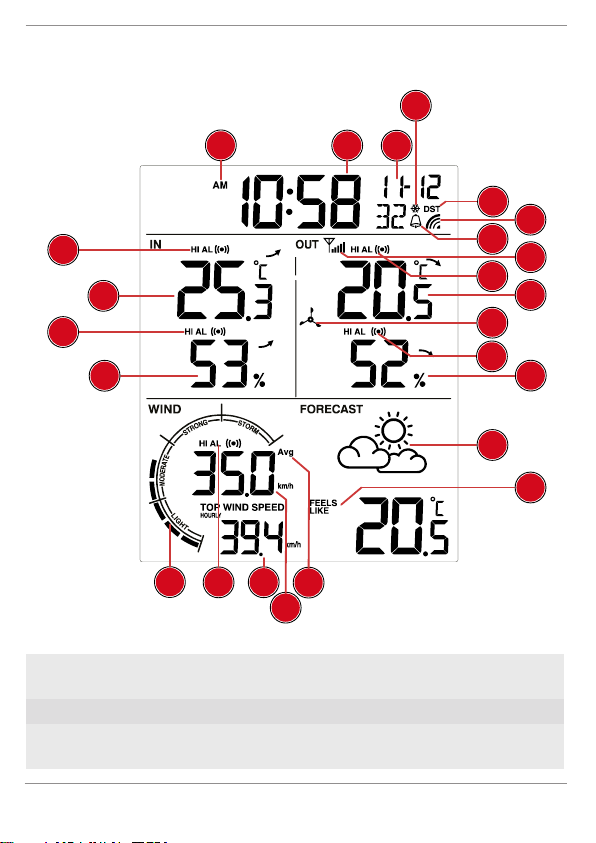

Illustration3: Screen display
1 AM/PM information in 12-
hour time mode
2 Current time
(hours:minutes:seconds)
3 Date (month-day or reverse) 4 Frost warning enabled
5 Automatic daylight saving
time enabled
6 Transmission symbol for ra-
dio-controlled clock

14 / 60
7 Alarm enabled 8 Reception symbol for out-
door sensor
9 Outdoor temperature alarm
enabled
10 Outdoor temperature
11 Sensor symbol 12 Outdoor humidity alarm en-
abled
13 Humidity outdoors 14 Weather forecast
15 Information on 'feels like'
temperature, wind chill, dew
point and heat index
16 Type of wind speed
(Avg=average, Gust=current
gust)
17 Wind speed 18 Top wind speed (hourly,
daily, monthly, yearly)
19 Wind speed alarm enabled 20 Wind speed classification
(light, moderate, strong,
storm)
21 Indoor humidity 22 Indoor humidity alarm en-
abled
23 Indoor temperature 24 Indoor temperature alarm
enabled
9 Before starting operation
NOTICE
Avoid connection faults!
In order to avoid connection problems between the devices,
the following points must be observed during commission-
ing.
1. Place the base unit (receiver) and sensor (transmitter)
as close together as possible.
2. Connect the power supply to the base unit and wait un-
til the indoor temperature is displayed.

15 / 60
3. Establish power supply for the sensor.
4. Set up/operate the base unit and sensor within the ef-
fective transmission range.
5. Make sure that the base unit and the radio sensor are
set to the same channel.
When changing the batteries, always remove the batteries
in both the base unit and the sensor and reinsert them in
the correct order so that the radio connection can be re-es-
tablished. If one of the two devices is operated via a mains
power connection, the power connection for this device
must also be disconnected briefly when changing the bat-
tery. If, for example, only the batteries in the sensor are re-
placed, the signal cannot be received or can no longer be
received correctly.
Note that the actual range depends on the building materi-
als used in the building and the position of the base unit and
outdoor sensor. External influences (various radio transmit-
ters and other sources of interference) can greatly reduce
the possible range. In such cases, we recommend finding
other locations for both the base unit and the outdoor
sensor. Sometimes a shift of just a few centimetres is
enough!
10 Setting up power supply
Base unit
1. Remove the battery compartment cover.
2. Insert the batteries into the battery compartment. En-
sure that the battery polarity (+/-) is correct.
3. Replace the battery compartment cover.
4. Wait until the indoor temperature is displayed on the
base station.

16 / 60
Windmeter
5. Unscrew the upper housing part from the bottom part.
6. Remove the battery compartment cover from the bot-
tom of the upper housing part.
7. Insert the batteries into the battery compartment. En-
sure that the battery polarity (+/-) is correct.
8. Replace the battery compartment cover.
9. Screw bottom housing part to upper housing part.
11 Attaching rubber linings
Attach the supplied self-adhesive rubber pads to the clamps
as shown to ensure a firmer fitting of the mounting rod.
12 Windmeter installation and
mounting
Depending on the desired location, the remote sensor can
be installed in different ways.

17 / 60
NOTICE!During the assembly make sure that the upper
part of the wind vane is minimum 1.5 metres off the
ground.
Assembly on a vertical or horizontal wooden element
1. Remove the screws from the bottom housing part.
2. Pull off the rod clamp from the bottom housing part.
3. Insert one end of the mounting rod into the opening of
the rod clamp so that the position arrows match.
4. Fix the mounting rod to the rod clamp with a thin par-
tially threaded screw and a nut.
5. Depending on the desired orientation, slide the oppos-
ite end of the mounting od into the aperture for vertical
or horizontal mounting of the mounting base.
6. Fix the mounting rod to the mounting base with a thin
partially threaded screw and a nut.
7. Place the mounting base with its bottom site first on a
wooden element and fix it with 4 suitable wood screws.
Assembly on a vertical or horizontal tube
8. Repeat steps 1 to 6 as before.
9. Place the mounting base with its bottom site first on the
tube and press the tube clamp (counterpart) against the
tube from the opposite site.
10. Slide 4 screws through the bore holes of the mounting
base and through the bore holes of the tube clamp on
the other site.
11. Put on the 4 nuts and tighten the screw connection by
hand.

18 / 60
13 Automatic time setting
After the power supply was established, the clock will auto-
matically search for the radio signal. It takes about 3-8
minutes to complete this process.
If the radio signal is received correctly, the date and time
will be set automatically and the radio control signal icon
turns on.
If the clock fails to receive the time signal, go ahead with the
following steps:
1. Press RCC button on the base station until radio signal
symbol flashes.
2. If the device is still not receiving the signal, the time
must be set manually.
14 Manual time setting and other
user defined settings
To set the time / date manually, first disable the reception of
the time signal by pressing the RCC button for approx. 8
seconds.
1. Press and hold CLOCK button for approx. 3 seconds to
change to time setting mode.
2. Digits to be set are flashing.
3. Press UP/CH button or DOWN/Contrast Button to
change the value.
4. Press CLOCK button to confirm and continue to the
next setting.
5. Settings order: 12/24 hours mode > Hours > Minutes >
Seconds > Year > D/M-M/D display change > Month >
Day > Time offset > Language > DST AUTO/OFF

19 / 60
6. Finally press the CLOCK button to save the settings
and exit the setting mode.
15 Alarm setting
1. Press and hold ALARM button for approx. 3 seconds to
enter the alarm time setting mode.
2. Digits to be set are flashing.
3. Press UP or DOWN button to change the value.
4. Press ALARM button to confirm and continue to the
next setting.
5. Settings order: Hours > Minutes
6. Finally press the ALARM button to save the settings
and exit the setting mode. Alarm will be activated auto-
matically. The symbol will be displayed.
7. Press ALARM button in normal display mode to display
the alarm time.
8. Press ALARM button during the alarm time display to
disable the alarm.
16 Snooze function
1. When the alarm sounds press the SNOOZE/LIGHT but-
ton to activate the snooze function. The alarm will
sound again in 5 minutes.
2. Press ALARM button when the alarm sounds to inter-
rupt the alarm until the alarm time will be reached
again.
3. The alarm will be turned off automatically if no button is
pressed within 2 minutes.

20 / 60
17 Receiving measurements
automatically
Once the power supply is enabled, the base station will dis-
play the measurement readings. Readings from the remote
sensor will be displayed within 3 minutes after powering it
on.
If no signal is received, go ahead with the following steps:
Press SCAN button for approx. 2 seconds to initate recep-
tion of measurements again.
Read the detailed manual for more information about read-
ings (see download information on page 2).
18 Setting the ice pre-alarm
Once the outside temperature falls below 3 ° C (37 ° F) and
the ice pre-alarm is activated, an additional alarm will sound
approx. 30 minutes before the actual alarm time.
1. Set and activate alarm (see "Alarm time setting").
2. Press ALARM button several times until the symbols
and appear together on the display.
19 MAX/MIN Weather data
The base station stores the highest and lowest values for
various weather data over the last 24 hours:
1. In normal display mode, press MEM button several
times to display the saved values one after another.
