brewer Brewer FLEX User manual

Brewer
FLEX Access
Exam Table
Installation & Operation Manual
The Brewer Company, LLC
N88 W13901 Main Street, Suite 100
Menomonee Falls, WI 53051
P 1.888.Brewer.1
F 262.251.2332
www.brewercompany.com
Important Information ............................................2
Safety Information .................................................3
Component Identication ......................................3
Specications ........................................................4
Power Cord Selection ...........................................5
Installation .............................................................6
Operation ............................................................12
Table Adjustments...............................................18
Maintenance........................................................20
Service ................................................................20
Troubleshooting...................................................22
Common Service Parts .......................................27
Accessories.........................................................28
Document # 2102862 RevB
Printed in USA © 2015
230V

Brewer
FLEX Access
Exam Table
Printed in USA © 2015 2 Document # 2102862 RevB
Service
If you require assistance with the installation or operation
of your Brewer table, call the Brewer Customer Service
Department at (1-888-Brewer1). Our trained staff will
attempt to assist you in correcting the problem directly
over the phone. If service is required, a factory authorized
technician will be sent to your location.
Please ll in the following information for use when calling
the Brewer Company or your distributor with questions
regarding your unit.
Date of Purchase
Serial Number
Model Number
Authorized
Dealer Name
Dealer
Phone Number
Dealer Address
IMPORTANT INFORMATION
General
Read and understand all operating instructions, safety
information, and maintenance requirements contained in
this manual prior to operating the table. Become familiar
with all of the table functions before using it with a patient.
The Brewer Flex Access Exam Table Models 5700-
230 and 5800-230 are designed to provide positioning
and support of patients during general examinations
conducted by qualied medical professionals. The Brewer
Flex Access Exam Table is primarily used in examination
rooms for general examinations and minor procedures.
The wide variety of positions provided by one or two
powered motions, and slide-out leg support create a safe
and convenient patient positioning table for use in the
doctor’s ofce.
The table is easily adjusted to a wide variety of positions
using the convenient foot control provided with the table.
The table height can be adjusted from 18” to 37”. The
backrest can be adjusted from a at lying down position,
to an 80° angle for seating.
In addition to the electronically controlled positions noted
above, several manual adjustments are available:
Standard Features
• The SafeGlide™ leg support can be extended up to
21” for the patient prone position.

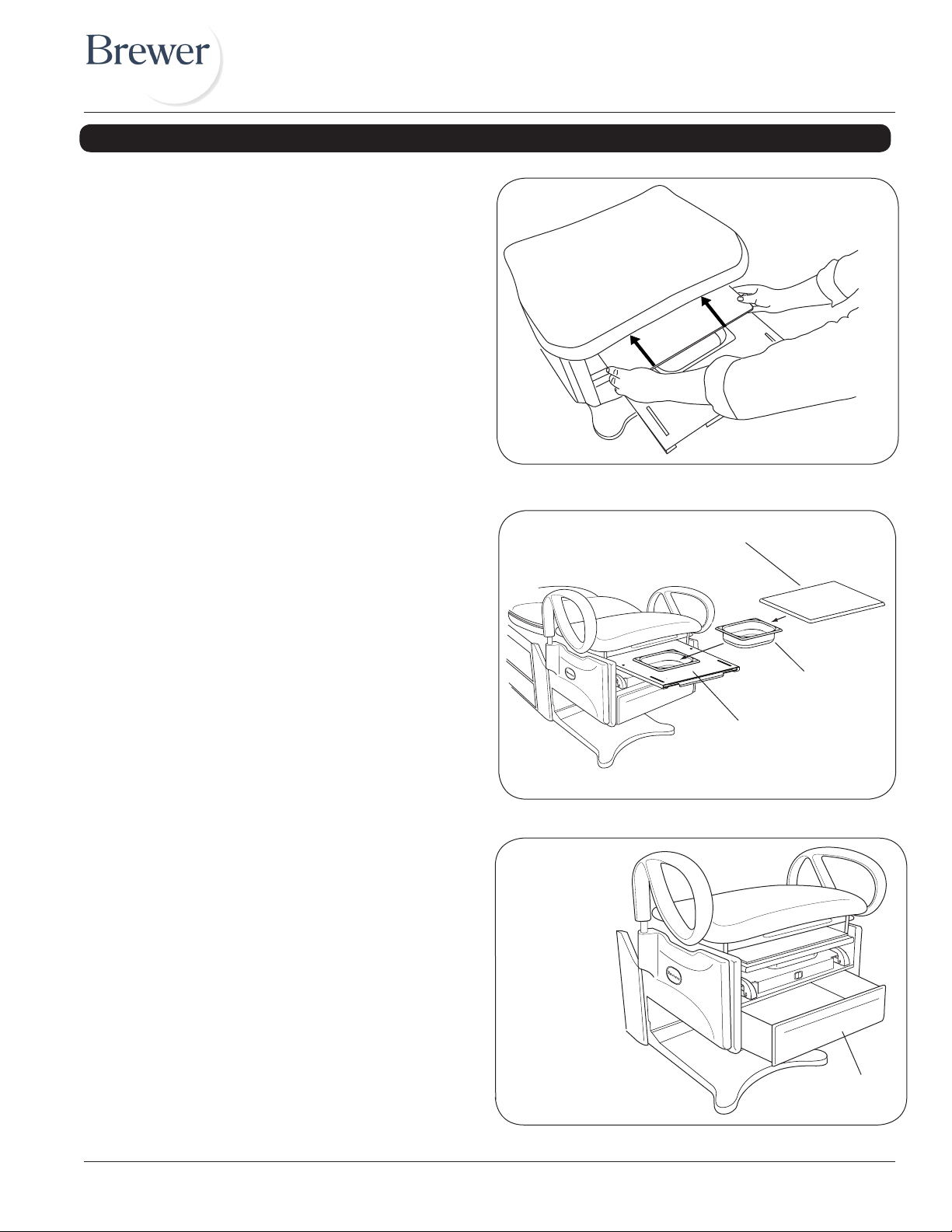

• A removable treatment pan is built-in underneath the
leg support pad for use during examinations.
• A storage drawer at the front of the table may be used
for supplies.
Optional Features
• Stirrups - may be manually extended through innite
positions and four lateral positions.
• Grab bars - attached to each side of the table may be
rotated out of position or removed for improved ac-
cess to the patient.
• Pass through work surface - stored under the seat,
may be pulled out from either side of the table.

Printed in USA © 2015 3 Document # 2102862 RevB
Brewer
FLEX Access
Exam Table
DANGER Indicates a hazardous
situation that, if not avoided, will
result in death or serious injury.
WARNING indicates a hazardous
situation which, if not avoided, could
result in death or serious injury.
CAUTION indicates a hazardous
situation which, if not avoided, could
result in minor or moderate injury.
Safety Information
The primary concern of The Brewer Company is
that the equipment is operated and maintained
with the safety of the patient and healthcare staff
in mind. To ensure safe and reliable operation:
•Read and understand all instructions in this
manual before attempting to install or operate
the unit.
•Ensure that appropriate personnel are
informed on the manual contents. This is the
responsibility of the purchaser.
•Ensure that this manual is located near the
table, or if possible, permanently afxed to the
table.
SAFETY INFORMATION

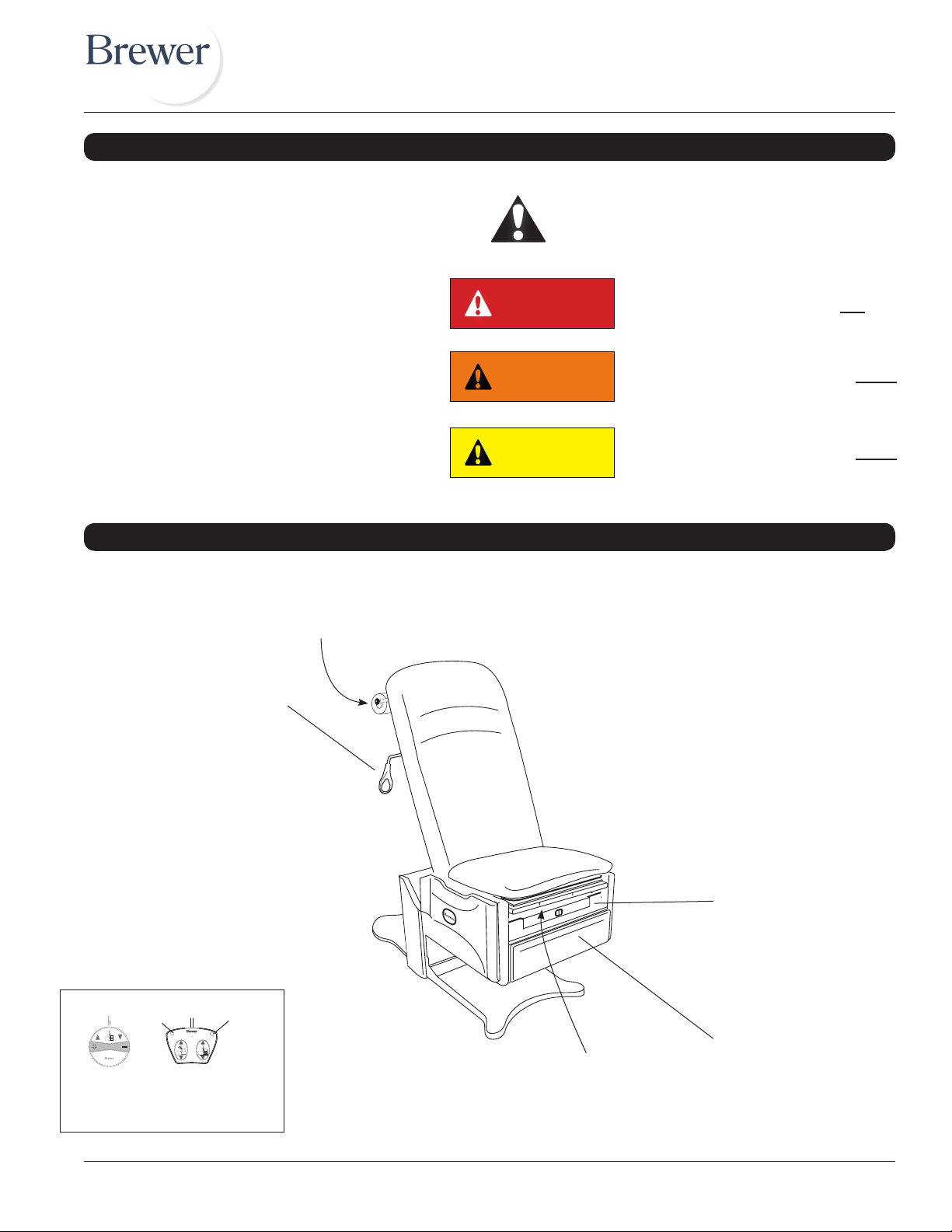

COMPONENT IDENTIFICATION
Figure 1. Component Overview
Paper Roll Holder
Front Drawer
SafeGlide™
Slide-out Leg Support
Treatment Pan
(located under Leg Support Pad)
Foot Controls
Back Release Handle
(Model 5700-230)
Return
To Chair
Stop
Model
5700-230
STOP RETURN
TOCHAIR
Model
5800-230
DANGER
WARNING
CAUTION
This is the safety alert symbol. It is used to
alert you to potential physical injury hazards.
Obey all safety messages that follow this
symbol to avoid possible injury or death.

Brewer
FLEX Access
Exam Table
Printed in USA © 2015 4 Document # 2102862 RevB
Duty Cycle..........................................................................
.........(10%), 2 minutes on / 18 minutes off (motor run time)
Power Cord
Type....................................................................................
Detachable (see chart on page 5 for country of origin)
Type of protection against electrical shock
................................................ Class 2 Double Insulated
Type of protection against ingress of water……Ordinary
Paper Roll Sizes
• Regular......................................................18 in. x 3.5 in.
• Long ..........................................................21 in. x 3.5 in.
Operating Conditions
• Temperature Range ...................................... 65° to 85°F
• Relative Humidity .........................................10% to 90%
Transportation and Storage
• Temperature .............................................-20°F to 150°F
• Humidity ........................................................10% to 90%
Weight of Table ..................................................... 315 lbs
Load Rating (maximum)
• Seat/Back 5700-230/5800-230 .......................... 700 lbs.
• Leg Support ......................................................... 50 lbs.
• Pass Through Work Surface (optional) ................ 15 lbs.
• Grab Bars (optional)........................................... 100 lbs.
Range of Motion
• Back Section Range.................. 0° (horizontal) to 75-85°
• Table Top Height Range..........18 ± 0.5 in. to 37 ± 1.0 in.
Upholstery Dimensions
• Upholstered Top ............... 24 to 28 in. wide x 60 in. long
• Upholstered Leg Support…....…18 in. long x 18 in. wide
• Overall Length of Upholstery.......................... 60 in. long
• Upholstery with Leg Support Extended.......... 78 in. long
Electrical Rating
5700-230/5800-230.............................................................
................................ 230 VAC nominal, 60/50HZ, 3.0 amps
• Fuse Rating:
• Control Box Fuse Rating .............................. 250V/1.25A
SPECIFICATIONS
Model Congurations
Model Power Back Pneumatic
Manual Back
Return To
Chair
5700-230 X
5800-230 X X
Power Cord Plug Type Brewer Part No. Countries Typically Used In
101941
101942
101944
101943
Thailand
Laos
Vietnam
Philippines
Indonesia
Cambodia
101945
2102545
China
Mongolia
Macau
Bangladesh
Saudi Arabia
Myanmar
Hong Kong
Singapore
Malaysia
South Korea
Australia
AU1-10P
CH1-10P
EU1-16P, CEE 7/7
UK2-15P (BS 546 A)
UK1-13P, -BS 1363A
KSC-8305
SK1-16P
This table must be used with a Brewer provided power cord. Failure to do so will void the warranty of electrical components.
NOTICE

Printed in USA © 2015 5 Document # 2102862 RevB
Brewer
FLEX Access
Exam Table

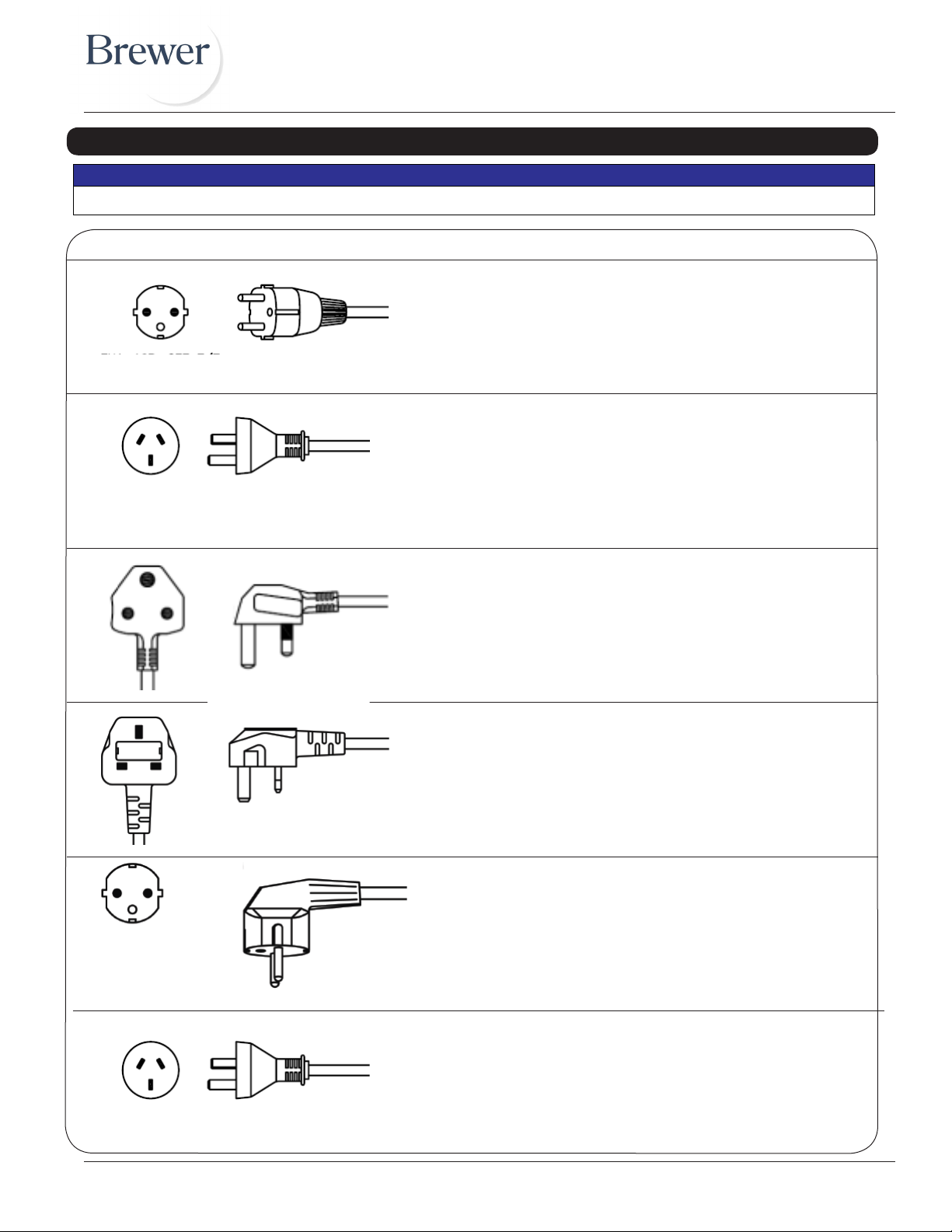

POWER CORD SELECTION
Power Cord Plug Type Brewer Part No. Countries Typically Used In
101941
101942
101944
101943
Thailand
Laos
Vietnam
Philippines
Indonesia
Cambodia
101945
2102545
China
Mongolia
Macau
Bangladesh
Saudi Arabia
Myanmar
Hong Kong
Singapore
Malaysia
South Korea
Australia
AU1-10P
CH1-10P
EU1-16P, CEE 7/7
UK2-15P (BS 546 A)
UK1-13P, -BS 1363A
KSC-8305
SK1-16P
This table must be used with a Brewer provided power cord. Failure to do so will void the warranty of electrical components.
NOTICE

Brewer
FLEX Access
Exam Table
Printed in USA © 2015 6 Document # 2102862 RevB
Overview
Perform the following sequence in order when setting up
the table:
• Uncrating the table
• Leveling the table
• Adjusting Rear Base Extension
• Installing Power Cord
• Installing Foot Control
• Installing Grab Bars
Tools Required
Drill Driver, 7/16” socket bit, or 7/16” wrench, 9/16”
wrench, #2 Phillips bit, side cutter and furniture dolly.
Uncrating

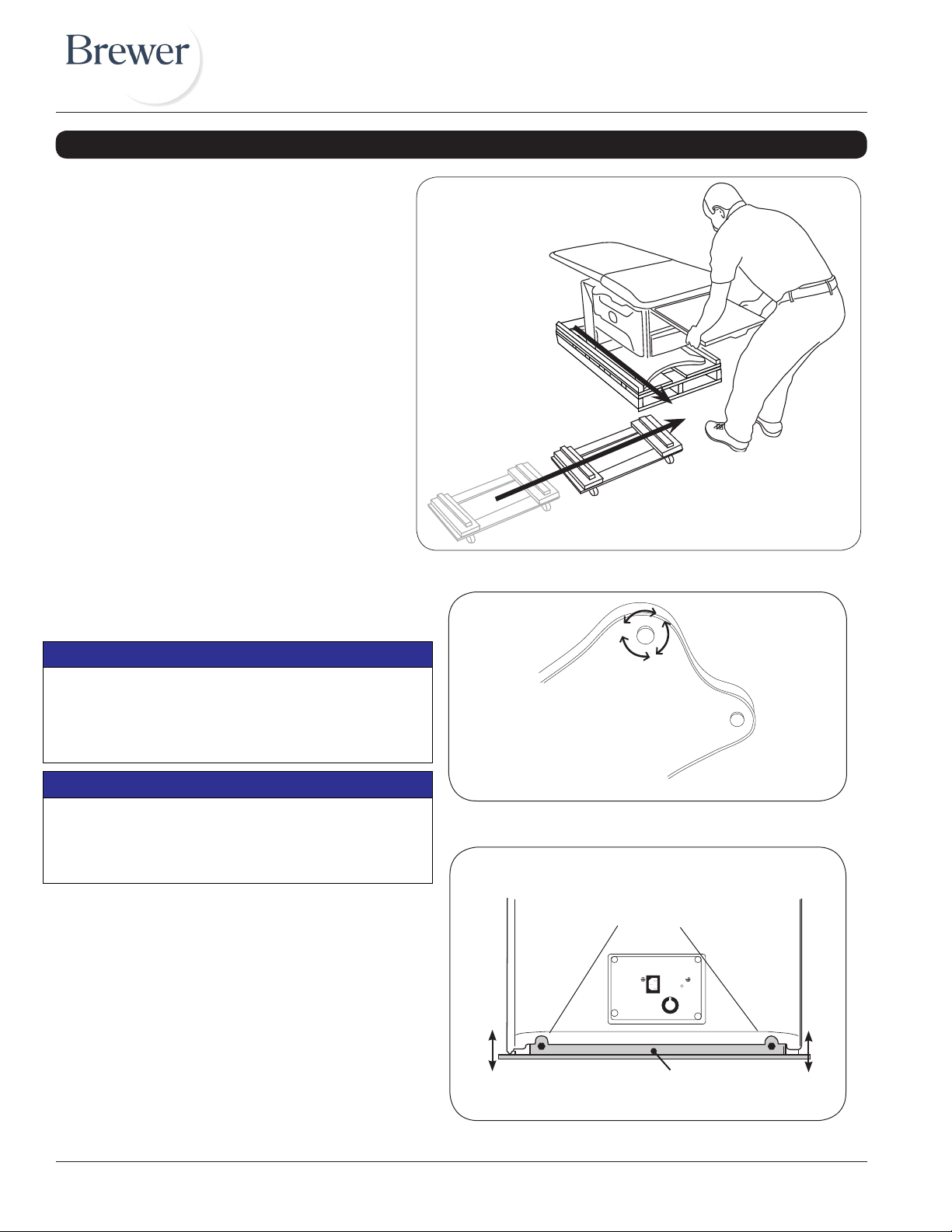

1. Remove stretch wrap surrounding table.
2. Remove the 4 steel shipping brackets securing the
table to the pallet (Figure 2). The brackets hook onto
the table levelers to hold the table securely to the
pallet. Remove the 2 bolts from each bracket using
a 7/16” socket or wrench. Take care not to scratch
the unit when using the driver or turning the wrench.
Remove brackets from levelers once bolts are
removed.
3. Remove the 2 screws attaching the spacers on either
side of the wooden U-shaped brace located under the
front corners of the cabinet (Figure 3). Remove the
2 screws attaching the U-shaped brace to the pallet
(Figure 3).
Proper Handling
To avoid injury and damage to the table, handle only
as indicated in Figures 2 through 16. Do not handle as
shown in Figures 8 through 10.
NOTICE
Grab Bar Option
If your table was purchased with the Grab Bar option,
remove the box from the back of the pallet.
NOTICE
INSTALLATION
No Sharp Tools
To avoid damaging the table’s
upholstery or painted surfaces, DO
NOT use a knife or other sharp object
to open the packaging.
NOTICE
Avoid Self Activation Damage
Plugging table into receptacle prior to
the removal of all packaging materials,
may cause damage if self activation
occurs.
NOTICE
NOTICE
Inspect Carton and Contents
Inspect all boxes and contents for
damage. Report any damage to the
carrier immediately.
Figure 2. Remove Shipping Brackets
Figure 3. Remove Spacer and U-Brace Screws

Printed in USA © 2015 7 Document # 2102862 RevB
Brewer
FLEX Access
Exam Table

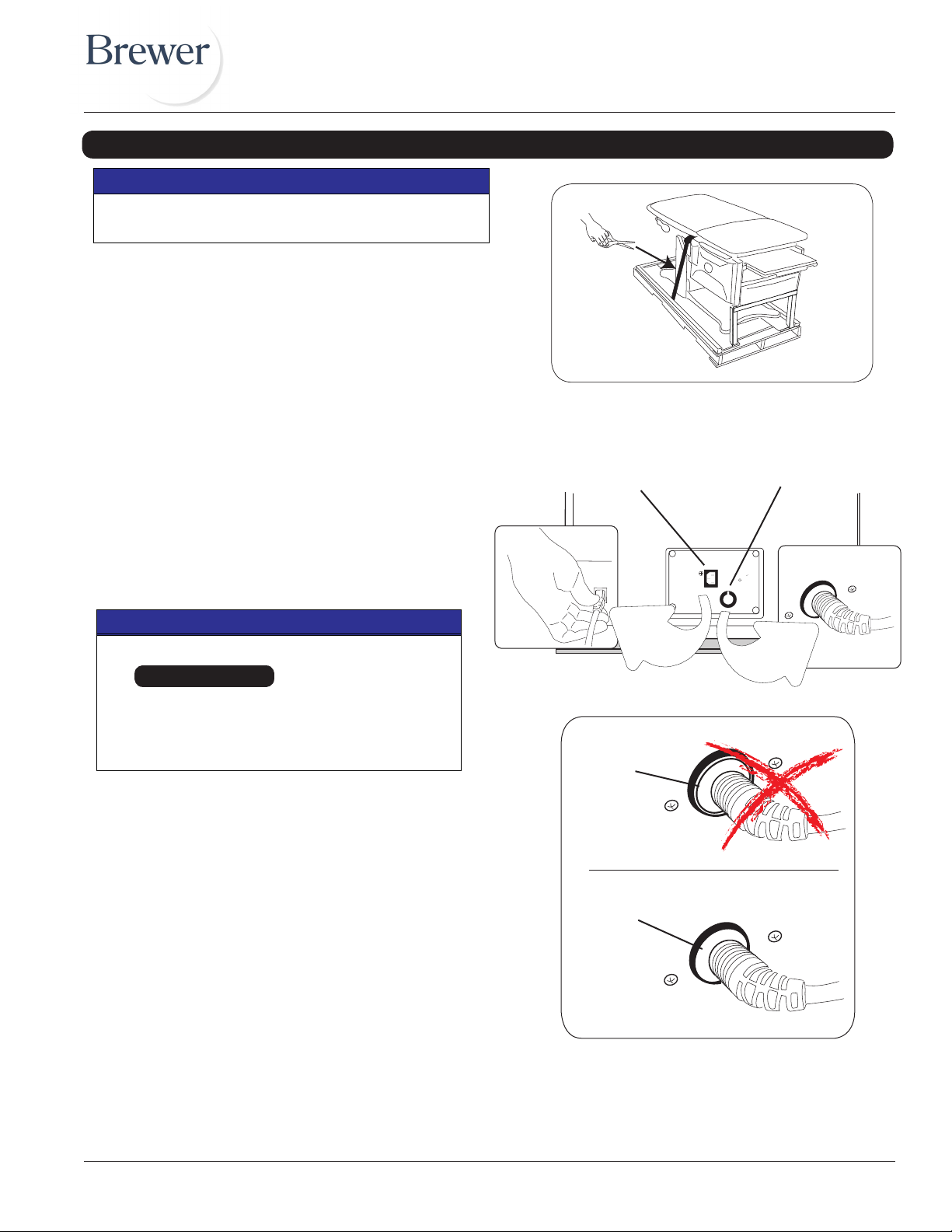

4. Cut the shipping strap, and discard strap and foam
tube (Figure 4).
5. Make sure all shipping materials (except for
wooden brace and spacers) and packing foam are
removed from the table, pallet and surrounding
area.
6.Remove the foot control and power cord from the
front drawer after packing materials have been
removed.

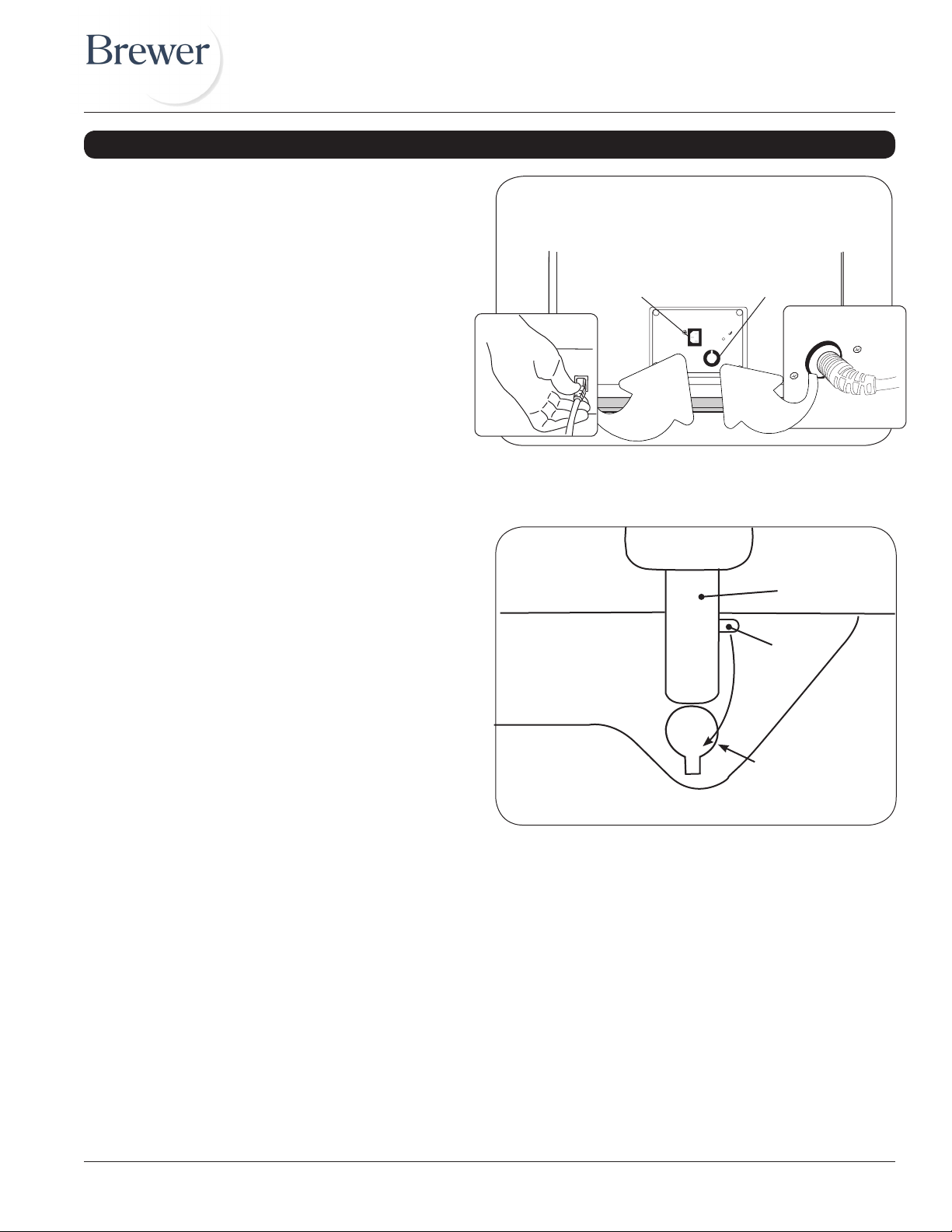

7.Insert the foot control cord into the receptacle
at the bottom of the rear panel (Figure 5). Note:
Make sure the tab on the plug is aligned with the
slot in the receptacle. The plug may appear to be
fully inserted and yet have some distance to go.
Wiggle the foot control plug while pushing it in
rmly to ensure that it is fully seated (Figure 6).
8. Remove the gray power cord from the front drawer.
9. Plug the power cord into the receptacle at the
bottom of the rear panel (Figure 5). Plug the power
cord into a 230 Volt receptacle (see NOTICE
above).
INSTALLATION (continued)
In order to prepare the table for moving, you must
power it up, and change the position from the position.
NOTICE
NOTICE
Foot Control Plug
Even with or Above
Receptacle Rim
Figure 5. Power Cord and Foot Control Plug-ins
Figure 6. Foot Control Properly Pugged In
Power Cord
Inlet
Foot Control
Receptacle
Foot Control Plug not Fully Inserted
Foot Control Plug Fully Inserted
Foot Control Plug
Below Receptacle Rim
Figure 4. Cut Shipping Strap
Conrm Voltage and Plug Type
See SPECIFICATIONS table for electrical rating
of this unit. The plug on the table power cord must
be plugged into a matching correctly polarized 230
VAC receptacle.

Brewer
FLEX Access
Exam Table
Printed in USA © 2015 8 Document # 2102862 RevB
11.Press lift up on the foot
control to raise the seat
approximately 1” (Figure 7).
INSTALLATION (continued)
Figure 7. Raise Seat off of Brace
To aid in preventing injury or product damage please observe the following cautions when removing the table from the pallet.
Figure 8. DO NOT Lift by Upholstery
DO NOT LIFT
BY STIRRUPS!
(If Equipped)
Use Leg
Support
Lifting Hazard
The table weighs approximately 315 lbs. Use enough
personnel to remove the table from the shipping pallet.
Use proper lifting techniques. Failure to do so could
result in serious injury.
WARNING
Avoid Stirrup Damage
Do not lift or move table by using the stirrups as a hand hold.
Lifting or moving table by stirrups can damage the internal
indexer housing unit (Figure 10).
NOTICE
Avoid Pelvic Tilt and Upholstery Damage
Do not lift or move table by pulling up on the seat upholstery
(gure 8). Lifting by the seat will damage the pelvic tilt
mechanism (if equipped) and may damage the upholstery.
NOTICE
Figure 10. DO NOT lift by Stirrups
Figure 9. DO NOT Push on Backrest
Avoid Backrest Actuator and Upholstery Damage
Never push forward on the backrest to move table.
Pushing on the backrest will cause backrest actuator
damage and may cause upholstery damage (gure 9).
NOTICE
STOP RETURN
TO CHAIR1”25mm
Or

Printed in USA © 2015 9 Document # 2102862 RevB
Brewer
FLEX Access
Exam Table
INSTALLATION (continued)
Figure 12 Unplug Foot Control and Power Cords
Figure 13. Installing Leveler Slides
12. Raise the backrest to its full up position (Figure 11).
13. Unplug foot control and power cord and place into
front storage drawer (Figure 12.).
14. Tilt table slightly to place the (4) slides under
levelers (Figure 13).
Or
STOP RETURN
TO CHAIR
Figure 11. Raise Backrest

Brewer
FLEX Access
Exam Table
Printed in USA © 2015 10 Document # 2102862 RevB
Figure 14. Slide table off of pallet
INSTALLATION (continued)
15. Slide table partially off of pallet and stop when
there is sufcient room to place furniture dolly
beneath base of table. Finish pulling table onto
furniture dolly (Figure 14).
Leveling the Table
A leveling screw pad (Figure 15) is located in four
places under the table’s base. Adjust the four
leveling pads to achieve a solid, level installation.
Adjusting the Rear Base Extension
After leveling the table, the Rear Base Extension
should be brought into contact with the oor
(Figure 16).
1. Loosen the two Rear Base Extension adjusting
screws.
2. Lower plate until it contacts the oor.
3. Tighten the two Rear Base Extension adjusting
screws.
Figure 15. Leveling Screw Pad (located under table)
Turn out or in
to level
View of underside of base
Rear Base Support Plate
Rear Base Extension
Adjusting Screws
Figure 16 Adjusting the Rear Base Extension
Prevent Leveler Damage
Levelers must remain in the table, and be fully engaged a
minimum or (3) turns. If levelers are not fully engaged in the
base, damage to the threading in the base and/or leveler can
occur.
NOTICE
Prevent Floor Damage and Unwanted Table Movement
Make sure the rubber caps are present on all (4) levelers.
Missing caps can allow the table to slide, and the exposed
metal portion of the leveler can damage ooring.
NOTICE

Printed in USA © 2015 11 Document # 2102862 RevB
Brewer
FLEX Access
Exam Table
Figure 18. Grab Bar
Figure 17 Foot Control and Power Cord Receptacles
INSTALLATION (continued)
Installing Grab Bars (Optional)
1. Remove grab bars from the carton banded to the
pallet.
2. Grab bars are interchangeable and may be in-
stalled on either side.
3. Align pin on grab bar shaft with mating slot on side
of table (Figure 18).
4. Push grab bar all the way down and rotate to front
of table.
5. Push grab bar down until it engages to prevent left
or right movement.
Grab Bar
Pin
Mounting Support
Power Cord
Inlet
Foot Control
Receptacle
Installing the Power Cord
1. Remove the power cord from the front drawer.
2. Insert the female plug end of the power cord into
the receptacle on the table (Figure 17). Make
sure the plug is fully seated.
Installing the Foot Control
1. Remove the foot control from the front drawer.
2. Insert the male plug of the foot control cord into
the receptacle on the table (Figure 17). Make
sure the plug is fully seated. See Figure 6 for
proper insertion of the foot control plug. Failure
to properly insert the foot control plug can cause
some functions to not operate properly

Brewer
FLEX Access
Exam Table
Printed in USA © 2015 12 Document # 2102862 RevB
Unintended Operation
Keep foreign objects away from foot control. To avoid
accidental operation, be sure the foot control is NOT positioned
below the front of the table. Failure to do so could result in
unwanted motion, injury and possible damage to the table.
CAUTION
OPERATION
WARNING
Explosion/Fire Hazard
Do not use this table in an explosive or oxy-
gen rich atmosphere. Failure to do so may
result in serious personal injury or death.
WARNING
Area Not Clear Hazard
Before initiating power keep personnel and equipment clear
of table before initiating movement to avoid personal injury or
damage to the equipment.
Avoid Foot Control Damage
The foot control is moisture resistant and runs on low voltage,
eliminating shock hazards. However, to avoid temporary or
permanent damage to the foot control, do not immerse in water
or liquids.
NOTICE
Optimum Table Performance
For optimum table performance, allow the table to reach room
temperature before operating.
NOTICE
Avoid Continuous Operation
The table’s control system includes a thermal overload safety
switch to protect from overheating. If the table is operated
continuously causing the control to exceed its allowable
operating temperature, the thermal overload safety switch
will shut off. If normal operation ceases, do not attempt to
operate the table. Allow the table to cool for 10-15 minutes
before attempting to use again. The thermal overload switch
will automatically reset when it has reached a safe operating
temperature.
NOTICE
Fuse Protected
The control system is protected by a fuse to prevent excessive
current draw which could damage the system. If operation does
not resume after a cooling period of one hour, contact Brewer
888-Brewer-1 (888-273-9371).
NOTICE
Actuator Travel Limit Protection
Each control function will automatically stop moving when
either the UP or DOWN travel limit is reached. If the foot pedal
is pressed with travel at its limit, the actuator will not operate.
Sensors prevent the actuator motor from operating when travel
limit has been reached, preventing wear of the actuator.
NOTICE
WARNING
Table Malfunction Hazard
If table malfunctions, immediately remove your foot from the
controls, unplug the power cord from the receptacle, and
assist the patient from the table. Service the table prior to use.
Continuing to use a malfunctioning table may result in patient
or personal injury, or product damage.
WARNING
Explosion/Fire Hazard
Do not use this table in an explosive or oxy-
gen rich atmosphere. Failure to do so may
result in serious personal injury or death.
WARNING
Shock Hazard
When performing cauterization or similar
treatment, the patient must be insulated from
the metal portions of the table by non-conduc-
tive material. Failure to do so may result in
electrical shock.
Proper Power Supply
Do not use any power supply other than that listed on the rating
label. Failure to do so may result in equipment damage.
NOTICE
Electromagnetic Interference (EMI)
This product is designed and built to minimize electromagnetic
interference with other devices; however, if interference is
noticed between another device and this product, remove the
interfering device from the room or plug this product into an
isolated circuit.
NOTICE

Printed in USA © 2015 13 Document # 2102862 RevB
Brewer
FLEX Access
Exam Table
Figure 19. Foot Controls
TABLE UP
(Raises the
seat upward)
TABLE DOWN
(Lowers the seat
downward)
MODEL
5700-230
MODEL
5800-230
TABLE UP
(Raises the
seat upward)
TABLE DOWN
(Lowers the
seat downward)
BACK DOWN
(Lowers the back)
BACK UP
(Raises the back)
STOP BUTTON (RED)
(Stops all functions
when pressed)
RETURN TO CHAIR BUTTON
(BLUE)
(Returns table to chair
position when pressed)
OPERATION (continued)
GREEN LIGHT
(Lights when power
to the foot control is ON)
STOP RETURN
TO CHAIR
Model 5700-230
Model 5700-230 is equipped with a single pedal foot control that controls the raising and lowering of the seat.
Model 5800-230
Model 5800-230 is equipped with a dual pedal foot control that controls the raising and lowering of the seat, and the
raising and lowering of the seat back. In addition, the foot control features the following:
Return to Chair: When pressed, the table automatically returns to the low chair position. The seat back will rise to the full
up position and the table will lower to the full down position and stop. If the Emergency Stop or either pedal is pressed
while the table is in motion, the system will return to manual mode and all motion will stop.
Stop: When pressed, stops the Return to Chair function.
Green Light: (2 pedal foot controls only) indicates that there is power to the foot control.
NOTICE
Unattended Return to Chair Operation
Remain with and observe patient during Return to Chair operation.
Return to Chair feature may need to be momentarily interrupted
for patient to readjust him or herself, or for hazards to be removed
before resuming motion. Press the Return to Chair button to
resume motion only when patient has situated him or herself, or
hazards have been removed.

Brewer
FLEX Access
Exam Table
Printed in USA © 2015 14 Document # 2102862 RevB
Seat Switch
All models are equipped with switches on the seat
bottom (Figures 20 and 49) which automatically stops the
lowering function of the seat if any of the switches comes
into contact with an object as the seat is lowering. To
continue lowering the seat, press up on the “TABLE UP”
pedal (Figure 19), clear the obstruction, and continue
lowering the seat.
Backrest Switch
All models are equipped with a switch on the top shroud
(Figures 20 and 48) which automatically stops the
lowering function of the seat and back if the switch is
contacted by the backrest. To continue lowering the seat:
• Model 5700-230 - Raise the backrest manually to
clear the switch. When clear of the switch continue
lowering the seat.
• Models 5800-230 - Depress the “BACK UP” pedal
(Figure 19) to clear the switch. When clear of the
switch continue lowering the seat.

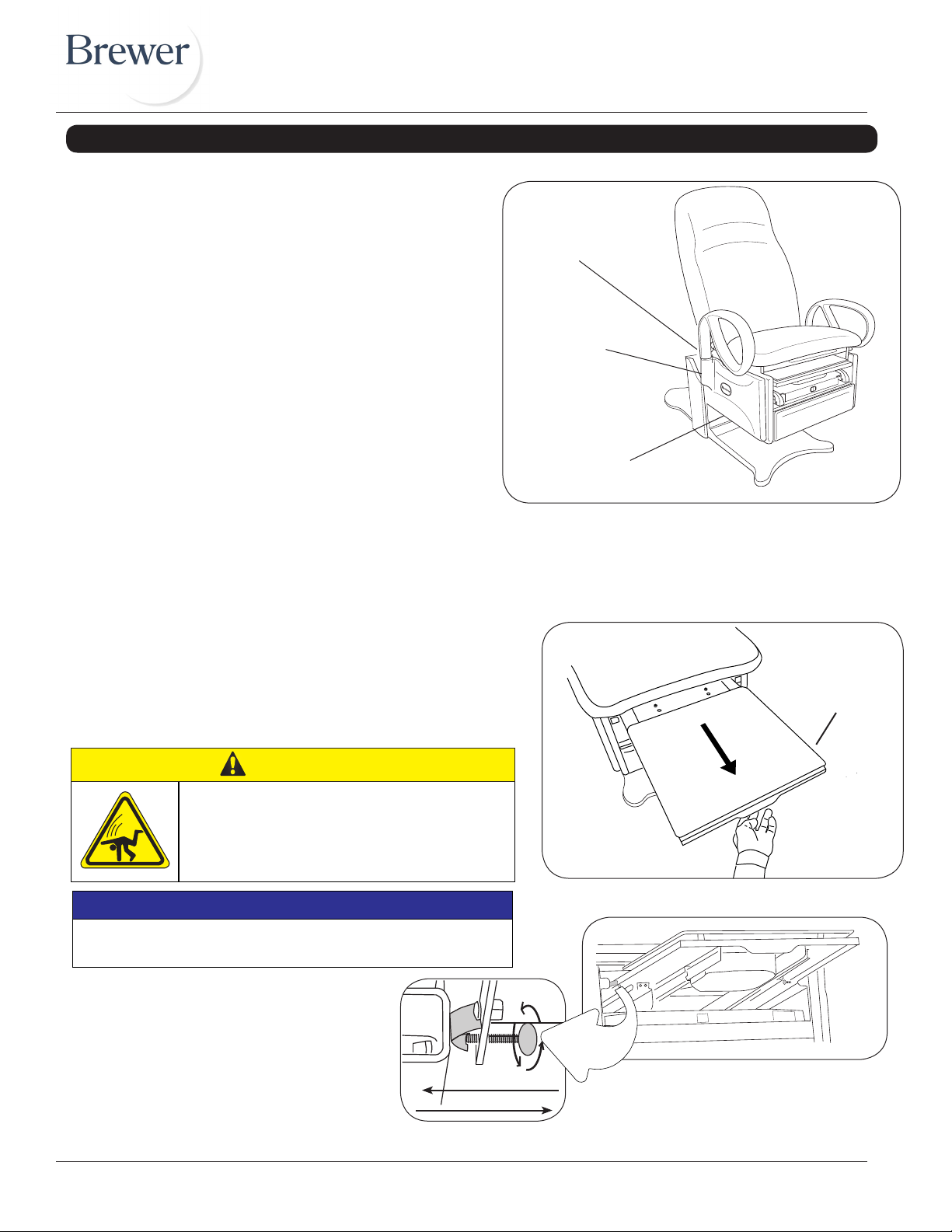

Seat and Backrest Safety Switches
Safety Switch
Located on the Top
Shroud.
Safety Switches
Located Inside
Seat Back
(both sides)
Safety Switches
Located on
Seat Bottom Plate.
Figure 20. Seat and Backrest Safety Switches
OPERATION (continued)
SafeGlide™ Leg Support
The leg support is located under the seat cushion.
(Figure 21). It can be extended 19” for the patient
prone position. Pull leg support out to the fully
extended position. To return the leg support to its
stored position simply push the leg extension in.
Figure 21. Leg Support Pull Out
Figure 22. Leg Support Tension Adjustment
Leg
Support
Foot
Pad
Fall Hazard
The leg support is rated for 50 lbs and is not in-
tended for use as a seat. Sitting on leg support could
cause it to retract, bend, or cause the table to tip for-
ward, creating a fall hazard leading to serious injury.
CAUTION
Increase
Decrease
The SafeGlide™ Leg Support comes with
the leg support adjusted for the least amount
of resistance. If you nd it to glide too freely,
the resistance can be increased by turning
the thumbscrews (Figure 22) inward. Turn
both thumbscrews the same number of turns
inward or outward until the desired resistance
is obtained.
Tension Adjustment
The following is only for tables equipped with Tension Adjustment.
NOTICE

Printed in USA © 2015 15 Document # 2102862 RevB
Brewer
FLEX Access
Exam Table
Foot Pad
The foot pad can be slid beneath the seat with the leg
support extended for easy access to the treatment
pan (Figure 23). Pushing the leg support back in will
allow the glides on the foot pad to drop into slots. The
foot pad will once again come out with the leg support
the next time it is pulled out.
Treatment Pan
A removable treatment pan is built-in underneath the
leg support pad for use during examination. Pull the
leg support fully out and remove the leg support pad
or slide it back under the seat (Figure 24) to access
the pan (Figure 24). Remove the treatment pan for
cleaning.
Figure 23. Slide Foot Pad Back
OPERATION (continued)
Figure 24. Treatment Pan
Leg Support
Treatment Pan
Leg Support Pad
Front Drawer
A storage drawer for supplies is located at the front of
the table (Figure 25).
Figure 25. Front Drawer
Front Drawer

Brewer
FLEX Access
Exam Table
Printed in USA © 2015 16 Document # 2102862 RevB
OPERATION (continued)
Paper Roll Holder
To change a paper roll, remove old paper roll tube,
place the paper holder rod into the paper roll tube,
and place into paper roll holder”J-Hooks” located on
the rear of the seat back (Figure 26). Pull the end of
the roll over the top of the seat back and place in the
desired position.
Figure 26. Paper Roll Installation
Uses Paper Rolls
18” by 3.5”
or
21” by 3.5”
Removing the Work Surface for Cleaning
1. Push work surface in, to reveal a white plastic stop
screw.
2. Remove the white plastic screw (Figure 28).
3. Pull the work surface toward you and remove it.
4. Reinsert screw after replacing work surface.
Figure 28. Location of White Plastic Stop Screw
Plastic Screw
Work Surface
Pass Through Work Surface (Optional)
A pass through work surface, stored under the seat
(Figure 27), may be pulled out from either side of
the table. Grasp the edge of the work surface and
pull until it is fully extended. Push it fully in to stow
after use.
Figure 27. Pass Through Work Surface
Fall Hazard
The work surface is rated for 15 lbs. and
is not intended for use as a seat. Sitting
on work surface could cause it to bend or
break or cause the table to tip creating a fall
hazard leading to injury.
CAUTION

Printed in USA © 2015 17 Document # 2102862 RevB
Brewer
FLEX Access
Exam Table
OPERATION (continued)
Figure 29. Stirrups
Figure 30. Stirrup Locking Mechanism
Figure 31. Afx No Attachments!
Storing the Stirrups
1. To store the stirrups in the table, grasp end of stirrup
and pull straight out to its full extension.
2. Fold stirrup down against bar, then rotate it to the
inner most lateral position and slide it back into the
stowed position.
Close Up of Locking Mechanism
Adjustable Stirrups (Optional)
Operating the Stirrups (Figure 29)
1. To operate the stirrups, grasp end of stirrup and pull
straight out of the table. Lift up slightly while sliding
the stirrup out.
NOTE: Applying downward pressure when pulling stirrup
from table may make it difcult to move. Resistance
is normal and is part of the stirrup friction locking
mechanism.
2. Unfold stirrup upward to the fully open position.
3. Adjust the stirrup to the desired length by sliding it in
or out.
Stirrup Lateral Adjustment
1. Lift end of stirrup slightly and then rotate outward to
desired position.
2. When the desired position is achieved, lower the
stirrup to engage the lateral locking mechanism
(Figures 29 and 30).
3. Check that lateral locking mechanism is engaged
by attempting to move stirrup assembly side-to-side
without lifting on the stirrup end.
See enlargement
(Figure 34)
Fall Hazard
Failure to engage the lateral lock-
ing mechanism could allow patient
to lose balance resulting in personal
injury to patient (Figures 29 and 30).
CAUTION
Use Stirrup Only as Designed
Do not use any part of the stirrup for attachment of any
device (Figure 31). Warranty will be voided. If knee crutches
are required for use, order mounting adapters and clamps
shown on last page.
NOTICE

Brewer
FLEX Access
Exam Table
Printed in USA © 2015 18 Document # 2102862 RevB
OPERATION (continued)

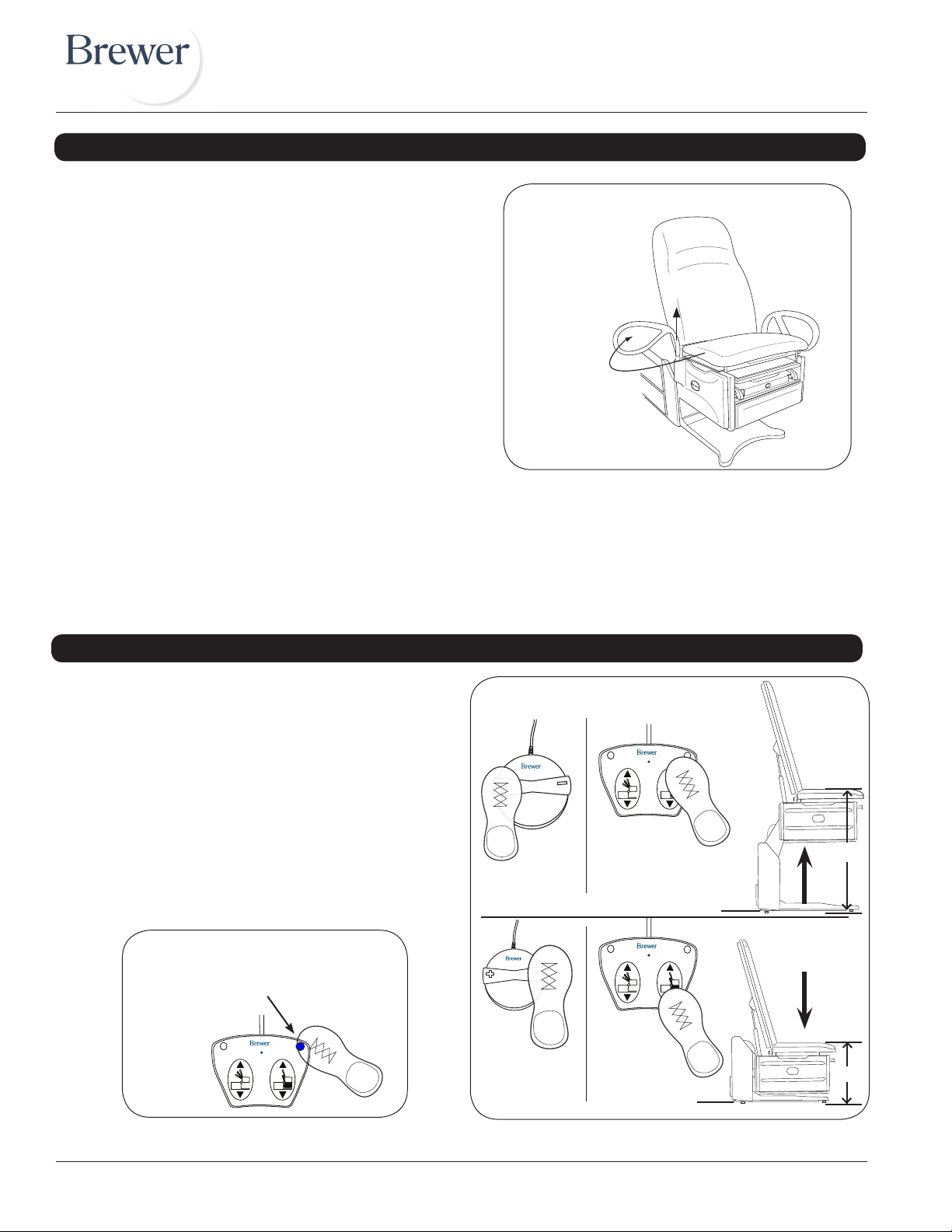

Figure 32. Grab Bar Adjustment
Pull up to rotate
Push down to
lock in place
Grab Bars (Optional)
In the forward (normal use) position the grab bars lock
into place preventing left or right rotation.
The grab bars can be rotated to the side of the table for
improved access to the patient. Pull up on the grab bar
and rotate to the desired position. The grab bar locks in
the front and rear position (Figure 32).
The grab bar can be removed from the table by pulling up
on the grab bar, rotating it to the 90° position, and then
lifting it out of it’s holder.
Table Height
The table can be adjusted to any height between 18” to
37” (Figure 34).
1. To raise the table, depress and hold the Table Up pedal
until the desired height is achieved, then release the
pedal.
2. To lower the table, raise the backrest to the upright
position, then depress and hold the Table Down pedal
until the desired height is achieved, then release the
pedal, or press the Return to Chair button (Figure 33).
18“
TABLE ADJUSTMENTS
Figure 34. Table Height PositioningFigure 33. Lowering with Return to Chair
37“
MODEL
5800-230
MODEL
5800-230
MODEL
5700-230
MODEL
5700-230
STOP RETURN
TO CHAIR
STOP RETURN
TO CHAIR
Return to Chair button
MODEL 5800-230
STOP RETURN
TO CHAIR

Printed in USA © 2015 19 Document # 2102862 RevB
Brewer
FLEX Access
Exam Table
28“
Figure 35. Adjusting Seat Back
Seat Back
The back can be adjusted to any angle between horizontal
and 80°.
Pneumatic Manual Backrest (Model 5700-230)
1. To lower the seat back, push down on the seat back
while pulling the release handle upward.
2. To raise the seat back, place hand on the backrest to
prevent it from rising rapidly, while pulling the release
handle upward. The seat back will lock in the desired
position when the handle is released.
Powered Backrest (Model 5800-230)
1. To lower the seat back, depress and hold the
Back Down pedal until the desired angle is achieved,
then release the pedal.
2. To raise the seat back, depress and hold the
Back Up pedal until the desired angle is achieved,
then release the pedal.
MODEL
5800-230
MODEL
5700-230
MINIMUM HEIGHT
For lowering
backrest to
horizontal position.
STOP RETURN
TO CHAIR
Power Back Actuator-Push Only
On power back models, the back is positioned by a “push
only” actuator that raises the back. When lowered, the
actuator retracts and gravity causes the back to lower.
NOTICE
To Lower Backrest Fully
Table must be raised to a height of 28” before the
backrest can be lowered to the horizontal position. (See
Figure 35).
NOTICE
TABLE ADJUSTMENTS (continued)
Backrest Lowering Hazard
Depressing the manual backrest release
handle while a patient is seated on the table
can cause the backrest to lower rapidly. Lower
the backrest in increments by depressing and
releasing the handle. Allowing the backrest to
lower in a single motion could cause injury to
the patient.
CAUTION

Brewer
FLEX Access
Exam Table
Printed in USA © 2015 20 Document # 2102862 RevB
MAINTENANCE
SERVICE
Figure 36. Pelvic Tilt Adjustment
For the latest in Cleaning Guidelines visit:
www.brewercompany.com
Table Care
Loose Fasteners and Damaged Components Hazard
Failure to perform periodic inspections of the
table could result in personal injury or equipment
damage.
CAUTION
More Cleaning Instructions Available
For the latest in Cleaning Guidelines visit:
www.brewercompany.com
NOTICE
Preventative Maintenance
• Inspect table every 6 months.
• Periodically inspect the electrical and foot control
cords to ensure they are free of cuts or damage.
• Inspect the mechanical functions to ensure satisfac-
tory operation.
• Check fasteners to make sure they are present and
tightened securely.
• Lubricate the backrest hinge with a food grade
silicon lubricant (Figure 36). Cover surrounding
area with cloth to protect from overspray and wipe
excess.
Support Device
Your support device may vary from example.
NOTICE
1. Manually raise table and prop in raised position using a
support device intended for this purpose. (See Figure 37).
WARNING
Shock Hazard
Disconnect power by removing
plug from the power outlet before
changing fuses. Support
Device
Figure 37.
CRUSH HAZARD
Failure to support seat
section during service
could result in death or
severe injury.
WARNING
Control Box Fuse Replacement (for tables with the seat in the up position)
(Continued...)
