brewer BrewerElement User manual

Overview ............................................................... 2
Hardware............................................................... 2
Assembly............................................................ 3-6
Maintenance ....................................................... 8
Accessories ...................................................... 8
Limited Warranty ................................................ 8
Tools Needed ........................................................ 2
Installation.......................................................... 7
Models 2110 and 2120
Document # 101291 0507 Printed in USA ©2007

7002©ASUnidetnirP2#tnemucoD
MODELS 2110 & 2120
For the above models you will receive
two separate cartons: a frame carton,
and an upholstery carton. Inspect both
carefully for shipping incurred damage.
101291 0507
Rubber Mallet
9/16” Open End Wrench
7/16” Socket or Wrench
Phillips Screw Driver
COMPONENT IDENTIFICATION
Perform the following sequence in order when setting up
the table:
- Unpacking
- Assembly
- Leveling the Table
- Installing the Paper Roll
NOTE: Inspect all boxes and contents for damage.
Report any damage to the carrier immediately.
OVERVIEW
COMPONENT IDENTIFICATION
MODELS 2110 and 2120 HARDWARE
NOTE: Save all packaging in case re-shipment is re-
quired.
MODELS 2110 and 2120 TOOLS NEEDED
1/4”-20 x 3” Screw A (Qty. 2)
1/4”-20 x 1 1/4” Screw C (Qty. 8) 1/4”-20 x 1” Screw F (Qty. 4)
J-Bolt R (Qty. 2)
Allen Wrench (Qty. 1)
Snap Rivet (Qty. 10)
3/8”Nut L (Qty. 2) Washer M (Qty. 2)
CAUTION
To avoid damaging the table’s upholstery or
painted surfaces, DO NOT use a knife or any other
sharp object to open the packaging.
WARNING
Two or more people should assist in moving the table.
Use proper lifting techniques when lifting. Failure to
do so could result in serious injury!
1/4”-20 x 2” Screw B (Qty. 4)
(Painted)

7002©ASUnidetnirP#tnemucoD
MODELS 2110 and 2120 STEP 1
3
101291 0507
STEP A: Start with table frame inverted: note the position of the Notch in the drawing above is facing
upwards.
STEP B: Positon Legs A & B in opposite corners (see drawing above). Insert Screws C (1/4”-20 x 1 1/4”) by
hand. Do not tighten at this time.
STEP C: Positon Legs C & D in opposite corners (see drawing above). Insert Screws C (1/4”-20 x 1 1/4”) by
hand. Do not tighten at this time.
Legs C & D are the
same.
Legs A& B are the
same.
A
B
C
D
Screw C
Screw C
Notch
A
B
C
D
Note orientation of holes relative to
Frame Mounting Holes
Frame Mounting Holes

7002©ASUnidetnirP#tnemucoD
MODEL 2110 and 2120 STEP 2
4
Screw B
Screw B
Screw B
Screw B
101291 0507
STEP A:With table in the upright position install Shelf Support using 4 Screws B (1/4”-20 x 2”).Tighten
screws using Allen Wrench provided.
STEP B:Tighten eight screws attaching legs to Table Frame from STEP 1.
Tab
Shelf Support
Table
Frame

7002©ASUnidetnirP#tnemucoD

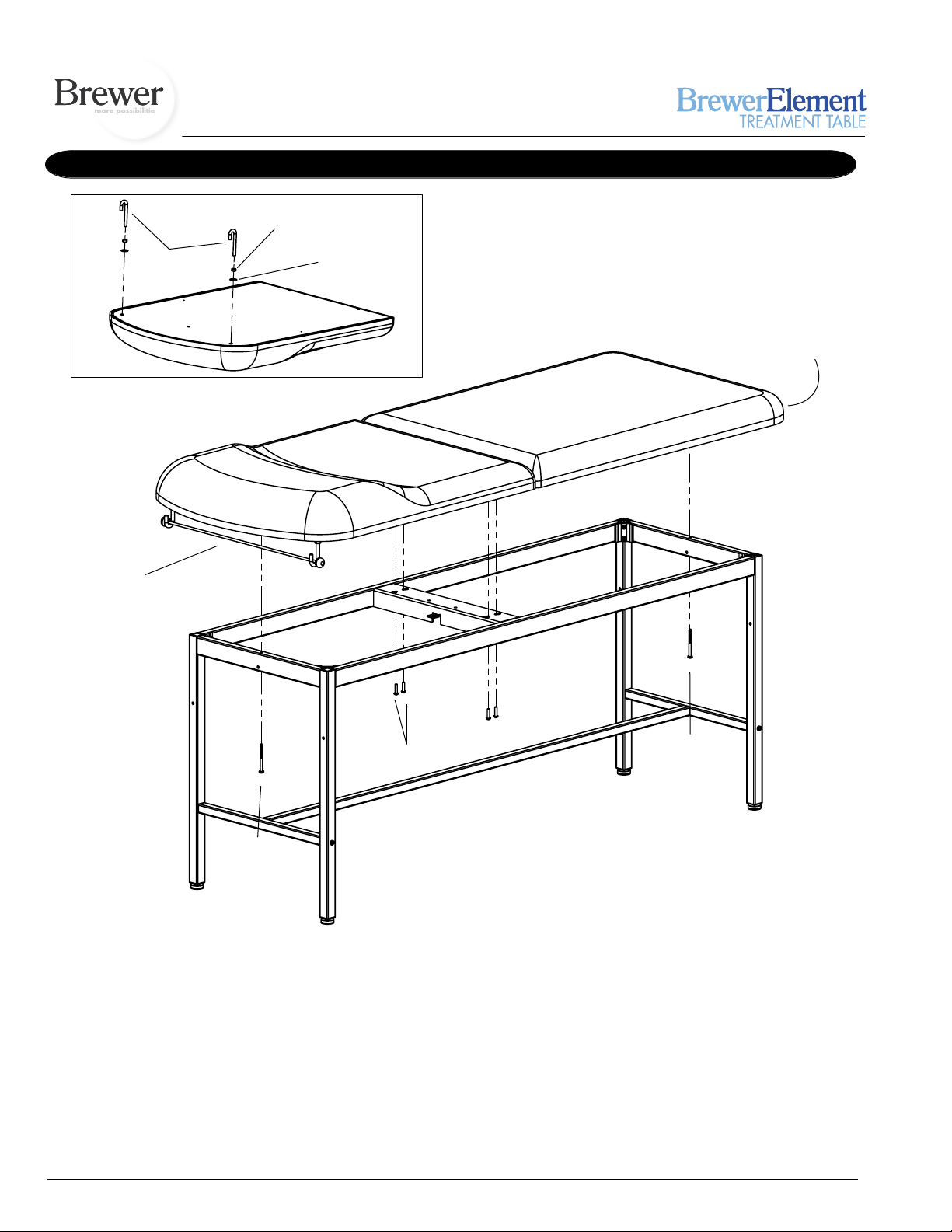

MODELS 2110 and 2120 STEP 3
5
STEP B: Set upholstery top and bottom on frame, with Rounded Corners of the upholstery bottom placed at
the Foot End of the table.
STEP C: Install 2 Screws A (1/4”-20 x 3”) through frame and into upholstery.
STEP D: Install 4 Screws F (1/4”-20 x 1”) through frame and into upholstery.
STEP E: Tighten Screws.
STEP F: Slide the Dowel Rod through the paper roll and hang the Dowel Rod on the J-Bolts. Ensure a secure
fit before using the paper roll dispenser.
Screw A
Screw A
Screw F
101291 0507
Dowel Rod
Rounded
Corner
Foot End
STEP A: Install J-Bolts as shown in Figure A.
J-Bolt R
Nut L
Washer M
Figure A
Thread Nut L (3/8”) completely onto J-Bolt.
Place Washer M onto J-Bolt and thread
into Backrest as shown in Figure A.
Position J-Bolt toward head of table as
shown and tighten nut against backrest.

7002©ASUnidetnirP#tnemucoD
MODELS 2110 and 2120 STEP 4
6
STEP A: Insert the Shelf through either end of the table. Positon the Shelf so that the locating blocks, on
the bottom of the Shelf, are straddling the Lower Shelf Support.
STEP B: Install Snap Rivets into 10 locations on frame (see illustration above). Any unused hole on legs or
frame gets a Snap Rivet.
Snap Rivets
Snap Rivets
Lower Shelf Support
Shelf
101291 0507
7002©ASUnidetnirP7#tnemucoD
INSTALLATION
Leveling Screw Pad
101291 0507
Leveling the Table
A Leveling Screw Pad is located at each corner under the
table’s base. Adjust the four Leveling Screw Pads, by turning
them up or down, to achieve a solid, level installation.
CAUTION
DO NOT USE SHELF AS A STEP!

7002©ASUnidetnirP7#tnemucoD
INSTALLATION
Leveling Screw Pad
101291 0507
Leveling the Table
A Leveling Screw Pad is located at each corner under the
table’s base. Adjust the four Leveling Screw Pads, by turning
them up or down, to achieve a solid, level installation.
CAUTION
DO NOT USE SHELF AS A STEP!

7002©ASUnidetnirP8#tnemucoD 101291 0507
Preventative Maintenance
• Inspect the mechanical functions to ensure satisfac-
tory operation.
• Check fasteners to make sure they are present and
secured tightly.
Painted Metal Surfaces
Wipe all painted metal surfaces with a clean cloth at least
once a week.
MAINTENANCE
Cleaning
Upholstery
Regular care should be maintained by daily wiping with a
damp cloth or sponge and periodic cleaning with a mild
soap and water solution. Let air dry before placing any-
thing on top of upholstery.
WARNING
The upholstery material that covers the top of the
table is resistant to most medicinal-type stains, but
may be damaged by solvents and dyes. Remove
any fluids which are spilled on the upholstery
immediately. All surfaces should be cleaned within
your facilities guidelines concerning antimicrobials
and bloodborne pathogens.
Description Reorder No. Use/Restrictions
Replacement Upholstery
hardware for 2110 and 2120
Treatment Tables in 18 standard colors.
Special Upholstery 210115-SP Intended Use - Allows the purchase of
220115-SP specialty vinyls in different colors with the
model 2110 and 2120 Treatment
Tables. (Additional charges may apply.)
Front Drawer Organizer 100407 Intended Use - Optional front drawer
dividers for separation and organization.
Paper Straps 10196 Intended Use - Secures paper in two
locations to table.
210115-XX Intended Use - Replacement top with
220115-XX
ACCESSORIES
LIMITED WARRANTY
The Brewer Company
GENERAL TERMS AND CONDITIONS
Warranty: The Brewer Company warrants its products to be free from defects in parts and workmanship under normal use
and service for a period of three (3) years from date of shipment. The Brewer Company warrants its power tables to be free from
defects in parts and workmanship under normal use and service for a period of three (3) years from date of shipment. The Brewer
Company warrants its exam tables to be free from defects in parts and workmanship under normal use and service for a period of
three (3) years from date of shipment. The Brewer Company warrants its lighting products to be free from defects in parts and
workmanship under normal use and service for a period of one (1) year from date of shipment. The Brewer Company will not be
responsible for any Product failure due to abuse, misuse, modification or improper use or for any use which exceeds the published
capacity of the Product. Products returned by prepaid freight for inspection and found defective will, at the option of The Brewer
Company, be repaired or replaced at no charge, but no claim for outside labor or other charges will be allowed. Products must not be
returned without proper written authorization from The Brewer Company. Requests for authorization must be in writing and accompa-
nied by the original purchase order, The Brewer Company invoice number and a copy of the invoice for the Product. THIS WARRANTY
IS EXCLUSIVE AND IN LIEU OFALL OTHER WARRANTIES AND REMEDIES WHATSOEVER, INCLUDING BUT NOT LIMITED TO
IMPLIED WARRANTIES OF MERCHANTABILITYAND/OR FITNESS FOR A PARTICULAR PURPOSE. NO AGENT, EMPLOYEE, OR
REPRESENTATIVE OF THE BREWER COMPANY HAS ANY AUTHORITY TO MAKEANYAFFIRMATION, REPRESENTATION, OR
WARRANTY NOT SET FORTH IN THESE TERMS AND CONDITIONS CONCERNING ANY PRODUCTS OF THE BREWER COM-
PANY. THE BREWER COMPANY SHALL HAVE NO LIABILITY WHATSOEVER FOR DAMAGES CAUSED BY TRANSPORTATION,
ACCIDENTS, FIRE, UNAUTHORIZED ALTERATION, OR NORMAL WEAR ORABUSE, NOR SHALLTHE BREWER COMPANY HAVE
ANY LIABILITY WHATSOEVER FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES, including without limitation, lost profits or
any such damages arising from (a) the design, manufacture, sale, delivery, installation, repair, operation or use of products of The
Brewer Company or any part thereof, (b) any actual or alleged failure or defect in products of The Brewer company or any part thereof,
or (c ) any actual or alleged breach or non-performance by The Brewer Company of this limited warranty.
Freight Claims: Upon receipt, merchandise should be carefully examined to ascertain that proper amount has been received in
good condition. Any claim for shortage or damage must be made with delivering carrier within five (5) days from receipt of goods.
We do not assume any responsibility for loss or damage in transit, and compensation for such loss must be obtained from the
carrier.
