Brickcom Merge FD-300Ap Instructions for use

Hardware User’s Manual
Megapixel Day & Night
Fixed Dome Network Camera
Quality Service Group
Fixed Dome Series

Review History:
1. Separate User Manual into HW and SW.
2. Merge FD-300Ap/ FD-130N/ FD-132N/ FD-300A/ FD-302A/ FD-500A/ FD-502A
series into this User Manual.
3. Merge FD-200Np V6/ FD-202Ne V6/ FD-300Np Star/ FD-302Ne Star/ FD-500Ap V6/
FD-502Ae V6
Product name:
Network Camera (Fixed Dome series)
Release Date:
2015/05
Manual Revision:
V3.3
Web site:
www.brickcom.com
Email:
[e-mail]
[e-mail]
© 2015 Brickcom Corporation. All Rights Reserved

Table of Contents
Before You Use This Product .......................................................................................1
Regulatory Information.................................................................................................2
Chapter 1 - Package Contents......................................................................................3
Chapter 2 - Fixed Dome Network Camera Overview...................................................4
Chapter 3 - Device Appearance Description ...............................................................5
Chapter 4 - LED Behavior .............................................................................................8
Chapter 5 - Installation................................................................................................10
5.1 Hardware Installation ....................................................................................10
5.2 Camera Connection.......................................................................................17
5.3 System Requirements...................................................................................18
5.4 Software Installation......................................................................................19
5.3.1EasyConfig........................................................................................... 23

1
Before You Use This Product
In many countries, there are laws prohibiting or restricting the use of surveillance
devices. This Network Camera is a high-performance, web-ready camera which can be
part of a flexible surveillance system. It is the user’s responsibility to ensure that the
operation of this camera is legal before installing this unit for its intended use.
Upon opening the product’s package, verify that all the accessories listed on the
“Package Contents” are included. Before installing the Network Camera, read the
warnings in the “Quick Installation Guide” to avoid misuse. When installing the Network
Camera, carefully read and follow the instructions in the “Installation” chapters to avoid
damages due to faulty assembly or installation.

2
Regulatory Information
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
The availability of some specific channels and/or operational frequency bands are
country dependent and are firmware programmed at the factory to match the
intended destination. The firmware setting is not accessible by the end user.

3
Chapter 1 - Package Contents
a. Network Camera
(Fixed Dome series)
b. Terminal Block
c. Product CD
d. Location Sticker
e. Warranty Card
f. Screw Bag
g. Easy Installation Guide
h. L-WM-01(Optional)

4

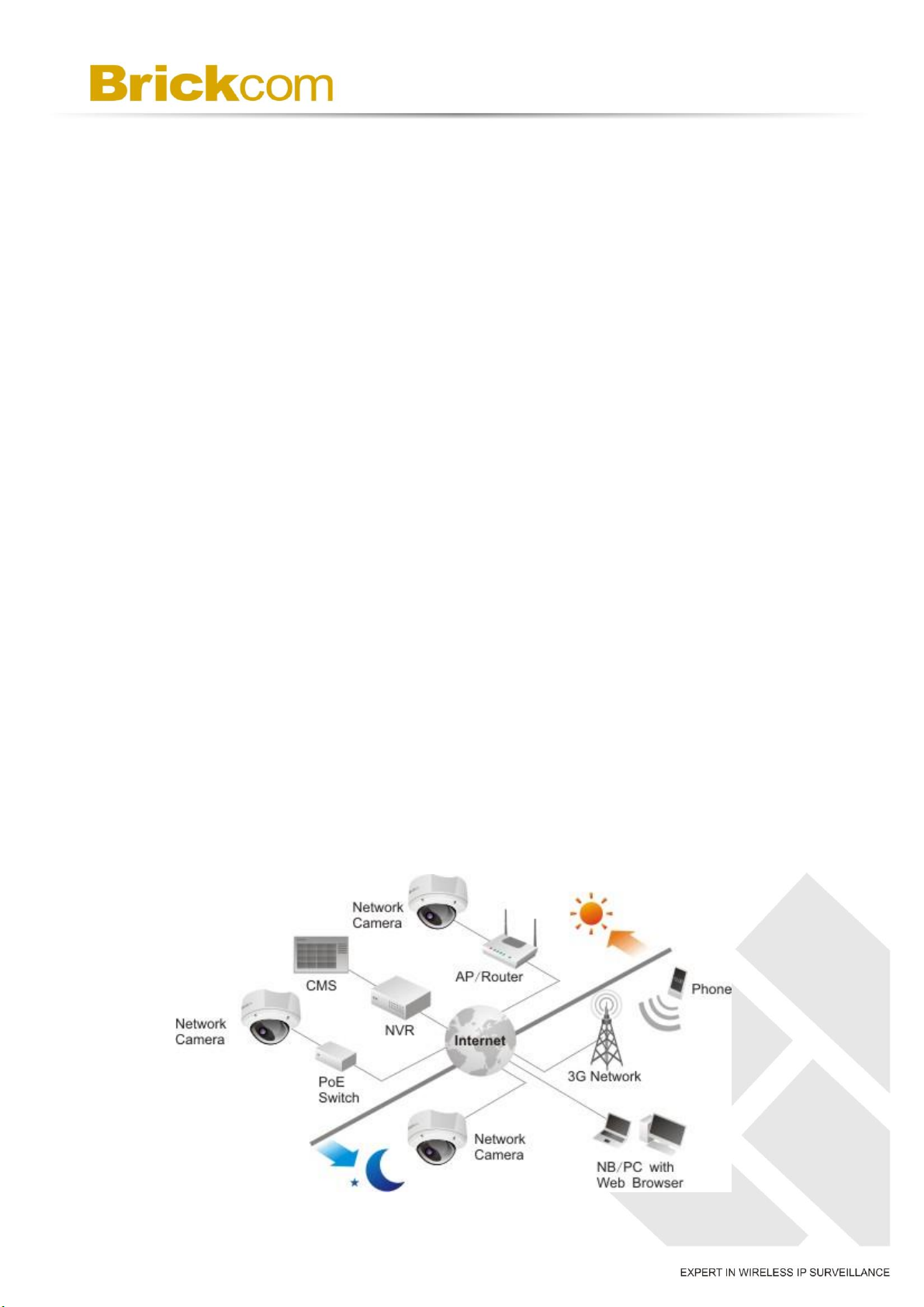

Chapter 2 - Fixed Dome Network Camera
Overview
The FIXED DOME SERIES is a full-featured, 3-axis, fixed-dome, network camera.
With a megapixel progressive sensor and built-in IR-cut filter/ IR illuminator LEDs/
Auto Light sensor, it can provide 24-hour, indoor surveillance. The FIXED DOME
SERIES features a wide-angle and vari-focal lens, which offers wide view coverage of
all angles.
The FIXED DOME SERIES is designed to provide end users with high quality video
feed for an easily accessible security system. The embedded high performance
image sensor and CPU allow for each camera to stream real time, high resolution
video at 30 fps. It can transmit video using many codec compression options,
including MPEG-4/MJPEG/H.264, which reduce bandwidth and storage requirements
without compromising image quality. For easy viewing of the video feed, users can
view the live feed from anywhere through internet browsers or 3G portable devices.
Installation is simplified by the added support for Power over Ethernet which enables
each camera to receive power through the same cable as for data transmission. The
DI/DO function allows users to connect the FIXED DOME SERIES to external alarm
and sensor devices for added security protection.
With the included EasyConfig installation software, this series offers end-users easy
installation without the need for a strong technical background. The 3-axis mechanical
design makes the FIXED DOME SERIES the perfect security camera for any school,
bank, or corporate office surveillance system.

5
Chapter 3 - Device Appearance Description
1. Below “Device Appearance Description”is for FD-200Np V6/ FD-202Ne V6/
FD-300Np Star/ FD-302Ne Star/ FD-502Ap V6/ FD-502Ae V6
2. Below “Device Appearance Description”is for FD-200Np/ FD-202Np/
FD-300Np/ FD-302Np/ FD-200Ap/ FD-202Ap/ FD-302Ap/ FD-500Ap/ FD-502A

6

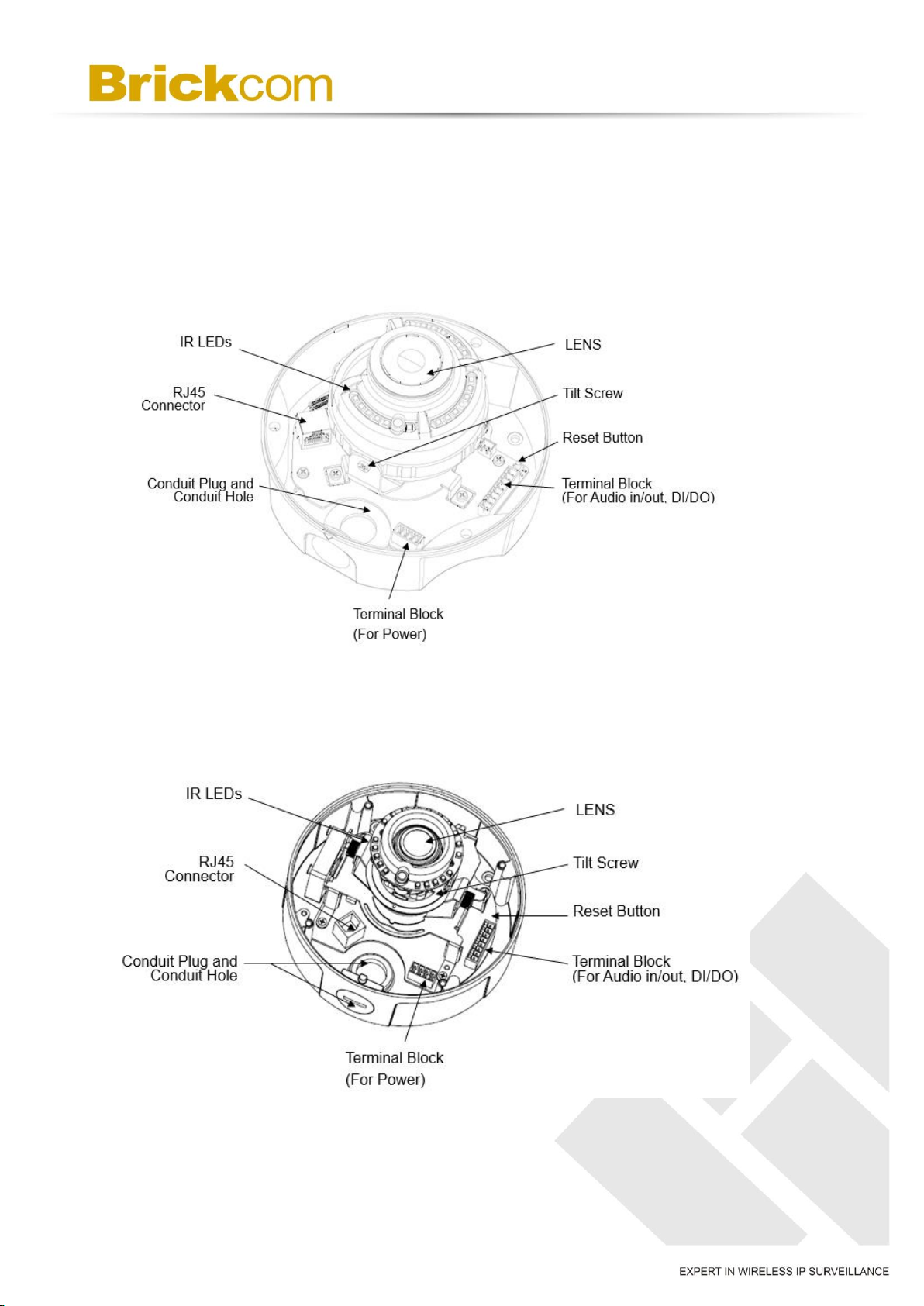

3. Below “Device Appearance Description”is for FD-300Ap
4. Below “Device Appearance Description”is for FD-501Af-series
RJ45 Connector
Reset Button
Terminal Block
(For Audio in/out, DI/DO)
Conduit Plug and
Conduit Hole
LENS
Video Adjustment
Screw
SD Card Slot
Tilt Screw
Terminal Block
(For Power)
RJ45 Connector
Reset Button
Terminal Block
(For Audio in/out, DI/DO)
Conduit Plug and
Conduit Hole
LENS
IR Leds
Tilt Screw
Terminal Block
(For Power)

7
NOTE
1. SD Card Capacity (*) - The network camera is compatible with SD/SDHC/SDXC
(Maximum 64GB) cards.
2. (*) These are optional features. Please refer to the Product List for the full list of
optional features available for the product.
SD/SDHC
Card Slot (*)
Focus Control Bar (*)
ViewAngle
Control Bar (*)
SD/SDHC
Card Slot (*)
Focus Control Bar (*)
ViewAngle
Control Bar (*)

8
Chapter 4 - LED Behavior
Function
LED Behavior
Description
Power LED
Continuous illumination (Green)
Power on
Power LED
Unit
Power off
Link LED
Continuous illumination (Red)
Link
Link LED
Blinking (Red)
Connecting
< Extension I/O Terminal Block >
The Network Camera provides an extension I/O terminal block which is used to connect
the camera with external input/output devices. The pin definitions are listed as below.
Pin
Function
1
Power + 12V
2
Digital Output
3
Digital Input
4
Ground
< DI/DO Diagram >
Models
All FD Series
Diagra
m

9

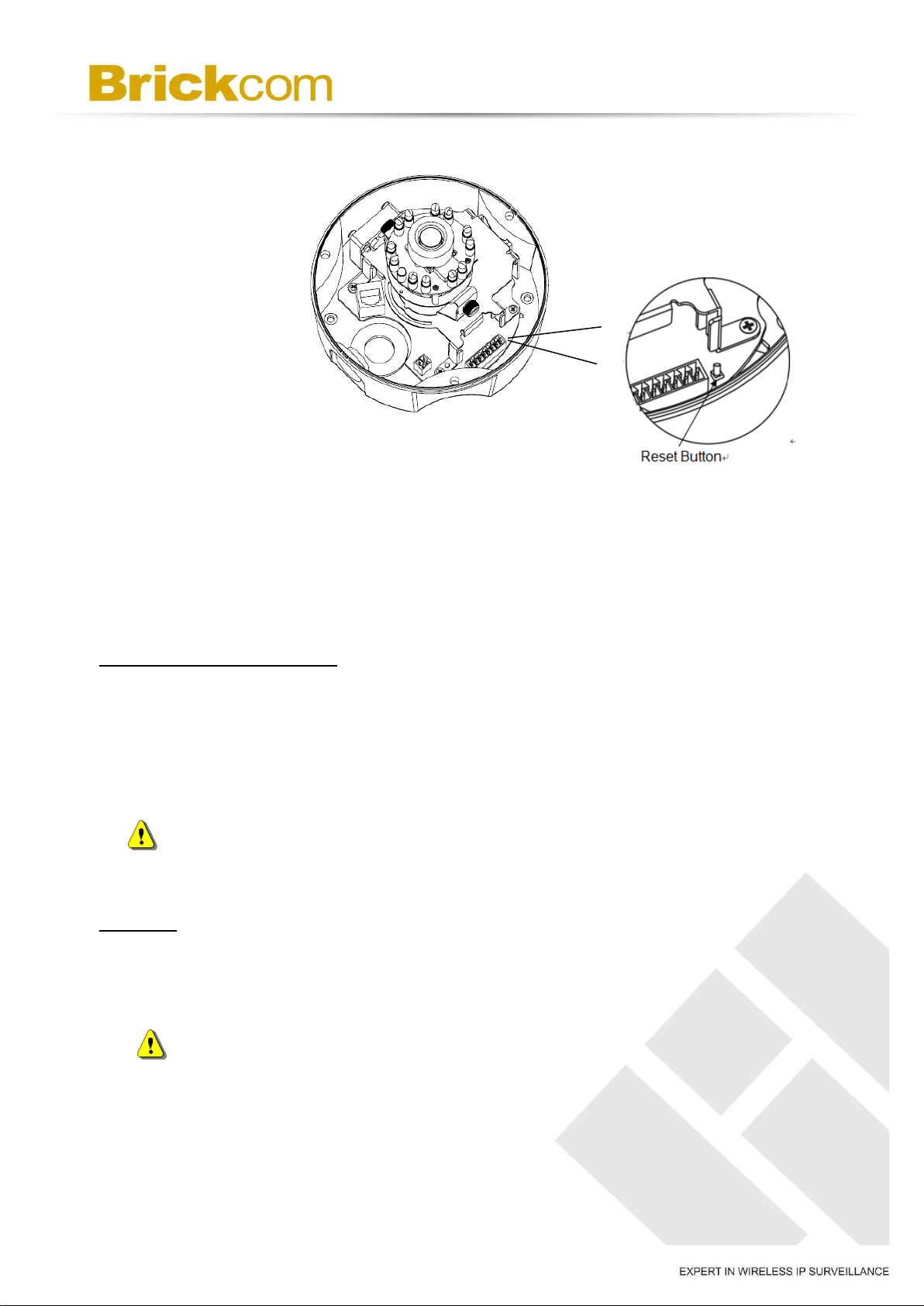

< Hardware Reset >
The Reset Button can be used to reboot the camera, restore it to factory default settings,
or switch on FocusEasy. If the camera experiences a problem, rebooting the camera
may correct the problem. If the problem remains, please restore the camera to factory
default settings and reinstall the software.
To Start/Cancel FocusEasy
To Start FocusEasy, please press and hold the reset button for 2-3 seconds. The camera
will play the melody indicating FocusEasy is already started. Then follow the beeps to
adjust the focus. To cancel FocusEasy, please press and hold the reset button again for
2-3 seconds. The camera will play another melody indicating FocusEasy is already shut
down.
NOTE -FocusEasy is supported only on the V5/V6 professional manual-focal
cameras, and is NOT supported on any moto-focal cameras.
To Reset
Press and hold the Reset Button for more than 10 seconds using a paper clip or thin
object. Wait for the camera to reset to default.
NOTE - By restoring the camera, all settings will be restored to the factory
default settings.

10
Chapter 5 - Installation
5.1 Hardware Installation

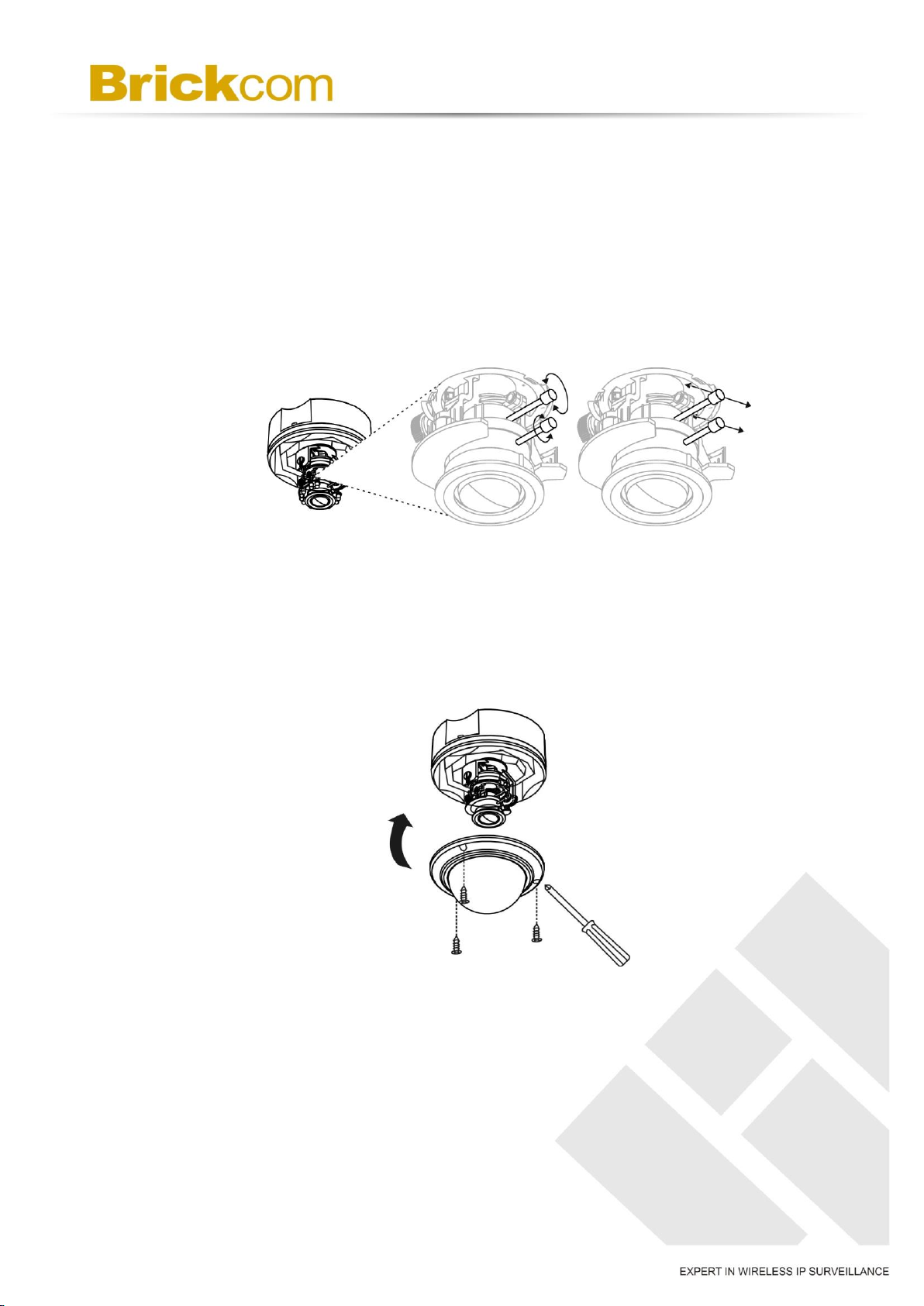

A.Remove the dome cover from the camera device
l. PoE, Power, DIDO, Audio Connection
1) Insert the PoE(1) / DC12V(2), DIDO and Audio cable(3) through conduit hole A or B.
1
2
3
A
B

11
a. PoE, Power, DIDO, Audio Connection
ii. Connect the PoE (1)/ DC 12V (2), DIDO andAudio (3) Cables to their respective
terminals. See the next page for more details regarding the DIDO and Audio
connection.
1) Power over Ethernet (PoE) Connection
2) Power Adapter Connection
Please refer to the definition of the terminal blocks below. It is also
printed on the motherboard.
Terminal Block
Pin No.
Function
Pin 1
GND
Pin 2
12V DC
Pin 3
24V AC
Pin 4
24V AC

12
3) DIDO and Audio Connection
Please refer to the definition of the terminal blocks below. It is also
printed on the motherboard.
Terminal Block
Pin No.
Function
Pin 1
5V
Pin 2
D_0
Pin 3
D_I
Pin 4
DIDO GND
Pin 5
Audio OUT
Pin 6
DGND
Pin 7
Mic/Line in
Pin 8
DGND
ll.For SD/SDHC/SDXC card (*) installation:
NOTE –The SD/SDHC/SDXC card is not included in the product
package and needs to be purchased separately.

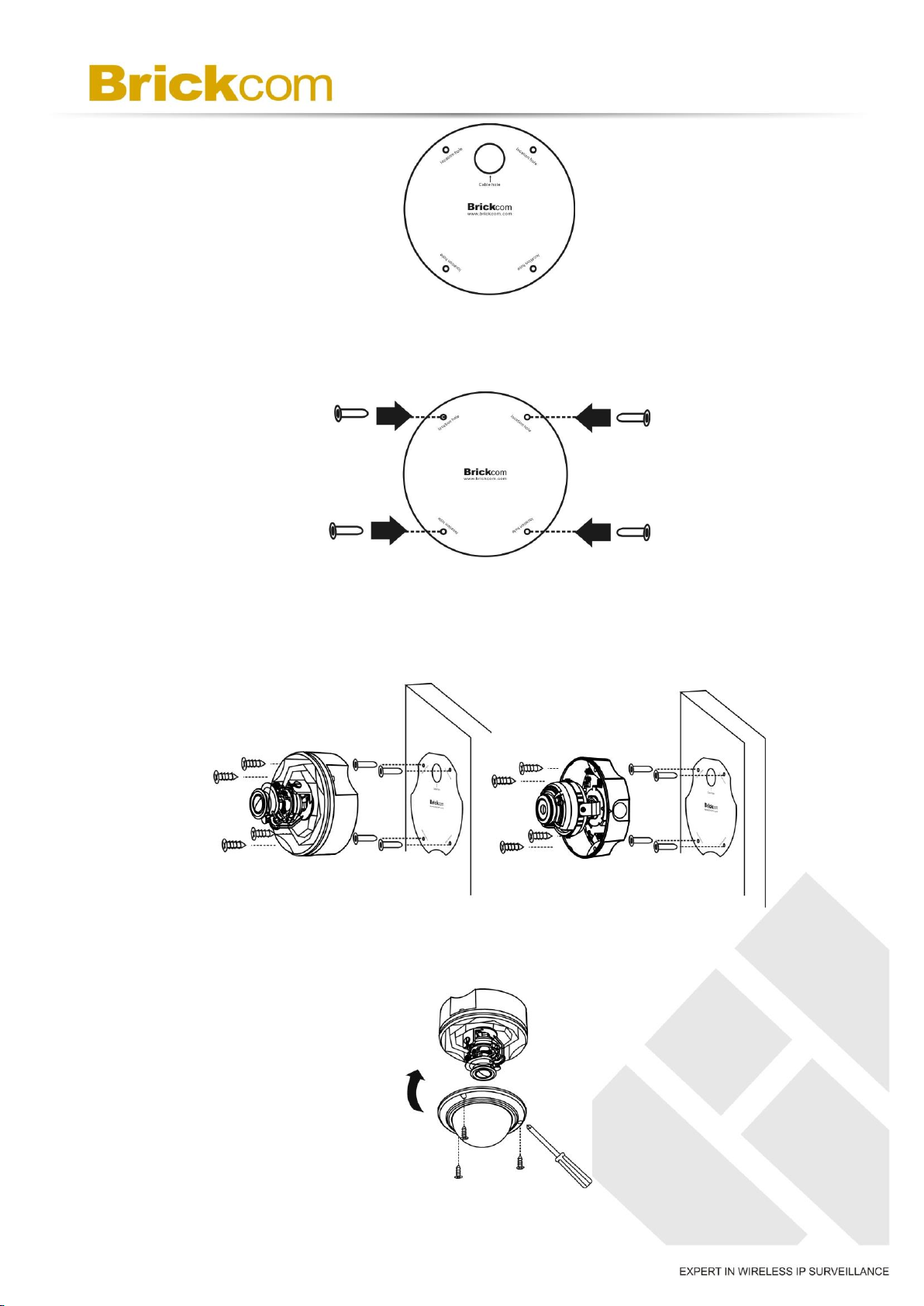

B.For wall installation:
1) Chose the location on the wall to place the camera. Attach the
location sticker to the desired spot.
2) Drill fours holes through the center of the four location holes on the
sticker.

13
3) Hammer the four plastic anchors which are provided in the product
package into the two location holes.
4) Mount the camera on the wall and position to two screw slots over the
plastic anchors. Insert the screams into the holes and use the
screwdriver to tighten the screws clockwise until they are secure.
5) Place the dome cover back on the camera device.

14
C. For ceiling installation:
The user needs the two screws which are included in the product package
and a screwdriver. Mount the camera on the desired location and use the
screwdriver to tighten the screws clockwise through the two holes on each
side of the device as shown below. The best place to mount the camera
is into a ceiling stud.
Place the dome cover back on the camera device.
WARNING: Do not mount the camera on a soft material. The
camera may fall and be damaged.
D. Adjust the Lens Focus Range and Zoom Viewing (This function applies to all FD
series, except the FD-***Af series.)
a. How to adjust the lens angle
i. Release the pan screw and then rotate the lens to left or right. After
completion, tighten the pan screw.

15
ii. Release the tilt screw on both side of the device and then rotate the
lens to up or down. After completion, tighten the tilt screw.
iii. Release the video adjustment screw and then adjust the lens
direction. After completion, tighten the video adjustment screw.

16
b. How to adjust the view angle and focus range
i. Release the view angle controller and then moving the controller
bar left or right to adjust the view angle. After completion, tighten
the view angle controller.
ii. Release the focus controller and then moving the controller bar
left or right to adjust the focus range. After completion, tighten the
focus controller.
E. Complete the Installation
a. Turn the visible dome cover slowly until it gets the best position.
b. Use the screwdriver and attached four dome screws to lock the dome
cover with camera device securely.

17
5.2 Camera Connection
F. Basic Connection (Without PoE)
a. Connect the power adaptor to the camera device.
b. Connect the camera to the Ethernet hub using a RJ45 Ethernet cable.
G. Power over Ethernet (PoE) Connection
a. Connect the camera to a PoE-enabled hub via single Ethernet cable.
b. Connect the camera to a non-PoE hub via PoE Injector.
