Brinly P20-500BH User manual

1008066 Rev. B
Owner's Manual
Push Spreader
MODEL:
P20-500BH
• Assembly
• Installation
• Operation
• Repair Parts
This manual contains information for the safety
of persons and property. Read it carefully before
assembly and operation of the equipment!
Visit us on the web!
www.brinly.com
For the latest product updates and setup tips:
IMPORTANT
© 2010 Brinly-Hardy Company

1008066 Rev. B 2
INTRODUCTION
SAFETY
CONGRATULATIONS on the purchase of your new Brinly-Hardy
Broadcast Spreader! Your Broadcast Spreader is designed, engineered
and manufactured to give you the best possible dependability and
performance.
CUSTOMER RESPONSIBILITIES
Please read and retain this manual. The instructions enables you to
assemble and maintain your Broadcast Spreader properly. Be thoroughly
familiar with the controls and the proper use of the equipment. Know
how to stop the machine and disengage the controls quickly. And
please, always observe the “Safety” instructions.
TABLE OF CONTENTS
SAFETY......................................................................................... 2-3
PARTS BREAKDOWN ................................................................. 4-5

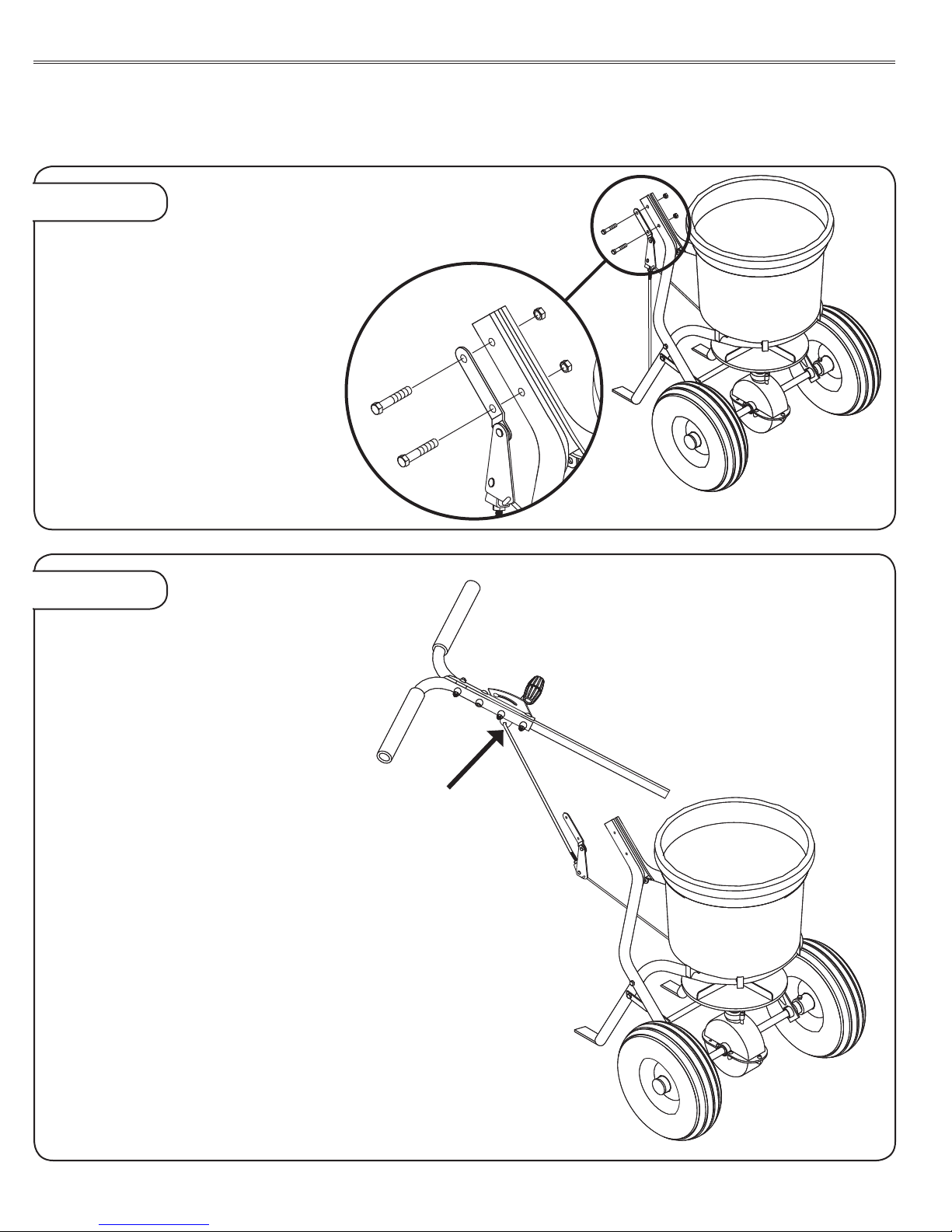

ASSEMBLY ................................................................................... 6-9
OPERATION AND MAINTENANCE ..........................................10-11
APPLICATION RATE CHART................................................... 12-15
WARRANTY ......................................................................Back page
RECORD PURCHASE INFORMATION
Record your purchase information in the spaces provided below:
DATE OF PURCHASE:
COMPANY NAME:
COMPANY PHONE:
SERIAL NUMBER:
SAFETY LABELS
UNDERSTANDING THE MACHINE SAFETY LABELS:
The machine safety labels shown in this section are placed in important
areas on your machine to draw attention to potential safety hazards.
On your machine safety labels, the words DANGER, WARNING, and
CAUTION are used with this safety-alert symbol. DANGER identifies the
most serious hazards.
The operator's manual also explains any potential safety hazards
whenever necessary in special safety messages that are identified with
the word, CAUTION, and the safety-alert symbol. SAFETY ALERT SYMBOL

1008066 Rev. B
3
SAFETY
OPERATE SAFELY
Keep bystanders away when you operate this machine.
Use this machine for intended purpose only.
This machine is intended for use in lawn care and home
applications.
Do not let children or an untrained person operate machine.
Keep all parts in good condition and properly installed. Fix
damaged parts immediately. Replace worn or broken parts.
Do not modify the machine or safety devices. Unauthorized
modifications to the machine may impair its function and
safety, and void the warranty.
Do not let anyone sit or ride on equipment during operation.
Keep riders off attachment.
Wear substantial footwear and long trousers. Do not operate
the equipment when barefoot or wearing open sandals.
Do not wear loose fitting clothing that can get caught in
moving parts.
Always wear eye protection when operating the equipment.
Stay alert for holes in the terrain and other hidden hazards.
Watch out for traffic when crossing or near roadways.
Before you operate any feature of this machine, observe your
surroundings and look for bystanders.
Always wash hands after contact with fertilizers and
pesticides.
Keep all nuts, bolts and screws tight to be sure the equipment
is in safe working condition.

1008066 Rev. B 4
Item Description Part # Qty
1 Handle spacer 1007081 1
2 Carriage bolt, M6 x 25 1007082 1
3 Washer, M6 1007083 1
4 Gauge and lever assembly 1007084 1
5 Adjust handle assembly 1007085 1
6 Adjust handle knob side 1 1007086 1
7 Adjust handle knob side 2 1007087 1
8 Screw, M4 x 18 1007088 1
9 Handle spacer 1007089 1
10 Wing nut, M6 1007090 1
11 Bolt, M6 x 45 1007091 7
12 Nylon washer 1007092 1
13 Flat washer, M6, big 1007093 1
14 Screen 1007094 1
15 Handle cover 1007095 2
16 Hopper Assembly, Black* 1008017* 1
17 R pin, M2 diameter 1007097 1
18 Hopper bushing 1007098 1
19 Pivot and bracket assembly 1007099 1
20 Wheel frame tube 1007100 2
21 Nut, M6 1007101 2
22 End cover 1007102 2
23 Upper handle 1007103 2
24 Lock nut, M6 1007104 11
25 Control rod A 1007105 1
26 Handle shaft 1007106 1
Item Description Part # Qty
27 Shut off plate 1007107 1
28 Flat washer, M4, big 1007108 3
29 Screw, M4 x 12 1007109 3
30 Frame 1007110 1
31 Frame brace 1007111 2
32 Bolt, M6 x 50 1007112 2
33 Bolt, M6 x 30 1007113 2
34 Flat washer, M16 1007114 1
35 End cap 1007115 2
36 Pneumatic wheel 1007116 2
37 Axle bushing 1007117 2
38 Axle bearing 1007118 2
39 Gearbox & axle assembly 1007119 1
40 2.9 x 28mm Cotter Pin, SS 1008031 1
41 Screw, M4 x 20 1007121 1
42 Impeller 1007122 1
43 Screw, M6 x 40 1007123 4
44 Hex locknut, M5 1007124 1
45 Cross brace 1007125 1
46 Adjust connect rod, B 1007126 1
47 Hex bolt, M5 x 45 1007127 1
48 Flat washer, M6 1007128 3
49 Cotter Pin, Small 1008098 2
50 Nylon Washer 1007531 4
51 Decal, Brinly 1008099 1
PARTS BREAKDOWN
STOP
Installation Questions?
Missing Parts?
Replacement Parts?
Please call Customer Service
Department Toll Free
877.728.8224 or
[e-mail]
DON’T GO BACK
TO THE STORE!
*Assembly includes Part Numbers 16, 18, 27, 28, 29

1008066 Rev. B
5
22 15 23
24
26
4
48
123 8
7
24
13
5
12
25
21
46
48
24
11
31
30
45
31
32
33
24
24
32
14
17
18
30
39
41 40
36
43
47 35
44
36
37
38
38
37
50
50
34
35
20
28
51
27
29
42
20
16
33
11
20
20
11
15
6
10
9
3
2
22

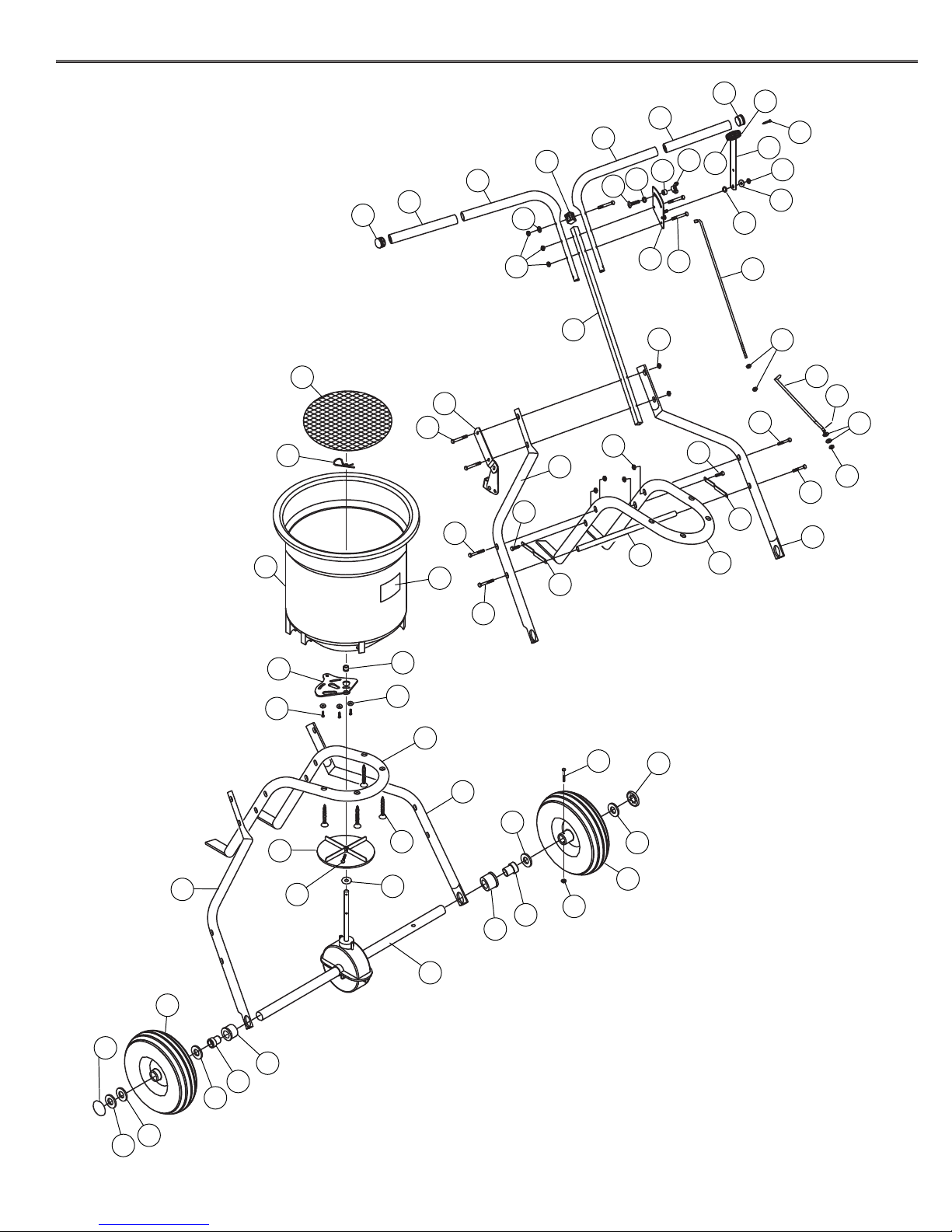

Hopper/Frame/Axle Exploded
Handle/Frame Exploded
50
50
49
11
19
PARTS BREAKDOWN
