BRIO 93HSB User manual

1
93HSB-20_
93HSB-25_
93HSB-30_
93HSB-35_
93HSB-40_
93HSB-50_
93HSB-60_
Required Hardware anodising colour not specified
Preparing Sill Timbers

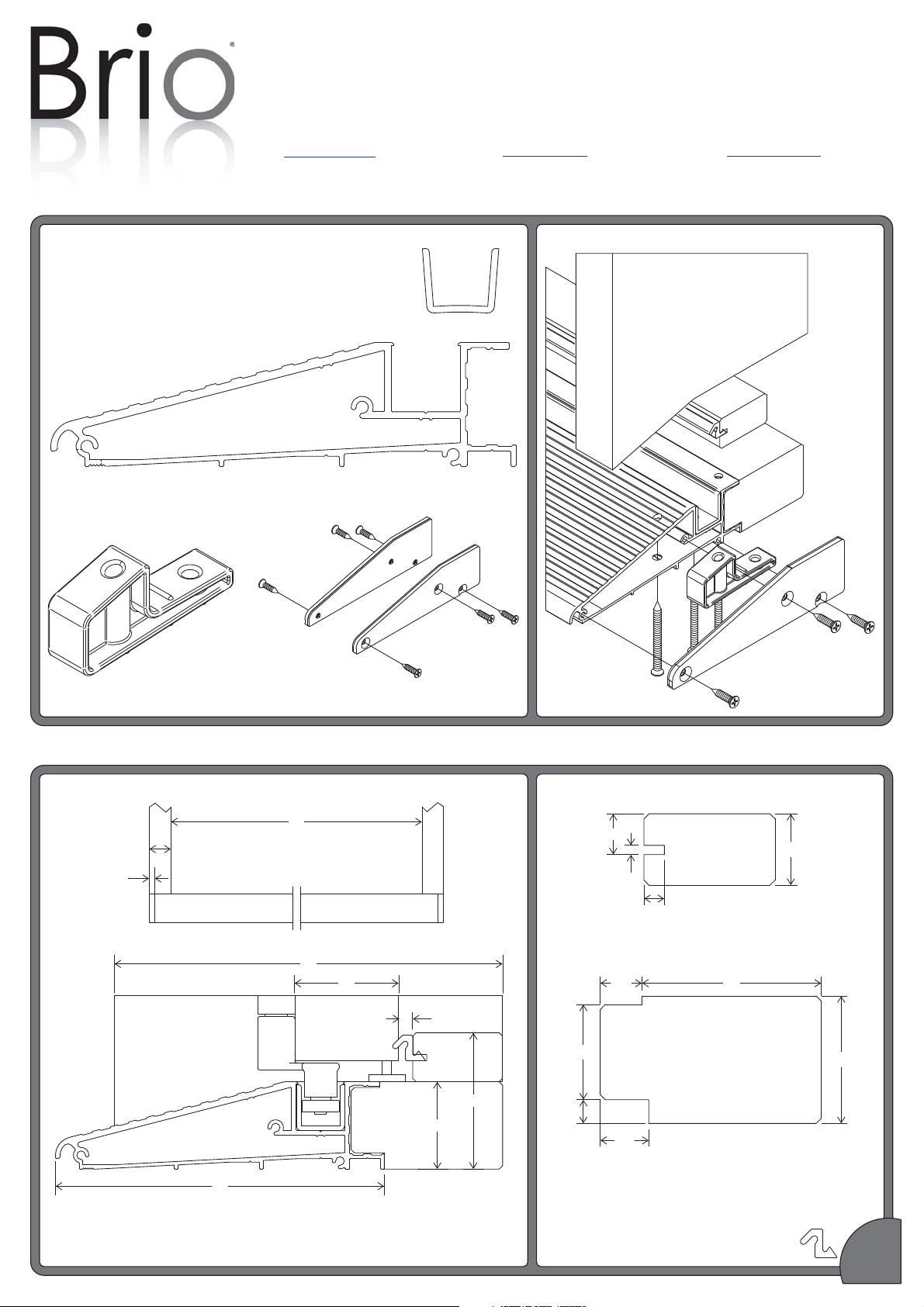

System Details
93HSB Self Draining Sill
INST93HSB1 REV C - MAR 2017
Assembled Sill
Seal and
timbers not
supplied
93HSB Aluminium Extrusion
supplied in 2, 2.5, 3, 3.5, 4, 5 and 6m lengths
93B Screw Block
2 supplied per kit
93AEC End Caps
1 set (left and right) supplied per kit
94P Polypropylene Channel
supplied in 2, 2.5, 3, 3.5, 4, 5 and 6m lengths
Cutting Timbers
PT
JW
37.5
60.5
141
Supplied Hardware
W = Opening width between jambs
JT = Jamb Thickness
JW = Jamb Width
PT = Panel Thickness
W
JT
3
37.5
14.3
7
28
12.3
6
23
12
2.7
Cut to length = W
T1
T2
Cut to length = W+2(JT)-6
XT decided by installer
2
Seal AQ21 can be purchased
from Brio for the full perimeter seal
Cut 93HSB and 94P to length = W+2(JT)-6
6
PT
JW
37.5
141
XT2
Brio Australia
P: [phone]
W:
E: [email protected]
brio.com.au
Brio UK
P: [phone]
W:
E:
briouk.com
[email protected]
Brio USA
P: [phone]
W:
E:
briousa.com
[email protected]

Preparing Sill Base
Assembling Sill use building adhesives and sealants were recommended
Drill holes Ø3 to match fixing holes
2
Insert 94P into 93HSB Drill 3 holes Ø9.5 x 90° at either end of sill through screw flutes. Fixing
holes for timber T are placed at 400mm intervals (also
2Ø9.5 x 90°)
Screw Flutes
Drill 2 drainage holes through 94P and 93HSB Ø8
Apply adhesive to 93HSB’s grooves
and attach timber T2
Shape Jamb to match profile of 93HSB
JW
400
JT-6
2
400 JT-6
2
Ø9.5
90°
Do not pierce
lower level
Ø8
NON-PIVOT
END
PIVOT
END
JT+80
JT
Only pierce
top for jamb
fixings
T2
Ø3
Grooves
75°
XT +412
T2
Screw fix timber T to
93HSB except at ends
2
8G x 19 Screws Drill holes Ø3 to match jamb fixing holes
Insert 93SB into 93HSB and align holes with drilled holes for jamb fixings Attach 93AEC - screws supplied
Attach jamb
to sill - apply
sealant to
screw heads
Frame can then
be fixed to
opening on-site
Timber T can be pinned in place once system has been installed1
T1
