BRK electronic 7030BSL User manual

AC POWERED WITH 10 YEAR
SEALED BATTERY BACKUP
INTEGRATED COMBINATION
ALARM & STROBE LIGHT
Requires only one electrical box for 3 vital functions.
Saves installation time and costs. One device includes
strobe light and combination smoke/CO alarm.
SMART STROBE
Separate flash patterns to distinguish between smoke
and carbon monoxide.
177 CANDELA
SYNCHRONIZED LED STROBE
Powerful 177 candela LED strobe light provides
effective visual warning intended to waken hearing
impaired residents. When multiple units installed,
strobe is sync capable.
1Hz FLASH RATE
60 flashes per minute rate.
10 YEAR SEALED BATTERY
Lithium long life battery to supply power to the alarm
in the event of power failure for the 10 year life of
the alarm. Sealed in the alarm housing to prevent
tampering or removal.
OPTIPATH 360 TECHNOLOGY
™
Provides 360 degrees of direct access to the
smoke sensing chamber.
Description:
The BRK Brands, Inc. Model Number 7030BSL (CAT 1038870) is a wire-in, 120V AC
60Hz single and/or mulple staon photoelectric smoke and carbon monoxide
combinaon alarm with integrated 177 candela LED strobe light specically designed
for residenal and instuonal applicaons including sleeping rooms of hospitals,
hotels, motels, public housing, dormitories and other mulfamily dwellings. Model
7030BSL conforms to UL STD 217, UL STD 2034 & UL STD 1971 . The alarms are
inter-connectable with up to 18 devices, of which 12 can be smoke alarms. The BRK
7030BSL alarm features a photoelectric smoke sensing chamber, an electrochemical
CO sensor, an integrated 177 LED candela strobe light, an 85dB horn and sealed
lithium baery capable of providing backup power for smoke and CO alarm funcons
over 10 year alarm life without replacement. The Strobe Light is designed to provide
deaf & hard of hearing individuals with a visual warning of smoke or carbon monoxide
dangers. The Smart Strobe has separate ash paerns for smoke/heat and carbon
monoxide dangers. This helps a hearing impaired person beer disnguish the danger
present. The 177 candela LED strobe ashes at a rate of an average of 60 mes a
minute. The LED ash is also sync capable so when mulple LED units are installed,
strobes can ash in unison.
This alarm features two latching features and two silence features. The Alarm Latch
easily idenes the iniang alarm with blinking RED led paern - even aer the
alarm condion has subsided. Ideal when mulple alarms are installed throughout a
residence or instuon. The End of Life / Low Baery Latch visually idenes which
unit is in a low baery or end of life condion. The convenient silence features will
temporarily silence an unwanted alarm for several minutes or eliminate low baery/
end of life chirps for up to eight hours. Other Contractor preferred features include
a dust cover, easy twist-lock mounng bracket with backup baery acvaon, and
“Quick Connect” wiring harness.
120V AC, 60Hz Wire-in
with 10 Year Sealed Lithium Battery Backup
COMBINATION
ALARM &
LED STROBE
PHOTOELECTRIC
CAT 1038870
MODEL 7030BSL
10
YEAR
3055574
Model 7030BSL

CAT 1038870
MODEL 7030BSL
SHIPPING SPECS
Individual Carton Dimensions 5.25"L x 3.0"W x 5.25"H
Weight 0.87 lbs.
Cube 0.05 ft3
UPC 0 29054 01814 4
Master Carton Dimensions 5.75"L x 19.13"W x 6.0"H
Master Pack 6
Weight 5.63 lbs.
Cube: 0.38 ft3
I2of5: 600 29054 01814 6
Pallet Information
Cases per Layer 18
Number of Layers: 7
Cases per Pallet: 126
Units per Pallet: 756
Cube: 59.26 ft3
Weight: 784 lbs.
2018 BRK Brands, Inc.All rights reserved.
Distributed by BRK Brands, Inc. BRK Brands, Inc. is
a subsidiary of Newell Brands Inc. (NYSE:NWL).
www.brkelectronics.com
www.rstalert.com
ARCHITECTURAL AND ENGINEERING SPEC
The integrated strobe light & combination smoke & carbon monoxide shall be a BRK Model
7030BSL and shall provide at a minimum the following features and functions:
1. A photoelectric smoke sensing chamber and electrochemical carbon monoxide sensor.
2. A 177 candela LED strobe light. The Smart Strobe shall have separate ash patterns to
distinguish between smoke/heat and carbon monoxide dangers. When multiple units
installed, strobe ash patterns will synchronize.
3. Fully screened sensing chamber to resist entry of small insects thereby reducing the
probability of unwanted alarms.
4. Powered by 120V AC, 60Hz and have a sealed 10 year lithium battery backup for alarm
and a solid state piezo horn rated at 85dB at 10 ft and be capable of self-restoring.
5. A visual green LED power-on indicator to conrm unit is receiving power or is in alarm.
6. A test button should check alarm function.
7. Two Latching features: Alarm Latch to easily identify initiating alarm after alarm
condition has subsided. Low battery latch: to visually identify which unit is in low
battery or end of life condition. Two Silence Features: Alarm Silence to temporarily
silence nuisance alarms. End of Life: Silence alarm for 8 hours.
8. The unit shall be capable of operating between 40°F (4°C) and 100°F (38°C) and
relative humidity between 10% and 95%.
9. The unit shall have a plug in connector and be capable of interconnection of up to 18
units with smoke, heat, CO alarms and relays, of which 12 can be smoke alarms.
10. The unit at a minimum shall conform to UL STD 217, UL STD 2034 & UL STD 1971.

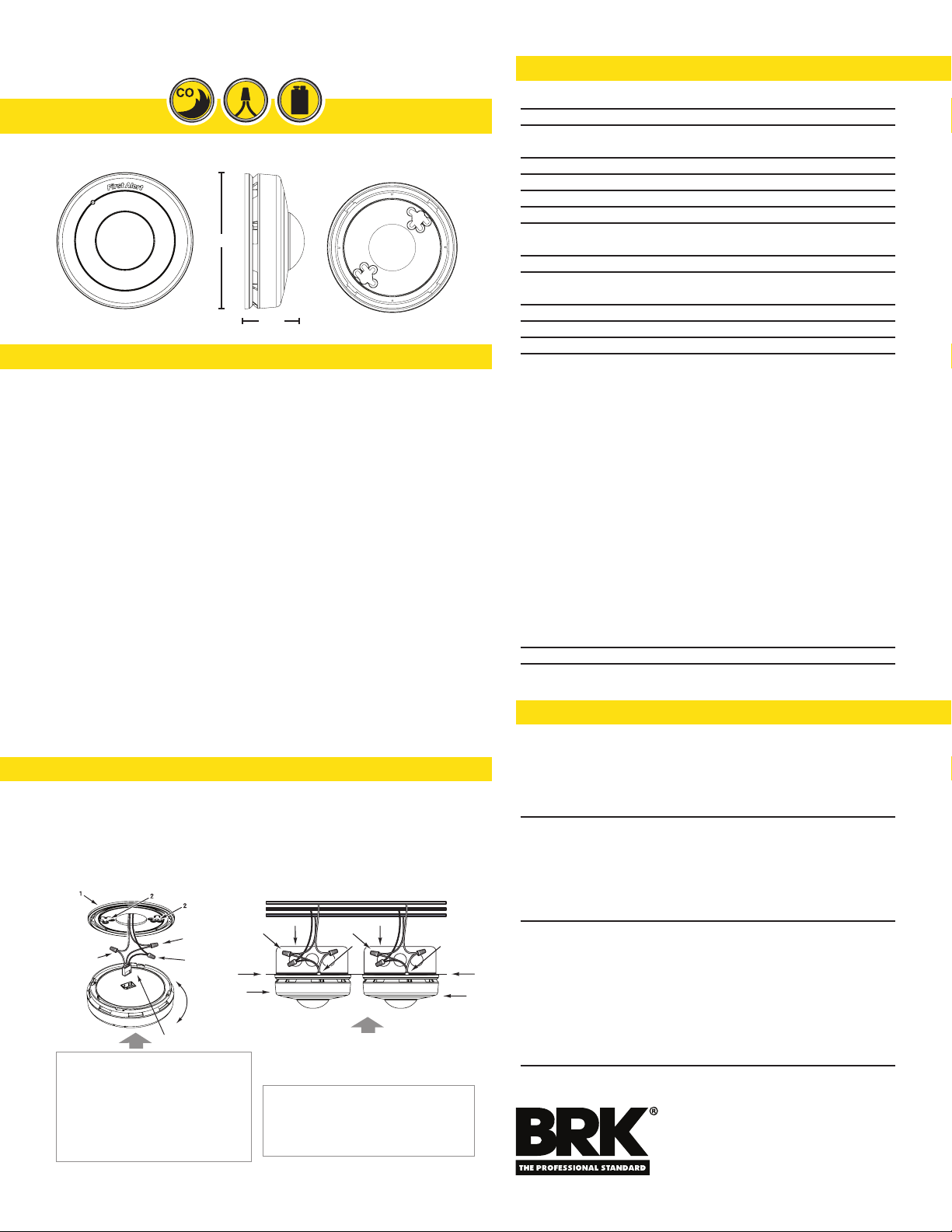

THE PARTS OF THIS ALARM
1. Mounting Bracket
2. Mounting Slots
3. Hot (Black) AC Wire
4. Neutral (White) AC Wire
5. Interconnect (Orange) Wire
6. Quick-Connect Power Connector
7. Turn this way to remove from
bracket (Counterclockwise)
8. Turn this way to attach to bracket (Clockwise)
1. Alarm
2. Ceiling or Wall
3. Power Connector
4. Wire Nut
5. Junction Box
6. Neutral Wire (Wht)
7. Interconnect Wire (Orange)
8. Hot Wire (Blk)
A. 120VAC 60 Hz source
B. To additional units; Maximum = 18
total (Maximum 12 Smoke Alarms)
43
5
7
8
6
5
}
A
}
B
8
7
6
3
1
1
2
2
3
4 4
5
INSTALLATION OF ALARM
Installation of this smoke alarm must conform to all Canadian electrical code Interconnected
units must meet the following requirements: wire gauge to be per local codes. It is
recommended that all units be on the same fuse or circuit breaker. If local codes do not
permit, be sure the neutral wire is common to both phases.
FRONT VIEW
MOUNTING
BRACKET
SIDE VIEW
5.2"
2.3"
TECHNICAL SPECS
Alarm Dimensions: 5.2"dia. x 2.3"H
Weight: 10.6 oz
Operating Voltage: 120V AC 60Hz with 3V Sealed Lithium
Battery Backup for alarm.
Operating Current: Alarm 0.8 A
Temperature Range: 40°F (4°C) to 100°F (38°C)
Humidity Range: 10% to 95% relative humidity (RH)
Audio Alarm: 85dB at 10 feet
Test/Silence: Electronically simulates smoke condition, causing
the unit to alarm. Press and hold test/silence button.
Alarm Reset: Automatic when smoke clears
Interconnections: Up to 18 units of First Alert or BRK Smoke, CO and
Heat Alarms. Maximum number of 12 smoke alarms.
Smoke Sensor: Photoelectric
CO Sensor: Electrochemical
Strobe Light: 177 candela LED strobe
Indicator Lights/Sounds:
AC Power: Constant Green LED
DC Power: Green LED ash, once per minute
Alarm Condition: Red LED ashes with audible alarm (horn) pattern and
strobe (ash) pattern
Horn Pattern: Smoke - Approx. 1 beep per second for 3 beeps, then 1
second off. CO - 4 rapid beeps, then 5 seconds off.
Strobe Pattern: Smoke - Constant, approx. 1 ash per second. CO - Approx.
1 ash per second for 4 ashes, then 3 seconds off.
Silence: Approx. 9 minutes Smoke initiating alarm, approx.
4.5 minutes CO initiating alarm, 8 hours End of Life
Alarm Latch: Smoke - Horn off and Red LED ashing 2 seconds on, 2
seconds off. CO - Same as smoke but with 4 short red LED
pulses after 2 seconds on.
Latching End of Life /
Low Battery Indicator: Green LED ashing 2 seconds on, 2 seconds off
End of Life Signal /
Low Battery Signal: 5 short chirps with 5 Green LED ashes once per minute
Listing: Conforms to UL STD 217, UL STD 2034 & UL STD 1971
