BRK electronic 9120LBLA User manual

120V AC, 60Hz Wire-in with 9V Lithium Battery
Backup-Locked Battery Drawer
SMOKE
ALARM
10 YR BATTERY
BACKUP WITH
LOCKED BATTERY
DR AWER
9V lithium battery lasts 10 years
under normal conditions. Battery
drawer is shipped pre-locked
so battery will not be discarded
prematurely.
IONIZATION
Ionization sensing chamber.
Generally more effective at
detecting small particles produced
by aming res. Sources may
include paper or kitchen grease.
LATCHING ALARM
INDICATOR
Remembers which unit initiated
an alarm.
SILENCE FEATURE
Silences nuisance alarms.
END OF LIFE
SIGNAL
Provides audible notice when alarm
needs to be replaced after 10 years.
CAT. 9120LBLA
Description:
BRK Model 9120LBLA is a wire-in, 120V AC 60Hz single and/or multiple station smoke alarms
specically designed for residential and institutional applications including sleeping rooms of
hospitals, hotels, motels, dormitories and other multi-family dwellings as dened in standard
NFPA 101. Model 9120LBLA complies with ULC S531, NFPA 72, HUD, FHA and other agencies
that model their codes after the above agencies. They meet building codes where AC/DC with
Silence smoke alarms are required. The alarms are interconnectable with up to 18 devices, of
which 12 can be smoke alarms.
BRK 9120LBLA alarm features an ionization smoke sensing chamber, an 85dB horn and a
“silence” feature. This alarm features a 10 year battery backup. The battery drawer is shipped
pre-locked so battery will not be discarded prematurely. Under normal conditions you should
not have to replace the battery for the life of the alarm. The “Smart Technology” system
is designed to reduce nuisance alarms. “Latching Alarm Indication” remembers which unit
initiated an alarm. When interconnected in a series, the unit that triggered the alarm rapidly
ashes its red LED indicator. After the alarm condition subsides, the initiating unit will store in
memory or “latch” the information and begin to ash the green LED indicator 2 seconds on,
2 seconds off. The “Perfect Mount” system features a gasketless base and a mounting bracket
that keeps the alarm secure over a wide rotation range to allow for true alignment. Other
Contractor Preferred features include a dust cover to keep alarm clean during construction,
keyhole slots in the mounting bracket eliminate the need to remove the electrical box screws
for installation. Connection to AC power is made with a “Quick-Connect” wiring harness.
Installation is quick, easy and cost effective.
Model 9120LBLA

INSTALLATION OF ALARM
ARCHITECTURAL AND ENGINEERING SPECS
The smoke alarm shall be a BRK Model 9120LBLA and shall provide at a minimum the
following features and functions:
1. An ionization sensing chamber.
2. Powered by 120V AC, 60Hz and have a monitored 9V 10YR battery backup and a solid
state piezo horn rated at 85dB at 10 ft.
3. A visual LED power-on indicator to conrm unit is receiving power or is in alarm.
4. A full function test button. The test button should check all alarm functions by
stimulating the chamber to simulate a smoke condition, causing the unit to alarm.
5. Silence feature - Temporarily silence unwanted nuisance alarms.
6. The unit shall be capable of operating between 40°F (4°C) and 100°F (38°C) and
relative humidity between 10% and 95%.
7. The unit shall have a gasketless base for easy installation and be capable of keeping
alarm secure over a wide rotation range to allow for true alarm alignment.
8. The unit shall have a plug in connector and be capable of interconnection of up to
18 alarms, 12 of which can be smoke alarms.
9. The unit shall at a minimum meet the requirements of ULC S531, NFPA 72, NFPA
101, and ICC.
10. The unit shall have an “End of Life” signal.
Installation of this smoke alarm must conform to all local electrical
codes and Article 760 of the National Electrical Code (NFPA 70)
and NFPA 72. Interconnected units must meet the following
requirements: Total length of wire interconnecting units should be
less than 1000 feet, be #18 gauge or larger and be rated at least
300V. It is recommended that all units be on the same fuse or
circuit breaker. If local codes do not permit, be sure the neutral
wire is common to both phases.
1. Smoke Alarm
2. Ceiling or Wall
3. Power Connector
4. Wire Nut
5. Junction Box
6. Neutral Wire (White)
7. Interconnect Wire (Orange)
8. Hot Wire (Black)

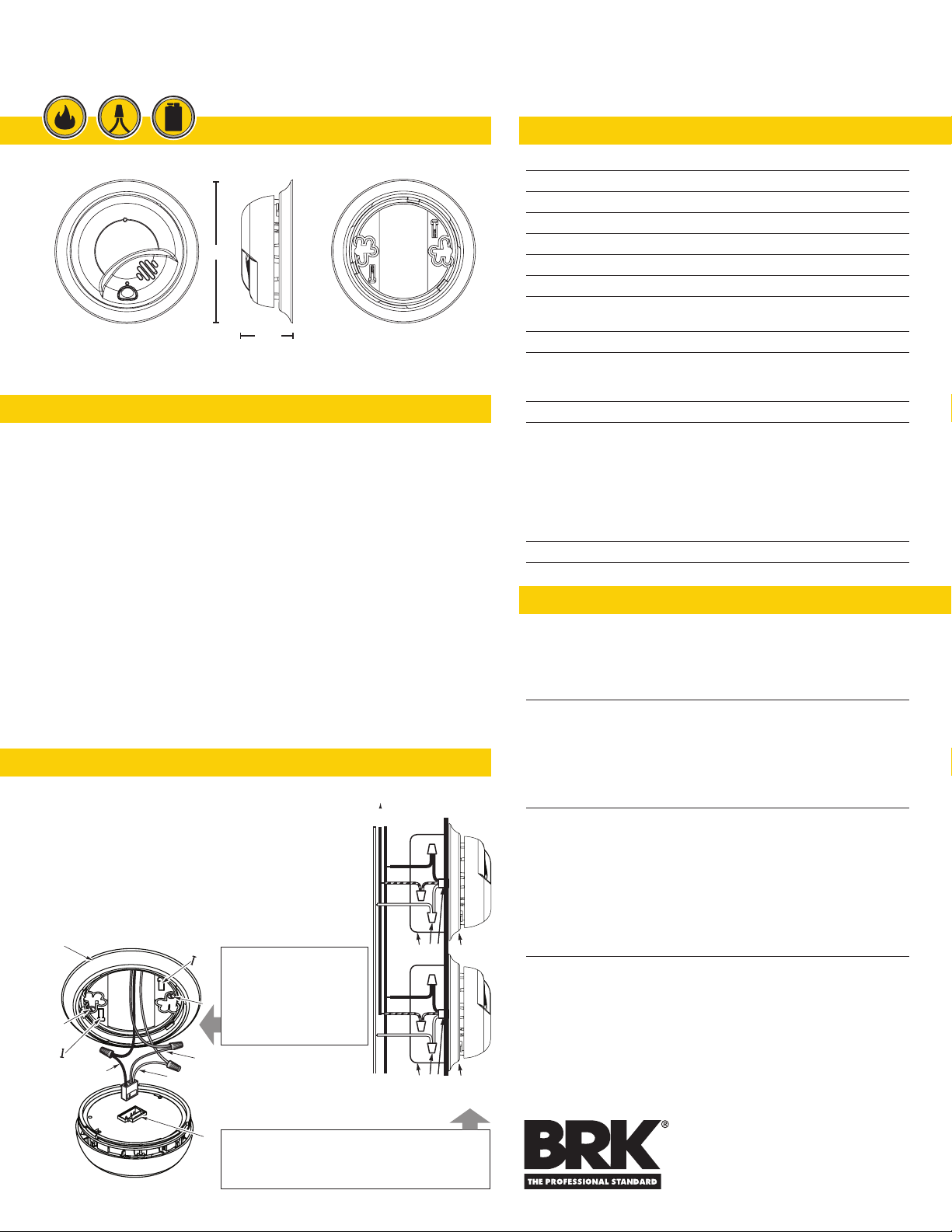

THE PARTS OF THIS ALARM
TECHNICAL SPECS
Alarm Dimensions: 5.6" Dia. x 2.0" H
Weight: 7.8 oz
Operating Voltage: 120V AC 60Hz w/ 9V lithium battery backup
Operating Current: 0.04 amps (standby/alarm)
Temperature Range: 40°F (4°C) to 100°F (38°C)
Humidity Range: 10% to 95% relative humidity (RH)
Audio Alarm: 85dB at 10 feet
Test/Silence: Electronically simulates smoke condition, causing
the unit to alarm. Press and hold test/silence button.
Alarm Reset: Unit will remain in latch mode until manually reset
Interconnections: Up to 18 units of First Alert or BRK Smoke, CO
and Heat Alarms. Maximum of 12 smoke alarms.
See user’s manual for details.
Smoke Sensor: Ionization
Indicator Lights/Sounds:
AC Power: Constant Green LED
DC Power: Intermittent Red LED
Local Alarm: Red LED ashes rapidly
Remote Alarm: Red LED off
Latching Alarm: Green LED ON for 2 seconds/OFF for 2 seconds,
repeatedly until reset, on initiating unit(s)
End of Life: Horn sounds 5 chirps; pattern repeats once/minute
Listing: Certied to ULC STD S531
SHIPPING SPECS
Individual Carton Dimensions 5.7” L x 2.3” W x 5.7” H
Weight: 0.6 lbs.
Cube: 0.04 ft3
UPC: 0 29054 01757 4
Master Carton Dimensions 6.2” L x 14.3” W x 12.4” H
Master Pack: 12
Weight: 7.9 lbs
Cube: 0.6 ft3
I2of5: 100 29054 01757 1
Pallet Information
Cases per Layer: 19
Number of Layers: 3
Cases per Pallet: 57
Units per Pallet: 684
Cube: 42.2 ft3
Weight: 480 lbs.
1. Mounting bracket
2. Mounting Slots
3. Locking Pins
4. Hot (Black) AC Wire
5. Neutral (White) AC Wire
6. Interconnect (Orange) Wire
7. Quick-Connect Plug
CAT. 9120LBLA
A. Unswitched 120VAC 60 Hz source
B. To additional units; Maximum = 18 total
(Maximum 12 Smoke Alarms)
© 2021 BRK Brands, Inc. All rights reserved. Distributed
by BRK Brands, Inc., Aurora, Illinois 60504. BRK Brands,
Inc. is a subsidiary of Newell Brands Inc. (NASDAQ: NWL).
brkcanada.ca REV 11/20
