BRK electronic SC7010BV User manual

The BRK Cat. No. SC7010BV is a wire-in, 120V AC 60Hz single and/or multiple station
combination smoke and carbon monoxide alarm specifically designed for residential
and institutional applications including sleeping rooms of hospitals, hotels, motels,
dormitories and other multi-family dwellings as defined in standard NFPA 101. Model
SC7010BV complies with UL217 and UL2034, CSFM, NFPA 72 and NFPA 720, HUD,
FHA and other agencies that model their codes after the above agencies. It meets
building codes where AC/DC photoelectric smoke and carbon monoxide alarms with
and without voice are required.
The BRK SC7010BV is a state-of-the-art hardwired with battery backup smoke/CO
combo alarm that features a photoelectric smoke sensing chamber, an electrochemical CO
sensor and voice warning with location. This exclusive feature incorporates a voice
that will speak one of 11 pre-programmed locations and the danger detected. When
the alarm sounds (if programmed for “basement”, for example) it will speak “Warning,
evacuate, smoke in basement”. All other interconnected SC7010BV’s will announce warning
without location (“Warning, evacuate, Smoke”). All other interconnected hardwired
alarms will sound their normal smoke and/or CO horn pattern. The Spread Spectrum
Horn Tone has a lower and varying frequency that makes it easier for the elderly with
normal age related hearing loss to hear the horn. This alarm features two latching features
and two silence features. Alarm Latch: Easily identifies initiating alarm even after alarm
condition has subsided. Low Battery Latch: Identifies which unit is in low battery condition by
blinking the green power light. Low Battery Silence: Temporarily silence the low battery
chirp for up to eight hours. Alarm Silence: Silence alarm for several minutes. Other features
include an 85dB horn, single button test/silence, an easy access battery drawer. OptiPath 360
Technology: Exclusive patented technology provides 360˚ of direct access to the smoke
sensor. The alarm is interconnectable with up to 18 devices, of which 12 can be smoke
alarms. The unit mounts to any standard electrical box up to 4” size. Keyhole slots in the
mounting bracket eliminate the need to remove the electrical
box screws for installation. Includes Perfect Mount, a
mounting bracket that keeps the alarm secure
over a wide rotation range to allow for perfect
alignment. Dust cover is included to keep
the alarm clean during construction.
Battery installation and removal can
occur while the unit is mounted to
the ceiling or wall via the side
battery compartment.Two locking
features are provided to prevent
battery theft and/or theft of the
unit. Connection to AC power is
made with a “Quick-Connect”
wiring harness. Installation is
quick, easy and cost effective.
VOICE WARNING
WITH LOCATION
Exclusive! A voice will tell you the
programmed location of the unit
and danger detected.
SPREAD SPECTRUM
HORN TONE
Easier for elderly with normal age
related hearing loss to
hear horn.
TWO LATCHING
FEATURES
Alarm Latch and Low Battery Latch
TWO SILENCE FEATURES
Silence low battery chirp for
up to eight hours or silence
nuisance alarm.
OPTIPATH 360
TECHNOLOGY
Patented technology provides 360º
of direct access to smoke sensor.
120V AC/DC, 60Hz
Wire-in with 3V (two 1.5V AA) Battery Backup
SMOkE & CO
COMbO ALARM
PHOTOELECTRIC
CAT. SC7010bV
Description:

Alarm Dimensions: 5.0” dia x 2”H
Weight: 9.3 oz.
Operating Voltage: 120V AC, 60Hz with two 1.5V Alkaline AA battery
backup.
Operating Current: .05 amps (standby/alarm)
Temperature Range: 40˚F (4˚C) to 100˚F (38˚C)
Humidity Range: 10% to 95% relative humidity (RH)
Audio Alarm: 85dB at 10 feet
Voice Output: Choice of 11 pre-programmed locations warns of
danger and location.
Test/Silence: Electronically simulates smoke and carbon
monoxide conditions, causing the unit to alarm
and temporarily quiets the alarm.
Alarm Reset: Automatic when smoke and/or carbon monoxide
clears
Interconnections: Up to 18 units with smoke, heat, CO alarms and
relays. Maximum of 12 smoke alarms (see user’s
manual).
Smoke Sensor: Photoelectric
CO Sensor: Electrochemical
Indicator Lights:
AC Power: Constant Green Light
DC Power: Intermittent Green Light
Local Alarm: Audio alarm, Voice with location, rapidly flashing
red light by corresponding indicator light.
Remote Alarm: Audio alarm, Voice without location, red light not
flashing
Latching Alarm
Indicator:
Audio off and corresponding red lights
flashing 2 seconds on, 2 seconds off after local
alarm unless reset by test/silence button
Low Battery Latch: “Power” LED flashes green on for 2 seconds, off for
2 seconds.
Individual Carton Dimensions: 5.13”L x 2.38”W x 5.13”H
Weight: .74 lbs.
Cube: .04 ft3
UPC: 0 29054 00229 7
Master Carton Dimensions: 10.75”L x 7.88”W x 11.06”H
Master Pack: 12
Weight: 9.4 lbs.
Cube: .54 ft3
I2of5: 100 29054 00229 4
Pallet Information:
Cases per Layer: 22
Number of Layers: 4
Cases per Pallet: 88
Cube: 54.04 ft3
Weight: 892.2 lbs.

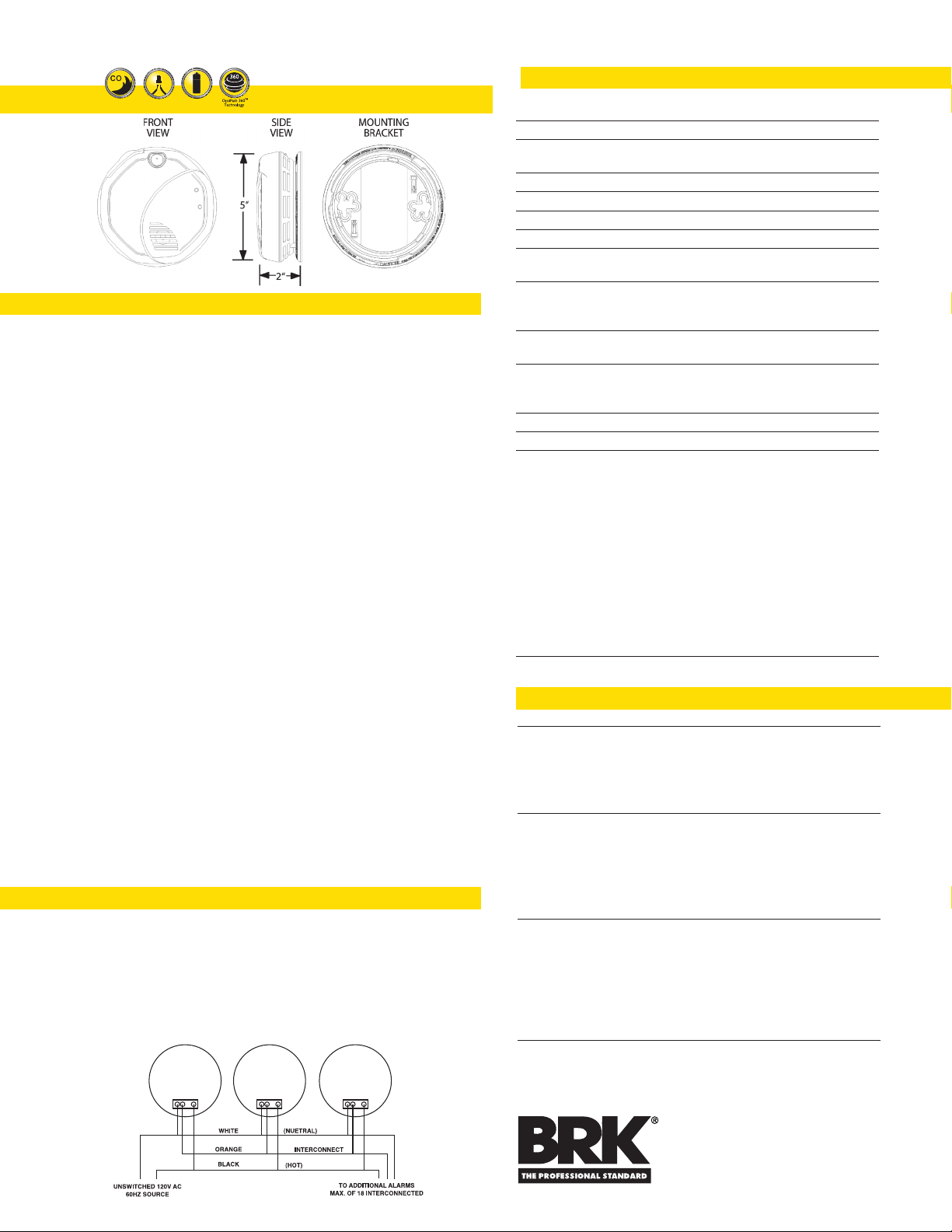

Installation of this smoke and carbon monoxide alarm must conform to all
local electrical codes and Article 760 of the National Electrical Code (NFPA
70) and NFPA 72. Interconnected units must meet the following requirements:
Total length of wire interconnecting units should be less than 1000 feet, be
#18 gauge or larger and be rated at least 300V. It is recommended that all
units be on the same fuse or circuit breaker. If local codes do not permit,
be sure the neutral wire is common to both phases. Only those BRK®user’s
manual catalog numbers listed in the user’s manual may be connected to
these smoke alarms.
1. A photoelectric sensing chamber and electrochemical CO sensor.
2. A Voice Warning of danger detected (Smoke or Carbon Monoxide) in
addition to speaking one of 11 pre-programmed locations, e.g.
“Warning, Evacuate, Smoke in Basement”.
3. The unit shall have a lower and varying horn frequency to to make it easier
for the elderly with normal age related hearing loss to better hear the horn
and be rated 85db at 10 ft.
4. The unit shall be capable of self restoring.
5. A fully screened smoke sensing chamber to prevent entry of small insects
thereby reducing the probability of unwanted alarms.
6. Powered by 120V AC, 60Hz and have a monitored battery backup
(two 1.5V Alkaline AA batteries).
7. Two Latching features: Alarm Latch to easily identify initiating alarm after
alarm condition has subsided by displaying a blinking red light by
corresponding alarm indicators. Low battery latch to visually identify which
unit is in low battery condition by displaying a blinking green light by the
Power indicator.
8. Two Silence Features: Alarm Silence to temporarily silence nuisance alarms.
Low Battery Silence to silence low battery chirp for up to 8 hours
9. Optipath 360 technology that provides 360 (degree symbol) of direct
access to the smoke sensor
10. A visual LED (green) power-on indicator to confirm unit is receiving power. A
visual LED (red) power-on indicator to confirm unit has switched to battery
backup.
11. A single button test/silence feature.Test button should check all alarm
functions by simulating a smoke or CO condition, causing the unit to alarm.
12. The unit shall be capable of operating between 40ºF (4ºC) and 100ºF (38ºC)
and relative humidity between 10% and 95%.
13. The unit shall mount to any standard electrical box up to 4” size without
screw removal and shall be listed for wall or ceiling mounting.
14. The unit shall have a locking mechanism to deter battery removal and/or
theft of the unit.
15. Feature a quick-connect wiring harness and be capable of
interconnecting up to 18 devices, 12 of which can be smoke alarms.
16. The unit shall at a minimum meet the requirements of UL217, UL 2034,
CSFM, NFPA 72, NFPA 720, NFPA 101, ICC.
