PRODUCT DESCRIPTION
The LB-KP8E-ICP (8-Button) and LB-KP16E-ICP (16-Button) Wall Plate
Ethernet Keypad offers 8 or 16 direct macro command buttons in an
elegant decora style wall plate form factor to provide end-users an
intuitive interface to control the various control functions configured
in the Integrated Control Processor (LBC-H/O-R-ICP). Integrated PoE
functionality eliminates the need for additional power supplies by
offering the capability to remotely power the wall plate over Ethernet.
Each button is easily custom labeled to identify the button’s function.
Features include:
• 1-gang wall plate Ethernet keypad with 8 buttons (LB-KP8E-ICP)
• 2-gang wall plate Ethernet keypad with 16 buttons (LB-KP16E-ICP)
• Can be powered over Ethernet with PoE (Power over Ethernet) or DC
power supply
• Easily integrates with the Integrated Control Processor (LBC-H/O-R-
ICP)
• Extra virtual buttons are available via WebGUI configuration
• Comes with relays to control peripheral device on/o
• Available with PoE function or DC power supply selection
• Supports Telnet or WebGUI control
• Supports scheduling control and settings
• Adjustable LED dim light in keypad buttons

6
8-Button Wall Plate Ethernet Keypad User Manual (LB-KP8E-ICP / LB-KP16E-ICP)

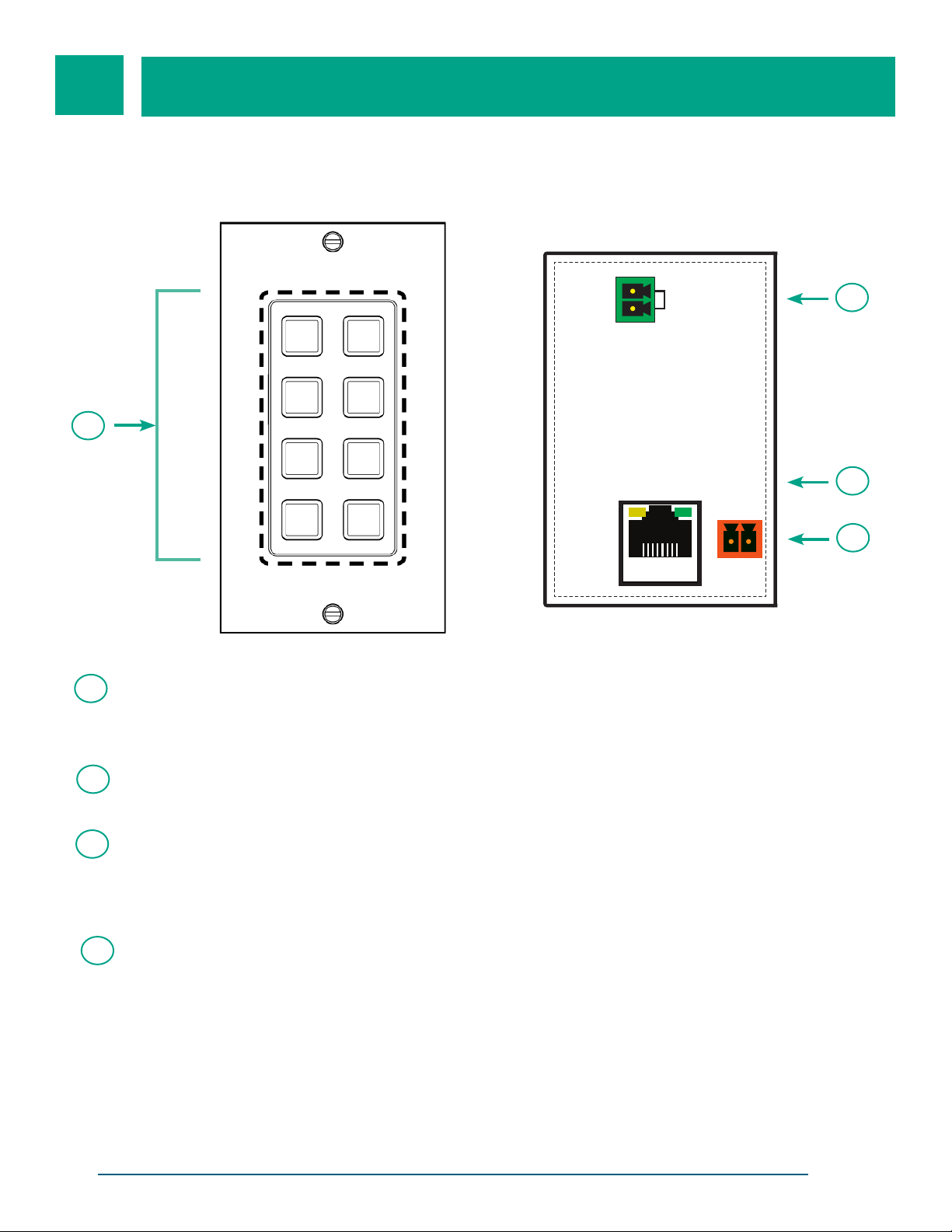

OPERATION CONTROL AND FUNCTIONS
DC 5V
+
-
Relay
Out
Control
FRONT PANEL
1
BACK PANEL
2
Macro Buttons: Each button has 2 colors of LEDs adjustable from dim 0~100% and can
have up to 16 commands. Further detail settings can be found in Section
2.5
Relay Out: Connect with device that supports DC 0~24V/5A power or signal that sup
ports relay function.
Control: Connect from PC/Laptop with active internet service or Telnet or WebGUI
control with RJ-45 terminated cable. This slot supports PoE PD 48V
function which means when the connected server/Hub support PSE 48v it
can be powered without DC supply connection.
DC 5V: Plug the 5V DC power adaptor included in the package and connect to AC
wall outlet for power supply.
1
2
3
4
3
4

8-Button Wall Plate Ethernet Keypad User Manual (LB-KP8E-ICP / LB-KP16E-ICP)
7
TELNET COMMANDS
COMMAND DESCRIPTION PARAMETER
IPCONFIG DISPLAYS THE CURRENT IP CONFIGURATION NONE
SIPADDR XXX.
XXX.XXX.XXX SET ETHERNET IP ADDRESS XXX=0-255
SNETMASK XXX.
XXX.XXX.XXX SET ETHERNET NET MASK
XXX=0-255
SGATEWAY XXX
XXX.XXX.XXX SET ETHERNET GATEWAY XXX=0-255
SIPMODE N SET ETHERNET IP MODE N=STATIC/DHCP
VER SHOW UNTIL FIRMWARE VERSION NONE
FADEFAULT ALL CONFIGURE AND MACRO
SET TO FACTORY DEFAULT NONE
ETH_FADEFAULT ALL ETHERNET CONFIGURE SET TO FACTORY* NONE
REBOOT SYSTEM REBOOT NONE
HELP SHOW COMMAND LIST NONE
HELP N SHOW DESCRIP OF COMMAND N: COMMAND NAME
RELAY N N1 RELAY CONTROL N(PORT)=1
N1=OPEN/CLOSE/TOGGLE
LEDBLUE N N1 LED BLUE BACKLIGHT CONTROL N(LEN NO.)~1-8
N1=% (1-100)
LEDRED N N1 LED RED BACKLIGHT CONTROL N(LEN NO.)~1-8
N1=% (1-100)
LEDBLUES N ALL BLUE LED BACKLIGHT CONTROL N=% {0-100}
LEDREDS N ALL RED LED BACKLIGHT CONTROL N=% {0-100}
LEDSHOW N LED DIMMING MODE CONTROL LEDSHOW N
N=ON/OFF/TOGGLE
BACKLIGHT N ALL LED BACKLIGHT CONTROL N=% {0-100}
KEY_PRESS N RELEASE
KEY_PRESS N HOLD KEY PRESS TRIGGER TYPE
KEY_PRESS N RELEASE
KEY_PRESS N HOLD
N=PORT NUMBER
N=PORT NUMBER
MACRO N MACRO SETTING
MACRO RUN N N=MACRO
ID (1-16)
MACRO STOP
TELNET_TIMEOUTN SET TELNET TIMOUT ON/OFF N=ON/OFF
NOTE: ANY COMMANDS WILL NOT BE EXECUTED UNLESS FOLLOWED
BY A CARRIAGE RETURN. COMMANDS ARE CASE-SENSITIVE

8
8-Button Wall Plate Ethernet Keypad User Manual (LB-KP8E-ICP / LB-KP16E-ICP)
CONFIGURATION
THE BACKGROUND
LIGHT BAR ALLOWS
USER TO INSTANT-
LY CHANGE THE
LEDS LIGHTING
PERCENTAGE
BASED ON THE
ORIGNIAL ILLUMI-
Telnet Control
Before attempting to use the Telnet control, please ensure that both the device under
control and the PC/Laptop are connected to the same active networks.
To access the Telnet control in Windows 7, click on the ‘Start’ menu and type “cmd” in
the Search field then press enter.
Under Windows XP go to the ‘Start’ menu and click on “Run”, type “cmd” with then press
enter.
Once in the command line interface (CLI) type “telnet”, then the IP address of the unit,
then hit enter.
This will bring us into the unit which we wish to control. Type “help” to list the available
commands.
Note: Commands will not be executed unless followed by a carriage return.
Commands are case-sensitive. If the IP is changed then the IP Address required for
Telnet access will also change accordingly. CLICK ON THE
EDIT SYMBOL TO
EDIT COMMAND
SETTINGS. UP/
DOWN ARROWS
ARE TO MOVE THE
COMMAND UP OR
DOWN AND DE

8-Button Wall Plate Ethernet Keypad User Manual (LB-KP8E-ICP / LB-KP16E-ICP)
9
CONFIGURATION
THE BACKGROUND
LIGHT BAR ALLOWS
USER TO INSTANT-
LY CHANGE THE
LEDS LIGHTING
PERCENTAGE
BASED ON THE
ORIGNIAL ILLUMI-
BUTTON CON
FIGURATION
ON THE TOP MENU
BAR CLICK ON CUS
TOMIZE AND THEN
CLICK ON 8/16
BUTTON KEYPAD.

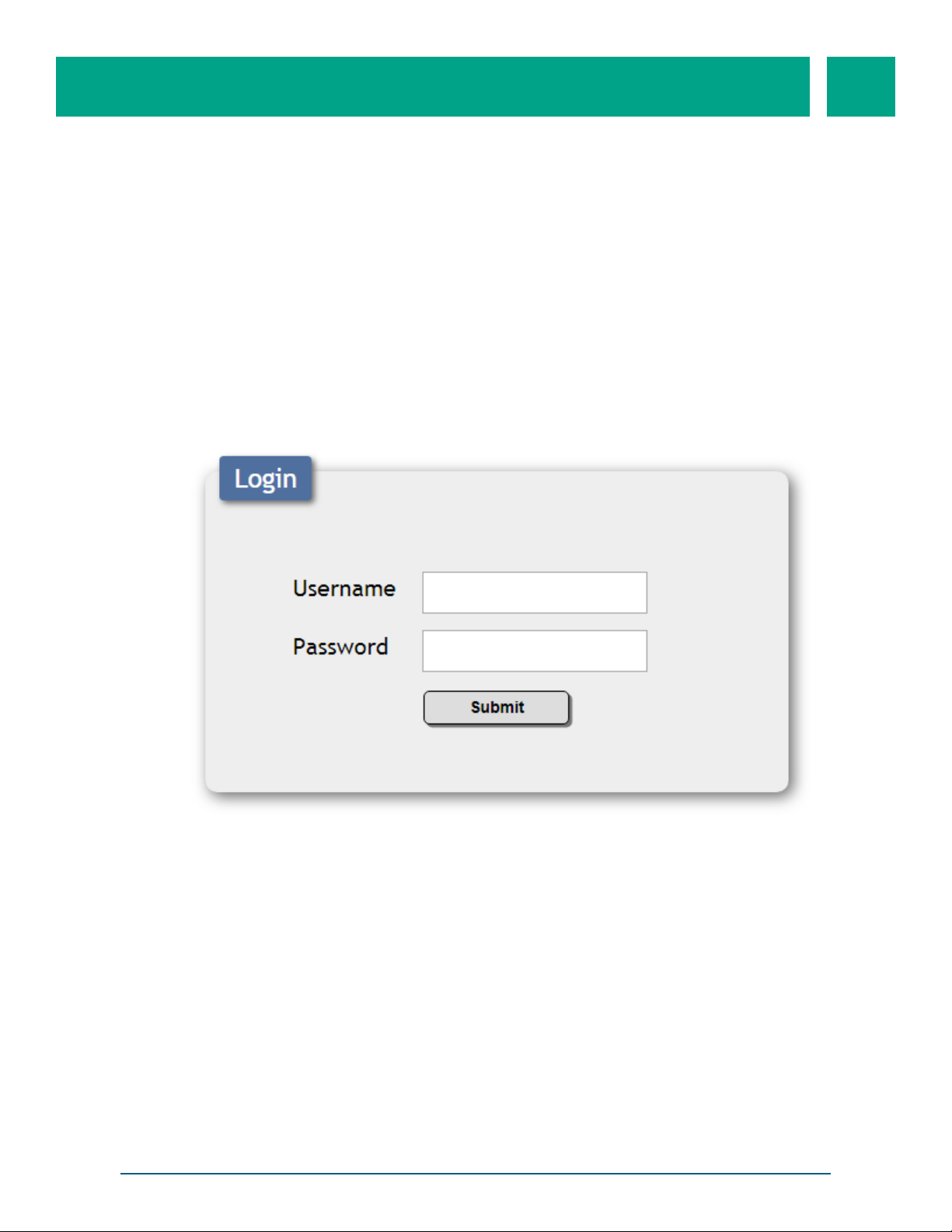

WebGUI Control
On a PC/Laptop that is connected to an active network system, open a web browser
and type device’s IP address on the web address entry bar. A security page will appear
to ask for User and Password, please key in “admin” for both to enter.
Note: The Default IP setting is DHCP.
The browser will display the device’s Macro Setting, Extension Macro, Command
Settings, Schedule, Network and System Settings pages for users to control.
CLICK ON THE
EDIT SYMBOL TO
EDIT COMMAND
SETTINGS. UP/
DOWN ARROWS
ARE TO MOVE THE
COMMAND UP OR
DOWN AND DE

10
8-Button Wall Plate Ethernet Keypad User Manual (LB-KP8E-ICP / LB-KP16E-ICP)
CONFIGURATION
THE BACKGROUND
LIGHT BAR ALLOWS
USER TO INSTANT-
LY CHANGE THE
LEDS LIGHTING
PERCENTAGE
BASED ON THE
ORIGNIAL ILLUMI-
Macro Settings
The Background Light Bar allows user to instantly change the LEDs lighting percentage
based on the orignial illumination setting.
There are 6 Macros pre-configured as default setting for testing the Wall-Plate Control
System’s functionality. Click on Macro 1~6 to demonstrate the function of lighting LEDs.
• Macro 1: Light up the Red backlight LED with 100% brightness sequentially from 1~8
with every 500ms.
• Macro 2: Light up the Blue backlight LED with 100% brightness sequentially from
1~8 with every 500ms.
• Macro 3: Switch o all the read backlight LED with 0% brightness.
• Marco 4: Switch o all the blue backlight LED with 0% brightness.
• Marco 5: LED show mode toggle, swith o Demo Mode
• Macro 6: Light up the Blue backlight LED with 10% brightness, Switch o all the
blue backlight LED with 0% brightness, switch O & On Relay 1 with delay of
1000ms.
To disable default testing mode, set Demo Mode switch to o.

8-Button Wall Plate Ethernet Keypad User Manual (LB-KP8E-ICP / LB-KP16E-ICP)
11
CONFIGURATION
THE BACKGROUND
LIGHT BAR ALLOWS
USER TO INSTANT-
LY CHANGE THE
LEDS LIGHTING
PERCENTAGE
BASED ON THE
ORIGNIAL ILLUMI-

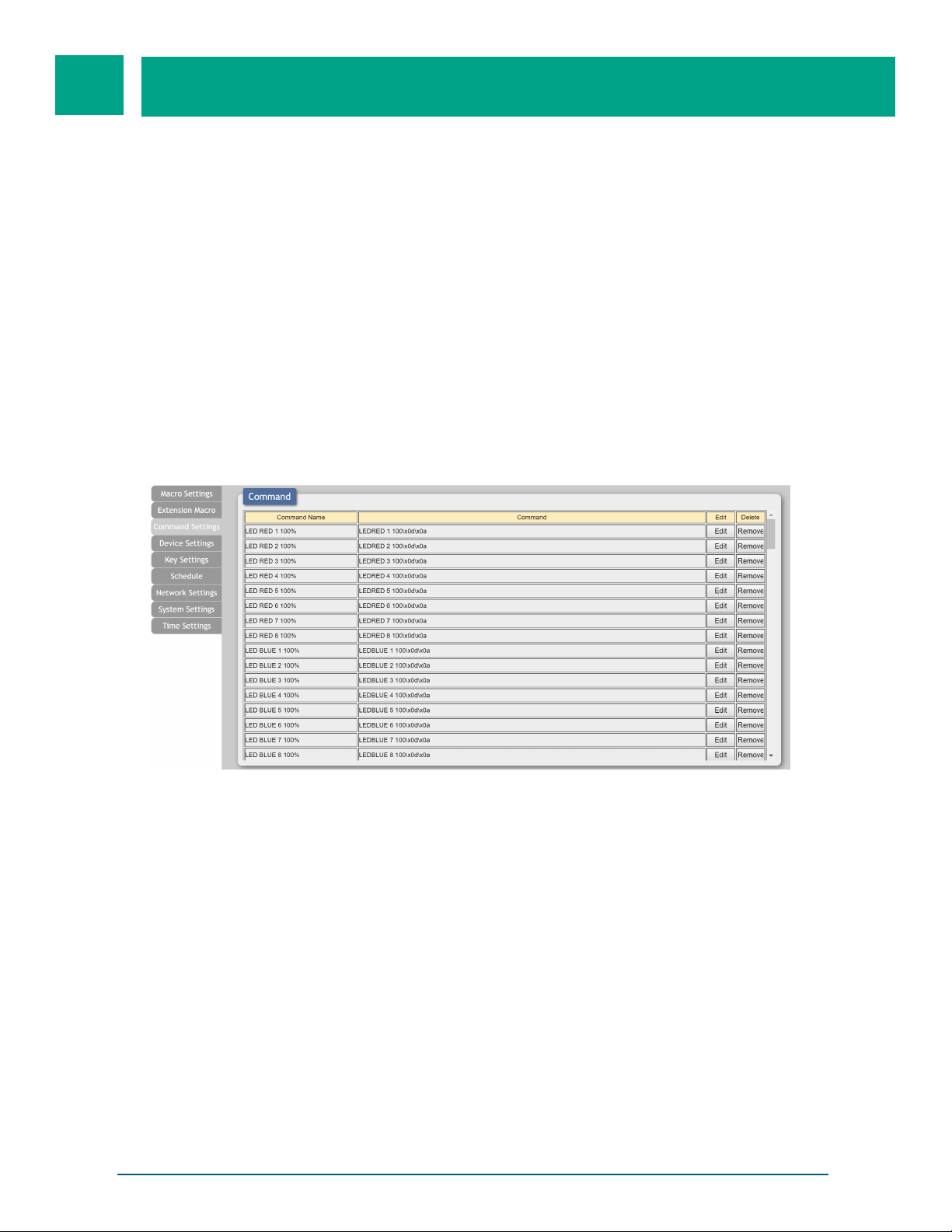

Click on the edit symbol to edit command settings. Up/down arrows are to move the
command up or down and delete button is to delete the command.

12
8-Button Wall Plate Ethernet Keypad User Manual (LB-KP8E-ICP / LB-KP16E-ICP)
CONFIGURATION
THE BACKGROUND
LIGHT BAR ALLOWS
USER TO INSTANT-
LY CHANGE THE
LEDS LIGHTING
PERCENTAGE
BASED ON THE
ORIGNIAL ILLUMI-

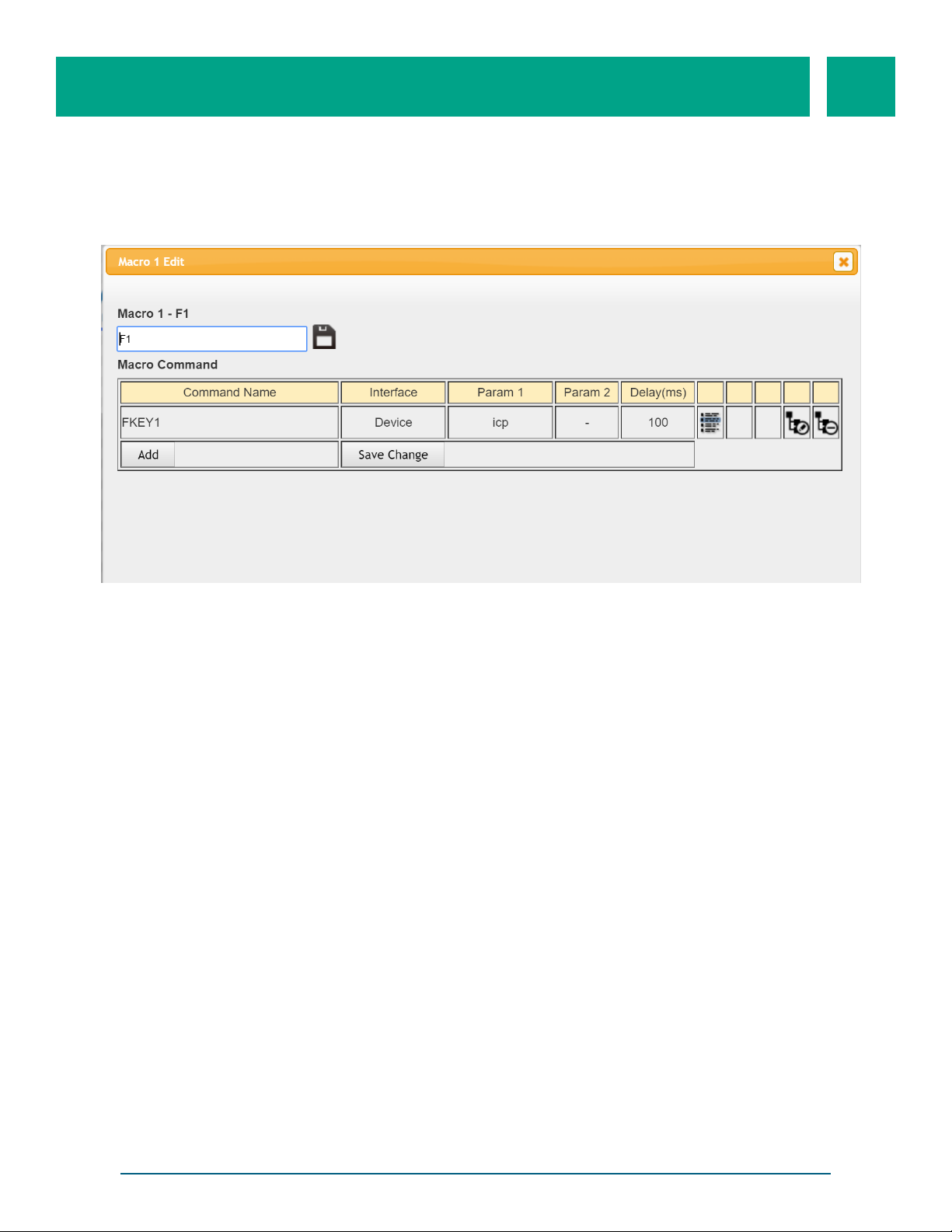

Click on Insert button/Add to insert commands. Command can be set to control the
Wall-Plate Control Box/SysCMD, other devices connected within the same Telnet
system/Internet area and Relay devices connected through the Relay outputs of
Wall- Plate Control Box with delay time. It is suggested the delay time is >100ms
once the setting is confirmed, double click on Save Change.
Command set to control the device within the same telnet system or internet area
require to set its IP and Port number and it is strongly recommand to set the delay
time>500ms in order to secure a successful command sending. Once the setting is done
click on Save change.
CLICK ON EXTEN
SION MACRO TO
EXECUTE/EDIT UP
TO 8 MORE MAC
RO ACTIONS,

8-Button Wall Plate Ethernet Keypad User Manual (LB-KP8E-ICP / LB-KP16E-ICP)
13
CONFIGURATION
THE BACKGROUND
LIGHT BAR ALLOWS
USER TO INSTANT-
LY CHANGE THE
LEDS LIGHTING
PERCENTAGE
BASED ON THE
ORIGNIAL ILLUMI-
Command set to control the Relay devices require to set the Port number. Click on
Save Change to confirm the setting.
Extension Macro
Click on Extension Macro to execute/edit up to 8 more Macro actions,

14
8-Button Wall Plate Ethernet Keypad User Manual (LB-KP8E-ICP / LB-KP16E-ICP)
CONFIGURATION
THE BACKGROUND
LIGHT BAR ALLOWS
USER TO INSTANT-
LY CHANGE THE
LEDS LIGHTING
PERCENTAGE
BASED ON THE
ORIGNIAL ILLUMI-
Command Settings
Click on Command Settings to insert new commands or delete commands.
A maximum of 128 commands are supported (each command is less than 128 characters
including spaces).
Alternatively, up to 32 commands (each command greater than 128 characters and less
than 512 characters including spaces) plus 96 commands (each command less than 128
characters including spaces) are supported.
Click on Save Change to save the command.

8-Button Wall Plate Ethernet Keypad User Manual (LB-KP8E-ICP / LB-KP16E-ICP)
15
CONFIGURATION
THE BACKGROUND
LIGHT BAR ALLOWS
USER TO INSTANT-
LY CHANGE THE
LEDS LIGHTING
PERCENTAGE
BASED ON THE
ORIGNIAL ILLUMI-

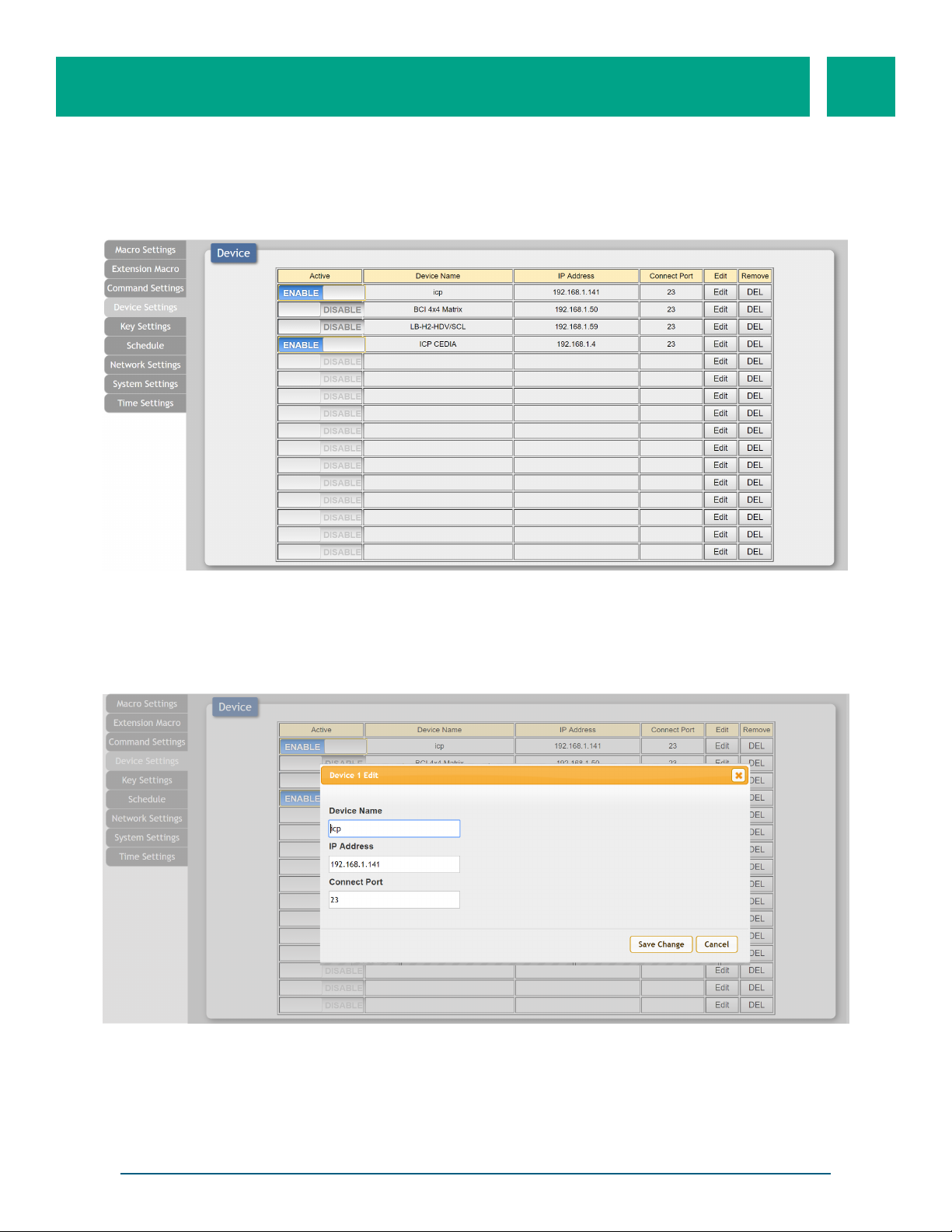

Device Settings
Click on Device Settings to setup the IP Address of a device.
Click on Edit to add a new device to be controlled. Enter the Device Name, IP
Address and Connect Port.

16
8-Button Wall Plate Ethernet Keypad User Manual (LB-KP8E-ICP / LB-KP16E-ICP)
CONFIGURATION
THE BACKGROUND
LIGHT BAR ALLOWS
USER TO INSTANT-
LY CHANGE THE
LEDS LIGHTING
PERCENTAGE
BASED ON THE
ORIGNIAL ILLUMI-
CLICK ON KEY SET
TINGS TO CONFIG
URE THE REPEAT
OR TOGGLE SET
TING OF A KEY. IF
REPEAT IS SET TO
ON, PRESSING AND
HOLDING THE KEY

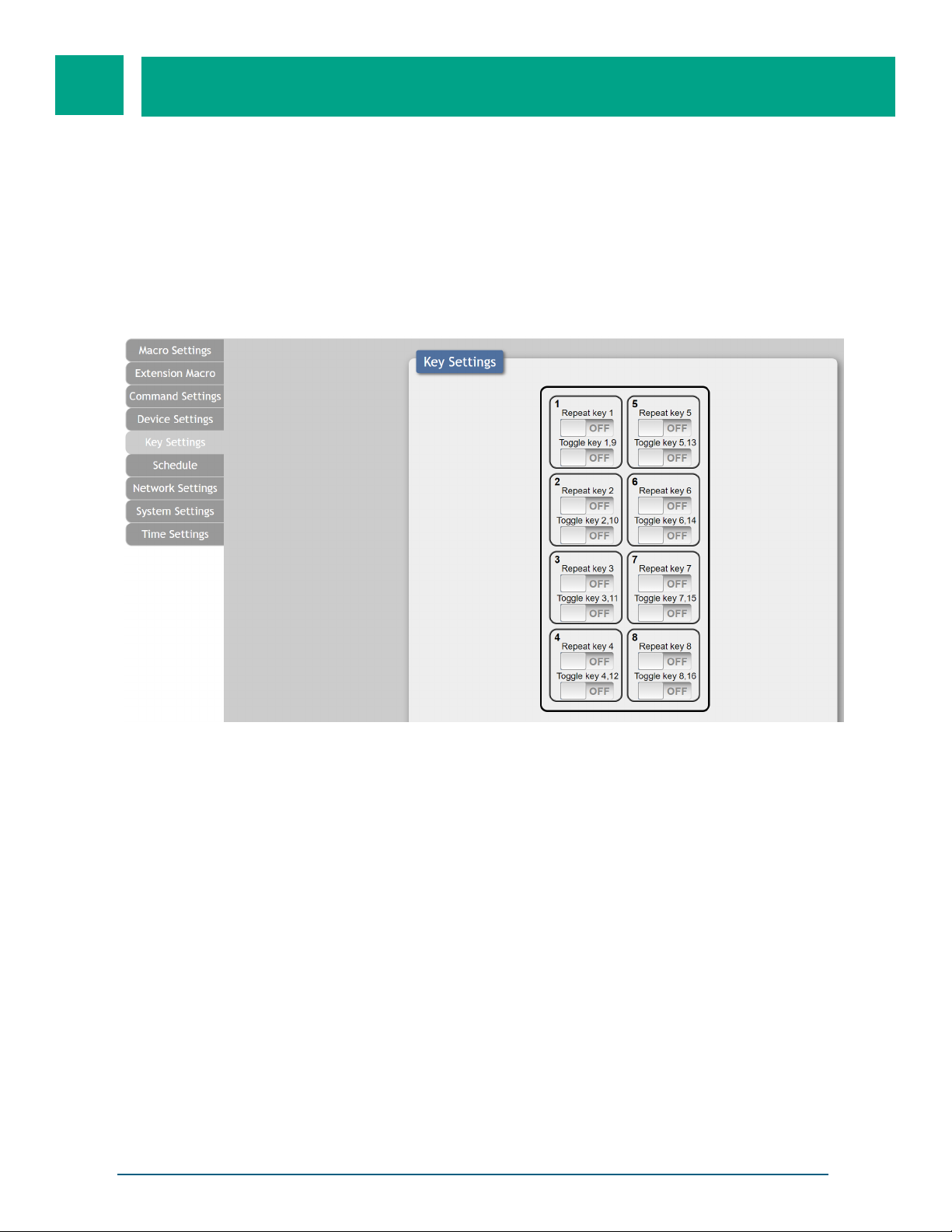

Key Settings
Click on Key Settings to configure the repeat or toggle setting of a key. If Repeat is set
to On, pressing and holding the key causes the programmed macro to be repeated.
If Toggle is set to On, pressing the key the first time executes the macro for that key.
Pressing the key a second time executes the extension macro for the corresponding
key. Note: Key 17 is the corresponding toggle key for Key 1.

8-Button Wall Plate Ethernet Keypad User Manual (LB-KP8E-ICP / LB-KP16E-ICP)
17
CONFIGURATION
THE BACKGROUND
LIGHT BAR ALLOWS
USER TO INSTANT-
LY CHANGE THE
LEDS LIGHTING
PERCENTAGE
BASED ON THE
ORIGNIAL ILLUMI-
Schedule
Click on Schedule to set the executing time schedule of the Macro(s).
Note: The scheduling system supports up to 48hrs of memory under power blackout
after that the system will reset the time automatically back to 2015/01/01 00:00:00.
Click on Edit from Repeat column to set the macro command(s) to be activated
repeatedly on a set time.

18
8-Button Wall Plate Ethernet Keypad User Manual (LB-KP8E-ICP / LB-KP16E-ICP)
CONFIGURATION
THE BACKGROUND
LIGHT BAR ALLOWS
USER TO INSTANT-
LY CHANGE THE
LEDS LIGHTING
PERCENTAGE
BASED ON THE
ORIGNIAL ILLUMI-
Click on Edit from Once column to set the macro command(s) to be activated on a
set time only.

8-Button Wall Plate Ethernet Keypad User Manual (LB-KP8E-ICP / LB-KP16E-ICP)
19
CONFIGURATION
THE BACKGROUND
LIGHT BAR ALLOWS
USER TO INSTANT-
LY CHANGE THE
LEDS LIGHTING
PERCENTAGE
BASED ON THE
ORIGNIAL ILLUMI-

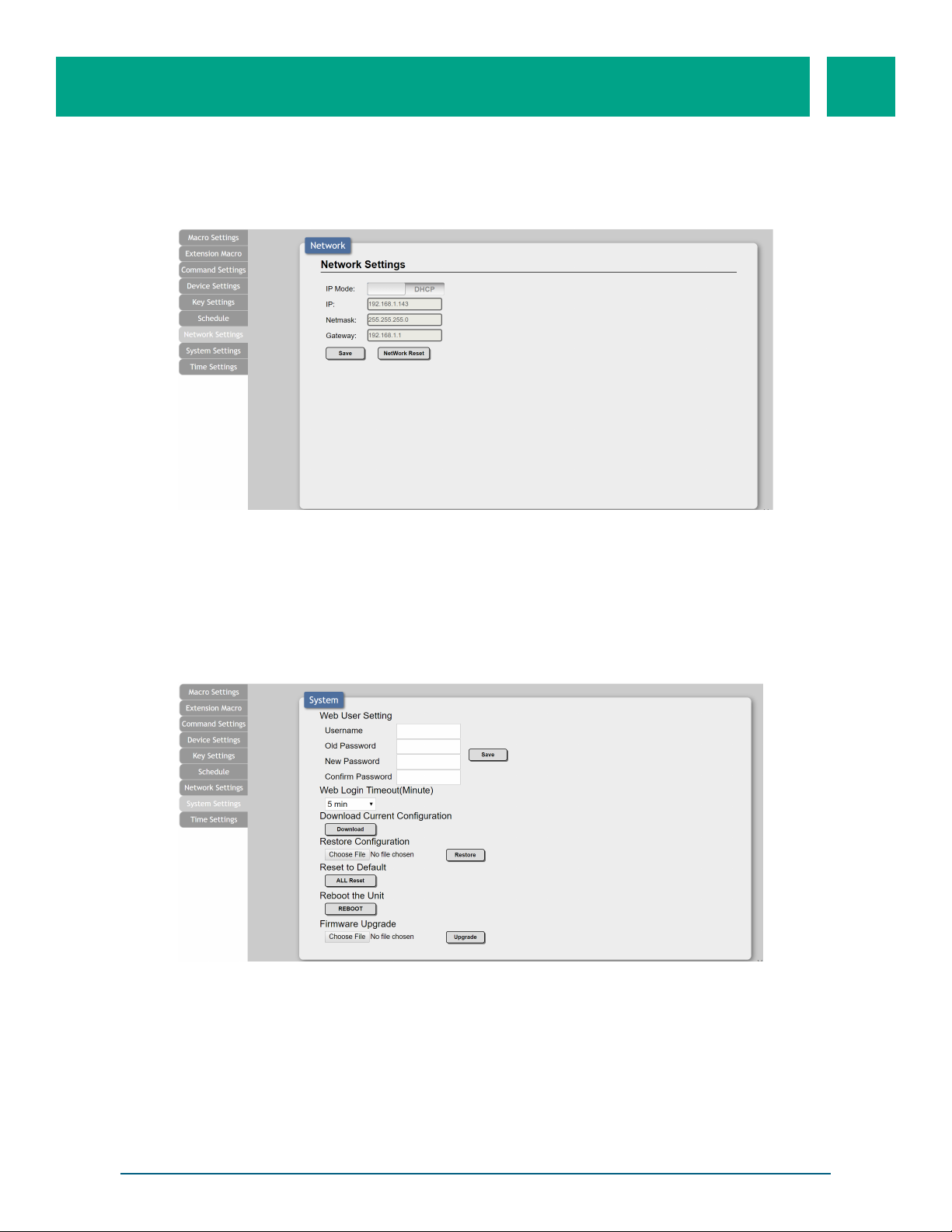

Network Settings
Click on Network Settings to reset the IP, Netmask or Gateway address.
System Settings
Click on System Settings to reset the WebGUI login password and timeout setting
and save or download the Macro settings. Reset to Default allows IP and login ID &
password to be reset back to factory default.

20
8-Button Wall Plate Ethernet Keypad User Manual (LB-KP8E-ICP / LB-KP16E-ICP)
CONFIGURATION
THE BACKGROUND
LIGHT BAR ALLOWS
USER TO INSTANT-
LY CHANGE THE
LEDS LIGHTING
PERCENTAGE
BASED ON THE
ORIGNIAL ILLUMI-
Time Settings
Click on ‘Time Settings’ to set the system time and to enable/ disable Daylight Saving
Time(DST) function. Simply click on the white column and a calendar will appear for your
selection with current timing setting. Another simple few clicks to enable/ disable DST
with its start and end.
