Chamberlain KPR2000 User guide

For How-to videos, visit the LiftMaster Training Academy
at LiftMasterTraining.com
Installation
and Set Up Manual

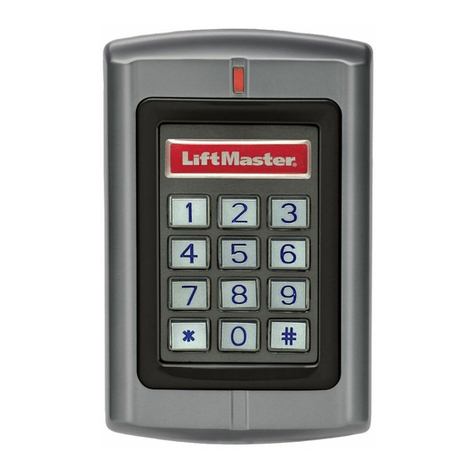

KPR2000
Waterproof
Keypad/Proximity Reader
123
456
789
*
0
#
Para Manual en Español ir a:
http://www.LiftMaster.com/CatalogResourcesV3/en-us/shared/files/
tucmanuals/0137261SP.pdf

2
INTRODUCTION. . . . . . . . . . . . . . 2-4
Specifications. . . . . . . . . . . . . . . . . . . . 2
Features . . . . . . . . . . . . . . . . . . . . . . . . 3
Accessories . . . . . . . . . . . . . . . . . . . . . 3
One Year Limited Warranty . . . . . . . . . 3
Carton Inventory . . . . . . . . . . . . . . . . . 4
INSTALLATION . . . . . . . . . . . . . . 5-6
Install the KPR2000. . . . . . . . . . . . . . . 5
Choose an Operation Mode. . . . . . . . . 6
WIRING . . . . . . . . . . . . . . . . . . 7-10
Wire the KPR2000. . . . . . . . . . . . . .7-10
SET UP . . . . . . . . . . . . . . . . . .11-22
Configure the KPR2000. . . . . . . . .11-14
Program Cards and PINS. . . . . . . .15-19
Alarm . . . . . . . . . . . . . . . . . . . . . . . . . 20
Reset the KPR2000 . . . . . . . . . . . . . . 21
Erase all Codes . . . . . . . . . . . . . . . . . 21
Sound & Light Indication. . . . . . . . . . 22
SPECIFICATIONS
User Capacity......................... 2000 User ID's with card and/or PINS
Operating Voltage ................... 12 ~ 24 Vdc or 12 ~ 18 Vac
Idle Current....................... ~ 50mA
Active Current .................... ~ 80mA
Keypad................................. 12 Key (3x4)
Two output formats ............. 26 bit Wiegand Card keypad mode, 8 bit ASCII keypad mode
Proximity Card Reader.............. HID 26 bit and 30 bit (Sentex)
Radio Technology.....................125 KHz Industry Standard Proximity Card
Read Range .............................. 1 inch - 2.5 inches
Wiring Connections........................Relay Output, REX, DOTL, Alarm, Wiegand (in/out)
Relay ..............................................One (NO, NC, Common)
Adjustable Relay Output Time.... 1 ~ 99 Seconds (5 seconds default)
Adjustable Auxiliary
Alarm Output Time ................... 0 ~ 3 Minutes (1 minute default)
Lock Output Load .....................2 Amp Maximum
Auxiliary Alarm Output Load.....10 Amp Maximum
Wiegand Interface ................... HID Wiegand 26 and 30 bit Format Input & Output
Environment .......................... Meets or exceeds IP68
Operating Temperature.............-20°C ~ 60°C, or -4°F ~ 140°F
Operating Humidity...................10% ~ 90% Non-Condensing
Physical ............................... Zinc-Alloy Enclosure
Surface Finish...........................Powder Coat
Dimensions...............................L:128mm x W:82mm x D:28mm
Unit Weight...............................1 Pound
Shipping Weight .......................1.4 Pounds
INTRODUCTION INSTALLATION WIRING SET UP

3
FEATURES
• Waterproof (IP68)
(meets or exceeds N4)
• Vandal Resistant Enclosure
• Blue Backlit Keypad
• Multi-color LED status display
• Integrated Alarm Buzzer & Output
• One Programmable Relay Output
• Stand Alone or Pass-Through
Operation
• 2000 Users (Card/PIN/Card+PIN)
• Low power consumption (50mA)
• Anti-Tamper Alarm
• Latch Mode to hold door or gate open
• Two Keypad Operating Modes
• Time Saving Block Card Enrollment
ACCESSORIES (Sold Separately)
• Model PS12D2A 12 Vdc, 2 Amp
Power Supply
• Model 142A0271 Decorative Trim
Plate
• Model PED42 Gooseneck Pedestal
• Model PED64 Gooseneck Pedestal
• Model LMPC2-ST HID 26 Bit
Proximity Clamshell Card
• Model LMPK3-ST HID 26 Bit
Proximity Key
The LiftMaster KPR2000 is a single entry multi-function Access Controller with
integrated keypad and card reader. It is designed and manufactured to perform in a
wide range of indoor, outdoor, and harsh environments.
The KPR2000 supports up to 2000 users in multiple access configurations (Card Only,
Card or PIN, or Card + PIN). The built in 125 KHz card reader supports HID 26 bit
Wiegand and 30 bit Sentex Wiegand proximity card formats. The KPR2000 offers
advanced programming features like; block enrollment, advanced relay programming,
and Panic PINs/Cards (which open the entry and set off the alarm).
INTRODUCTION INSTALLATION WIRING SET UP
ONE YEAR LIMITED WARRANTY
LiftMaster warrants to the first consumer purchaser of this product that it is free from
defect in materials and/or workmanship for a period of 1 year from the date of purchase.

4
NOTICE: This device complies with part 15 of the FCC rules and Industry Canada (IC) license-exempt RSS
standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
This Class B digital apparatus complies with Canadian ICES-003.
This device must be installed in a way where a minimum 8" (20 cm) distance is maintained between users/
bystanders and device.
This device has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15
of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
INTRODUCTION INSTALLATION WIRING SET UP
CARTON INVENTORY
NOT SHOWN: Manual
KPR2000
Keypad/Proximity Reader/Controller
Diode IN4007 (For Relay
circuit protection)
Self Tapping Screws #8 x 1"
Wall Anchors #6 x 1 1/8"
Manager Add Card
Manager Delete Card
Security Screwdriver
(T-10 Security Torx Driver)

5
Trim Plate (142A0271)
(optional)
Face Plate
Ø 1.81"
(4.6 cm)
.29" (.74 cm)
3" 7.6 cm)
2.4" (6.1 cm)
4" (10.2 cm)
4" (10.2 cm)
INTRODUCTION INSTALLATION WIRING SET UP
INSTALL THE KPR2000
The KPR2000 fits a standard single outlet box, or a 2.4" (6.1 cm) square pedestal
mount.

6
INTRODUCTION INSTALLATION WIRING SET UP
CHOOSE AN OPERATION MODE
STAND ALONE OPERATION (KPR2000 WITH A GATE OPERATOR)
The KPR2000 functions as a complete access control system. The user database is
stored in non-volatile memory, reads the PINs and card codes, performs the
authentication, and grants and monitors access to the property or device. In Stand
Alone Operation there are three different Access Configurations listed below:
• Card or PIN (Default): The User must present a valid Wiegand Card to the
KPR2000 or enter their PIN code followed by the # key, in order to be granted
access.
• Card Only: The User must present a valid Wiegand Card to the KPR2000 in order
to be granted access. The facility code and the ID number are both read and
validated as one block of Wiegand data.
• Card + PIN: The User must first present a valid Wiegand Card to the KPR2000
and then enter their PIN code followed by the # key, in order to be granted
access.
PASS-THROUGH OPERATION (KPR2000 WITH TELEPHONE ENTRY SYSTEM)
The KPR2000 passes all keypad and card reader Wiegand data to an external
controller. The KPR2000 should be in the “Card or PIN” access configuration for
pass-through operation. In this mode the LED will stay red, and the KPR2000 will
beep 3 times when credentials are presented that are authenticated to the external
controller. To change this mode and allow the KPR2000 to flash the green LED, and
beep 1 time, the KPR2000 will have to learn the same credentials as the external
controller.
IMPORTANT NOTE: Both modes of operation support Auto User ID generation
(simplest method) and manual entry of user ID.
KEYPAD OPERATION
The KPR2000 keypad may output an 8 bit ASCII code every keystroke, or output a
26 bit Wiegand card packet with a facility code and a 4-5 digit card number when the
# key is pressed. See configuration options on page 11.

7
Wire Insulation
Color
Wiring
Function
Notes
BASIC STAND ALONE WIRING (WITH A GATE OPERATOR)
Red Power 12 - 24 Volts DC or 12 - 18 Volts AC regulated power input
Black Power 12 - 24 Volts DC or 12 - 18 Volts AC regulated power input
Blue Relay NO Normally Open Relay Output (Install diode) provided)
Purple Relay
Common Common Connection for Relay Output
Orange Relay NC Normally Closed Relay Output (Install diode[provided])
CONNECTING TWO KPR2000 UNITS
Red Power 12 - 24 Volts DC or 12 - 18 Volts AC regulated power input
Black Power 12 - 24 Volts DC or 12 - 18 Volts AC regulated power input
Green Data 0 Wiegand Output (Pass-through)/Input (Stand Alone) Data 0
White Data 1 Wiegand Output (Pass-through)/Input (Stand Alone) Data 1
Pink Ground Ground reference for Wiegand Output/Input
ADVANCED INPUT AND OUTPUT FEATURES
Yellow REX Request To Exit (REX) Input
Gray Alarm Output Negative contact for Alarm
Brown Contact Input Door/Gate Contact Input (Normally Closed)
Pink Ground Ground reference for REX, and Door/Gate contact inputs.
ACCESS CONTROL SYSTEM
Red Power 12 - 24 Volts DC or 12 - 18 Volts AC regulated power input
Black Power 12 - 24 Volts DC or 12 - 18 Volts AC regulated power input
Pink Ground Ground reference for Wiegand Output/Input
Green Data 0 Wiegand Output (Pass-through)/Input (Stand Alone) Data 0
White Data 1 Wiegand Output (Pass-through)/Input (Stand Alone) Data 1
INTRODUCTION INSTALLATION WIRING SET UP
WIRE THE KPR2000

8
WIRING EXAMPLES:
Connecting to an Access Control System
INTRODUCTION INSTALLATION WIRING SET UP
Pink
Black
White
Green*
Red Power
*Maximum of 500 feet
(152.4 m)
(Same distance limitations
as used for networking 2
KPR2000's)
OR AC or DC
Power Supply
(+) and (-) shown
for DC applications
Black (DC -)
Red (DC +)
Pink
White
Green
The example below uses the EL25/EL2000SS Wiegand Module (WOMDKT).
KPR2000 can be connected to other access systems with the same Wiegand inputs.
KPR2000 can be connected to Device 1, 2, 3 or 4 (EL25, EL2000SS).
Acc +
Acc -
Exit +
Exit -
Red
Black
Blue
Purple
Connecting to a Gate Operator
4-wire connection with KPR2000 powered from the CSL24U/CSW24U/LA500PKGU/
LA400PKGU accessory power output.

9
Red
Black
Normally Open
Blue
Purple
Gray
Pink
For DC Power:
Install a 1N4007 or
equivalent diode.
(1 Amp Maximum)
For AC Power:
S10K30MOV
(Metal Oxide Varistor)
(not provided)
AC or DC
External Alarm
Brown Door Contact
KPR2000
Request to Exit
(+) and (-) shown
for DC applications
Yellow
Red
Black
Orange
Purple
Normally Closed
Gray
(1 Amp Maximum)
Pink
Yellow
Brown Door Contact
Request to Exit
For DC Power:
Install a 1N4007 or
equivalent diode.
For AC Power:
S10K30MOV
(Metal Oxide Varistor)
(not provided)
AC or DC
External Alarm
(+) and (-) shown
for DC applications
KPR2000
Magnetic Lock or
Fail-Safe Strike
INTRODUCTION INSTALLATION WIRING SET UP
WIRING EXAMPLES:
Door Operator or
Fail-Secure Strike

10
Green (Data 0)
Maximum of 500 feet (152.4 m)
White (Data 1)
Maximum of 500 feet (152.4 m)
Pink
(must connect for ground reference)
Maximum of 500 feet (152.4 m)
Red
Black
Normally Open
Blue
Purple
Gray
Pink
(1 Amp Maximum)
Black
Pink
Red
For DC Power:
Install a 1N4007 or
equivalent diode.
For AC Power:
S10K30MOV
(Metal Oxide Varistor)
(not provided)
KPR2000 Stand-Alone
(Master Unit)
KPR2000 Stand-Alone
(Remote Unit)
(+) and (-) shown
for DC applications
AC or DC
AC or DC
External Alarm
WIRING EXAMPLES:
Networking Two KPR2000 Units
INTRODUCTION INSTALLATION WIRING SET UP

11
CONFIGURE THE KPR2000
Change the configuration settings according to your application (optional). Multiple
configuration settings can be changed at one time: enter program mode, change
desired settings, then exit program mode.
SET MASTER CODE
The 6 digit Master Code is used to prevent unauthorized access to the system. To
interface with the KPR2000, the manager will need a Master Code (factory default code:
888888). We highly recommend immediate update and recording of your Master Code.
Programming Step Keystroke Combination
1. Enter Program Mode ✱(Master Code) #
2. Update Master Code 0 (New Code) # (New Code) #
3. Exit Program Mode ✱
SET ACCESS CONFIGURATION
NOTE: See page 6 for description of each operation mode.
There are 3 types of access configurations for the KPR2000:
Card or PIN (Default): The User must present a valid Wiegand Card to the KPR2000 or
enter their PIN code followed by the # key, in order to be granted access.
Card Only: The User must present a valid Wiegand Card to the KPR2000 in order to be
granted access. The facility code and the ID number are both read and validated as one
block of Wiegand data.
Card + PIN: The User must first present a valid Wiegand Card to the KPR2000 and
then enter their PIN code followed by the # key, in order to be granted access.
Programming Step Keystroke Combination
1. Enter Program Mode ✱(Master Code) #
2. Card Only
OR
2. Card + PIN
OR
2. Card or PIN
3 0 #
3 1 #
3 2 #
3. Exit Program Mode ✱
INTRODUCTION INSTALLATION SET UPWIRING

12
Programming Step Keystroke Combination
1. Enter Program Mode ✱(Master Code) #
2. Pulse Mode (Default)
OR
2. Latch Mode
4 (1-99) # The relay time is 1-99 seconds
(default is 5 seconds)
4 0 # Sets the relay to ON/OFF latch mode
3. Exit Program Mode ✱
SET RELAY CONFIGURATION
The relay configuration sets the behavior of the output relay on activation.
SET WIEGAND INPUT/OUTPUT OPTIONS
The KPR2000 offers input and output for industry standard Wiegand devices
(refer to Specifications). Default is HID 26 bit.
Programming Step Keystroke Combination
1. Enter Program Mode ✱(Master Code) #
2. Set Wiegand Format 9 (Bit Format) # Bit Format = Valid 2 digit
format (example: 26 or 30)
3. Exit Program Mode ✱
INTRODUCTION INSTALLATION SET UPWIRING

13
SET STRIKE-OUT ALARM
The strike-out alarm will engage after 10 failed card/PIN attempts in a ten minute
period. Factory default is OFF. The strike-out alarm can be set to deny access for 10
minutes or it can be set to operate the alarm for 10 minutes. NOTE: Enter Master
Code or Valid Card to silence all alarm outputs.
Programming Step Keystroke Combination
1. Enter Program Mode ✱(Master Code) #
2. Strike-Out Alarm OFF
OR
2. Strike-Out ON
OR
2. Strike-Out Alarm ON
70#(Factory default)
71#Access will be denied for 10 minutes
7 2 #
3. Exit Program Mode ✱
Programming Step Keystroke Combination
1. Enter Program Mode ✱(Master Code) #
2. DOTL /Door Forced Alarm OFF
OR
2. DOTL /Door Forced Alarm ON
6 0 #
61#(DOTL: Alarm sounds for 1 minute. Door
Forced: Alarm sounds for 1-3 minutes and
enables alarm output.)
2. Door Forced Output Timing 9 (1-3) #
3. Exit Program Mode ✱
SET DOOR OPEN TOO LONG (DOTL) OR FORCED ALARM
This setting enables both DOTL and Door Forced Alarms and requires an external
sensor input. The Door Forced alarm output timing can be set from 1-3 minutes
(default is 1 minute). The Door Open Too Long (DOTL) timing is fixed to 1 minute
and only sounds the built in buzzer. Factory default is OFF.
INTRODUCTION INSTALLATION SET UPWIRING

14
Programming Step Keystroke Combination
1. Enter Program Mode ✱(Master Code) #
2. Set Keypad Mode
OR
2. Set Keypad Mode
62#ASCII Keypad Mode
63#26 bit Card Keypad Mode (factory default)
3. Exit Program Mode ✱
SET WIEGAND KEYPAD MODE
Programming Step Keystroke Combination
1. Enter Program Mode ✱(Master Code) #
2. Set Facility Code 8 0 # Ignores facility code (Factory default)
8 (Facility Code) # (1 - 255)
3. Exit Program Mode ✱
SET 26 BIT FORMAT FACILITY CODE
SET AUDIBLE AND VISUAL RESPONSE
Factory default is ON.
Programming Step Keystroke Combination
1. Enter Program Mode ✱(Master Code) #
2. Control Backlight
OR
2. Control LED
OR
2. Control Sounds
ON = 7 5 #
ON = 7 7 #
ON = 7 9 #
OFF = 7 4 #
OFF = 7 6 #
OFF = 7 8 #
3. Exit Program Mode ✱
INTRODUCTION INSTALLATION SET UPWIRING

15
PROGRAM CARDS AND PINS
Programming will vary depending on the access configuration.
Follow the instructions according to your access configuration.
GENERAL PROGRAMMING INFORMATION
• User ID Number: Assign a user ID number to the access code in order to keep
track of the users of access cards or PINs. The user ID number can be any
number from 1-2000. IMPORTANT: User IDs do not have to be proceeded with
any leading zeros. Recording of User ID is critical. Modifications to user data
require either the card or the User ID be available.
• Proximity Card: Any 125 KHz industry standard 26 bit Wiegand Proximity Card,
or 30 bit Sentex Proximity Card.
• Keypad PIN: The PIN can be any 4 - 5 digits between 0000 - 65535 (except 1234
which is reserved for factory testing). IMPORTANT: PINs less than 1000 must be
preceded with leading zeros. PINs greater than 999 do not require any leading
zeros.
EXAMPLES:
PIN code 15 = 0015
PIN code 25 = 0025
PIN code 9999 = 9999
PIN code 65431 = 65431
• All card users are automatically assigned a default PIN of 1234 that must be
changed to be activated.
INTRODUCTION INSTALLATION SET UPWIRING

16
ACCESS CONFIGURATION: CARD OR PIN, CARD + PIN, & CARD ONLY
ADD USER CARD(S)
Programming Step Keystroke Combination
1. Enter Program Mode ✱(Master Code) #
2. Add Card: Using Auto ID (Allows
KPR2000 to assign Card to next
available User ID number)
OR
2. Add Card: Select Specific ID (Allows
manager to define a specific User ID
to associate the card to)
OR
2. Add Card: Block Learn (Allows
manager to add up to 2000 cards to
the KPR2000 in a single step †).
Takes 2 minutes to program.
1 (Read Card) #
Repeat Step 2 for additional user
cards. See Notes 1 and 2.
1 (User ID) # (Read Card) #
See Notes 1 and 2.
5 (User ID) # (The first card number)
# (Card Quantity) #
Card quantity = number of cards to be
enrolled
3. Exit Program Mode ✱✱
† Block Learn Direct Entry Format for programming specific Card
Numbers: Facility Code + Serial
Number (including leading 0’s)
Example: FAC- 24, SN- 100 would be
entered as:
26 Bit: 02400100
30 Bit: 0000000100
Only the Serial Number is validated for
30 bit cards.
INTRODUCTION INSTALLATION SET UPWIRING

17
Programming Step Keystroke Combination
1. Enter Program Mode ✱(Master Code) #
2. Add a PIN
Assigns PIN to user ID number
OR
2. Delete a PIN
Deletes the User ID number and
associated PIN
1 (User ID) # (PIN) #
Repeat Step 2 for additional PINs
See Notes 1 and 2.
2 (User ID) #
Repeat Step 2 for additional PINs
See Notes 1 and 2 on the following page.
3. Exit Program Mode ✱✱
ADD OR DELETE A PIN
A PIN may be programmed to a separate or an existing user ID. PINs programmed
separately will use additional memory.
DELETE USER CARD(S)
Programming Step Keystroke Combination
1. Enter Program Mode ✱(Master Code) #
2. Delete Card - By User ID
OR
2. Delete Card - By Card
OR
2. Delete Card -By Card Number
2 (User ID) #
Deleting by User ID number will clear
cards and PINs
2 (Read Card) #
Requires the user card. Deletes ONLY the
card number
2 (Card Number) #
Deletes ONLY the card number †
3. Exit Program Mode ✱✱
† Block Learn Direct Entry Format for programming specific Card
Numbers: Facility Code + Serial Number
(including leading 0’s) Example: FAC- 24,
SN- 100 would be entered as:
26 Bit: 02400100
30 Bit: 0000000100
Only the Serial Number is validated for
30 bit cards.
INTRODUCTION INSTALLATION SET UPWIRING

18
CHANGE A PIN
Allows card user to update a previously set PIN for a card & PIN or card + PIN User
ID. Default PIN codes (1234) can only be changed by using Change PIN using a card.
NOTE: This operation is executed from outside of Program Mode.
Programming Step Keystroke Combination
1. Change a PIN using a Card
OR
1. Change PIN using PIN
✱(Read Card) (Old PIN) # (New PIN)
# (New PIN) #
✱(User ID) # (Old PIN) # (New PIN)
# (New PIN) #
NOTE 1: When assigning a user both a card and a PIN, the card MUST be assigned
first. After the card is assigned, the user must change the PIN using card to activate
the PIN for this user. If the PIN is assigned first, a second user ID must be used to
assign the card.
NOTE 2: When adding or deleting multiple users sequentially, the program command (1
or 2, respectively) is entered only once at the beginning of the procedure. For additional
users, enter the user ID and credentials only in the same order as the first entry. When
sequence is complete, programming step is terminated by pressing ✱once.
EXAMPLE: To Add Multiple Users
Programming Step Keystroke Combination
1. Enter Program Mode ✱(Master Code) #
2. Add multiple users 1 (User ID 1) # (PIN1) #,
(User ID 2) # (PIN2) #,
(User ID 10) # (PIN10) #
3. Exit Program Mode ✱✱
INTRODUCTION INSTALLATION SET UPWIRING

19
USING MANAGER CARDS
KPR2000 managers can use manager cards to program user cards into and out of
the system. There are two pre-programmed manager cards (an Add Card, and a
Delete Card) to allow rapid card enrollment. This is a form of Auto User ID
enrollment and is only available in “Card Only” configuration.
Programming Step Keystroke Combination
Add a User Card 1. (Read Manager Add Card)
2. (Read User Card)
Repeat Step 2 for additional user cards
3. (Read Manager Add Card)
Delete a User Card 1. (Read Manager Delete Card)
2. (Read User Card)
Repeat Step 2 for additional user cards
3. (Read Manager Delete Card)
ACCESS CONFIGURATION: CARD ONLY
INTRODUCTION INSTALLATION SET UPWIRING

20
ALARM
TO RESET THE ALARM
Programming Step Keystroke Combination
To reset the door forced open
warning
(Read valid card)
OR
(Master Code) #
To reset the door open too long
(DOTL) warning
(Read valid card)
OR
(Master Code) #
ANTI-TAMPER ALARM
The KPR2000 uses an optical sensor as the input for its internal alarm. If the case is
opened while the KPR2000 is powered, the alarm will operate. Enter Master Code or
a valid card to silence all alarm outputs.
INTRODUCTION INSTALLATION SET UPWIRING
