Broan ERV140TE User manual

VB0194
These products earned the ENERGY STAR®by meeting strict energy efficiency guidelines set by Natural
Resources Canada and the US EPA.They meet ENERGY STAR requirements only when used in Canada.
99528510A
INSTALLATION GUIDE
MODELS ERV140TE AND HRV150TE
RESIDENTIAL INDOOR USE ONLY
! !
READ AND SAVE THESE INSTRUCTIONS
Broan-NuTone LLC; Hartford, Wisconsin www.broan.com 800-558-1711
REGISTER YOUR PRODUCT ONLINE AT: www.broan.com/register
For additional information - visit www.broan.com

2
ABOUT THIS GUIDE
Please take note that this guide uses the following symbols to emphasize particular information:
NOTE: Indicates supplementary information needed to fully complete an instruction.
WARNING
!
Identifies an instruction which, if not followed, might cause serious personal injuries including possibility of death.
CAUTION
Denotes an instruction which, if not followed, may severely damage the unit and/or its components.
ABOUT THESE UNITS
LIMITATION
For residential (domestic) installation only. Installation work and electrical wiring must be done by a qualified person(s) in accordance with
all applicable codes and standards, including fire-rated construction codes and standards.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSON(S) OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or
telephone number listed in the warranty.
2. We recommend that your unit be inspected by a specialized technician once a year.
3. Before servicing or cleaning the unit, disconnect power cord from electrical outlet.
4. This unit is not designed to provide combustion and/or dilution air for fuel-burning appliances.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
6. Do not use this unit with any solid-state speed control device other than main optional wall control VT4W, and no other optional
auxiliary wall controls than 60-minute crank timer and/or 20-minute lighted push button and/or Dehumidistat:
7. This unit must be grounded. The power supply cord has a 3-prong grounding plug for your personal safety. It must be plugged into a
mating 3-prong grounding receptacle, grounded in accordance with the national electrical code and local codes and ordinances. Do
not remove the ground prong. Do not use an extension cord.
8. Do not install in a cooking area or connect directly to any appliances.
9. Do not use to exhaust hazardous or explosive materials and vapors.
10. When performing installation, servicing or cleaning these units, it is recommended to wear safety glasses and gloves.
11. Due to the weight of the unit, two installers are recommended to perform installation.
12. When applicable local regulations comprise more restrictive installation and/or certification requirements, the aforementioned
requirements prevail on those of this document and the installer agrees to conform to these at his own expenses.
!
CAUTION
1. To avoid prematurate clogged filters, turn OFF the unit during construction or renovation.
2. Please read specification label on product for further information and requirements.
3. Be sure to duct air outside – Do not intake/exhaust air into spaces within walls or ceiling or into attics, crawl spaces, or garage.
4. Intended for residential installation only in accordance with the requirements of NFPA 90B.
5. Do not run any air ducts directly above or closer than 2 ft (0.61 m) to any furnace or its supply plenum, boiler, or other heat producing
appliance. If a duct has to be connected to the furnace return plenum, it must be connected not closer than 9’ 10” (3 m) from this
plenum connection to the furnace.
6. The ductwork is intended to be installed in compliance with all applicable codes.
7. When leaving the house for a long period of time (more than two weeks), a responsible person should regularly check if the unit
operates adequately.
8. If the ductwork passes through an unconditioned space (e.g.: attic), the ducts must be insulated, and the unit must operate continuously
except when performing maintenance and/or repair.Also, the ambient temperature of the house should never drop below 65°F (18°C).

3
TABLE OF CONTENTS
1. TECHNICAL DATA.................................................................................................................................................................4
1.1 AIR DISTRIBUTION...................................................................................................................................................................... .4
1.2 DEFROST CYCLES ........................................................................................................................................................................ 4
1.3 DIMENSIONS................................................................................................................................................................................ 4
2 TYPICAL INSTALLATIONS ........................................................................................................................................................5
2.1 FULLY DUCTED SYSTEM .............................................................................................................................................................. .5
2.2 CENTRAL DRAW POINT ................................................................................................................................................................. 5
2.3 SIMPLIFIED INSTALLATION ............................................................................................................................................................... 5
2.4 ATTIC INSTALLATION FOR ERV140TE ONLY .................................................................................................................................... 6
3 INSTALLATION ................................................................................................................................................................. 6-11
3.1 INSPECT THE CONTENT OF THE BOX ............................................................................................................................................. .6
3.2 UNIT DOORS .............................................................................................................................................................................. 6
3.3 LOCATING THE UNIT ..................................................................................................................................................................... 6
3.4 PLANNING OF THE DUCTWORK ....................................................................................................................................................... 7
3.5 CALCULATING DUCT SIZE ............................................................................................................................................................. 7
3.6 INSTALLING THE DUCTWORK AND REGISTERS .................................................................................................................................8-9
3.7 CONNECTING THE DUCTS TO THE UNIT ......................................................................................................................................... 10
3.8 INSTALLING TWO EXTERIOR HOODS ...............................................................................................................................................11
3.9 CONNECTING THE DRAIN .............................................................................................................................................................11
4. CONTROLS..................................................................................................................................................................12-15
4.1 UNITS BOOTING SEQUENCE ........................................................................................................................................................ 12
4.2 INTEGRATED CONTROL ................................................................................................................................................................ 12
4.3 SPEED AND DEFROST SETTINGS .................................................................................................................................................. 13
4.5 ELECTRICAL CONNECTION TO MAIN CONTROL ................................................................................................................................ 14
4.6 ELECTRICAL CONNECTION TO OPTIONAL AUXILIARY CONTROLS ......................................................................................................... 15
5. ELECTRICAL CONNECTION TO THE FURNACE ...........................................................................................................................16
6. WIRING DIAGRAMS ....................................................................................................................................................... 17-18
7. BALANCING THE UNIT .........................................................................................................................................................19
7.1 WHAT YOU NEED TO BALANCE THE UNIT ...................................................................................................................................... 19
7.2 PRELIMINARY STAGES TO BALANCE THE UNIT.................................................................................................................................. 19
7.3 BALANCING PROCEDURE ............................................................................................................................................................. 19
8. SERVICE PARTS................................................................................................................................................................20
9. TROUBLESHOOTING....................................................................................................................................................... 21-22

4
1. TECHNICAL DATA
1.1 AIR DISTRIBUTION
NORMAL OPERATION DEFROST OR RECIRCULATION
VF0045
VF0046
STALE AIR
TO OUTSIDE
FRESH AIR
FROM OUTSIDE
STALE AIR
FROM BUILDING
FRESH AIR
TO BUILDING
STALE AIR
FROM BUILDING
FILTERED AIR
TO BUILDING
1.2 DEFROST CYCLES
ERV140TE AND HRV150TE
OUTSIDE TEMPERATURE DEFROST CYCLES (MINUTES) EXTENDED DEFROST CYCLES (MIN.)
°C °F DEFROSTING OPERATION BETWEEN
EACH DEFROST CYCLE DEFROSTING OPERATION BETWEEN EACH DEFROST CYCLE
-5 23 7 (HRV) 25 (HRV) 10 20
-10 14 7 (ERV) 25 (ERV) 10 20
-27 -17 10 (HRV & ERV) 22 (HRV & ERV) 10 15
In a cold region, (outside temperature -17°F [-27°C] and lower), it may be necessary to setup EXTENDED DEFROST.
See Section 4.3.
1.3 DIMENSIONS
24 9/16”
(624 mm)
22 ½”
(572 mm)
14 1/16”
(358 mm)
14 15/16”
(380 mm)
18 ¼”
(464 mm)
2 ¹/16”
(53 mm)
23 9/16”
(599 mm)
3 13/16”
(97 mm)
7 7/16”
(189 mm)
VK0066A
NOTE: Every port fits 6” round duct.

5
2. TYPICAL INSTALLATIONS
Use the following illustrations as guidelines to help you decide on how the unit will be installed.
All the units should be hung from the joists.
If required, bathroom fans and a range hood may be used to exhaust stale air. Also, for homes with more than one level, we recommend
one exhaust register at the highest level.
There are 3 installation methods: Fully ducted, Central Draw Point and Simplified Installation.
NOTE: An electrical outlet has to be available within 3 feet of the unit.
2.1 FULLY DUCTED SYSTEM (PRIMARILY FOR HOMES WITH RADIANT HOT WATER OR ELECTRIC BASEBOARD HEATING)
VH0071
Stale air coming from the registers located at the highest level of the house
is exhausted to the outside. Fresh air from outside is filtered and supplied by
the register located in the lowest liveable level.
Homes with more than one level require at least one exhaust register at the
highest level.
See figure at right.
2.2 CENTRAL DRAW POINT (CONNECTION TO AFORCED AIR SYSTEM)
Stale air coming from the registers located at the highest level of the house is
exhausted to the outside. Fresh air from outside is filtered and supplied to the
return (plenum) or the supply duct of the forced air unit. See figure at right.
For this type of installation, it is not essential that the forced air system blower
runs when the unit is in operation, but we recommend it.
NOTE: Home with multiple forced air systems should have one unit on each
system.
VH0072
2.3 SIMPLIFIED INSTALLATION (CONNECTION TO AFORCED AIR SYSTEM)
Stale air is exhausted to the outside. Fresh air from outside is filtered and
supplied to the return (plenum) or the supply duct of the forced air unit.
See figure at right.
To avoid cross-contamination and achieve the highest efficiencies, the forced
air system blower must always be ON.
NOTE: Home with multiple forced air systems should have one unit on each
system.
VH0073

6
2. TYPICAL INSTALLATIONS ( CONT’D)
2.4 ATTIC INSTALLATION FOR ERV140TE ONLY
All three types of installation can be used in the attic (Fully ducted, Central Draw Point or Simplified). The example shown below is a
Simplified Installation (connection to a forced air system).
NOTE: To get the most of your ERV unit, the ambient temperature around the unit should be conditioned. If the unit has to be installed
in a unconditioned space, the heat gains or losses from the unit and the ducts could increase the operation costs of the unit.
CAUTION
•Due to the potential temperature difference between the attic and the rest of the house, all unit ducts must be insulated.
•The attic temperature must always be above 50°F (10°C) and under 122°F (50°C).
Stale air is exhausted to the outside. Fresh air from outside is filtered and supplied to
the return (plenum) of the forced air unit. See figure at right.
To avoid cross-contamination and achieve the highest efficiencies, the forced air
system blower must always be ON.
NOTE: Home with multiple forced air systems should have one unit on each system.
VH0076
3. INSTALLATION
3.1 INSPECT THE CONTENT OF THE BOX
Inspect the exterior of the unit for shipping damage. Ensure that there is no damage to the door, ports, power cord, etc.
3.2 UNIT DOORS
For more convenience, these units have one front door and one back door.
3.3 LOCATING THE UNIT
Choose an appropriate location for the unit.
•Within an area of the house where the ambient temperature is kept
between 50°F (10°C) and 104°F (40°C) .
•Away from living areas (dining room, living room, bedroom), if possible.
•So as to provide easy access to the interior of the unit, for semi-annual
and annual maintenance.
•Close to an exterior wall, so as to limit the length of the insulated flexible
duct to and from the unit.
•Away from hot chimneys and other fire hazards.
•Allow for a power source (standard 3-prong grounding outlet).
•Close to a drain. If no drain is close by, use a pail to collect run-off.
Hang the unit with the four chains and springs provided.
See illustration at right.
VD0205
CAUTION
Make sure the unit is level.

7
3. INSTALLATION (CONT’D)
3.4 PLANNING OF THE DUCTWORK
• Keep it simple. Plan for a minimum of bends and joints.
• Keep the length of insulated ducts to a minimum.
• Do not ventilate crawl spaces or cold rooms. Do not attempt to recover the exhaust air from a dryer or a range hood.This would cause
clogging of the filters and recovery module.
• If the house has two floors or more, be sure to plan for at least one exhaust register on the highest lived-in level.
3.5 CALCULATING DUCT SIZE
Use the table below to ensure that the ducts you intend to install will be carrying air flows at or under the recommended values.
Avoid installing ducts that will have to carry air flows near the maximum values and never install a duct if its air flow exceeds
the maximum value.
DUCT DIAMETER RECOMMENDED AIR FLOW MAXIMUM AIR FLOW
4” Ø (102 MM) 40 CFM (19 L/SOR 68 M³/H) 60 CFM (28 L/SOR 102 M³/H)
5” Ø (127 MM) 75 CFM (35 L/SOR 127 M³/H)110CFM (52 L/SOR 187 M³/H)
6” Ø (152 MM) 120 CFM (57 L/SOR 204 M³/H) 180 CFM (85 L/SOR 306 M³/H)
NOTE: Examples 3.5.1 and 3.5.2 use imperial units. The same calculation applies to metric units.
3.5.1 EXAMPLE OF CALCULATION
Problem: My installation requires two exhaust registers (one for the kitchen, and the other for
the bathroom). I will connect these registers to a main duct which will connect to the unit (high
speed performance value of 140 cfm). What size of duct should I use for the main exhaust duct
and for both end branches leading to the registers? (See illustration at right.)
Solution: Simplified method. (For a more detailed method of calculating duct size, refer to the
ASHRAE or HRAI HANDBOOK.)
Main duct: Table indicates for a 6” Ø duct: recommended air flow: 120 cfm, maximum air flow:
180 cfm. The 140 cfm high speed air flow is close enough to the recommended value (120)
and far away enough from the maximum value (180). Therefore, a 6” Ø duct or larger is an
appropriate choice for the main exhaust duct.
End branches: Each end branch will have to transport a 70 cfm air flow (140 divided by 2).Table
indicates for a 5” Ø duct: recommended air flow: 75 cfm; maximum air flow: 110 cfm. The high
speed air flow of 70 cfm is close enough to the recommended value (75) and far away enough
from the maximum value (110). Therefore, a 5” Ø duct or larger is an appropriate choice for both
end branches.
NOTE: A 4” Ø duct would have been too small because the maximum acceptable value for a 4” Ø duct is 60 cfm.
3.5.2 Example of a design for a fully ducted system with a unit having a high speed performance of 160 cfm.
VI0016
END
BRANCHES
MAIN BRANCH
6" Ø, 140 CFM
5" Ø,
70 CFM
VI0017
4" Ø, 47 CFM
5" Ø, 93 CFM
5" Ø, 67 CFM
4" 4" 4" 4" 4"
4" 4"
5"
5" 5"
5"
6" 6"
6" Ø, 160 CFM 6" Ø, 160 CFM
5" Ø, 86 CFM
5" Ø, 62 CFM
4" Ø, 24 CFM
4" Ø,
37 CFM
4" Ø,
46 CFM
5" Ø,
74 CFM

8
3. INSTALLATION (CONT’D)
3.6 INSTALLING THE DUCTWORK AND REGISTERS
3.6.1 FULLY DUCTED SYSTEM (AS ILLUSTRATED IN SECTION 2.1)
Stale air exhaust ductwork
• Install the stale air exhaust registers where the contaminants are produced: kitchen, living room, etc. Position the registers as far
from the stairway as possible and in such a way that the air circulates in all the lived-in spaces in the house.
• If a register is installed in the kitchen, it must be located at least 4 feet (1.2 m) from the range.
• Install the registers 6 to 12 inches (152 to 305 mm) from the ceiling on an interior wall OR install them in the ceiling.
• If possible, measure the velocity of the air flowing through the registers. If the velocity is higher than 400 ft/min (122 m/min), then
the register type is too small. Replace with a larger one.
Fresh air distribution ductwork
• Install the fresh air distribution registers in bedrooms, dining rooms, living room and basement.
• Keep in mind that the fresh air registers must be located as far as possible from the stale air registers.
• Install the registers either in the ceiling or high on the walls with air flow directed towards the ceiling. (The cooler air will then cross
the upper part of the room and mix with room air, before descending to occupant’s level.)
• If a register must be floor installed, direct the airflow up the wall.
WARNING
!
Never install a stale air exhaust register in a closed room where a combustion device operates, such as a gas
furnace, a gas water heater or a fireplace.
3.6.2 CENTRAL DRAW POINT SYSTEM (AS ILLUSTRATED IN SECTION 2.2)
Stale air exhaust ductwork
Same as for Fully Ducted System, described on point 3.6.1
Fresh air distribution ductwork
• There are 2 methods for connecting the unit to the furnace/air handler:
Method 1: Supply side connection
• Cut an opening into the furnace supply duct at least 18 inches (0.5 m) from the
furnace/air handler.
• Connect this opening to the Fresh air distribution port of the unit (use metal
duct, see figure at right).
• Make sure the unit duct forms an elbow inside the furnace/air handler ductwork.
• If desired, interlock (synchronize) the furnace/air handler blower operation (see
Section 5 ELECTRICAL CONNECTION TO FURNACE).
Method 2: Return side connection
• Cut an opening into the furnace return duct not less than 10 feet (3.1 m) from the
furnace/air handler (A+B).
• Connect this opening to the Fresh air distribution port of the unit (see figure at
right).
NOTE: For Method 2, it is not essential that the furnace/air handler runs when the
unit is operation, but we recommend it. If desired, interlock (synchronize)
the furnace/air handler blower operation (see Section 5 ELECTRICAL
CONNECTION TO FURNACE).
WARNING
!
When performing duct connections, always use approved tools and materials. Respect all corresponding laws and
safety regulations. Please refer to your local building code.
CAUTION
When performing duct connections to the furnace supply duct, this duct must be sized to support the additional
airflow produced by the unit. Also, the use of metal duct is highly recommended.
VJ0061
METAL DUCT
MINIMUM 18"
(0.5 M)
B
A
VJ0062
A+B = NOT LESS
THAN 10’ (3.1 M)

9
3. INSTALLATION (CONT’D)
3.6 INSTALLING THE DUCTWORK AND REGISTERS (CONT’D)
3.6.3 SIMPLIFIED INSTALLATION (AS ILLUSTRATED IN SECTION 2.3)
There are 2 methods for connecting the unit to the furnace/air handler:
Method 1: Supply-return connection Method 2: Return-return
WARNING
!
When performing duct connections, always use approved tools and materials. Respect all corresponding laws and
safety regulations. Please refer to your local building code.
CAUTION
When performing duct connections to the furnace supply duct (Method 1), this duct must be sized to support the
additional airflow produced by the unit. Also, the use of metal duct is highly recommended. For a Return-Return
installation, the furnace blower must be in operation when the unit is in operation.
VJ0063
A
B
METAL DUCT
A+B = NOT LESS
THAN 10’ (3.1 M)
MINIMUM 18"
(0.5 M)B
A
VJ0064
MINIMUM 3'
(0.9 M)
A+B = NOT LESS
THAN 10’ (3.1 M)
Stale air intake
• Cut an opening into the furnace/air handler return duct not less than 10 feet (3.1 m) from the furnace/air handler (A+B).
• Connect this opening to the Exhaust air from building port of the unit.
Fresh air distribution
• Same instructions as for Method 1 or Method 2, Section 3.6.2.
For Method 2 (Return-return), make sure there is a distance of at least 3 feet (0.9 m) between the 2 connections to the furnace/
air handler.
NOTE: For Method 1, it is not essential to synchronize the furnace blower operation with the unit operation, but we recommend it.
CAUTION
If using Method 2, make sure the furnace/air handler blower operation is synchronized with the unit operation!
See Section 5.

10
3. INSTALLATION (CONT’D)
3.7 CONNECTING THE DUCTS TO THE UNIT
Insulated flexible ducts
Use the following procedure to connect the insulated flexible ducts to the ports of the unit (Exhaust air to outside and Fresh air from
outside ports).
CAUTION
If ducts have to go through an unconditioned space (e.g.: attic), always use insulated ducts.
1. Pull back the insulation to expose the flexible duct.
2. Attach the flexible duct to the port using tie wrap.
3. Pull the insulation over the joint and tuck in between the inner and outer rings of the double collar.
4. Pull down the vapor barrier (shaded part in illustrations below) over the outer ring to cover it completely. Fasten in place the vapor
barrier using the port strap (included in unit parts bag). To do so, insert one collar pin through vapor barrier and first strap hole,
then insert the other collar pin through vapor barrier and center strap hole and close the loop by inserting the first collar pin in the
last strap hole.
CAUTION
Make sure the vapor barrier on the insulated ducts does not tear during installation to avoid condensation within the ducts.
VJ0067
COLLAR PIN
Non-insulated rigid ducts
Use metal screws and duct tape to connect the rigid ducts to the
unit ports.
Non-insulated flexible ducts
Use tie wraps to connect the flexible ducts to the unit ports.
VJ0066
COLLAR PIN

11
3. INSTALLATION ( CONT’D)
3.8 INSTALLING TWO EXTERIOR HOODS
Choose an appropriate location to install the exterior hoods:
•There must be a minimum distance of 6 feet (1.8 m)
between the hoods to avoid cross-contamination
•There must be a minimum distance of 18 inches
(457 mm) from the ground
Refer to figure at right for connecting insulated ducts to the
exterior hoods.An “Anti-gust intake hood’’ should be installed
in regions where a lot of snow is expected to fall.
WARNING
!
Make sure the intake hood is at least 6 feet (1.8 m)
away from any of the following:
•Dryer exhaust, high efficiency furnace vent,
central vacuum vent
•Gas meter exhaust, gas barbecue-grill
•Any exhaust from a combustion source
•Garbagebinandanyothersourceofcontamination
3.9 CONNECTING THE DRAIN
CAUTION
A drain tubing (included) must be installed for model HRV150TE. For model ERV140TE, it is not required, however, it
is recommended for climates where the outside temperature typically remains below -13°F (-25°C), (over a 24-hour
period) for several days in a row, combined with an indoor humidity of 40% or higher.
VO0176A
16"
(406 mm)
16"
(406 mm)
Cut 2 sections of the plastic tube, at least 16” (406 mm) long, and
attach them to each inner drain fitting, located under the unit.
Join both short sections to the “T” junction and main tube as shown.
VD0239
DRAIN PLUGS
NOTE: For model ERV140TE, remove both drain plugs inside the
unit prior to install tubing.
VD0232A
± 1”
Make a water trap loop in the tube to prevent the unit from
drawing unpleasant odors from the drain source. Make sure this
loop is located OVER the “T” as shown. Run the tube to the floor
drain or to an alternative drain pipe or pail.
IMPORTANT
If using a pail to collect water, locate the tube end approximately
1” from the top of the pail in order to prevent water from being
drawn back up into the unit.
VD0028
EXHAUST HOOD
INTAKE HOOD
TAPE AND DUCT TIE
18"
(457 MM)
6'
(1.8 M)
18"
(457 MM)
18"
(457 MM)
6'
(1.8 M)
6" Ø
(152 MM)
OPTIONAL DUCT
LOCATION
TIE WRAP

12
4. CONTROLS
All units are equipped with an integrated control located under the unit, on the recessed side of electrical compartment. Plug the unit.
4.1 UNITS BOOTING SEQUENCE
The unit booting sequence is similar to a personnal computer boot sequence. Each time the unit is plugged after being unplugged, or after
a power failure, the unit will perform a 30-second booting sequence before starting to operate.
During the booting sequence, the integrated control LED will light AMBER for 10 seconds. After that, the LED will light RED for the rest of
the booting sequence. During this RED light phase, the unit is checking and resetting the motorized damper position. Once the motorized
damper position completely set, the RED light turns off and the booting sequence is done.
NOTE: No command will be taken until the unit is fully booted.
4.2 INTEGRATED CONTROL
Use the push button (1) to control the unit. The LED (2) will then show on which mode the
unit is in.
Refer to table below to see how to operate the unit using its integrated control.
PRESS ON PUSH BUTTON LED COLOR RESULTS
ONCE AMBER UNIT IS ON LOW SPEED
TWICE GREEN UNIT IS ON HIGH SPEED
THREE TIMES NOLIGHT UNIT IS OFF
If a problem occurs during the unit operation, its integrated control LED (2) will blink. The color of the blinking light depends on the type
of error detected. Refer to Section 9 Troubleshooting on page 19 for further details.
NOTE: When using main control, the integrated control must be turned off.
VD0206
2
BOTTOM OF THE UNIT
1

13
NOTE: It is possible to change the selection as many
times needed.
NOTE: It is possible to change the selection as many
times needed.
4. CONTROLS (CONT’D)
4.3 SPEED AND DEFROST SETTINGS
The special design of these units offers 4 speed ranges to better meet to different ventilation needs.
Refer to the table below to choose the right speed range according to the size of the house:
These units are factory set to normal defrost. In cold region (outside
temperature -17°F [-27°C] and lower), it may be necessary to setup
extended defrost.
NOTE: These CFM values are
approximate, they may vary
according to the installation
static pressure.
SPEED RANGE HRV MIN. SPEED HRV MAX. SPEED ERV MIN. SPEED ERV MAX. SPEED
1 HIGH (FACTORY SET) 80 CFM 157 CFM 84 CFM 140 CFM
2 MED-HIGH 66 CFM 132 CFM 67 CFM 120 CFM
3 MED-LOW 53 CFM 106 CFM 53 CFM 105 CFM
4 LOW 40 CFM 80 CFM 40 CFM 80 CFM
CFM VALUES
DEFROST TABLE DEFROST CYCLE
1 FACTORY SET (HRV150TE) NORMAL (HRV150TE)
E2 XTENDED (HRV150TE)
3 FACTORY SET (ERV140TE) NORMAL (ERV140TE)
E4 XTENDED (ERV140TE)
TOMODIFY THE FACTORY SETTINGS, PROCEED AS FOLLOW:
ACTION
During the first 7 seconds of booting sequence, while the
integrated control LED is AMBER, press on push button for about
3 seconds.
Set the speed range by presssing consecutively on push button
the number of times corresponding to the desired speed range.
See table below.
RESULT
The LED will blink RED one time every 3 seconds to indicate the
integrated control is in CFM setup mode (HIGH speed).
Every 3 seconds, the LED will blink RED the number of times
corresponding to the chosen speed range.
See table below.
NOTE: Anytime in setting process, if there is no activation on push button for 60 seconds, the unit will automatically exit setting mode, but
the settings made before this 60-second delay will remain.
SPEED RANGE PRESS ON PUSH BUTTON LED BLINKS RED
1 HIGH ONCE 1 TIME
2 MED-HIGH TWICE 2 TIMES
3 MED-LOW THREE TIMES 3 TIMES
4 LOW FOUR TIMES 4 TIMES
Press on push button for about 3 seconds to access setting
defrost mode.
Press on push button twice to set the unit in extended defrost
mode.
The LED will blink GREEN one time every 3 seconds to indicate
the unit is set in normal defrost mode.
The LED will blink GREEN twice every 3 seconds to indicate the
unit is in extended defrost mode.
DEFROST TABLE PRESS ON PUSH BUTTON LED BLINKS GREEN
1 NORMAL (HRV150TE) ONCE 1 TIME
2 EXTENDED (HRV150TE) TWICE 2 TIMES
3 NORMAL (ERV140TE) THREE TIMES 3 TIMES
4 EXTENDED (ERV140TE) FOUR TIMES 4 TIMES
Wait 60 seconds OR press 3 seconds on push button to exit
setting mode.
The LED will blink and shut off, then light RED (the unit returns
in its booting sequence).

14

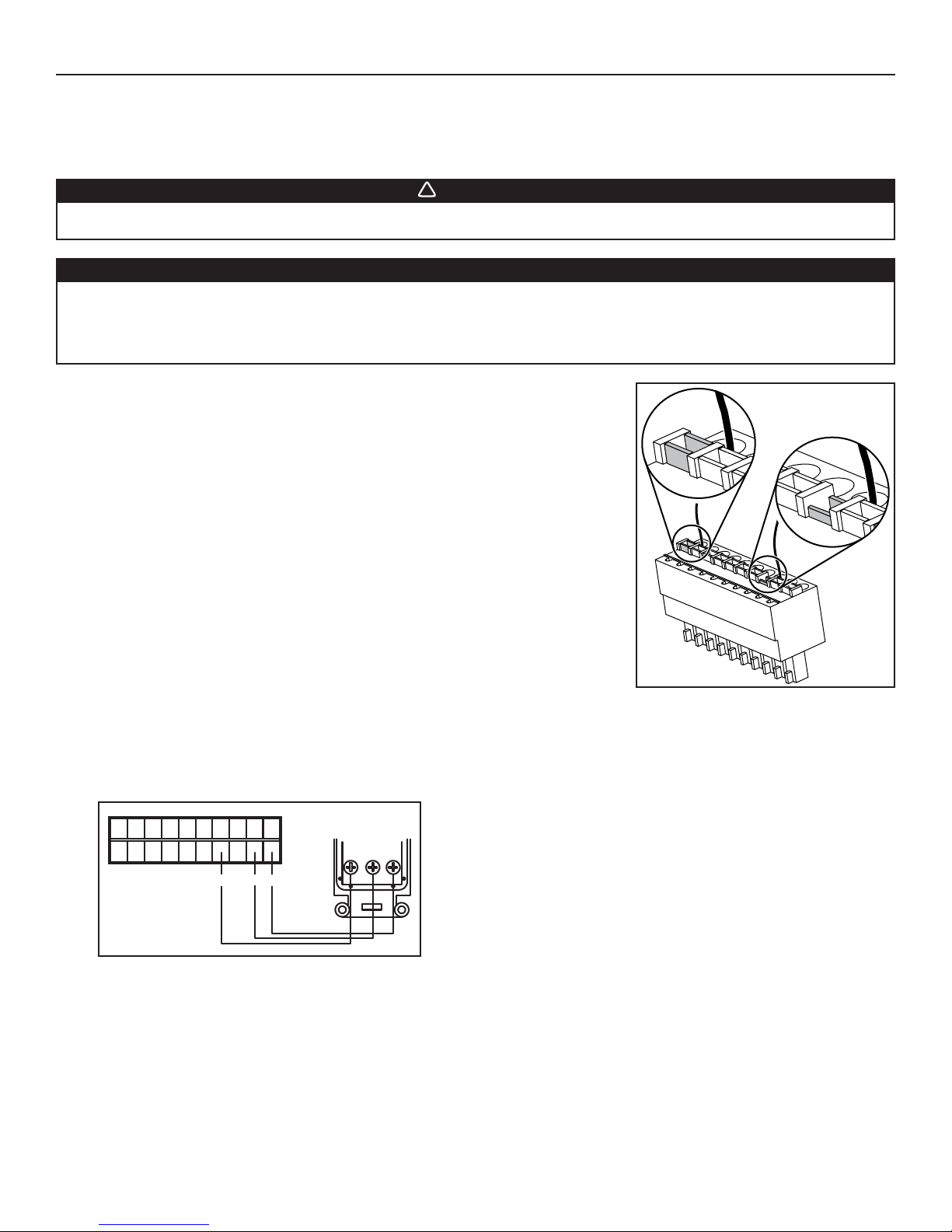

4. CONTROLS (CONT’D)
4.4 ELECTRICAL CONNECTION TO MAIN CONTROL
For more convenience, these units can also be controlled using an optional main wall control.
NOTES: 1. The integrated control must be turned OFF to use an optional main control.
2. If an optional auxiliary control is used, if activated, this auxiliary control will override the optional main control.
WARNING
!
Always disconnect the unit before making any connections. Failure in disconnecting power could result in
electrical shock or damage of the wall control or electronic module inside the unit.
CAUTION
Never install more than one optional main wall control per unit. Make sure that the wires do not short-circuit
between themselves or by touching any other components on the wall control. Avoid poor wiring connections.To
reduce electrical interference (noise) potential, do not run wall control wiring next to control contactors or near
light dimming circuits, electrical motors, dwelling/building power or lighting wiring, or power distribution panel.
Use the terminal connector included in the installation kit to perform the electrical connection for
main and optional wall controls. Check if all wires are correctly inserted in their corresponding
holes in the terminal block. (A wire is correctly inserted when its orange receptacle is lower
than another one without wire. On picture at right, wire Ais correctly inserted, but wire Bis
not.)
ELECTRICAL CONNECTION TO VT4W MAIN WALL CONTROL
NO C NC I OC OL Y R G B
BG
OC
VT4W
MAIN WALL CONTROL
REAR VIEW
G B
Y
VE0099A
VE0272
A
B

15
4. CONTROLS (CONT’D)
NO C NC I OC OL Y R G B
20-MINUTED LI
G
HTED PU
S
H BUTT
O
N
(5 MAXIMUM)
60-MINUTE
CRANK TIMER
DEHUMIDISTAT
VE0290A
C
O
M
F
O
R
T
Z
O
N
E
O
FF
%
R
E
L
AT
I
VE
HU
MI
DIT
Y
70%
60%
50%
40%
30%
25%
20%
DEHUMIDISTAT
NOTE: If an optional auxiliary wall control is
activated and then, the Dehumidistat
is being activated, this one will override
the auxiliary wall control commands.
Once the control(s) connections have been made, insert the terminal connector on the
recessed side of electrical compartment.
NOTE: For information about the operation of the wall controls, refer to the user guide.
VD0206 BOTTOM OF THE UNIT
TERMINAL
CONNECTOR
5. ELECTRICAL CONNECTION TO THE FURNACE
WARNING
!
Never connect a 120-volt AC circuit to the terminals of the furnace interlock (standard wiring). Only use the low
voltage class 2 circuit of the furnace blower control.
For a furnace connected to a cooling system:
On some older thermostats, energizing the “R” and “G” terminals at the furnace has the effect of energizing “Y” at the thermostat and
thereby turning on the cooling system. If you identify this type of thermostat, you must use the ALTERNATE FURNACE INTERLOCK WIRING.
STANDARD FURNACE INTERLOCK WIRING ALTERNATE FURNACE INTERLOCK WIRING
W R G Y
W
R
G
C
Y
UNIT TERMINAL CONNECTOR
THERMOSTAT
TERMINALS
FOUR
WIRES
TWO WIRES
heating only
FURNACE
24-VOLT
TERMINAL BLOCK TWO WIRES COOLING SYSTEM
NO C NC I OC OL Y R G B
W R G Y
W
R
Y
R
G
Y
C
THERMOSTAT
TERMINAL
4 WIRES
2 WIRES
heating only wiring
nuts
FURNACE
24-VOLT
TERMINAL BLOCK 2 WIRES COOLING SYSTEM
NO
NC
C
UNIT TERMINAL CONNECTOR
NO C NC I OC OL Y R G B
VE0108A
4.5 ELECTRICAL CONNECTION TO OPTIONAL AUXILIARY CONTROLS

16
6. WIRING DIAGRAMS
Field wiring
remote control
(see notes 3 & 4)
120 V, 60 Hz W1
J5 J7 J6 J4 ELECTRONIC ASSEMBLY
1 2 3 1 2
1 2 1 2 3
1234
12
12345
J8
J9
J11
J10
12
12345
J12
J13
J14
10
9 8 7 6 5 4 3 2 1
B
24 V class 2
9.5 V class 2
120V, 60Hz
Neutral
120 V, 60Hz
Line
CPU
K2 K4 K5
J5-2
J10-1J10-2
Line voltage factory wiring Class 2 low voltage factory wiring
Class 2 low voltage field wiring
See note 1
120 V
83 V
62 V
neutral
12345 12
1 2
J3
J2 J1
t˚
Damper motor
B
Override switch
Furnace blower interlock
J14-1: NO J14-2: COM J14-3: nc
(optional; see notes 3 & 5)
DAMPER ELECTRONIC ASSEMBLY
Defrost temperature sensor
WIRING DIAGRAMLOGIC DIAGRAM
Exhaust
fan motor
Supply
fan motor
J5-1
J5-3
J7-2 J7-1 J4-1 J4-3 J6-2 J6-1
K1 K3
K2
24 V class 2
9.5 V class 2
120 V
62 V
neutral
J9-1
J9-2
J9-3
J4-2
J9-4
J8-1 J8-2 J8-4 J8-5
K4
J12-2 J12-1
A1
Damper motor
J3-2 J3-1
J2-2 J2-1
F1
J12-5 J12-4 J12-3 J2-3
J2-4 J2-5
J11-2 J11-1
K1
K3
K5 J14-3
J14-1 J14-2
Furnace blower interlock (optional; see
notes 3 & 5)
J14-4 J14-5
J14-6 J14-7
J14-8 J14-9
J14-10
Override switch (optional; see
notes 3 & 4)
Field wiring remote control (see notes 3 & 4)
BDM
B
YRG
B
W
BL
R
BR
BL
BR
BL
G
BR
BR
Y
Y
BW
A2
A2
M3
T1
R1
A1
F1
(optional; see
notes 3 & 4)
VE0184A
Critical characteristic.
JU1
123
MED HI
321
HI MED
JU1
NOTES
1. Use specified UL listed/CSA Certified line fuse
(3A, 3AG Type).
2. If any of the original wire, as supplied, must
be replaced, use the same equivalent wire.
3. Field wiring must comply with applicable
codes, ordinances and regulations.
4. Remote controls (class 2 circuit) available,
see instruction manual.
5. Furnace fan circuit must be class 2 circuit only.
R
57 V
nc
O
COLOR CODE
B BLACK BL BLUE BR BROWN G GREEN
O ORANGE
RRED
WWHITE
Y YELLOW
nc no connection
57 V
R
BL
83 V
O O
B
nc
to A1-J12
Class 2
low voltage
factory wiring
to
A2-J2
1 2 3 4 5
J15 Y
BL
R
W
nc
1 2 3 4 5
J17
Y
BL
R
W
nc
From
supply motor
control cable
From
exhaust motor control cable
Exhaust fan motor
M1
G
Y
BL
R
W
Control cable
Power cable
to A1-J17
Supply fan motor
M2
G
Y
BL
R
W
Control cable
Power cable
to A1-J15
to A1-J17
to A1-J15
1 2 3 4 5
J15
nc
1 2 3 4 5
J17
nc
From supply motor From exhaust motor
ERV140TE AND HRV150TE UNITS
•Risk of electric shocks.Before performing any maintenance or servicing,always disconnect theunit from its powersource.
•This product is equipped with an overload protection (fuse). A blown fuse indicates an overload or a short-circuit situation.
If the fuse blows, unplug the product and check the polarity and voltage output from the outlet. Replace the fuse as per the
servicing instructions (refer to wiring diagram for proper fuse rating) and verify the product. If the replaced fuse blows, it may
be a short-circuit and the product must be discarded or returned to an authorized service center for examination and/or repair.
WARNING
!

17
7. BALANCING THE UNIT
7.1 WHAT YOU NEED TO BALANCE THE UNIT
• A magnehelic gauge capable of measuring 0 to 1 inch of water (0 to 249 Pa) and 2 plastic
tubes.
• The balancing chart of the unit.
7.2 PRELIMINARY STAGES TO BALANCE THE UNIT
• Seal all the unit ductwork with tape. Close all windows and doors.
• Turn off all exhaust devices such as range hood, dryer and bathroom fans.
• Make sure the balancing dampers are fully open by setting both damper balancing tools completely vertical.
• Make sure all filters are clean (if it is not the first time the unit is balanced).
7.3 BALANCING PROCEDURE
1. Set the unit to high speed.
NOTE: Make sure that the furnace/air handler blower is ON if the installation is in any way connected to the ductwork of the cold air
return. If not, leave furnace/air handler blower OFF. If the outside temperature is below 32°F/0°C, make sure the unit is not
running in defrost while balancing. (By waiting 10 minutes after plugging the unit in, you are assured that the unit is not in a
defrost cycle.)
2.Place the magnehelic gauge on a level surface and adjust it to zero.
3.Connect tubing from gauge to EXHAUST air flow pressure taps (the ones
with arrows, see insets in illustration at right).
Be sure to connect the tubes to their appropriate high/low fittings. If the
gauge drops below zero, reverse the tubing connections.
4.Note the CFM value from balancing chart on unit.
5.Repeat steps 3 and 4, but to FRESH air flow pressure taps.
6.Match highest CFM value to lowest by adjusting the balancing damper
corresponding to the highest value.
See example below:
In that case, there is 150 CFM in FRESH air and 125 CFM in EXHAUST air. Then, adjust (close) the FRESH air balancing damper
until the FRESH air flow matchs the EXHAUST air flow: 125 CFM (0.67 in. w.g.) with magnehelic gauge connected to FRESH air
flow pressure taps).
7. Secure both dampers in place with a fastening screw (included).
8.Write the required air flow information on a label and affix it near the unit for future reference (date, maximum speed air flows, your
name, phone number and business address).
NOTES: 1. Use conversion chart provided with the unit to convert magnehelic gauge readings to equivalent cfm values.
2. The unit is considered balanced even if there is a difference of ±10 cfm (or ± 5 l/s or 17 m³/h) between the two air flows.
VP0009
VR0029
DAMPER
BALANCING TOOL
VP0017
STALE AIR FLOW
FRESH AIR FLOW
FLOW FRESH EXHAUST
CFM IN. W.G. IN. W.G.
120 0.71 0.73
125 0.67 0.70
130 0.63 0.67
135 0.59 0.64
140 0.55 0.61
145 0.51 0.58
150 0.47 0.55
EXHAUST READING VALUES
FRESH READING VALUES
VR0030
FASTENING SCREW

18
8. SERVICE PARTS
VL0063
1
2
3
4
6
7
8
10
9
8
11
12
5REPLACEMENT PARTS AND REPAIRS
In order to ensure your ventilation unit
remains in good working condition, you must
use Broan-NuTone LLC genuine replacement
parts only. Broan-NuTone LLC genuine
replacement parts are specially designed for
each unit and are manufactured to comply
with all the applicable certification standards
and maintain a high standard of safety. Any
third party replacement part used may cause
serious damage and drastically reduce the
performance level of your unit, which will
result in premature failing. Broan-NuTone LLC
recommends to contact a certified service
depot for all replacement parts and repairs.
ITEM DESCRIPTION QTY. ERV140T HRV150TE
1 OVAL PORT 2 — SV18206
2 DOUBLE COLLAR OVAL PORT 2* SV18207 SV18207
3 EXHAUST DAMPER SPRING 1 SV18221 SV18221
4 MOTOR ASSEMBLY 2 SV18198 SV18198
5 BALANCING TOOL 2 SV18220 SV18220
6 DEFROST DAMPER 1 SV18200 SV18200
7 DAMPER SYSTEM ASS’Y(INCLUDING ITEM 6) 1 SV18199 SV18199
8 CORE FILTER 2 SV18204 SV18205
9HEAT RECOVERY CORE 1 — SV18202
ENERGY RECOVERY CORE 1 SV18042 —
10 DOOR ASSEMBLY 1 SV21528 SV21528
61281VS61281VS1BCP11
12 TRANSFORMER 1 SV18218 SV18218
13 THERMISTOR KIT (NOT SHOWN) 1 SV15749 SV15749
14 HARDWARE KIT (NOT SHOWN) 1 SV08917 SV08304
15 PCB CONNECTOR (NOT SHOWN) 1 SV16416 SV16416
* Quantity of 4 for ERV140TE units only.
E

19
9. TROUBLESHOOTING
If the unit does not work properly, reset the unit by unplugging it for one minute and then replug it. If it still not working properly,
refer to table below.
If the integrated control LED of the unit is flashing, this means the unit sensors detected a problem. See the table below to know where
the problem occurs on the unit.
LED COLOR ERROR TYPE ACTION UNIT STATUS
LED flashes GREEN Thermistor error Replace thermistor Unit works but will defrost frequently
LED flashes AMBER Damper error Go to point 6 Unit does not work
LED flashes RED Motor error Go to point 8 Unit does not work
PROBLEMS POSSIBLE CAUSES YOU SOULD TRY THIS
1
Unit does not work. • The circuit board may be defective.
• The fuse may be defective.
2
The damper actuator
does not work.
• The damper actuator or the
integrated damper mechanism may
be defective.
• The circuit board or the transformer
may be defective.
• Unplug the unit.Disconnect the main control and the optional
controls(s) (if need be). Wait 10 seconds and plug the unit
back. Check if the damper opens. If not, use a multimeter
and check for 24 VAC on J12-1 and J12-2 (in electrical
compartment). If there is 24 VAC, replace the entire damper
assembly.
NOTE: It is normal to experience a small delay (7-8 seconds)
before detecting the 24 VAC signal at starting-up.
This signal will stay during 17-18 seconds before
disappearing.
• If there is no 24 VAC, check for 24 VAC between J8-1 and
J8-2. If there is 24 VAC, replace the circuit board, and if
there is no 24 VAC, change the transformer.
3
The wall control does not
work.
• The wires may be in reverse position.
• The wires may be broken.
• The wire in the wall OR the wall
control may be defective.
• Ensure that the color coded wires have been connected to
their appropriate places.
• Inspect every wire and replace any that are damaged.
• Remove the wall control and test it right beside the unit
using another shorter wire. If the wall control works there,
change the wire. If it does not, change the wall control.
4
The Dehumidistat
does not work OR the
20-minute push button
timer does not work OR
its indicator light does not
stay on.
• The wires may be in reverse postion.
• The Dehumidistat or push button
may be defective.
• Unplug the unit. Disconnect
the main control and the
optional(s) control(s) (if need
be). Jump Gand Bterminals.
Plug the unit back and wait about 10 seconds. If the motors
run on high speed and the damper opens, the circuit board
is not defective.
• Check if fuse F1 is blown. In that case, replace fuse F1 as
per product nameplate.
NO C NC I OC OL Y R G B
VE0097
• Ensure that the color coded wires have been connected to
their appropriate places.
• Jump the OL and OC
terminals. If the unit switches
to high speed, remove the
Dehumidistat or push button
and test it right beside the unit using another shorter wire.
If it works here, change the wire. If it doesn’t, change the
Dehumidistat or the push button.
NO C NC I OC OL Y R G B
VE0098

20
9. TROUBLESHOOTING (CONT’D)
PROBLEMS POSSIBLE CAUSES YOU SOULD TRY THIS
5
The supply and/or exhaust
motor do not work.
• The fuse may be defective.
• The jumper JU1 may be in wrong
position or missing.
• Jumper J11 may be missing.
• The circuit board or transformer may
be defective.
• The motor(s) may be defective.
• Check if fuse F1 is blown. In that case, replace fuse F1 as
per product nameplate.
• Make sure that jumper is properly located as per wiring
diagram in Section 6 Wiring diagrams.
• Make sure there is a jumper on connector J11.
• Press on the integrated control push button until the unit
turn on high speed (the LED will light GREEN). Using a
multimeter, check the voltage on J4-1 and J4-2 (for supply
motor), and on J5-1 and J5-2 (for exhaust motor). If both
readings are 120VAC, the circuit board is not defective.If one
or both readings are not 120 VAC, change the transformer. If
no voltage is present, change the circuit board.
• If the voltage reading is 120 VAC on J4 or J5, change the
defective motor.
6
The defrost cycle does
not work (the fresh air
duct is frozen) OR the
fresh air distributed is very
cold.
• Ice deposits may be hindering the
damper operation.
• The damper rod or the port damper
itself may be broken.
• The damper actuator or circuit board
may be defective.
• Remove the ice.
• Inspect these parts and replace if necessary.
• See point 2.
7The integrated control
push button does not work.
• The 30-second boot sequence is not
completed.
• See Section 4.1 Units Booting Sequence.
If the problem is still not solved, reach our Technical Support:
Broan-NuTone LLC
Technical Support
Telephone: [phone]
Fax: [phone]
