broda WC-19 User manual

Broda
15455 Conway Road Suite 200
Chesterfield, Missouri USA 63017
Phone: [phone] Fax: [phone]
OM-V4-17.10.2018 www.brodaseating.com Email: [email protected]
Operating Manual
Synthesis Tilt Recliner Model
(Including Synthesis Transport Chair Option
Model WC-19)
Distributor/Rep: This manual must
be given to the caregiver responsible
for this chair and its occupant.
Caregiver: Before using this chair,
read this manual thoroughly and save
for future reference.
Actual product may differ slightly from images in Operating Manual

ii
Contents
0BFOREWORD.................................................................................................................................................................1
1BGENERAL INFORMATION........................................................................................................................................2
12BDEFINITIONS ......................................................................................................................................................3
23BSAFETY REQUIREMENTS ................................................................................................................................4
2.1 8BTraining .........................................................................................................................................................4
2.2 9BApplication ....................................................................................................................................................4
2.3 10BShipping and Storage.....................................................................................................................................4
2.4 11BPre-Service Check .........................................................................................................................................5
2.5 12BHazards ..........................................................................................................................................................5
2.5.1 35BPosition of Chair - “Danger of Falling” .................................................................................................5
2.5.2 36BPosition of Seat Tilt - “Danger of Tipping”...........................................................................................5
2.5.3 37BLocation of Chair - “Danger of Tipping or Falling Objects”.................................................................5
2.5.4 38BTotal Lock Wheel Brakes - “Danger of Falling” ...................................................................................5
2.5.5 39BRe-Positioning of Resident - “Danger of Clamping”.............................................................................6
2.5.6 40BUnintended Movement - “Danger of Falling or Collision”....................................................................6
2.5.7 41BResident Clothing - “Risk of Injury to Resident’s Skin” .......................................................................6
2.5.8 42BImproper Restraint Use - “Risk of Serious Injury”................................................................................6
2.6 13BImproper Use .................................................................................................................................................7
2.7 14BCleaning.........................................................................................................................................................7
2.8 15BMaintenance...................................................................................................................................................8
2.9 16BResident Specific Instructions .....................................................................................................................10
34BOPERATION AND MOVEMENT .....................................................................................................................11
3.1 17BSeat Tilt........................................................................................................................................................11
3.2 18BBack Recline................................................................................................................................................11
3.3 19BTrendelenburg..............................................................................................................................................11
3.4 20BElevating Leg Rest.......................................................................................................................................12
3.5 21BFlip Down Footrest......................................................................................................................................12
3.6 22BRemovable Wings........................................................................................................................................13
3.7 23BShoulder Bolsters.........................................................................................................................................13
3.8 24BSwing Away/Removable Arms....................................................................................................................14
3.9 25BHeight Adjustable Armrests.........................................................................................................................14
3.10 26BCasters .........................................................................................................................................................15
3.11 27BAccessories (Options) ..................................................................................................................................15
3.12 Motor Vehicle Use (Vehicle Transport Package Option- Synthesis Transport Chair) ................................15
45BINSPECTION AND FUNCTIONAL TESTING ................................................................................................19
4.1 28BInspection.....................................................................................................................................................19
4.2 29BFunctional Testing .......................................................................................................................................19
56BTECHNICAL INFORMATION..........................................................................................................................20
5.130BSpecifications...............................................................................................................................................20
5.2 31BBroda Seating Synthesis Parts Schematics ..................................................................................................21
5.3 33BTroubleshooting for Gas Cylinders..............................................................................................................37
5.4 34BRear Casters.................................................................................................................................................38
6 WARRANTY ………………………………………………………………………………………………...39

1
0BFOREWORD
Congratulations on your purchase of a Broda chair and thank you for your confidence in our
company and products.
Broda assumes a leadership role in providing optimum re-positioning functions and mobility for
residents of long-term care institutions. Our chairs do not look like traditional chairs and offer
advantages unique to Broda. We are sure that after using your Broda chair, you will be
convinced that your resident’s quality of life will be greatly enhanced.
This manual will assist you in making the best use of the capabilities of your Broda chair and
will ensure that you quickly become familiar with its operation.
After reading this manual, if you have any questions about the safe and effective operation of
your Broda chair or accessories contact your local Broda representative or our Head Office
Customer Service personnel for further assistance.
Head Office:
Broda
15455 Conway Road Suite 200
Chesterfield, Missouri USA 63017
Phone: [phone]
Fax: [phone]
E-mail: [e-mail]
URL: www.brodaseating.com

2
1BGENERAL INFORMATION
This document provides guidance on the safe and effective operation of the Broda chair.
Information in this manual must be followed at all times.
Anyone involved with the operation or maintenance of the Broda chair, including the resident’s
family members, must read this operating manual before using the chair.
The resident’s primary caregiver is responsible for ensuring that anyone who is unfamiliar with,
unwilling, or unable to adhere to the safety and operating instructions, is not permitted to operate
or move the chair.
A copy of this instruction manual must always be available.
Broda accepts no liability for damages, injury or accidents caused by operating errors, improper
maintenance, or disregard of the instructions in this manual, including any resident specific
instructions.
Broda reserves the right to make changes to the specifications, dimensions, functions, or
components of its products without notice. Product representations in this manual may vary from
delivered products.
Each Broda chair has a unique identifying serial number that must be maintained on the chair as
well as with any equipment records.

3
12BDEFINITIONS
“Broda” means Broda Enterprises Inc. doing business as Broda Seating.
“Broda chair” refers to chair model Synthesis Tilt Recliner Model or Synthesis Transport Chair Model WC-19.
“Long-Term Care Institution” refers to a nursing home, hospital, or other healthcare facility that provides health and
personal care to its residents on a long-term basis.
“Resident” refers to an individual living in a long-term care institution under the care of professional caregivers.
“Professional Caregiver” refers to doctors, nurses, therapists, nursing aids, healthcare aids, and other specialists who
work in a long-term care institution and provide health and personal care to its residents.
“Caregiver” refers to any person in a long-term care institution who is appropriately trained to provide care or
services to the resident or the chair used by the resident and may include the resident’s family members or guardian.
“Seat Tilt” refers to changing the relative angle between the chair’s seat and the chair frame or ground without
changing the relative angle between the back and the seat.
“Back Recline” refers to changing the relative angle between the chair’s back and the seat.
“Footrest Elevation” and “Leg Rest Elevation” refers to changing the relative angle between the chair’s footrest
and/or leg rest and the seat.
“Transfer(s)” refers to the movement of a resident into or out of the chair with the assistance of their caregiver(s).
“Mechanical Transfer(s)” refers to the movement of a resident into or out of the chair with the assistance of their
caregiver(s) using a patient lift or other assistive device that bears the weight of the resident.

4
23BSAFETY REQUIREMENTS
2.1 8BTraining
Before the chair is put into service, this manual must be read thoroughly by the caregiver(s) directly
responsible for the resident’s care.
After the chair is put into service, this manual must be read thoroughly by any new caregivers prior to
operating or moving the chair.
For the purpose of this manual, a resident’s family member who shares responsibility for their care is considered a
caregiver and is subject to the same competency before being permitted by the resident’s primary caregiver to
operate of move the chair.
Prior to first use, the customer must arrange for an in-service on the operation and safety requirements in this
manual, must be given to the resident’s caregivers by the local Broda representative who supplied the chair.
The primary caregiver must maintain a list of caregivers who have read this manual and who they have authorized to
operate and move the chair.
The resident’s primary caregiver is responsible for ensuring that anyone who is unfamiliar with, unwilling, or unable
to adhere to the safety and operating instructions, is not permitted to operate or move the chair.
The operations of the chair must be performed by the resident’s primary caregiver who is responsible for seating. All
The operations and adjustments performed should be done in a manner to ensure the overall safety, comfort and
well-being of the resident, caregiver and third party. All operations and adjustments required for the resident should
be determined by the resident’s primary caregiver who is responsible for seating.
2.2 9BApplication
Broda chairs are intended exclusively for residents of long-term care institutions who are under the care of
professional caregivers. The suitability of a BRODA chair must be determined by a qualified caregiver who is
familiar with the seating needs of the intended resident. Any other use of the chair is excluded from possible liability
claims.
The Synthesis is not to be used in the shower. The frame and components will rust, and will void the warranty.
The chairs are not explosion resistant and must not be used where there are flammable gases or liquids present (e.g.,
anesthetics, volatile solvents and cleaners, etc.)
Broda chairs are designed for use with specific Broda parts and accessories. The use of non-Broda parts or
accessories with a Broda will void the warranty and is excluded from possible liability claims.
Broda chairs may only be used as described in this manual and with proper regard for recognized healthcare and
workplace safety and accident prevention practices.
2.3 10BShipping and Storage
Broda chairs should be shipped and stored in an upright position and not stacked higher than 3 boxes. No other
materials should be shipped or stored on top of a Broda box. Broda boxes should not be placed on pallets.
Broda chairs should be shipped and stored at temperatures between -20ºC and 40ºC. Broda chairs should not be used
until they are between 0ºC and 30ºC.

5
Broda chairs should be kept in a clean, dry environment. Do not leave Broda chairs outdoors as it may cause the
paint to peel.
Upon receipt, the shipping carton must be immediately examined for damage. Any damage should be noted on the
delivery receipt and a request for inspection by the transportation company should be made. Next, the shipping
carton should be opened and the chair must be examined for concealed shipping damage. If the chair appears to be
damaged, do not use the chair. File a concealed damage report with the transportation company.
2.4 11BPre-Service Check
Broda chairs are delivered fully assembled. If the chair does not appear to be ready to use upon receipt, immediately
contact your supplier and do not put the chair into service until any concerns have been resolved.
Visually inspect the chair for damage, missing parts, and loose fasteners prior to testing the chair’s functions.
Functional testing must be successfully completed after visual inspection and before use. These obligations apply to
the chair’s first use and to all subsequent uses (Section 4: Inspection and Functional Testing).
2.5 12BHazards
2.5.1 35BPosition of Chair - “Danger of Falling”
After a resident is transferred into a chair, assess the amount of tilt required. We recommend that the chair’s seat be
tilted sufficiently to prevent the resident from sliding or falling forward off the chair. The amount of seat tilt used
should be determined by the resident’s caregiver who is responsible for seating.
We recommend that the resident’s feet be correctly positioned on the footrests and slightly-to-fully elevated to
prevent the resident from sliding or falling forward off the chair. The amount of elevation used should be determined
by the resident’s caregiver who is responsible for seating.
2.5.2 36BPosition of Seat Tilt - “Danger of Tipping”
We recommend that the chair’s seat be tilted sufficiently to prevent an agitated resident from tipping the chair
forward or backward, or from slumping and sliding in the chair. The amount of seat tilt used should be determined
by the resident’s caregiver who is responsible for seating. Always ensure that the resident is properly positioned
before operating the seat tilt.
2.5.3 37BLocation of Chair - “Danger of Tipping or Falling Objects”
We recommend that when a resident has been moved to their destination, the chair is placed where the resident
cannot reach handrails or other objects, fixed or movable. This is to prevent the resident from pulling the chair over
or pulling themselves off the seating surface and to prevent the resident from pulling movable objects onto the chair
and themselves.
We recommend that the chair be used in a supervised area to prevent untrained residents, caregivers, or third parties
from unauthorized operation, movement, or unsafe actions such as sitting or leaning on the reclined back, elevated
footrest, or the armrests. These actions, if not prevented, put the chair at risk of tipping or damage to the chair.
We recommend that a chair only be located on a level surface to minimize the risk of tipping over.
2.5.4 38BTotal Lock Wheel Brakes - “Danger of Falling”
The special casters found on the Broda chair have total lock brakes which prevent the wheels from turning and
swiveling. The brakes must always be applied when:
1) the chair is not in use;
2) a resident is being transferred (moved) into or out of the chair; and,
3) the chair is not being moved by a caregiver.
It is important to note that if the wheel locks are applied while the patient is in the chair, that the caregiver does not
leave the patient unattended, especially those patients who have the capability or tendency to move the chair and/or
those who may be agitated. This could cause harm to the patient if they attempt to move the chair while the wheel
locks are applied.

6

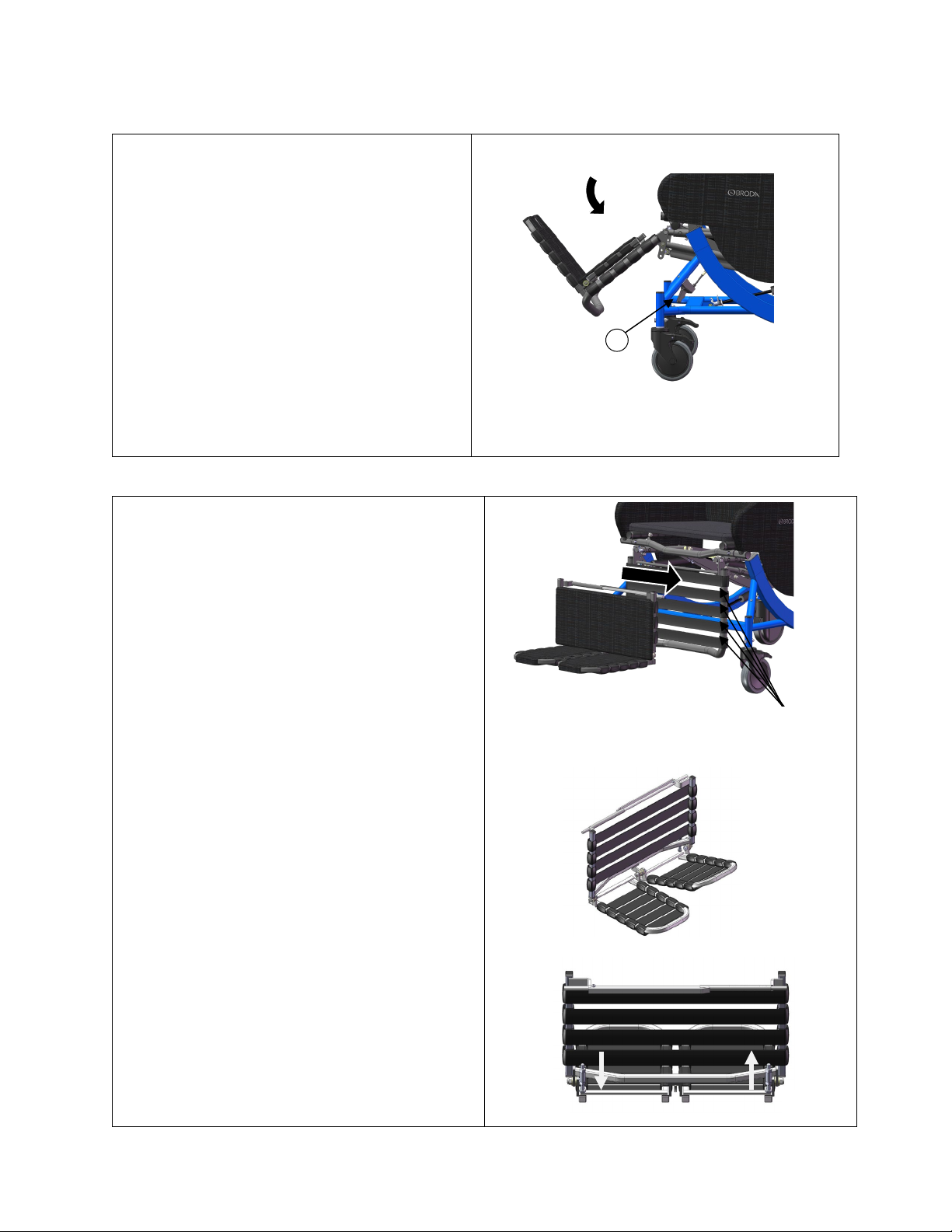

Note that removing and attaching the footrest may be easier for the caregiver with the brakes applied
Failure to follow these instructions will unnecessarily increase the risk of serious falls by residents, caregivers, or
third parties caused by the chair unintentionally moving.
2.5.5 39BRe-Positioning of Resident - “Danger of Clamping”
Broda chairs offer the benefits of seat tilt, back recline, leg rest/footrest elevation, and moveable arms. During the
movement of any of these functions, the following safety measures must be observed:
1) The resident’s arms must be positioned on the armrests or inside the chair frame with their hands
on their body.
2) The resident’s feet must be correctly positioned on the footrest.
3) All of the chair’s brakes have been applied.
4) Only one caregiver at a time attempts to operate the chair’s functions.
5) Only one chair function is operated at a time.
6) The rear wheels are in the trailing position, behind the chair frame.
7) The residents’ and caregivers’ body are clear of all pinch points before operating the chair’s
functions.
Failure to follow these safety measures can put the residents’ or caregivers’ limbs at risk of injury. Residents who
may be unaware of their body position or unable to maintain a safe body position are at the most risk of the danger
from clamping and caregivers should be more cautious with these residents. A second caregiver may be required to
ensure the safety of these residents during these operations.
2.5.6 40BUnintended Movement - “Danger of Falling or Collision”
We recommend Broda chairs for indoor use within a long-term care institution and where there is not enough slope
to cause the chairs to move unaided. Chairs used where the surface is uneven or sloped are at risk of unintended
movement and could become a serious danger to the resident, caregiver(s), or a third party. We recommend that
Broda chairs are located away from stairwells, elevators, and exterior doorways within a long-term care institution.
Outdoor use is appropriate only under the strict supervision and full attention of a caregiver who is physically
capable of preventing any unintended movement over any surfaces that are to be traveled on. We recommend that a
second caregiver assist when the chair is moved over surfaces that could cause significant unintended movement.
2.5.7 41BResident Clothing - “Risk of Injury to Resident’s Skin”
We recommend that residents only be seated while they are fully dressed in clothing that meets the needs of their
specific condition. If after being fully dressed, a resident’s bare arms, legs, or body could still come into direct
contact with the vinyl straps or vinyl pads, we recommend the use of a covering, such the Broda terry cloth covered
seat and/or back pad or a folded cloth bed sheet to prevent direct contact. Direct contact of bare skin on the straps
over a period of time could cause moisture on the resident, and/or cause the skin to stick to the straps. Prior to the
operation or movement of a chair with a covering, the caregiver must ensure any covering placed on the chair does
not come into contact with any moving parts and is securely placed, so not to slip.
2.5.8 42BImproper Restraint Use - “Risk of Serious Injury”
We recommend that alternatives to physical restraints be used with residents while seated in the chair except under
the specific instructions of the resident’s primary caregiver and with permission of the resident’s family or guardian.
Physical restraints have been identified as a common cause of serious injury to residents while they are seated. We
recommend that the primary caregiver responsible for seating first consider the re-positioning options available in
the chair to reduce the risks of sliding, falling, or self-injury.
If a physical restraint is determined to be appropriate to prevent sliding or falling out of the chair, we recommend
that the Broda thigh belt be used. If a physical restraint is determined to be appropriate to prevent self-injury from
resident movement, we recommend the Broda HSP padding package. In all cases, it is the resident’s primary
caregiver that must take responsibility for the safety of the resident if restraints are used.

7
2.6 13BImproper Use
As outlined, the improper use of the chair is dangerous to the resident, caregivers, or third parties, and can consist of,
but is not limited to the following:
1) Unauthorized operation of the chair’s functions.
2) Unauthorized movement of the chair.
3) Inappropriate use of the chair for a resident who has not been assessed by a qualified caregiver
responsible for their seating.
4) Failure to frequently reposition the resident in the chair
5) Attempting to operate of multiple chair functions simultaneously by one or more caregivers.
6) Attempting to move the chair with the brake(s) applied.
7) Leaving the resident unattended in the chair near other objects.
8) Leaving an agitated resident in the chair in an unsupervised area.
9) Leaving a resident unattended.
10) Leaving a resident in a chair on a sloping surface.
11) Leaving a chair unattended on a sloping surface.
12) Using non-Broda accessories on the chair.
13) Using the chair at temperatures below 0ºC.
14) Using the chair as a shower or bathing chair.
15) Using the chair for any use other than its intended purpose.
2.7 14BCleaning
Broda chairs should be wiped clean with soap and water. Diluted household strength ammonia or chlorine based
cleaner, as well as a hospital grade cleaner may be used if necessary.
Refer to the following guide for cleaning certain staining agents (Applies to the Permablok3® vinyl, as per the vinyl
manufacturer’s recommendations) The frame and components of the chair can be cleaned using the same procedure
as the vinyl.
The steps below are also located in the Cleaning Guide found on the back of the Broda chair
Staining Agent Cleaning Procedure
Eye Shadow / Mascara Step 1
Grease / Suntan Lotion / Chocolate Step 1
Blood / Bodily Fluids Step 2
Red Lipstick Step 2
Oil Base Paint / Tar / Asphalt Step 3
Other Tough Stains Step 4 or 5*
Step 1: Remove excess spill with a damp cloth. Clean with a 1:1 mix of Ivory® liquid and water. Rinse with clean
water and dry.
Step 2: Use a straight application of concentrated cleaners such as Formula 409® or Fantastik® Spray Cleaner.
Then wipe with a clean cloth. If using a hospital grade cleaner, follow the diluting instructions on the label.
Step 3: Use a 1:1 mix of ammonia and water or a 1:4 mix of bleach and water. Rinse with clean water and dry.
Step 4: Use a straight application of naphtha (lighter fluid). Rinse thoroughly with clean water and pat surface dry.
Step 5: Use a 1:1 mix of isopropyl alcohol and water. If the stain persists, use straight alcohol. Rinse thoroughly
with clean water and pat dry. If the stain remains, use a 1:1 mix of acetone and water. Rinse with clean water and pat
surface dry.
*Note: for cleaning that requires steps 4 or 5 – Use a soft cotton cloth saturated with the cleaning material and rub
the stain in circles 10 times. Pat dry with another soft cotton cloth, and check results.

8
For best cleaning results, certain parts and padding on the chair should be removed: Instructions for removal of the
following parts are located in this manual: Ensure that the entire chair including removable and non-removable parts
is thoroughly cleaned.
Pay close attention to the frame, sockets, fasteners, parts and casters, as well as the padding for an even, thorough
clean.
Remove parts for cleaning if desired:
1) Wings
2) Swing Away/Removable Arms
3) Footrest
4) Padding
Thoroughly clean all removable parts and padding, as well as the frame and components around the parts and
padding that have been removed.
Broda chairs should not be cleaned with petroleum-based cleaners. Any petroleum based products that come in
contact with any vinyl surface should be removed as quickly as possible. Petroleum based products make vinyl
brittle and will damage the seating surface and cushions. Metal parts and cushions should be wiped completely dry
after cleaning. Do not launder vinyl padding. Terry cloth seat and back covers can be laundered and tumble dried.
Do not allow the chair to air dry. Leaving the chair to air dry and not ensuring the entire chair is completely dry may
cause the frame and components to rust. Solvents such as those found in spray lubricants should not be used on
Broda Chairs as they can damage moving parts.
Frequency and method of cleaning the chairs should be determined by facility infection control protocols. If visibly
soiled, thoroughly clean the chair immediately as per the cleaning instructions in this manual.
The cleaning instructions in this manual are guidelines only. Results may vary under actual conditions. The
information does not relieve the user of proper and safe use of the product and all cleaning agents and consideration
for the overall cleaning maintenance of the chair. Cleaning and care instructions must be followed in conjunction
with facility infection control protocols.
Broda will not accept warranty or liability claims on chairs that have not been cleaned according to the instructions
or cared for in proper regard for patient, caregiver and third-party safety and hygiene. The use of certain agents may
be harmful to the surface appearance and lifespan of the vinyl. Broda assumes no responsibility resulting from the
use of such cleaning agents to the vinyl.
Touch up paint is available for the powder coated frame. Please call Broda’s Customer Service Department if touch
up paint is required. Do not leave Broda chairs outdoors as the frame is not UV protected. Leaving the chairs
outdoors could cause the paint to peel.
Formula 409® is a trademark of the Clorox Company.
Fantastik™® is a trademark of DowBrands, Inc.
Trademark of the Dow Chemical Company.
Ivory® is a trademark of Proctor and Gamble.
2.8 15BMaintenance
The maintenance on a Broda chair will vary with the amount of use and the condition of the resident using the chair.
In regular use, after the initial inspection and functional testing, the chair should be inspected and tested bimonthly.
We recommend visually inspecting for signs of wear, damage, loose or missing fasteners, and other safety concerns.
Periodic testing of chair functions is also necessary. If a breakage, defect, or operational problem is detected, the
chair must be successfully repaired, inspected and tested for function before it is returned to service.
The chair should be inspected and tested as often as each use if the chair is used by:
1) Aggressive or agitated residents.
2) Residents who have involuntary movements.
