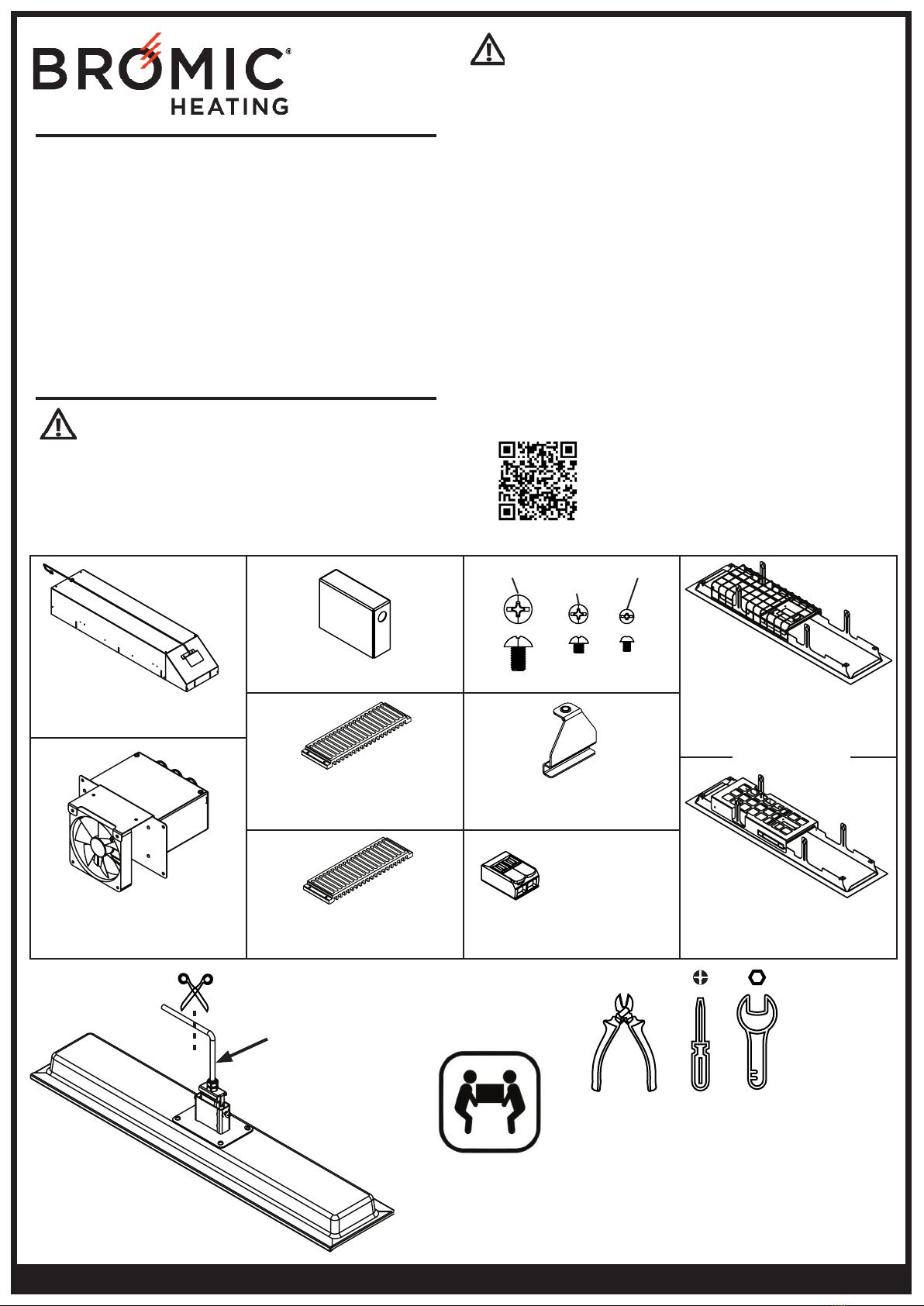

PLATINUM SMART-HEAT™
ELECTRIC HEATERS
BY BROMIC
LOW CLEARANCE (LC) CEILING
RECESS INSTALLATION
INSTRUCTIONS
FOR MODELS 2300W, 3400W & 4500W
Instructions below are suitable for ceiling surfaces 10-
30mm (0.39”-1.2”) thick. For ceiling surfaces thicker
than 30mm (1.2”), contact Bromic for alternative
installation options.
WARNINGS
Joists, beams and rafters shall not be cut or
notched to install the heater.
The heater shall, under no circumstance, be cov-
ered with insulating material or similar material.
WARNING
This heater MUST be permanently installed by an
authorised/licenced person. Do not perform
maintenance, or carry out installation or assembly
procedure while electrical power is switched on. Wait 2
hours after switching o the heater before handling.
1x
1x
1x
2x 4x
1x 1x2x
1x (2300W/3400W)
2x (4500W)
CEILING RECESS
BOX
IP COVER
VENT COVER
BLACK
VENT COVER
WHITE
TERMINAL BOX
HEATER
NOT INCLUDED
In ceiling recess installation, the heater must be com-
pletely protected against water contact from above.
IMPORTANT
READ THIS MANUAL CAREFULLY. SEE INSIDE
COVER FOR IMPORTANT INFORMATION
ABOUT THIS MANUAL. KEEP INSTRUCTIONS
WITH APPLIANCE FOR FUTURE REFERENCE.
It is important that regular maintenance is carried
out on the heater to maintain appearance. Inspect
and clean more frequently in adverse conditions
such as coastal environments.
TOOLS REQUIRED
8mm (5/16”)
24mm (15/16”)
30mm (1/1/8”)
800mm (31.5”) - 2300W
1000mm (39.3”) - 3400W
1040mm (40.9”) - 4500W
N2 WAGO
CONNECTOR
HARDWARE
8x M3x6
8x M4x8
1x M6x10
TRIM ASSEMBLY
(STANDARD)
TRIM ASSEMBLY
(MARINE)
VENT COVER
TRIMS
2 PERSON
INSTALLATION
OR
QR CODE
INSTALLATION INSTRUCTIONS

bromic.com 2
• Read this manual carefully before installing or servicing this
product.
• Improper installation, operation, or maintenance can result in
death, severe injury, or property damage.
• This appliance is intended for fixed installation with voltage
as specified on the power rating label.
• Installation MUST be carried out by a licensed and authorised
technician in accordance with local electrical codes.
• The Platinum Smart-Heat™ Electric Heater is intended for
domestic and commercial use, unless otherwise specified.
• The marine grade versions of the LC Ceiling Recess Kit shall
be installed for land and coastal environment application
ONLY.
• The IPX5 marine grade version of the LC Ceiling Recess Kit
shall NOT be installed on marine craft.
This manual contains important information about the installation, operation, and
maintenance of the Low Clearance Ceiling Recess Kit for the Platinum Smart-Heat
Electric Heaters. Please pay close attention to the important safety information
shown throughout this instruction manual.
Any safety information will be accompanied by the following safety alert symbols:
DANGER, WARNING, IMPORTANT
SAVE THESE INSTRUCTIONS
Head Oce: 10 Phiney Place, Ingleburn, NSW 2565 Australia
Telephone: [phone] (within Australia) or [phone] (from overseas) Fax: [phone]
Email: [e-mail] Web: www.bromic.com
Note: Bromic Pty Ltd reserves the right to make changes to specifications, parts, components and equipment without prior notification.
This installation, operation and service manual may not be reproduced in any form without prior written consent from Bromic Pty Ltd.

bromic.com 3
SPECIFICATIONS LC Ceiling Recess Kit
Model Standard Marine
Part No. US/EU BH3623009 BH3623008 BH3623011 BH3623010
AU 2623009 2623008 2623011 2623010
Total Ouput - Kit +
Heater
2300W 3400W 2300W 3400W
Power connection
required (volts/amps)
208V
- A.C -
60HZ
- 11.1A
220-240
- A.C -
50/60Hz
- 9.6A
208V
- A.C -
60Hz
- 16.3A
220-240
- A.C. -
50/60Hz
- 14.2A
208V
- A.C -
60HZ
- 11.1A
220-240
- A.C. -
50/60Hz
- 9.6A
208V
- A.C -
60Hz
- 16.3A
220-240
- A.C. -
50/60Hz
- 14.2A
Overall Dimensions
(L x W x H)
1039 x 261 x 175 mm
(40.9 x 10.3 x 6.9 ")
1475 x 261 x 175 mm
(40.9 x 10.3 x 6.9 “)
1039 x 261 x 175 mm
(40.9 x 10.3 x 6.9 ")
1475 x 261 x 175 mm
(40.9 x 10.3 x 6.9 “)
Weight 11kg (24.3lb) 14kg (31lb) 11kg (24.3lb) 14kg (31lb)
Finish Brushed Stainless Steel 304 Brushed Stainless Steel 316
Approval
SPECIFICATIONS LC Ceiling Recess Kit
Model Standard Marine
Part No. US/EU BH3623012 BH3623013
AU BH3623012 BH3623013
Total Ouput - Kit +
Heater
4500W 4500W
Power connection
required (volts/amps)
208V - A.C -
60HZ - 11.1A
220-240 - A.C -
50/60Hz - 9.6A
208V - A.C -
60HZ - 11.1A
220-240 - A.C. -
50/60Hz - 9.6A
Overall Dimensions
(L x W x H)
1595 x 338 x 178 mm
(62.8 x 13.3 x 7 ”)
1595 x 338 x 178 mm
(62.8 x 13.3 x 7 ”)
Weight 25kg (55.1lb) 25kg (55.1lb)
Finish Brushed Stainless Steel 304 Brushed Stainless Steel 316
Approval

bromic.com 4
The example depicts the recess kit fixed on the
length sides only. The installer is responsible for
ensuring product is installed in a structurally
sound configuration.
238mm (9.4") - [2300W/3400W]
315mm (12.4”) - [4500W]
Minimum - 180mm (7.1")
(From glass surface)
995mm (39.2") - [2300W]
1430mm (56.3") - [3400W]
1550mm (61.0”) - [4500W]
TERMINAL BOX END
CLEARANCE
CLEARANCE
ZONE
CEILING CUTOUT LENGTH
CUTOUT WIDTH
WARNING
The appliance shall, under no circumstances, be
covered with insulating material or similiar material.
Minimum vertical ceiling space clearance between
the ceiling recess box and ceiling surface must be
180mm (7.1").
Minimum clearance measured from the terminal box
end to the nearest surface must be 200mm (7.9").
Minimum clearance from the ceiling cutout and the
nearest wall must be 500mm (19.7").
Minimum distance between heaters measured from
edge of ceiling cut out must be 500mm (19.7”)
with exception for Australia/New Zealand minimum
2000mm (78.7”)*.
Minimum distance between the heater surface and
finished floor is 2400mm (94”).
*Note:
Under AS/NZ 60335.2.30:2015 clause 7.12.1 specifies the distance
between the sides of the heater and the sides and any adjacent
ceiling recessed heater shall not be less than four times the
minimum distance specified for the distance between the sides of
the heater and any building element adjacent to it.
Standard Versions
Ensure that the heating unit is not directly exposed to
rain or water contact. For the longest product life and to
maintain product appearance, mount the heater under
cover and protect from rain and weather.
CEILING CUTOUT & CLEARANCE ZONES
Marine Versions
In a salt-air environment, such as near an ocean,
corrosion occurs more quickly than normal. Stainless
316 has been used in the Marine configuration. Salt
spray should be cleaned from the heater and recess kit
immediately - while the heater and recess kit should
undergo cleaning fortnightly to ensure maximum
longevity. Use a qualified technician to check yearly for
corroded areas and remove from service when heater
safety is compromised.
MINIMUM GAP BETWEEN JOISTS
240mm (9.4”) - [2300W/3400W]
317mm (12.5”) - [4500W]
CEILING
JOIST
500mm
(19.7")
MINIMUM WALL
CLEARANCE FROM TRIM
2400mm (94") 2400mm (94")
SIDE VIEW FRONT VIEW
CEILING
FLOOR
261mm (10.3") -
[2300W/3400W]
338mm (13.3”) -
[4500W]
FLOOR
ROOM CLEARANCE AND OVERALL DIMENSIONS
ABOVE FINISH FLOOR (AFF)
MINIMUM CLEARANCE
ABOVE FINISH FLOOR (AFF)
MINIMUM CLEARANCE
ISOMETRIC VIEW DEPICTING LOW CLEARANCE RECESS KIT
INSTALLATION SETUP OPTIONS
500mm
(19.7")
MINIMUM WALL
CLEARANCE FROM
TRIM
TRIM LENGTH
1039mm (40.9”) - [2300W]
1475mm (58.1”) - [3400W]
1595mm (62.8”) - [4500W]
TRIM WIDTH
178mm (7")
MAX
PRODUCT
HEIGHT
200mm (7.9")
Maximum gradient of mounting from horizontal is
6.4mm (1/4”) over a 25.4mm (1.0”) slope. Control box
must be mounted at lowest end.
61mm
(2.4")

bromic.com 5

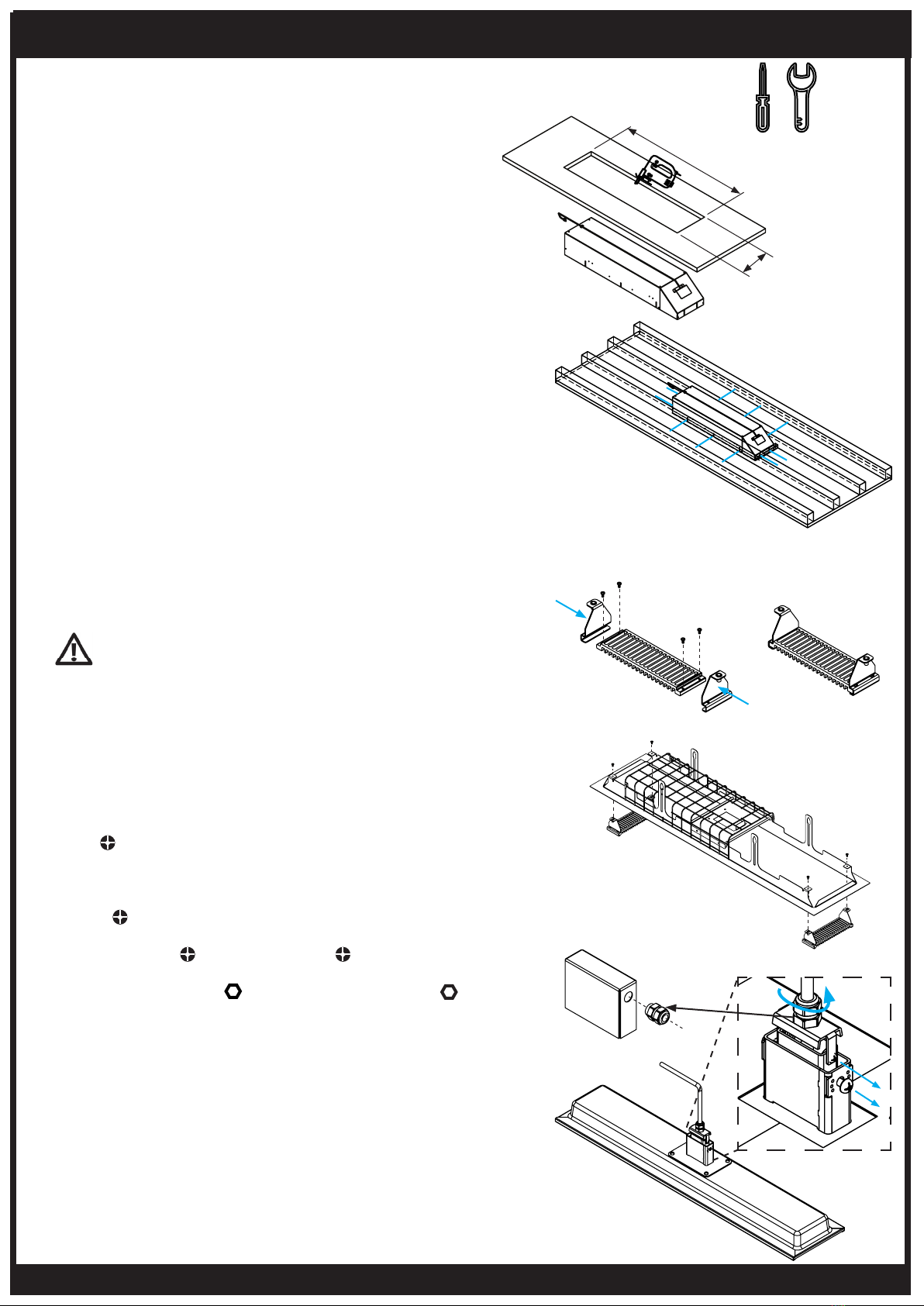

1. Prepare ceiling cut-out with the dimensions :
2300W - 995mm x 240mm (39.2” X 9.4”)
3400W - 1430mm x 240mm (56.3” X 9.4”)
4500W - 1550mm x 317mm (61.0” X 12.5”)
Heater must be installed with heater surface at least 2400mm
(94") above the finished floor (AFF), with minimum clearance
measured from the terminal box end to the nearest surface being
200mm (7.9”). Minimum heater to heater distance measured
from edge of heater must be 500mm (19.7”). Refer to the install
dimensions on page 3.
Before proceeding with Step 2.
NOTE: Access to cavity space through recess box is restricted.
NOTE: Installations with Bromic controllers in cavity space.
Consider location requirements of Bromic controllers and how
to access the Bromic controllers and its wiring before fitting the
LC cavity recess box to the ceiling. Refer to page xx for wiring
diagram and Controller manual for mounting and sizing details.
2. Fasten the ceiling recess box into ceiling with 6x (minimum)
appropriate fasteners (not supplied) along the long edge.
NOTE: The fastening screws must be inserted into a strong
material that can easily support the weight of the assembly. Your
installation may require re-enforcing before the frame can be
safely installed.
IMPORTANT
It is the installers responsibility to ensure that the
installation site is structurally suitable for the mass of the
heater installation being 18.5kg (41 lb) [2300W], 24kg
(53 lb) [3400W] or 25kg (55.1 lb) [4500W].
MINIMUM 10 FASTENERS TO BE USED FOR TIMBER
MEMBERS.
3. Assemble 2x vent covers together using the vent cover trims
and 4x M3x6mm screws. The colour of the vent covers are to
match the heater.
4. Install the assembled vent covers to the end of trim assembly
using 4x M4x8mm screws.
5. Remove the 2x M6x14mm and 2x M4x8mm screws on the
rear bracket of the heater. Remove the swivel bracket on the
heater rear. Loosen the M16 (2300W/3400W) or M20
(4500W) cable gland using a 24mm (15/16”) or 30mm (1/1/8”)
spanner and install the removed cable gland onto the IP cover.
ENSURE THE CABLE GLAND NUT IS REINSTALLED ON THE
INNER SURFACE OF THE IP COVER.
NOTE: During this process the strain relief
device has been removed - Care must be taken
to not apply significant load to the cable as
this could stress the internal cable crimps and
permanently damage the heater.
24mm
(15/16")
30mm
(1/1/8”)
INSTRUCTIONS START HERE
995mm (39.2”) - [2300W]
1430mm (56.3") - [3400W]
1550mm (61.0”) - [4500W]
240mm (9.4") -
[2300W/3400W]
317mm (12.5”) -
[4500W]

bromic.com 6

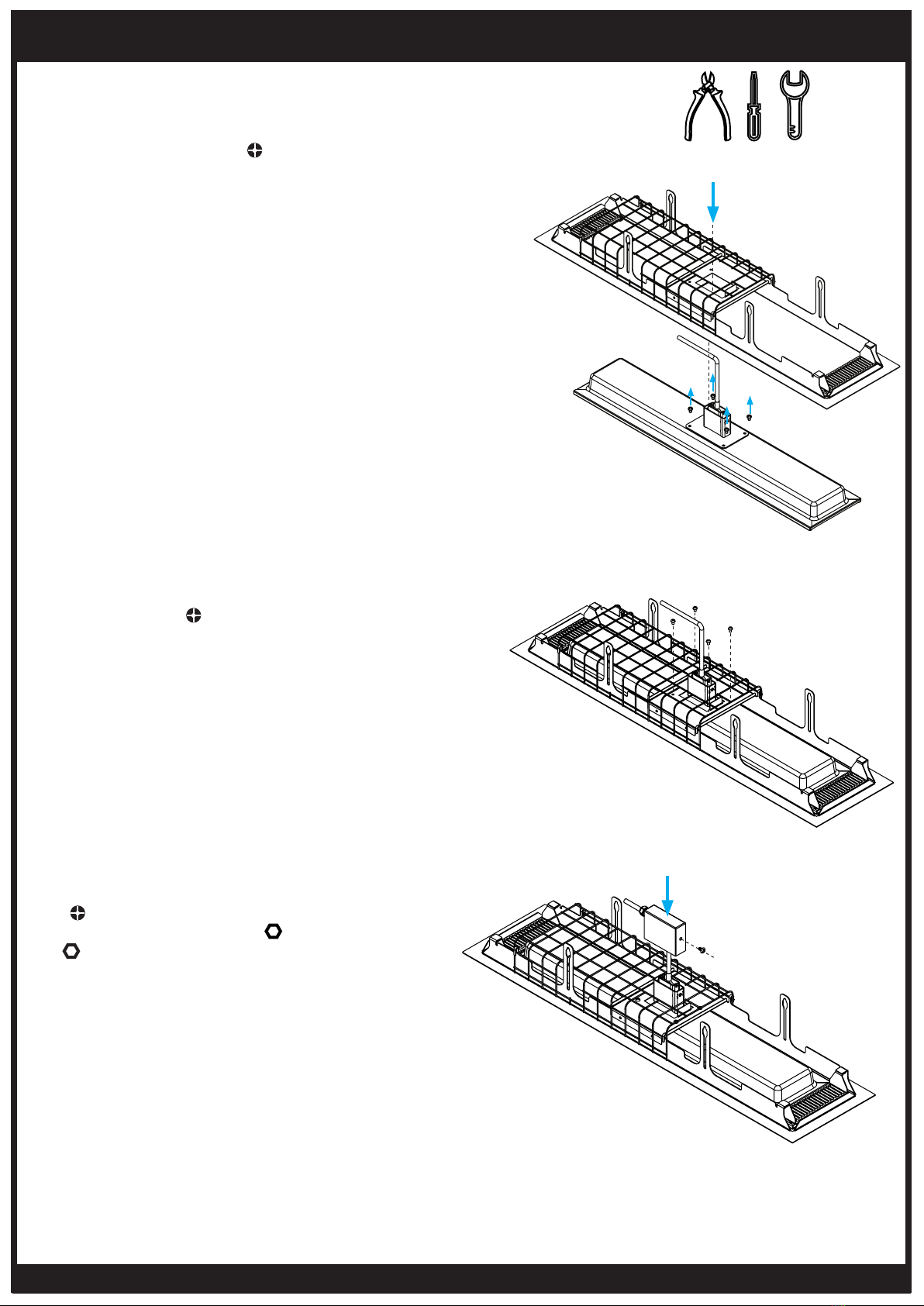

6. Carefully remove the 4x M5x10mm screws at the rear
of the heater and align the heater trim assembly with the
mounting holes.
The cable is fed through the opening in the centre of the
trim assembly.
7. Re-install the 4x M5x10mm screws to attach the
heater to the trim assembly.
8. Feed the heater cable through the IP cover and cable
gland. Attach the IP bracket to the heater using
the M6x10mm screw.
When in location, ensure the M16 (2300W/3400W)
or M20 (4500W) cable gland is fastened using a
24mm (15/16”) or 30mm (1/1/8”) spanner.
24mm
(15/16")
30mm
(1/1/8”)
CEILING RECESS INSTALLATION INSTRUCTIONS CONTINUED ...
NOTE: REAR HEATER BRACKET IS
NOT TO BE REMOVED.

bromic.com 7
For installs using a Bromic Dimmer (sold separately) OR
On/O Controller (sold separately), please refer to the electrical diagram on page 11.
For installs using a manual wall switch (not supplied), please refer to the electrical diagram
on page 14.
Comprehensive electrical diagrams can be found on page 18.

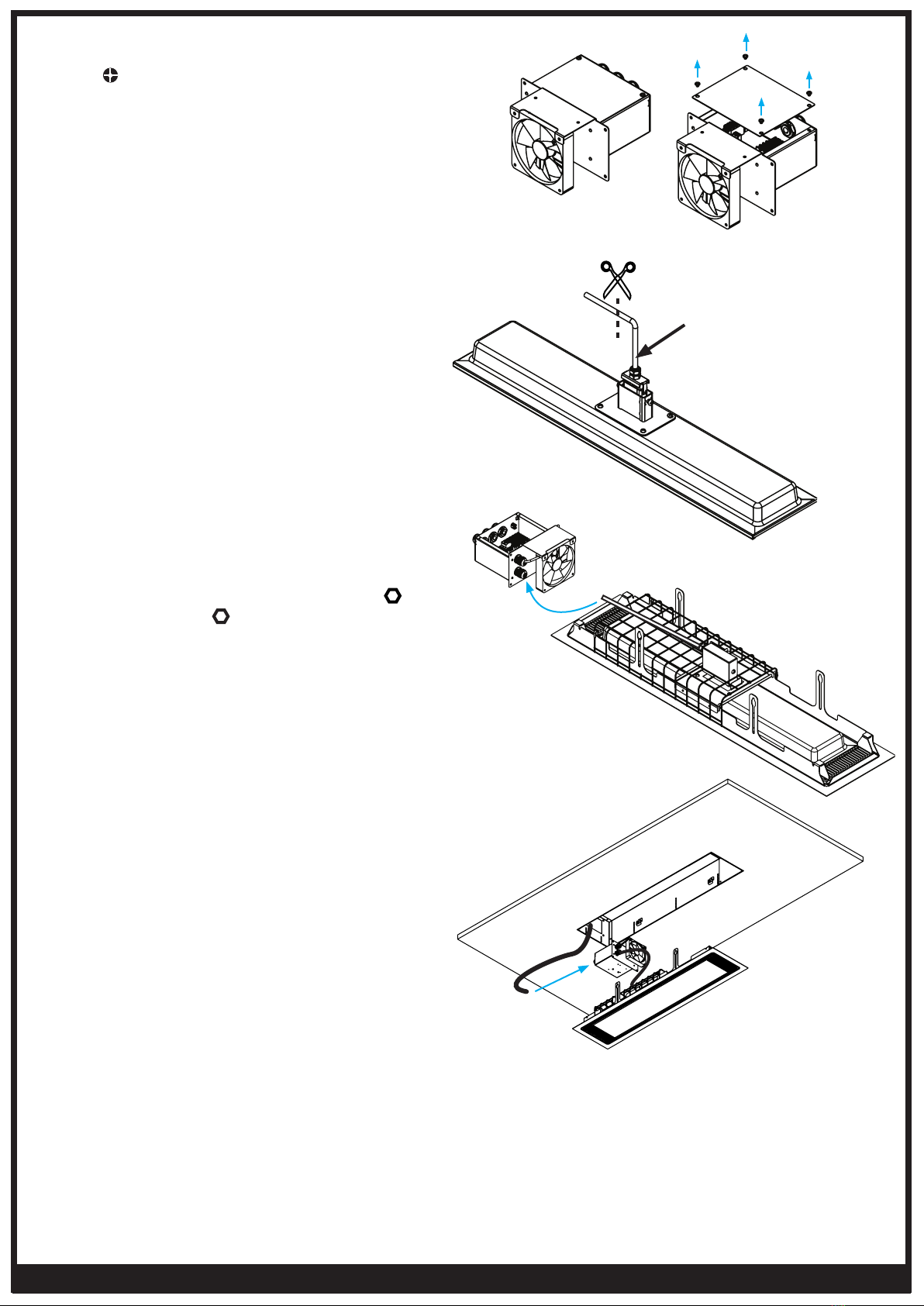

9. Remove the lid of the terminal box by removing
the 4x M4x8mm screws and set aside for re-
assembly.
10. Cut down the heater cable no shorter than
800mm (31.5”) for 2300W, 1000mm (39.3”)
for 3400W or 1040mm (40.9”) for 4500W
measured from the cable gland.
11. Feed the heater cable through the lower M16
(2300W/3400W) or M20 (4500W) cable gland
located on the terminal box. Ensure that the cable
gland is tightened.
12. Feed the mains (and control cables if
applicable) through the terminal box cut-out in
the heater box.
Refer to the wiring diagram diagrams on the next
page
800mm (31.5”) - 2300W
1000mm (39.3") - 3400W
1040mm (40.9”) - 4500W

bromic.com 8

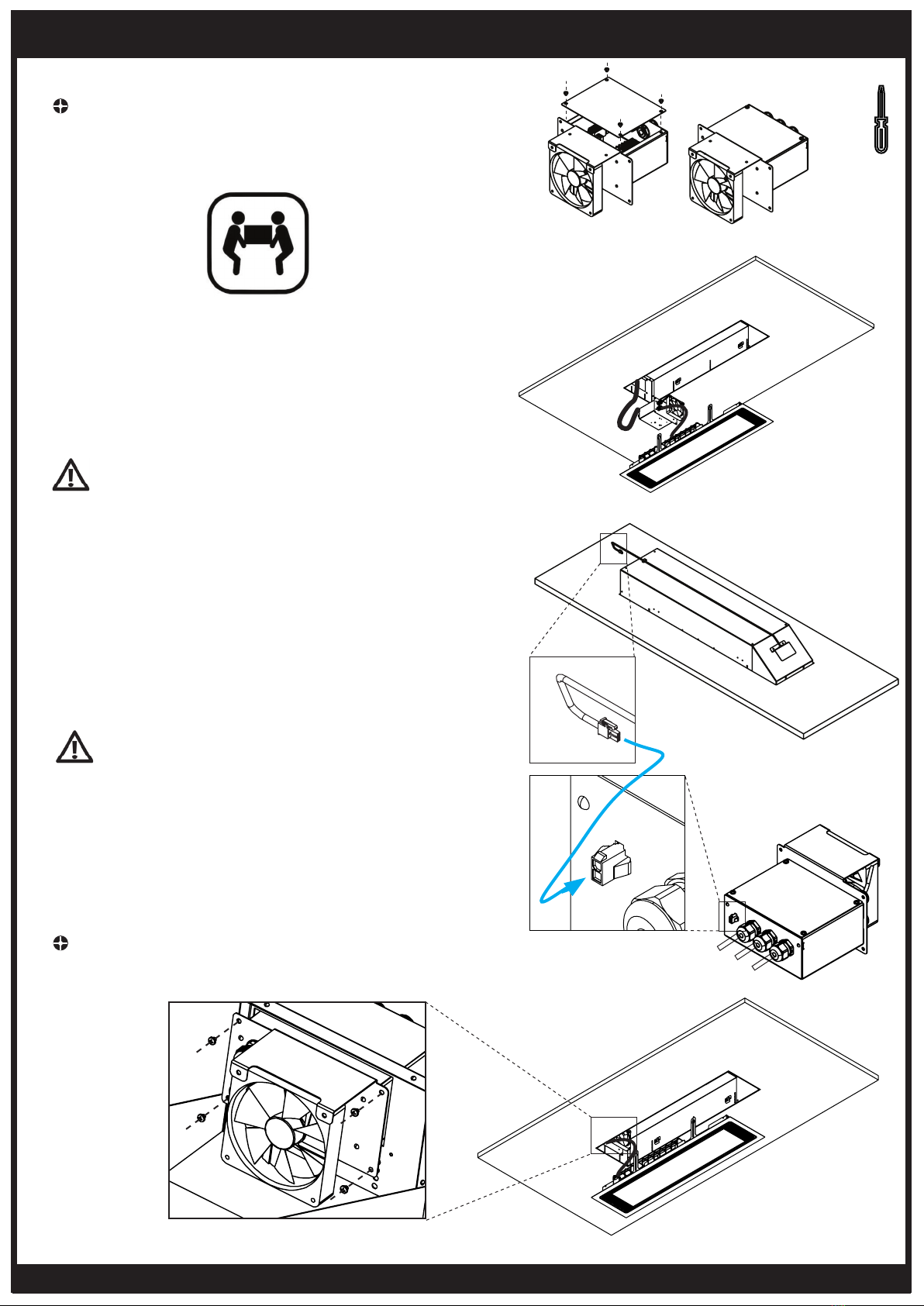

13.Once all connections have been made, use the supplied
4x M4x8mm screws to close the terminal box.
14. Bring the heater and terminal box up onto stable work
platform closer to the terminal box cut-out end.
15. Before installing the terminal box - retrieve the thermal
cut-o switch cable.
Plug it into thermal cut-o switch receptacle at the rear of
the terminal box.
16. Fasten the terminal box into the ceiling recess box using
4x M4x8mm screws.
WARNING
Heater will not function unless the
thermal cut-o switch plug is inserted
into receptacle on rear of terminal box.
CEILING RECESS INSTALLATION INSTRUCTIONS CONTINUED ...
MIN 2 PEOPLE REQUIRED
FOR FOLLOWING STEPS.
MAX SAFE LIFTING 16 kg
(26.5 lbs) PER PERSON.
IMPORTANT
ENSURE THE FRONT GLASS OF THE
HEATER IS PROTECTED BEFORE
PLACING ON TOP.

bromic.com 9
17. Attach the trim assembly to the
ceiling recess box by hooking on one
side of the mounting tab features to
2x M5x12mm hex flange bolts.
Ensure heater cable placement is on
the inside of the mounting hooks.
18. Rotate the trim assembly and
attach the other side of the mounting
tabs to the other 2x M5x12mm hex
flange bolts.
19. Raise up the heater trim assembly
so it is flush with the ceiling.
Tighten the 4x M5x12mm hex flange
bolts using a 8mm (5/16") spanner to
secure the heater in place.
Check heater alignment is flush with
the ceiling before tightening the
screws.
CEILING RECESS INSTALLATION INSTRUCTIONS CONTINUED ...
WARNING
The heater supply cable MUST completely rest on
the support structure. The supply cable MUST NOT
be touching the rear surface of the heater.
4x
8mm (5/16”)
IMPORTANT
Ensure heater cable placement is on
the inside of the mounting hooks.
Mounting tab
feature

bromic.com 10
SYMPTOM POSSIBLE CAUSE(S) CORRECTIVE ACTION
No heat 1. Improper Connection
2. Self resetting thermal switch not
plugged in
3. Non-self resetting thermal switch
has triggered.
1. Check connection to power supply
2. Check self resetting thermal switch is plugged in
(see step 14).
3. Reset Non-self resetting thermal switch located
inside terminal box (see electrical diagram).
Not enough heat 1. Heater too small for application
2. Heater mounted too high or too
far
3. Incorrect voltage connected to
heater.
1. Add additional heater(s)
2. Decrease mounting height or distance.
3. Check correct supply voltage and current is
provided
Too much heat 1. Heater too large for application
2. Heater mounted too low or too
close
3. Incorrect voltage connected to
heater
1. Replace with smaller heater
2. Increase mounting height or distance
3. Check correct supply voltage is provided.
WARNING
This heater MUST be permanently installed by an authorised/
licenced person. Do not perform maintenance, or carry out
installation or assembly procedure while electrical power is
switched on. To disconnect heater, turn o power to heater
circuit at main disconnect panel .
1. Check product label for correct voltage and
wattage to ensure sure power source conforms to
the heaters requirements.
2. The power cable must positioned away from &
protected from the enclosure of the heater.
3. Make all connections in accordance with local
electrical code regulations. For outdoor installation,
all connections must be made in accordance with
local electrical code regulations for outdoor wiring.
Only use wiring components approved for outdoor
use with minimum IPX5 rating.
For wiring instructions using Bromic SmartHeat Dimmer(s) or ON/OFF Control(s)
refer to instructions provided with controller.
IMPORTANT: Electronic dimmer controls generate heat during operation. For Bromic heaters installed Bromic SmartHeat Dimmer(s)
or ON/OFF Control(s) it is essential to ensure dimmers are mounted in a clean, dry and well ventilated position with clearance on all
sides. It must be ensured the dimmers are not installed in a confined space, close to other heat generating appliances or in the case of
a multi-dimmer installation, not too close together. Dimmers must remain cool at all times. Please consult Bromic dimmer installation
instructions for further details or for further questions please contact Bromic technical support services.
WARNING
ELECTRICAL SHOCK HAZARD! Serious injury or death may
occur. Disconnect from electrical supply before installing or
servicing this heater. Read and follow installation clearance
requirements outlined in this manual. The appliance MUST be
connected to a properly grounded electrical source.
WARNING
ELECTRICAL SHOCK HAZARD!
Serious injury or death may occur. Disconnect from electrical
supply before servicing this heater.
Ensure that the heating unit is not directly exposed to rain
or water contact. For longest product life, and to maintain
product appearance, mount heater under cover and protect
from rain and weather whenever possible.
The exterior housing of the heater should be cleaned
fortnightly. To clean the appliance; ensure heater is o, and
has been o for at least 2 hours after operation, before
wiping o any dirt/dust with a soft damp cloth.
Salt in the air can cause rusting of metal, especially in coastal
environment. Additional cleaning of the heater with a soft
damp cloth fortnightly will aid in maintaining the product’s
appearance.
MAINTENANCE
WARNING
Servicing and maintenance MUST be carried out by an
authorised and licenced service person only. Do not operate
any heater after it malfunctions. Disconnect power at service
panel and have heater inspected by a reputable electrician
before reusing.
WARNING
If the supply cord is damaged, it must be replaced by
Bromic, a service agent of Bromic or similarly qualified
persons in order to avoid a hazard. Contact Bromic for
further information on replacement of the supply cord.
Non-self resetting thermal switch
In the event that the temperatures exceed safe operating limits, the
non-self resetting thermal switch will trigger. This may be due to
the fan being damaged or the heater is operating at a high ambient
temperature. To reset the switch, push down on the reset button at
the middle of the switch. THE LOCATION IS SHOWN ON PAGE 10,
WARNING
Ensure circuit is not live
before attempting to
reset the safety switch.
ELECTRICAL INSTALLATION
SERVICING
TROUBLESHOOTING

bromic.com 11
QUICK GUIDE FOR ACCESSING TERMINAL BOX
1 2 3
4
5
4x

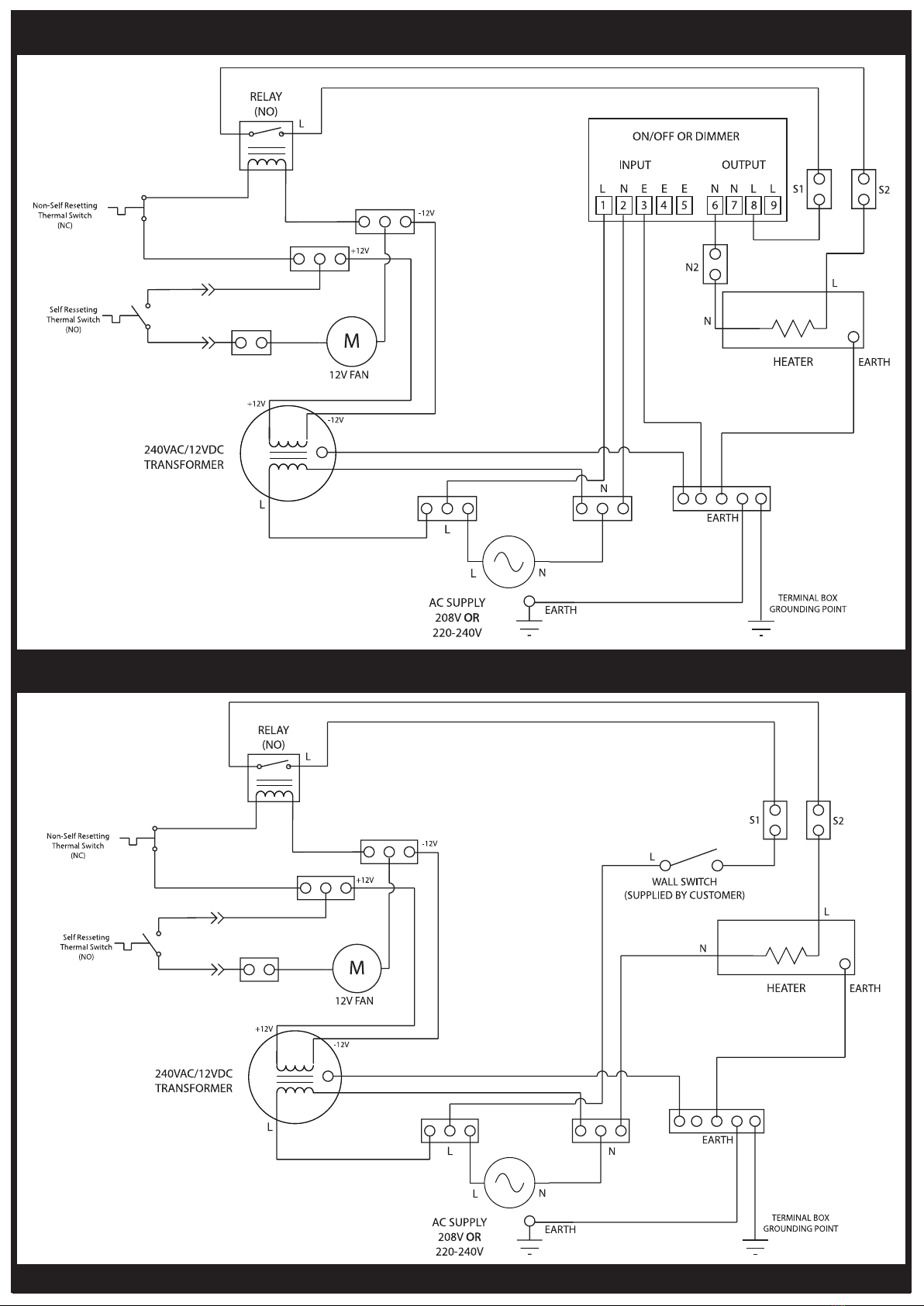

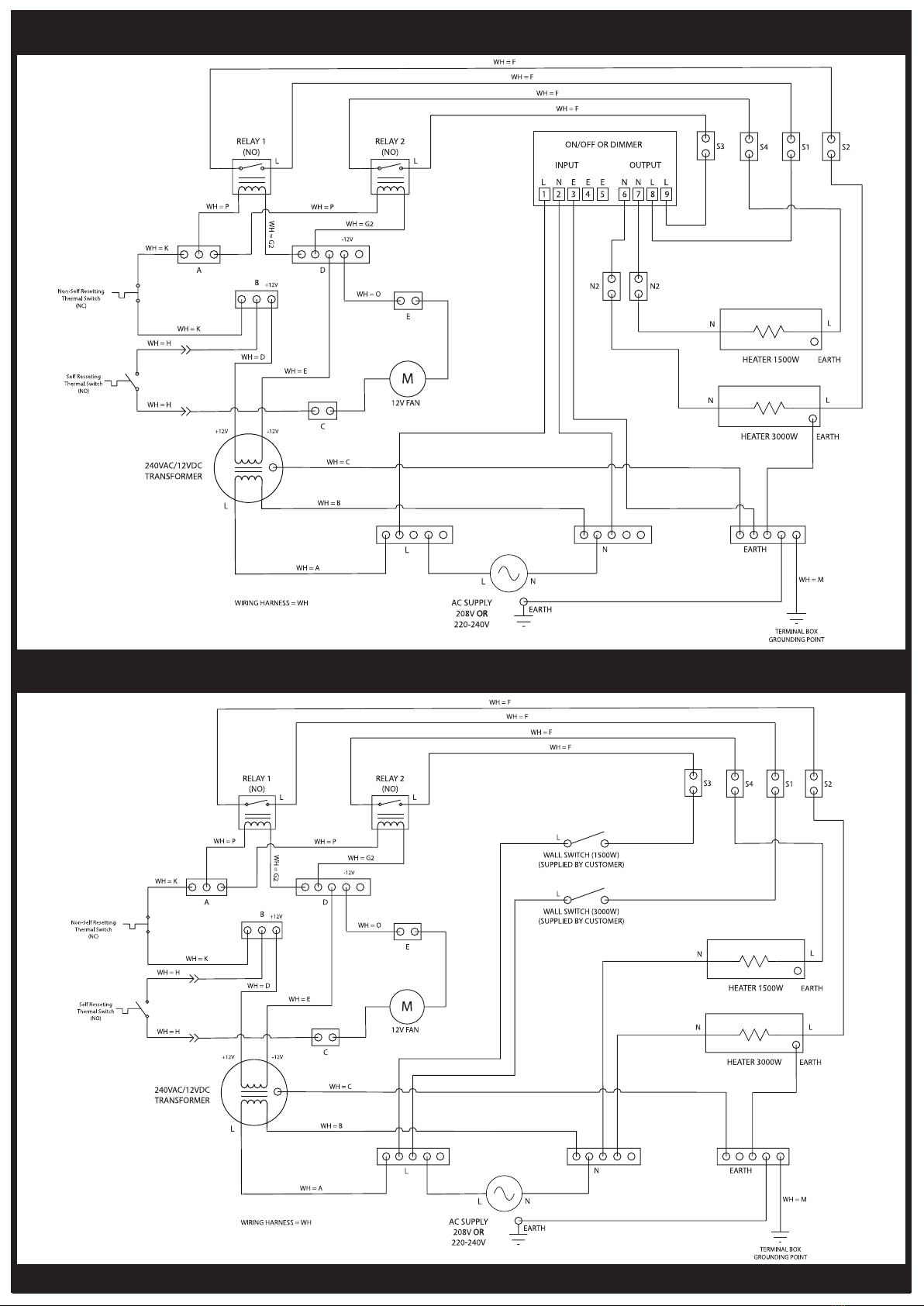

REFER TO WIRING DIAGRAMS ON PAGE 18.
IF THE PRODUCT IS STILL NOT WORKING CONTACT BROMIC FOR ADDITIONAL TECHNICAL SUPPORT.
Non-self resetting
thermal switch
Transformer
Relay

bromic.com 12
L
N
S1
S2
ToTo Dimmer Power (Load) Output
OR ON/OFF Power (Load) Output
ToTo Dimmer Power Supply Input
OR ON/OFF Power Supply Input
GREEN/YELLOW
EARTH
BROWN
LIVE/ACTIVE
HOT LEG 1
PHASE A
PHASE B
PHASE C
BLUE
NEUTRAL
HOT LEG 2
PHASE B
PHASE C
PHASE A
OR
OR
OR
OR
WARNING
AC Single Phase Heater
must be permanently
installed and hard wired
by an authorised/licensed
person.
This product is designed for use
with both 220-240V & 208V
Platinum Electric Heaters.
NOTES:
• For wiring instructions using Bromic SmartHeat Dimmer(s) or ON/OFF Controller(s) refer
to the instructions provided with the controller.
HEATER
CABLE
Non-self resetting
thermal switch
TOP VIEW OF
TERMINAL BOX N2
WIRES DENOTED
BY DASHED
LINES ARE
SUPPLIED BY
THE INSTALLER.

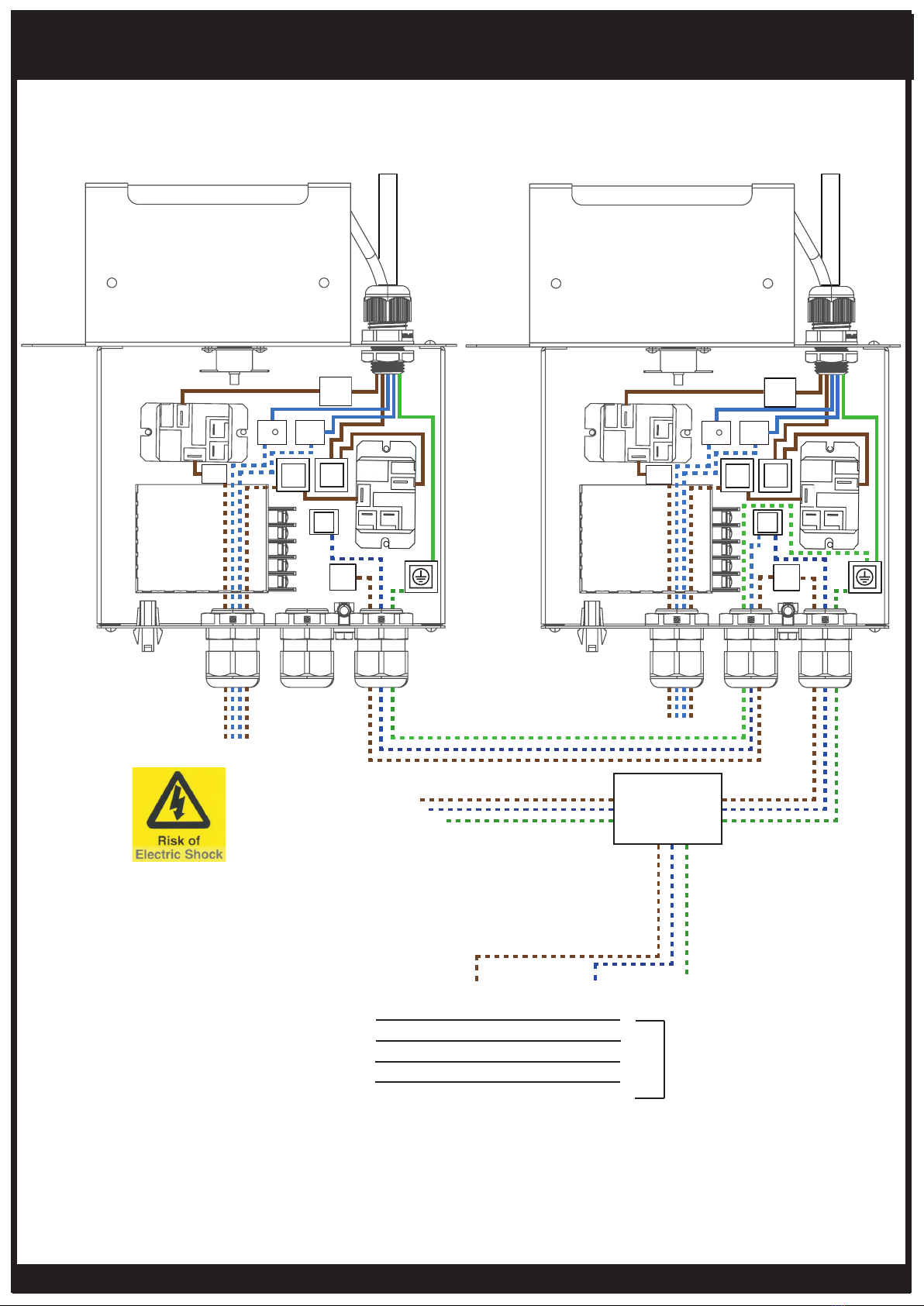

WIRING DIAGRAM FOR LOW CLEARANCE CEILING RECESS KIT
2300W/3400W (FOR USE WITH DIMMER OR ON/OFF)
BELOW IS A SIMPLIFIED DIAGRAM OF THE TERMINAL BOX.
ALL CONNECTIONS ADJUSTED BY THE INSTALLER ARE DISPLAYED.
ITEMS NOT DISPLAYED SHALL NOT BE MODIFIED.
SUPPLY
US ONLY
240V OR 208V

bromic.com 13
L
N
S1
S2
ToTo Dimmer Power (Load) Output
OR ON/OFF Power (Load) Output
ToTo Dimmer Power Supply Input
OR ON/OFF Power Supply Input
GREEN/YELLOW
EARTH
BROWN
LIVE/ACTIVE
HOT LEG 1
PHASE A
PHASE B
PHASE C
BLUE
NEUTRAL
HOT LEG 2
PHASE B
PHASE C
OR
OR
OR
OR
WARNING
AC Single Phase Heater
must be permanently
installed and hard wired
by an authorised/licensed
person.
This product is designed for use
with both 220-240V & 208V
Platinum Electric Heaters.
NOTES:
• For wiring instructions using Bromic SmartHeat Dimmer(s) or ON/OFF Controller(s) refer
to the instructions provided with the controller.
HEATER
CABLE
Non-self resetting
thermal switch
TOP VIEW OF
TERMINAL BOX
WIRES DENOTED
BY DASHED
LINES ARE
SUPPLIED BY
THE INSTALLER.
WIRING DIAGRAM FOR LOW CLEARANCE CEILING RECESS KIT
4500W (FOR USE WITH DIMMER OR ON/OFF)
BELOW IS A SIMPLIFIED DIAGRAM OF THE TERMINAL BOX.
ALL CONNECTIONS ADJUSTED BY THE INSTALLER ARE DISPLAYED.
ITEMS NOT DISPLAYED SHALL NOT BE MODIFIED.
SUPPLY
N2
S3 S4
N2
US ONLY
240V OR 208V

bromic.com 14
GREEN/YELLOW
EARTH
HEATER
CABLE
WALL SWITCH
SUPPLIED BY CUSTOMER
NOTES:
• The ceiling recess kit is designed for the Platinum Electric SII 2300W, 3400W & 4500W units.
BROWN
LIVE/ACTIVE
HOT LEG 1
PHASE A
PHASE B
PHASE C
L
N
S1
S2
BLUE
NEUTRAL
HOT LEG 2
PHASE B
PHASE C
PHASE A
OR
OR
OR
OR
WARNING
AC Single Phase Heater
must be permanently
installed and hard wired
by an authorised/licensed
person.
This product is designed for use
with both 220-240V & 208V
Platinum Electric Heaters.
Non-self resetting
thermal switch
TOP VIEW OF
TERMINAL BOX
WIRES DENOTED
BY DASHED
LINES ARE
SUPPLIED BY
THE INSTALLER.

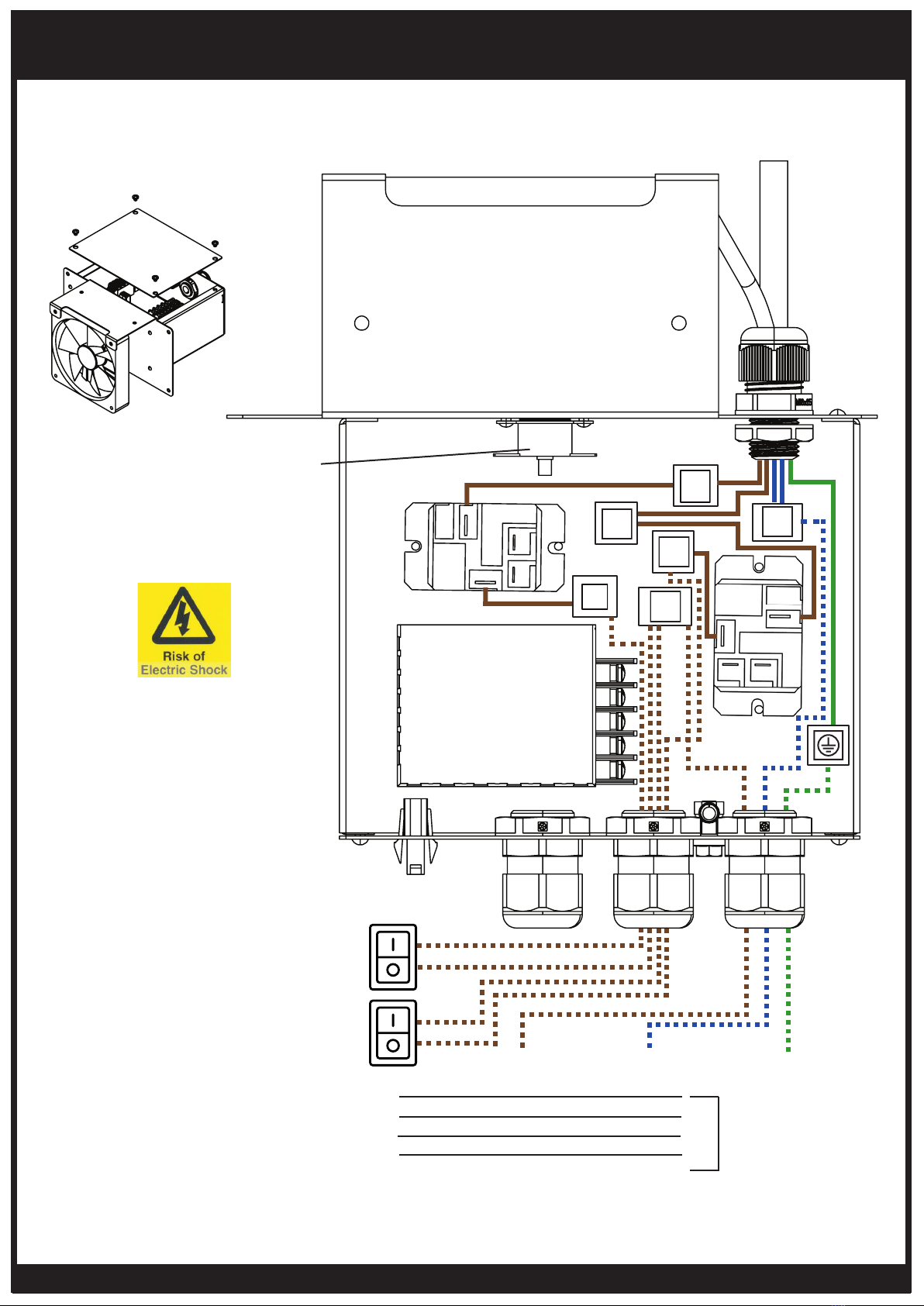

WIRING DIAGRAM FOR LOW CLEARANCE CEILING RECESS KIT
2300W/3400W (FOR USE WITH WALL SWITCH)
BELOW IS A SIMPLIFIED DIAGRAM OF THE TERMINAL BOX.
ALL CONNECTIONS ADJUSTED BY THE INSTALLER ARE DISPLAYED.
ITEMS NOT DISPLAYED SHALL NOT BE MODIFIED.
US ONLY
240V OR 208V

bromic.com 15
GREEN/YELLOW
EARTH
HEATER
CABLE
WALL SWITCH (3000W)
SUPPLIED BY CUSTOMER
NOTES:
• The ceiling recess kit is designed for the Platinum Electric SII 2300W, 3400W & 4500W units.
BROWN
LIVE/ACTIVE
HOT LEG 1
PHASE A
PHASE B
PHASE C
L
N
S1
S2
BLUE
NEUTRAL
HOT LEG 2
PHASE B
PHASE C
PHASE A
OR
OR
OR
OR
WARNING
AC Single Phase Heater
must be permanently
installed and hard wired
by an authorised/licensed
person.
This product is designed for use
with both 220-240V & 208V
Platinum Electric Heaters.
Non-self resetting
thermal switch
TOP VIEW OF
TERMINAL BOX
WIRES DENOTED BY DASHED
LINES ARE SUPPLIED BY THE
INSTALLER.
WIRING DIAGRAM FOR LOW CLEARANCE CEILING RECESS KIT
4500W (FOR USE WITH WALL SWITCH)
BELOW IS A SIMPLIFIED DIAGRAM OF THE TERMINAL BOX.
ALL CONNECTIONS ADJUSTED BY THE INSTALLER ARE DISPLAYED.
ITEMS NOT DISPLAYED SHALL NOT BE MODIFIED.
WALL SWITCH (1500W)
SUPPLIED BY CUSTOMER
S3
S4
US ONLY
240V OR 208V

bromic.com 16
WIRING DIAGRAM FOR LOW CLEARANCE CEILING RECESS KIT
2300W/3400W (FOR USE WITH 2 HEATERS ON/OFF OR DIMMER)
L
N
S1
S2
GREEN/
YELLOW
EARTH
BROWN
LIVE/ACTIVE
HOT LEG 1
PHASE A
PHASE B
PHASE C
BLUE
NEUTRAL
HOT LEG 2
PHASE B
PHASE C
PHASE A
OR
OR
OR
OR
HEATER
CABLE 2
N2
L
N
S1
S2
HEATER
CABLE 1
N2
NOTES:
• For wiring instructions using Bromic SmartHeat Dimmer(s) or ON/OFF Controller(s) refer
to the instructions provided with the controller.
• *The junction box and connections inside must be suitable for the voltage and current
capacity of the heaters being installed.
WIRES
DENOTED BY
DASHED LINES
ARE SUPPLIED
BY THE
INSTALLER.
BELOW IS A SIMPLIFIED DIAGRAM OF THE TERMINAL BOX.
ALL CONNECTIONS ADJUSTED BY THE INSTALLER ARE DISPLAYED.
ITEMS NOT DISPLAYED SHALL NOT BE MODIFIED.
SUPPLY
JUNCTION
BOX*
WARNING
AC Single Phase Heater
must be permanently
installed and hard wired
by an authorised/licensed
person.
This product is designed for use
with both 220-240V & 208V
Platinum Electric Heaters.
Output 1
ToTo Dimmer Power (Load) Output
OR ON/OFF Power (Load) Output
Output 2
ToTo Dimmer Power (Load) Output
OR ON/OFF Power (Load) Output
Input 1
ToTo Dimmer Power Supply Input
OR ON/OFF Power Supply Input
US ONLY
240V OR 208V

bromic.com 17
WIRING DIAGRAM FOR LOW CLEARANCE CEILING RECESS KIT
4500W (FOR USE WITH 2 HEATERS ON/OFF OR DIMMER)
GREEN/
YELLOW
EARTH
BROWN
LIVE/ACTIVE
HOT LEG 1
PHASE A
PHASE B
PHASE C
BLUE
NEUTRAL
HOT LEG 2
PHASE B
PHASE C
PHASE A
OR
OR
OR
OR
HEATER
CABLE 2
HEATER
CABLE 1
NOTES:
• For wiring instructions using Bromic SmartHeat Dimmer(s) or ON/OFF Controller(s) refer
to the instructions provided with the controller.
• *The junction box and connections inside must be suitable for the voltage and current
capacity of the heaters being installed.
WIRES DENOTED
BY DASHED LINES
ARE SUPPLIED BY
THE INSTALLER.
BELOW IS A SIMPLIFIED DIAGRAM OF THE TERMINAL BOX.
ALL CONNECTIONS ADJUSTED BY THE INSTALLER ARE DISPLAYED.
ITEMS NOT DISPLAYED SHALL NOT BE MODIFIED.
SUPPLY
JUNCTION
BOX*
WARNING
AC Single Phase Heater
must be permanently
installed and hard wired
by an authorised/licensed
person.
This product is designed for use
with both 220-240V & 208V
Platinum Electric Heaters.
N2
S3 S4
N2
L
N
N2
S3 S4
N2
L
N
S2
S2
S1 S1
Output 1
ToTo Dimmer Power (Load) Output
OR ON/OFF Power (Load) Output
Output 2
ToTo Dimmer Power (Load) Output
OR ON/OFF Power (Load) Output
Input
ToTo Dimmer Power Supply Input
OR ON/OFF Power Supply Input
US ONLY
240V OR 208V

bromic.com 18
ELECTRICAL DIAGRAM 2300W/3400W - FOR ON/OFF OR DIMMER
ELECTRICAL DIAGRAM 2300W/3400W - FOR WALL SWITCH

bromic.com 19
ELECTRICAL DIAGRAM 4500W - FOR ON/OFF OR DIMMER
ELECTRICAL DIAGRAM 4500W - FOR WALL SWITCH

bromic.com 1
REV4 FR-CAN
APPAREILS DE CHAUFFAGE
ÉLECTRIQUES PLATINUM
SMART-HEATMC PAR BROMIC
INSTRUCTIONS D’INSTALLATION
ENCASTRÉE À FAIBLE
DÉGAGEMENT AU PLAFOND
POUR LES MODÈLES 2300 W, 3400 W ET 4500 W
AVERTISSEMENT
Les solives, les poutres et les chevrons ne doivent pas être
coupés ou entaillés pour installer l’appareil de chauage.
Les instructions ci-dessous sont adaptées aux surfaces de
plafond d’une épaisseur de 10 à 30 mm (0,39 po à 1,2 po).
Pour les plafonds d’une épaisseur supérieure à 30 mm,
veuillez contacter Bromic pour d’autres options d’installation.
L’appareil de chauage ne doit, en aucun cas, être recouvert
d’un matériau isolant ou d’un matériau similaire.
l est important qu’un entretien régulier soit eectué sur
l’appareil de chauage afin de maintenir son apparence.
Inspectez et nettoyez plus fréquemment dans des conditions
défavorables telles que les environnements côtiers.
En cas d’installation encastrée au plafond, l’appareil de
chauage doit être complètement protégé de l’eau en cas
d’infiltration de l’eau qui coule d’en haut.
AVERTISSEMENT
Cet appareil de chauage DOIT être installé de façon
permanente par une personne autorisée/agréée. N’eectuez
pas d’entretien, ni de procédure d’installation ou de montage
lorsque l’appareil est sous tension. Attendez 2 heures après
avoir éteint l’appareil avant de le manipuler.
1x
1x
1x
2x 4x
1x 1x2x
1x (2300 W/3400 W)
2x (4500 W)
BOÎTE D’ENCASTREMENT
AU PLAFOND
COUVERCLE
D’ÉTANCHÉITÉ IP
COUVERCLE NOIR
POUR L’ÉVENT
COUVERCLE BLANC
POUR L’ÉVENT
BOÎTE À BORNES
APPAREIL DE CHAUFFAGE
NON INCLUS
IMPORTANT
LISEZ ATTENTIVEMENT CE MANUEL. VOIR
L’INTÉRIEUR DE LA COUVERTURE POUR DES
INFORMATIONS IMPORTANTES CONCERNANT
CE MANUEL. CONSERVEZ LES INSTRUCTIONS
AVEC L’APPAREIL POUR VOUS Y RÉFÉRER
ULTÉRIEUREMENT.
OUTILS REQUIS
8 mm (5/16 po)
24 mm (15/16 po)
30 mm (1/1/8 po)
800 mm (31,5 po) – 2300 W
1000 mm (39,3 po) – 3400 W
1040 mm (40,9 po) – 4500 W
CONNECTEUR
N2 WAGO
MATÉRIEL
8x M3x6
8x M4x8
1x M6x10
ASSEMBLAGE
DE GARNITURE
(STANDARD)
ASSEMBLAGE
DE GARNITURE
(ENVIRONNEMENT
MARIN)
GARNITURE DE
COUVERCLE L’ÉVENT
L’INSTALLATION
REQUIERT 2
PERSONNES
OU
CODE QR
INSTRUCTIONS
D’INSTALLATION
