OWNER’S MANUAL
UC300 Three-Stage Undercounter Water Filtration System
UC100 Single-Stage Undercounter Water Filtration System

1
CONTENTS
Read this Owner’s Manual for correct installation, use and maintenance
of this product. After reading and completing installation, keep this
manual in a place that is easily accessible.
PRODUCT INSTALLATION
09 T-VALVE INSTALLATION
10 FAUCET INSTALLATION
12 FILTER HEAD CONNECTION
ASSEMBLY INSTALLATION
13 INSTALLING THE FILTERS
14 CONNECTING THE TUBING
Using“Quick Connectors”
15 PREPARING FOR USE
GENERAL INFO
02 SAFETY INFORMATION
03 TDS METER INFORMATION
04 FEATURES
05 UC300 PRODUCT COMPONENTS
06 UC100 PRODUCT COMPONENTS
07 UC300 WATER FLOW DIAGRAM
08 UC100 WATER FLOW DIAGRAM
MAINTENANCE
16 FILTERS & FILTER CHANGE INDICATOR
Filters
Filter Change Indicator
Filter Replacement Cycle
17 REPLACING THE FILTERS
19 TROUBLESHOOTING
TECHNICAL INFO
20 PRODUCT SPECIFICATIONS
21 UC300/UC100
PERFORMANCE DATA SHEET
24 WARRANTY
25 CONTACT BRONDELL
26 SPANISH VERSION
53 FRENCH VERSION

2
SAFETY INFORMATION
Be careful to keep this safety information. Please read this information to
prevent property loss and ensure safety.
DANGER: If not observed, serious injury or even death may occur as a result.
WARNING: If not observed, serious physical injury or property damage may occur as a result.
Read all the instructions before using or installing the Coral UC300/UC100.
Never disassemble, repair or reconstruct the filter head housing. This may cause the product
to fail.
Never unscrew the filters while the product is in use. This may cause failure due to high water
pressure, or it may cause a water leak.
Do not install near radiators. This may cause fire, or the product could be damaged, resulting
in leakage.
CAUTION: If not observed, minor physical injury or property damage may occur as a result.
Use or place the unit on a level area and do not apply force to the unit. This may cause physical
injury and/or damage to the product that may void your warranty.
Turn the water supply valve off if the filter system will not be used for an extended period
of time.
Especially during very cold weather, the water pressure may rise and may cause a water leak.
Replace the filters according to their scheduled replacement intervals. If one or more of the
filters are exhausted, the purification quality will diminish.
When replacing the filter or moving the product, do not pull on the water supply hose. The
water supply hose may become detached, damaged, or the quick connection coupling may
be weakened.
If a water leak occurs while using the product, or the area around the product is wet,
turn the water supply valve off immediately.

3
The Coral Undercounter Water Filtration System is not designed to remove beneficial
minerals from your drinking water. These minerals that occur naturally are a healthy
part of your drinking water and should remain. The Brondell Coral Undercounter
Water Filtration System is designed to dramatically reduce water-soluble harmful
contaminants, including industrial chemicals, pesticides, herbicides, turbidity,
volatile organic compounds (VOCs), and microorganisms, most of which cannot be
"read" with a TDS reader.
Since these harmful components are water-soluble, they cannot be picked up by a
simple TDS meter. Contrary to its name (Total Dissolved Solids or TDS Meter), these
inexpensive products cannot detect most harmful water-soluble contaminants.
There is a major misconception that low TDS readings mean healthy water and that
is simply not always true.
The best method for testing the performance of a water filtration device is to have
a nationally recognized independent organization, such as WQA (Water Quality
Association) or NSF International, test and certify the products. The certified data
is then available in a Performance Data Sheet, which you should request from the
manufacturer. For more clarification of what the Coral Undercounter Water Filtration
System does remove from your water, please see our Certified Performance Data
Sheets on pages 21-23.
IMPORTANT NOTE ABOUT
“TDS METERS” AND TESTERS
Q) When I use a Total Dissolved Particle (TDS) reader to test my water
after it goes through the Coral Undercounter Water Filtration System,
why don't the levels of dissolved particles go down or decrease? I don’t
think the product is working.

4
BRONDELL H2O+ CORAL FEATURES
Superior Filtration Performance
Best in class water filtration for a healthy home and family
Elegant Chrome Faucet with Integrated LED
Filter Change Indicator
Simple intuitive LED indicator reminds you when it’s time to change
your filters
Easy Quick Change Filter Replacement
Brondell’s special“twist & seal” filter system makes changing your filters
a breeze
One Year (UC300) or Six Month (UC100) Filter Lifespan
Simplified maintenance and low cost of operation
Easy DIY Installation
Pre-installed faucet tubing and“quick-connect” water supply connections
simplifies installation
WQA Gold Seal Certified Filtration Technology
Filtration performance claims you can trust!
One Year Manufacturers Warranty
Backed by Brondell’s commitment to superior customer service
and support

5

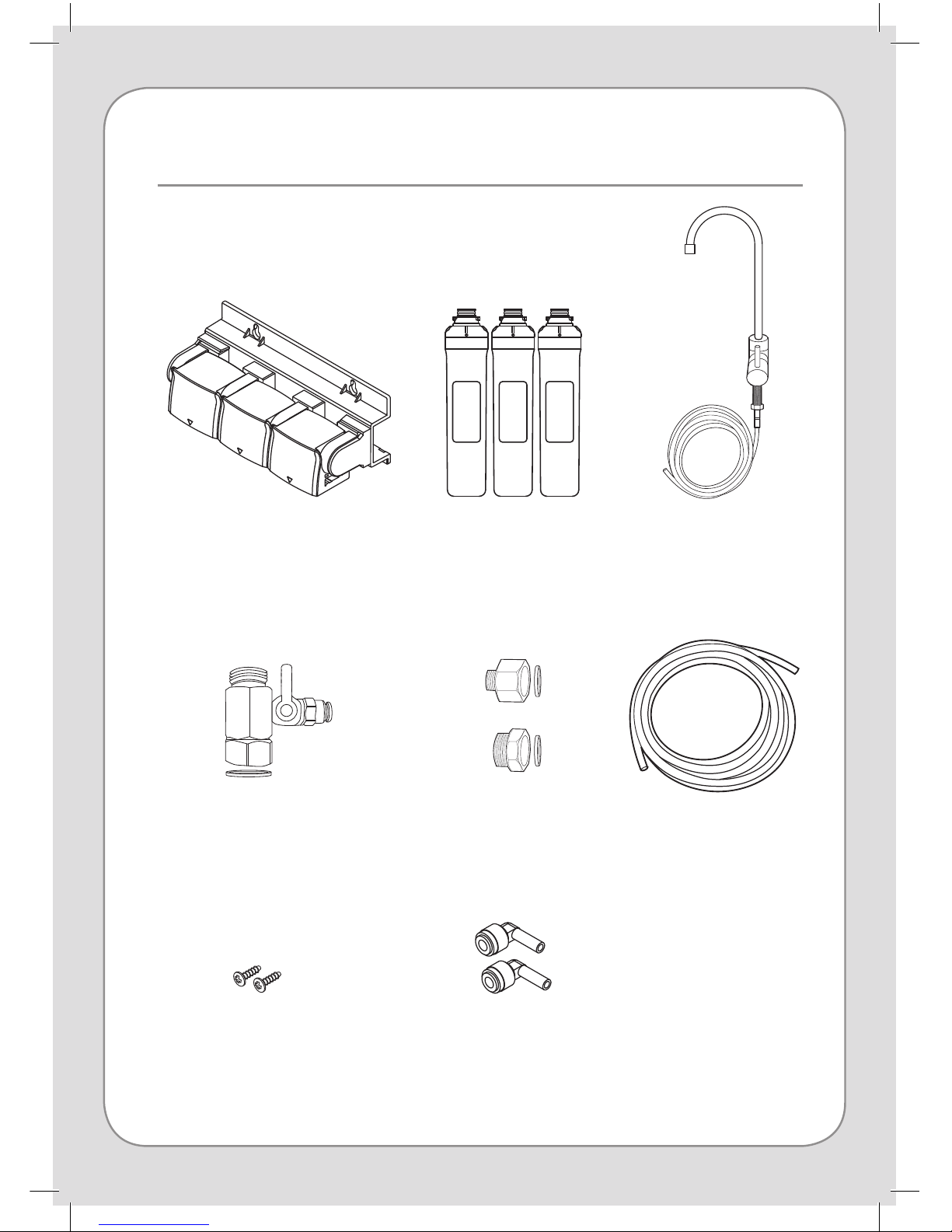

UC300 PRODUCT COMPONENTS
Water Supply Tubing
Filter Head
Connection Assembly
3 Filters:
Sediment Filter
Pre-Carbon Filter
Carbon Block Filter
LED Indicator Faucet
Assembly with attached
tubing (blue)
Water Supply T-Valve
with Rubber Washer
(1/2”connection)
T-Valve Adapters
with Rubber Washer
1/2”to 3/8”
Quick Connect
90° Elbows
Mounting Screws

6

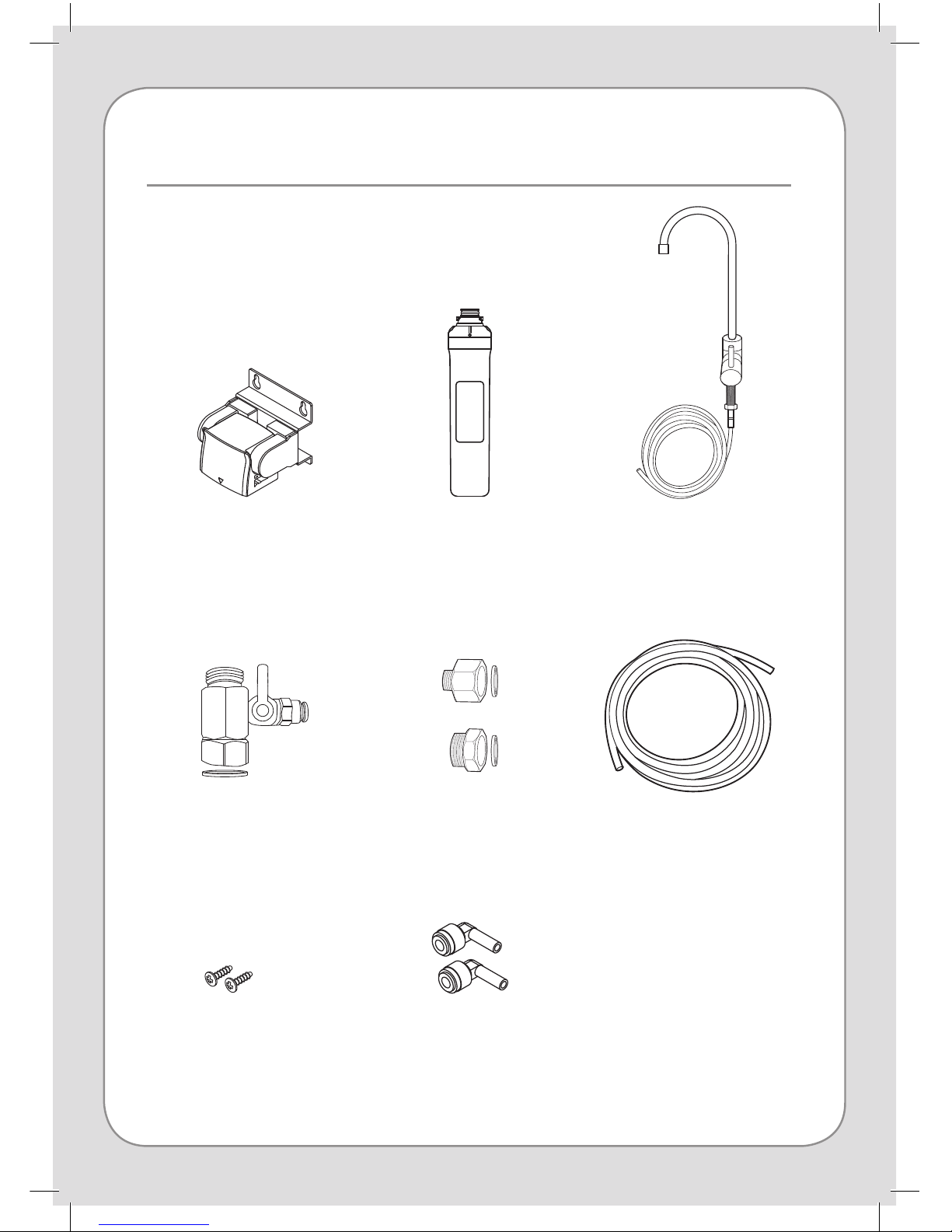

UC100 PRODUCT COMPONENTS
Filter Head
Connection Assembly
1 Filter:
Carbon Block Filter
Water Supply Tubing
LED Indicator Faucet
Assembly with attached
tubing (blue)
Water Supply T-Valve
with Rubber Washer
(1/2”connection)
T-Valve Adapters
with Rubber Washer
1/2”to 3/8”
Quick Connect
90° Elbows
Mounting Screws

7

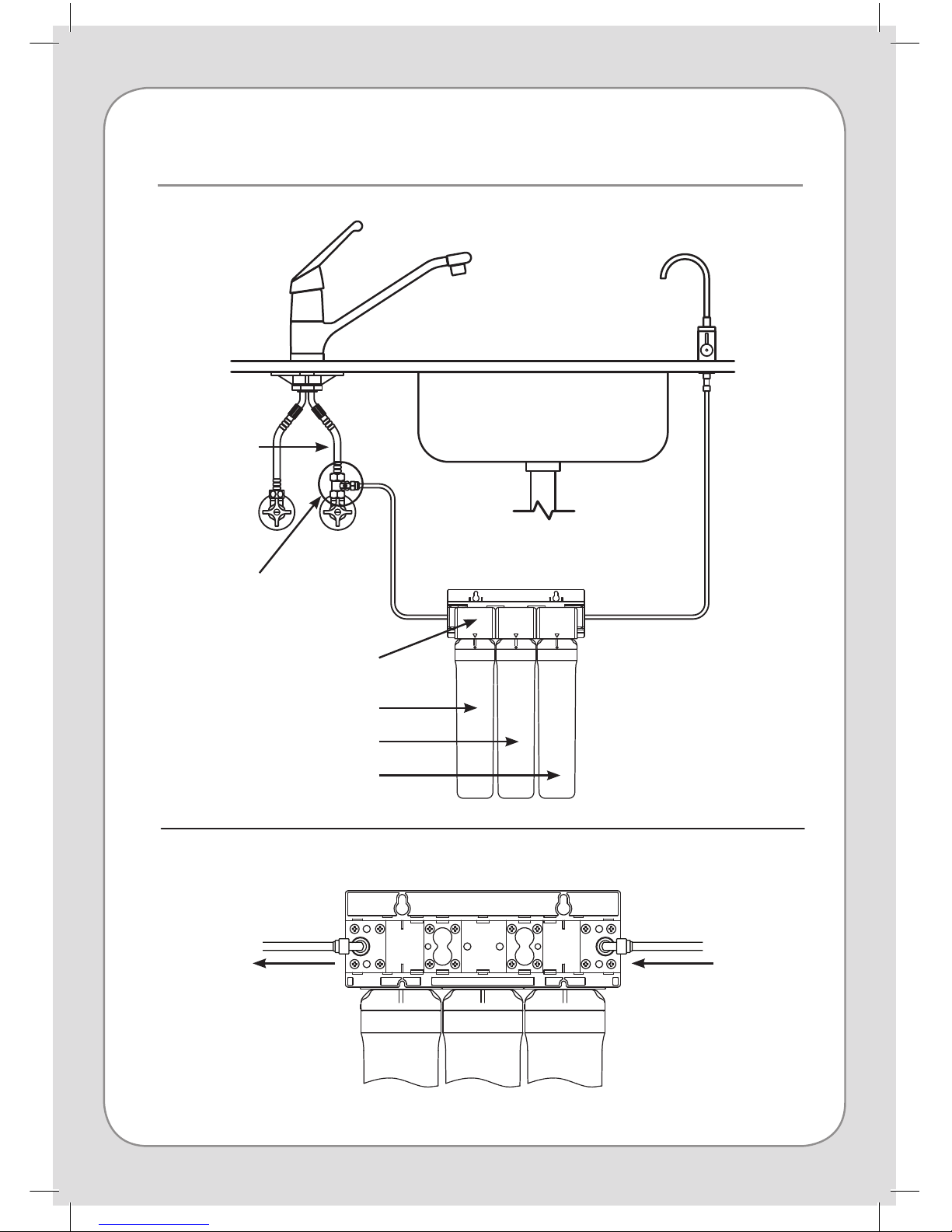

UC300 WATER FLOW DIAGRAM
Sediment
Filter
Pre-Carbon
Filter
Carbon
Block Filter
Incoming
Water
INLET
Filtered
Water
OUTLET
– REAR VIEW –
Tap Faucet LED Indicator
Faucet
Filtered
Water Tubing
Water Supply
Tubing
Sediment Filter
Sink
Pre-Carbon Filter
Carbon Block Filter
Filter Head Connection
Assembly
Water Supply
T-Valve
Cold Water
Supply

8
UC100 WATER FLOW DIAGRAM
Carbon
Block Filter
Incoming
Water
Filtered
Water
– REAR VIEW –
Tap Faucet LED Indicator
Faucet
Water Supply
Tubing
Sink
Carbon Block Filter
Filter Head Connection
Assembly
Water Supply
T-Valve
Filtered
Water Tubing
Cold Water
Supply
INLETOUTLET

9

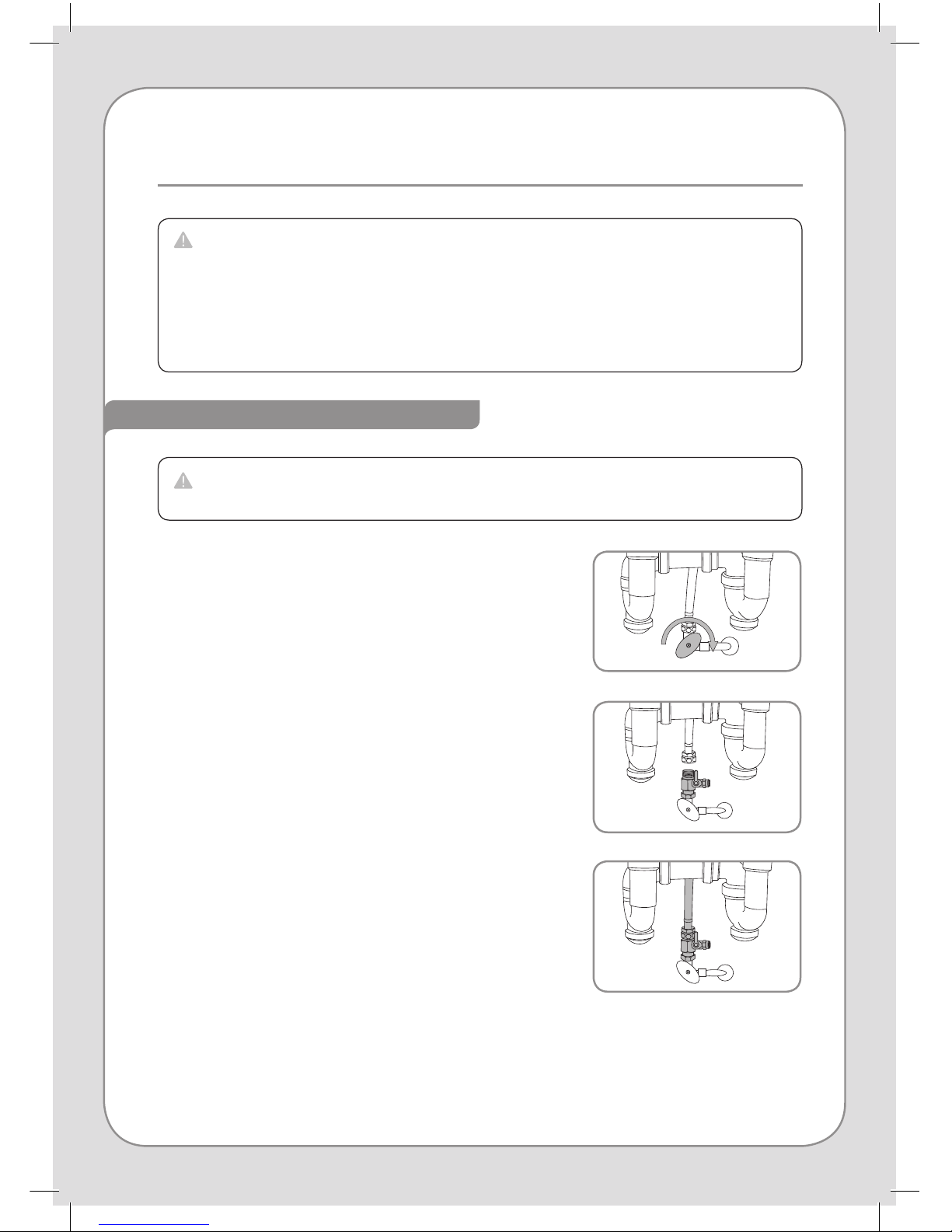

PRODUCT INSTALLATION
STEP 1: T-VALVE INSTALLATION
Do not install the Filter Head Connection Asssembly further than 12 feet away from
either the water supply valve, or the Indicator Faucet.
Avoid unnecessary slack in the supply hoses when connecting to the water supply, Filter
Head Connection Assembly, or Indicator Faucet.
Do not install in direct sunlight, or a place where it will be directly exposed to freezing
temperatures.
Be sure to install the T-Valve on the cold water supply line. Running hot water through
the Coral Water Filtration System will damage the filters.
1. Close the cold water supply valve. Place a bucket, or similar
item, underneath the valve to catch any water that may spill
out during installation.
2. Unscrew the hose that connects the cold water supply valve
to the existing tap water faucet.
3. Ensure the rubber washer is inside the T-Valve, and then
screw the T-Valve Adapter onto the cold water supply valve.
NOTE: If the water supply valve is smaller than the 1/2”
connection on the T-Valve, use the included 3/8”Valve
Adapters with Rubber Washers to connect the T-Valve and
the water supply hose.
4. Screw the cold water supply hose to the top of the T-Valve.
Be sure to keep the water supply valve closed.

10

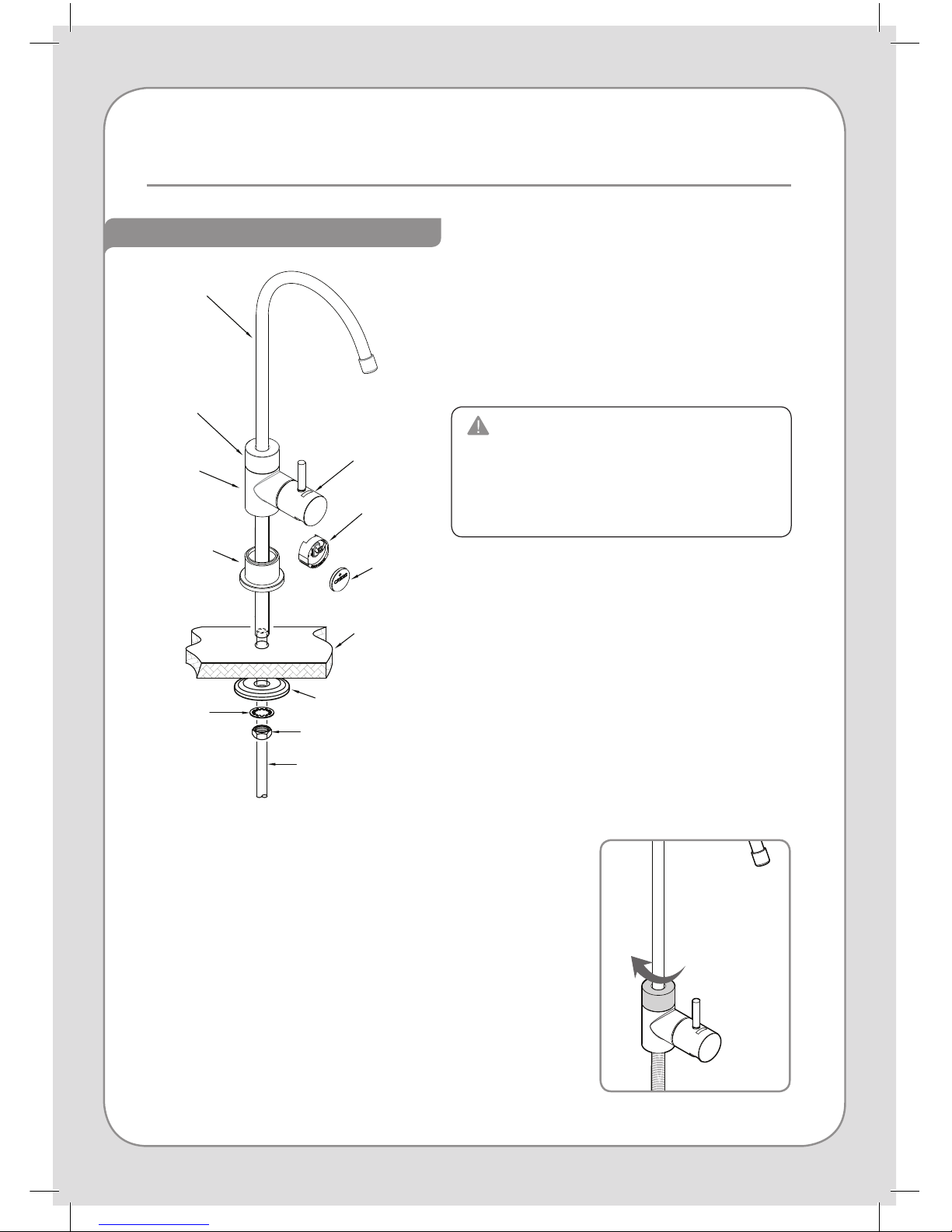

STEP 2: FAUCET INSTALLATION
Before Installation
You will need an existing faucet hole at least 7/16
inches in diameter in the sink or countertop to install
the supplied filtered water faucet. You may also
replace an existing kitchen sprayer, soap dispenser,
or plug already on the countertop or sink.
1. Unpack the faucet and insert the Top Spout into the Main
Body by pushing down until inserted then screw the Top Cap
clockwise until secured in place.
2. Cut zip tie on the blue water connection tubing and unroll
to straighten tubing. Be careful not to cut the tube when
removing the zip tie.
If drilling a new hole is required for the
faucet installation, please consult a
professional. Brondell will not be liable
for any damages including those to the
sink or countertop due to installation of
the faucet or drilling a hole.
Locking Nut
Plastic Washer
Top Spout
Top Cap
Main Body
Lock Washer
Counter Top
1/4" Tube
(connected to faucet)
Escutcheon
LED Display
Battery Seat
(CR2032)
Battery
PRODUCT INSTALLATION cont.

11
3. Attach the Escutcheon to the Main Body by inserting the
blue tubing through it and pushing it all the way up until
connected to the Main Body.
4. Install the faucet on top of the countertop or sink and feed
the blue tubing through the hole to the cabinet below. Then
slide the large Plastic Washer as shown up through the blue
tubing until snug against the bottom of the countertop or
sink hole. Be sure that the flat part of the Washer is facing
down and the raised area is facing up as shown here.
5. Install the Lock Washer and the Locking Nut the same way
and tighten until the plastic washer is holding the faucet
assembly firmly in place. The faucet is now installed.
6. Pull the plastic tab out from the battery compartment to
activate the faucet indicator. The LED light will blink red
once, blue once, and then will be ready to go.

12

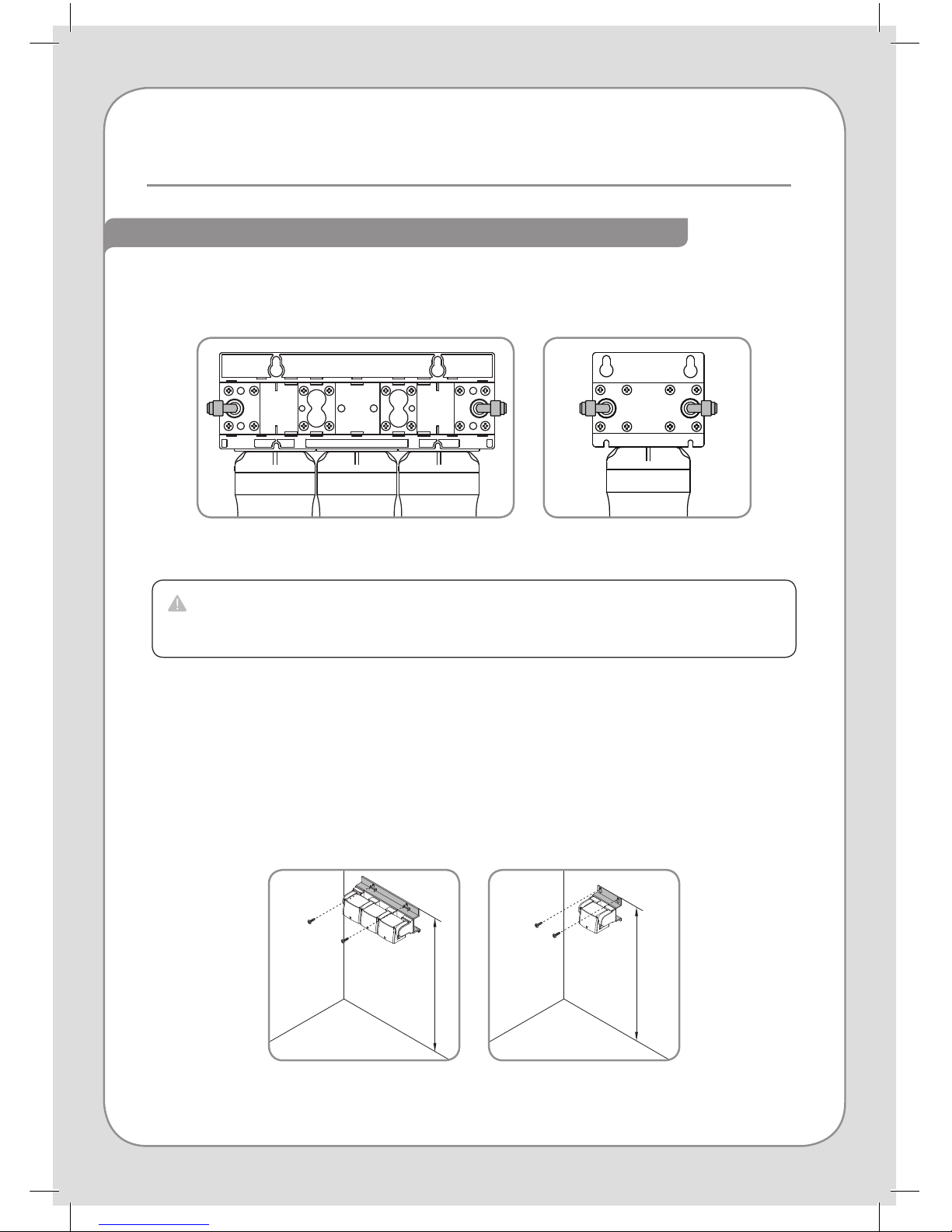

STEP 3: FILTER HEAD CONNECTION ASSEMBLY INSTALLATION
Be sure to install the Filter Head Connection Assembly so that the top of the assembly is
at least 14 inches from the floor of the sink cabinet. Otherwise the filters will not install
or seat correctly.
2. Using a pencil, mark where the Filter Head Connection Assembly will be mounted to the sidewall
of the cabinet (at least 14”from the cabinet floor). Use a level to make sure that the Assembly will
be mounted straight.
NOTE: Before you mount the Connection Assembly, it may be a good idea to practice inserting
and removing the filters.
3. Insert the two mounting screws through the holes in the Assembly frame and screw into the
cabinet sidewall.
1. Attach the two Quick Connect 90° Elbows to back side of the Connection Assembly Inlet and
Outlet as shown
UC300 UC100
UC300 UC100
PRODUCT INSTALLATION cont.
14 inches
14 inches

13

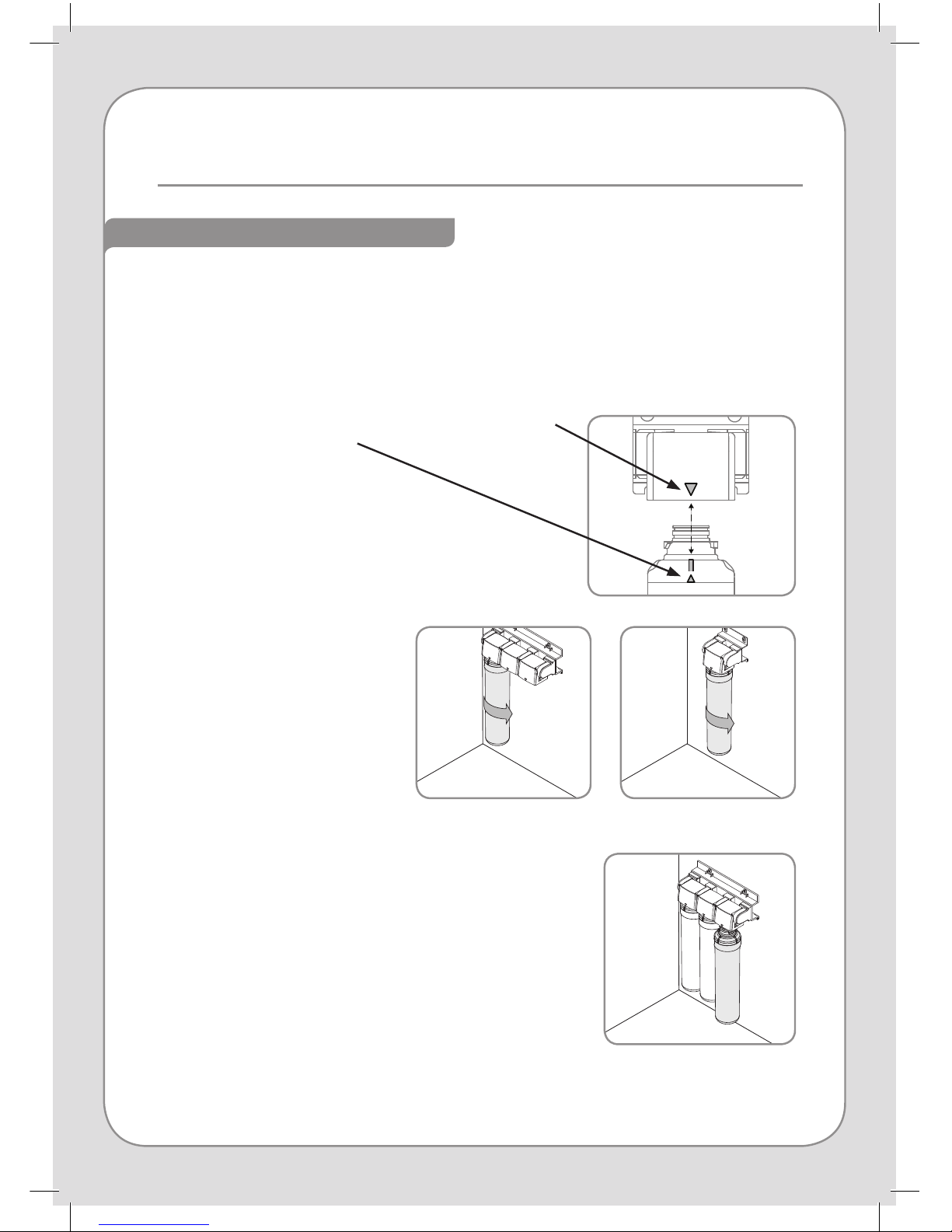

STEP 4: INSTALLING THE FILTERS
1. To insert the filters, first line up the arrow on the filter head
with the arrow on the filter
NOTE: For purchasers of the Coral UC300, it is very important to install the filters in the correct
order. Simply match the same label colors to the filter head labels. From left-to-right, the
proper order is
1) Sediment filter
2) Pre-Carbon filter
3) Carbon Block filter
2. With the top and bottom arrows
still lined up, insert the top
of the filter into the housing
and turn 90 degrees to the
right, until the filter will not
turn any more.
The Filter Head arrow should
now be lined up with the“Circle”
icon and notch on the top
of the filter.
3a. For UC300 – Repeat the process for the Pre-Carbon filter and
Carbon Block filter.
3a. For UC100 – This process is complete.
UC300 UC100

14
STEP 5: CONNECTING THE TUBING
1. Water Supply Connection
Use the supplied white color Water Supply Tubing to connect the T-valve to the Filter Head
Connector Assembly by pushing one end of the tubing firmly into the Quick Connector
Collette on the open side of the T-Valve. Be sure to push in all the way and ensure the Tube
is not bent or kinked.
Then connect the other open end of the Tubing to the Filter Head Connector Assembly “Inlet”
by inserting the tube into the Collette on the Quick Connect 90 (degree symbol) Elbow on the
side labeled “Inlet” (nearest to the Sediment filter)
Using "Quick Connectors"
Tube connections on the T-Valve, Filter Head Connection Assembly, and Indicator Faucet are all of
the“Quick Connect” variety. The steps below illustrate how to connect and disconnect the Tubes
from these connectors.
a. Push the Tube into the Collette. The Collette is a collar that
provides a secure fit for the Tube and prevents water leaks.
b. Push the Tube in until it stops. The Tube will be secure, and
resistant to tugs or pulls. The Collette will be rigid and raised
slightly from the connector housing.
c. To disconnect the Tube, push down and hold the Collette first,
and then pull the Tube out gently.
2. Faucet Connection
Now, connect the open end of the Blue Tubing coming from the Faucet to the Filter Head
Connector Assembly “Outlet”by inserting the Tube into the Collette on the Quick Connect 90°
Elbow on the side labeled “Outlet” (nearest to the Carbon Block Filter). Be sure to push in firmly
all the way and ensure the Tube is not bent or kinked.
Connector
Housing
Tube
Collette
a
cb
PRODUCT INSTALLATION cont.

15
PREPARING FOR USE
TURN ON WATER & CHECK FOR LEAKS
FLUSHING THE SYSTEM
1. Turn on water supply
a. Open the T-Valve by turning the valve arm 90° as shown.
b. Turn the cold water supply valve at the wall counter-
clockwise to turn on. The cold water supply will then
begin to supply water to the Coral UC300 or UC100.
2. Checking for leaks
a. Once the water supply has been turned on, check for any
signs of leaking throughout the system.
b. If no leaks are found, wait 5 minutes and check one more
time. If still no leaking, then continue to next step to flush
the system.
1. Turn the Indicator Faucet on and let the water flow from the faucet for 5 minutes continuously to
flush the system and activate the filter(s).
2. Check one last time for any leaks during this process.
3. Your Coral system is now ready to use!
Before turning the cold water valve back on, review the installation instructions to
ensure that the T-Valve and water hoses are connected correctly and securely.
Failure to properly install this product or to properly check for leaks may cause damage
to the property. In these instances, Brondell, Inc. will not be held responsible for any
damages.

16
FILTERS
FILTER CHANGE INDICATOR
FILTER REPLACEMENT CYCLE
Contact Brondell at 888-542-3355, or visit us at www.brondell.com to order replacement filters.
The filters are critical to the performance of the Coral UC Water Filtration system, and it is
important to replace all of the filters on a regular basis. If any of the filters are overused beyond the
recommended service life, the performance of the water filtration device can deteriorate. Do not
miss the filter replacement cycle or use non-compatible filters as this can affect system performance
or damage the unit.
The LED filter change indicator in the faucet works by tracking both time and water flow from the
Coral UC system.
UC300 – When 12 months have elapsed or 600 gallons of water has been filtered through the system
(whichever comes first), the LED will flash red when dispensing water instead of flashing blue.
UC100 – When 6 months have elapsed or 300 gallons of water has been filtered through the system
(whichever comes first), the LED will flash red when dispensing water instead of flashing blue.
When the faucet LED indicator begins to flash red, it’s now time to change the filters and reset the
faucet indicator by replacing the battery.
A new battery is always included with the UF-35, or UF-15 filter replacement set.
* The filter replacement cycle may be reduced for areas with poor water quality or greater use.
** The period for the filter exchange is based on an average production of 1.64 gallons of
drinking water per day.
FILTERS & FILTER CHANGE INDICATOR
Part Number Filter Name Usable period**
UF35
Sediment Filter 12 months
Pre-Carbon Plus Filter 12 months
Carbon Block Filter 12 months
UF-15 Carbon Block Filter 6 months
UC300
UC100

17
MAINTENANCE
REPLACING THE FILTERS
1. Close the T-Valve under the sink to shut off the flow of water
to the Coral.
2. Once the T-valve is shut off, turn the Indicator Faucet on all
the way and keep it on until all the residual water in the
tubes has been expelled.
4. Install the new filter(s). Review the procedure outlined on Page 13.
5. Open the T-Valve to restore the flow of water and turn the Indicator Faucet on for 5 minutes
continuously to flush and activate the new filter(s).
Be sure to reset the Indicator Faucet by following the next steps.
3. Turn the filter(s) to be replaced 90° to the left, until the filter
comes out of the Filter Head Connection Assembly.
For the Coral UC300, remove the remaining two filters.
For the Coral UC100, the process is complete.

18
6. Replace the battery in the faucet LED indicator to reset
the filter change reminder. The battery type is CR2032
and Brondell provides one with every set of UF-35 and
UF-15 filters.
a. Under the faucet handle, locate the black rubber battery
compartment. Grasp it from the sides and pull down as
shown.
b. Remove the old battery from the compartment by lifting
the silver metal tab and sliding the battery out of the
rubber casing. Wait 30 seconds for the residual energy to
drain to reset the indicator.
c. Replace with a new CR2032 battery by sliding the battery
under the silver tab, making sure that the words on the
battery are facing out. A fresh CR2032 battery comes with
every UF-35 and UF-15 Replacement Filter pack.
d. Push the black rubber battery compartment back up into
the faucet handle.
e. The indicator will blink red once, blue once, and then the
indicator will function as normal.
MAINTENANCE cont.
REPLACING THE FILTERS (cont.)
