OWNER’S MANUAL
Circle Reverse Osmosis Water Filtration System
Model # RC100

1
– Please keep the User’s Manual where it can be readily reached or found –
PRODUCT INSTALLATION
07 FAUCET INSTALLATION
09 T-VALVE INSTALLATION
10 USING QUICK CONNECTORS
11 DRAIN CLAMP INSTALLATION
13 FINISHING UP
14 PREPARING FOR USE
TECHNICAL INFO
28 SPANISH VERSION
57 FRENCH VERSION
GENERAL INFO
02 SAFETY INFORMATION
03 FEATURES
04 FILTRATION PROCESS
05 PRODUCT COMPONENTS
MAINTENANCE
15 FILTERS
Filters
Filter Change Indicator
Filter Replacement Cycle
16 FILTER REPLACEMENT
19 PREPARING FOR EXTENDED
NONUSE
20 TROUBLESHOOTING
21 PRODUCT SPECIFICATIONS
21 WATER FLOW DIAGRAM
22 PERFORMANCE DATA SHEET
25 WARRANTY
26 CONTACT BRONDELL
CONTENTS

2
SAFETY INFORMATION
CAUTION : If not observed, minor physical injury or property damage may occur as a result.
Use or place the unit on a level area and do not apply force to the unit.
Periodical filter replacement is prerequisite for getting clean water.
When moving the product or replacing the Pre-Carbon Plus filter, there may be black residue particles under
the tank bottom and stored water may get contaminated.
Do not use filtered water for the water exchange of an aquarium or a fishbowl.
The filtration system installation shall comply with state and local laws and regulations. Do not use with
water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after
the system.
It is recommended to install the product under the sink.
The minimum allowable inlet water pressure is 275kpa (40 psi). If the water pressure is less than 275kpa (40
psi), it could result in noise or water shortage.
The maximum allowable inlet water pressure is 827 kPa (120 psi).
Only use attachments(accessories) recommended or sold by manufacturer.
Do not use the product outside.
Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.
The reverse osmosis system contains a replaceable treatment component, critical for the effective reduction
of total dissolved solids, and product water shall be tested periodically to verify that the system is perform-
ing properly. Replacement of the reverse osmosis component should be with one of identical specifications,
as defined by the manufacturer, to endure the same efficiency and contaminant reduction performance.
Be careful to keep this safety information. Please read this information to
prevent property loss and ensure the safety.
DANGER : If not observed, serious injury or even death may occur as a result.
Do not install the unit near heaters.
Do not place dishes or containers of water, drugs, food, or small metal objects on top of the product.
Do not put a candle, cigarette or any other flammable object on the product.
Do not spray water or wipe the product with benzene when cleaning.
WARNING : If not observed, serious physical injury or property damage may occur as a result.
Read all the instructions before using the Circle.
To reduce the risk of injury, close supervision is necessary when a Circle is used near children.
This Circle is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the Circle by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the Circle.
This Circle can be used by children aged from 8 years and above.
The new hose-sets supplied with the Circle are to be used and old hose-sets should not be reused.

3
No back pressure
Waste water
CARBON BLOCK
RO MEMBRANE
RO purified water
Tap
water
Tap water
WATER TANK
1
2
3
4
5
6
7
Outlet
TankInlet
Drain
Outlet
TankInlet
Drain
Outlet
TankInlet
Drain
Quick 1/4turn
5 Step Filtration
system
4. Space Saving Compact Design
With its unique integrated tank and rapid refill rates, the
Circle takes up minimal space under the sink, leaving more
room for storage.
5. Certified Four-Stage Filtration Technology
Four separate filters work together to deliver maximum
filtration ensuring clean healthy water for the family. WQA
Gold Seal certified for trusted performance.
6. Eco-Friendly High Capacity System
Unique design and patented technology delivers constant
flow rates and rapid refill improving overall efficiency of the
system without the use of pumps or electricity.
7. Quick Change Filters
Filter replacement is a snap with our easy twist and seal
system. No tools needed, simply insert and twist a quarter
turn to change and seal.
3. Designer Faucet with Integrated LED Filter
Change Indicator
For ultimate convenience the Circle faucet includes an
automatic filter change indicator letting you know when
it’s time to change the filters.
2. RO Filter Auto Flushing
Automatically flushes the RO membrane significantly
extending the life of the filter.
1. Water Saving Smart Technology
The intelligent“smart valve” and unique circular reservoir
eliminates backpressure (common in RO systems) reducing
waste water and making the Circle up to 10 times more
efficient than existing products.
FEATURES
1
2
3
4
7

4
Regulator
Drain
Dual-Layer
Reservoir
Auto Shut off
Valve
Check①
Check②
Tap
water
Faucet
Smart
Valve
D
T
SEDIMENT
PRE-CARBON PLUS
RO MEMBRANE
POST CARBON
Regulator
Stage One: Sediment Filter
The Sediment filter reduces particulate materials such as sand, rust, and fine particles from the water
supply. This first stage also acts as a pre-filter protecting and extending the life of the following filters.
Stage Two: Pre-Carbon Plus Filter
This second stage filter significantly reduces harmful VOCs , chlorine, and soluble contaminants
which can damage the RO Membrane filter.
Stage Three: RO Membrane Filter
The RO filter works by pushing water through a semi-permeable membrane thereby separating
H2O molecules from contaminants in tap water. The powerful RO Membrane significantly reduces
pollutants such as: heavy metals, cysts, fluoride, arsenic, industrial chemicals, and more.
Stage Four: Post Carbon Block Filter
As the final stage in the filtration process, the Post Carbon Block filter further reduces any lingering
water contaminants such as chlorine and volatile organic compounds (VOCs), improving the overall
taste and odor of the dispensed water.
THE FOUR-STAGE WATER FILTRATION PROCESS
FILTRATION PROCESS
The RC100 is tested and certified to NSF/ANSI 42, 53 and 58 for the reduction of
Aesthetic Chlorine, Taste and Odor, Cyst*, VOCs, Fluoride, Pentavalent Arsenic,
Barium, Radium 226/228, Cadmium, Hexavalent Chromium, Trivalent Chromium,
Lead, Copper, Selenium and TDS as verified and substantiated by test data. The
RC100 conforms to NSF/ANSI 372 for low lead compliance.
See performance data sheet on page 22 for all certified claims
*NSF/ANSI 58 Cyst reduction of 99.9% based on independent testing not certified by WQA.

5
Cover Post Carbon Block Filter
Water Tank
Sediment Filter
RO Membrane Filter
Pre-Carbon Plus Filter
PRODUCT COMPONENTS
Waste Water
Drain Clamp
Outlet to
Faucet
Water Supply
Inlet

6
PRODUCT COMPONENTS cont.
Drain Clamp
* Actual product may differ from images shown
ACCESSORIES
TOOLS NEEDED
Water Supply T-Valve
with Rubber Washer
(1/2”connection)
Owner’s Manual
T-Valve Adapters
with Rubber Washer 1/2”to 3/8”
Tubing
One (1) Inlet: 1/4”Tubing (Orange)
One (1) Drain: 1/4”Tubing (White)
LED Indicator Faucet
Assembly with
Attached Tubing (Blue)
Phillips Screwdriver Adjustable Wrench
Safety Glasses
Drill & 1/4”Drill Bit
Towel & BucketThin Screwdriver, Straw,
or similar item less than
1/4”in diameter
Scissors for
cutting zip ties
Filter Change
Chart

7
PRODUCT INSTALLATION
STEP 1: FAUCET INSTALLATION
Before Installation
You will need an existing faucet hole at least 7/16
inches in diameter in the sink or countertop to install
the supplied filtered water faucet. You may also
replace an existing kitchen sprayer, soap dispenser,
or plug already on the countertop or sink.
1. Unpack the faucet and insert the Top Spout into the Main
Body by pushing down until inserted then screw the Top Cap
clockwise until secured in place.
2. Cut zip tie on the blue water connection tubing and unroll
to straighten tubing. Be careful not to cut the tube when
removing the zip tie.
If drilling a new hole is required for the
faucet installation, please consult a
professional. Brondell will not be liable for
any damages including those to the sink
or countertop due to installation of the
faucet or drilling a hole.
1
Locking Nut
Plastic Washer
Top Spout
Top Cap
Main Body
Lock Washer
Counter Top
1/4" Tube
(connected to faucet)
Escutcheon
LED Display
Battery Seat
(CR2032)
Battery

8
STEP 1: FAUCET INSTALLATION (cont.)

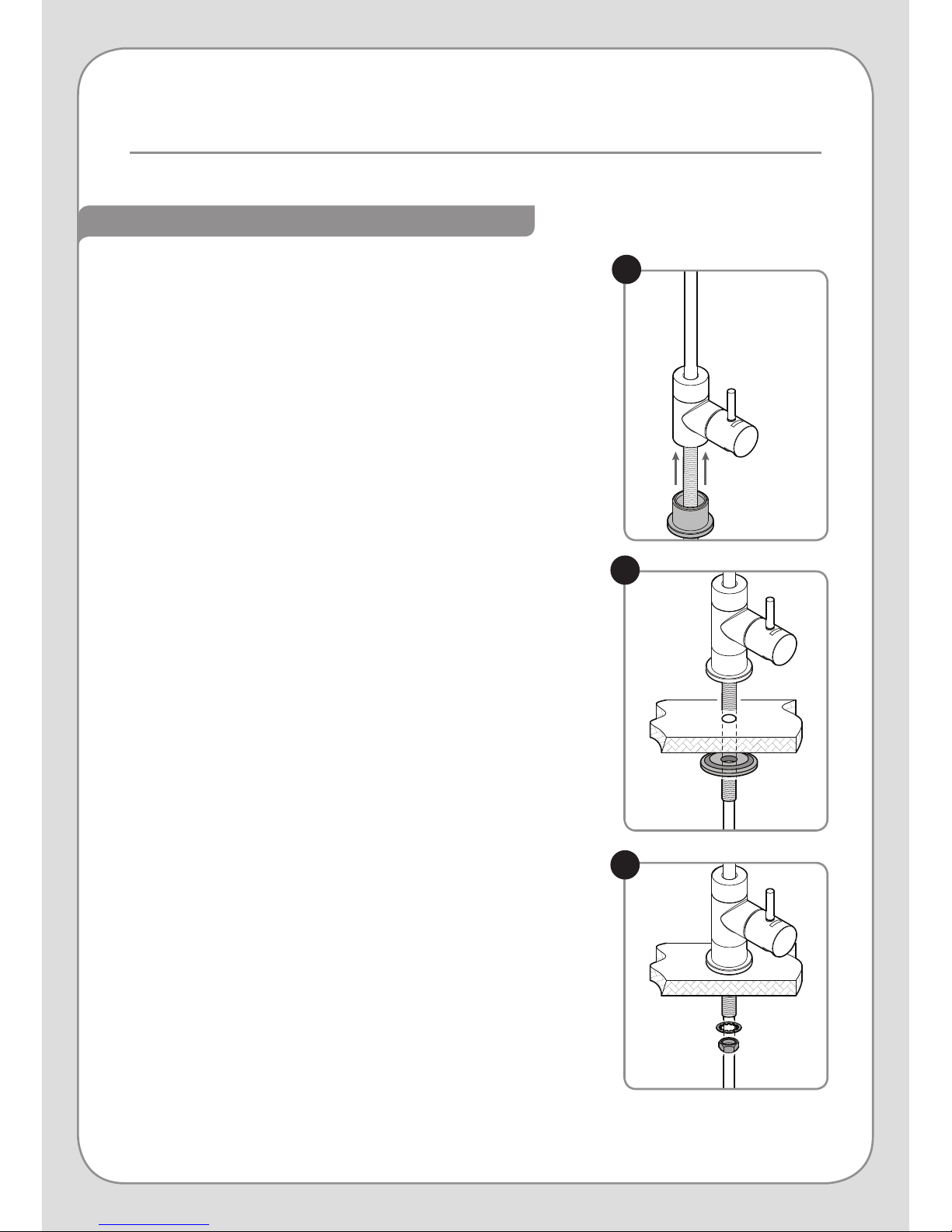

3. Attach the Escutcheon to the Main Body by inserting the
blue tubing through it and pushing it all the way up until
connected to the Main Body.
3
4. Install the faucet on top of the countertop or sink and feed
the blue tubing through the hole to the cabinet below. Then
slide the large Plastic Washer as shown up through the blue
tubing until snug against the bottom of the countertop or
sink hole. Be sure that the flat part of the Plastic Washer is
facing down and the raised area is facing up as shown here.
4
5
5. Install the “Lock Washer” and the“Locking Nut” the same way
and tighten until the plastic washer is holding the faucet
assembly firmly in place. The faucet is now installed!
6. Pull the plastic tab out from the battery compartment to
activate the faucet indicator. The LED light will blink red
once, blue once, and then will be ready to go.
PRODUCT INSTALLATION (cont.)

9
STEP 2: T-VALVE INSTALLATION
1. Turn off the cold water supply under the sink at the wall.
Then, turn on the coldfaucet to drain the residual water
from the water lines.
2. Disconnect cold water supply line from the supply valve
under the sink at the wall.
3. Connect the bottom of the 1/2 inch T-valve to the cold water
supply valve at the wall. If the water connection is a 3/8
inch size, use the provided adapters with rubber washers to
connect the T-valve to the supply line.
4. Re-connect faucet water supply hose to the top of the T-valve
as shown, then insert one end of the orange water supply
tubing into the T-valve 1/4 inch Quick Connector. Be sure to
push firmly into place to secure.
NOTE: See next page for tips on how to use Quick Connectors.
5. Make sure the T-valve is in the closed position (valve arm
should be facing up).
Install the T-valve on the cold water supply only.
Never connect to the hot water supply!
You may wish to place a bucket or container under
the pipes to catch any excess water.
4
5
1–2

10
PRODUCT INSTALLATION (cont.)
Tube connections on the T-Valve, Drain Clamp, Circle, and Indicator Faucet are all of the “Quick
Connect” variety. The steps below illustrate how to connect and disconnect the Tubes from these
connectors.
a. Push the Tube into the Collette. The Collette is a
collar that provides a secure fit for the Tube and
prevents water leaks.
b. Push the Tube in until it stops. The Tube will
be secure, and resistant to tugs or pulls. The
Collette will be rigid and raised slightly from the
Connector Housing.
c. To disconnect the Tube, push down and hold the
Collette first, and then pull the Tube out gently.
Connector
Housing
Tube
Collette
STEP 2A: USING QUICK CONNECTORS

11

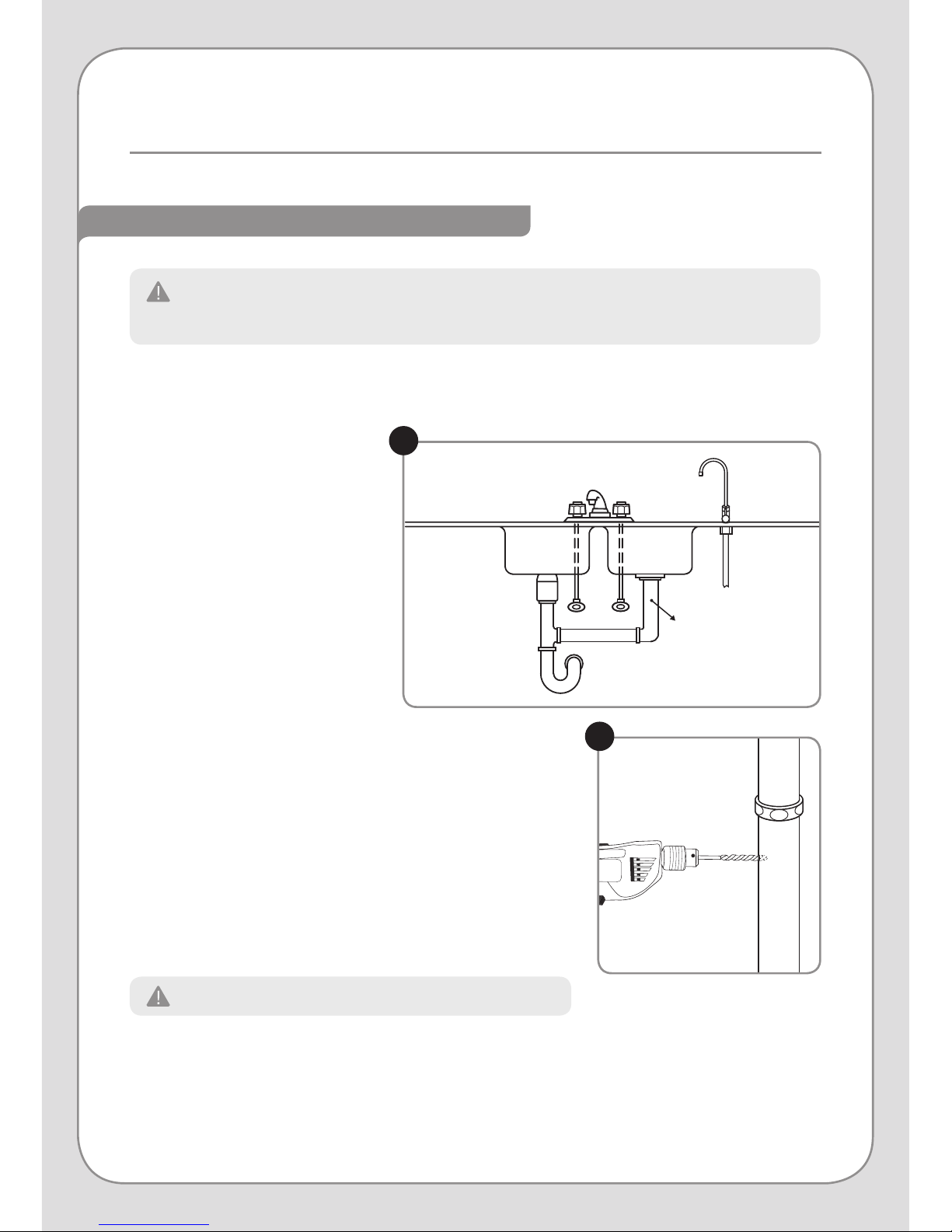

MOUNT
DRAIN VALVE
HERE

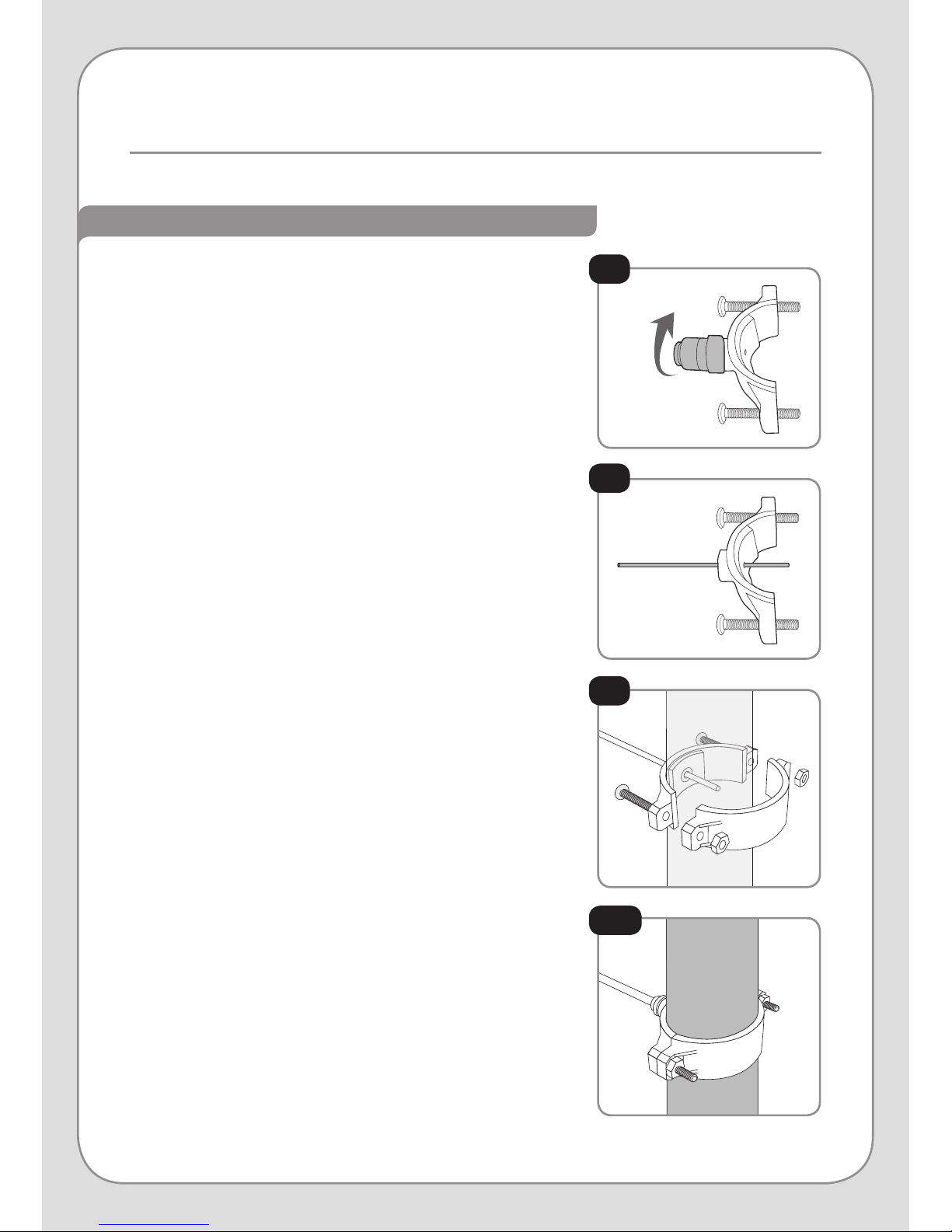

1. If there is an existing drain connection for a 1/4 inch quick connect tube, then use this connection.
Otherwise, locate a suitable area on the sink drain pipe to install the provided drain clamp.
NOTE: Select a location for
the drain hole based on the
design of the plumbing. It
should be installed above the
trap and on the vertical or
horizontal tail piece. Locate
the drain connection away
from the garbage disposal.
See example to the right.
2. Once a suitable spot has been selected for the drain clamp,
drill a 1/4 inch hole into one side of the pipe. Be sure to use
a suitable drill bit for the material being drilled into (for
example: PVC versus Metal Pipe) and be sure to use safety
goggles.
NOTE: Starting with the 1/8 inch drill bit, drill a 1/8 inch hole
in the drain pipe. Use the 1/4 inch drill bit to enlarge the hole.
If you do not have a 1/8 inch drill bit, then you can just use
the 1/4 inch bit. Clean the debris from the pipe and the hole
before continuing.
STEP 3: DRAIN CLAMP INSTALLATION
WARNING: this step may require drilling into the existing drain pipe. Please seek
professional help when completing this step and always wear safety protection including
safety goggles!
DO NOT drill all the way through the pipe.
2
1

12
PRODUCT INSTALLATION (cont.)
3. Align the drain clamp to the hole
a. Take the front half of the drain saddle (wih the 1/4 inch
quick connector opening) and unscrew the grey quick
connector from the saddle as shown.
4. Once the drain clamp is secure and tight on the pipe,
remove the guide and screw the 1/4 inch Quick Connector
back into place.
5. Lastly, insert the white colored drain tube into the 1/4 inch
Quick Connector on the drain clamp and push firmly into
place.
b. Insert a screwdriver, straw, or similar straight thin item into
the front of the first half of the saddle (to use as a guide) as
shown here.
c. Insert the end of the guide into the 1/4 inch hole in the
drain pipe and slide the clamp until secure against the
drain pipe. The hole is now properly lined up with the
drain clamp hole. Hold secure by keeping the guide
inserted until the clamp is secured by screwing on the
back side as shown here.
STEP 3: DRAIN CLAMP INSTALLATION (cont.)
3a
3b
3c
4–5

13
1. Connect the tubes:
a. Connect the open end of the 1/4 inch blue tubing (from
faucet) to the top of the Circle by pushing into the middle
hole labeled“Outlet”.
b. Connect the open end of the white tubing (from the drain
clamp) to the top of the Circle by pushing into the hole
labeled“Drain”.
c. Finally, connect the open end of the orange tubing (from
the water supply T-valve) to the top of the Circle by
pushing into the hole labeled“Inlet”.
d. Be sure to push the ¼”tubing firmly into place to secure.
2. Turn on Water and Check for Leaks
a. Open the T-valve by turning the valve arm 90° and turn
cold water supply back on under the sink at the wall. The cold
water supply will then begin to supply water to the Circle.
b. After turning on the water supply, check all connections for
leaks. Wait 5 minutes and check once more for leaks before
proceeding to the next step.
Failure to properly install this product or to properly
check for leaks may cause damage to the property.
In these instances, Brondell, Inc. will not be held
responsible for any damages.
STEP 4: FINISHING UP
Inlet
Outlet
Drain
1
2

14
PREPARING FOR USE
T-VALVE
1/4”WATER
SUPPLY HOSE
(Orange hose) 1/4˝ FAUCET
CONNECTOR HOSE
(Blue hose)
1/4”DRAIN HOSE
(White hose)
DRAIN
CLAMP
HOT COLD
WATER
FILTRATION
DEVICE
(RC100)
FAUCET
INSTALLATION DIAGRAM
During the initial purging of the system, you will hear air clearing out of the system
through the faucet along with some spurts of water. This is NOT a malfunction and is
normal operation during the very first use or when completing a filter change.
STEP 1: FLUSHING THE SYSTEM
1. Turn the provided faucet on all the way for 10 minutes to purge all the air out of the system. It is
normal for some water to flow out of the faucet during this first purge.
2. After the initial 10 minute purge, turn the provided faucet off and let the system run for 40
minutes to allow the water tank to fill for the first time.
3. After 40 minutes, turn the faucet on all the way once more for 10 minutes (or until the tank
empties) to flush the filters and the water tank.
4. Turn the faucet off.
5. The tank will fill again in approximately 40 minutes, and then filtered water will be ready to drink.
6. Record installation date on the filter change sticker chart and place sticker inside the front cover,
under the sink cabinet on the door, or another safe accessible place.

15
Part Number Filter Name Usable period
RF20
Sediment Filter 6 months
Pre-Carbon Plus Filter 6 months
Post Carbon Block Filter 6 months
RF-40 RO Membrane Filter 24 months
FILTERS
FILTER CHANGE INDICATOR
FILTER REPLACEMENT CYCLE
Contact Brondell at 888-542-3355, or visit us on the Web at www.brondell.com to order
replacement filters.
The filters are critical to the performance of the Circle Reverse Osmosis Water Filtration system, and
it is important to replace all of the filters on a regular basis. If any of the filters are overused beyond
the recommended service life, the performance of the water filtration device can deteriorate. Do not
miss the filter replacement cycle or use non-compatible filters as this can affect system performance
or damage the unit.
The LED filter change indicator in the faucet works by tracking both time and water flow from the
Circle RO system. When 6 months time or 475 gallons of water has been filtered through the system
(whichever comes first), the LED will flash red when dispensing water instead of flashing blue.
When the faucet LED indicator begins to flash red, it’s now time to change the filters and reset the
faucet indicator by replacing the battery.
Note: a new battery is always included with the RF-20 filter replacement set.
* The filter replacement cycle may be reduced for areas with poor water quality or greater use.
* The period for the filter exchange is based on an average production of 2.6 gallons of
drinking water per day.
FILTERS AND FILTER CHANGE INDICATOR

16
FILTER REPLACEMENT
HOW TO REPLACE THE FILTERS
1. Close the T-valve under the sink to shut off the flow of water
to the Circle.
4. Turn the filter(s) to be replaced a quarter-turn counter-
clockwise until the unlock arrow on the filter label lines up
with the arrow on filter base above it and then pull down
to remove.
3. Remove the front cover from the Circle as shown.
Match this to the arrow on the filter base
2. Once the T-valve is shut off, turn the Indicator faucet on all
the way and keep it on until the water tank is emptied and
the pressure is released in the system
1
2
3
4
SEE DIAGRAM ON
FILTER HOUSING ABOVE

17
7. Replace the Front Cover.
PO Box 470085 San Francisco, CA 94147
brondell.com 888-542-3355
Made in Korea
month day year
6. After replacing filters, locate the filter change sticker chart and write down the date and filters
changed on the chart. It’s important to track each filter change since the RO filter is on a different
cycle than the other 3. Here’s the replacement cycle:
After 6 months: replace 3 filter set (RF-20) and replace faucet battery
After 12 months: replace 3 filter set (RF-20) and replace faucet battery
After 18 months: replace 3 filter set (RF-20) and replace faucet battery
After 24 months: replace 3 filter set (RF-20), the RO filter (RF-40), and replace faucet battery
Note: Brondell provides a new faucet battery replacement with each RF-20 filter set and a new
filter change sticker chart with each RF-40.
5. Install the new filter by aligning the arrow indicators on the
filter label (a) and filter base above (b) as shown then pushing
up and turning a quarter-turn counter-clockwise until the
filter stops. The filter base arrow should now point to the
“lock”arrow on the filter label. Repeat with any remaining
filters to be changed
Important: Be sure when replacing the filters that
you install the new ones in the correct location by
referring to the color coded sticker on the machine
and matching to the colored filter labels. Failure
to replace the filters in the correct location may
damage the machine and filters.
8. Open the T-valve under the sink to turn on the flow of water
to the Circle.
b
5
7
8
a

18
10. Replace the battery in the faucet LED indicator to reset the
filter change reminder. The battery type is CR2032 and
Brondell provides one with every set of RF-20 filters.
9. Flush the new filters and the system thoroughly with the
following steps.
a. Turn the provided faucet on all the way for 10 minutes to
purge all the air out of the system.
a. Under the faucet handle, locate the black rubber battery
compartment. Grasp it from the sides and pull down as
shown.
b. After the initial 10 minute purge, turn the provided faucet
off and let the system run for 40 minutes to allow the
water tank to fill.
b. Remove the old battery from the compartment by lifting
the silver metal tab and sliding the battery out of the
rubber casing. Wait 30 seconds for the residual energy to
drain to reset the indicator.
c. After 40 minutes, then turn the faucet on all the way once
more for 10 minutes (or until the tank empties) to flush the
filters and the water tank.
c. Replace with a new CR2032 battery by sliding the battery
under the silver tab, making sure that the words on the
battery are facing out. A fresh CR2032 battery comes with
every RF-20 Replacement Filter pack.
e. The tank will fill again in approximately 40 minutes, and
then filtered water is ready to drink.
d. Turn the faucet off.
d. Push the black rubber battery compartment back up into
the faucet handle.
9
10a
10c
10d
FILTER REPLACEMENT (cont.)
HOW TO REPLACE THE FILTERS (cont.)
