brondell H630 Cypress User manual

Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com
1
/
4
” tubing (White)
Accessories
Front
1
2
3
4
5
6
1Main body
2Top cover
3Connection tool
4 Carbon Block filter (HF-33)
5Nanotrap filter (HF-32)
6Composite Plus filter (HF-31)
Owner's Manual
Diverter Diverter adapter
(Type 1)
Diverter adapter
(Type 2)
General
Accessories
T-valve for
under counter
water supply
installation
Alternative
Installation
(not included)
Faucet Diverter
(included)
T-valve fitting
(available in ½”or
3
/
8
” )
Alternative Installation parts are
available for purchase online at
www.brondell.com or call us toll
free: 1-888-542-3355
Water Filtration System – Above Counter Installation

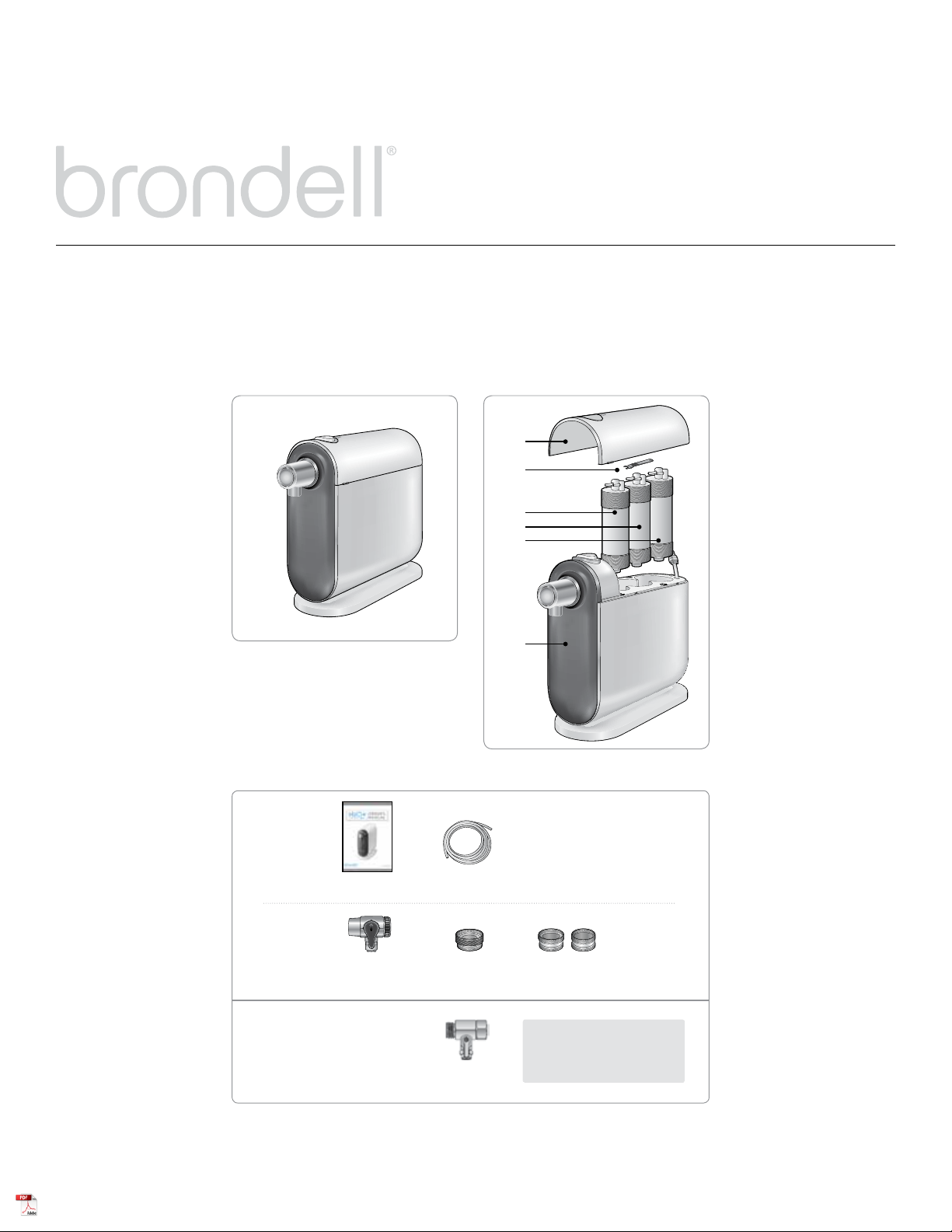

PRODUCT COMPONENTS

Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com
The 3-stage H2O+ Cypress H630 water filtration system
1 COMPOSITE PLUS FILTER (HF-31)
This 2-step filter reduces particulate materials such as sand, rust, and fine particles from the water supply.
This first filter also acts as a pre-filter protecting the 2 following filter systems.
2 NANOTRAP FILTER (HF-32)
This specialized filter reduces turbidity and additional particulate material.
3 CARBON BLOCK FILTER (HF-33)
As the final stage in the filtration process, the Carbon Block filter reduces particulates, odors, and water
contaminants such as chlorine and volatile organic compounds, improving the taste of the dispensed water.
* See performance data sheet for certified claims
COMPOSITE PLUS
FILTER
NANOTRAP
FILTER
CARBON BLOCK
FILTER
1 2 3
1 2 3
READ BEFORE YOU INSTALL THIS PRODUCT
The following instructions describe how to remove the gray plug from the elbow joint that is connected
at the back of your Cypress water filtration unit.
NOTE: Use this technique when changing the filters as well.
1. Remove the Quick Connect tool from the underside of the Top Cover
2. Between the elbow and the gray plug is a thin white collar. Using the Quick Connect tool, push
down on the ring toward the elbow
3. At the same time, pull the gray plug out in the opposite direction.
WATER FILTRATION PROCESS

Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com

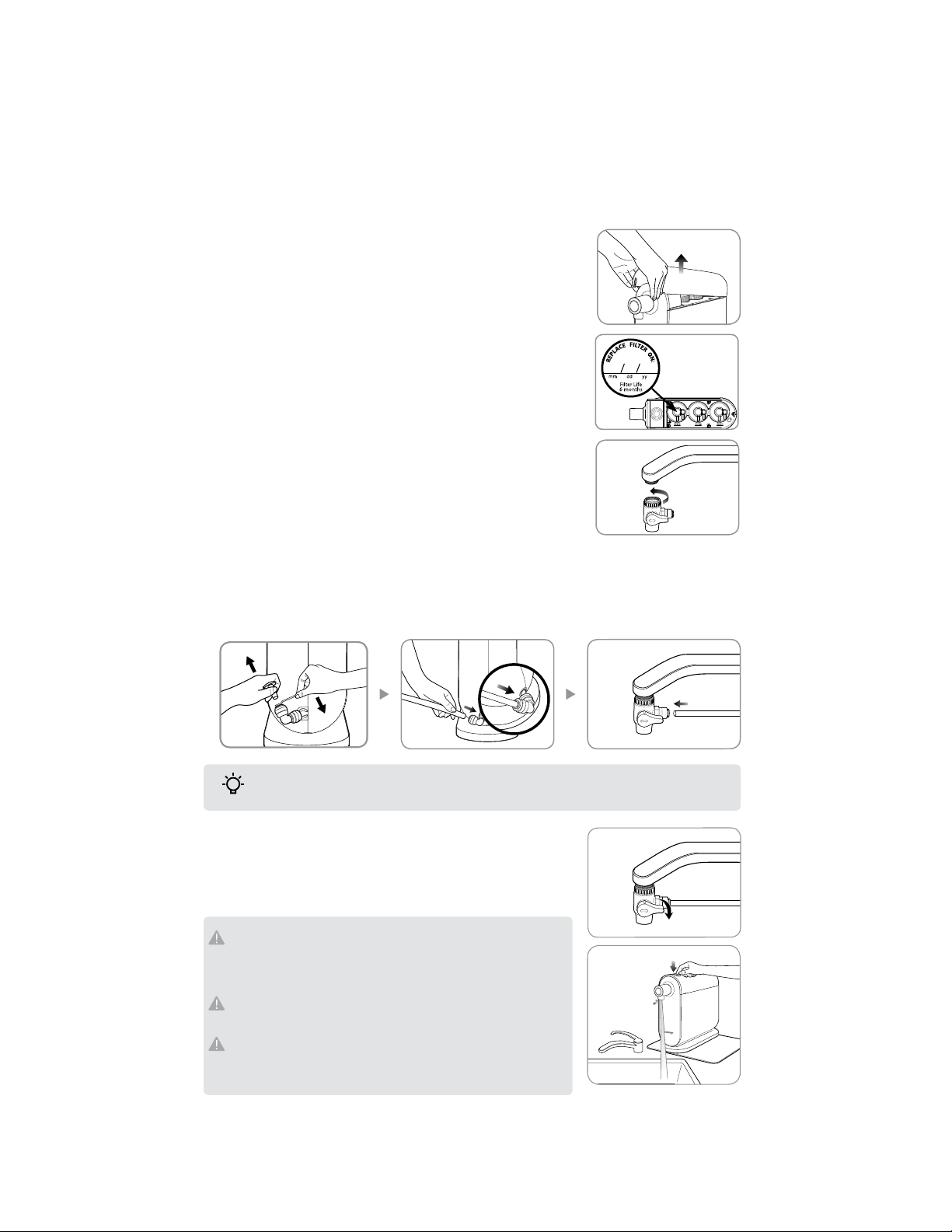

INSTALLATION
Faucet Diverter Type (included)
1. Installing the faucet diverter.
a) Unscrew original aerator (faucet spout tip) from your
water
faucet.
b) Connect diverter (with rubber washer) to water faucet by hand tightening
using any of the provided diverter adapters for best fit. If needed, use a
wrench (spanner) or pliers but be careful not to over tighten the connection.
The initial flushed water contains carbon powder and air from the
filter. During flushing of filter, sound will be heard as carbon powder
and air is flushed out. This is not a malfunction, please use the
product as usual after flushing the filter.
Make sure to flush water continuously for at least 10 minutes
before initial use.
It is normal for the dispensed water to have significant white air
bubbles suspended in the water for the first few days of use. This
will go away over time as the air is flushed out of the system.
INSTALLATION
Note: be sure to push tubing firmly all the way into the quick-connectors & use Connection
Tool as needed
Tips
Prior to installation.
a) Remove top cover with both hands.
b) Write filter replacement date on filter change sticker found on top
of each filter. Note: Carbon Block (HF-33) and Composite Plus (HF-31)
filters are 6 month filter life & Nanotrap (HF-32) filter is 1 year filter life.
4. Press the button on top of the unit to dispense water (into your sink) and
let it run for 10 minutes to flush the system and activate the filters.
3. First, turn on cold water faucet. Then, open the faucet diverter switch
to supply main water.
2. Installing the tubing.
a) Remove the gray water inlet plug on back of unit (see page 4).
b) Connect one end of the 1/4” tubing (white)
to the water inlet on the water filter unit.
c) Connect other end of hose to faucet diverter.

Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com
Alternative Installation T-valve Type (for under-the-counter water
supply direct connection)
Prior to installation.
a) Remove top cover with both hands.
b) Write filter replacement date on filter change sticker found on top of
each filter. Note: Carbon Block (HF-33) and Composite Plus (HF-31)
filters are 6 month filter life & Nanotrap (HF-32) filter is 1 year filter life.
1. Installing the T-valve type water supply fitting.
a) First, turn off hot and cold water supply under the sink at the wall. Then, open (turn on) the faucets
to drain water from the sink’s water line.
b) Disconnect cold water supply line from supply valve under sink at wall.
c) Connect the bottom of theT-valve to the cold water supply at the wall and connect faucet water supply hose to top
ofT-valve as shown below. Use teflon tape (plumbers tape) on the threads if needed for a watertight seal.
2. Installing the tubing.
a) Remove the gray water inlet plug (see Page 4 for more details).
b) Connect one end of the 1/4˝ tubing (white) to the water inlet on the water filter unit.
c) Run the other end of the white hose under the sink and connect it to the open end of the installed T-valve.
3. First, turn on cold water supply line under sink at wall.Then, open the T-valve switch to supply main water.
The water supplyT-Valve must be connected to the cold water supply only. Never connect to hot water supply!
OPEN
OPEN
* Sold separately on www.brondell.com or call Brondell at 1-888-542-3355.
Use Connection Tool for all“quick-connect” water tube connections. To use:
simply push down with the tool on the connection point as you pull out tubing
Tips
Note: be sure to push tubing firmly all the way into the quick-connectors & use Connection
Tool as needed
Tips
INSTALLATION (cont.)

Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com
1. Place a cup under the water spout.
2. Press the button on top of the unit until a “CLICK” sound is heard. Once clicked, it will provide continuous
water flow.
3. To stop the water flow, press the button again to return it to the initial position
1.Turn the valve on the faucet diverter to the side to route
the flow of water to the filter unit then turn on cold water.
2. Turn the valve up to use faucet as usual.
“CLICK”
For the under-counter T-Valve connection type, water should be diverted permanently to
the unit once you turn the valve to the “on”position.
Tips
HOW TO USE
For Diverter Valve Type
To Drink the Filtered Water
4. After turning on water supply, check all connections for any leaks. Wait 5 minutes and check once more
for any signs of leaking prior to proceeding to next step.
5. Press the button on top of the unit to dispense water (into your sink) and
let it run for 10 minutes to flush the system and activate the filters.
Failure to properly install or check for leaks may cause damage to your
property and Brondell will not be responsible for any damages.
The initial flushed water contains carbon powder and air from the
filter. During flushing of filter, sound will be heard as carbon powder
and air is flushed out. This is not a malfunction, please use the
product as usual after flushing the filter.
Make sure to flush water continuously for at least 10 minutes
before initial use.
INSTALLATION (cont.) | HOW TO USE

Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com
Problem Check Possible solutions
No water comes out.
• Is there a suspension of water supply or is
the faucet diverter/T-valve closed?
Open the supply valve and/or the faucet
diverter/T-valve.
• Are the filters not being regularly replaced
at the specified times? Replace the filters.
• It looks like the faucet is out of order. Consult a plumber.
The button on top of
unit is not working • Is the water pressure high (over 120 psi)? Consult a plumber.
Condensation appears
on the product main
body.
• Is the temperature or humidity too high? This is natural. Continue to use as
normal.
Low volume of filtered
water.
• Is it time to replace the filters? Replace the filters.
• Is the water supply valve closed? Open the water supply valve.
• The temperature of the water supply
dropped dramatically.
If the water temperature decreases, the
amount of filtered water decreases.
Poor aftertaste or bad
smell from the water.
• How often do you use the product? If the
product is not in use for a long time, the
filter might be dried out.
Flush the filters for 10 minutes.
If the water still smells or tastes bad,
replace the filters.
Water is not clear. • Check filters for damage. Replace the filters. Contact customer
support for further information if needed
Water leakage at
diverter.
• Did you push the tubing all the way into
the connectors? Tubing needs to be pushed completely
onto the connectors. Tighten the nuts
firmly.
• Did you tighten the nuts firmly?
• Check whether the connections at
faucet and/or T-valve are loose.
Tighten all connections between faucet
and diverter.
• Are you using an old faucet?
Turn off the main water valve, then check
for leakage. Change the faucet if leakage
continues to occur.
• Check whether the internal seal is
damaged.
Contact customer support to order new
diverter valve.
In most cases, problems with your Brondell H2O+ water filtration system can be resolved with a little
troubleshooting by checking each of the items below. If you cannot resolve the problem you are
having after troubleshooting, please call Brondell customer service toll free: 888-542-3355 or email us
at [email protected]
TROUBLESHOOTING
