brondell UC 300 User manual

Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com
Water Filtration System – Below Counter Installation

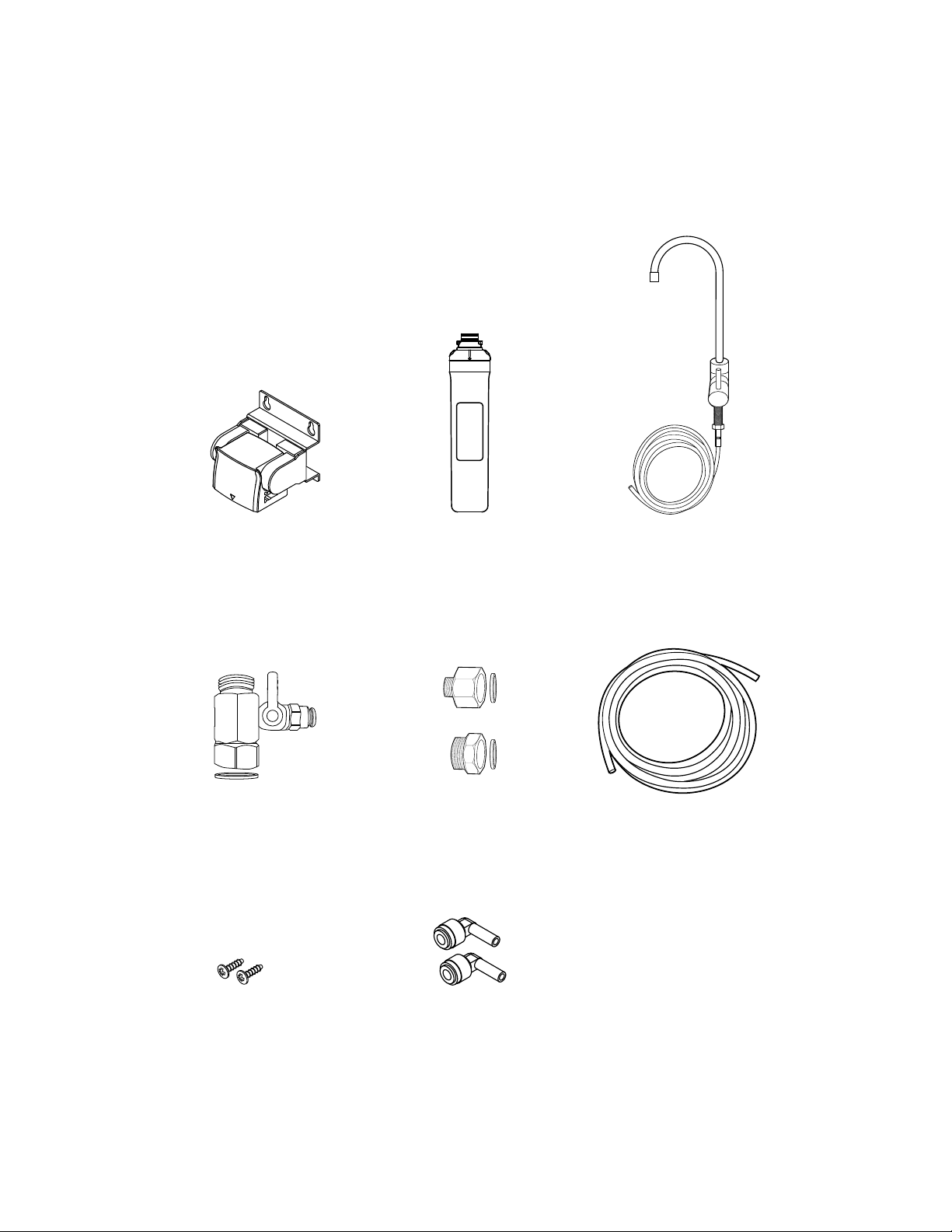

UC 300 COMPONENTS
Water Supply Tubing
Filter Head
Connection Assembly
3 Filters:
Sediment Filter
Pre-Carbon Filter
Carbon Block Filter
LED Indicator Faucet
Assembly with attached
tubing (blue)
Water Supply T-Valve
with Rubber Washer
(3/8” connection)
T-Valve Adapters
with Rubber Washer
3/8” to 1/2”
Quick Connect
90° Elbows
Mounting Screws

Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com
Filter Head
Connection Assembly
1 Filter:
Carbon Block Filter
Water Supply Tubing
LED Indicator Faucet
Assembly with attached
tubing (blue)
Water Supply T-Valve
with Rubber Washer
(3/8” connection)
T-Valve Adapters
with Rubber Washer
3/8” to 1/2”
Quick Connect
90° Elbows
Mounting Screws
UC 100 COMPONENTS

Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com
Sediment
Filter
Pre-Carbon
Filter
Carbon
Block Filter
Incoming
Water
INLET
Filtered
Water
OUTLET
– REAR VIEW –
Tap Faucet LED Indicator
Faucet
Filtered
Water Tubing
Water Supply
Tubing
Sediment Filter
Sink
Pre-Carbon Filter
Carbon Block Filter
Filter Head Connection
Assembly
Water Supply
T-Valve
Cold Water
Supply

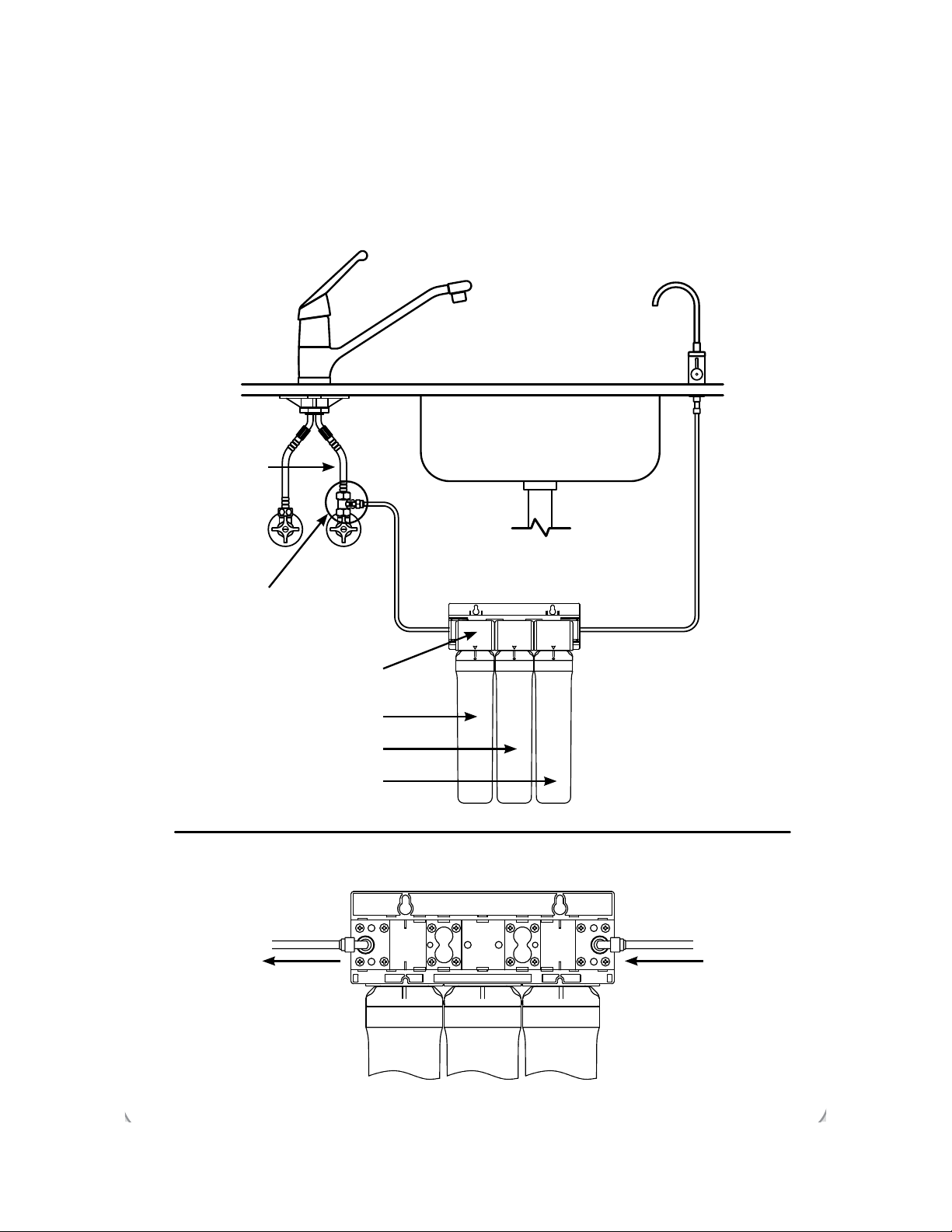

UC 300 WATER FLOW DIAGRAM

Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com
Carbon
Block Filter
Incoming
Water
Filtered
Water
– REAR VIEW –
Tap Faucet LED Indicator
Faucet
Water Supply
Tubing
Sink
Carbon Block Filter
Filter Head Connection
Assembly
Water Supply
T-Valve
Filtered
Water Tubing
Cold Water
Supply
INLETOUTLET

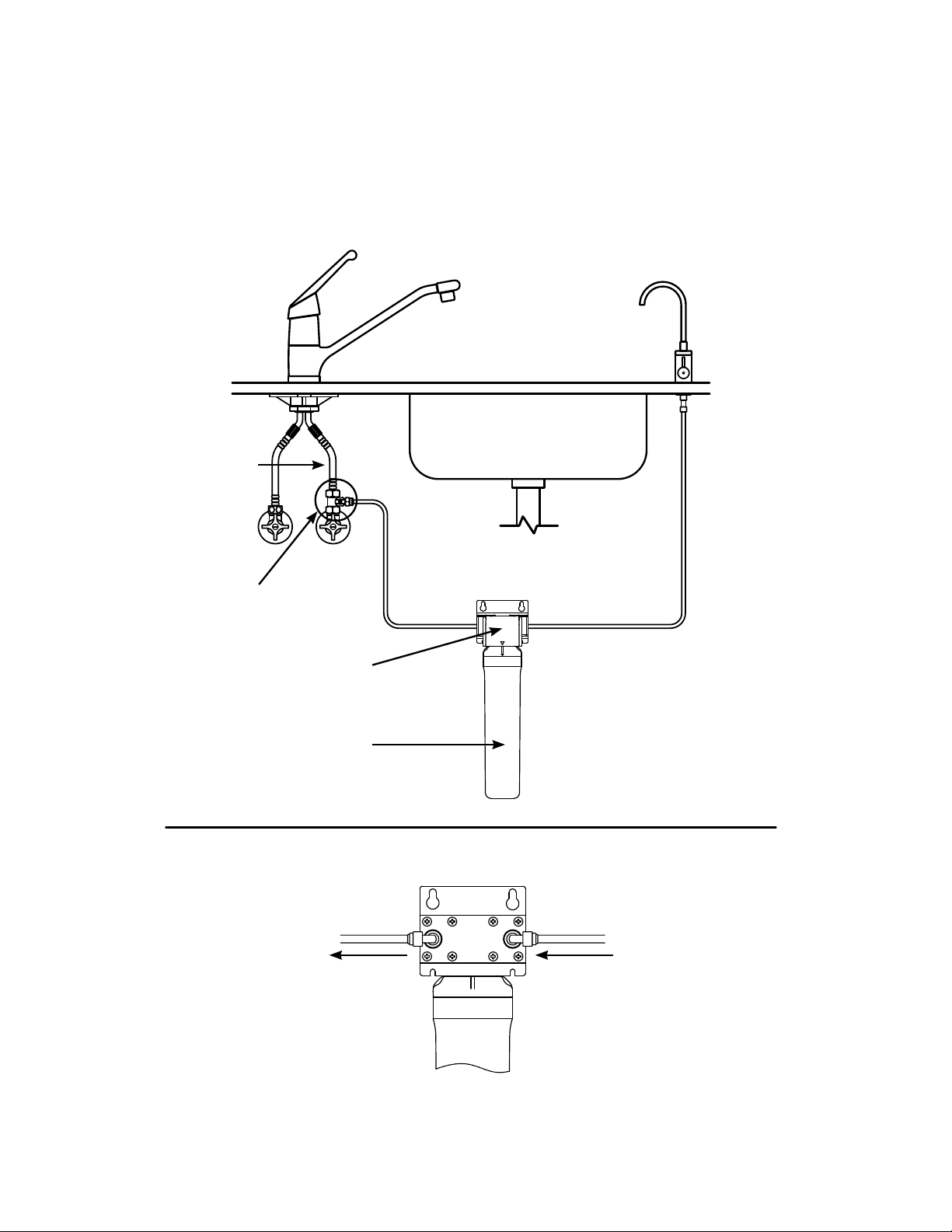

UC 100 WATER FLOW DIAGRAM

Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com
STEP 1: TVALVE INSTALLATION
Do not install the Filter Head Connection Asssembly further than 12 feet away from
either the water supply valve, or the Indicator Faucet.
Avoid unnecessary slack in the supply hoses when connecting to the water supply, Filter
Head Connection Assembly, or Indicator Faucet.
Do not install in direct sunlight, or a place where it will be directly exposed to freezing
temperatures.
Be sure to install the T-Valve on the cold water supply line. Running hot water through
the Coral Water Filtration System will damage the lters.
1. Close the cold water supply valve. Place a bucket, or similar
item, underneath the valve to catch any water that may spill
out during installation.
2. Unscrew the hose that connects the cold water supply valve
to the existing tap water faucet.
3. Ensure the rubber washer is inside the T-Valve, and then
screw the T-Valve Adapter onto the cold water supply valve.
NOTE: If the water supply valve is larger than the 3/8”
connection on the T-Valve, use the included 1/2”Valve
Adapters with Rubber Washers to connect the T-Valve and
the water supply hose.
4. Screw the cold water supply hose to the top of the T-Valve.
Be sure to keep the water supply valve closed.
PRODUCT INSTALLATION

Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com

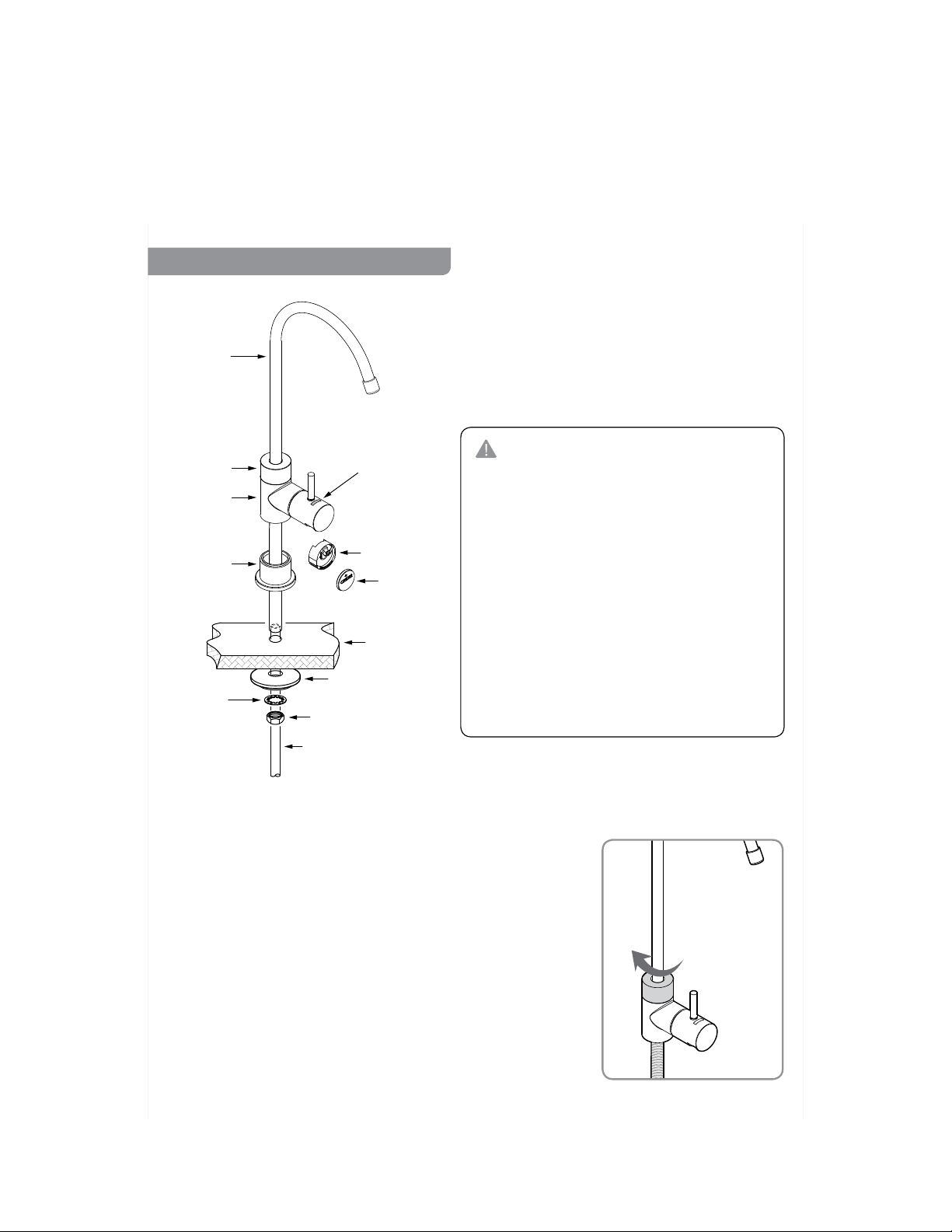

STEP 2: FAUCET INSTALLATION
Before Installation
You will need an existing faucet hole at least 7/16
inches in diameter in the sink or countertop to install
the supplied ltered water faucet. You may also
replace an existing kitchen sprayer, soap dispenser,
or plug already on the countertop or sink.
1. Unpack the faucet and insert the Top Spout into the Main
Body by pushing down until inserted then screw the Top Cap
clockwise until secured in place.
2. Cut zip tie on the blue water connection tubing and unroll
to straighten tubing. Be careful not to cut the tube when
removing the zip tie.
If drilling a new hole is required for the
faucet installation, please consult a
professional. Brondell will not be liable
for any damages including those to the
sink or countertop due to installation of
the faucet or drilling a hole.
Please nd answers to Frequently Asked
Questions (FAQs) and installation videos
on brondell.com
For California Residents: CR2032
batteries contain Perchlorate Material -
special handling may apply. Visit http://
www.dtsc.ca.gov/hazardouswaste/
perchlorate for more information.
Locking Nut
Plastic Washer
(raised area faces down)
Top Spout
Top Cap
Main Body
Lock Washer
Counter Top
1/4" Tube
(connected to faucet)
Escutcheon
LED Indicator
Battery Seat
CR2032
Battery
PRODUCT INSTALLATION (cont.)

Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com

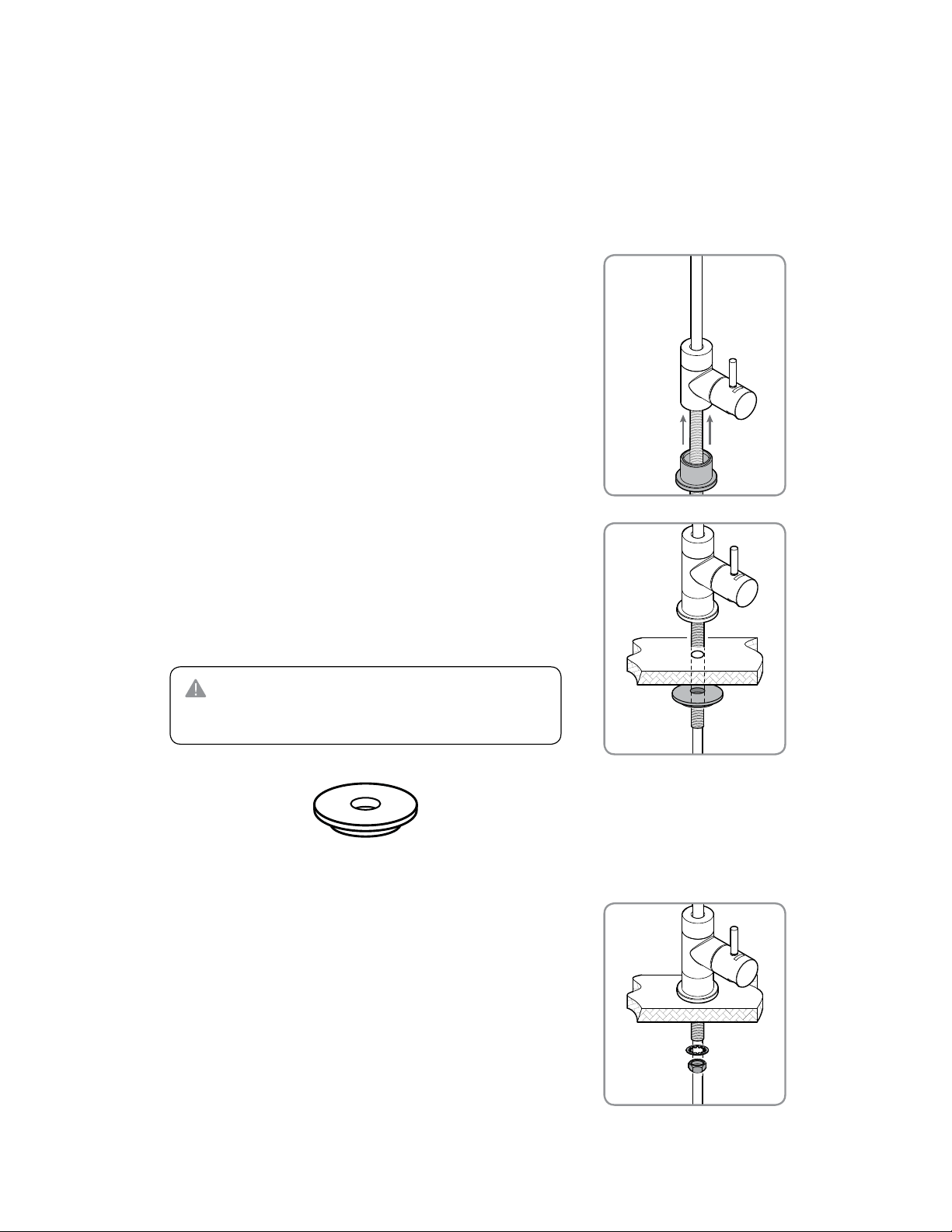

3. Attach the Escutcheon to the Main Body by inserting the blue
tubing through the Escutcheon and pushing it all the way up
until connected to the Main Body.
4. Install the faucet on top of the countertop or sink and feed
the blue tubing through the hole to the cabinet below. Then
slide the large Plastic Washer as shown up through the blue
tubing until snug against the bottom of the countertop or
sink hole.
Be sure that the at part of the Plastic Washer is facing up
and the raised area is facing down, as shown to the right.
5. Install the Lock Washer and the Locking Nut the same way
and tighten until the plastic washer is holding the faucet
assembly rmly in place. The faucet is now installed.
6. Pull the plastic tab out from the battery compartment to
activate the faucet indicator. The LED light will blink red
once, blue once, and then will be ready to go.
**IMPORTANT** Be sure that the at side of the
Plastic Washer is facing up and the raised area is
facing down, as shown below.
RAISED AREA FACES DOWN
FLAT SIDE FACES UP
PRODUCT INSTALLATION (cont.)

Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com
STEP 3: FILTER HEAD CONNECTION ASSEMBLY INSTALLATION
Be sure to install the Filter Head Connection Assembly so that the top of the assembly
is at least 14 inches from the oor of the sink cabinet. Otherwise the lters will not
install or seat correctly.
2. Using a pencil, mark where the Filter Head Connection Assembly will be mounted to the
sidewall of the cabinet (at least 14” from the cabinet oor). Use a level to make sure that the
Assembly will be mounted straight.
NOTE: Before you mount the Connection Assembly, it may be a good idea to practice inserting
and removing the lters.
3. Insert the two mounting screws through the holes in the Assembly frame and screw into the
cabinet sidewall.
1. Attach the two Quick Connect 90° Elbows to back side of the Connection Assembly Inlet and
Outlet as shown
UC300 UC100
UC300 UC100
14 inches
14 inches
PRODUCT INSTALLATION (cont.)

Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com
STEP 4: INSTALLING THE FILTERS
1. To insert the lters, rst line up the arrow on the lter head
with the arrow on the lter
NOTE: For purchasers of the Coral UC300, it is very important to install the lters in the correct
order. Simply match the same label colors to the lter head labels. From left-to-right, the
proper order is
1) Sediment lter
2) Pre-Carbon lter
3) Carbon Block lter
2. With the top and bottom arrows
still lined up, insert the top
of the lter into the housing
and turn 90 degrees to the
right, until the lter will not
turn any more.
The Filter Head arrow should
now be lined up with the“Circle”
icon and notch on the top
of the lter.
3. For UC300 – Repeat the process for the Pre-Carbon lter and Carbon Block lter.
For UC100 – This process is complete.
UC300 UC100
water outlet
water inlet
PRODUCT INSTALLATION (cont.)

Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com
STEP 5: CONNECTING THE TUBING
1. Water Supply Connection
Use the supplied white Water Supply Tubing to connect the T-valve to the Filter Head Connector
Assembly by pushing one end of the tubing rmly into the Quick Connector
Collette on the open side of the T-Valve. Be sure to push in all the way and ensure the Tube
is not bent or kinked.
Then connect the other open end of the Tubing to the Filter Head Connector Assembly “Inlet”
by inserting the tube into the Collette on the Quick Connect 90° Elbow on the side labeled
“Inlet”.

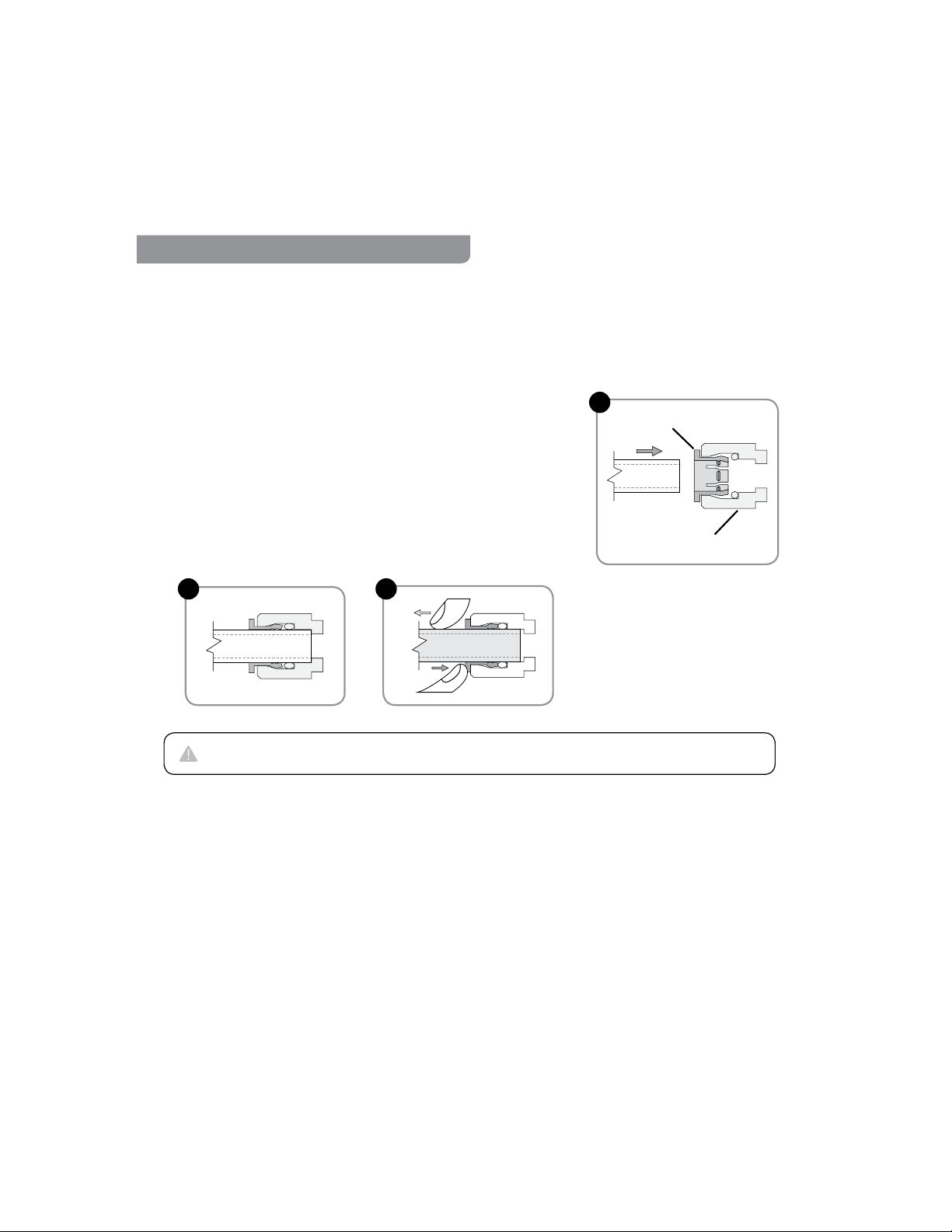

Using "Quick Connectors"
Tube connections on the T-Valve, Filter Head Connection Assembly, and Indicator Faucet are all of
the “Quick Connect” variety. The steps below illustrate how to connect and disconnect the Tubes
from these connectors.
a. Push the Tube into the Collette. The Collette is a collar that
provides a secure t for the Tube and prevents water leaks.
b. Push the Tube in until it stops. The Tube will be secure, and
resistant to tugs or pulls. The Collette will be rigid and raised
slightly from the connector housing.
c. To disconnect the Tube, push down and hold the Collette rst,
and then pull the Tube out gently.
2. Faucet Connection
Now, connect the open end of the Blue Tubing coming from the Faucet to the Filter Head
Connector Assembly “Outlet” by inserting the Tube into the Collette on the Quick Connect 90°
Elbow on the side labeled “Outlet”. Be sure to push in rmly all the way and ensure the Tube is
not bent or kinked.
Connector
Housing
Tube
Collette
a
cb
Visit brondell.com for our Quick Connect Tutorial video.
PRODUCT INSTALLATION (cont.)

Questions about installation? Call our customer service department at 888-542-3355 or visit brondell.com
TROUBLESHOOTING
Problem Possible Cause Solution
There is no water ow. Incoming cold water supply valve is
turned o. Turn on incoming cold water supply valve.
There is not enough
water ow.
The tubing is bent or twisted. Straighten out the hose. If water ow is still
impacted, replace the hose.
The water supply valve is not turned on
all the way.
Ensure the water supply valve is open
completely.
The temperature of the tap water
decreased sharply.
If the water temperature decreses due to
inclement weather, water will ow more
slowly through the system than normal.
The life of one or more of the lters has
run out.
Replace the lters, per the instructions on
Page 17.
The water tastes or
smells bad. The life of the lters has expired. Replace the lters, per the instructions on
Page 17.
There is a leak
surrounding one of
the hose connections.
The tubing is not inserted into the quick
connector completely.
Ensure the hose is inserted completely.
The end of the tube is damaged.
Cut the tubing o at the damaged area and
connect the tube again, or replace the tubing
entirely.
Water is leaking from
the head Connection
Assembly.
An O-ring on one of the lters is
damaged.
Determine which lter or lters are aected
and contact the Brondell service center.
TROUBLESHOOTING
