Brooks Instrument GT 1305 User manual

Installation and Operation Manual
X-VA-1305-1306-eng-eu
PN 541-C-029-AAG
April, 2008 Models GT 1305 & 1306
1
Brooks®O-ring Seal Flowmeters
Model 1306

Installation and Operation Manual
X-VA-1305-1306-eng-eu
PN 541-C-029-AAG
April, 2008
Models GT 1305 & 1306
2
2
GLASS TUBE EXPLOSION HAZARD
Plastic protective sleeve must remain over glass
tube. Fasten meter windows securely.
Do not operate above pressure and temperature
limits. Avoid pressure and ow surges.
Do not service or repair while pressurized.
Read and understand instruction manual.
Failure to comply could result in serious
personal injury or property damage.
Warning Model 1306 Warning Model 1305
Do not operate this instrument in excess of
the specications listed below. Failure to heed
this warning can result in serious personal injury
and/or damage to the equipment.
Essential Instructions
Read this page before proceeding!
Brooks Instrument designs, manufactures and tests its products to meet many national and international standards.
Because these instruments are sophisticated technical products, you must properly install, use and maintain them to
ensure they continue to operate within their normal specications. The following instructions must be adhered to and
integrated into your safety program when installing, using and maintaining Brooks Products.
• Read all instructions prior to installing, operating and servicing the product. If this instruction manual is not
the correct manual, please see back cover for local sales ofce contact information. Save this instruction
manual for future reference.
• If you do not understand any of the instructions, contact your Brooks Instrument representative for clarication.
• Follow all warnings, cautions and instructions marked on and supplied with the product.
• Inform and educate your personnel in the proper installation, operation and maintenance of the product.
• Install your equipment as specied in the installation instructions of the appropriate instruction manual and
per applicable local and national codes. Connect all products to the proper electrical and pressure sources.
• To ensure proper performance, use qualied personnel to install, operate, update, program and maintain
the product.
• When replacement parts are required, ensure that qualied people use replacement parts specied by
Brooks Instrument. Unauthorized parts and procedures can affect the product's performance and place
the safe operation of your process at risk. Look-alike substitutions may result in re, electrical hazards or
improper operation.
• Ensure that all equipment doors are closed and protective covers are in place, except when maintenance
is being performed by qualied persons, to prevent electrical shock and personal injury.
Pressure Equipment Directive (PED)
All pressure equipment with an internal pressure greater than 0.5 bar (g) and a size larger than 25mm or
1" (inch) falls under the Pressure Equipment Directive (PED). The Directive is applicable within the European
Economic Area (EU plus Norway, Iceland and Liechtenstein). Pressure equipment can be traded freely within
this area once the PED has been complied with.
• Section 1 of this manual contains important safety and operating instructions related to the PED directive.
• Meters described in this manual are in compliance with EN directive 97/23/EC module H Conformity
Assessment.
• All Brooks Instrument Flowmeters fall under uid group 1.
• Meters larger than 25mm or 1" (inch) are in compliance with category I, II, III of PED. • Meters of 25mm or
1" (inch) or smaller are Sound Engineering Practice (SEP).

Installation and Operation Manual
X-VA-1305-1306-eng-eu
PN 541-C-029-AAG
April, 2008 Models GT 1305 & 1306
3
Dear Customer,
We appreciate this opportunity to service your ow measurement and control requirements with a Brooks
Instrument device. Every day, ow customers all over the world turn to Brooks Instrument for solutions to their
gas and liquid low-ow applications. Brooks provides an array of ow measurement and control products for
various industries from biopharmaceuticals, oil and gas, fuel cell research and chemicals, to medical devices,
analytical instrumentation, semiconductor manufacturing, and more.
The Brooks product you have just received is of the highest quality available, offering superior performance,
reliability and value to the user. It is designed with the ever changing process conditions, accuracy requirements
and hostile process environments in mind to provide you with a lifetime of dependable service.
We recommend that you read this manual in its entirety. Should you require any additional information concerning
Brooks products and services, please contact your local Brooks Sales and Service Ofce listed on the back cover
of this manual or visit www.BrooksInstrument.com
Yours sincerely,
Brooks Instrument
Do not operate unless all windows
and fasteners are securely
installed.
Remove from service to repair.
Do not attempt any repairs while
pressurized.
Do not operate above rated
pressure and temperature.
Pressure surges must be avoided.
Read instruction manual before
operation, installation or service.

Installation and Operation Manual
X-VA-1305-1306-eng-eu
PN 541-C-029-AAG
April, 2008
Models GT 1305 & 1306
4
Section 1 Introduction
1-1 Description .......................................................................................................................................... 5
1-2 Specications ...................................................................................................................................... 5
1-3 Capacity tables .................................................................................................................................. 6
1-4 Optional Equipment ............................................................................................................................ 7
Section 2: Installation
2-1 General ............................................................................................................................................... 8
2-2 Return of equipment ........................................................................................................................... 8
2-3 Recommended storage practice.......................................................................................................... 8
2-4 Return shipment................................................................................................................................... 9
2-5 Transit precautions............................................................................................................................... 9
2-6 Installation ......................................................................................................................................... 10
Section 3: Operation
3-1 Start-up ............................................................................................................................................. 11
3-2 Reading the ow rate ........................................................................................................................ 11
Section 4: Maintenance
4-1 General ............................................................................................................................................. 12
4-2 Service information ........................................................................................................................... 13

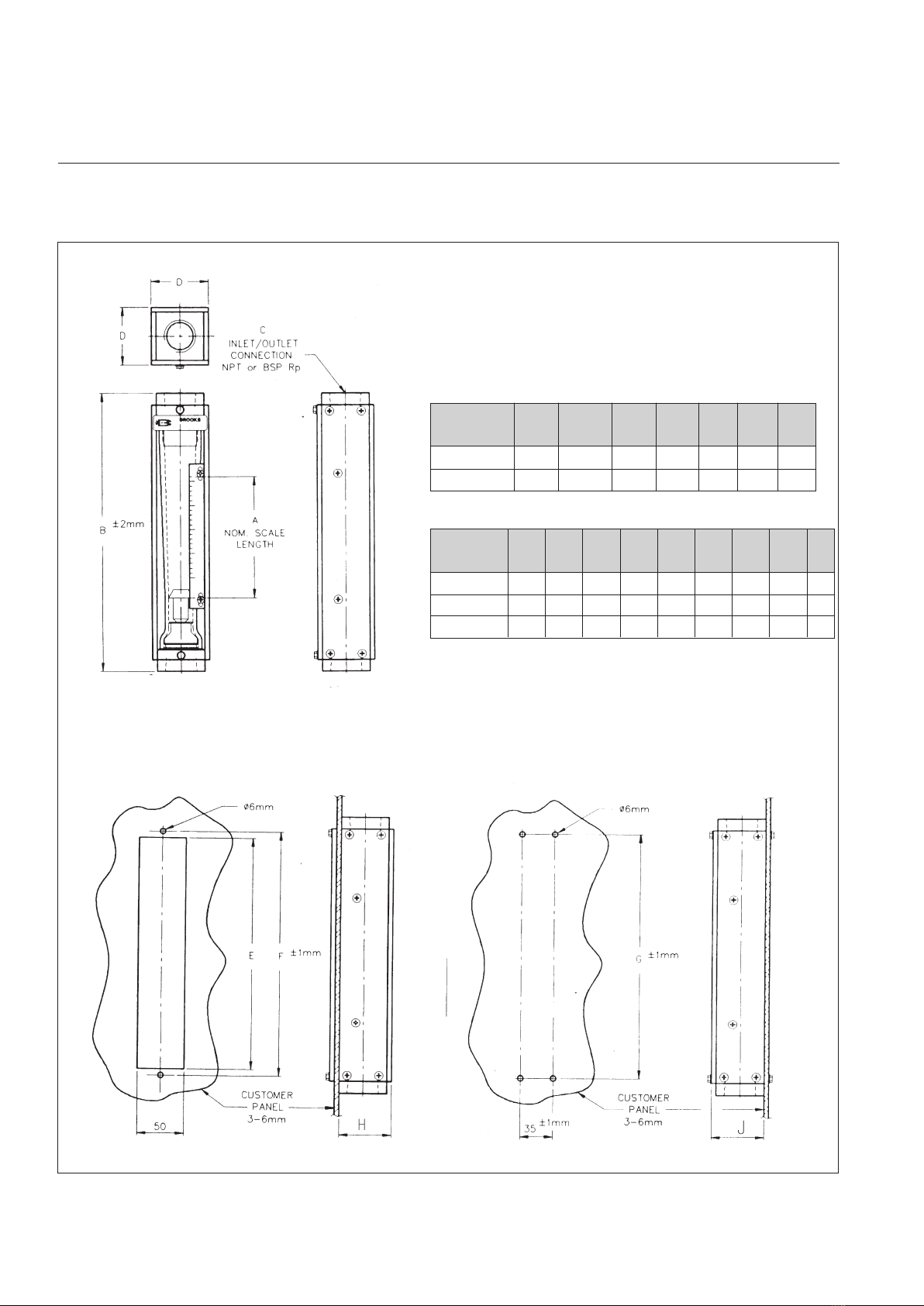

Section 5: Dimensional Drawings ........................................................................................................................ 14
Section 6: Exploded Views/Parts Lists ............................................................................................................ 15/16
Section 7: Model Listing/Ordering Information ..................................................................................................... 17
Contents

Installation and Operation Manual
X-VA-1305-1306-eng-eu
PN 541-C-029-AAG
April, 2008 Models GT 1305 & 1306
5
Section 1: Introduction
1-1 Description
The GT 1305 and GT 1306 owmeters are low cost instruments intended
for general metering installations where the operating pressure is within the
limitations imposed by the use of borosilicate glass metering tubes. The
instruments can be supplied with brass or 316SS female threaded end ttings.
1-2 Specications
Performance
Accuracy
classication GT 1305
• Standard Class 6 acc VDE/VDI 3513
• Optional Class 4 acc VDE/VDI 3513
GT 1306
• Standard Class 2.5 acc VDE/VDI 3513
• Optional Class 1.6 acc VDE/VDI 3513
Repeatability ±0.5 %
Scale length GT 1305 75 mm
GT 1306 127 mm
Materials of construction
End ttings Brass or 316 SS, tted in aluminium collar
Metering
tubes Borosilicate glass
Floats #7-1306 Glass, 316 SS or Monel
#8-1305 PPL, Ertacital, Glass, or 316 SS
#10-1305 316 SS
#8/10-1306 316 SS
O-ring seals Viton, Buna or Kalrez
Side plates Aluminum
Scale type • Standard Millimeter or percent of maximum ow
etched on metering tube
• Optional Direct reading engraved on a detachable
aluminum plate
Ratings
WARNING:Do not operate this instrument in excess of the specications
listed above. Failure to heed warning may result in serious personal
injury or damage to equipment.
Section 1 Introduction
Meter Max. pressure at Max. size Pressure
size 90°C(bar) temperature reduction
°C above 90 °C
GT1305 GT1306 bar/°C
7 - 24 120 0.093
8 13.8 20.7 120 0.093
10 8.9 6.9 120 0.056

Installation and Operation Manual
X-VA-1305-1306-eng-eu
PN 541-C-029-AAG
April, 2008
Models GT 1305 & 1306
6
1-3 Capacity Tables
Table 1 Flow ranges for GT 1305
SIZE TUBE TYPE FLOAT MODEL WATER V.I.C.2) AIR
CODE l/h ∆P(kPa) cSt m3n/h ∆P (kPa)
min. max. min. max. at max
8 R-8M-75-1 PPL C7 - - - - 0.41 4.1 0.32
Ertacital C8 - - - - 0.52 5.2 0.50
Glass C1 19 190 0.80 1 0.75 7.5 0.90
316 SS C3 42 420 2.60 1 1.36 13.6 2.90
8 R-8M-75-1 8-RV-2 CA 20 110 0.35 1.2 0.6 3.4 0.38
8-RV-3 CB 30 160 0.53 3 0.8 5.0 0.61
8-RV-8 CC 40 250 1.28 4 1.2 7.5 1.36
8-RS-8 CD 50 320 1.82 2 1.4 9.7 1.98
8-RV-14 CE 100 320 2.05 9 2.6 9.7 2.30
8-RS-14 CF 110 390 3.00 3 3.4 12.0 3.27
8-HF-23* CG 160 680 7.70 2 5.0 21.0 8.29
10 R-10M-75-3 10-RV-15 FA 100 660 4.40 12 3.0 23.0 0.48
10-RV-30 FB 140 960 9.30 13 4.0 30.0 1.04
10-RV-64 FC 400 1490 2.30 24 14.0 46.0 2.50
10-RS-64 FD 600 1900 3.05 5 18.0 58.0 3.15
10-HF-133* FE 1400 3580 8.36 8 40.0 108.0 8.66
Table 2 Flow Ranges For GT 1306
SIZE TUBE TYPE FLOAT MODEL WATER V.I.C.2) AIR
CODE l/h ∆P(kPa) cSt m3n/h ∆P (kPa)
7 R-7M-127-1F Glass A1 31 0.25 1 1.20 0.25
316 SS A3 73 0.75 1 2.30 0.75
Monel A6 74 0.75 1 2.40 0.75
8 R-8M-127-4F 8-RV-2 DA 110 0.50 1.2 3.3 0.50
8-RV-3 DB 160 0.50 3 4.8 0.75
8-RV-8 DC 225 1.25 4 6.9 1.50
8-RS-8 DD 300 2.00 2 9.0 2.00
8-RV-14 DE 310 2.00 7 9.1 2.50
8-RS-14 DF 380 3.00 3 11.0 3.25
8-RV-31* DG 430 6.00 7 12.0 7.00
8-RS-31* DH 480 8.25 3 15.5 9.25
10 R-10M-127-3F 10-RV-15 GA 615 0.50 12 18.5 0.50
10-RV-30 GB 845 1.00 13 25.5 1.00
10-RV-64 GC 1385 2.25 20 42.0 2.50
10-RS-64 GD 1725 3.00 5 52.5 3.25
10-RV-138* GE 1785 5.75 23 52.5 6.50
10-RS-138* GF 2205 7.25 5 66.0 8.25
* These oats are not recommended for gas service unless downstream operating pressure exceeds 2 bar gauge.
1 The capacities stated are based on 316 SS oats unless otherwise indicated.
2 Viscosity Immunity Ceiling.
3 Air ows are given at 1 bar abs. and 0°C when the meter is operated at 20°C and 1 bar abs.
Section 1 Introduction

Installation and Operation Manual
X-VA-1305-1306-eng-eu
PN 541-C-029-AAG
April, 2008 Models GT 1305 & 1306
7
1-4 Optional Equipment
Screwed-in needle valves
Needle Valves in brass and 316 SS can be mounted to the instrument in inlet
or outlet tting.
We strongly advise not to use solenoid-valves as these can cause pressure
shocks and damage to glass tubes.
Screwed-in ow controllers
Brooks self-contained ow controllers are constant differential regulators
with built-in ow control needle valve. The internal diaphragm-actuated
control valve is positioned by the incoming uid pressure on one side of the
diaphragm, and outlet pressure + spring action on the other side. Variations
in the supply and/or discharge pressure disturb the balance of forces on the
diaphragm, causing the control valve to close or to open, thus maintaining
a xed differential across the manual ow regulating valve. The series 8800
controllers are designed for all liquid and gas ows with constant downstream
pressure. Series 8900 controllers are designed for all liquids and gas ows
with constant upstream pressure.
Section 1 Introduction

Installation and Operation Manual
X-VA-1305-1306-eng-eu
PN 541-C-029-AAG
April, 2008
Models GT 1305 & 1306
8
Section 2: Installation
2-1 General
This section contains the procedures for the receipt and installation of the
instrument. See Section 1 for dimensional and connection requirements. Do
not attempt to start the system until the instrument has been permanently
installed. It is important that the start-up procedures be followed in the exact
sequence presented.
2-2 Receipt of Equipment
When the instrument is received, the outside packing case should be checked
for damage incurred during shipment. If the packing case is damaged, the
local carrier should be notied at once regarding his liability.
A report should be submitted to your nearest Product Service Department.
Brooks Instrument
407 W. Vine Street
P.O. Box 903
Hateld, PA 19440 USA
Toll Free (888) 554-FLOW (3569)
Tel [phone]
Fax [phone]
E-mail: [email protected]
www.BrooksInstrument.com
Brooks Instrument Brooks Instrument
Neonstraat 3 1-4-4 Kitasuna Koto-Ku
6718 WX Ede, Netherlands Tokyo, 136-0073 Japan
P.O. Box 428 Tel [phone]
6710 BK Ede, Netherlands Fax [phone]
Tel [phone] Email: BrooksA[email protected]
Fax [phone]
E-mail: [email protected]
Remove the envelope containing the packing list. Carefully remove the
instrument from the packing case. Make sure spare parts are not discarded
with the packing materials. Inspect for damaged or missing parts.
2-3 Recommended Storage Practice
If intermediate or long-term storage of equipment is required, it is
recommended that the equipment be stored in accordance with the following
conditions:
a. Within the original shipping container.
b. Stored in a sheltered area, preferably a warm, dry, heated warehouse.
c. Ambient temperature 21°C (70°F) nominal, 32°C (90°F) maximum, 45°F
(7°C) minimum.
d. Relative humidity 45% nominal, 60% maximum, 25% minimum.
Section 2 Installation

Installation and Operation Manual
X-VA-1305-1306-eng-eu
PN 541-C-029-AAG
April, 2008 Models GT 1305 & 1306
9
2-4 Return Shipment
Prior to returning any instrument to the factory visit the Brooks website www.
BrooksInstrument.com for a Return Materials Authorization Number (RMA#),
or contact one of the following locations:
Brooks Instrument
407 W. Vine Street
P.O. Box 903
Hateld, PA 19440 USA
Toll Free (888) 554-FLOW (3569)
Tel [phone]
Fax [phone]
E-mail: [email protected]
www.BrooksInstrument.com
Brooks Instrument Brooks Instrument
Neonstraat 3 1-4-4 Kitasuna Koto-Ku
6718 WX Ede, Netherlands Tokyo, 136-0073 Japan
P.O. Box 428 Tel [phone]
6710 BK Ede, Netherlands Fax [phone]
Tel [phone] Email: BrooksA[email protected]
Fax [phone]
E-mail: [email protected]
Instrument must have been purged in accordance with the following:
All ow instruments returned to Brooks requires completion of Form
RPR003-1, Brooks Instrument Decontamination Statement, along with a
Material Safety Data Sheet (MSDS) for the uid(s) used in the instrument.
Failure to provide this information will delay processing by Brooks personnel.
Copies of these forms can be downloaded from the Brooks website www.
BrooksInstrument.com or are available from any Brooks Instrument location
listed above.
2-5 Transit Precautions
To safeguard the instrument against transportation damage, it is
recommended to keep the instrument in its factory container until ready for
installation.
Section 2 Installation
Warning
Before returning the device purge thoroughly with a dry inert gas such as Nitrogen
before disconnecting gas connections. Failure to correctly purge the instrument
could result in re, explosion or death. Corrosion or contamination may occur
upon exposure to air.

Installation and Operation Manual
X-VA-1305-1306-eng-eu
PN 541-C-029-AAG
April, 2008
Models GT 1305 & 1306
10
2-6 Installation
The model GT 1300 can be installed as follows:
a Carefully remove any material which could have been used to protect the
instrument for damage during shipping.
b The indicator must be installed with the inlet at the bottom and the outlet
at the top, and must be installed as near vertical as possible to maintain
indicator accuracy.
c It is strongly recommended to install a by-pass piping arrangement around
the meter. By-pass piping permits the meter to be isolated from the low line
for servicing or cleaning.
Drawing vertical/horizontal line with by-pass piping
Section 2 Installation

Installation and Operation Manual
X-VA-1305-1306-eng-eu
PN 541-C-029-AAG
April, 2008 Models GT 1305 & 1306
11
Section3: Operation
3-1 Start-Up
After the owmeter has been properly installed in the process, it is ready for
operation. When initiating ow, slowly open the valve to avoid a ow surge.
By-pass is a help in bringing the ow on smoothly. Avoid starting a pump to
supply the owmeter without the use of a valve upstream of the owmeter.
3-2 Reading the ow rate
Rate of ow is indicated by reading the increments, etched on the scale,
mounted adjacent to the metering edge of the oat.
Type of oats with reading edges
Section 3 Operation

Installation and Operation Manual
X-VA-1305-1306-eng-eu
PN 541-C-029-AAG
April, 2008
Models GT 1305 & 1306
12
Section 4: Maintenance
4-1 General
There is no routine maintenance to be performed on the GT 1300 glass tube
owmeter. If meter operation is affected by defective parts, refer to Section 5,
Parts Lists for available replacement parts. No instructions are required for the
assembly or disassembly of either model since the procedures are self-evident.
Model 1306 owmeters require little maintenance except routine cleaning.
It is neccessarry to remove the owmeter from the line for tube and oat
cleasing. The tube and oat may be cleaned with a soft absorbent swab. To
disassemble the owmeter proceed as follows:
a. Remove the front and rear window shields.
b. Remove four (4) screwa connecting the bottom end tting to the side plate.
c. Carefully pull the end tting and tube away from the side plates and top
tting. DO NOT cock the tube when removing it from the top tting.
d. Remove the polycarbonate sleeve surrounding the ow tube.
e. Remove the oat from the tube.
f. Using a suitable solvent, carefully swab and ush the inside of the metering
tube. Clean the oat and blow dry all parts thoroughly.
Section 4 Maintenance
Warning
Products in this manual may obtain metal or elastomeric seals, gaskets, O-rings or
valve seats. It is the "user's" responsability to select materials that are compatible
with their process and process conditions. Using materials that are not compatible
with the process or process conditions could result in the Meter or Controller
leaking process uid outside the pressure boundary of the device, resulting in
personnel injury or death.
It is recommended that the user check the Meter or Controller on a regular schedule
to ensure that it is leak free as both metal and elastomeric seals, gaskets, O-rings
and valve seats may change with age, exposure to process uid, temperature,
and/or pressure.
METER / CONTROLLER
SEAL COMPTABILITY
Caution
Do not allow the oat to fall out of the metering tube. A damaged oat will affect
the accuracy of the meter. Be careful not to break the tube by pulling on it at an
extreme angle or apllying excessive force.

Installation and Operation Manual
X-VA-1305-1306-eng-eu
PN 541-C-029-AAG
April, 2008 Models GT 1305 & 1306
13
Reassemble the owmeter as follows:
a. Carefully install the oat in the tube with the metering edge up.
b. Carefully hold the tube (with oat installed), sleeve, and end tting, and
push the tube into the top tting.
c. Tighten the four (4) side plate screws in place.
d. Install the front and rear windows.
4-2 Service information
Should the equipment require repair, contact the nearest sales/service ofce.
It is important that servicing is performed only by trained and qualied service
personnel. If the equipment is not properly serviced, serious personal injury
and/or damage to the equipment could result.
Section 4 Maintenance
Notice
Anytime the meter is removed for service, new O-rings should be installed in
both the inlet and outlet end tting.
Warning
Pressure test the meter before returning it to service. Hydrostatic pressure testing
should be performed by qualied personnel or serious injury and/or damage to
the equipment can result.

Installation and Operation Manual
X-VA-1305-1306-eng-eu
PN 541-C-029-AAG
April, 2008
Models GT 1305 & 1306
14
Section 5: Dimensional drawings
MODEL GT 1306
METER
SIZE A B C D E F G H J
SIZE 7 127 300 1/2” 60 250 264 261 55 55
SIZE 8 127 300 1/2” 60 250 264 261 55 55
SIZE 10 127 300 1” 66 250 264 261 58 57
PANEL CUT OUT FOR BACK PANEL MOUNTING PANEL CUT OUT FOR FRONT PANEL MOUNTING
MODEL GT 1305
METER
SIZE A B C D E F G
SIZE 8 75 197 1/2” 60 150 162 160
SIZE 10 75 197 1” 60 150 162 160
Section 5 Dimensional drawings

Installation and Operation Manual
X-VA-1305-1306-eng-eu
PN 541-C-029-AAG
April, 2008 Models GT 1305 & 1306
15
Section 6: Exploded view and parts lists
Section 6 Exploded view and part lists

Installation and Operation Manual
X-VA-1305-1306-eng-eu
PN 541-C-029-AAG
April, 2008
Models GT 1305 & 1306
16
Pos. Qty Part number Description
1* 1 925-H-062-WAA TUBE R-7M-127-1F PLAIN
1* 1 925-H-094-WAA TUBE R-7M-127-1F/MM DECAL
1* 1 925-H-095-WAA TUBE R-7M-127-1F/
PERCENT DECAL
1* 1 925-J-008-WAA TUBE R-8M-75-1 PLAIN
1* 1 925-J-115-WAA TUBE R-8M-127-4F PLAIN
1* 1 925-J-349-WAA TUBE R-8M-127-4F/PERCENT
DECAL
1* 1 925-J-407-WAA TUBE R-8M-127-4F/MM DECAL
1* 1 925-J-408-WAA TUBE R-8M-75-1/MM DECAL
1* 1 925-J-409-WAA TUBE R-8M-75-1/PERCENT
DECAL
1* 1 925-L-006-WAA TUBE R-10M-75-3 PLAIN
1* 1 925-L-067-WAA TUBE R-10M-127-3F PLAIN
1* 1 925-L-142-WAA TUBE R-10M-127-3F/PERCENT
DECAL
1* 1 925-L-143-WAA TUBE R-10M-127-3F/MM
DECAL
1* 1 925-L-145-WAA TUBE R-10M-75-3/MM DECAL
1* 1 925-L-146-WAA TUBE R-10M-75-3/PERCENT
DECAL
2* 1 345-H-001-BMA 316 SS BALL FLOAT (3/8”)
2* 1 345-H-002-WYA GLASS BALL FLOAT (3/8”)
2* 1 345-H-016-DBA MONEL BALL FLOAT (3/8”)
2* 1 345-Z-030-WYA GLASS BALL FLOAT (1/2”)
2* 1 345-Z-031-BMA 316 SS BALL FLOAT (1/2”)
2* 1 345-Z-035-PAJ PPL BALL FLOAT (1/2”)
2* 1 345-Z-036-PGG ERTACITAL BALL FLOAT (1/2”)
2* 1 346-B-001-BNA 8-RV-3, 316 SS FLOAT
2* 1 346-B-034-BMA 8-HF-23, 316 SS FLOAT
2* 1 346-B-049-BNA 8-RV-31, 316 SS FLOAT
2* 1 346-B-050-BNA 8-RS-31, 316 SS FLOAT
2* 1 346-B-148-BNA 8-RV-8, 316 SS FLOAT
2* 1 346-B-149-BNA 8-RV-14, 316 SS FLOAT
2* 1 346-B-154-BNA 8-RS-8, 316 SS FLOAT
2* 1 346-B-155-BNA 8-RS-14, 316 SS FLOAT
2* 1 346-B-205-BNA 8-RV-2, 316 SS FLOAT
2* 1 346-D-025-BMA 10-RV-15, 316 SS FLOAT
2* 1 346-D-027-BMA 10-RV-30, 316 SS FLOAT
2* 1 346-D-031-BMA 10-HF-133, 316 SS FLOAT
2* 1 346-D-145-BMA 10-RV-64, 316 SS FLOAT
2* 1 346-D-146-BMA 10-RV-138, 316 SS FLOAT
2* 1 346-D-149-BMA 10-RS-64, 316 SS FLOAT
2* 1 346-D-150-BMA 10-RS-138, 316 SS FLOAT
3* 1 846-Z-086-QMA INLET FLOAT STOP # 10
3* 1 846-Z-087-QMA INLET FLOAT STOP # 7
3* 1 846-Z-088-QMA INLET FLOAT STOP # 8
4* 1 846-Z-091-QMA OUTLET FLOAT STOP #7
4* 1 846-Z-092-QMA OUTLET FLOAT STOP #8
4* 1 846-Z-093-QMA OUTLET FLOAT STOP #10
Pos. Qty Part number Description
5* 2 375-B-012-QTA VITON O-RING # 7
5* 2 375-B-012-SUA BUNA O-RING # 7
5* 2 375-B-012-TTA KALREZ O-RING # 7
5* 2 375-B-113-QTA VITON O-RING # 8
5* 2 375-B-113-SUA BUNA O-RING # 8
5* 2 375-B-113-TTA KALREZ O-RING # 8
5* 2 375-B-217-QTA VITON O-RING # 10
5* 2 375-B-217-SUA BUNA O-RING # 10
5* 2 375-B-217-TTA KALREZ O-RING # 10
6* 2 375-C-085-VAA TUBE SEAT GASKET # 7
6* 2 375-C-537-VAA TUBE SEAT GASKET # 8
6* 2 375-C-538-VAA TUBE SEAT GASKET # 10
32 1 794-E-008-NZA Protective Sleeve
# 7-8 1306
32 1 794-K-009-NZA Protective Sleeve
#10 1306
Parts list GT 1300
Section 6 Exploded view and part lists

Installation and Operation Manual
X-VA-1305-1306-eng-eu
PN 541-C-029-AAG
April, 2008 Models GT 1305 & 1306
17
Section 7: Model listing/ordering information
How to order:
Please describe: 1 Model Number
2 Quantity required
3 Minimum, normal and maximum ow rate
4 Process uid, density and viscosity at operating conditions
5 Minimum, normal and maximum operating temperature and pressure
6 Scale inscription
7 Accessories required, i.e. ow controller
BASE MODEL NO. DESCRIPTION
1305/A O-ring seal flowmeter, scale length 75 mm
1306/B O-ring seal flowmeter, scale length 127 mm
CODE TUBE TYPE
* To be selected from the flow range table
CODE FLOAT TYPE
* To be selected from the flow range table
CODE FITTING MATERIAL
1 Brass
2 316 SS
CODE O-RING MATERIAL
1 Viton
2 Buna
3 Kalrez
CODE CONNECTION TYPE
1 NPT
2 BSP
CODE SCALE TYPE
A mm Decal + cal. curve, Class 6 (GT 1305 only)
B mm Decal + cal. curve, Class 4 (GT 1305 only)
C mm Decal + cal. curve, Class 2.5 (GT 1306 only)
D mm Decal + cal. curve, Class 1.6 (GT 1306 only)
E % Decal + factor, Class 6 (GT 1305 only)
F % Scale + factor, Class 4 (GT 1305 only)
G % Decal + factor, Class 2.5 (GT 1306 only)
H % Scale + factor, Class 1.6 (GT 1306 only)
J DR scale, Class 6 (GT 1305 only)
K DR scale, Class 4 (GT 1305 only)
L DR scale, Class 2.5 (GT 1306 only)
M DR scale, Class 1.6 (GT 1306 only)
CODE PANEL MOUNTING
1 Long screws for front panel mounting
2 Long screws for back panel mounting
CODE VALVE
A ½” Brass needle valve on inlet
B ½” 316 SS needle valve on inlet
C 1” Brass needle valve on inlet
D 1” 316 SS needle valve on inlet
E ½” Brass needle valve on outlet
F ½” 316 SS needle valve on outlet
G 1” Brass needle valve on outlet
H 1” 316 SS needle valve on outlet
1305/A * * 1 1 1 A 1 A Typical model number
Section 7 Model listing/ordering information

18
This page was intentionally left blank

19
This page was intentionally left blank

Installation and Operation Manual
X-VA-1305-1306-eng-eu
PN 541-C-029-AAG
April, 2008
Models GT 1305 & 1306
20
E-Mail [email protected]
www.BrooksInstrument.com
E-Mail [email protected] E-Mail [email protected]
TRADEMARKS
Brooks ...................................................... Brooks Instrument, LLC.
BUNA ..... ................................................. DuPont Dow Elastomers
Kalrez ....................................................... DuPont Dow Elastomers
Teon .............................................. E.I. DuPont de Nemours & Co.
Viton ............................................DuPont Performance Elastomers
LIMITED WARRANTY
Seller warrants that the Goods manufactured by Seller will be free from defects in materials or workmanship under normal use
and service and that the Software will execute the programming instructions provided by Seller until the expiration of the earlier of
twelve (12) months from the date of initial installation or eighteen (18) months from the date of shipment by Seller.
Products purchased by Seller from a third party for resale to Buyer (“Resale Products”) shall carry only the warranty extended by
the original manufacturer.
All replacements or repairs necessitated by inadequate preventive maintenance, or by normal wear and usage, or by fault of
Buyer, or by unsuitable power sources or by attack or deterioration under unsuitable environmental conditions, or by abuse,
accident, alteration, misuse, improper installation, modication, repair, storage or handling, or any other cause not the fault of
Seller are not covered by this limited warranty, and shall be at Buyer’s expense.
Goods repaired and parts replaced during the warranty period shall be in warranty for the remainder of the original warranty
period or ninety (90) days, whichever is longer. This limited warranty is the only warranty made by Seller and can be amended
only in a writing signed by an authorized representative of Seller.
BROOKS SERVICE AND SUPPORT
Brooks is committed to assuring all of our customers receive the ideal ow solution for their application, along with outstanding
service and support to back it up. We operate rst class repair facilities located around the world to provide rapid response
and support. Each location utilizes primary standard calibration equipment to ensure accuracy and reliability for repairs and
recalibration. The primary standard calibration equipment to calibrate our ow products is certied by our local Weights and
Measures Authorities and traceable to the relevant International Standards.
Visit www.BrooksInstrument.com to locate the service location nearest to you.
START-UP SERVICE AND IN-SITU CALIBRATION
Brooks Instrument can provide start-up service prior to operation when required.
For some process applications, where ISO-9001 Quality Certication is important, it is mandatory to verify and/or (re)calibrate the
products periodically. In many cases this service can be provided under in-situ conditions, and the results will be traceable to the
relevant international quality standards.
CUSTOMER SEMINARS AND TRAINING
Brooks Instrument can provide customer seminars and dedicated training to engineers, end users and maintenance persons.
Please contact your nearest sales representative for more details.
HELP DESK
In case you need technical assistance:
Americas 1-888-554-FLOW
Europe +(31) 318 549 290 Within Netherlands 0318 549 290
Asia +011-81-3-5633-7100
Due to Brooks Instrument's commitment to continuous improvement of our products, all specications are subject to change
without notice.
