Brooks Instrument SolidSense II Series User manual

Installation & Operation Manual
SolidSense II® Series
Pressure Transducer

ESD (Electrostatic Discharge)
CAUTION: This instrument contains electronic components that are susceptible to damage by static electricity. Proper handling procedures must be observed
duringtheremoval,installationorotherhandlingof internal circuit boards or devices.
Handling Procedure:
1. Power to unit must be removed.
2. Personnel must be grounded, via a wrist strap or other safe, suitable means before any printed circuit card or other internal device is installed,
removed or adjusted.
3. Printed circuit cards must be transported in a conductive container. Boards must not be removed from protective enclosure until immediately before
installation. Removed boards must immediately be placed in protective container for transport, storage or return to factory.
Comments
This instrument is not unique in its content of ESD (electrostatic discharge) sensitive components. Most modern electronic designs contain components
that utilize metal oxide technology (NMOS, SMOS, etc.). Experience has proven that even small amounts of static electricity can damage or destroy these
devices. Damaged components, even though they appear to function properly, exhibit early failure.
Brooks Instrument designs, manufactures and tests its products to meet many national and international standards. These products must be properly
installed, operated and maintained to ensure they continue to operate within their normal specifications. The following instructions must be adhered to
and integrated into your safety program when installing, operating and maintaining Brooks Instrument products.
•To ensure proper performance, use qualified personnel to install, operate, update, program and maintain the product.
•Read all instructions prior to installing, operating and servicing the product. If this instruction manual is not the correct manual, please see back cover
for local sales office contact information. Save this instruction manual for future reference.
WARNING: Do not operate this instrument in excess of the specifications listed in the Instruction and Operation Manual. Failure to heed
this warning can result in serious personal injury and / or damage to the equipment.
•If you do not understand any of the instructions, contact your Brooks Instrument representative for clarification.
•Follow all warnings, cautions and instructions marked on and supplied with the product.
WARNING: Prior to installation ensure this instrument has the required approval ratings to meet local and national codes. Failure to heed this warning can
result in serious personal injury and / or damage to the equipment.
•Install your equipment as specified in the installation instructions of the appropriate instruction manual and per applicable local and national codes.
Connect all products to the proper electrical and pressure sources.
•Operation: (1) Slowly initiate flow into the system. Open process valves slowly to avoid flow surges. (2) Check for leaks around the flow meter inlet
and outlet connections. If no leaks are present, bring the system up to the operating pressure.
•Please make sure that the process line pressure is removed prior to service. When replacement parts are required, ensure that qualified people use
replacement parts specified by Brooks Instrument. Unauthorized parts and procedures can affect the product's performance and place the safe
operation of your process at risk. Look-alike substitutions may result in fire, electrical hazards or improper operation.
•Ensure that all equipment doors are closed and protective covers are in place to prevent electrical shock and personal injury, except when
maintenance is being performed by qualified persons.
WARNING: For liquid flow devices, if the inlet and outlet valves adjacent to the devices are to be closed for any reason, the devices must be completely
drained. Failure to do so may result in thermal expansion of the liquid that can rupture the device and may cause personal injury.
All pressure equipment with an internal pressure greater than 0.5 bar (g) and a size larger than 25mm or 1" (inch) falls under the Pressure Equipment Directive (PED).
•The Specifications Section of this manual contains instructions related to the PED directive.
•Products described in this manual are in compliance with EN directive 2014/34/EU.
•All Brooks Instrument Flowmeters fall under fluid group 1.
•Products larger than 25mm or 1" (inch) are in compliance with PED category I, II or III.
•Products of 25mm or 1" (inch) or smaller are Sound Engineering Practice (SEP).
The Brooks Instrument (electric/electronic) equipment bearing the CE mark has been successfully tested to the regulations of the Electro Magnetic
Compatibility (EMC directive 2014/30/EU).
Special attention however is required when selecting the signal cable to be used with CE marked equipment.
Quality of the signal cable, cable glands and connectors:
Brooks Instrument supplies high quality cable(s) which meets the specifications for CE certification.
If you provide your own signal cable you should use a cable which is overall completely screened with a 100% shield.
“D” or “Circular” type connectors used should be shielded with a metal shield. If applicable, metal cable glands must be used providing cable screen clamping.
The cable screen should be connected to the metal shell or gland and shielded at both ends over 360 Degrees.
The shield should be terminated to an earth ground.
Card Edge Connectors are standard non-metallic. The cables used must be screened with 100% shield to comply with CE certification.
The shield should be terminated to an earth ground.
For pin configuration : Please refer to the enclosed Instruction Manual.
European Pressure Equipment Directive (PED)
European Electromagnetic Compatibility (EMC)
Essential Instructions
Read before proceeding!

Content
Section 1 Introduction
Introduction......................................................................................................................................1
Intended Use...................................................................................................................................2
Notice and Caution Statements.......................................................................................................2
Product Description Code ...............................................................................................................2
SolidSense II Pressure Transducer Specifications..........................................................................5
Section 2 Installation
General............................................................................................................................................16
Receipt of Equipment......................................................................................................................16
Recommended Storage Practice ....................................................................................................16
Return Shipment .............................................................................................................................16
Transit Precautions .........................................................................................................................17
Removal from Storage ....................................................................................................................17
Mechanical Connections .................................................................................................................17
Electrical Connections.....................................................................................................................18
Installation Instructions - Non-Incendive Field Wiring .....................................................................21
Non-Incendive Field Wiring 4-20 mA...............................................................................................21
Non-Incendive Field Wiring 0-5 Vdc................................................................................................22
Zero Adjustment ..............................................................................................................................23
Zero Adjustment (SolidSense II Standard Pressure Transducers).................................................23
Zero Adjustment (ATEX SolidSense II Standard Pressure Transmitters Only) ...............................24
Integrated Display Operation...........................................................................................................24
Appendix A: Essential Instructions ............................................................................................................ A-1
Warranty, Local Sales/Service Contact Information ........................................................................Back Cover

Content
Figure Page
Number Number
1-1 SolidSense II Pressure Transducer Sample Configurations ...........................................................1
1-2 Dimensional Drawings - SolidSense II Series, SC: Surface Mount, 1.5” C-Seal ...........................7
1-3 Dimensional Drawings - SolidSense II Series, SM: Face Seal, Swivel, Male ................................7
1-4 Dimensional Drawings - SolidSense II Series, CS: Surface Mount, 1.125” C-Seal .......................8
1-5 Dimensional Drawings - SolidSense II Series, SF: Face Seal, Swivel, VCR, Female ...................8
1-6 Dimensional Drawings - SolidSense II Series, CH: 1.5” C-Seal, High Flow....................................9
1-7 Dimensional Drawings - SolidSense II Series, 4S: Tube Weld Stub, 1/4” OD ...............................9

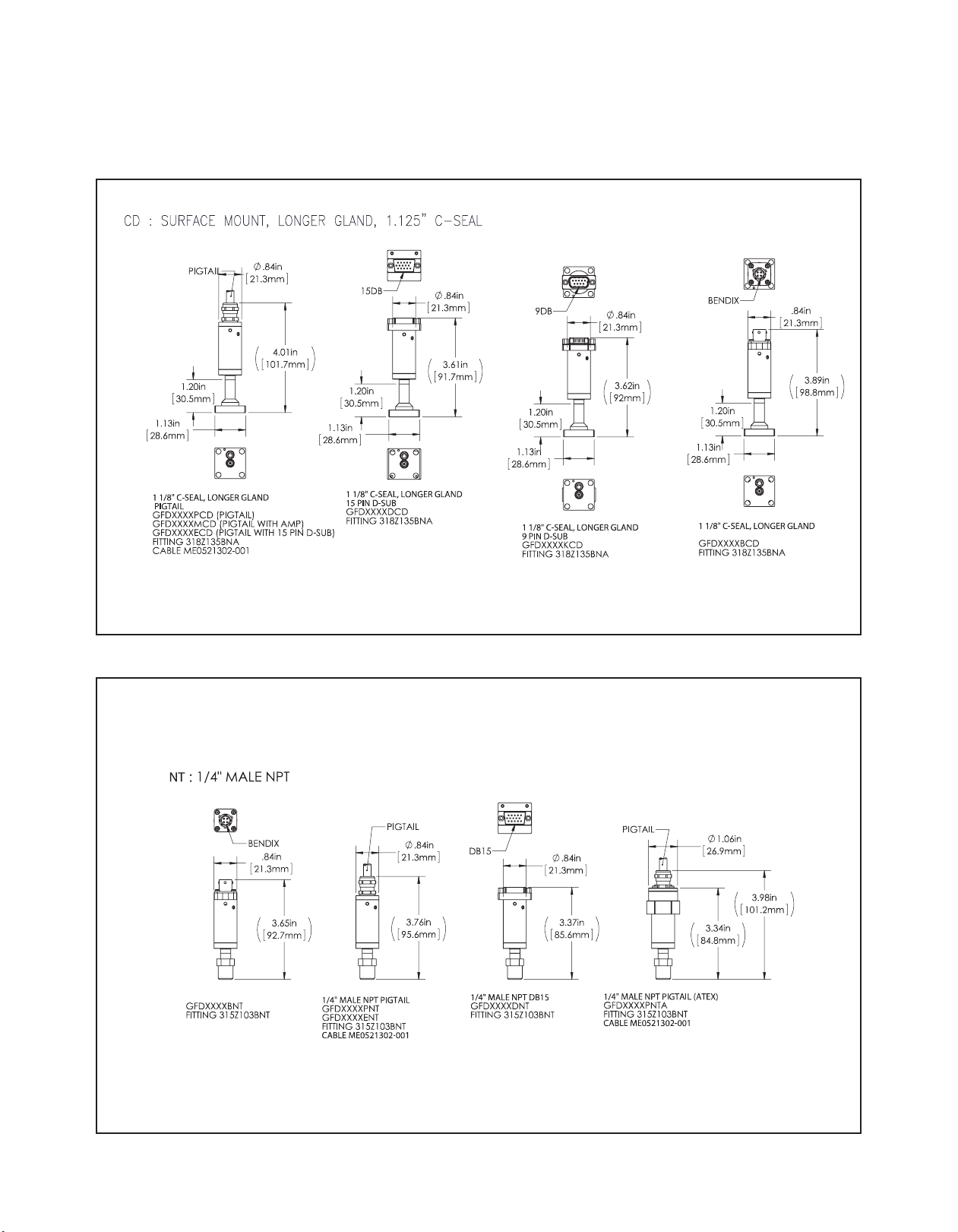

1-8 Dimensional Drawings - SolidSense II Series, CD: Surface Mount, Longer Gland, 1.125” C-Seal 10
1-9 Dimensional Drawings - SolidSense II Series, NT: 1/4” Male NPT ............................................... 10
1-10 Dimensional Drawings - SolidSense II Series, SM: Face Seal, Swivel Male .................................11
1-11 Dimensional Drawings - SolidSense II Series, VS: Face Seal, Fixed Male/Swivel Female ............11
1-12 Dimensional Drawings - SolidSense II Series, 4A: Micro-Fit Tee, 3/8” Branch X 1/4” Run.............12
1-13 Dimensional Drawings - SolidSense II Series, VM: Face Seal, Fixed Male....................................12
1-14 Dimensional Drawings - SolidSense II Series, Single End (GID) and Flow Through (GIF)
Integrated Display Models ..............................................................................................................14
1-15 Dimensional Drawings - SolidSense II ATEX Pressure Transmitter (Option)..................................15
2-1 4-20 mA Pinouts..............................................................................................................................19
2-2 Voltage Output Pinouts....................................................................................................................19
2-3a 4-20 mA Output Device Wiring to LR056 ........................................................................................20
2-3b Integrated Display Electrical Connections.......................................................................................20
2-4 Non-Incendive Field Wiring for 4-20 mA..........................................................................................21
2-5 Non-Incendive Field Wiring for 0-5 Vdc...........................................................................................22
2-6 Location of the Zero Adjustment Screw on the Standard SolidSense II Pressure Transducers .....23
2-7 Location of the Zero Adjustment Screw on the ATEX SolidSense II Pressure Transmitters ...........24
2-8 Proper Wrench/Leverage Points for SolidSense II Devices ............................................................24
2-9 Location of the Zero Adjustment Screw on the Integrated Display SolidSense II Pressure
Transmitters.....................................................................................................................................25
Table Page
Number Number
1-1 Optional Cables for SolidSense II - Standard..................................................................................1
1-2 Product Description Code for SolidSense II - Standard ..................................................................3
1-3 Product Description Code for SolidSense II - ATEX........................................................................4
1-4 Specifications ..................................................................................................................................5
2-1 Electrical Specifications - Minimum Resistance for Output Circuit..................................................1

Section 1 Introduction
This manual covers the Brooks®SolidSense II®Series pressure
transducers as shown in Figure 1-1 below. Included herein is general
information, operating specications, installation, removal instructions
and product warranty information.
This manual is organized into the following sections:
Section 1 - Introduction
Section 2 - Installation
Section A - Essential Instructions
Back Cover - Limited Warranty and Contacts
It is recommended that this manual be read in its entirety before
attempting to operate the Brooks SolidSense II Series devices.
Figure 1-1 SolidSense II Pressure Transducer Sample Congurations
SolidSense II® Series Pressure Transducer 07/2022
1

Section 1 Introduction
Intended Use
The Brooks SolidSense II Series pressure transducers meet the most rigid
semiconductor and industrial high purity application requirements. With
accuracy of 0.25% of full scale, SolidSense II pressure transducers are used
to provide years of reliable pressure monitoring in a variety of applications.
The SolidSense II Series pressure transducers have one of the smallest
footprints in the industry for quick and easy installation in the tightest areas.
Notice and Caution Statements
Warning, caution and notice statements are located throughout this manual
in the ANSI format.
A WARNING statement indicates a potentially hazardous situation which, if
not avoided, could result in death or serious injury.
A CAUTION statement indicates a potentially hazardous situation which, if
not avoided, MAY result in minor or moderate injury. It may also be used to
alert against unsafe practices.
A NOTICE statement describes specic information that requires special
attention.
Product Description Code
The following Product Description Code (PDC) identies the SolidSense II
pressure transducer in various congurations Reference Tables 1-1 thru 1-3.
This code is used to order your SolidSense II pressure transducer. Call your
Brooks Service and Support Representative if you need assistance.
Table 1-1 Optional Cables for SolidSense II - Standard
SolidSense II® Series Pressure Transducer 07/2022
2

Section 1 Introduction
Table 1-2 Product Description Code for SolidSense II - Standard
SampleSample
SampleSample
Sample
ModelCodeModelCode
ModelCodeModelCode
ModelCode
CodeDescriptionCodeDescription
CodeDescriptionCodeDescription
CodeDescription CodeOptionCodeOption
CodeOptionCodeOption
CodeOption OptionDescriptionOptionDescription
OptionDescriptionOptionDescription
OptionDescription
I.I.
I.I.
I. Base Model Code GFGF
GFGF
GF Pressure Transducer
GIGI
GIGI
GI Pressure Transducer with integrated display
II.II.
II.II.
II. Body Type DD
DD
DDeadEnd
FF
FF
FFlow Through
III.III.
III.III.
III. PSI 0000
0000
00 30
0101
0101
01 100
0202
0202
02 250
X2X2
X2X2
X2 235
0505
0505
05 500
1010
1010
10 1000
2525
2525
25 2500
3030
3030
30 3000
6060
6060
60 60
1515
1515
15 1500 Torr
IV.IV.
IV.IV.
IV. PressureReference AA
AA
AAbsolute, psi
CC
CC
CCompound, psi
GG
GG
GGauge, psi
BB
BB
BAbsolute, Bar
PP
PP
PCompound, Bar
SS
SS
SGauge, Bar
TT
TT
TAbsolute Torr
V.V.
V.V.
V. Output 33
33
30.00 to 10.00 Vdc
44
44
44to 20 mA
55
55
50.05 to 5.05 Vdc
66
66
60.2 to 5.2 Vdc
77
77
72to 10 Vdc
88
88
8No signal output (GI model with display only)
VI.VI.
VI.VI.
VI. ElectricalConnection GFF GFD GIF GID
AA
AA
A4ft Pigtail with AMP®Connector (3-pin) - Current Output Only
xx
BB
BB
BBendix®Connector xx
DD
DD
D15 Pin HD D-Sub Connector - Voltage Output Only xx
EE
EE
E9inch Pigtail with 15 Pin (Standard) D-Sub Connector - Voltage Output Only
xxxx
GG
GG
G4ft Pigtail with AMP ®Connector (4-pin) - Voltage Output Only
xx
HH
HH
H6inch Pigtail with Molex ®Connector
xx
KK
KK
K9-pin D-Sub - Voltage Output Only xx
LL
LL
L10 ft (3m) Pigtail
xxxx
MM
MM
M5inch(0.127m) Pigtail with AMP®Connector(4-pin) - Voltage Output Only
xx
NN
NN
N16.5 ft cable with Bendix®Type (Bayonet)
xxxx
PP
PP
P6ft (2m) Pigtail
xxxx
RR
RR
R8inch Pigtail with AMP®Connector (4-pin)
xx
SS
SS
S2m (79”) Pigtail with 9-Pin D Connector - Current Output Only xx
VV
VV
V18 inch Pigtail with 6-pin Molex®Connector
xx
WW
WW
W2inch Pigtail with AMP®Connector (4-pin) plus 1” strain relief (+/- 1/8”) at
xx
20° angle from bottom dead center
ZZ
ZZ
Z36 inch Pigtail ith Bendix®Connector (Bayonet)
xxxx
VII.VII.
VII.VII.
VII. Fittings GFF GFD GIF GID
4S*4S*
4S*4S*
4S* Tube Weld Stub 1/4”O.D. x
4T*4T*
4T*4T*
4T* Duncan T, 1/4” Tube Weld Stub x
CDCD
CDCD
CD Surface Mount,1.125” C-Seal, 0.5” longer gland
xx
CHCH
CHCH
CH Surface Mount, 1.5” C-Seal, High Flow K1H x
CSCS
CSCS
CS Surface Mount,1.125” C-Seal, Standard
xx
NTNT
NTNT
NT 1/4” NPT x
SCSC
SCSC
SC Surface Mount, 1.5” C-Seal x
SFSF
SFSF
SF Face Seal, swivel female
xxxx
SMSM
SMSM
SM Face Seal, swivel male
xxxx
VMVM
VMVM
VM Face Seal, xed male x x
VSVS
VSVS
VS Face Seal, xed male/swivel female on Duncan
Tx
II
II
IIIII
IIII
II IIIIII
IIIIII
III IVIV
IVIV
IV VV
VV
VVIVI
VIVI
VI VIIVII
VIIVII
VII
GFGF
GFGF
GF FF
FF
F0202
0202
02 CC
CC
C44
44
4PP
PP
PSFSF
SFSF
SF
* Tube stubs (4S and 4T) are not suitable for compression joint.
SolidSense II® Series Pressure Transducer 07/2022
3

Section 1 Introduction
Table 1-3 Product Description Code for SolidSense II - ATEX
Sample Model CodeSample Model Code
Sample Model CodeSample Model Code
Sample Model Code
II
II
IIIII
IIII
II IIIIII
IIIIII
III IVIV
IVIV
IV VV
VV
VVIVI
VIVI
VI VIIVII
VIIVII
VII VIIIVIII
VIIIVIII
VIII
GFGF
GFGF
GF FF
FF
F0202
0202
02 CC
CC
C44
44
4PP
PP
PSFSF
SFSF
SF AA
AA
A
Code DescriptionCode Description
Code DescriptionCode Description
Code Description Code OptionCode Option
Code OptionCode Option
Code Option Option DescriptionOption Description
Option DescriptionOption Description
Option Description
I.I.
I.I.
I. Base Model Code GFGF
GFGF
GF Pressure Transducer
II.II.
II.II.
II. Body Type DD
DD
DDead End
FF
FF
FFlow Through
III.III.
III.III.
III. PSI 0000
0000
00 30
0101
0101
01 100
0202
0202
02 250
0505
0505
05 500
1010
1010
10 1000
2525
2525
25 2500
3030
3030
30 3000
1515
1515
15 1500 Torr
IV.IV.
IV.IV.
IV. Pressure Reference AA
AA
AAbsolute, psi
CC
CC
CCompound,psi
GG
GG
GGauge, psi
BB
BB
BAbsolute, Bar
PP
PP
PCompound, Bar
SS
SS
SGauge, Bar
TT
TT
TTorr
V.V.
V.V.
V. Output 44
44
44to 20 mA
55
55
50.05 to 5.05 Vdc
VI.VI.
VI.VI.
VI. Electrical Connection PP
PP
P2m Pigtail
LL
LL
L3m Pigtail
EE
EE
E9inch Pigtail w/15-pin (standard) D-sub Connectors
NN
NN
N16.5 foot cable with Bendix®Type (Bayonet)
VII.VII.
VII.VII.
VII. Fittings 4S4S
4S4S
4S Tube Weld Stub 1/4” O.D. (GFD Only)*
CSCS
CSCS
CS Surface Mount, 1.125” C-Seal, Standard (GFD Only)
CHCH
CHCH
CH Surface Mount, 1.5” C-Seal, High Flow K1H (GFD Only)
SCSC
SCSC
SC Surface Mount, 1.5” C-Seal (GFD Only)
NTNT
NTNT
NT 1/4” NPT (GFD only)
VMVM
VMVM
VM Face Seal, fixed male (x2 on Duncan T for GFF)
VSVS
VSVS
VS Face Seal, fixed male/swivel female on Duncan T (GFF Only)
SMSM
SMSM
SM Face Seal, swivel male (x2 on Duncan T for GFF)
SFSF
SFSF
SF Face Seal, swivel female (x2 on Duncan T for GFF)
4T4T
4T4T
4T Duncan T, 1/4” Tube Weld Stub (GFF Only)*
VIII.VIII.
VIII.VIII.
VIII.Explosion Proof AA
AA
AFM and ATEX approved
* Tube stubs (4S and 4T) are not suitable for compression joint.
SolidSense II® Series Pressure Transducer 07/2022
4
Specications continued on next page.

Section 1 Introduction
SolidSense II Pressure Transducer Speci ications
Performance Non-Display Version Display Version
Temperature:
Operating: -20OF to 180OF (-29OC to 82OC) -20°F to 140°F (-29°C to 60°C)
Storage: -40OF to 180OF (-40OC to 82OC) -40°F to 167°F (-40°C to 75°C)
Compensated: -4OF to 140OF (-20OC to 60OC) / 68OF to 140OF (20OC to 60OC) 0-10 Vdc version
Burst Pressure: 400% full scale
Proof Pressure: 200% full scale up to 2,000 psi, 150% full scale for higher ranges
Accuracy: 0.25% full scale (BFSL)
Response Time: < 5 msec
Zero and Span Temperature
Coecient (each):
>100 PSI Ranges Full Scale: +0.02% full scale/OF (-4OF to 140OF, -20OC to 60OC)
+0.50% full scale (68OF to 140OF, 20OC to 60OC) 0 to 10 Vdc version
<100 PSI Ranges Full Scale: +0.04% full scale/OF (-4OF to 140OF, -20OC to 60OC)
+1.00% full scale (68OF to 140OF, 20OC to 60OC) 0 to 10 Vdc version
Mechanical
Housing: Stainless steel, polymer plastics
Wetted Parts: VIM-VAR 316L stainless steel, SEMI F20
Surface Finish: Compliant with SEMI F19
Cleanliness: Compliant to ASTM F1374-92 (2005)
Internal Volume: 1.79cc
Process Connections: (See Product Congurations for available options)
Approximate Shipping Weight: 0.70 lb. (0.32 kg)
Electrical Non-Display Version Display Version
Supply Current: Max. 10 mA Max. 30 mA
Power Requirements: 10 to 30 Vdc for 4 to 20 mA output 15 to 30 Vdc for 4 to 20 mA output and no signal output
11 to 30 Vdc for 0 to 5 Vdc output 11 to 30 Vdc for 0 to 5 Vdc output
13 to 32 Vdc for 0 to 10 Vdc output 13 to 30 Vdc for 0 to 10 Vdc output
Electrical Connections: Code B Bendix®connector
(See Tables 1-1 & 1-2 for Code P Pigtail 6 ft long
full list) Code D 15-pin HD D-sub connector
Code K 9-pin D-sub
Code A 4 ft pigtail with AMP®connector (3 pin)
Code G 4 ft pigtail with AMP®connector (4 pin)
Code H 6 inch pigtail with Molex®connector
Electrical Protection: Reverse polarity for power connections
Table 1-4 Specications
SolidSense II® Series Pressure Transducer 07/2022
5

Section 1 Introduction
Optional Display Non-Display Version Display Version
Digits: N/A -xxx to 1xxx
Type: N/A 7 Segment Red LED
Polarity: N/A Automatic (-) Display
Over Pressure Reading Trigger: N/A 110% full scale ± 5% full scale (Display reading: 1---)
Display Accuracy: N/A ±-0.25% of Rdg ± 1 Count for psi
(excluding transducer output) N/A ± - 0.25% of Rdg ± 5 Count for kPa
Character Size: N/A 0.30” height
kPa/psi Switch: N/A Yes
Rotatable: N/A Continuous rotation covering 4 quadrants
Zero Pot: N/A Yes
Zero Pot Adj. Screwdriver: N/A 1-1.2 mm at type
Approvals and Compliance
FM Approval: Non-Incendive for use in Class I, Div II Groups A, B, C and D Hazardous Applications
Excludes 0 to 10 Vdc and 15-pin HD D-Sub connector congurations
EMC: Compliant to EU Directive 2004/108/EC
RoHS: Compliant to EU Directive 2002/95/EC
Table 1-4 Specications (Continued)
SolidSense II® Series Pressure Transducer 07/2022
6

Section 1 Introduction
Figure 1-3 Dimensional Drawings - SolidSense II Series, SM: Face Seal, Swivel, Male
Figure 1-2 Dimensional Drawings - SolidSense II Series, SC: Surface Mount, 1.5” C-Seal
GFD Congurations
SolidSense II® Series Pressure Transducer 07/2022
7

Section 1 Introduction
Figure 1-5 Dimensional Drawings - SolidSense II Series, SF: Face Seal, Swivel, VCR, Female
Figure 1-4 Dimensional Drawings - SolidSense II Series, CS: Surface Mount, 1.125” C-Seal
GFD Congurations
SolidSense II® Series Pressure Transducer 07/2022
8

Section 1 Introduction
Figure 1-7 Dimensional Drawings - SolidSense II Series, 4S: Tube Weld Stub, 1/4” OD
Figure 1-6 Dimensional Drawings - SolidSense II Series, CH: 1.5” C-Seal, High Flow
GFD Congurations
SolidSense II® Series Pressure Transducer 07/2022
9

Section 1 Introduction
Figure 1-9 Dimensional Drawings - SolidSense II Series, NT: 1/4” Male NPT
Figure 1-8 Dimensional Drawings - SolidSense II Series, CD: Surface Mount, Longer Gland, 1.125” C-Seal
GFD Congurations
SolidSense II® Series Pressure Transducer 07/2022
10

Section 1 Introduction
Figure 1-11 Dimensional Drawings - SolidSense II Series, VS: Face Seal, Fixed Male/Swivel Female
Figure 1-10 Dimensional Drawings - SolidSense II Series, SM: Face Seal, Swivel Male
GFF Congurations
SolidSense II® Series Pressure Transducer 07/2022
11

Section 1 Introduction
Figure 1-13 Dimensional Drawings - SolidSense II Series, VM: Face Seal, Fixed Male
Figure 1-12 Dimensional Drawings - SolidSense II Series, 4A: Micro-Fit Tee, 3/8” Branch X 1/4” Run
GFF Congurations
SolidSense II® Series Pressure Transducer 07/2022
12

Section 1 Introduction
Figure 1-14 Dimensional Drawings - SolidSense II Series, Single End (GID) and Flow Through (GIF) Integrated Display Models
GID & GIF Integrated Display Congurations
SolidSense II® Series Pressure Transducer 07/2022
14

Section 1 Introduction
Figure 1-15 Dimensional Drawings - SolidSense II ATEX Pressure Transmitter (Option)
For more details on the SolidSense II ATEX compliant pressure
transmitters, visit our website at www.BrooksInstrument.com/Products
for the data sheet: DS-PR-SolidSense II ATEX-PT-eng or contact your
nearest Brooks Customer Service Center for assistance.
Note: Bendix, 15-pin and pigtail available on all ATEX process ttings. Limited examples are shown above.
For all electrical connection and tting options see the Model Code Table.
Additional dimensional drawings are available on request.
SolidSense II® Series Pressure Transducer 07/2022
15

Section 2 Installation
General
This section provides installation instructions for the Brooks®SolidSense II
pressure transducers. Refer to Section 1 of this manual for dimensions.
Receipt of Equipment
When the equipment is received, the outside packing case should be
checked for damage incurred during shipment. If the packing case is
damaged, the local carrier should be notied at once regarding his liability. A
report should be submitted to the nearest Brooks Instrument location listed
on the Global Service Network page on our website: BrooksInstrument.com/
GlobalSupportCenters
Remove the envelope containing the packing list. Carefully remove the
instrument from the packing case. Make sure spare parts are not discarded
with the packing materials. Inspect for damaged or missing parts.
Recommended Storage Practice
If intermediate or long-term storage of equipment is required, it is
recommended that the equipment be stored in accordance with the following:
a. Within the original shipping container.
b. Ambient temperature 21°C (70°F) nominal, 79°C (175°F) maximum
-29°C (-20°F) minimum.
c. Relative humidity 45% nominal, 60% maximum, 25% minimum.
Return Shipment
Prior to returning any instrument to the factory for any reason, visit our
website for instructions on how to obtain a Return Materials Authorization
Number (RMA #) and complete a Decontamination Statement to accompany
it: BrooksInstrument.com/Service. All instruments returned to Brooks also
require a Material Safety Data Sheet (MSDS) for the uid(s) used in the
instrument. Failure to provide this information will delay processing of the
instrument.
Instrument must have been purged in accordance with the following:
SolidSense II® Series Pressure Transducer 07/2022
16

Section 2 Installation
Transit Precautions
To safeguard against damage during transit, transport the device to the
installation site in the same container used for transportation from the factory,
if circumstances permit.
2Removal from Storage
Upon removal of the device from storage, a visual inspection should be
conducted to verify its “as-received” condition. If the device has been
subject to storage conditions in excess of those recommended (refer to
“2-3 Recommended Storage Practice” on p. 2-1), if applicable, it should be
subjected to a pneumatic pressure test in accordance with applicable vessel
codes.
Mechanical Connections
1. The SolidSense II pressure transducer is double-bagged for cleanroom
service and should remain packaged until installation. DO NOT remove
the pressure transducer from the protective bag unless you are in a clean
environment.
a. Remove the pressure transducer from the box and carry it into the
gray area.
b. Remove the outer protective bag and discard.
c. Carry the pressure transducer (sealed in inner bag) into the clean
room.
2. Install the SolidSense II pressure transducer.
a. Prepare the connection tting in place on the gas line. Any other
tting components, such as stainless steel gaskets, should be blown
clean with ltered gas before use.
b. Maintain a ow of at least 1 slpm (0.05 scfm) of inert gas during
installation to minimize tubing and pressure transducer contamination
from environmental moisture and particles. The recommended purge
gas is electronic-grade Nitrogen.
c. Open the inner bag and remove the pressure transducer. Remove
any tting protection caps and seat the pressure transducer on the
mating connections.
d. For connections compatible with VCR® ttings: Tighten by hand.
Then turn the tting 1/8 turn past nger-tight using a wrench also see
Figure 2 -8.
SolidSense II® Series Pressure Transducer 07/2022
17
