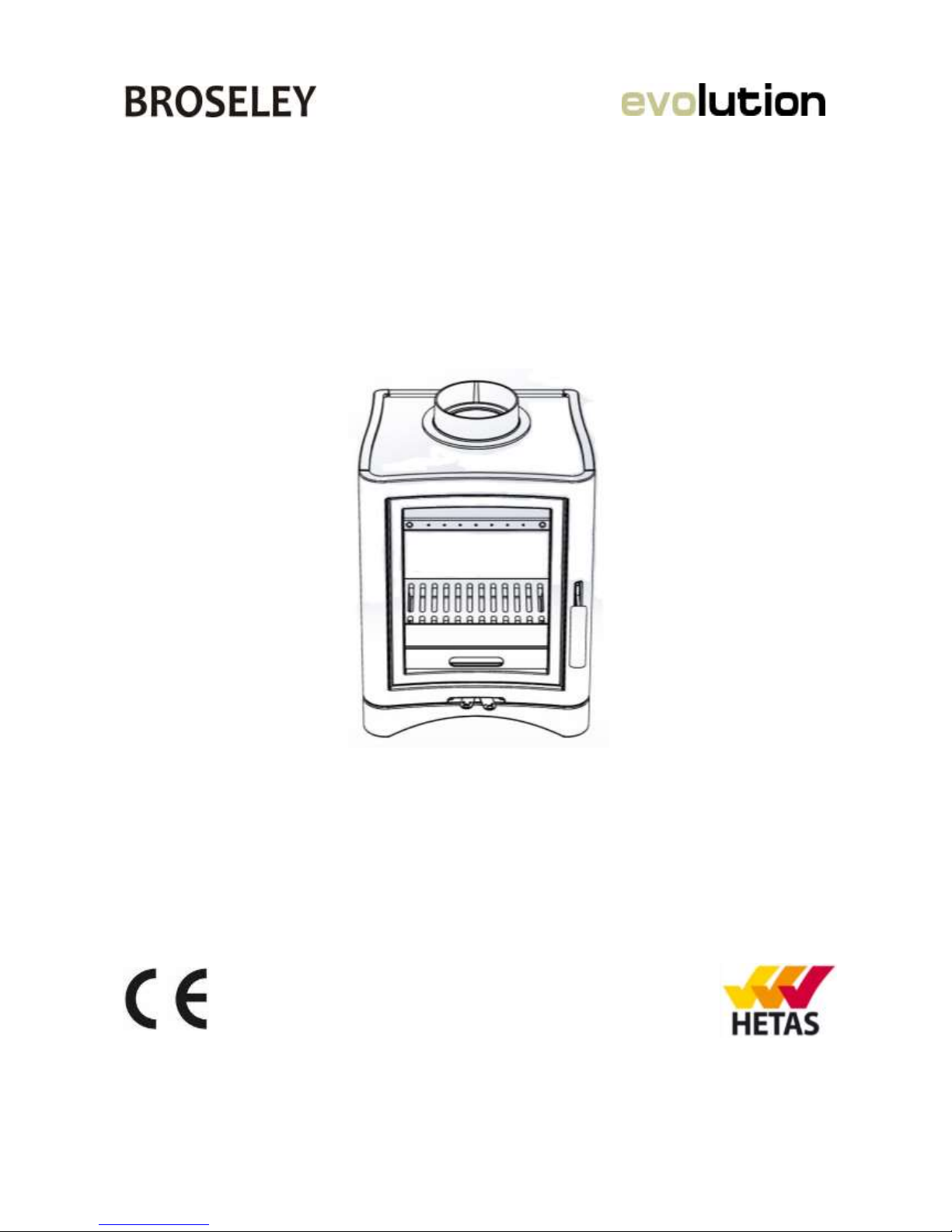

Broseley Evolution 5 Multi-fuel Manual

Evolution 5 Multi-fuel Issue 1 21/07/2015 1
Installation & Operating
Instructions
Covering Models:
Evolution 5 Multi-fuel
Multi-fuel Stove
(Standard, Deluxe and Log Store Versions)
Tested to EN 13240
These appliances must be installed and commissioned by a HETAS registered engineer

Evolution 5 Multi-fuel Issue 1 21/07/2015 2
Contents
Introduction 3
Packing List 3
Health & Safety 4
Installation
Specifications 5
Dimensions 6
Hearth Requirements & Clearances 7
Chimney Requirements 8
Combustion Air Requirements 9
Assembly 10
Assembly for Smoke control area Exemption 12
Operation
Controls Layout 13
Recommended Fuels 14
Lighting the Stove 15
Burning Wood & Coal 16
Smoke control area Exemption Requirements 17
Warning Notes 19
Maintenance
Ash Removal 20
Chimney Fires 20
Chimney Sweeping 20
General Stove Cleaning 20
Glass Cleaning 20
Annual Stove Service 20
Trouble-shooting 21
Commissioning Form 22
Spare Parts 23
Annual Service Record 24
Warranty 25

Evolution 5 Multi-fuel Issue 1 21/07/2015 3
Introduction
May we take this opportunity to thank you for choosing one of our cast iron, multi-fuel
stoves.
The term multi-fuel refers to the fact that the appliance is capable of burning either wood
logs or coal (that is suitable for closed appliances). Both of these fuels have very different
air requirements in order for them to burn correctly, therefore the air controls need to be
operated differently depending on the fuel being burned (see section “Stove Operation”).
See the section “Lighting the Stove” for further details. After reading this document, if there
is anything you are unsure about, please contact your dealer or our Technical Support
Department.
These instructions cover the basic principles to ensure the satisfactory installation of the
stove, although detail may need slight modification to suit particular local site conditions. In
all cases the installation must comply with current Building Regulations, Local Authority
Byelaws and other specifications or regulations as they affect the installation of the stove.
It should be noted that the Building Regulations requirements may be met by adopting the
relevant recommendations given in British Standards BS 8303 and BS EN 15287-1 2007 +
A1 2010 as an alternative means to achieve an equivalent level of performance to that
obtained following the guidance given in Approved Document J.
Please note that it is a requirement under the Broseley Fires warranty system that
the installation of the stove is carried out by a Competent Person registered with a
Government approved Competent Persons Scheme. HETAS Ltd operate such a
Scheme and a listing of their Registered Competent Persons can be found on their
website at www.hetas.co.uk.
Packing List
1x Cast Iron/Steel Stove Separate Box Containing: Deluxe Models Only:
1x Ashpan 1x Spigot & Fixings 1x Black Glass (Lid)
1x Rear Firebrick 1x Spigot Ring
1x Baffle 1x Ash Tool & Glove Set
2x Baffle Spacers (metal) 1x Instruction Booklet
2x Side Firebrick 1x Smoke Exempt Screw
1x Grate & Grate Support
1x Steel Log Retainer
All parts will be inside the main stove body upon delivery.

Evolution 5 Multi-fuel Issue 1 21/07/2015 4
Health & Safety
Special care must be taken when installing the stove such that the requirements of the
Health and Safety at Work Act are met.
Installation
This appliance MUST be installed and commissioned by a HETAS registered installer in
England and Wales and a fully qualified Heating Engineer in Scotland and Ireland.
Handling
Adequate facilities must be available for loading, unloading and site handling.
Fire Cement
Some types of fire cement are caustic and should not be allowed to come into contact with
the skin. In case of contact, wash immediately with plenty of water.
Asbestos
This stove contains no asbestos. If there is a possibility of disturbing any asbestos in the
course of installation then please seek specialist guidance and use appropriate protective
equipment.
Metal Parts
When installing or servicing this stove care should be taken to avoid the possibility of
personal injury.
CO Alarms
Building regulations require that whenever a new or replacement fixed solid fuel or
wood/biomass appliance is installed in a dwelling an audible carbon monoxide alarm must
be fitted in the same room as the appliance. Further guidance on the installation of the
carbon monoxide alarm is available in BS EN 50292:2002 and from the alarm
manufacturer’s instructions. Provision of an alarm must not be considered a substitute for
either installing the appliance correctly or ensuring regular servicing and maintenance of
the appliance and chimney system.
Fire Guards
When using the stove in situations where children, aged and/or infirm persons are present
a fireguard must be used to prevent accidental contact with the stove. The fireguard
should be manufactured in accordance with BS 8423:2002.
Aerosol Sprays
Do not use an aerosol spray on or near the stove when it is alight.
Operating Tool & Gloves
Always use the operating tool and glove provided when handling parts likely to be hot
when the stove is in use.

Evolution 5 Multi-fuel Issue 1 21/07/2015 5
Specifications
In the UK these stoves have been approved by HETAS Ltd as intermittent heating
appliances for burning manufactured or naturally occurring smokeless fuels and hard wood
logs only.
Wood
Coal
Nominal Heat Output
5 kW
5 kW
Total Efficiency
80.5 %
76.3 %
Mass CO emission @ 13% O2
0.35 %
0.03 %
Mean Flue Gas Temperature
245 °C
295 °C
Flue Gas Mass Flow
4.1 g/s
3.9 g/s
Fuel Consumption (Per Hour)
1.5 Kg
0.9 Kg
Weight: 100 Kg /139 Kg with Log Store
Max Hearth Temp (without Log Store: 62 °C
Max Temp Recorded Inside Log Store: 67.6 °C
European standards need to be complied to when installing this appliance.

Evolution 5 Multi-fuel Issue 1 21/07/2015 6
Dimensions
All dimensions are in millimetres

Evolution 5 Multi-fuel Issue 1 21/07/2015 7
Hearth Requirements & Clearances
These appliances are suitable for non-combustible hearths with a minimum
thickness of 12mm; they do not require a full constructional hearth.
Your stove must be installed on a solid, level non-combustible hearth. The hearth
protrusion in front of the stove to carpets or wooden floors must be at least 300mm. As it is
possible, that on opening the door of the stove for fuel to fall out, a fender must be fitted if
the hearth is flush with the finished floor level. These are just a few hearth specifications.
Please refer to Building Regulations Approved Document J (Hearths) for more specific
details.
Clearances
The stove requires the following clearances around it to ensure the heat is released into
the room and to allow sufficient combustion air flow. A combustible material clearance is
given to prevent damage to any items that may be affected by heat.
Stove Clearances
A
B
C
Above
Non-Combustible
50mm
100mm
300mm
200mm
Combustible
700mm
450mm
300mm
700mm
Please note these are the minimum clearances required for the product, additional
clearance may be necessary for maintenance and servicing purposes.A Site survey
should always be carried out to ensure the suitability of the surrounding surfaces as
certain materials such as tile and marble may need additional clearance or replacing
entirely, consult your heating engineer for specific advice.

Evolution 5 Multi-fuel Issue 1 21/07/2015 8
Chimney Requirements
This appliance must not be fitted into a chimney serving another heating appliance. It is
most important that there is no obstruction in the flue or chimney. Please ensure that any
existing chimney is clear of obstruction and swept clean immediately before installation of
the new stove. If the chimney has been used for an open fire it is recommended that it be
swept for a second time having been used for a month following installation.
A flue draught minimum of 12 Pascals to a maximum 16 Pascals is required for
satisfactory appliance performance. Aproperly built masonry or factory constructed
chimney (with a minimum vertical height of 5 metres) should ensure a consistent draught
(draw). 45° bends can be used in the flue run (maximum of four bends) you will need to
add an extra 1 metre of vertical flue height for each bend. The flue draught should be
checked under fire at high output and if it exceeds the recommended maximum, a draught
stabiliser must be fitted so that the rate of burning can be controlled, and to prevent over
firing (See section “Warning Notes”). If you have any doubts about the suitability of your
chimney, consult your local dealer/stockist or engineer. If your flue draft is below the
minimum recommendation then it may be necessary to increase the vertical chimney
height, add additional flue insulation or possibly add a special cowl to the top of the
chimney (e.g. anti down draft cowl to eliminate wind induced down draft).
The outlet from the chimney should be above the roof of the building in accordance with
the provisions of Building Regulations Approved Document J.
If installation is into an existing chimney then it must be sound and have no cracks or other
faults which might allow fumes into the house. Older properties, especially, may have
chimney faults or the cross section may be too large i.e. more than 230 mm x 230 mm.
Remedial action should be taken, if required, seeking expert advice, if necessary. If it is
found necessary to line the chimney then a flue liner suitable for solid fuel must be used in
accordance with Building RegulationsApproved Document J.
If there is no existing chimney then either a prefabricated block chimney in accordance
with Building Regulations Approved Document J or a twin walled insulated stainless steel
flue to BS 4543 can be used. These chimneys must be fitted in accordance with the
manufacturer’s instructions and Building Regulations.
If a flexible liner is required the liner diameter must not be less than 6”.
Any bend in the chimney or connecting fluepipe should not exceed 45°. 90° bends are not
permitted. For top flue installations it is possible to sweep through the appliance by
removing the internal baffle however it is recommended that you provide adequate access
(e.g. easily accessible soot door). For rear flue connection we recommend the use of a tee
section, the bottom of the tee should be capped to catch soot and debris. For rear flue
installations ensure provision is made for chimney sweeping (e.g. soot door in flue).
Finally a magnetic flue thermometer is highly recommended to enable monitoring of
the flue temperature. This should be placed on the initial single skin length of piping
coming off the stove.

Evolution 5 Multi-fuel Issue 1 21/07/2015 9
Combustion Air Requirements
In order for the stove to perform efficiently and safely there should be an adequate air
supply into the room in which the stove is installed to provide combustion air. This is
particularly necessary in modern houses where drafts have been almost eliminated by
double glazing etc.
Under UK building regulations any appliance over 5kW MUST have a fixed
permanent air vent (see building regulations approved document J for further
information).
Air Vent Calculation
For new build properties you will need 5 x 550mm2= 2750mm2
Older properties do not normally need a vent.
There must not be an extractor fan fitted in the same room as the stove as this can cause
the stove to emit fumes into the room. It is necessary to install a wall vent to provide the
necessary combustion air and to prevent the depletion of oxygen in the room.

Evolution 5 Multi-fuel Issue 1 21/07/2015 10
Assembly
The diagram below shows the stove with all internals taken out.
To install the internals simply follow the numbered sequence 1-9 and to remove simply
reverse this process.

Evolution 5 Multi-fuel Issue 1 21/07/2015 11

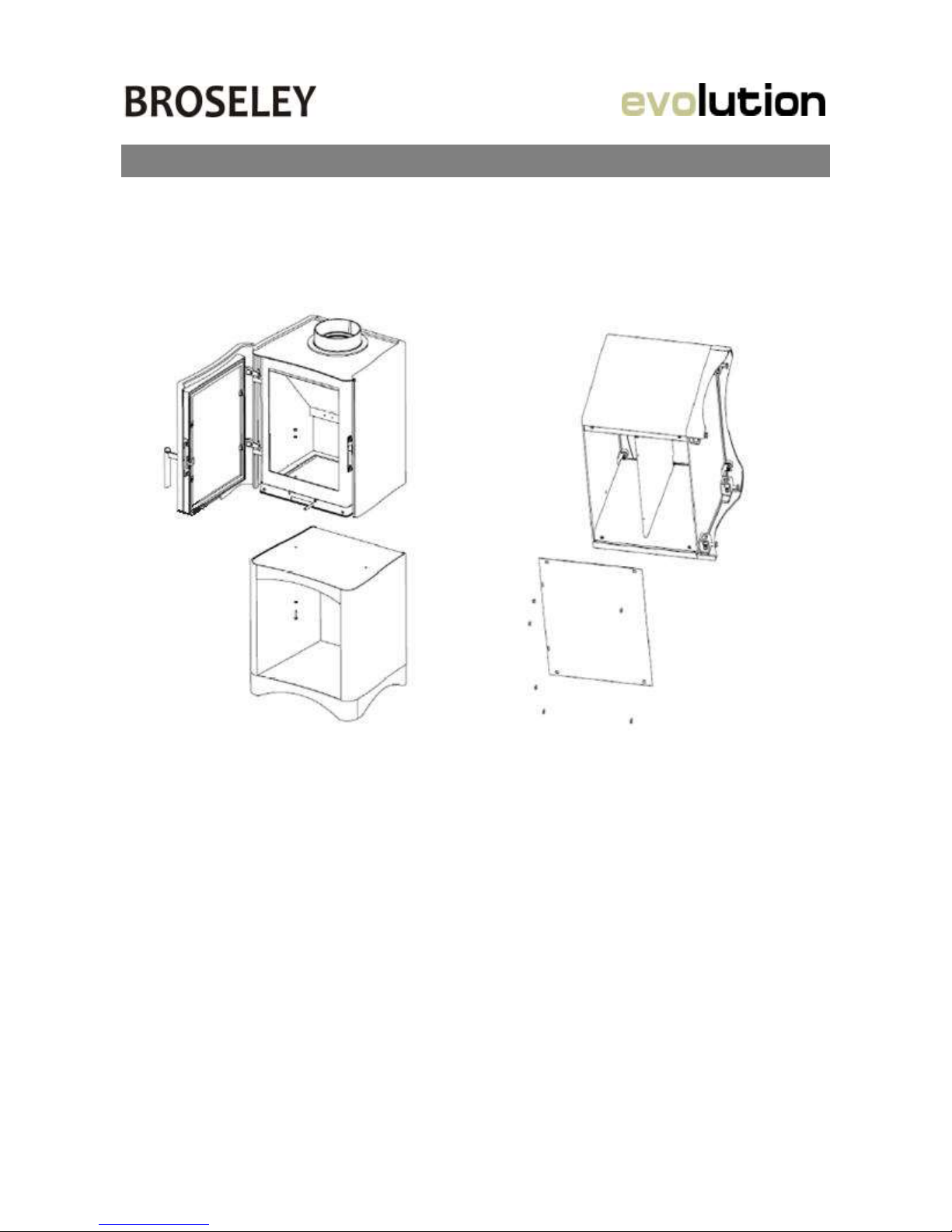

Assembly
For log store versions, it is possible to remove the stove from the log store base for
transport purposes.
Please note it is not possible to convert between a log store and standard version. These
are two separate products and need to be ordered as either “Log Store” or “Standard” at
the time of order.

Evolution 5 Multi-fuel Issue 1 21/07/2015 12

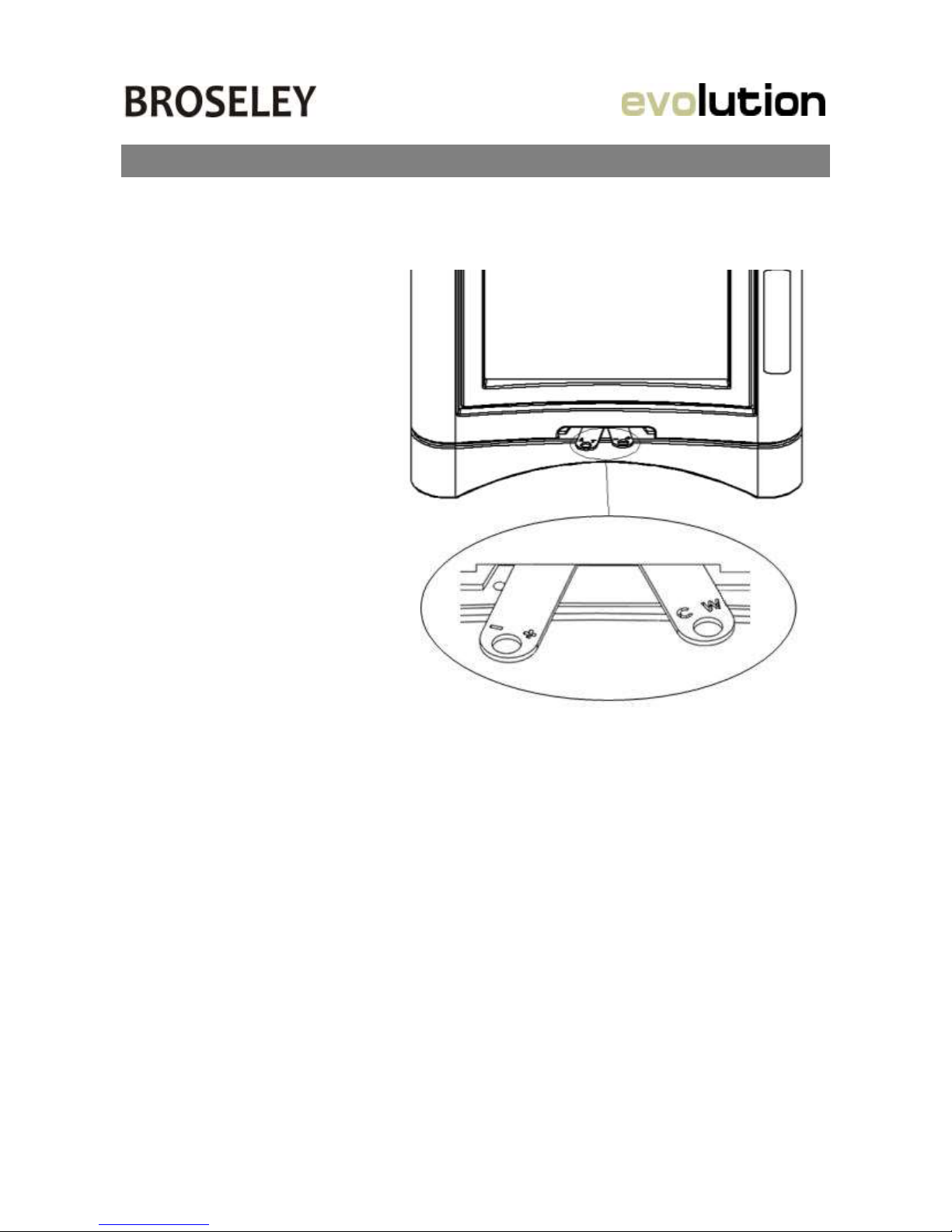

Assembly for Smoke Exemption
Your stove will come pre-configured for use in smoke control area. This is achieved by an
air control modification which ensures a set minimum amount of combustion air for clean
burning. For installations that are not located within a smoke control area, the modification
may be removed by the installer thus allowing full closure of the air intake. To remove the
modification the installer needs to remove the screw as indicated below:
If the modification is
removed or tampered
with the appliance
would no longer be
considered an exempt
appliance therefore the
modification must not
be removed if the
appliance is used in
Smoke Control areas
when burning
unauthorised fuels.
“The Clean Air Act 1993 and Smoke Control Areas
Under the Clean Air Act local authorities may declare the whole or part of the district of the authority to be a smoke
control area. It is an offence to emit smoke from a chimney of a building, from a furnace or from any fixed boiler if located
in a designated smoke control area. It is also an offence to acquire an "unauthorised fuel" for use within a smoke control
area unless it is used in an "exempt" appliance ("exempted" from the controls which generally apply in the smoke control
area).
The Secretary of State for Environment, Food and Rural Affairs has powers under the Act to authorise smokeless fuels
or exempt appliances for use in smoke control areas in England. In Scotland and Wales this power rests with Ministers in
the devolved administrations for those countries. Separate legislation, the Clean Air (Northern Ireland) Order 1981,
applies in Northern Ireland. Therefore it is a requirement that fuels burnt or obtained for use in smoke control areas have
been "authorised" in Regulations and that appliances used to burn solid fuel in those areas (other than "authorised"
fuels) have been exempted by an Order made and signed by the Secretary of State or Minister in the devolved
administrations.
Further information on the requirements of the Clean Air Act can be found here:
https://www.gov.uk/smoke-control-area-rules
Your local authority is responsible for implementing the Clean Air Act 1993 including designation and supervision of
smoke control areas and you can contact them for details of Clean Air Act requirements
The Evolution 5 multi-fuel appliance has been recommended for exemption under the Clean Air Act 1993 for use in
smoke control areas when burning Wood Logs and when fitted with the smoke exempt modification to prevent closure of
the air intake.
If the air control modification is removed then the appliance would no longer be considered an exempt appliance.

Evolution 5 Multi-fuel Issue 1 21/07/2015 13
Controls Layout
The diagram below shows the position of the controls. These controls need to be operated
correctly to ensure correct and efficient combustion.
The stove is fitted with two
controls, both of these controls
are located below the door and
are in the form of horizontal
sliders.
Top Control –Fuel Selector
Left = Coal
Right = Wood
The upper control acts as a fuel
selector so that the stove knows
where to send the combustion
air for the type of fuel being
burned. When burning coal you
should have the slider all the
way to the left. When burning
wood slide it all the way to the
right.
As coal needs air to enter
underneath the grate and
wood requiring it from above, it is
critical that you set the control
correctly for the type of fuel being used.
When burning wood, air is directed down the inside of the glass creating the Airwash
system. Airwash helps prevent soot and debris sticking to the glass, It does not mean that
you will never have to clean the glass (but substantially lengthens the periods between
having to do so). Airwash is not necessary when burning coal as closed appliance coals
are smokeless
Bottom Control –Combustion Air
Left = Minimum Air
Right = Maximum Air
The lower of the two controls allows you to control the total amount of combustion air
entering the appliance. Having the slider in the extreme right position indicates that the air
intake is fully open (maximum air). Sliding the control fully to the left indicates minimum
combustion air.

Evolution 5 Multi-fuel Issue 1 21/07/2015 14
Recommended Fuels
This appliance has obtained approval from HETAS Ltd., for burning –
* HETAS approved smokeless coal suitable for a closed appliance.
* Split Hard Wood logs not exceeding 350mm in length, 100mm in diameter and not exceeding
20% moisture content.
Approval does not cover the use of other fuels either alone or mixed with the suitable fuels listed
above.
Although approval covers the use of the smokeless fuels listed, the claimed rated output, has been
obtained burning a single representative smokeless fuel, under standard test conditions. However,
in the home, a variety of operating conditions can occur and the performance of the appliance may
vary to some degree with these conditions and different fuels may need to be burnt at different
rates to provide the same heat output.
The recommended fuels are Wood logs no longer than 35cms (dry, seasoned to under 20%
moisture) and solid mineral fuels (e.g. Natural smokeless fuels) Larger coal briquettes are
recommended as they concentrate less heat in one spot reducing the likelihood of damage to the
grate. Ask your local fuel merchant or consult the HETAS website for more details on these fuels.
ONLY authorised smokeless fuels (and wood logs as described above) may be used in
smoke control areas.
Do NOT burn “House coal” or any other coal which are intended for use on open fires.
Suitable coal needs to be designed for use on closed appliances. Open fires send a large amount
of heat up the chimney therefore the fuel needs to burn extremely hot in order to send heat into the
room, closed appliances are highly efficient and send little heat up the chimney therefore the fuel
does not need to burn as hot. Using open fire coal on a closed appliance will cause excessive wear
on the stove and could result in damage which will not be covered by the products warranty.
Under NO circumstances burn “petroleum coke” or any other chemically enhanced fuel as it
will burn out the internal grate and baffle plates in a very short period of time and may damage the
stove beyond repair.
Do NOT burn wet wood, This will give a poor heat output and will cause heavy deposits of soot
and tar to accumulate on the glass and throughout the stove and flue. The coating of soot and tar
in the chimney is volatile creating a high risk of chimney fires. A growing tree contains a high
percentage of water, the wood needs to be dried out (seasoned) before it is suitable for burning
(this can take several years). Wood logs are best stored in a stack, sheltered from the weather, in
a well ventilated area and raised off the ground. This allows the air to circulate and prevents
mildew.
Do NOT burn pallet Wood, or any other wood that contains glue, paint or any other chemicals.
Burning such fuels may result in damage to the appliance. Any such damage will not be covered by
the manufacturer’s warranty.

Evolution 5 Multi-fuel Issue 1 21/07/2015 15
Lighting the Stove
Curing
On initial firing you will notice a very pungent odour, this is caused through the curing of
the paint, we recommend starting with short burning sessions (with smaller quantities of
fuel) and build up gradually to allow the components of the stove to settle. Opening doors
and windows will allow the paint curing odour to dissipate and to allow ventilation into the
room. Curing times can vary but typically should take around 8-12 hours (operation at
nominal output) to complete.
Kindling
Stage1
Initially you will need to put the fuel selector control (upper) in a central position, this will
aid the initial start-up and help keep the glass clean. Set the combustion air control (lower)
all the way to the right (maximum air). Start your fire using scrunched up balls of
newspaper. Form a bed on the grate using the newspaper, then add a generous amount of
dry kindling in a criss cross pattern (as shown below). The main door may be left open
slightly during kindling.
Stage 2
Ignite the paper underneath using a match or suitable fire-lighter. Allow the paper and
kindling to burn until it reduces down into hot embers.
Stage 3
Add another generous load of dry kindling, close the door and allow the kindling to burn
down to embers again.
It may be necessary to repeat stage 3 if the chimney is cold or if you find you have smoke
entering the room when you next open the door. This stage is vital for getting heat into the
chimney which will create the draw that takes the smoke away, we would expect this stage
to take between 15-20 minutes (but checking the flue temperature using a flue
thermometer is the best way to ensure your flue is hot enough).
It is critical that you do not leave the stove during the entire lighting and kindling
process. See the “Burning Wood & Coal”section for the next steps in the sequence.

Evolution 5 Multi-fuel Issue 1 21/07/2015 16
Burning Wood
Once you have kindled your stove (see previous page) and your chimney (flue) is
sufficiently heated (150 - 200°C), you are now ready to start adding your logs.
Stage 4
Place 1-3 small logs onto the bed of hot embers using the gloves provided, close the door
and set the fuel selector fully to the right (wood). Leave the combustion air control (lower)
in the fully open/maximum position.Allow the logs time to fully ignite and turn black.
Stage 5
Once the smaller logs have burned down you can now add 1-2 larger (or full size) logs,
allow time for the logs to fully ignite (Turn black) then close down the combustion air
control as required. You are looking for a controlled flame (not smouldering in the embers
or licking around the lid) this is mostly visual although a flue pipe thermometer will help you
determine the amount of air required and is recommended for the initial lightings.
Stage 6
Refuel as and when required. Open the combustion air control fully when refuelling and
allow the new fuel to ignite (Turn black). Control the combustion as per stage 5. Take care
to open the door gradually as flames may lick out and always use the gloves. Try to avoid
closing the air control fully (as this will cause the stove to fill up with smoke). If you no
longer want to keep the fire going simply allow it burn out.
Burning Coal
With kindling complete you are now ready to add your approved coal.
Stage 4
Rake the hot embers evenly over the grate and add a small amount of coal. Close the door
and set the fuel selector fully to the left (Coal). Leave the combustion air control fully open.
Stage 5
When the small load of coal has burned down add a larger load and allow time for the coal
to fully ignite, the coal should be spread evenly over the grate. You will now control the
burn rate of the stove using the combustion air control. You are looking for a controlled
flame (not smouldering in the embers or licking around the lid) this is mostly visual
although a flue pipe thermometer will help you determine correct control and is
recommended for the initial lightings. Some soot is expected to form on the glass when
burning coal, however if you find your glass is getting excessively sooty you can slide the
fuel selector control towards a central position to improve the airwash.
Stage 6
Add coal as and when required and increase the combustion air if necessary. When
refuelling ensure that the grates slots are free from ash thus allowing air to enter. Any ash
or debris should be poked into the ashpan underneath each time you refuel.
Take care when using the ash tool not to damage the vermiculite firebricks

Evolution 5 Multi-fuel Issue 1 21/07/2015 17
Smoke Control Area Exemption Requirements
The Evolution 5 Multi-fuel stove has been tested by under the PD6434 standard and has
passed the emission requirements for exemption under the Clean Air Act. Subsequently it
has been exempt for use in smoke control areas when burning wood only.
Smoke emissions from the appliance were measured over three main air control settings
representing high, medium and low outputs. The three output test conditions undertaken in
the present report were conducted with the air control (i) fully open –high output, (ii)
50% open –medium output and (iii) 10% open –low output
The low setting of the combustion air control was not the minimum setting of the appliance
tested, the minimum air control setting would give very poor smoke reduction since it was
possible to starve the appliance of air almost completely. A low setting that maintained
clean combustion was determined and used as the low output setting (10%). The smoke
control screw ensures this minimum air position is maintained.
There is a requirement for the door to be left ajar for 5 minutes immediately after refuelling.
This is to ensure that flames are well established on the newly charged logs and that they
become fully blackened. Additionally, for medium and low output burning, the air control
must be maintained at 100% open for the first 5 minutes after refuelling at which time it is
possible to adjust to the required settings as identified above.
Ignition Sequence (Smoke Control Areas) Burning Logs
The procedure adopted for ignition is to build a bed in stages and to warm the body of the
appliance and the chimney as quickly as practicable.
Firstly follow the kindling instructions on page 15, approximately 1 kg of kindling will need
to be lit (using a chemical firelighter is recommended) with the combustion air control
(lower) fully open. The door must be pushed against the appliance but then left ajar.
After about 10 minutes, when the fire from the kindling is beginning to die back, two small
logs can be added. When these are alight and fully blackened, the door can be closed.
This, typically, takes approximately a further five minutes.
When the fire is again beginning to die back, a full load of two logs, weighing about 1.3 -
1.4 kg, can be added: typically this takes 20 –25 minutes from the start of the ignition
sequence. The combustion air control must be maintained in its fully open position for the
remainder of the ignition sequence. Once the fuel has blackened the fire can then be
allowed to burn down to a suitable level (by setting the combustion air control). For start of
further re fuelling apply sequence in the previous 2 sentences.

Evolution 5 Multi-fuel Issue 1 21/07/2015 18
Smoke Control Area Exemption Requirements
Additional Operational Requirements for Smoke Control Areas
1. It is important to follow the smoke exempt instructions in order to achieve clean
burning and to maximise the efficiency from the stove
2. Do not leave the fire unattended after refuelling until flames are well established on
the newly charged logs
3. Refuelling on to a low fire bed If there is insufficient burning material in the firebed
to light a new fuel charge, excessive smoke emission can occur. Refuelling
must be carried out onto a sufficient quantity of glowing embers and ash that the
new fuel charge will ignite in a reasonable period. If there are too few embers in the
fire bed, add suitable kindling to prevent excessive smoke
4. Fuel overloading The maximum amount of fuel specified in this manual should not
be exceeded, overloading can cause excess smoke.
5. Operation with door left open Operation with the door open can cause excess
smoke. The appliance must not be operated with the appliance door left open
except as directed in the instructions.
6. Dampers left open Operation with the air controls or dampers open can cause
excess smoke. The appliance must not be operated with air controls or dampers
door left open except as directed in the instructions.

Evolution 5 Multi-fuel Issue 1 21/07/2015 19
Warning Notes
Over-Firing
It is extremely important that you do NOT leave the air control in the fully open position for
extended periods or run the appliance with the door open. Leaving the air control fully open (or
running with the doors open) will lead to “over-firing”. Over-firing is caused when too much heat is
generated within the fire chamber, this will lead to warping, buckling and general damage to the
stove and its internal components. Over-firing can also be caused by an excessive flue draft.
PLEASE NOTE ANY DAMAGE TO THE APPLIANCE CAUSED THROUGH OVER-FIRING WILL
NOT BE COVERED BY THE WARRANTY.
Fumes
Properly installed, operated and maintained, this appliance will not emit fumes into the dwelling.
Occasional fumes may occur whilst de-ashing and re-fuelling. However, persistent fume emission
is potentially dangerous and must not be tolerated. If fume emission does persist, the following
immediate actions should be taken:-
a) Open doors and windows to ventilate the room
b) Let the fire go out or eject and safely dispose of fuel from the appliance
c) Check for flue or chimney blockage and clean if required
d) Do not attempt to relight the fire until the cause of the fume emission has been
Identified and corrected. If necessary seek expert advice
Firebricks
Vermiculite is an industry recognised robust fireproof material which is used by many stove
manufacturers to produce internal firebox linings (firebricks). With care vermiculite firebricks will
give many years of faithful service.
It is important that care is taken whilst refueling your stove in order to protect the internal
vermiculite parts from premature failure.
Never throw or drop logs into your stove as this will potentially damage your firebricks and may
also result in logs bouncing out of the appliance (creating a possible fire risk). Open the door an
inch initially (allowing the fire to settle) then slowly open the door and gently place the log(s) onto
the grate. Always use the glove (provided) when refueling to avoid the common scenario of
dropping the logs in quick (because it’s hot).
Take care when clearing the ash and using the poker tool not to strike and potentially damage your
firebricks.
Always take care when removing the firebricks to avoid damaging them. It may be necessary to
remove the firebricks during general maintenance and chimney sweeping.
Impact damage is the most common cause of cracked vermiculite firebricks; however it is also
possible to crack the firebricks if you over fire your appliance.

Evolution 5 Multi-fuel Issue 1 21/07/2015 20
Maintenance
Ash Removal
The ash pan can be accessed from under the grate. Simply pull the ash pan using the tool
and glove provided. It is recommended that this is done when the stove is cold and not
alight. We would recommend emptying the ash into a metal bucket for transportation.
You should only empty the ash when the appliance and ashes are completely cool and can
be disposed of in your normal household refuse.
Chimney Fires
In the event of a chimney fire ensure the combustion air control (lower) is fully closed and
the door remains closed at all times. If the chimney fire does not go out or if there is a
serious risk to people and property, call the fire brigade immediately.
Regular sweeping of the chimney will remove combustible particles and will reduce the risk
of chimney fires. If you have experienced a chimney fire it is recommended you seek
expert advice before using the appliance again.
Cleaning the Stove
We recommend only doing this when the stove is cold using a soft brush to clean any of
the stove surfaces, this is normally sufficient to remove dust, ash and debris. For stubborn
marks you can use a damp lint free cloth, ensure that all surfaces are dried off
immediately. We do not recommend using any kind of chemicals or abrasive materials. It is
possible to touch up the paint using the original metallic black stove paint, however this
new paint will then need to cure.
Glass Cleaning
A damp lint free cloth is normally sufficient, however for stubborn build ups we would
recommend using a very fine wire wool.
Chimney Sweeping
It is essential that your chimney (flue) is swept at least once a year by a registered
professional chimney sweep. Sweeping removes particles that could otherwise fuel a
chimney fire, it should also highlight any potential issues such as leaks and damage to the
flue.
Stove Servicing
Your stove should be inspected annually to ensure all seals are present and correct and to
gauge the condition of the internal firebricks. The service should be done by a HETAS
registered engineer who will also perform a spillage test.
