Broseley WINCHESTER Manual

200707_3
Installation & Operating Instructions
Model: Winchester
Conventionally Flued Natural Gas Stove
PLEASE LEAVE THESE INSTRUCTIONS WITH THE USER
Broseley Fires do not provide flue pipes, closure plates or any other
associated accessory.
Please note gas installations MUST only be carried out by installers who
are Gas Safe registered.
Warning - Appliance should not be used if the glass in the door is
cracked, damaged or broken.

200707_3 2
Contents
Introduction 3
Packing List 3
Specification 4
Dimensions 4
Hearth Requirements 5
Chimney Requirements 6
Assembly
Burner Installation 7
Connecting the TTB sensor 8
Positioning the Coal Ceramics 9
Positioning the Log Ceramics 12
Gas Connection & Pressure Testing 13
Spillage Testing 14
Operating the Stove 15
The Remote Control 16
Curing the Paint & Warning Notes 25
Trouble-shooting 26
Servicing Instructions 27
Commissioning Form 28
Annual Service Record 29
Guarantee 30

200707_3 3
Introduction
THANK YOU FOR PURCHASING A GAS FIRED STOVE
Broseley Fires Ltd, a family run company, was founded as an appliance and design
development company in 1975. Since then we have built up an enviable reputation for
the quality, reliability and fuel efficiency of our stoves.
These instructions have been carefully prepared to guide the installer and end-user
through the relevant methods and standards for installation of your new Gas Stove.
Correctly installed and operated, your stove will give you many years of warmth and
reliability. Therefore, we would suggest that you read the whole instruction manual prior
to handing it to your installer. That way you will have a clearer picture of what is
involved. It is required by law that the complete assembly, installation and
commissioning of gas-fired stoves is carried out by a professionally qualified and
accredited gas fitter listed on the “Gas Safe” register.
Please Note:
 THE INSTALLATION MUST BE CARRIED OUT BY A GAS SAFE
REGISTERED ENGINEER IN ACCORDANCE WITH THE ‘GAS SAFETY
INSTALLATION AND USE REGULATIONS’ IN CONJUNCTION WITH THESE
INSTRUCTIONS.
 THE RELEVANT ‘BRITISH STANDARDS CODES OF PRACTICE’
REQUIREMENTS AND THE RELEVANT ‘LOCAL AND NATIONAL BUILDING
REGULATIONS’ MUST BE ADHERED TO.
 A COMMISSIONING CERTIFICATE MUST BE LEFT WITH THE END
CUSTOMER UPON FINAL COMPLETION.
 THE COMMISSIONING FORM MUST BE COMPLETED IN THE BACK OF
THESE INSTRUCTIONS PRIOR TO HANDOVER TO THE END CUSTOMER.
 THE PRODUCT MUST BE SERVICED ANNUALLY AND THE SERVICE
RECORD COMPLETED IN THESE INSTRUCTIONS BY THE GAS SAFE
ENGINEER.
Packing List
Stove Box
1 x cast iron stove body
1 x flue spigot (attached to stove)
1 x Box containing 4 Legs, Allen Key and Handle
Burner Box
1 x burner unit
1 x instruction booklet
2 x burner fixing brackets and screws
2 x burner retaining bolts with washers
1 x remote control unit with plug-in sensor unit
Ceramic Box – Your ordered selection of Log or Coal ceramics

200707_3 4
Specification
Heat Input (Gross) 6.6 kW/hr
Max Heat Ouput 5.5 kW/hr
Supply Pressure 20 mbar
Gas Rate 0.611 m3/Hr
Injector Size 460
Spigot diameter 125mm (5”)
Weight 116 Kg
Please note this product is designed to only use natural gas.

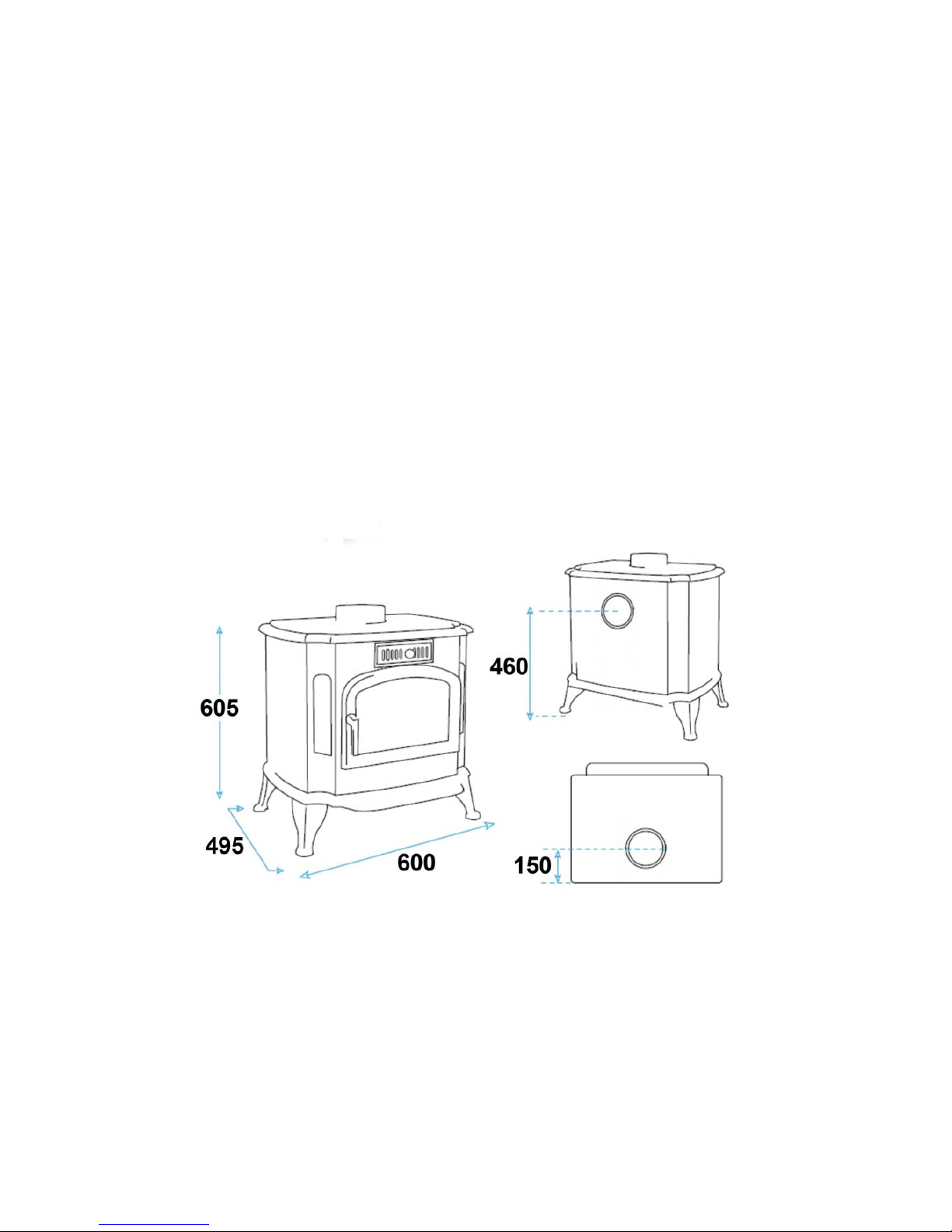

Dimensions
All dimensions are in millimetres

200707_3 5
Hearth Requirements
The appliance needs to be located onto a solid non-combustible hearth with a
minimum thickness of 12mm. The hearth must be capable of withstanding the
weight of the appliance.
To ensure correct combustion the following minimum clearances must be
adhered to
Material Dimension
Rear Non-Combustible 75mm
Side Combustible 610mm
Non-Combustible 100mm
Hearth Protrusion (in front of the appliance) 50mm
Shelf Distance (combustible material) 610mm
Please note these are minimum clearances, whenever possible it is advisable to
have as much clearance as possible around the stove for easy access and
maintenance.
Please note the gas supply connection to the appliance is in the centre
underneath the stove. The connection requires an 8mm-diameter semi-rigid
pipe, not more than 1 meter in length.

200707_3 6
Chimney Requirements
Please note Broseley Fires do not provide flue pipes, closure plates or any
other associated accessory.
The stove must be installed in accordance with current gas and buildings
regulations BS5871: Part1. The appliance can be installed in any adequate area
suitable for solid fuel fires and stoves. It can use a class 1, class 2 and pre-cast
flue.
For pre-cast flue installations it is ESSENTIAL that a sealed connection is made
into the actual flue system (a void behind a closure plate is not permitted). Please
refer to the codes of best practice for further advice on pre-cast flue’s.
Before you install the stove, make sure the chimney flue outlet is correctly
positioned to align with the flue outlet on the stove and that the chimney is in
good condition. If not, a chimney liner must be installed or a suitable class II gas
flue used. A draught is necessary to ensure the products of combustion are fully
evacuated. Due to the internal dilution/diversion system in the stove, it is not
obligatory to line the chimney but local conditions will apply. The flue will have to
be inspected by a Gas Safe registered installer and passed as suitable/sound.
Ideally it is recommended that the flue run is as straight as possible using
the top outlet on the stove. When using the rear outlet (if alignment of the
top outlet is not possible) a “T” shaped flue section should be used, the
bottom of the “T” can be capped providing a catchment area for chimney
dust/debris as well as providing a sweeping position. The flue must have a
minimum vertical height of 3 metres to insure adequate draught. You can
have a maximum of four bends in the run, each bend must not exceed 45°
and an additional metre of vertical flue should be provided for each bend.
We also recommend a minimum vertical section of 600mm before any bend
immediately off the appliance.
Prior to installation, the installer should insure that the flue is free from
obstruction and any dampers must be fixed in a permanently open position.
Ensure the chimney is not closed and that it has been swept and subsequently
smoke tested.
Make sure that rain, birds or any foreign body cannot get into the chimney to
cause damage or blockage. This problem can normally be overcome by fitting an
approved gas cowl. It is essential for the effective running of your stove that the
chimney draws properly to allow the products of combustion to escape.
VENTILATION (GB ONLY)
The gas stove is rated at less than 7kw and therefore does not normally require
additional ventilation in the room (BS5871 – part II).

200707_3 7
Assembly - Burner Installation
Ensure all components are present prior to commencing assembly (See Packing
List on page 3).
1. Unscrew the M6 x 18 Hex Bolt and open the main stove door to retrieve
the box containing the 4 Legs, Handle and Allen Key. Using the bolts
located in the bottom of the stove affix the Legs.

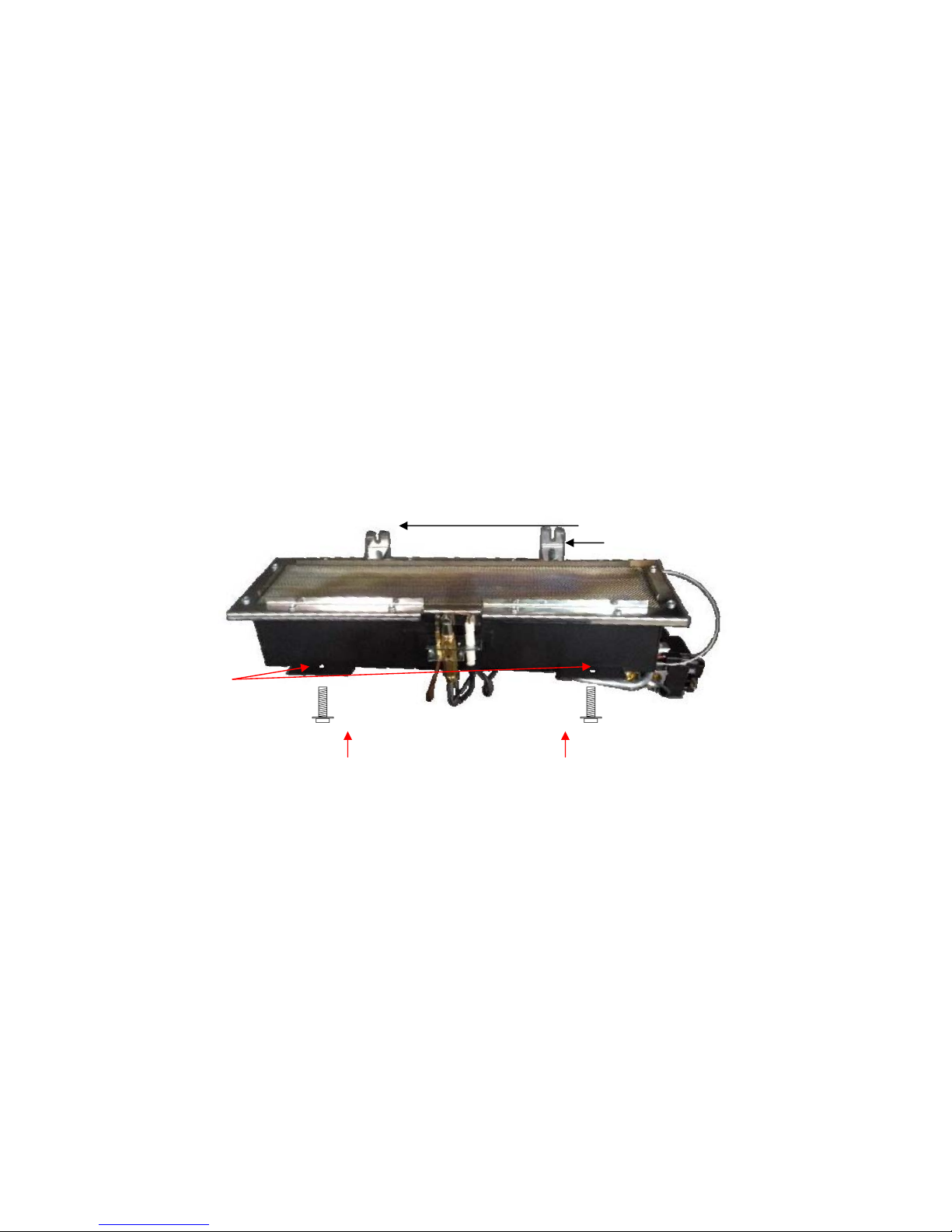

2. With the burner out of the stove, if the “L” shaped brackets are not fitted
screw the two burner fixing brackets to the rear of the burner so that the
“L” brackets line uo with the screw holes in the internal rear plate.
3. Next, with the stove stood upright insert the burner (control first) through
the door. Dip the controls through the bottom of the stove so that the
burner comes to rest onto the brackets located at the front. Fix using bolts
provided. The controls should be at the right hand side of the stove.
4. The “L” brackets should now line up with the two holes located on the
internal rear plate. Finally screw the two self tapping screws and washers
provided through the “L” brackets to hold the burner securely in place
against the rear plate.
Fixing points for self tappers
Front Fixings
(Nut’s integral)

200707_3 8

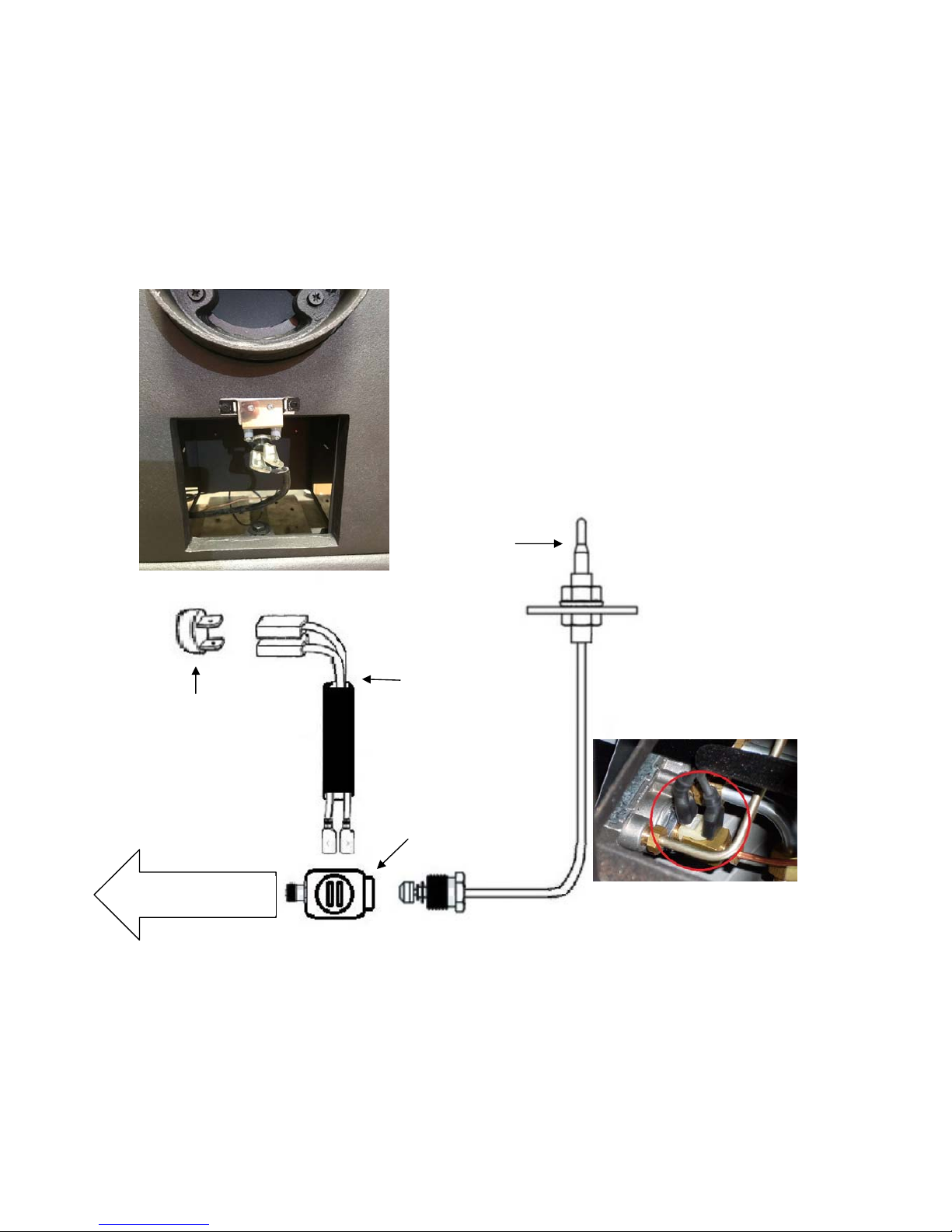

Assembly –Connecting the TTB Sensor
With the burner installed, thread the TTB connection cable from the interrupter to
the TTB sensor (mounted on the rear panel of the stove).
TTB sensor
(located just
below the rear
flue outlet).
Thermo
Couple
To Gas Valve
TTB
Connection
Cable
Interrupter
Interrupter
TTB

200707_3 9
Assembly – Positioning the Coal Ceramics
Only the ceramics supplied with this appliance should be used. The ceramics
should only be laid as described. Replacement ceramics are available from your
dealer. Whilst arranging the ceramics, ensure that the pilot is not obstructed.
Broseley Fires Ltd accepts no responsibility for any injury sustained whilst
handling hot ceramics. Before any ceramics are placed in position ensure
that the burner is operating correctly. The flames should be fairly even across
the burners mesh top. Ceramics which are found to be placed other than in
accordance with these instructions will result in a charge being made
following any service callout.
COAL LAYOUT
Warning: Ceramic coals are very fragile so always handle with care when
fitting them. Follow these instructions carefully. Ceramics that are
positioned wrongly could seriously alter the performance of your
appliance.
Step 1
Open the door fully, you may wish to lift it from its hinges. Take the large base
ceramic coal matrix making sure the front edge is facing towards you. Pick up the
ceramic with both hands, placing the fingers gently through the flame holes.
Support the weight at all times as the ceramics are fragile and damage easily.
During the placement do not force the ceramic into position as it will break.
Turn the front edge of the ceramic to face downwards and insert the right hand
side first into the rear right corner of the stove. It should now be possible to gently
follow with the left hand and at the same time rotate the ceramic upwards so that
it lays flat on the burner. The ceramic should be against the back of the stove
and central about the burner mesh.

200707_3 10
Assembly – Positioning the Coal Ceramics
Step 2
Take the larger of the rear ceramic (left hand side) and locate it into position on
the base ceramic via the location holes and lugs. Ensure the flat rear side of the
ceramics is against the back of the stove.
Step 3
Take the smaller of the rear ceramics (right hand side) and locate it into position
on the base ceramic via the location holes and lugs. Ensure the flat rear side of
the ceramic is against the back of the stove. The two rear pieces fit together.

200707_3 11
Assembly – Positioning the Coal Ceramics
Step 4

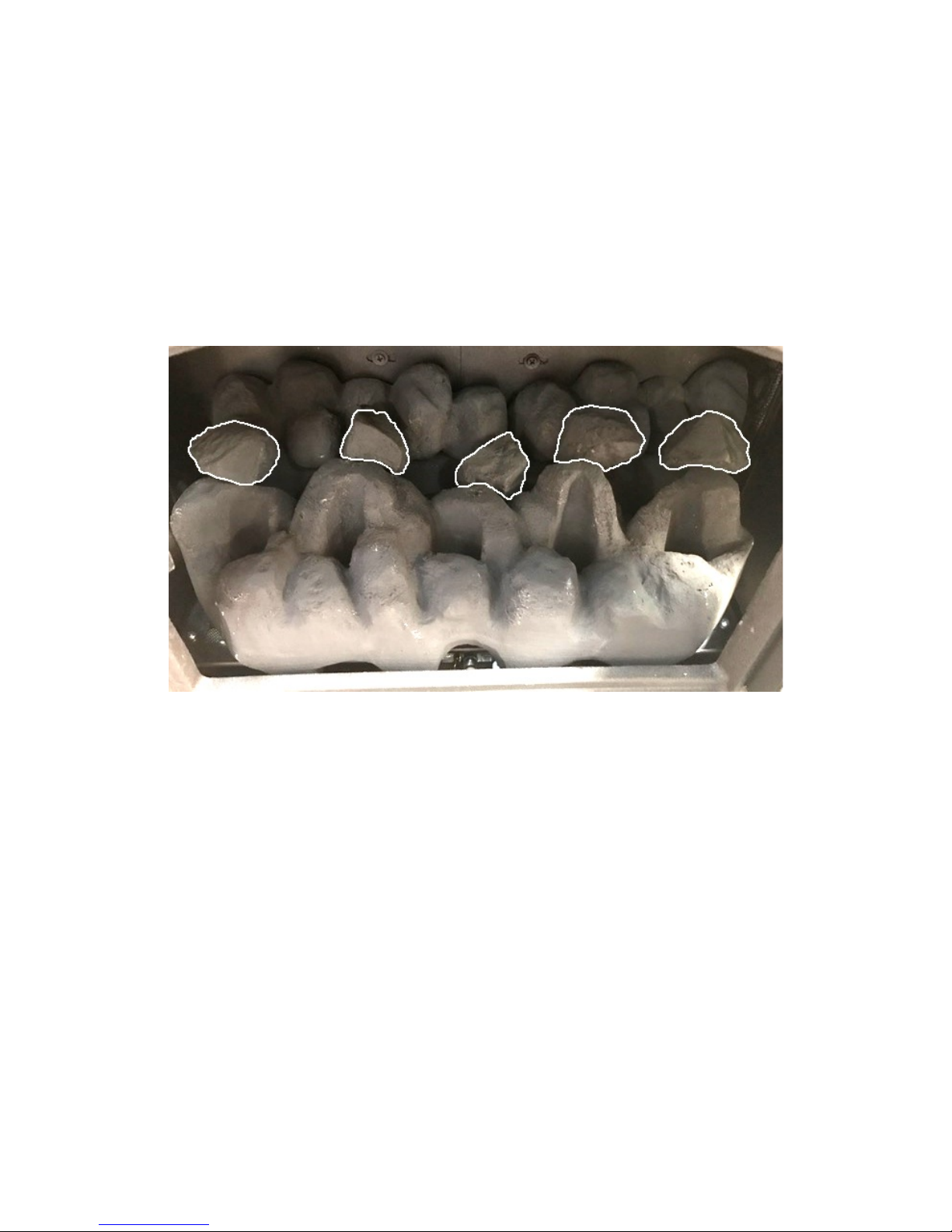

Place the 6 loose coals across the centre of the fire, so that they bridge the gap
between the rear and base ceramics. These coals should be rested gently in
position. Do not push them into the gap, as this will prevent the flames from
burning evenly and effectively. The path of the flame should not be obstructed.
Finally, close the stove door and wind on the M6 x 18 hex bolt back onto the door
fixing bolt, slide the handle over the nut and using the Allen key supplied tighten
the grub screw onto the nut.
Please Note
If there is any accumulation of soot within the fire chamber it may be
necessary to adjust the individual ceramics to ensure they are not
impeding any of the flames directly.

200707_3 12
Assembly - Positioning the Log Ceramics
The ceramic logs have location points on them that will help you locate them in
the correct position. Please read the following instructions carefully and use the
diagrams to assist you.
Stage One
Position the largest ceramic on top of the burner and push it firmly against the
rear of the stove. Ensure that it is central about the burner.
Stage Two Stage Three
Position the rear log onto the two location Position the next log as shown in
lugs towards the rear of the base ceramic the diagram below. This log also
as shown in the diagram. Has two location points.
Stage 4
This log is located on a lug that has been formed on top of the previous log.
Locate this lug first, the other end of the log is a notched out section in the base
ceramic.
Finally, close the stove door and wind on the M6 x 18 hex bolt back onto the door
fixing bolt, slide the handle over the nut and using the Allen key supplied tighten
the grub screw onto the nut.

200707_3 13
Assembly – Gas Connection & Pressure Testing
A minimum 15mm-diameter gas supply pipe must be used to within 1 metre of
the installation with the final connection to the stove to be completed with the
suitable 8mm semi-rigid gas pipe. The 8mm pipe should be connected to the inlet
of the gas valve using the nut and 8mm olive provided. Support the control whilst
finally tightening the supply pipe. A gas safety tap / restrictor elbow with a
pressure test point at the inlet to the burner is provided.
PRESSURE TESTING
Always make sure that there is adequate gas pressure and volume to the stove.
The relevant pressures are on the ID plate on the gas control knob.
1. For natural gas, this is 20mbar measured at the burner test nipple
situated at the inlet connection to the stove with the appliance in the full
rate position.
2. For propane, this is 37mbar measured at the burner test nipple situated
at the inlet connection to the stove with the appliance in the full rate
position.
3. Ensure that the gas pressure to the stove is maintained when it is
operating at the same time as other appliances in the building and that a
suitable pressure gauge is used i.e. a manometer. Any service call as a
result of incorrect gas pressure will be chargeable.

200707_3 14
Spillage Testing
A Spillage Test MUST be made before the installed fire is left with the customer.
Carry out the test by first closing all doors and windows in the room containing
the fire.Insure that the fire is burning at full rate for a minimum of 10-15 minutes.
Using a lighted smoke match run it along the top edge of the draught diverter on
the rear of the stove, observing the smoke being drawn into the dilution box, after
10 minutes repeat the test
If there is an extractor fan in a nearby room the spillage test must be repeated
with the fan running and all connecting doors between the fire and fan left open.
If there are still problems, the chimney / flue may require attention. Disconnect
the stove and seek expert advice.
SPILLAGE MONITORING SYSTEM
This appliance is fitted with a Temperature sensing cut out (TTB) device in the
event of the flue being blocked the device will recognise the fault as an increase
in heat inside the stove and shut the appliance down within a safe period so that
there is no excessive build up of products of combustion inside the room. This
operation would only occur if the flue path suffered severe blockage and /or
ventilation was severely impeded.
THE FOLLOWING ARE IMPORTANT WARNINGS RELATIVE TO THE
SPILLAGE MONITORING SYSTEM
1. The installer must not attempt any adjustments to the spillage monitoring
system.
2. There must be no attempt to disable the spillage monitoring system.
3. It is not possible to replace individual parts of the pilot assembly on the
appliance – only a complete pilot assembly (including thermocouple) may
be fitted in the event of a replacement being necessary. When the
spillage monitoring system is replaced, only complete and original
manufactures’ parts may be fitted.
4. Should the appliance turn itself off, wait for a minimum of 3 minutes before
attempting to re-light. In the event of your stove tripping out, consult your
installation engineer to have the flue / chimney checked.

200707_3 15
Operating the Stove
It is important to read these instructions thoroughly before lighting the
stove.
The gas stove operates with a traditional permanent pilot light.
The knobs for ignition and power control are located on the lower right hand side
of the stove.
The pilot light is located at the front middle of the coal matrix.
If the Flame Supervision Device Actuating Flame (the pilot light) is extinguished
by intention or not, no attempt should be made to re-light until 3 minutes have
elapsed.
IGNITING THE PERMANENT PILOT LIGHT
1. Depress the rear control knob fully.
2. Whilst depressed, turn knob sharply 90 degrees anti-clockwise to “pilot” setting.
Repeat until pilot light is visibly lit. You should fell some resistance and hear a
click. Repeat until the pilot lights.
3. Keep knob depressed at this point for 15-20 seconds.
4. Upon releasing, turn the knob anti-clockwise until it stops in the permanent pilot
light position. The permanent pilot light will remain lit. This is the position for
remote operation and can be left with the pilot running. You may wish to turn off
the stove during long periods of non-use perhaps during the summer months.
EXTINGUISHING THE STOVE FULLY
1. From any heat setting or the permanent pilot, depress the rear control
knob and turn clockwise to “OFF” position.
Should the glass door become broken or damaged in any way, turn your stove
off and do not attempt to re-light it. Contact your dealer for a replacement to be
fitted before relighting the appliance.
PLEASE EXPLAIN TO THE CUSTOMER THESE LIGHTING AND
EXTINGUSIHING PROCEDURES AND THAT IT IS NORMAL FOR THE
STOVE TO GIVE OFF ODOURS WHILST THE PAINT, SEALANT AND CAST
IRON MATURES.

200707_3 16
Operating the Stove – Remote Control
This control is situated on the lower right hand side of your fire. The drawing
below shows the main features of the control.
The control requires 3 AA size alkaline batteries to be inserted under the battery
compartment cover. The orientation of these is shown moulded into the battery
compartment.
The power of the burner can be adjusted up and down by pressing the – and +
buttons. After fitting the batteries and replacing the cover the fire can now
operate. Slide the power isolator switch to the right to the on / I position.
To start the fire, press the power button and hold for 1 second then release. The
burner will within around 1 to 10 seconds, adjust to the maximum power setting,
To stop the fire, simply press the power button again and the burner will stop.
If you are not intending to use the fire for a long period (i.e. over summer time
months) the battery life can be extended even more by sliding the isolator switch
to the left (away from the “on” / “I” position, symbol 0).

200707_3 17
Operating the Stove - Remote Control Version (Handset)
Ensure the power isolator switch on the front corner of Fire Control is in the on
position I. NOTE: For safety reasons a button must be pressed and released for
the command to be recognized. Keeping hold of a button when pressing (unless
otherwise instructed) will not be recognized as a command press.
Grasp around the handset to unlock its functions. The green unlock light will
illuminate to show when the handset is unlocked and ready to accept commands.
(N.B. Keep a grip of handset to keep it unlocked, to continue to operate the
command buttons)
Mode – MAN (Manual), Zzz (Snooze),
thermostat or timed.
Time (12hour or 24 hr
display)
In Range of fire
(missing if not in
range or if Fire
Control turned off)
Room Temperature
Handset Unlocked
when Illuminated
To change handset
settings (see
handbook)
Press to increase flame
Power button – To start the fire (after following the instructions of the previous page) with one hand
grasp around the rear of both sides of the button area control. The green unlock light will illuminate.
Keep the handset held to keep the control unlocked, to enable operation of the buttons. Then with the
other hand touch and hold a finger on the power button for about 3 seconds. (A short beep and a
flash of the unlock light will happen upon touching.) When the word “pilot” appears at the bottom left
hand corner of the display, immediately release the power button. (A second flash of the unlock light
and a longer beep will also sound at the time to release the power button). The Fire should be lit
within a few seconds. (N.B If power button is held for more than a few seconds after second
flash/beep/word pilot appears; the command is ignored for safety reasons. Similarly if it is released
too soon before the word pilot appears, the command is also ignored. With this system, the control
has been designed to ensure that only intended ignition of the fire occurs.) To stop – with handset
held to unlock it, press then release power button.
Press to decrease flame
To change mode (see
handbook)
Light sensor (for
display back light)
Battery condition –
RC handset, FC fire
control
Gas fire burner status
Day of the week

200707_3 18
Operating the Stove - Remote Control Version (Handset)
The handset comes already paired to work with the fire and the time set etc. Please read
these instructions carefully and watch the instructional YouTube video through your
internet web browser if necessary. Do not try pairing the handset thinking that it is not
paired it is more likely the handset is not being pressed correctly.
For safety reasons the handset is made not to be operated by accident, please follow the
instructions as below:-
 The handset should be showing a Wi-Fi symbol in the top right of the
display. This means the handset is within range of the fire Control. (If the
symbol is not there check a) the batteries are in the handset and the fire gas
control properly the correct way around, b) the batteries are good batteries
and c) that the small isolation switch on the gas control in the top left corner
is in the “ I “ position and not the “ O “ position).
 To start the fire, with one hand grasp firmly around the rear of both sides of
the button area control. The green unlock light will illuminate. (Keep the
handset held to keep the control unlocked, i.e. the green light on, at all times
to enable operation of the buttons).
 Then with the other hand touch and hold a finger on the power button for
about 3 seconds. (Upon touching a short beep and a flash of the unlock light
will happen).
 As the handset beeps and flashes the green light for the second time, the
word “pilot” will appear at the bottom left of the display, immediately release
the power button as the word the word “pilot” appears. (It may take a few
practices to do this correctly, but as stated it is done in the interest of safety
to prevent unintended operation.)
 The Fire should be lit within a few seconds. (N.B. If power button is held for
more than a few seconds after second flash/beep/word pilot appears, the
command is ignored for safety reasons. Similarly if it is released too soon
before the word pilot appears, the command is also ignored. With this
system, the control has been designed to ensure that only intended ignition of
the fire occurs.)To stop – with handset held to unlock it first, press then
release power button.

200707_3 19
Operating the Stove - Remote Control Version (Handset)
3) Setting the time
Should you have to set the time or change the time you need to enter the SETUP menu.
Hold the handset to unlock the keypad and keep held throughout the following steps, (if
you release too soon the menu will exit and you will have to start again). Press and hold
set for several seconds. The symbol in the top centre will flash. Press and release the
“mode” button several times until the word “SETUP” appears flashing in the top right
corner of the display.
Press and release “set” again to enter the “SETUP” menu.
Here you can change the clock from 12 hr or 24 hour format, the day
of the week, hour of the day, minute of the day and the display in
Celsius or Fahrenheit.
To navigate through the menu “set” moves to the next parameter
and “Mode” moves back to the previous parameter. “+” and “-
“change the display parameter.
Setting the display for 12 or 24 Hour display
The H indicates that it is time to set the timer to either 24 hour display
or 12 Hour (AM or PM) display. Press the + or – button on the handset
to toggle between the two settings. When you are ready to confirm the
setting you want press the “SET” button to progress to setting the day
of the week.
Setting the day of the week
Press and release the + and – buttons until the correct day of the week
is shown on the display.
(Mo = Monday, Tu= Tuesday, We=Wednesday, Th=Thursday,
Fr=Friday, Sa= Saturday and Su=Sunday).
Press “SET” to accept the day of the week and to progress to setting
the Hour of the day.
Note: Whilst doing this setup pressing “SET” advances to the next
display and pressing “MODE” will return you to the previous display
setting.
Setting the Hour
Press and release the + or – button to change the hour to the correct
hour and press set to store and to move to setting the minute.
Repeat this for setting the minutes.

200707_3 20
Operating the Stove - Remote Control Version (Handset)
Setting the temperature display to Celsius or Fahrenheit
Press and release the + or - button to toggle between C and F.
When the display shows the desired symbol, press and releases the
“SET” button to store.
As the important settings above have now been done, press and hold
for a few seconds the “SET” button for a few seconds and this will exit
the setup menu. The control is now ready for use with the Fire Control.
Paging the handset
If you have misplaced the handset you can page it by pressing the + button only on the
fire control for around 5 seconds. The handset will flash and make a noise to help you to
locate it. Once you pick up the TESC it knows you hold it and so the sound stops. The
flashing and sound will last for 60 seconds each time the handset is paged as described.
If not found in 60 seconds, page again and so on. NOTE: PRESS “+” Button ONLY, NOT
“+” and “-‘Together as you will accidentally break the handset pairing and have to reset
handset to factory state and pair again (see other parts of the booklet if this happens).
Note: the legend at the bottom shows the battery condition of both the batteries in the
hand set and in the fire control alternately. RC = Remote Control handset and FC = Fire
control. The control is designed to get the most out of the batteries but when eventually
the display shows they are spent(when the battery legend is an empty area, we
recommend you change the batteries in the handset before they are flat, to avoid having
to re-program the time of day in again. N.B. Pairing is not lost, even if the batteries are
removed or flat.
Advanced settings Menu
In the event that you may want to change the other pre-set settings of the control
features. Do not do a long press and hold above but a normal short press and release
will take you into the advanced settings area.
Advanced settings options are:-
 Back light –
o A = Automatic (default setting). The back light comes on in the dark but
not in the light.
o 0 = Light never comes on.
o 1 = Light comes on whenever handset is unlocked.
 Display contrast – 8 levels from 0 to 7 (default level 4).
 P = pairing with other devices other than the fire control. The hand set can pair
with other modules to :-
L= Operate an electric light – which is the dimmable in 9 steps
o F= operate an electric fan –which can have 9 speed levels
o A= operate an auxiliary contact to operate another device.
