Broseley Canterbury Manual

Installation & Operating Instructions
PLEASE NOTE THAT THIS APPLIANCE USES A MOTOR TO OPERATE THE FLAME EFFECT AND THAT IT
MAY BE POSSIBLE TO HEAR IT WHERE THE BACKGROUND NOISE IS VERY LOW. THIS IS NORMAL AND
SHOULD NOT BE A CAUSE OF CONCERN.
These instructions should be read carefully and retained for future reference

Contents
Please see the relevant pages in the Assembly section for specific information on how to
assemble your electric stove:
Models Covered Page 2
Important Safety Advice Page 3-5
Technical Specification Page 6
Assembly –Fitting the Winchester “Wings” Page 7
Assembly –Installing the Flame Effect Unit Page 8
Assembly –Positioning the Decorative Fuel Effect Page 9-11
Operating Your Stove Page 12-18
Maintenance Page 19
Guarantee Page 20
Models Covered
This instruction manual covers the following models:
Canterbury Freestanding Remote
Lincoln Freestanding Remote
Winchester Freestanding Remote

Important Safety Advice
Warning: this appliance must be earthed.

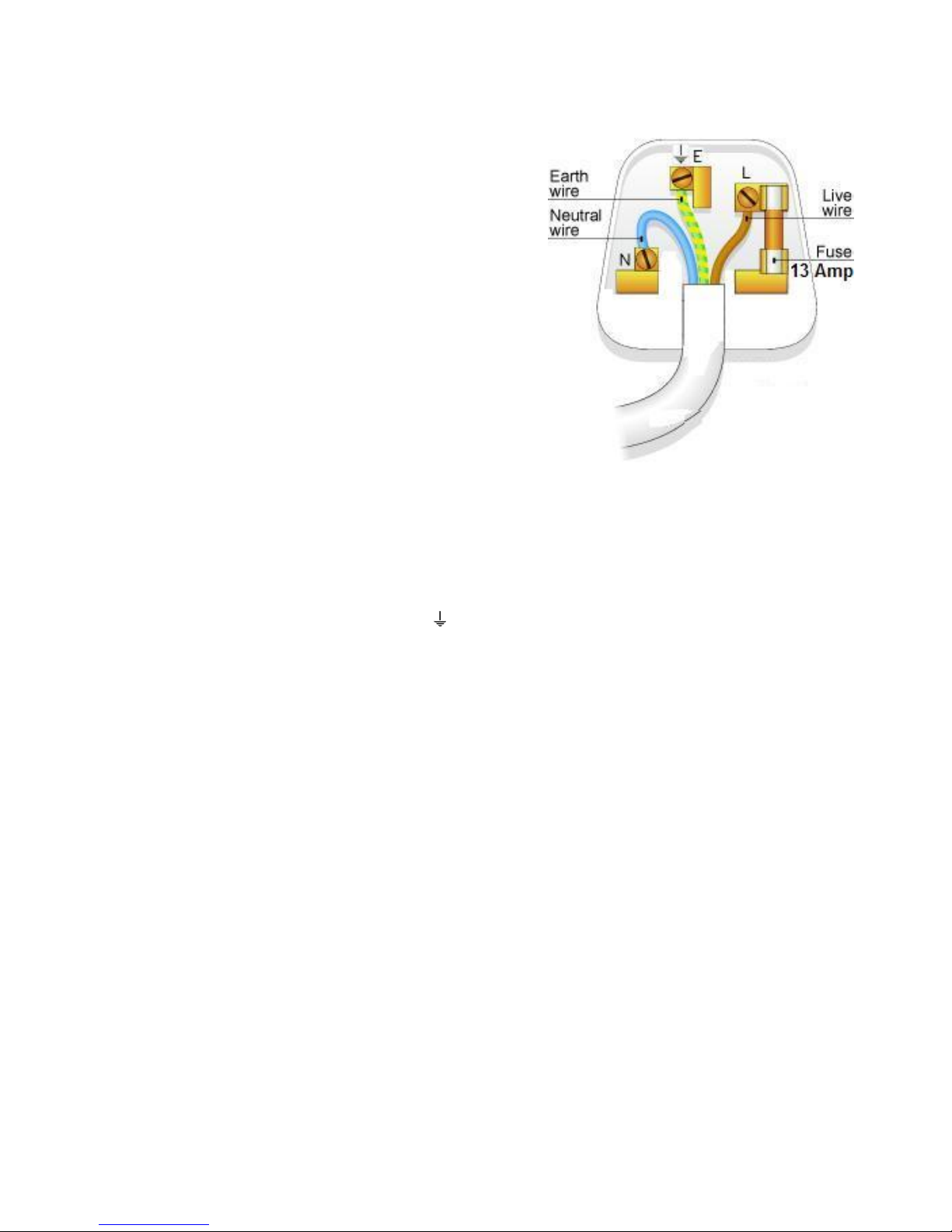

The wires in the main lead to this appliance are
coloured in accordance with the following code:
GREEN and YELLOW
Earth
BLUE
Neutral
BROWN
Live
As the colours of the wires in the mains lead of this
appliance may not correspond with the coloured
markings identifying the terminals in your plug, proceed
as follows:
The wire, which is coloured green and yellow, must be connected to the terminal in the plug
with the letter E or by the earth symbol or coloured green or green and yellow.
The wire, which is coloured blue, must be connected to the terminal, which is marked with
the letter N or coloured black.
The wire, which is coloured brown, must be connected to the terminal, which is marked with
the letter L or coloured red.

Important Safety Advice
WARNING:
In order to avoid overheating do not cover the heater.
In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance
must not be supplied through an external switching device, such as a timer, or connected to
circuit that is regularly switched on and off by utility.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a
similarly qualified person in order to avoid a hazard.
Use the heater in a well-ventilated area. Do not insert or allow objects to enter any ventilation or
exhaust opening. To prevent a possible fire, do not block air intakes or exhaust openings in any
manner. Do not use on soft surfaces, like a bed, where openings may become blocked.
Do not place this heater near flammable materials, surfaces or substances, as there may be a
risk of fire. Keep the above flammable materials, surfaces or substances at least 1m from the
front of the product and keep them away from the sides and rear.
If the fire is to be placed in front of an existing chimney opening and there is any risk of chimney
debris falling down onto the fire it is recommended that the flue or opening is sealed off with
non-combustible non-fibrous insulation materials. Do not place into an existing fireplace that is
prone to dampness. Should it be necessary to cap and seal the chimney to prevent personal
injury, a professional should be hired to do the work
This heater must not be located immediately below a fixed socket outlet
or connection box.
DO NOT COVER this heater, or obstruct the air inlet or outlet
otherwise there is a risk of overheating
During normal operation this appliance will emit noise from the internal fan unit.
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
Children and vulnerable people must be supervised at all times when using this
appliance, as some parts can become very hot
Children of less than 3 years should be kept away unless continuously supervised.
Children aged from 3 years and less than 8 years shall only switch on / off the appliance
provided that it has been placed or installed in its intended normal operating position and
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children aged from 3 years and less than 8
years shall not plug in, regulate and clean the appliance or perform user maintenance.

Some parts of this product can become very hot and cause burns. Particular attention
has to be given where children and vulnerable people are present.
Do not use the heater in the immediate surrounds of a bath, a shower, or a swimming
pool.
The heater must be cooled down completely before any maintenance work is carried out.
After unpacking, please make sure that the appliance is intact, with no signs of damage
caused by transport. If in doubt, do not use the appliance and contact the Service Centre.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a hazard.
If this fire is supplied through an extension cable, please ensure that it is the only
appliance plugged into the extension and that the instructions for the extension cable /
reel are followed.
Do not stand the fire on the carpet –stand on a firm surface, which is free of dust and
lint.
In the event of a fault please disconnect the fire from the mains supply.

TECHNICAL SPECIFICATION
Supply Voltage: AC230V-240V 50Hz
Maximum power consumption: 2KW
Heat output:
Nominal heat output (Pnom): 2KW
Minimum heat output (indicative) (Pmin): 1KW
Maximum continuous heat output (Pmax): 2KW
Auxiliary Electricity Consumption:
At nominal heat output (elmax): 12.5W
At minimum heat output (elmin): 12W
In standby mode (elSB): 0.48W
Type of heat output / room temperature control
Two or more manual stages, no room temperature
control
no
With mechanic thermostat room temperature control
no
With electronic room temperature control
yes
Electronic room temperature control plus day timer
yes
Electronic room temperature control plus week timer
yes
Other control options
Room temperature control, with presence detection
no
Room temperature control, with open window
detection
yes
With distance control option
no
With adaptive start control
yes
With working time limitation
no
With black bulb sensor
no

Assembly –Fitting the Winchester “Wings”
For Winchester Electric Models Only
Before inserting the “Flame Effect Unit” into the “Cast
Iron Stove Body”, it is necessary to fit the two wings
supplied.
This will allow the flame effect unit to sit at the correct height within the cast iron stove
body.
Assembly Sequence:
Step 1 –Remove the flame effect unit from its packaging.
Step 2 –Carefully lay it on its face, on a surface that will not scratch it.
Step 3 –Remove the four screws (Two each side) indicated in the photo above.
Step 4 –Screw the wings into position, using the screws you have just removed.

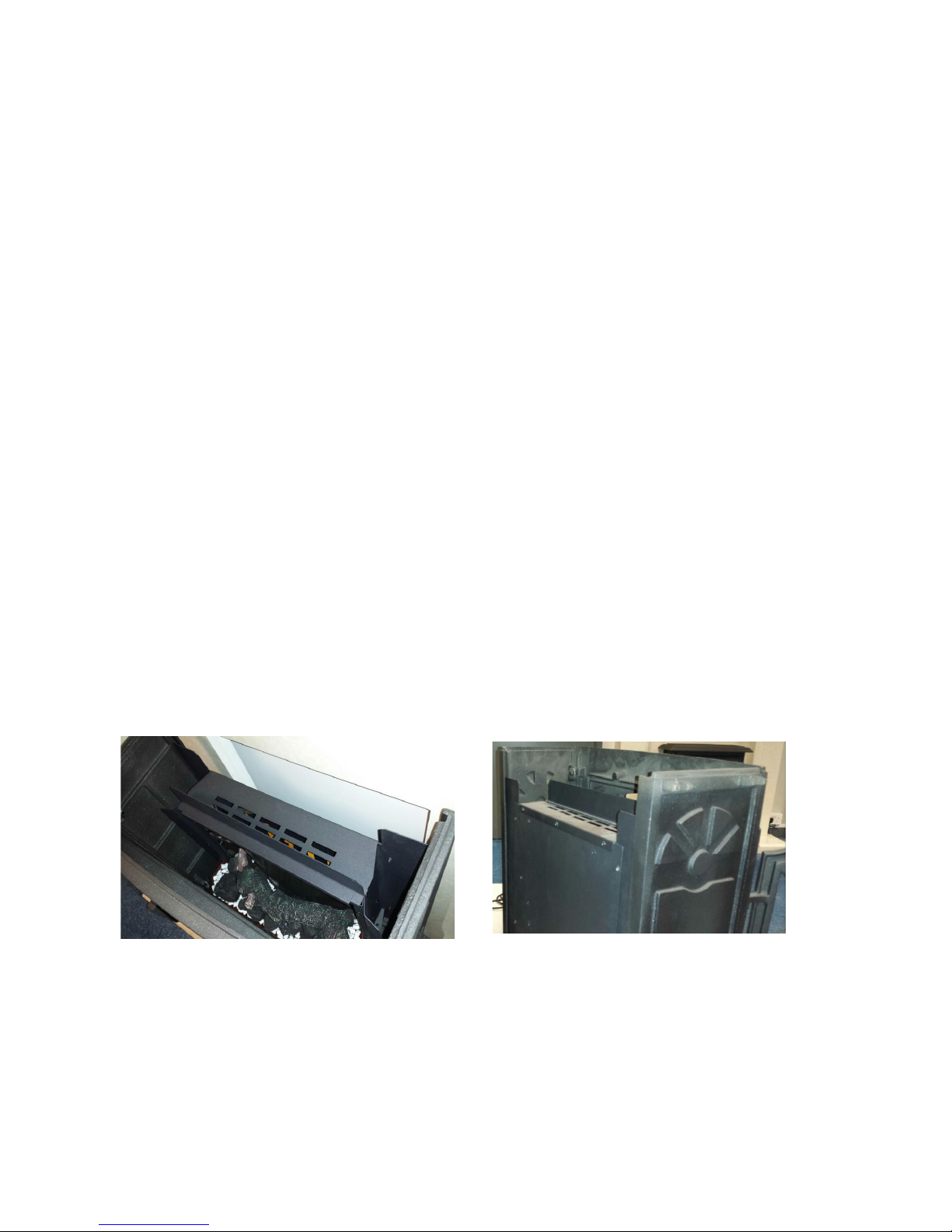

Look at the photo below to see the finished position of the fitted wings

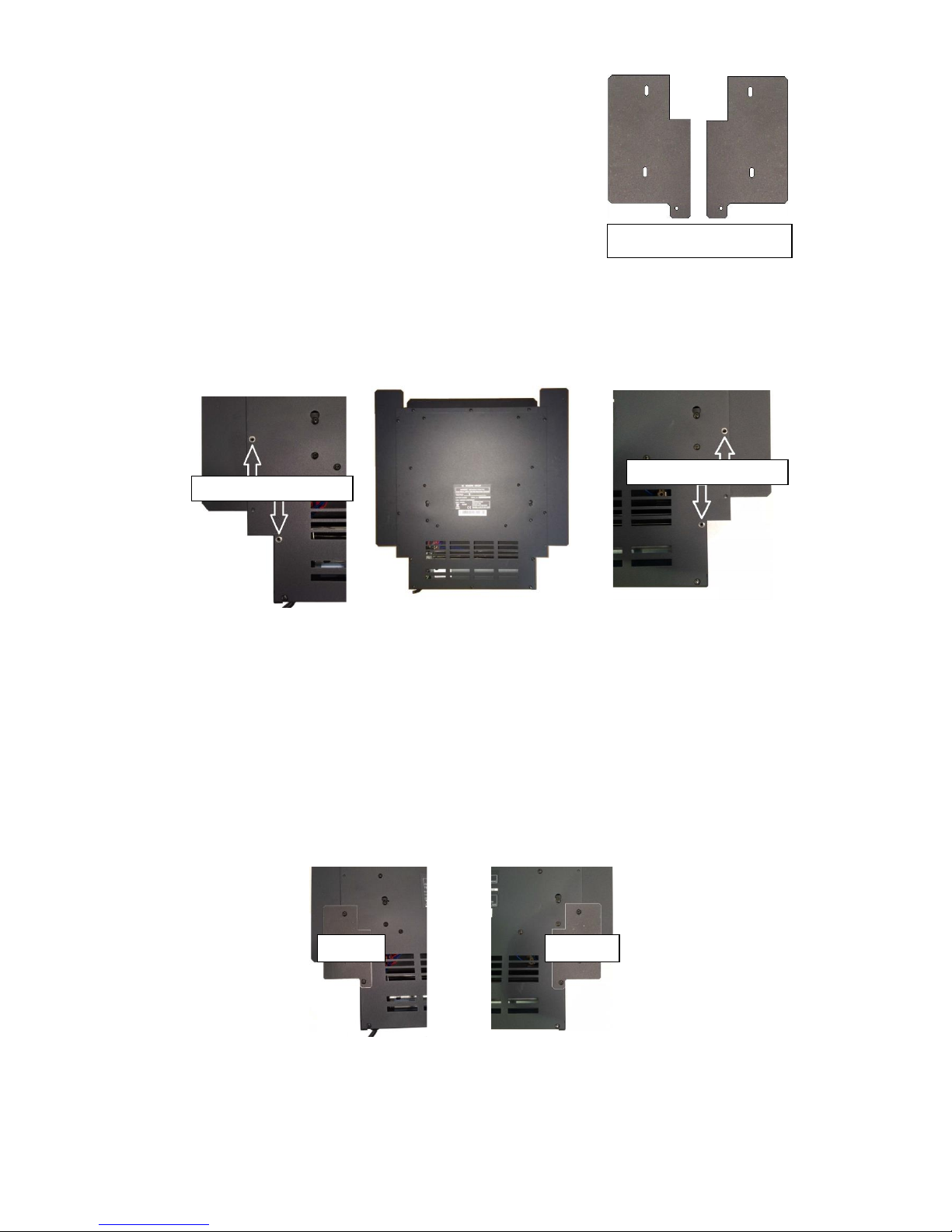

Fig.1 Left & Right Wings
Remove these two screws
Remove these two screws
Left Wing
Right Wing

Assembly –Installing the Flame Effect Unit
Assembly Sequence:
1. Carefully remove all packaging and protective materials from the stove body. Remove
and discard the “Transit Bar” from the stove body, this item stops the sides of the stove
body from moving in transit. The transit bar has been positioned into the vertical channels
where the flame effect unit is to be slotted in place.
2. Remove the cast iron lid from the stove body and lay the stove body on it back.
3. Attach the four legs using the bolts / nuts provided. Stand the main body upright on its
feet.
4. Carefully remove all packaging and protective materials from the flame effect unit.
5. Insert the flame effect unit into the stove body, the unit is lowered down carefully from the
top of the body with the sides located into the groves on each side of the stove body. If
the flame effect unit will not slide down easily you may need to slacken the bolts
connecting the sides to the front and base. Take care not to trap the cable whilst
lowering the flame effect unit into the stove body.
6. Open the door(s) (Lincoln doors simply pull open, Winchester and Canterbury doors
open by removing the handle, turning it anti-clockwise).
7. Position the decorative fuel effect of your choice (coals are simply scattered onto the flat
bed, the logs are positioned as shown in the below image).
8. Remove the Perspex from the stove. The Perspex is held in place with four screws on
the Canterbury and Winchester but simply slides behind the lugs on the Lincoln.
9. Remove both sides of the protective covering from the Perspex.
10. Finally replace the cast iron lid once the unit is in its final p[osition.

Assembly –Positioning the Decorative Fuel Effect
Log Installation
For the coal effect simply spread the loose coals across the fuel bed in place of the logs, you
can even have a mixture of coals and logs for a more unique look.

Operating Your Sto ve
The appliance can be operated by both remote control and the manual controls on the
appliance.
NOTE: To use both remote and manual functions the manual on / off switch must be in “-”
position. In order to prevent the product becoming too hot, there is 10s delay when turning on
the heater and a 10s delay when turning off the heater.
PREPARATION BEFORE USE
•Check that the supply voltage details on your flame effect fire are in accordance with your
electrical supply. Your fire is fitted with a plug incorporating a 13 Amp fuse. In the event of
replacing the fuse in the plug supplied, a 13 Amp fuse approved by ASTA to BS 1362 must
be used. Before switching on, please read the following fire installation instructions.
•Ensure that the handset batteries are new and inserted correctly.
•In the event of any problems please contact:
Be-Modern Helpline on 0191 430-0901.

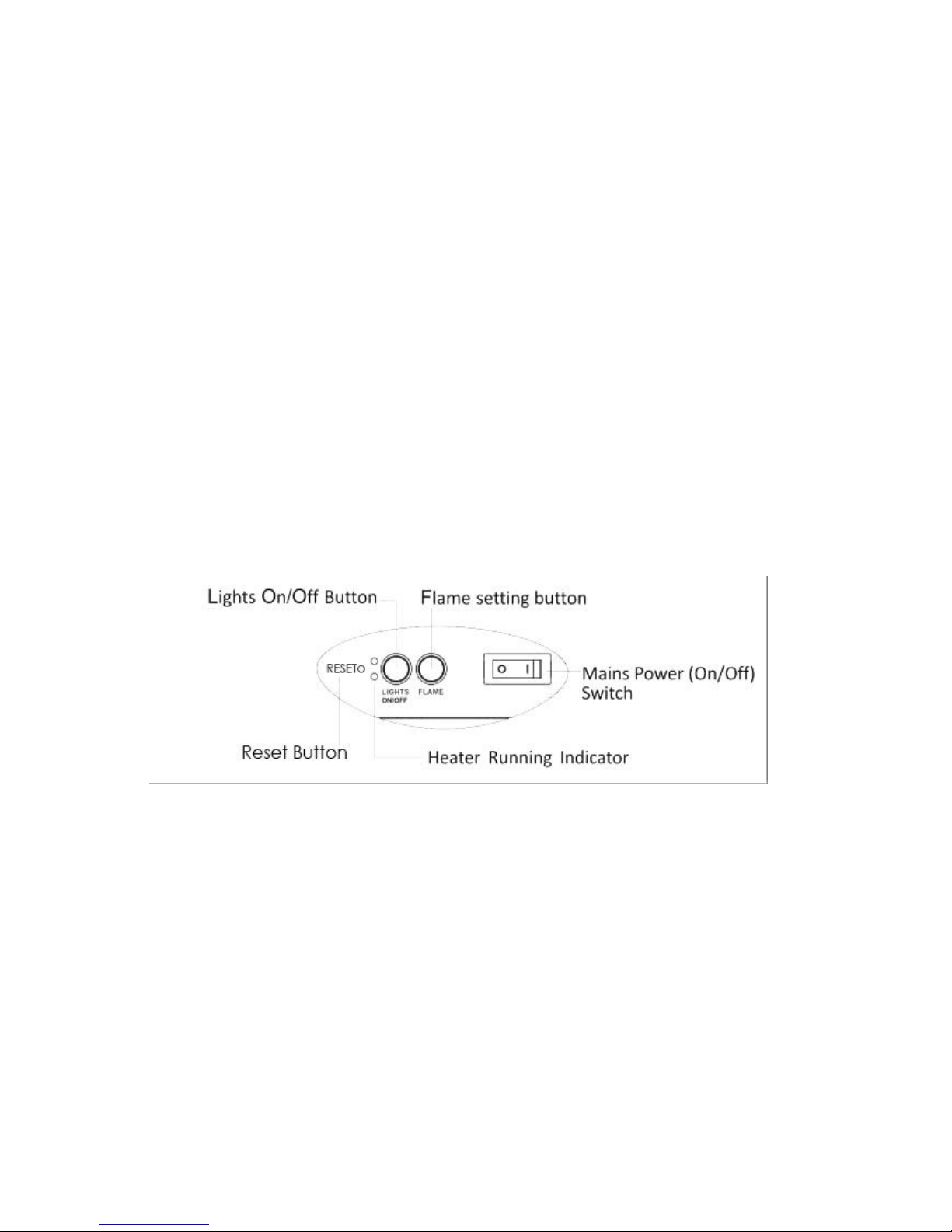

Manual Contro l s
NOTE: The manual button controls basic functions, not a full range of controls.
Use the remote hand set to carry out all functions.
Press “FLAME”button to cycle through the 3 kinds of flame effect. Press “LIGHTS ON / OFF”
to turn on or turn off the flame.
NOTE: The controls on appliance will lose the memory for all function set- tings when
the switch is set to the OFF position. When the remote runs out of power or when you
change the batteries, only the flame function will lose memory and will not affect the
timer settings, however, the clock may need adjusting

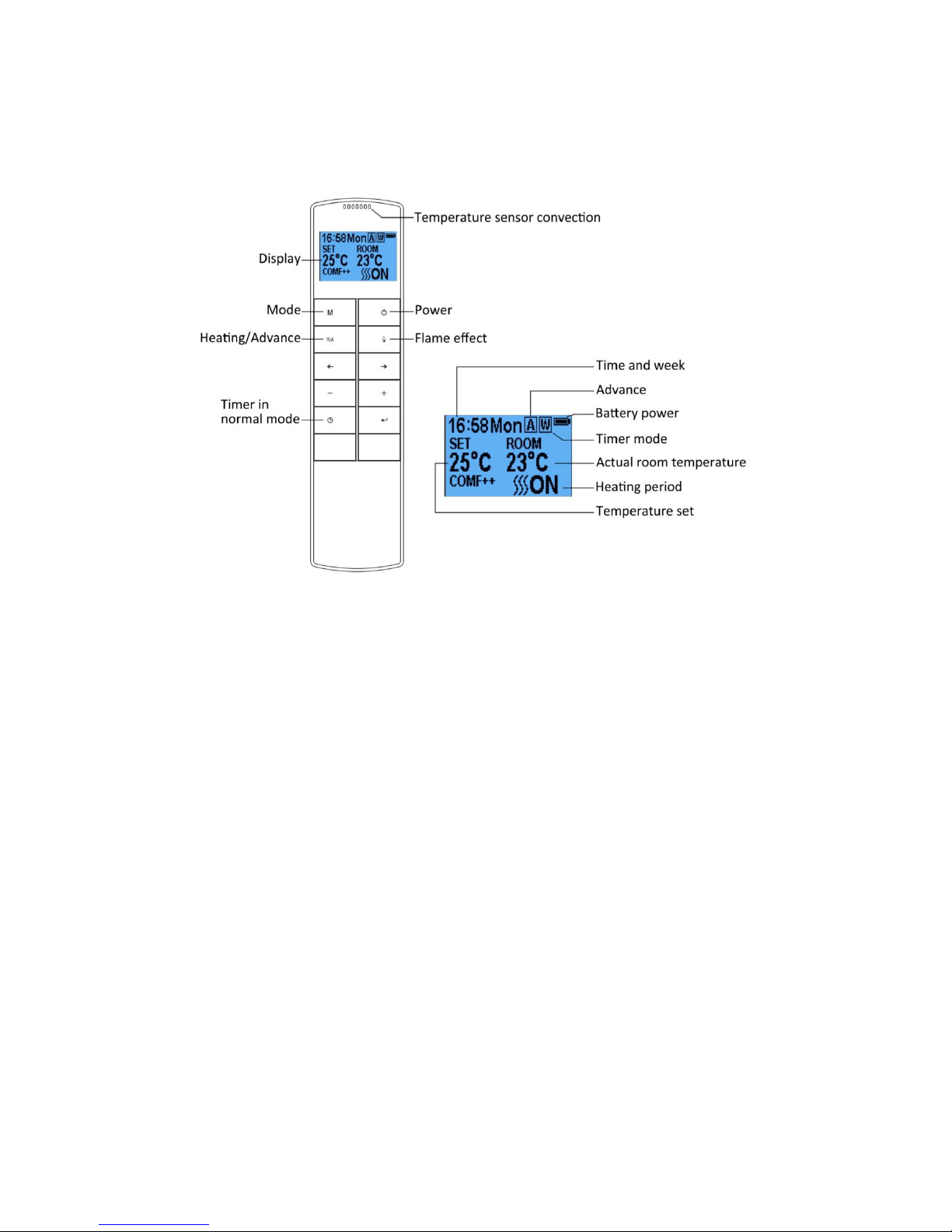

Remote Contro l s
NOTE: This is thermostatic remote control. The remote should be in the same room
as fireplace and placed on a flat surface. It must be placed away from the fire so the
hot air will not blow on it and affect thermostatic reading.
The communication frequency between the fire and remote has already been set up. If you
cannot use the remote with the fire, please follow instructions Step R29 to initiate this
connection in point.

Standby for Remote Handset
R1 The screen shown to the right is when the remote handset is in
standby mode.
Turn on / off
R2 Press to turn on the flame effect turn off flame effect and heater
when in normal mode.
R3 Press to turn on/off the flame effect under daily and
weekly timer mode.
Flame Effect
R4 Press to enter the flame effect adjustment screen.
R5 Press the ‘←’ and ‘→’ button to select the 3 kinds of flame effect.
R6 Press the ‘+’ and ‘-’ button to select the 5 brightness levels of the
flame effect and OFF settings
Normal Mode
R7 Normal control mode is factory set. If it is not, then press button
until the logo shows up at the upper right corner of the screen.
R8 Press the ‘+’ and ‘-’ button to adjust the temperature setting from
17℃to 25℃by 2 ℃intervals
R9 Press button to turn on/off heat, ON OFF will show at the
lower of the screen.
NOTE: It is normal for the fan heater to stop running for periods of time. This
happens because the room temperature is at or above the temperature set
on the remote control. The heater indicator will be turned off after 10s if you
have the flame ON. The heater indicator will stay ON if you use the heating
function only.
After Day / Time set
up
Before Day / Time set
up

Count Down Timer
NOTE: This setting is only for normal mode. It allows the appliance to go into
standby after a set period of time.
R10 Press to cycle through the settings from Off and 0.5 hours to 9
hours. The timer logo and time will show on the screen. The heater
must be in the ON position.
The heater can be automatically run by using daily timer and weekly timer
on the remote.
Set up Day, Time and Comfortable temperature.
R11 Press to turn on the remote handset. Hold the button for 3
seconds to enter the setting screen.
R12 Press the ‘←’ and ‘→’ button to choose Day, Time or your
comfortable temperature. The character selected will be highlighted.
R13 Pressing the ‘+’ and ‘-’ button will adjust the number.
Time: 24-hour system
Select your comfortable temperature from 15-25℃.
Temperature unit: ℃、℉
Daily Timer Heating
R14 The following are pre-set heating periods, which can be altered if desired
06:00 until 08:30
17:00 until 22:00
R15 Press until shows at the upper right corner of the screen and enter the daily timer
heating mode.
R16 Hold the arrow symbol button for 6 seconds to enter the daily timer setting. Max 3 timed
Heating periods per day.
Press ‘←’ or ‘→’ to choose hour or minute, press ‘+’ or ‘-’ to set the
time.
Minute will increase / decrease by 15 minutes per press.
Hold for 3 seconds or wait for 10 seconds to save and exit the
heating time period setting.
R17 Adjusting the set temperature
Press the ‘+’ or ‘-’ button to increase or decrease set temperature on the basis of your
comfortable temperature setting.
ECO means 2℃lower than your comfortable temperature setting, ECO- means 4℃lower,
COMF+ means 2℃higher, COMF++ means 4℃higher.
R18 To check your daily timer settings press .
R19 If heating needs to be turned off, it will be necessary to go back to the
Normal Mode to turn off.

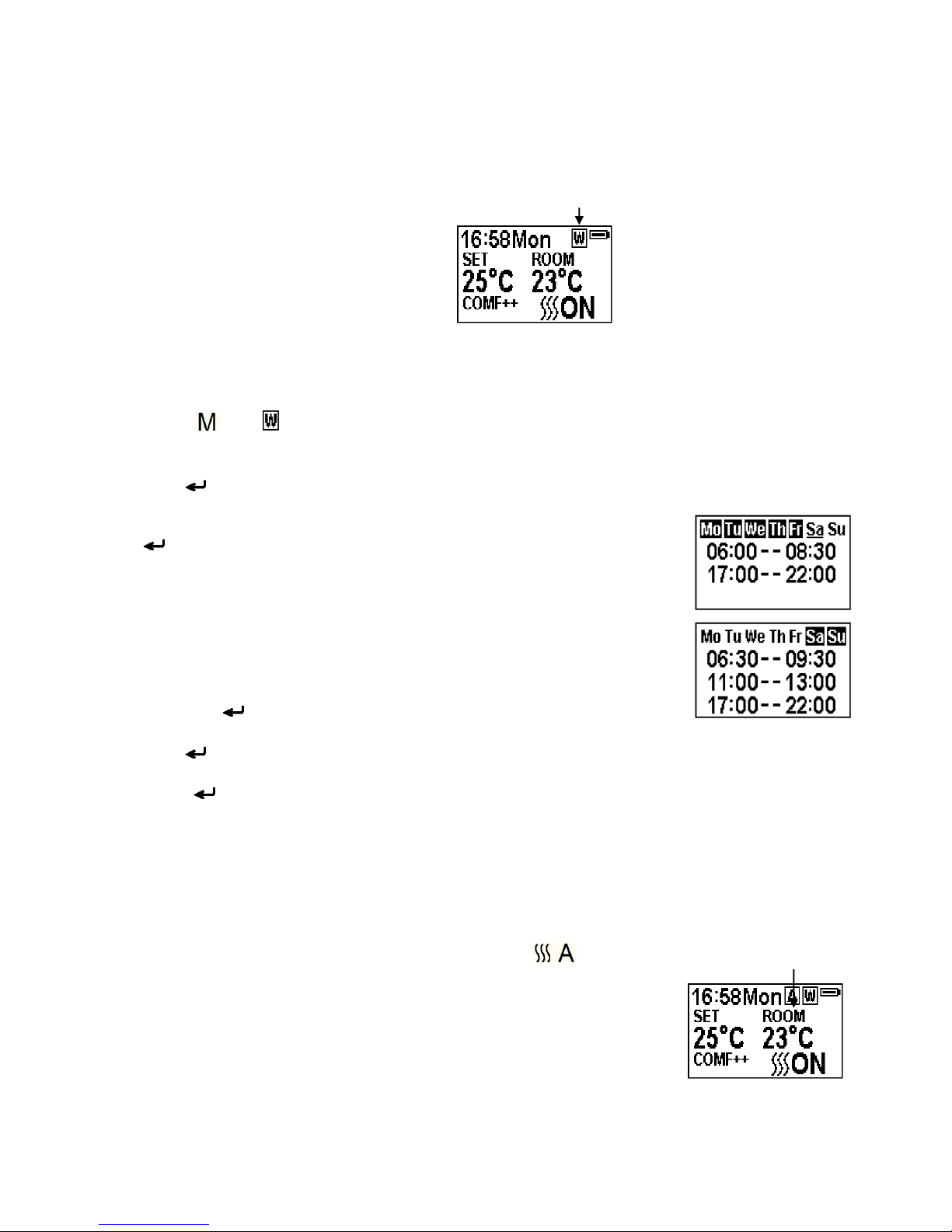

Week Timer Heating
R20 The following are pre-set heating periods, which can be altered if
desired.
From Monday to Friday
06:00 until 08:30
17:00 until 22:00
From Saturday to Sunday
06:30 until 09:30
11:00 until 13:00
17:00 until 22:00
R21 Press until shows at the upper right corner of the screen to enter the week timer
heating mode.
R22 Hold button for 6 seconds to enter the week timer setting
Press ‘←’ or ‘→’ to move the cursor (a flashing underline), press the
button in the corresponding week position to select (the character
is highlighted) or cancel (the character is displayed normally) the
current setting. Several days can be selected together.
Press the ‘→’ button to move the cursor to the time period setting
area. Press ‘←’ or
‘→’ to choose hour or minute, press ‘+’ or ‘-’ to set the number.
Max 3 heating periods for a day.
Minute will increase/decrease by 15 minutes per press.
Press the to set the heating time for the selected day(s) and return
to the week line.
Hold for 3s or wait for 10s to save and exit the heating time period
setting.
R23 Press , ‘←’ and ‘→’ to check your week Timer settings.
R24 If heating needs to be turned off, it will be necessary to go back to the
Normal Control Mode to turn off.
Advance Mode
R25 Under the daily and weekly timer modes, pressing :
Will turn the heater off when the heater is on during a pre-set heating
period.
Will turn the heater on when the heater is off in between pre-set
heating periods.

Adaptive Start Control
R26 According to room temperature and set temperature, the heater will automatically come on
in time to heat the room to the settemperature at the set time. For example, if your timer is
set to start at 18:00 and temperature is set to 23°C, the fire will come on at 17:30 to ensure
the room is 23°C at 18:00.
Window Open Detection
R27 When the transmitter detects a rapid drop in room temperature, it will
be judged as a window open, the warning icon will be displayed and
the heating will be turned off automatically.
R28 After the indoor temperature has risen or a manual override of the
warning (by operating remote control) has been done, the fire will
return to normal working state.
Set up the communication between the remote and appliance
R29 The below operations should be carried out before programming,
when changing to a new remote or in the event the appliance cannot
be controlled by the remote:
Hold the reset button on the appliance for 3 seconds (pen Point
may needed) until you hear 3 short beeps from the unit, release the
button.
Press the button on the remote, the programming is finished when you hear 1 long
beep from the appliance.
R30 Resetting the code for remote control is necessary if the appliance
operates wrongly or the remote control does not operate correctly.
Open the back cover of the remote control.
Press the Reset button on remote handset.
Follow the steps R29

Remote Control Battery Replacement
When the batteries are at full power, the battery symbol will show
When the batteries are half full, the battery symbol will show
When the batteries are out of power and need replacing immediately, the battery symbol will
show
Battery replacement is recommended after 1 year. The batteries are 1.5V alkaline AAA,
batteries.
Dispose of old batteries at an appropriate recycling facility.
Safety thermal cut-out
This appliance is fitted with an Electric Safety Control (E.S.). This is a safety device, which
switches off the fire if, for any reason, the appliance overheats. The E.S. Control can only be re-
set after the appliance has cooled down, in Order to re-set the E.S. Control, proceed as follows:
Switch off the appliance. Unplug at wall socket and leave for approximately 5-10 minutes. Plug
in switch on appliance and the E.S. Control will re-set.
Ensure that the appliance is functioning correctly. If the E.S. Control switches off again it is
advisable to have the appliance checked by a competent electrician.
Note: -This appliance also has a secondary thermal fuse link incorporated into the heating
element that will break the electrical circuit in the event that the heater fan fails to operate.
Unlike the E.S. if this link breaks the fire will not be allowed to re set and the appliance should
be checked by a competent electrician and the fan/element replaced.
CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut out, this
appliance must not be supplied through an external switching device, such as a timer, or
connected to a circuit that is regularly switched on and off by the utility.

Maintenance
Warning: Before undertaking any maintenance or cleaning disconnect appliance from main
supply. Only competent persons should service / repair appliances.
Cleaning the appliance
The area around the fire should be kept free of any materials such as lint or house dust (i.e.
animal hair / carpet fibres) that could be drawn into the internal workings of the appliance and
hence affect the performance. We recommend that you clean around the fan grille housing at
regular intervals. This can be done using standard vacuum cleaner and suitable attachment.
Perspex
To prevent scratching of the front screen, we recommend only using a slightly damp dish cloth
to clean the screen.
Cast Iron Stove Body
A soft brush is normally sufficient to remove everyday dust and general debris from the cast
surfaces of the stove. DO NOT use any kind of chemical or abrasive cleaning products on your
stove as this will damage the paint finish.
Electric Supply Cable
Please note if the supply cord on this appliance is damaged it must be replaced by the
manufacturers Authorised Service Agent, or a qualified person to avoid hazard.
Replacing the LED Flame effect:
The LED lighting used in this fire should last for the lifetime of the unit this component should
only be replaced by a qualified electrician.

ELECTRIC FIRE GUARANTEE
Be Modern Ltd. (the ‘Company’) provides a twelve month guarantee in respect of electric fire
(the ‘Product’) ranges.
1. The twelve month Guarantee applies to:
a. All products in the ranges manufactured by the ‘Company’ (but subject to the exceptions
below): where
b. The product has been purchased and installed within the UK and in respect of
c. The initial installation: and in favor of
d. The original purchaser
2. Proof of Purchase must be retained by the Purchaser
3. The twelve month Guarantee does not apply to:
a. Damage or inferior workmanship practices whilst the’ Product’ is being installed
b. Damage caused by mis-use of the ‘Product’ or where normal standards of care and
use have not been complied with.
c. Damage through a malfunction or an inadequately installed electric fire.
d. Damage or defects due to mis-use, accident or unauthorised alterations.
4. During the 1 year after the “Product” has been supplied, the Guarantee covers the making
good (whether by repair or replacement at the Company’s option) of defects arising from
defective manufacture of materials of “Product” covered in Para 1 all at no cost to the
purchaser on the proviso:
a. The Product has been installed as Be Modern recommendations
b. The Purchaser uninstalls the Product and makes it available for collection by Be Modern.
Note: All lamps supplied with the product are classed as consumable items, and are the
Purchasers responsibility to replace.
This Guarantee does not affect your statutory rights
On requiring service the purchaser should contact the retailer who supplied your product
who will assist and advise you as necessary.

Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your local authority or retailer for recycling advice.
This fire complies with the Safety Standards EN 60335-1 and EN 60335-2-30 which covers the essential
requirements of the Low Voltage Directive 2014/35/EU and the EMC standards EN 55014-1; EN 55014-2;
EN 61000-3-2 and EN 61000-3-3 which covers the essential requirements of the European Electro
Magnetic Compatibility 2014/30/EU and the RED standards EN300220-2,EN301489-1,EN301489-3 and EN6247 which
covers the essential requirements of the European Radio Equipment Directive 2014/53/EU.
Control PCB
Remote Control Receiver
Remote Control Transmitter
Frequency: ASK/OOK 433.92MHZ
Maximum transmit power: 10mW
Hardware:RF290A-TX-V1.3
Software: RF290A_C_V0.6.0.hex
Broseley Fires Ltd.
First Floor Unit B, Knights Court,
Archers Way, Battlefield Enterprise
Park, Shrewsbury SY1 3GA
Tel: [phone]
Fax: [phone]
Email:[e-mail]
Be Modern Ltd.
19/34 Bedesway, Bede Industrial
Est, Jarrow, Tyne and Wear NE32
3BE
Tel: [phone]
Fax: [phone]
Hardware:
RC01-040A04
Software: 20171024
Hardware: RF290B V1.2
