Brother DCP-7030 User manual

STEP 1
STEP 2
Setup is Complete!
Quick Setup Guide
Setting Up the Machine
Installing the Driver & Software
DCP-7030
DCP-7045N
Before you can use the machine, you must set up the hardware and install the driver. Please read
this ‘Quick Setup Guide’ for proper set up and installation instructions.
Keep this ‘Quick Setup Guide’ and the supplied CD-ROM in a convenient place for quick and easy
reference at all times.
Version A
UK/IRE/SAF

1 Symbols used in this guide
Warning
Caution Improper Setup
Warnings tell you what to do to prevent
possible personal injury.
Cautions specify procedures you must
follow or avoid to prevent possible
damage to the machine or other objects.
Improper Setup icons alert you to
devices and operations that are not
compatible with the machine.
Note
User's Guide, Software User's Guide or
Network User's Guide
Notes tell you how you should respond
to a situation that may arise or give tips
about how the current operation works
with other features.
Indicates reference to the User's Guide,
Software User's Guide or Network
User's Guide which is on the CD-ROM
we have supplied.

Table of Contents
1
Getting Started
Safety Precautions ....................................................................................................................................... 2
To use the machine safely ...................................................................................................................... 2
Regulations ............................................................................................................................................. 4
Carton components...................................................................................................................................... 6
Control panel................................................................................................................................................ 7
STEP 1 – Setting Up the Machine
Installing the drum unit and toner cartridge assembly.................................................................................. 8
Loading paper in the paper tray ................................................................................................................... 9
Install the power cord ................................................................................................................................. 10
Selecting your language ............................................................................................................................ 10
Setting the LCD contrast ............................................................................................................................ 11
STEP 2 – Installing the Driver & Software
Windows®
For USB Interface Cable Users
(For Windows®2000 Professional/XP/XP Professional x64 Edition/Windows Vista®) ............................. 14
For Wired Network Interface Users (DCP-7045N only)
(For Windows®2000 Professional/XP/XP Professional x64 Edition/Windows Vista®) ............................. 17
For Windows Server®2003, see the Network User’s Guide on the CD-ROM.
Macintosh®
For USB Interface Cable Users................................................................................................................. 20
For Mac OS®X 10.2.4 or greater......................................................................................................... 20
For Wired Network Interface Users (DCP-7045N only) ............................................................................ 22
For Mac OS®X 10.2.4 or greater......................................................................................................... 22
For Network Users
BRAdmin Light utility (For Windows®users).............................................................................................. 25
Installing the BRAdmin Light configuration utility .................................................................................. 25
Setting your IP address, Subnet Mask and Gateway using BRAdmin Light ........................................ 25
BRAdmin Light utility (For Mac OS®X users) ............................................................................................ 26
Setting your IP address, Subnet Mask and Gateway using BRAdmin Light ........................................ 26
Web Based Management (web browser)................................................................................................... 27
Restoring the network settings to factory default ....................................................................................... 27
Print the Network Configuration List........................................................................................................... 27
Consumables and Options
Consumables ............................................................................................................................................. 28

Safety Precautions
2
To use the machine safely
Please keep these instructions for later reference and read them before attempting any maintenance.
Warning
Before cleaning the inside of the machine, first
unplug the telephone line cord, and then the power
cord from the electrical socket.
DO NOT use flammable substances, any type of
spray or organic solvent/liquids containing
alcohol/ammonia to clean the inside or outside of
the machine. Doing this may cause a fire or
electrical shock. Refer to Routine maintenance for
how to clean the machine in the User’s Guide.
DO NOT handle the plug with wet hands. Doing
this might cause an electrical shock.
Always make sure the plug is fully inserted.
After you have just used the machine, some
internal parts of the machine will be extremely hot.
When you open the front or back cover of the
machine, DO NOT touch the shaded parts shown
in the illustration.
To prevent injuries, be careful not to put your
hands on the edge of the machine under the
document cover or scanner cover as shown in the
illustration.

Safety Precautions
3
Note
To prevent injuries, DO NOT put your fingers in the
area shown in the illustrations.
DO NOT use a vacuum cleaner to clean up scattered toner. Doing this might cause the toner
dust to ignite inside the vacuum cleaner, potentially starting a fire. Please carefully clean the
toner dust with a dry, lint-free cloth and dispose of it according to local regulations.
If moving your machine, use the handholds provided. First making sure to disconnect any
cables.
Plastic bags are used in the packaging of your machine. To avoid danger of suffocation, keep
these bags away from babies and children.
The fuser unit is marked with a caution label. DO NOT
remove or damage the label.

Safety Precautions
4
Regulations
EC Declaration of Conformity
IEC60825-1+A2:2001 Specification
This machine is a Class 1 laser product as defined in
IEC60825-1+A2:2001 specifications. The label
shown below is attached in countries where required.
This machine has a Class 3B Laser Diode which
emits invisible laser radiation in the Scanner Unit. The
Scanner Unit should not be opened under any
circumstances.
Internal laser radiation
Wave length: 780 - 800 nm
Output: 10 mW max.
Laser Class: Class 3B
Warning
Use of controls, adjustments or performance of
procedures other than those specified in this
manual may result in hazardous radiation
exposure.
Disconnect device
This product must be installed near an electrical
socket that is easily accessible. In case of
emergencies, you must disconnect the power cord
from the electrical socket to shut off power
completely.
Wiring information (U.K. only)
If you need to replace the plug fuse, fit a fuse that is
approved by ASTA to BS1362 with the same rating as
the original fuse.
Always replace the fuse cover. Never use a plug that
does not have a cover. If in any doubt, call a qualified
electrician.
Warning - This printer must be earthed.
The wires in the mains lead are coloured in line with
the following code:
Green and Yellow: Earth
Blue: Neutral
Brown: Live
LAN connection (DCP-7045N only)
Caution
DO NOT connect this product to a LAN connection
that is subject to over-voltages.
Radio interference
This product complies with EN55022 (CISPR
Publication 22)/Class B. When connecting the
machine to a computer, ensure that you use the
following interface cables.
A USB cable which must not exceed 2.0 metres in
length.
EU Directive 2002/96/EC and EN50419
This equipment is marked with the above recycling
symbol. It means that all the end of the life of the
equipment you must dispose of it separately at an
appropriate collection point and not place it in the
normal domestic unsorted waste stream. This will
benefit the environment for all. (European Union only)
CLASS 1 LASER PRODUCT
APPAREIL À LASER DE CLASSE 1
LASER KLASSE 1 PRODUKT

Safety Precautions
5
International ENERGY STAR®Compliance
Statement
The purpose of the International ENERGY STAR®
Program is to promote the development and
popularization of energy-efficient office equipment.
As an ENERGY STAR®Partner, Brother Industries,
Ltd. has determined that this product meets the
ENERGY STAR®guidelines for energy efficiency.

Getting Started
6
1
1 Carton components
Carton components may vary from one country to another.
Save all packing materials and the carton in case for any reason you must ship your machine.
Warning
Plastic bags are used in the packaging of your machine. To avoid danger of suffocation, please keep these
bags away from babies and children.
1 Automatic Document Feeder (ADF) (DCP-7045N only)
2 Control Panel
3 Face-down Output Tray Support
4 Manual Feed Slot
5 Paper Tray
6FrontCover
7 Power Switch
8 ADF Document Output Support Flap (DCP-7045N only)
9 Document Cover
The interface cable is not a standard accessory. Please purchase the appropriate interface cable for the interface
you intend to use (USB or Network). Do NOT connect the interface cable at this time. Connecting the interface
cable is done during the software installation process.
USB interface cable
Please make sure you use a USB 2.0 interface cable that is no longer than 6 feet (2 metres). When you use a
USB cable, make sure you connect it to the USB port of your computer and not to a USB port on a keyboard
or non-powered USB hub.
Network cable (DCP-7045N only)
Use a straight-through Category 5 (or greater) twisted-pair cable for 10BASE-T or 100BASE-TX Fast Ethernet
Network.
1
2
5
9
4
3
8
7
6

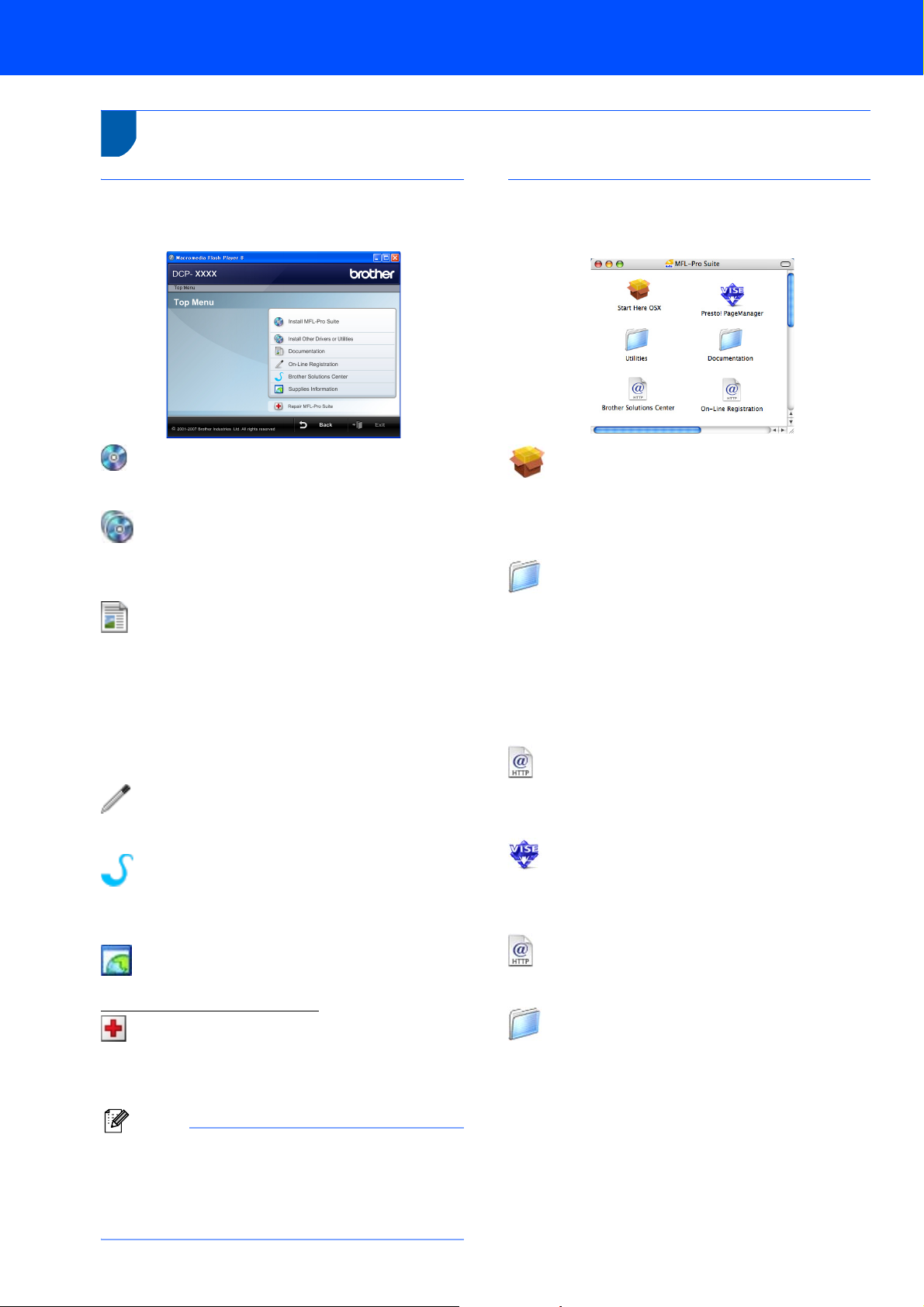

CD-ROMs
For Windows®
For Macintosh®
Quick Setup Guide
AC Power Cord
Drum Unit Assembly
(including Toner Cartridge)

Getting Started
7
2 Control panel
DCP-7030 and DCP-7045N have the same keys.
1 Job Cancel key
2 Scan key
3 Copy keys
4 LCD (Liquid Crystal Display)
5 Menu keys
6 Start key
7 Stop/Exit key
For the details of the control panel, see Control panel overview in Chapter 1 of the User’s Guide.
Note
When you move the machine, grasp the side handholds that are under the scanner. Do NOT carry the machine
by holding it at the bottom.
Illustration in this Quick Setup Guide are based on DCP-7045N.

Setting Up the Machine
8
STEP 1
1
1 Installing the drum unit and
toner cartridge assembly
Improper Setup
DO NOT connect the interface cable.
Connecting the interface cable is done when
installing the driver.
1Open the front cover.
2Unpack the drum unit and toner cartridge
assembly.
3Gently shake it from side to side several times
to distribute the toner evenly inside the
assembly.
4Put the drum unit and toner cartridge assembly
into the machine.
5Close the front cover of the machine.
