GT-541
ガーメントプリンタ
GARMENT PRINTER
パーツブック
PARTS BOOK
1. This book was prepared based on information available in June 2009.
2. Parts are subject to changes in design without prior notice.
3. Parts supplied as complete assemblies are circled by a dotted line.
A. Frame mechanism ..........................................
B1. Cover mechanism ..........................................
.
B2. Cover mechanism ..........................................
.
C1. Platen mechanism ..........................................

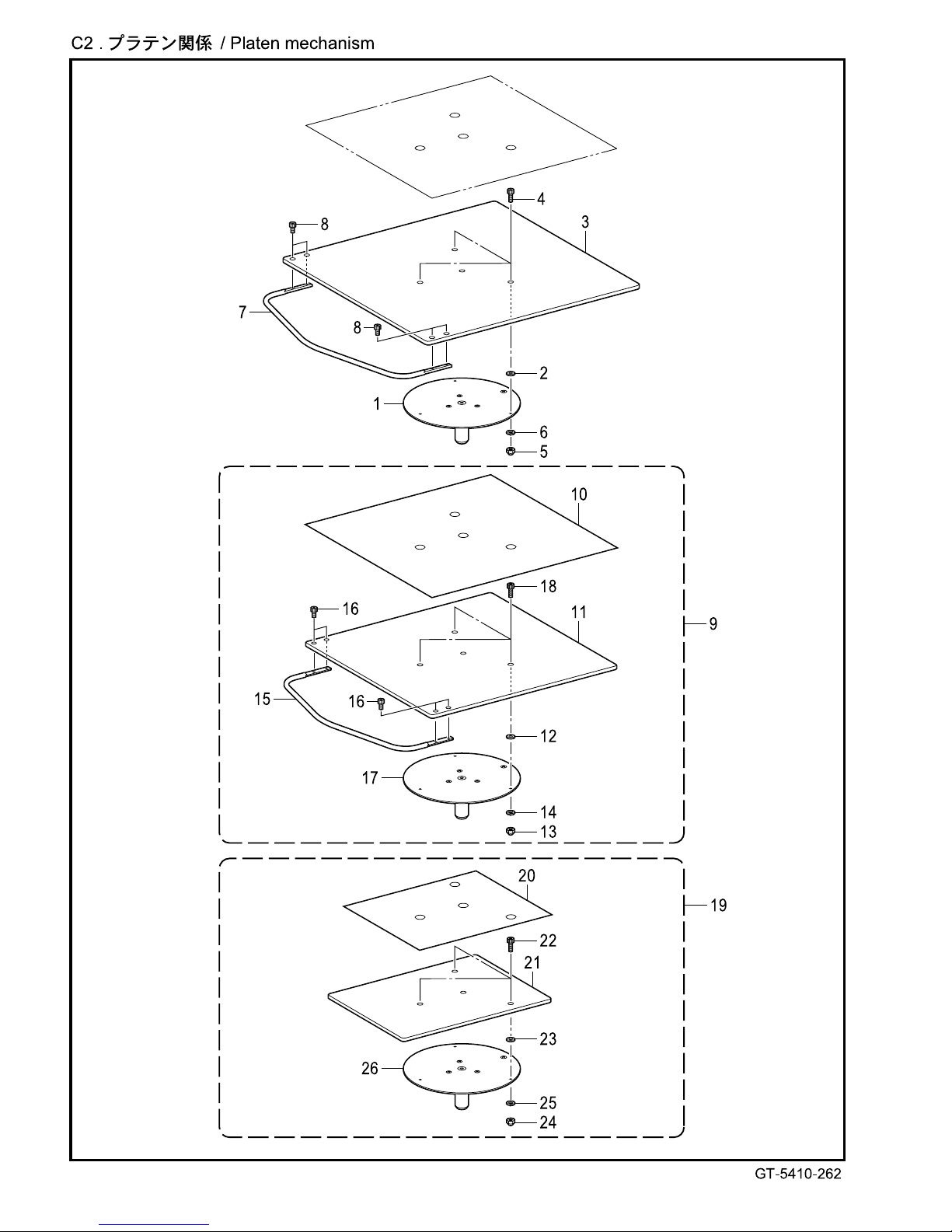

C2. Platen mechanism ..........................................

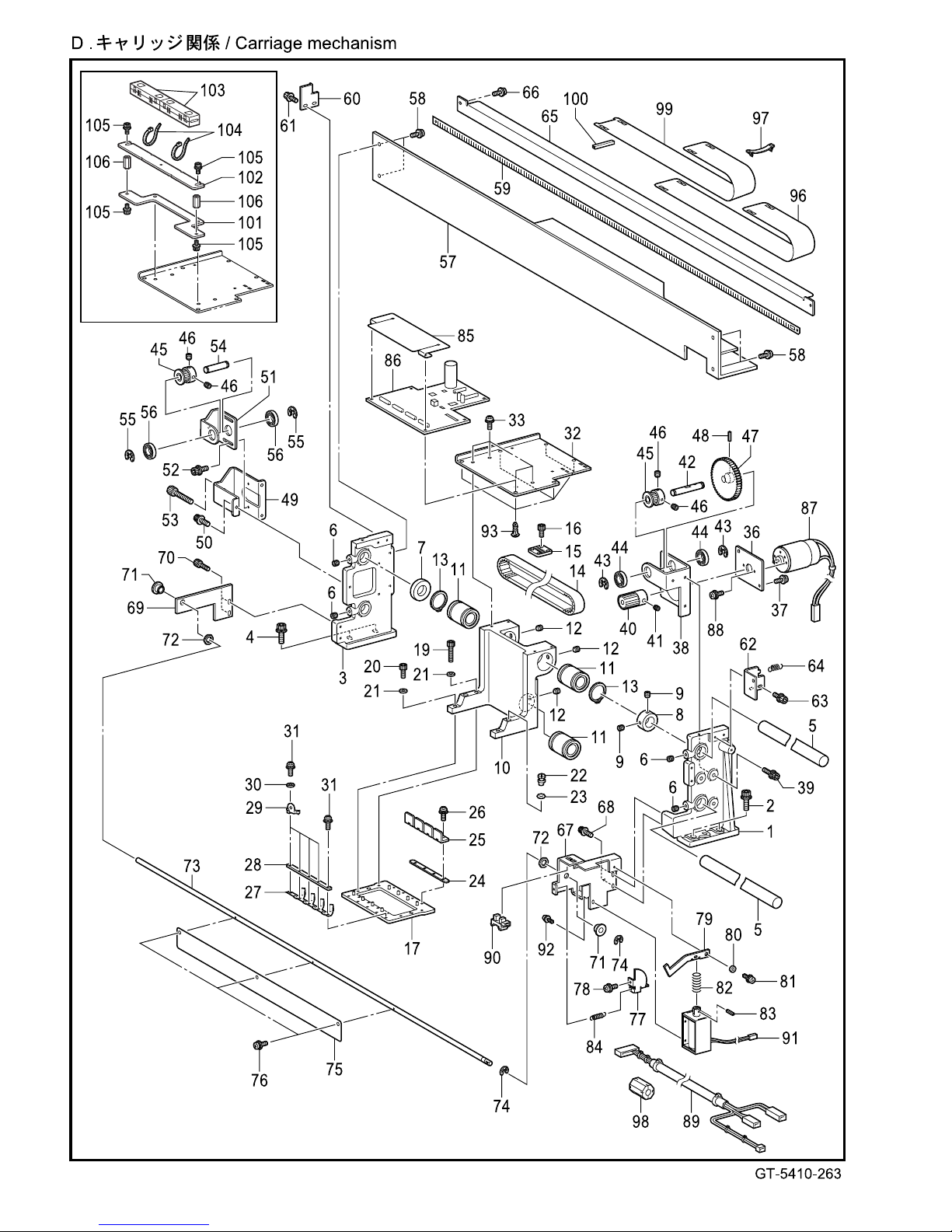

D. Carriage mechanism ......................................
.
E1. Maintenance mechanism ...............................
.
E2. Maintenance mechanism ...............................
.
F. Ink supply mechanism ....................................
H. Waste ink mechanism ....................................
.
J1. Control box mechanism ..................................
J2. Control box mechanism (For Europe only) .....
K. Power supply equipment mechanism .............
L. Operation panel mechanism ..........................
.
Z.
A
ccessories ....................................................
Wa1. Warning labels ..............................................
Wa2. Warning labels ..............................................
Co. Consumables ..............................................
Sp. Option parts ..............................................
Index ............................................................
Notes for using this parts book
CONTENTS
1
A. / Frame mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 SA6007001 4
A
DJUSTER PADS
2 SA6009001 1
CARRY BA
R
3 S47270001 2
BOLT SOCKET (S/P WASHER)M6X30
4 SA5515001 1 INLET ATTACHMENT PLATE
5 S55479001 2
BOLT SOCKET (S/P WASHER) M4X8
6 S17021000 2
CORD CLAMP, 07-H
7 S17022000 9
CORD CLAMP, 10-H
8 S04505000 1
CORD CLAMP, 13-H
9 S09141000 2
CORD CLAMP, 16-L
10 149547000 1 CORD HOLDER 4N
GT-5410-052
2
2
A. / Frame mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 SA6007001 4
A
DJUSTER PADS
2 SA6009001 1
CARRY BA
R
3 S47270001 2
BOLT SOCKET (S/P WASHER)M6X30
4 SA5515001 1 INLET ATTACHMENT PLATE
5 S55479001 2
BOLT SOCKET (S/P WASHER) M4X8
6 S17021000 2
CORD CLAMP, 07-H
7 S17022000 9
CORD CLAMP, 10-H
8 S04505000 1
CORD CLAMP, 13-H
9 S09141000 2
CORD CLAMP, 16-L
10 149547000 1 CORD HOLDER 4N
GT-5410-052
2
3

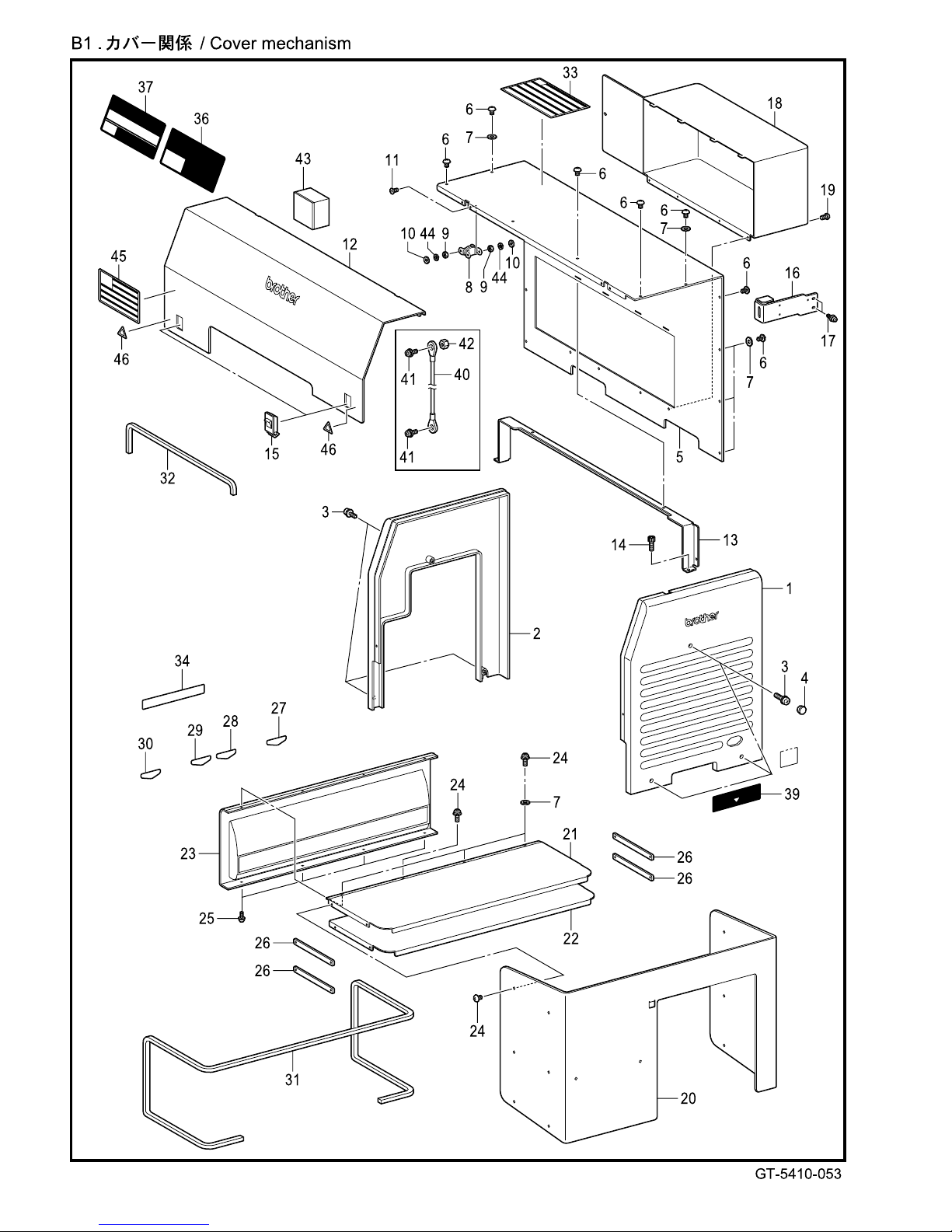

B1. / Cover mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 SA9002001 1
SIDE COVER
R
2 SA9149001 1
SIDE COVER L
3 0A5401406 6
SCREW PAN (S/P WASHER) M4X14
4 104821001 3
RUBBER CAP, 10.5
5 SA6068101 1
BACK COVE
R
6 008400604 15 SCREW TRUSS M4X6
7 SA6372001 12
WASHE
R
8 SA6070001 2
HINGE
9 021300206 8 NUT 2 M3
10 025030236 8
WASHER PLAIN M 3
11 004300806 8 SCREW FLAT M3X8
12 SA6071001 1
FRONT COVER
13 SA6072001 1
FRONT COVER SUPPORT
14 018061036 2
BOLT SOCKET M6X10
15 SA6074001 2
ROCK LEVE
R
16 SA6075001 1
SAFETY SW HOLDE
R
17 0A5401006 2
SCREW PAN (S/P WASHER) M4X10
18 SA6076001 1
REAR COVE
R
19 060400616 SCREW BIND M4X6
20 SA6079001 1
INK CARTRIDGE COVER
R
21 SA6080001 1
INK CARTRIDGE COVER U
22 SA6081001 1
INK CARTRIDGE SHELF PLATE
23 SA9151001 1
INK CARTRIDGE COVER F
24 008400604 18 SCREW TRUSS M4X6
25 0A5401406 4
SCREW PAN (S/P WASHER) M4X14
26 SA6069001 4
COVER SUPPOR
T
27 SA5619101 1 CARTRIDGE COLOR LABEL
K
28 SA6380101 1 CARTRIDGE COLOR LABEL M
29 SA5659101 1 CARTRIDGE COLOR LABEL C
30 SA6381101 1 CARTRIDGE COLOR LABEL
Y
31 SA5814001 1 TRIMS L2750
32 SA5815001 1 TRIMS L545
33 SA8892101 1
TOP COVER CAUTION LABEL
34 SA6316201 1 NEEDLE CAUTION LABEL
36 SA6315201 1 HEAD INSTRUCTION LABEL
37 SA6379201 1 W-CLEANER INSTRUCTION LABEL
39 SA6321001 4 HANDLE LABEL
43 SA6089001 1 BACK UP FORM
44 028030246 8
WASHER SPRING 2-3
45 SA8891101 1
FRONT COVER OPERATION LABEL
46 S36924002 2
INJURY MAR
K
<For USA and Canada >
40 SA5348001 1 GROUND WIRE:220
41 0A5401006 2
SCREW PAN (S/P WASHER) M4X10
42 021400206 1 NUT 2 M4
GT-5410-053
4
4
B1. / Cover mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 SA9002001 1
SIDE COVER
R
2 SA9149001 1
SIDE COVER L
3 0A5401406 6
SCREW PAN (S/P WASHER) M4X14
4 104821001 3
RUBBER CAP, 10.5
5 SA6068101 1
BACK COVE
R
6 008400604 15 SCREW TRUSS M4X6
7 SA6372001 12
WASHE
R
8 SA6070001 2
HINGE
9 021300206 8 NUT 2 M3
10 025030236 8
WASHER PLAIN M 3
11 004300806 8 SCREW FLAT M3X8
12 SA6071001 1
FRONT COVER
13 SA6072001 1
FRONT COVER SUPPORT
14 018061036 2
BOLT SOCKET M6X10
15 SA6074001 2
ROCK LEVE
R
16 SA6075001 1
SAFETY SW HOLDE
R
17 0A5401006 2
SCREW PAN (S/P WASHER) M4X10
18 SA6076001 1
REAR COVE
R
19 060400616 SCREW BIND M4X6
20 SA6079001 1
INK CARTRIDGE COVER
R
21 SA6080001 1
INK CARTRIDGE COVER U
22 SA6081001 1
INK CARTRIDGE SHELF PLATE
23 SA9151001 1
INK CARTRIDGE COVER F
24 008400604 18 SCREW TRUSS M4X6
25 0A5401406 4
SCREW PAN (S/P WASHER) M4X14
26 SA6069001 4
COVER SUPPOR
T
27 SA5619101 1 CARTRIDGE COLOR LABEL
K
28 SA6380101 1 CARTRIDGE COLOR LABEL M
29 SA5659101 1 CARTRIDGE COLOR LABEL C
30 SA6381101 1 CARTRIDGE COLOR LABEL
Y
31 SA5814001 1 TRIMS L2750
32 SA5815001 1 TRIMS L545
33 SA8892101 1
TOP COVER CAUTION LABEL
34 SA6316301 1 NEEDLE CAUTION LABEL
36 SA6315201 1 HEAD INSTRUCTION LABEL
37 SA6379201 1 W-CLEANER INSTRUCTION LABEL
39 SA6321001 4 HANDLE LABEL
43 SA6089001 1 BACK UP FORM
44 028030246 8
WASHER SPRING 2-3
45 SA8891101 1
FRONT COVER OPERATION LABEL
46 SA9957002 2
INJURY MAR
K
<For USA and Canada >
40 SA5348001 1 GROUND WIRE:220
41 0A5401006 2
SCREW PAN (S/P WASHER) M4X10
42 021400206 1 NUT 2 M4
GT-5410-053
4
5

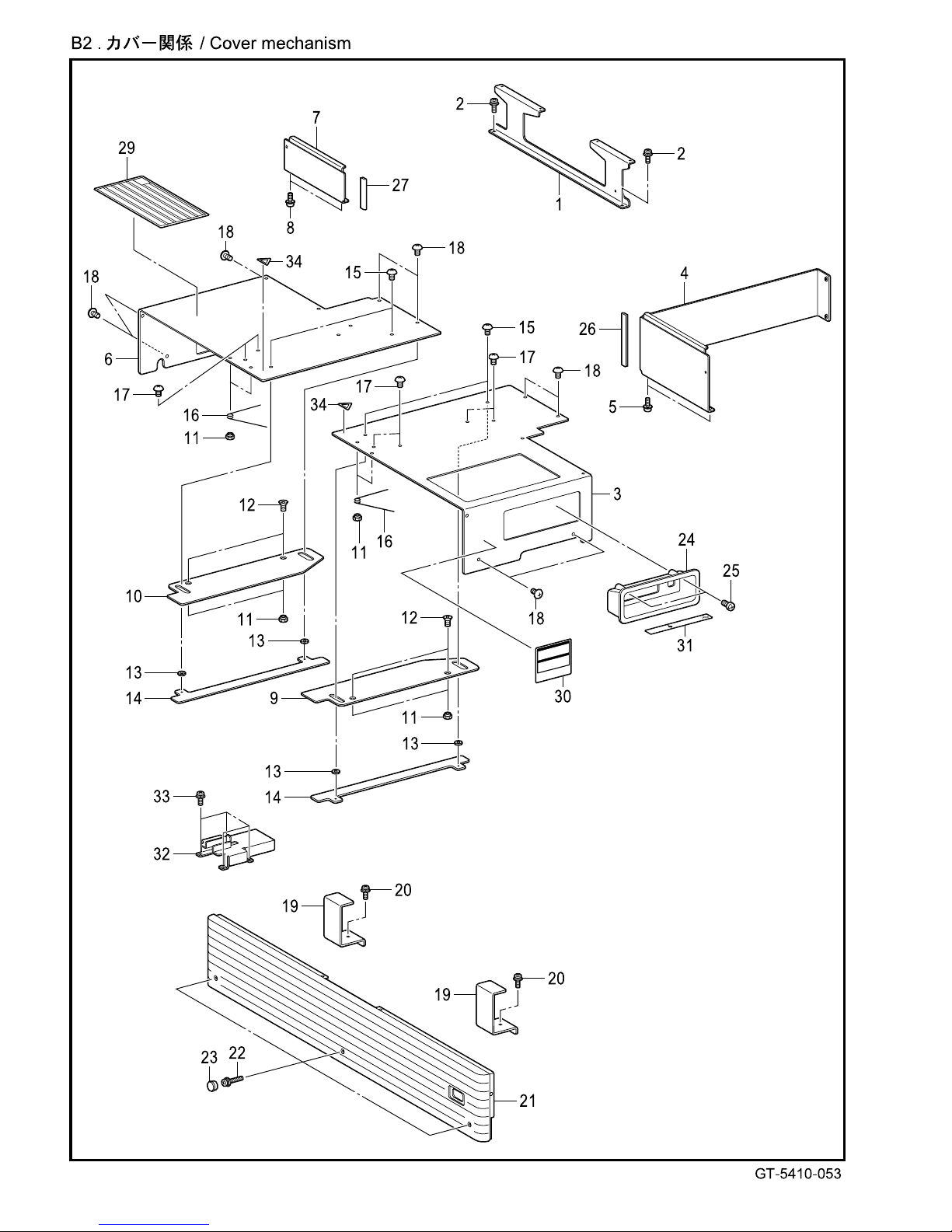

B2. / Cover mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 SA6055001 1
COVER SUPPORT PLATE
2 0A5401006 2
SCREW PAN (S/P WASHER) M4X10
3 SA6056001 1
FRAME COVER
R
4 SA7947001 1
FRONT UNDER COVER
R
5 0A5401006 2
SCREW PAN (S/P WASHER) M4X10
6 SA6058001 1
FRAME COVER L
7 SA6059001 1
FRONT UNDER COVER L
8 0A5401006 2
SCREW PAN (S/P WASHER) M4X10
9 SA6060001 1
COVER PLATE
R
10 SA6061001 1
COVER PLATE L
11 SA6062001 12
SHOULDER NUT M4
12 004400803 4 SCREW, FLAT M4X8
13 SA6063001 4 SPACE
R
14 SA6064001 2
COVER PLATE HOLDE
R
15 008400604 4 SCREW TRUSS M4X6
16 SA6065001 4
SPRING
17 008400604 8 SCREW TRUSS M4X6
18 008400604 16 SCREW TRUSS M4X6
19 SA5587001 2
FRAME FRONT COVER SUPPOR
T
20 0A5401006 2
SCREW PAN (S/P WASHER) M4X10
21 SA9150001 1
FRAME FRONT COVER
22 0A4403006 3
SCREW PAN (S/P WASHER) M4X30
23 104821001 3
RUBBER CAP, 10.5
24 SA6078001 1
CONNECTOR COVE
R
25 062301016 2 SCREW PAN M3X10
26 SA5816001 1 TRIMS L115
27 SA5817001 1 TRIMS L60
29 SA6317201 1
PLATEN CAUTION LABEL
30 SA6323201 1 CF CARD INSTRUCTION LABEL
31 SA5498001 1 CONNECTOR LABEL
32 SA7922001 1
PULLEY COVE
R
33 S55479001 4
BOLT SOCKET (S/P WASHER) M4X8
34 S36924002 2
INJURY MAR
K
GT-5410-053
6
6
B2. / Cover mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 SA6055001 1
COVER SUPPORT PLATE
2 0A5401006 2
SCREW PAN (S/P WASHER) M4X10
3 SA6056001 1
FRAME COVER
R
4 SA7947001 1
FRONT UNDER COVER
R
5 0A5401006 2
SCREW PAN (S/P WASHER) M4X10
6 SA6058001 1
FRAME COVER L
7 SA6059001 1
FRONT UNDER COVER L
8 0A5401006 2
SCREW PAN (S/P WASHER) M4X10
9 SA6060001 1
COVER PLATE
R
10 SA6061001 1
COVER PLATE L
11 SA6062001 12
SHOULDER NUT M4
12 004400803 4 SCREW, FLAT M4X8
13 SA6063001 4 SPACE
R
14 SA6064001 2
COVER PLATE HOLDE
R
15 008400604 4 SCREW TRUSS M4X6
16 SA6065001 4
SPRING
17 008400604 8 SCREW TRUSS M4X6
18 008400604 16 SCREW TRUSS M4X6
19 SA5587001 2
FRAME FRONT COVER SUPPOR
T
20 0A5401006 2
SCREW PAN (S/P WASHER) M4X10
21 SA9150001 1
FRAME FRONT COVER
22 0A4403006 3
SCREW PAN (S/P WASHER) M4X30
23 104821001 3
RUBBER CAP, 10.5
24 SA6078001 1
CONNECTOR COVE
R
25 062301016 2 SCREW PAN M3X10
26 SA5816001 1 TRIMS L115
27 SA5817001 1 TRIMS L60
29 SA6317201 1
PLATEN CAUTION LABEL
30 SA6323201 1 CF CARD INSTRUCTION LABEL
31 SA5498001 1 CONNECTOR LABEL
32 SA7922001 1
PULLEY COVE
R
33 S55479001 4
BOLT SOCKET (S/P WASHER) M4X8
34 SA9957002 2
INJURY MAR
K
GT-5410-053
6
7

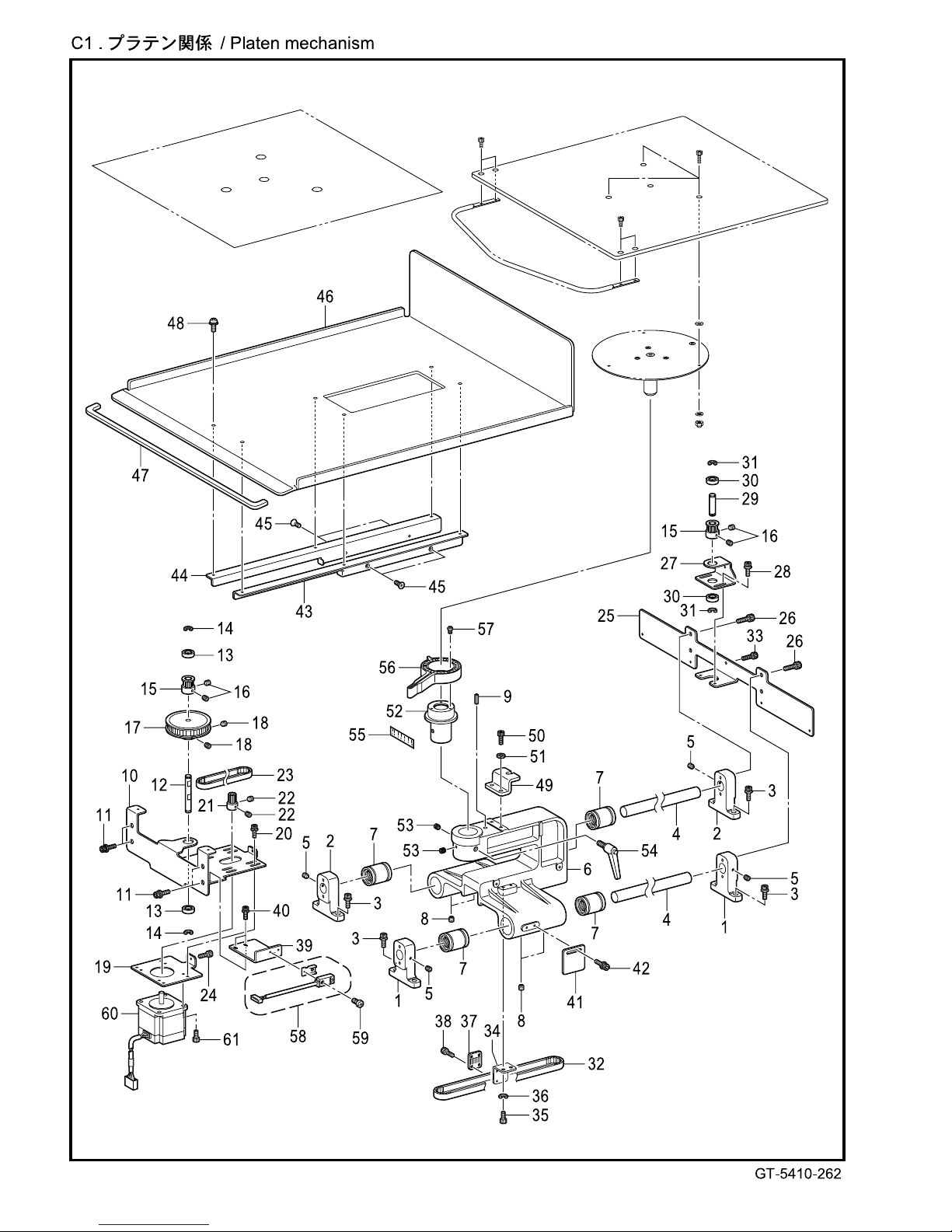

C1. / Platen mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 SA5589001 2
GUIDE SHAFT HOLDER
R
2 SA5762001 2
GUIDE SHAFT HOLDER L
3 S47269001 8
BOLT, SOCKET (S/P WASHER)M6X20
4 SA5591001 2
PLATEN GUIDE SHAFT
5 012060636 4 SET SCREW SOCKET (FT) M6X6
6 SA5592001 1
PLATEN ARM
7 SA5593001 4
LINEAR BUSH 16
8 012500536 4 SET SCREW SOCKET (FT) M5X5
9 047603642 1
PIN SPRING ROLL AW6
10 SA5594001 1
PULLEY SUPPORT PLATE F
11 S47269001 4
BOLT, SOCKET (S/P WASHER)M6X20
12 SA5595001 1
PULLEY SHAFT F
13 070688850 2
BALL BEARING RADIAL 688ZZ
14 048060342 2 RETAINING RING E6
15 SA5596001 2
PLATEN PULLE
Y
16 012500536 4 SET SCREW SOCKET (FT) M5X5
17 SA5597001 1
REDUCTION PULLE
Y
18 012500536 2 SET SCREW SOCKET (FT) M5X5
19 SA5598001 1 MOTOR BRACKET
20 S55479001 4
BOLT SOCKET (S/P WASHER) M4X8
21 SA5599001 1
PLATEN MOTOR PULLE
Y
22 012400436 2 SET SCREW SOCKET (FT) M4X4
23 SA5600001 1
PLATEN MOTOR BELT
24 018402036 1
BOLT SOCKET M4X20
25 SA5601001 1
PULLEY SUPPORT PLATE
R
26 S47269001 4
BOLT, SOCKET (S/P WASHER)M6X20
27 SA5602001 1
PULLEY BASE PLATE
28 S55479001 2
BOLT SOCKET (S/P WASHER) M4X8
29 SA5603001 1
PULLEY SHAFT
R
30 070688850 2
BALL BEARING RADIAL 688ZZ
31 048060342 2 RETAINING RING E6
32 SA5604001 1
PLATEN BELT
33 018402036 1
BOLT SOCKET M4X20
34 SA7979001 1 BELT SETTING PLATE
35 018501036 2
BOLT SOCKET M5X10
36 028050246 2
WASHER SPRING 2-5
37 SA7980001 1
BELT HOLDER
38 018400836 4
BOLT SOCKET M4X8
39 SA5607001 1 SENSOR BRACKE
T
40 S55479001 2
BOLT SOCKET (S/P WASHER) M4X8
41 SA5608001 1
PLATEN SENSOR DOG
42 S55479001 2
BOLT SOCKET (S/P WASHER) M4X8
43 SA5609001 1 TRAY SUPPORT PLATE
R
44 SA6073001 1 TRAY SUPPORT PLATE L
45 004401003 4 SCREW, FLAT M4X10
46 SA5610001 1 T-SHIRT TRAY
47 SA5818101 1 TRIMS L490
48 0A5401006 6
SCREW PAN (S/P WASHER) M4X10
49 SA5611001 1
PLATEN POSITIONING PLATE
50 018501036 2
BOLT SOCKET M5X10
51 028050246 2
WASHER SPRING 2-5
52 SA5612001 1
BUSH PLATEN SHAF
T
53 012060636 2 SET SCREW SOCKET (FT) M6X6
54 SA5443001 1
CLAMP LEVER M6
55 SA5446001 1 HEIGHT SCALE LABEL
56 SA5613001 1
HEIGHT ADJUST LEVE
R
57 060400616 3
SCREW BIND M4X6
58 SA5379001 1
PLATEN ORG SENSOR ASS
Y
59 062300816 1 SCREW PAN M3X8
60 SA5399001 1
PLATEN MOTOR ASS
Y
61 018400836 4
BOLT SOCKET M4X8
GT-5410-262
8
8
C1. / Platen mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 SA5589001 2
GUIDE SHAFT HOLDER
R
2 SA5762001 2
GUIDE SHAFT HOLDER L
3 S47269001 8
BOLT, SOCKET (S/P WASHER)M6X20
4 SA5591001 2
PLATEN GUIDE SHAFT
5 012060636 4 SET SCREW SOCKET (FT) M6X6
6 SA5592001 1
PLATEN ARM
7 SA5593001 4
LINEAR BUSH 16
8 012500536 4 SET SCREW SOCKET (FT) M5X5
9 047603642 1
PIN SPRING ROLL AW6
10 SA5594001 1
PULLEY SUPPORT PLATE F
11 S47269001 4
BOLT, SOCKET (S/P WASHER)M6X20
12 SA5595001 1
PULLEY SHAFT F
13 070688850 2
BALL BEARING RADIAL 688ZZ
14 048060342 2 RETAINING RING E6
15 SA5596001 2
PLATEN PULLE
Y
16 012500536 4 SET SCREW SOCKET (FT) M5X5
17 SA5597001 1
REDUCTION PULLE
Y
18 012500536 2 SET SCREW SOCKET (FT) M5X5
19 SA5598001 1 MOTOR BRACKET
20 S55479001 4
BOLT SOCKET (S/P WASHER) M4X8
21 SA5599001 1
PLATEN MOTOR PULLE
Y
22 012400436 2 SET SCREW SOCKET (FT) M4X4
23 SA5600001 1
PLATEN MOTOR BELT
24 018402036 1
BOLT SOCKET M4X20
25 SA5601001 1
PULLEY SUPPORT PLATE
R
26 S47269001 4
BOLT, SOCKET (S/P WASHER)M6X20
27 SA5602001 1
PULLEY BASE PLATE
28 S55479001 2
BOLT SOCKET (S/P WASHER) M4X8
29 SA5603001 1
PULLEY SHAFT
R
30 070688850 2
BALL BEARING RADIAL 688ZZ
31 048060342 2 RETAINING RING E6
32 SA5604001 1
PLATEN BELT
33 018402036 1
BOLT SOCKET M4X20
34 SA7979001 1 BELT SETTING PLATE
35 018501036 2
BOLT SOCKET M5X10
36 028050246 2
WASHER SPRING 2-5
37 SA7980001 1
BELT HOLDER
38 018400836 4
BOLT SOCKET M4X8
39 SA5607001 1 SENSOR BRACKE
T
40 S55479001 2
BOLT SOCKET (S/P WASHER) M4X8
41 SA5608001 1
PLATEN SENSOR DOG
42 S55479001 2
BOLT SOCKET (S/P WASHER) M4X8
43 SA5609001 1 TRAY SUPPORT PLATE
R
44 SA6073001 1 TRAY SUPPORT PLATE L
45 004401003 4 SCREW, FLAT M4X10
46 SA5610001 1 T-SHIRT TRAY
47 SA5818101 1 TRIMS L490
48 0A5401006 6
SCREW PAN (S/P WASHER) M4X10
49 SA5611001 1
PLATEN POSITIONING PLATE
50 018501036 2
BOLT SOCKET M5X10
51 028050246 2
WASHER SPRING 2-5
52 SA5612001 1
BUSH PLATEN SHAF
T
53 012060636 2 SET SCREW SOCKET (FT) M6X6
54 SA5443001 1
CLAMP LEVER M6
55 SA5446001 1 HEIGHT SCALE LABEL
56 SA5613001 1
HEIGHT ADJUST LEVE
R
57 060400616 3
SCREW BIND M4X6
58 SA5379001 1
PLATEN ORG SENSOR ASS
Y
59 062300816 1 SCREW PAN M3X8
60 SA5399001 1
PLATEN MOTOR ASS
Y
61 018400836 4
BOLT SOCKET M4X8
GT-5410-262
8
9
C2. / Platen mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 SA5614001 1
PLATEN SUPPORT ASS
Y
2 154599000 3 SOLENOID CUSHION
3 SA5621101 1
PLATEN TOP PLATE 14X16
4 018401236 3
BOLT SOCKET M4X12
5 S00505001 3 NUT, CAP M4
6 028040246 3
WASHER SPRING 2-4
7 SA5622001 1
SHOULDER BA
R
8 018400636 4
BOLT SOCKET M4X6
<Option parts>
9 SA6399301 1
YOUTH PLATEN
10 SA6401201 1
PLATEN SHEET S
11 SA6402101 1
PLATEN TOP PLATE 10X12
12 154599000 3 SOLENOID CUSHION
13 S00505001 3 NUT, CAP M4
14 028040246 3
WASHER SPRING 2-4
15 SA6403001 1
SHOULDER BAR S
16 018400636 4
BOLT SOCKET M4X6
17 SA5614001 1
PLATEN SUPPORT ASS
Y
18 018401236 3
BOLT SOCKET M4X12
19 SA8213301 1
BABY PLATEN
20 SA8211101 1
PLATEN SHEET SS
21 SA8212101 1
PLATEN TOP PLATE 7X8
22 018401236 3
BOLT SOCKET M4X12
23 154599000 3 SOLENOID CUSHION
24 S00505001 3 NUT, CAP M4
25 028040246 3
WASHER SPRING 2-4
26 SA5614001 1
PLATEN SUPPORT ASS
Y
GT-5410-262
10
10
C2. / Platen mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 SA5614001 1
PLATEN SUPPORT ASS
Y
2 154599000 3 SOLENOID CUSHION
3 SA5621101 1
PLATEN TOP PLATE 14X16
4 018401236 3
BOLT SOCKET M4X12
5 S00505001 3 NUT, CAP M4
6 028040246 3
WASHER SPRING 2-4
7 SA5622001 1
SHOULDER BA
R
8 018400636 4
BOLT SOCKET M4X6
<Option parts>
9 SA6399301 1
YOUTH PLATEN
10 SA6401201 1
PLATEN SHEET S
11 SA6402101 1
PLATEN TOP PLATE 10X12
12 154599000 3 SOLENOID CUSHION
13 S00505001 3 NUT, CAP M4
14 028040246 3
WASHER SPRING 2-4
15 SA6403001 1
SHOULDER BAR S
16 018400636 4
BOLT SOCKET M4X6
17 SA5614001 1
PLATEN SUPPORT ASS
Y
18 018401236 3
BOLT SOCKET M4X12
19 SA8213301 1
BABY PLATEN
20 SA8211101 1
PLATEN SHEET SS
21 SA8212101 1
PLATEN TOP PLATE 7X8
22 018401236 3
BOLT SOCKET M4X12
23 154599000 3 SOLENOID CUSHION
24 S00505001 3 NUT, CAP M4
25 028040246 3
WASHER SPRING 2-4
26 SA5614001 1
PLATEN SUPPORT ASS
Y
GT-5410-262
10
11
D. / Carriage mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 SA5438001 1
CARRIAGE SUPPORT
R
2 S47269001 2
BOLT, SOCKET (S/P WASHER)M6X20
3 SA5439001 1
CARRIAGE SUPPORT L
4 S47269001 2
BOLT, SOCKET (S/P WASHER)M6X20
5 SA5440001 2
CARRIAGE GUIDE SHAF
T
6 012060636 4 SET SCREW SOCKET (FT) M6X6
7 SA5441001 1 STOPPE
R
8 S45316001 1 SET SCREW COLLA
R
9 012060636 2 SET SCREW SOCKET (FT) M6X6
10 SA7902001 1
CARRIAGE ASS
Y
11 SA5593001 3
LINEAR BUSH 16
12 012500536 3 SET SCREW SOCKET (FT) M5X5
13 048280142 2
RETAINING RING EXTERNAL C28
14 SA5445001 1
CARRIAGE BEL
T
15 SA7980001 1
BELT HOLDER
16 018400836 4
BOLT SOCKET M4X8
17 SA7695001 1
HEAD HOLDER ASS
Y
19 018402536 2
BOLT SOCKET M4X25
20 018401236 2
BOLT SOCKET M4X12
21 026040236 4
WASHER PLAIN M 4
22 SA5451001 1
A
DJUSTING STUD
23 081001670 1
O RING PW1
24 SA5452001 1
HEAD SPRING SPACER,BAC
K
25 SA5453001 1
HEAD HOLD SPRING ,BAC
K
26 0A5300606 4
SCREW PAN (S/P WASHER) M3X
6
27 SA5516001 1
SPRING,PLATE
28 SA5454001 1
HEAD SPRING SPACER,FRON
T
29 SA5455001 4
HEAD HOLD SPRING FRONT
30 SA5456001 4
WASHE
R
31 0A5300606 5
SCREW PAN (S/P WASHER) M3X
6
32 SA8042001 1
HEAD PCB SUPPORT PLATE
33 0A5401006 4
SCREW PAN (S/P WASHER) M4X10
36 SA5460001 1
MOTOR SETTING PLATE
37 0A5401006 2
SCREW PAN (S/P WASHER) M4X10
38 SA5461001 1
CARRIAGE MOTOR HOLDE
R
39 3A6001003 3
BOLT SOCKET (S/P WASHER) M5X20
40 SA5464001 1
GEAR M0.5Z18
41 012300536 1 SET SCREW SOCKET (FT) M3X5
42 SA5465001 1
PULLEY SHAFT
43 048060342 2 RETAINING RING E6
44 070688850 2
BALL BEARING RADIAL 688ZZ
45 SA5466001 2
CARRIAGE PULLE
Y
46 012500536 4 SET SCREW SOCKET (FT) M5X5
47 SA5467001 1
GEAR M0.5Z120
48 047201442 1
PIN SPRING ROLL AW2
49 SA5468001 1
PULLEY HOLDER BASE
50 S55481001 3
BOLT, SOCKET (S/P WASHER)M4X12
51 SA5602001 1
PULLEY BASE PLATE
52 S55481001 2
BOLT, SOCKET (S/P WASHER)M4X12
53 018402036 1
BOLT SOCKET M4X20
54 SA5603001 1
PULLEY SHAFT
R
55 048060342 2 RETAINING RING E6
56 070688850 2
BALL BEARING RADIAL 688ZZ
57 SA5471001 1
CARRIAGE BACK PLATE
58 0A5401006 4
SCREW PAN (S/P WASHER) M4X10
59 SA5472001 1
ENCODER STRIP
60 SA5473001 1
ENCODER STRIP SUPPORT L
61 S55481001 2
BOLT, SOCKET (S/P WASHER)M4X12
62 SA5474001 1
ENCODER STRIP SUPPORT
R
GT-5410-263
12
12
D. / Carriage mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 SA5438001 1
CARRIAGE SUPPORT
R
2 S47269001 2
BOLT, SOCKET (S/P WASHER)M6X20
3 SA5439001 1
CARRIAGE SUPPORT L
4 S47269001 2
BOLT, SOCKET (S/P WASHER)M6X20
5 SA5440001 2
CARRIAGE GUIDE SHAF
T
6 012060636 4 SET SCREW SOCKET (FT) M6X6
7 SA5441001 1 STOPPE
R
8 S45316001 1 SET SCREW COLLA
R
9 012060636 2 SET SCREW SOCKET (FT) M6X6
10 SA7902001 1
CARRIAGE ASS
Y
11 SA5593001 3
LINEAR BUSH 16
12 012500536 3 SET SCREW SOCKET (FT) M5X5
13 048280142 2
RETAINING RING EXTERNAL C28
14 SA5445001 1
CARRIAGE BEL
T
15 SA7980001 1
BELT HOLDER
16 018400836 4
BOLT SOCKET M4X8
17 SA7695001 1
HEAD HOLDER ASS
Y
19 018402536 2
BOLT SOCKET M4X25
20 018401236 2
BOLT SOCKET M4X12
21 026040236 4
WASHER PLAIN M 4
22 SA5451001 1
A
DJUSTING STUD
23 081001670 1
O RING PW1
24 SA5452001 1
HEAD SPRING SPACER,BAC
K
25 SA5453001 1
HEAD HOLD SPRING ,BAC
K
26 0A5300606 4
SCREW PAN (S/P WASHER) M3X
6
27 SA5516001 1
SPRING,PLATE
28 SA5454001 1
HEAD SPRING SPACER,FRON
T
29 SA5455001 4
HEAD HOLD SPRING FRONT
30 SA5456001 4
WASHE
R
31 0A5300606 5
SCREW PAN (S/P WASHER) M3X
6
32 SA8042001 1
HEAD PCB SUPPORT PLATE
33 0A5401006 4
SCREW PAN (S/P WASHER) M4X10
36 SA5460001 1
MOTOR SETTING PLATE
37 0A5401006 2
SCREW PAN (S/P WASHER) M4X10
38 SA5461001 1
CARRIAGE MOTOR HOLDE
R
39 3A6001003 3
BOLT SOCKET (S/P WASHER) M5X20
40 SA5464001 1
GEAR M0.5Z18
41 012300536 1 SET SCREW SOCKET (FT) M3X5
42 SA5465001 1
PULLEY SHAFT
43 048060342 2 RETAINING RING E6
44 070688850 2
BALL BEARING RADIAL 688ZZ
45 SA5466001 2
CARRIAGE PULLE
Y
46 012500536 4 SET SCREW SOCKET (FT) M5X5
47 SA5467001 1
GEAR M0.5Z120
48 047201442 1
PIN SPRING ROLL AW2
49 SA5468001 1
PULLEY HOLDER BASE
50 S55481001 3
BOLT, SOCKET (S/P WASHER)M4X12
51 SA5602001 1
PULLEY BASE PLATE
52 S55481001 2
BOLT, SOCKET (S/P WASHER)M4X12
53 018402036 1
BOLT SOCKET M4X20
54 SA5603001 1
PULLEY SHAFT
R
55 048060342 2 RETAINING RING E6
56 070688850 2
BALL BEARING RADIAL 688ZZ
57 SA5471001 1
CARRIAGE BACK PLATE
58 0A5401006 4
SCREW PAN (S/P WASHER) M4X10
59 SA5472001 1
ENCODER STRIP
60 SA5473001 1
ENCODER STRIP SUPPORT L
61 S55481001 2
BOLT, SOCKET (S/P WASHER)M4X12
62 SA5474001 1
ENCODER STRIP SUPPORT
R
GT-5410-263
12
13
D. / Carriage mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
63 S55481001 2
BOLT SOCKET (S/P WASHER) M4X12
64 S03607001 1
SPRING
65 SA5475001 1
ENCODER STRIP COVE
R
66 0A5401006 2
SCREW PAN (S/P WASHER) M4X10
67 SA5476001 1
SENSORFLAP SUPPORT PLATE
R
68 S55481001 2
BOLT SOCKET (S/P WASHER) M4X12
69 SA5477001 1
SENSORFLAP SUPPORT PLATE
L
70 S55481001 2
BOLT SOCKET (S/P WASHER) M4X12
71 SA5933001 2
OIL FREE BUSHING 6X5
72 XA0199051 2 RETAINING RING,CS8
73 SA5519001 1
SENSOR FLAP SHAF
T
74 048050342 2 RETAINING RING E5
75 SA5481001 1 SENSOR FLAP
76 0A5300606 3
SCREW PAN (S/P WASHER) M3X
6
77 SA5482001 1
SENSOR FLAP DOG
78 0A5300606 1
SCREW PAN (S/P WASHER) M3X
6
79 SA5483001 1 SENSORFLAP RELEASE PLAT
E
80 SA5484001 1 COLLAR ,3
81 0A5300606 1
SCREW PAN (S/P WASHER) M3X
6
82 SA5485001 1
SPRING
83 047301042 1
PIN SPRING ROLL AW3
84 SA5953001 1
SPRING EXTENSION 4.9X20
85 SA8043001 1
CARRIAGE PCB COVE
R
86 SA5376101 1
CARRIAGE PCB ASS
Y
87 SA5395001 1
CARRIAGE MOTOR
88 0A5300606 2
SCREW PAN (S/P WASHER) M3X
6
89 SA5397101 1
HARNESS:JAM SENSO
R
90 LG2239001 1 PHOTO INTERRUPTER:SG-2482
A
91 SA5664001 1 SOLENOID:MD-272-3
92 0A5300606 2
SCREW PAN (S/P WASHER) M3X
6
93 S34413000 6 SPACE
R
96 SA5518001 1
FFC SUPPORT,HEAD
97 SA6053001 6
CLAMP:FCR-30VO
98 S40660000 1 EMI CORE, TFC16-8-16
99 SA5517001 1
FFC SUPPORT INSIDE, HEAD
100 SA5520001 1
EDGE GUARD CE-012
<For Japan and Europe>
101 SA9087001 1 CORE PLATE BASE
102 SA9086001 1 CORE PLATE
103 SA8913101 2 FERRITE CORE: ZCAT6819-5230D
104 S04159000 2
BAND 1M
105 S55479001 4
BOLT SOCKET (S/P WASHER) M4X8
106 SA9088001 2 SAPCER:4SP-15
GT-5410-263
14
14
D. / Carriage mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
63 S55481001 2
BOLT SOCKET (S/P WASHER) M4X12
64 S03607001 1
SPRING
65 SA5475001 1
ENCODER STRIP COVE
R
66 0A5401006 2
SCREW PAN (S/P WASHER) M4X10
67 SA5476001 1
SENSORFLAP SUPPORT PLATE
R
68 S55481001 2
BOLT SOCKET (S/P WASHER) M4X12
69 SA5477001 1
SENSORFLAP SUPPORT PLATE
L
70 S55481001 2
BOLT SOCKET (S/P WASHER) M4X12
71 SA5933001 2
OIL FREE BUSHING 6X5
72 XA0199051 2 RETAINING RING,CS8
73 SA5519001 1
SENSOR FLAP SHAF
T
74 048050342 2 RETAINING RING E5
75 SA5481001 1 SENSOR FLAP
76 0A5300606 3
SCREW PAN (S/P WASHER) M3X
6
77 SA5482001 1
SENSOR FLAP DOG
78 0A5300606 1
SCREW PAN (S/P WASHER) M3X
6
79 SA5483001 1 SENSORFLAP RELEASE PLAT
E
80 SA5484001 1 COLLAR ,3
81 0A5300606 1
SCREW PAN (S/P WASHER) M3X
6
82 SA5485001 1
SPRING
83 047301042 1
PIN SPRING ROLL AW3
84 SA5953001 1
SPRING EXTENSION 4.9X20
85 SA8043001 1
CARRIAGE PCB COVE
R
86 SA5376101 1
CARRIAGE PCB ASS
Y
87 SA5395001 1
CARRIAGE MOTOR
88 0A5300606 2
SCREW PAN (S/P WASHER) M3X
6
89 SA5397101 1
HARNESS:JAM SENSO
R
90 LG2239001 1 PHOTO INTERRUPTER:SG-2482
A
91 SA5664001 1 SOLENOID:MD-272-3
92 0A5300606 2
SCREW PAN (S/P WASHER) M3X
6
93 S34413000 6 SPACE
R
96 SA5518001 1
FFC SUPPORT,HEAD
97 SA6053001 6
CLAMP:FCR-30VO
98 S40660000 1 EMI CORE, TFC16-8-16
99 SA5517001 1
FFC SUPPORT INSIDE, HEAD
100 SA5520001 1
EDGE GUARD CE-012
<For Japan and Europe>
101 SA9087001 1 CORE PLATE BASE
102 SA9086001 1 CORE PLATE
103 SA8913101 2 FERRITE CORE: ZCAT6819-5230D
104 S04159000 2
BAND 1M
105 S55479001 4
BOLT SOCKET (S/P WASHER) M4X8
106 SA9088001 2 SAPCER:4SP-15
GT-5410-263
14
15
E1. / Maintenance mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1SA6252001 1 MNT MAIN ASS
Y
2SA7694001 1 MNT FRAME SUB ASS
Y
4SA5916001 4 CLAMP
5625010000 2 NYLON CLAMP NK-2N
6624771000 2 NYLON CLAMP NK-7N
70A5400806 4 SCREW PAN
(
S/P WASHER
)
M4X
8
8SA5917001 1 MNT LOCATING PLATE
9SA7946001 1 MNT BASE TORA
Y
10 0A5400806 8 SCREW PAN
(
S/P WASHER
)
M4X
8
11 SA5736101 1
A
DJUST PLATE
12 0A5400806 2 SCREW PAN
(
S/P WASHER
)
M4X
8
13 S42446001 4 BOLT SOCKET
(
S/P WASHER
)
M6X14
14 SA5921001 1 GROMMET
15 SA5922001 2 FRAME F&R
16 S43275000 2 CORD CLAMP
,
WS2NS
17 0A5400806 8 SCREW PAN
(
S/P WASHER
)
M4X
8
18 SA5925001 1 CL GUIDE R
19 SA5926001 1 CL GUIDE L
20 SA5927001 2 CL GUIDE BUSHING
21 0A5300806 4
SCREW PAN (S/P WASHER) M3X
8
22 SA5928001 1 CL GUIDE LOWER
23 0A5400806 2 SCREW PAN
(
S/P WASHER
)
M4X
8
24 SA5929001 4 CL GUIDE COLLAR
25 0A5401406 4
SCREW PAN (S/P WASHER) M4X14
26 026060250 4
WASHER PLAIN M 6
27 SA5931001 1 CL DRIVE PLATE
28 SA5932001 2 CL DRIVE SHAFT
29 0A5301606 1 SCREW PAN
(
S/P WASHER
)
M3X16
30 048040346 2 RETAINING RING E4
31 SA5933001 4 OIL FREE BUSHING 6X5
32 SA5934001 2 RETAINING RING CSTW-6
33 XA0199001 4 RETAINING RING
,
CS8
34 026060250 2 WASHER PLAIN M 6
35 SA5935001 1 CL CAM FOLLOWER
36 SA5933001 2 OIL FREE BUSHING 6X5
37 XA0199001 2 RETAINING RING
,
CS8
38 048040346 2 RETAINING RING E4
39 SA5937001 1 CL DRIVE CAM
40 SA5938001 1 CL CAM DOG LARGE
41 SA5939001 1 CL CAM DOG SMALL
42 X56655001 2 RETAINING RING: CSTW-3.5
43 026060250 1 WASHER PLAIN M 6
44 048040346 1 RETAINING RING E4
45 SA5940001 1 CAP LIFTER FRAME
46 0A5300806 2 SCREW PAN
(
S/P WASHER
)
M3X
8
47 SA5941001 4 CAP RUBBE
R
48 SA7692001 4 CAP RUBBER HOLDE
R
49 SA5943001 8 SPRING COMPRESSION 8X15
50 SA6289101 4 CAPPING TUBE ASS
Y
GT-5410-264
16
16
E1. / Maintenance mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1SA6252001 1 MNT MAIN ASS
Y
2SA7694001 1 MNT FRAME SUB ASS
Y
4SA5916001 4 CLAMP
5625010000 2 NYLON CLAMP NK-2N
6624771000 2 NYLON CLAMP NK-7N
70A5400806 4 SCREW PAN
(
S/P WASHER
)
M4X
8
8SA5917001 1 MNT LOCATING PLATE
9SA7946001 1 MNT BASE TORA
Y
10 0A5400806 8 SCREW PAN
(
S/P WASHER
)
M4X
8
11 SA5736101 1
A
DJUST PLATE
12 0A5400806 2 SCREW PAN
(
S/P WASHER
)
M4X
8
13 S42446001 4 BOLT SOCKET
(
S/P WASHER
)
M6X14
14 SA5921001 1 GROMMET
15 SA5922001 2 FRAME F&R
16 S43275000 2 CORD CLAMP
,
WS2NS
17 0A5400806 8 SCREW PAN
(
S/P WASHER
)
M4X
8
18 SA5925001 1 CL GUIDE R
19 SA5926001 1 CL GUIDE L
20 SA5927001 2 CL GUIDE BUSHING
21 0A5300806 4
SCREW PAN (S/P WASHER) M3X
8
22 SA5928001 1 CL GUIDE LOWER
23 0A5400806 2 SCREW PAN
(
S/P WASHER
)
M4X
8
24 SA5929001 4 CL GUIDE COLLAR
25 0A5401406 4
SCREW PAN (S/P WASHER) M4X14
26 026060250 4
WASHER PLAIN M 6
27 SA5931001 1 CL DRIVE PLATE
28 SA5932001 2 CL DRIVE SHAFT
29 0A5301606 1 SCREW PAN
(
S/P WASHER
)
M3X16
30 048040346 2 RETAINING RING E4
31 SA5933001 4 OIL FREE BUSHING 6X5
32 SA5934001 2 RETAINING RING CSTW-6
33 XA0199001 4 RETAINING RING
,
CS8
34 026060250 2 WASHER PLAIN M 6
35 SA5935001 1 CL CAM FOLLOWER
36 SA5933001 2 OIL FREE BUSHING 6X5
37 XA0199001 2 RETAINING RING
,
CS8
38 048040346 2 RETAINING RING E4
39 SA5937001 1 CL DRIVE CAM
40 SA5938001 1 CL CAM DOG LARGE
41 SA5939001 1 CL CAM DOG SMALL
42 X56655001 2 RETAINING RING: CSTW-3.5
43 026060250 1 WASHER PLAIN M 6
44 048040346 1 RETAINING RING E4
45 SA5940001 1 CAP LIFTER FRAME
46 0A5300806 2 SCREW PAN
(
S/P WASHER
)
M3X
8
47 SA5941001 4 CAP RUBBE
R
48 SA7692001 4 CAP RUBBER HOLDE
R
49 SA5943001 8 SPRING COMPRESSION 8X15
50 SA6289101 4 CAPPING TUBE ASS
Y
GT-5410-264
16
17
E1. / Maintenance mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
51 SA5945001 1 W RACK GEAR PLATE SUB ASS
Y
52 025050236 2
WASHER PLAIN M 5
53 SA5948101 1 BUSHING SUPPORT
R
54 SA5949101 1 BUSHING SUPPORT L
55 0A5400806 4 SCREW PAN
(
S/P WASHER
)
M4X
8
56 SA5950001 4 OIL FREE BUSHING 10X6
57 SA5951001 4 RETAINING RING CSTW-12
58 SA5952001 1 W DRIVE PLATE
59 SA5953001 1 SPRING EXTENSION 4.9X20
60 SA9001001 1 WIPER ASS
Y
61 SA5957101 1 SPRING EXTENSION 3.5X30
62 SA5958001 2 W GUIDE SHAFT
63 SA5959001 4 RETANING RING CSTW-10
64 048070346 2 RETAINING RING E7
65 SA5960001 1 WL POSITIONING CAM
66 0A5300806 2 SCREW PAN
(
S/P WASHER
)
M3X
8
67 SA5961001 1 WIPER DRIVE IDLE GEA
R
68 048030346 1 RETAINING RING E3
69 SA5962001 1 WL THRUST SHAFT
70 SA5963001 1 SPRING COMPRESSION 8X23
71 026060250 1 WASHER PLAIN M 6
72 048040346 2 RETAINING RING E4
73 SA5933001 2 OIL FREE BUSHING 6X5
74 XA0199001 2 RETAINING RING
,
CS8
75 SA5965001 2 MOTOR SUB ASS
Y
76 0A5300806 4 SCREW PAN
(
S/P WASHER
)
M3X
8
77 SA5489001 1 HARNESS:MNT MOTOR
78 SA5492101 1 SWITCH:ABJ363840
79 0A5301006 1 SCREW PAN
(
S/P WASHER
)
M3X10
80 SA5915001 1 GROMMET
81 SA5971001 1 SENSOR BRACKE
T
82 0A5300806 1 SCREW PAN
(
S/P WASHER
)
M3X
8
83 SA5972001 1 WL LATERAL SUPPOR
T
84 0A4403006 1 SCREW PAN
(
S/P WASHER
)
M4X30
85 SA5973001 1 WIPER DOG PLATE
86 SA5491001 1 MAINTE SENSOR ASS
Y
87 018300836 2
BOLT SOCKET M3X8
88 0A5401006 2 SCREW PAN
(
S/P WASHER
)
M4X10
89 SA5984001 1 CIRCUIT BOARD BRACKE
T
90 S00554000 4
SUPPORT, 6NS
91 SA6198001 1 MNT PCB COVE
R
92 0A5300806 4 SCREW PAN
(
S/P WASHER
)
M3X
8
93 SA5992001 1 MNT TOP COVER RIGHT
94 SA5993001 1 MNT TOP COVER LEFT
95 SA6199001 1 EDGE GUARD CE-012
96 0A5300806 2 SCREW PAN
(
S/P WASHER
)
M3X
8
97 0A5400806 4 SCREW PAN
(
S/P WASHER
)
M4X
8
98 S50423000 2
BUSHING, TB-1926
100 SA5966001 1 CASSETTE UPPER SUB ASS
Y
101 SA5969001 1 CASSETTE LOWE
R
102 SA5369101 1
PCB ASSY MAINTENANCE
103 0A5300806 2 SCREW PAN
(
S/P WASHER
)
M3X
8
104 SA5396001 4 SPACE
R
105 SA4463001 4 CAP SPACE
R
GT-5410-264
18
Other manuals for GT-541
9
Table of contents
Other Brother Printer manuals
Brother
Brother m-PRINT MW-100 User manual
Brother
Brother HL-4040CDN - Color Laser Printer User manual
Brother
Brother DCP-9040CN User manual
Brother
Brother HL-5150D User manual
Brother
Brother HL-5070N User manual
Brother
Brother QL-700 User manual
Brother
Brother HL-1800 Series User manual
Brother
Brother HL-L3210CW User manual
Brother
Brother HL-4000CN User manual
Brother
Brother DCP-J4120DW Operating manual
Brother
Brother MFC-P2500 User manual
Brother
Brother HL-B2100D Operating manual
Brother
Brother HL-5240L User manual
Brother
Brother MFC-J995DW User manual
Brother
Brother TD-4520DN User manual
Brother
Brother Stampcreator PRO SC2000USB User manual
Brother
Brother GT-541 Assembly instructions
Brother
Brother PA-4CR-003 User manual
Brother
Brother m-PRINT MW-120 User manual
Brother
Brother MFC-9330CDW User manual
Popular Printer manuals by other brands
Sony
Sony UP-DR80MD Instructions for use
Astro Machine
Astro Machine ASTROJET 2650P quick start guide
Konica Minolta
Konica Minolta Magicolor 2490 MF Parts guide
Avery Dennison
Avery Dennison AP4.4 user manual
Canon
Canon iP6700D - PIXMA Color Inkjet Printer Specifications
Canon
Canon advanced anywhere print user guide
