Start Here HL-5470DW(T)
HL-6180DW(T)
Quick Setup Guide
ENG Version 0
Thank you for choosing Brother, your support is important to us and we value your business. Your Brother product
is engineered and manufactured to the highest standards to deliver reliable performance, day-in and day-out.
Please read the Product Safety Guide first, then read this Quick Setup Guide for the correct setup and installation
procedure.
To view the Quick Setup Guide in other languages, please visit http://solutions.brother.com/.
(HL-6180DW(T)) In USA:
Please go to the Brother Solutions Center at http://solutions.brother.com/ and click Manuals on your model page
to download the other manuals.
1
Unpack the machine and check the components
Note
Not all models are available in all countries.
Drum Unit and Toner Cartridge
Assembly
(pre-installed)
Quick Setup Guide
Installer CD-ROM AC Power Cord Product Safety Guide

2
WARNING
• Plastic bags are used in the packing of your machine. Plastic bags are not toys. To avoid the danger
of suffocation, keep these bags away from babies and children and dispose of them correctly.
• If you use a Lower Tray, DO NOT carry the machine with the Lower Tray as you may be injured or cause
damage to the machine because it is not attached to the Lower Tray.
WARNING indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injuries.
CAUTION indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injuries.
Note
• Keep a minimum gap around the machine as shown in the illustration.
• The components included in the box may differ depending on your country.
• We recommend that you save the original packaging.
• If for any reason you must ship your machine, carefully repack the machine in the original packaging to avoid
any damage during transit. The machine should be adequately insured with the carrier. For how to repack
the machine, see Packing and shipping the machine in the User's Guide.
• Illustrations in this Quick Setup Guide are based on the HL-5470DW.
• The interface cable is not a standard accessory. Buy the appropriate interface cable for the connection you
want to use (USB or Network).
USB cable
It is recommended to use a USB 2.0 cable (Type A/B) that is no longer than 2 meters (6 feet).
Network cable
For HL-5470DW(T), use a straight-through Category 5 (or greater) twisted-pair cable for 10BASE-T,
100BASE-TX Fast Ethernet Network.
For HL-6180DW(T), use a straight-through Category 5e (or greater) Shielded Twisted-Pair (STP) cable for
10BASE-T, 100BASE-TX Fast Ethernet Network or 1000BASE-T Gigabit Ethernet Network. When you
connect the machine to a Gigabit Ethernet Network, use the network devices complying with 1000BASE-T.
WARNING
CAUTION
150 mm
(6 in.)
150 mm
(6 in.)
150 mm
(6 in.)
150 mm (6 in.)

3
2
Remove the packing
material from the
machine
aRemove the packing tape from the outside of
the machine.
bOpen the MP tray a, and remove the packing
tape bfrom the MP tray support, then close
the MP tray.
cPress the front cover release button and open
the front cover. Remove the silica gel pack a.
CAUTION
CAUTION
DO NOT eat the silica gel pack. Please throw
away. If ingested, seek medical attention
immediately.
dTake out the drum unit and toner cartridge
assembly.
eRemove the orange protective material from
the drum unit and toner cartridge assembly.
fHold the drum unit and toner cartridge
assembly level with both hands and gently
shake it from side to side several times to
distribute the toner evenly inside the cartridge.
gPut the drum unit and toner cartridge assembly
firmly back in the machine.
hClose the front cover of the machine.
Important
DO NOT connect the AC power cord yet.

4
3

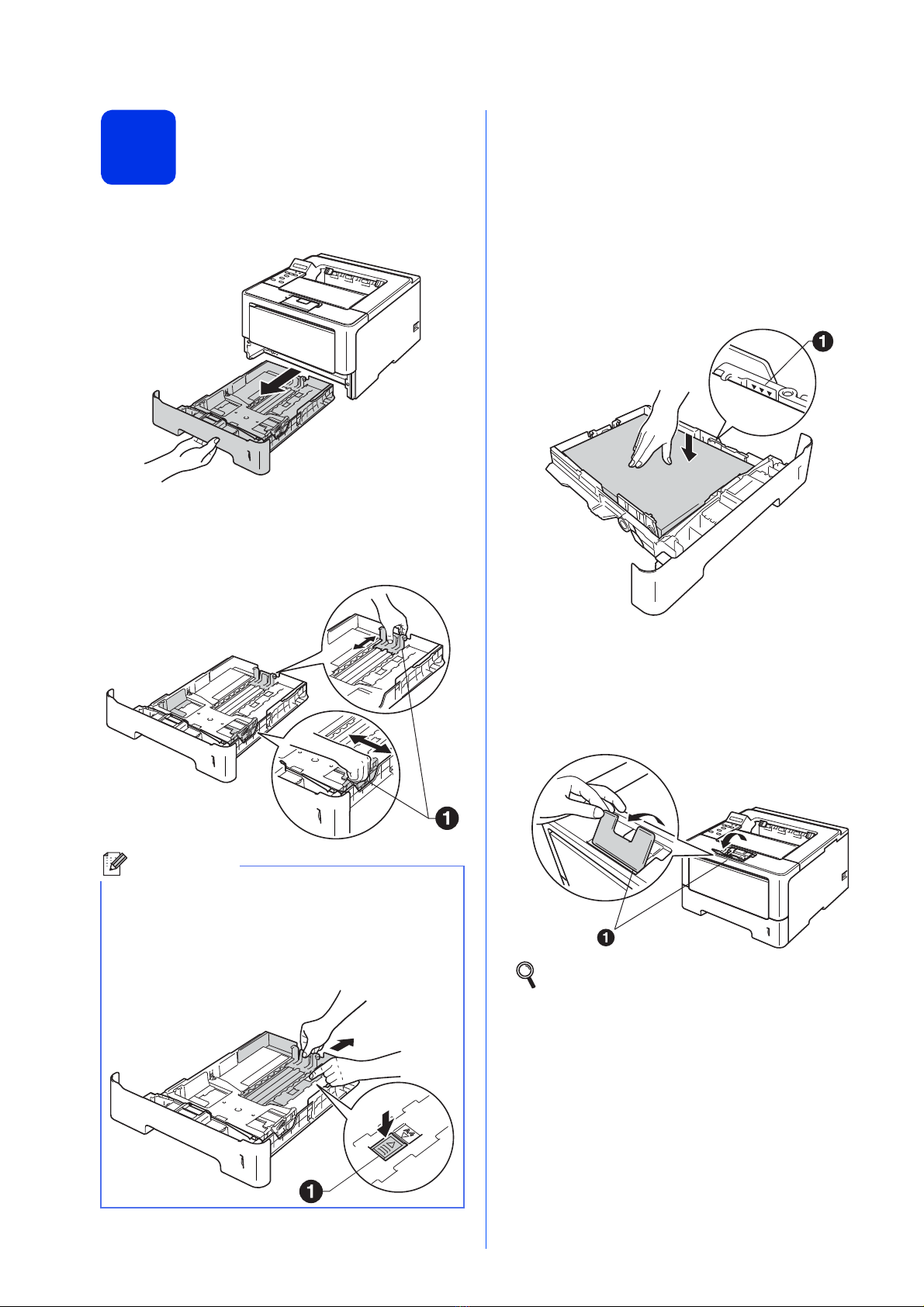

Load paper in the paper
tray
aPull the paper tray completely out of the
machine.
bWhile pressing the green paper-guide release
lever a, slide the paper guides to fit the paper
size you are loading in the tray. Make sure that
the guides are firmly in the slots.
cFan the stack of paper well to avoid paper jams
and misfeeds.
dPut the paper in the tray and make sure:
The paper is below the maximum paper
mark (bbb)a.
Over filling the paper tray will cause paper
jams.
The side to be printed on is face down.
The paper guides touch the sides of the
paper so it will feed properly.
ePut the paper tray firmly back in the machine.
Make sure that it is completely inserted into the
machine.
fLift up the support flap ato prevent paper from
sliding off the face-down output tray.
Note
For Legal or Folio size paper, press the release
button ain the bottom of the paper tray and then
pull out the back of the paper tray.
(Legal or Folio size paper are not available in
some regions.) For more information about recommended
paper, see Recommended paper and print
media in the User's Guide.

5
4

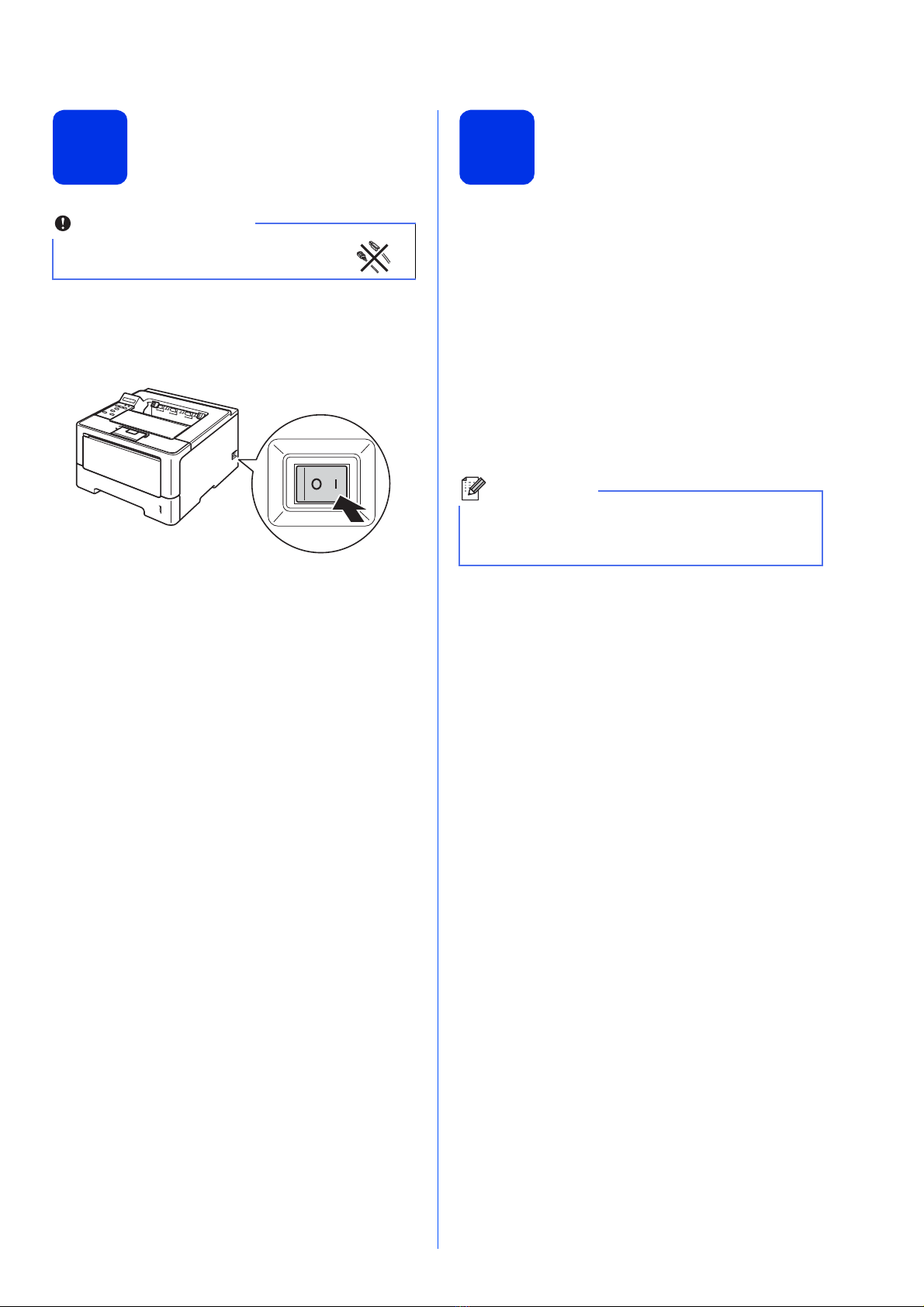

Turn on the machine
aConnect the AC power cord to the machine and
then connect it to an AC power outlet.
bTurn the machine's power switch on.
5

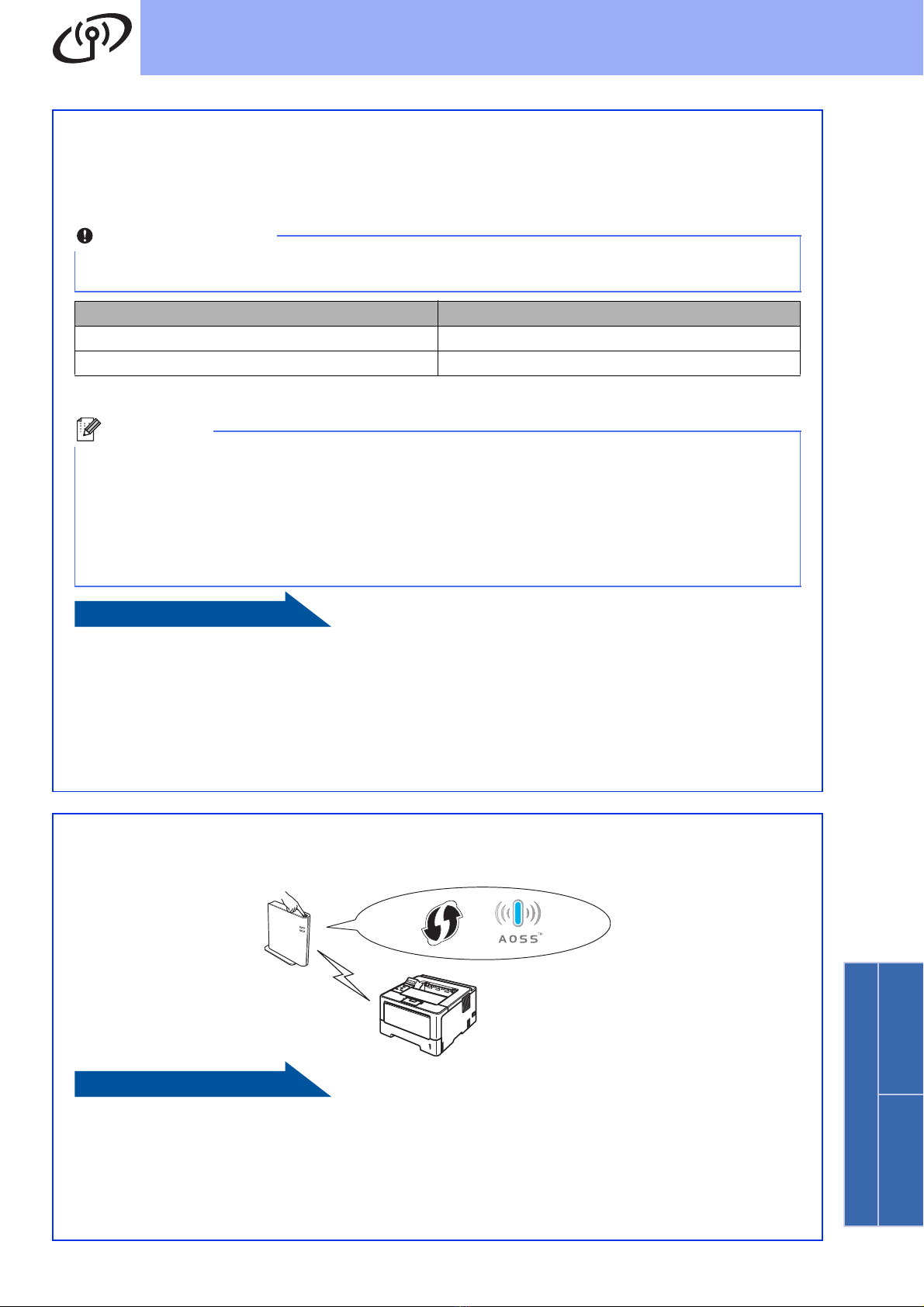

Wireless setup
(if needed)
For wireless setup using a Macintosh computer or
mobile device, go to a.
For Windows®users (all connections) and Macintosh
users using the USB and wired network connections,
go to b.
aIf you are using a Macintosh computer or a
mobile device on a wireless network, press ato
choose Yes.
Then go to step 9on page 17 to continue the
wireless setup.
After finishing the wireless setup you will need
to return to step 6to finish the machine setup.
bIf you are using a Windows®computer or want
to connect your Macintosh using USB or wired
network, press bto choose No.
Then go to step 6.
The wireless setup for Windows®users will be
covered in later steps.
Important
DO NOT connect the interface cable
yet.
Note
If you want to change the language on your
machine first, you can choose No and you will be
able to configure the wireless settings later.

6
6

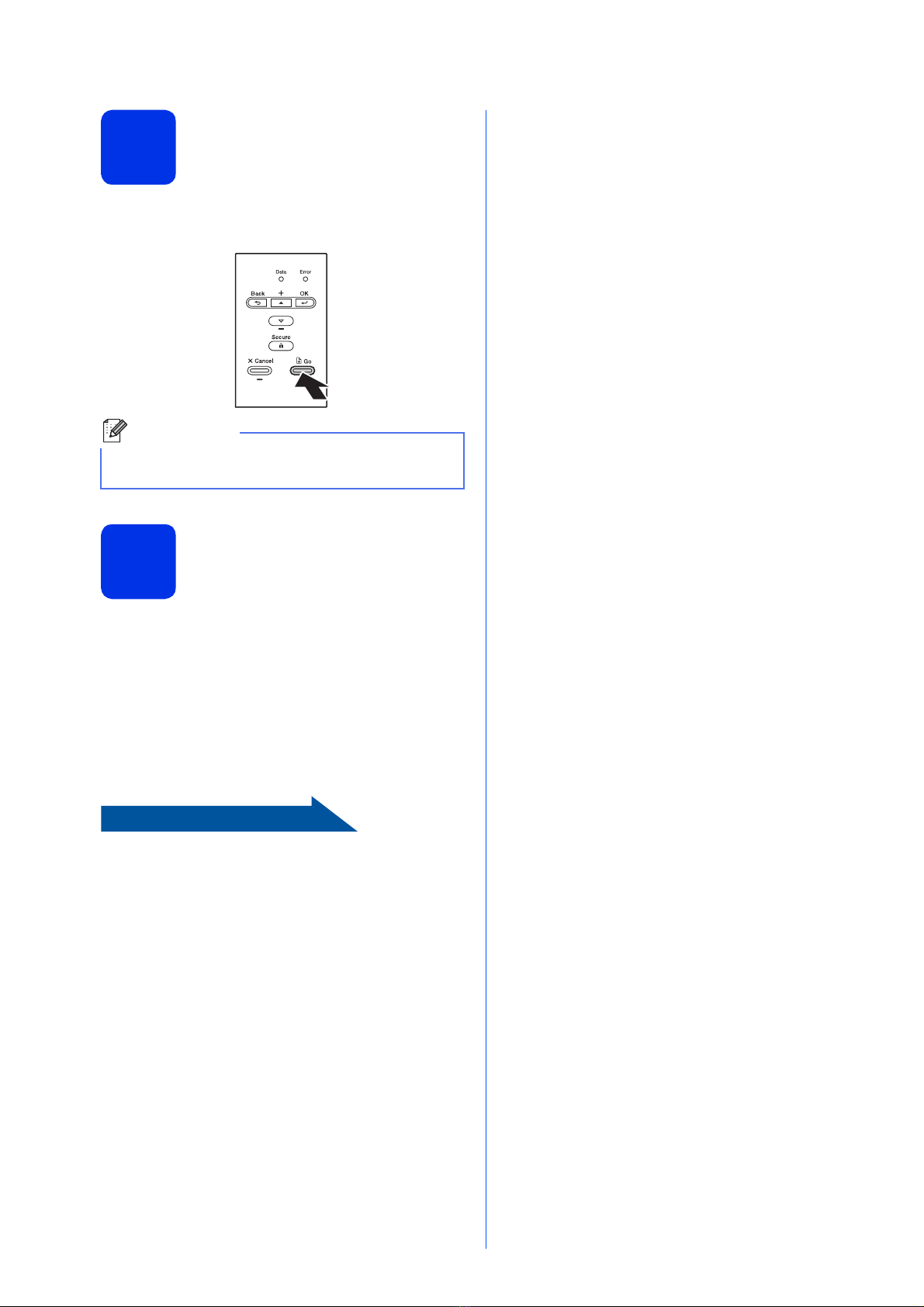

Print a test page
aPress Go. The machine will print a test page.
Check that the test page has printed correctly.
7
Set your language
aPress aor bto choose General Setup.
Press OK.
bPress OK to choose Local Language.
cPress aor bto choose your language.
Press OK.
dPress Cancel.
Now go to
Next page to install the printer driver.
Note
This function will not be available after the first
print job you send from your computer.

7
Windows®
USB
Macintosh
Windows®Macintosh
Wired Network
Wireless Network
Windows®Macintosh
8
Choose your connection type
These installation instructions are for Windows®XP Home/XP Professional/XP Professional x64 Edition,
Windows Vista®, Windows®7, Windows Server®2003/2003 x64 Edition/2008/2008 R2 and Mac OS X (versions
10.5.8, 10.6.x and 10.7.x).
Note
You can visit us at http://solutions.brother.com/ where you can get product support, the latest driver updates
and utilities, and answers to frequently asked questions (FAQs) and technical questions.
For USB Interface Users
Windows
®
, go to page 8
Macintosh, go to page 10
For Wired Network
Windows
®
, go to page 11
Macintosh, go to page 15
For Wireless Network
Windows
®
and Macintosh,
go to page 17
Note
To connect your iOS or Android™ device or Windows®Phone to your Brother machine using Wi-Fi Direct™,
please download the Wi-Fi Direct™ Guide at http://solutions.brother.com/.

8
Windows®
USB

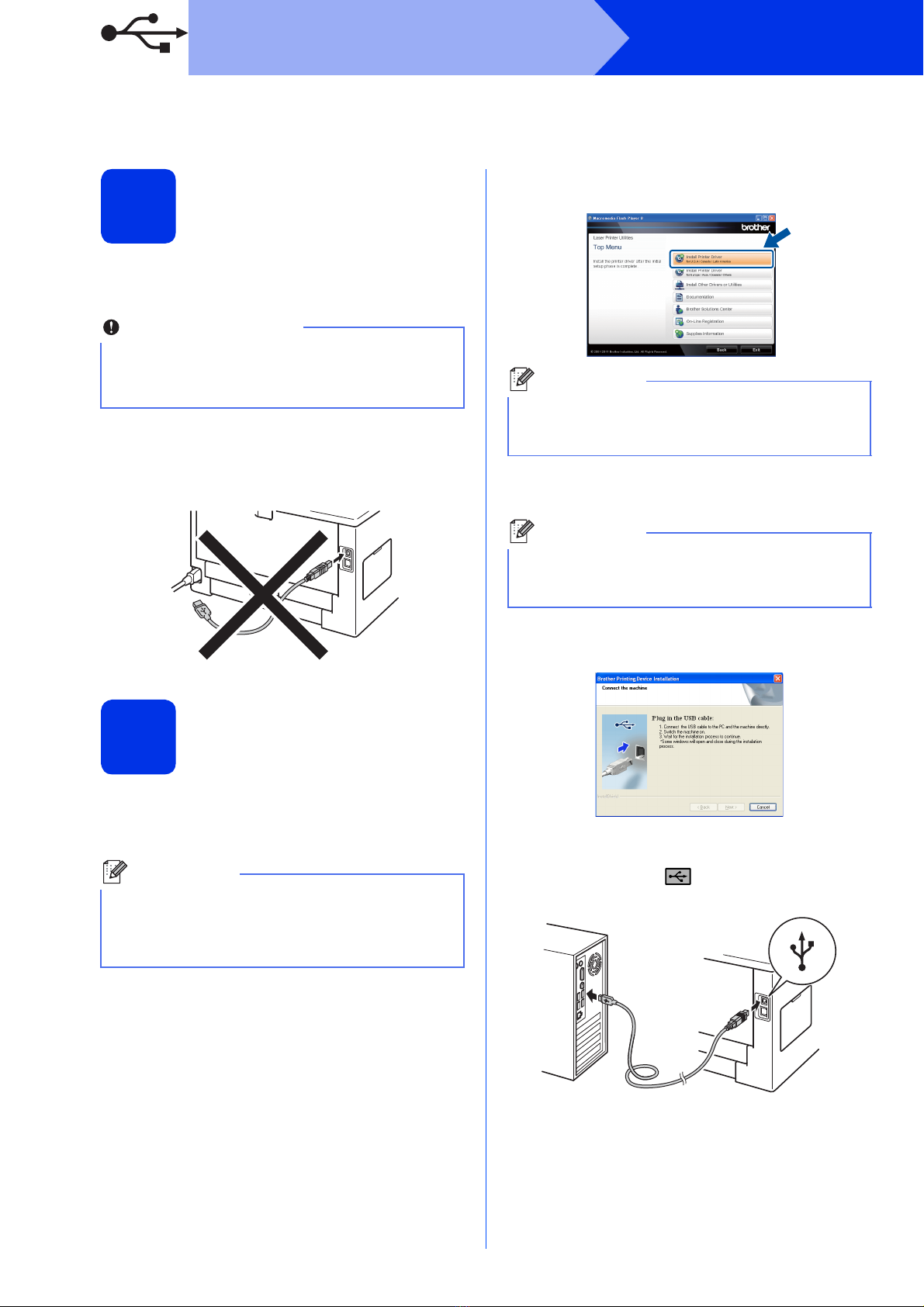

For USB Interface Cable Users for Windows
®
9
Before you install
aMake sure that your computer is ON and you
are logged on with Administrator rights.
bTurn off the machine and make sure the USB
interface cable is NOT connected to the
machine. If you have already connected the
cable, disconnect it.
10

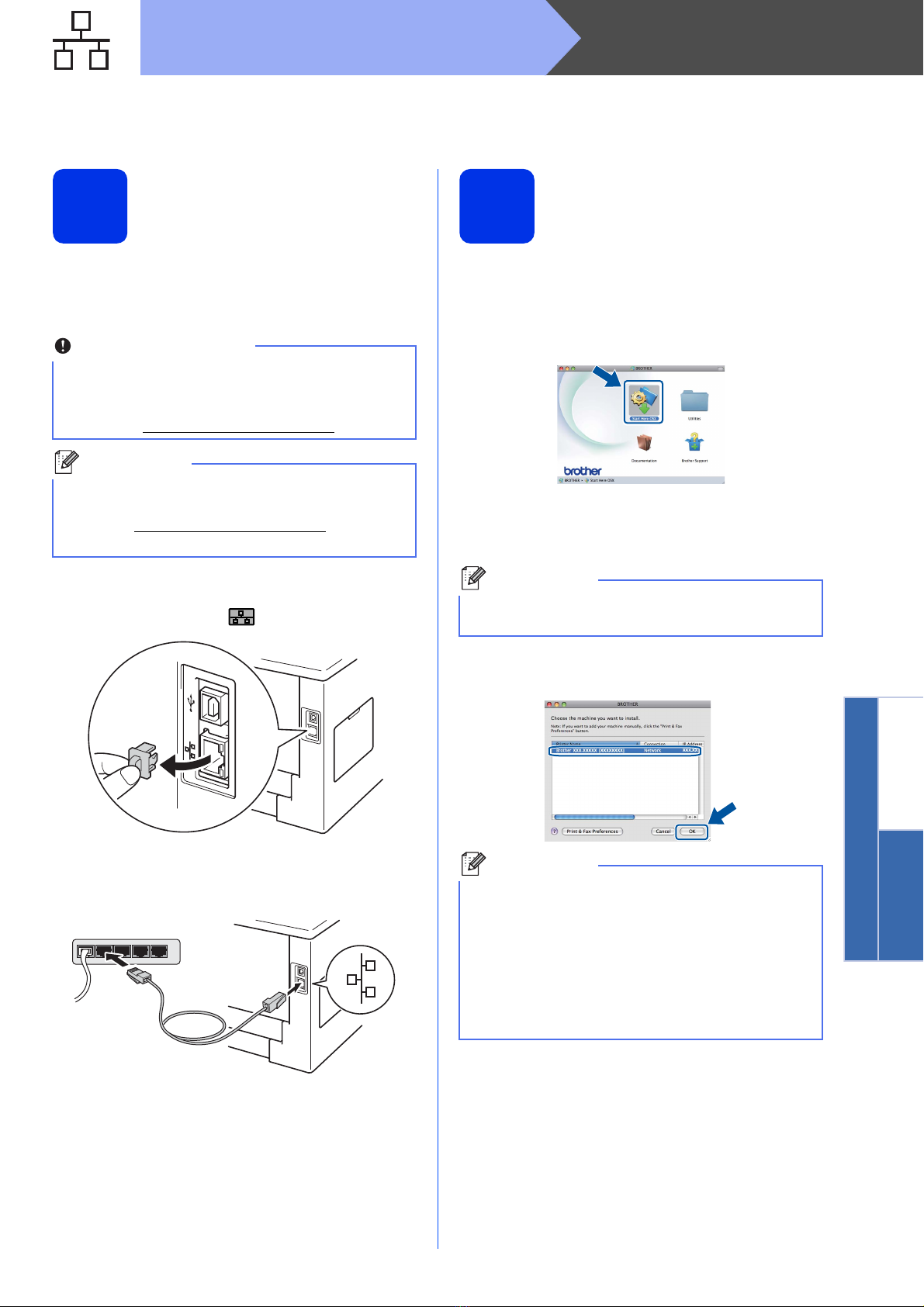

Install the printer driver
aPut the installer CD-ROM into your CD-ROM
drive. If prompted, select your model and
language.
bClick Install Printer Driver, and click Yes if
you accept the license agreement.
cChoose Local Connection (USB) and then
click Next.
dFollow the on-screen instructions until this
screen appears.
eConnect the USB cable to the USB port
marked with the symbol on your machine,
and then connect the cable to your computer.
fTurn the machine on.
The installation will automatically start.
Important
• If there are any programs running, close them.
• The screens may differ depending on your
operating system.
Note
If the Brother screen does not appear
automatically, go to My Computer (Computer),
double-click the CD-ROM icon, and then
double-click start.exe.
Note
For Windows Vista®and Windows®7 users,
when the User Account Control screen
appears, click Allow or Yes.
Note
If you want to install the PS driver (BR-Script3
printer driver), choose Custom Install and then
follow the on-screen instructions.

9
Windows®
USB
Windows®
USB
Macintosh
gWhen the On-Line Registration screen
appears, make your selection and follow the
on-screen instructions. Once you have
completed the registration process, click Next.
hWhen the Setup Complete screen appears,
check the box of the action you want to
perform, and then click Finish.
Important
DO NOT cancel any of the screens during the
installation. It may take a few seconds for all
screens to appear.
Note
Depending on your security settings, a Windows®
Security or antivirus software window may appear
when using the machine or its software. Please
allow or permit the window to continue.
Finish
The installation is now
complete.
Note
XML Paper Specification Printer Driver
The XML Paper Specification Printer Driver is the
most suitable driver for Windows Vista®and
Windows®7 when printing from the applications
that use the XML Paper Specification documents.
Please download the latest driver by accessing
the Brother Solutions Center at
http://solutions.brother.com/.

10
Macintosh
USB

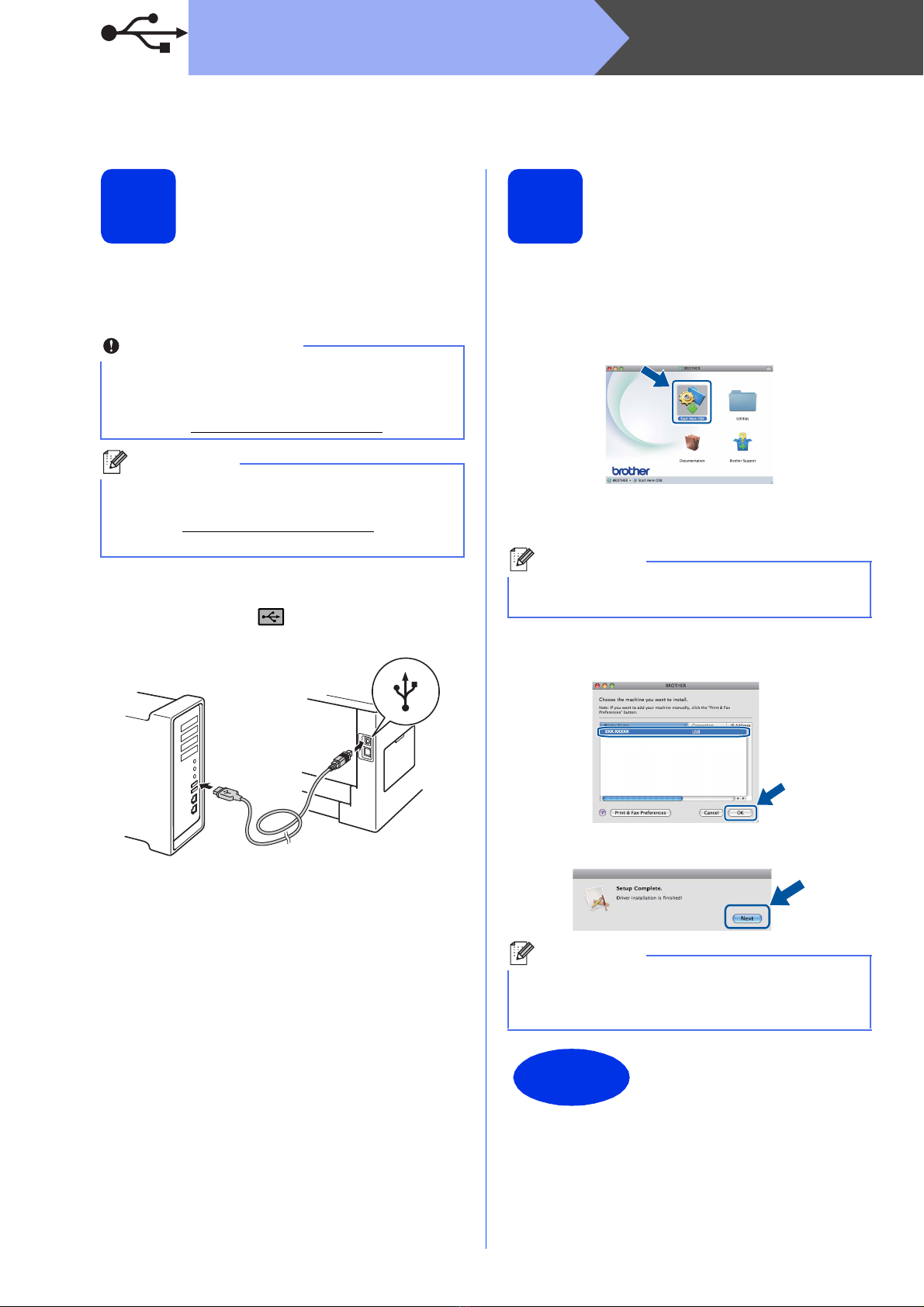

For USB Interface Cable Users for Macintosh
9
Before you install
aMake sure your machine is connected to the
power and your Macintosh is ON. You must be
logged on with Administrator rights.
bConnect the USB cable to the USB port
marked with the symbol on your machine,
and then connect the cable to your Macintosh.
cMake sure your machine's power switch is on.
10
Install the printer driver
aPut the installer CD-ROM into your CD-ROM
drive.
bDouble-click the Start Here OSX icon. If
prompted, select your model.
cChoose Local Connection (USB) and then
click Next. Follow the on-screen instructions.
dChoose your machine from the list, and then
click OK.
eWhen this screen appears, click Next.
Important
For users of Mac OS X 10.5.7 or lower, upgrade
to Mac OS X 10.5.8 - 10.7.x. (For the latest
drivers and information for the Mac OS X you are
using, visit http://solutions.brother.com/.)
Note
If you want to add the PS driver (BR-Script3
printer driver), please go to the Brother Solutions
Center at http://solutions.brother.com/ and visit
FAQ's on your model page for instructions.
Note
It may take a few minutes for the installation to
complete.
Note
When the Brother Support screen appears,
make your selection and follow the on-screen
instructions.
Finish
The installation is now
complete.

11
Windows®
Wired Network
Windows®Macintosh
Wired Network

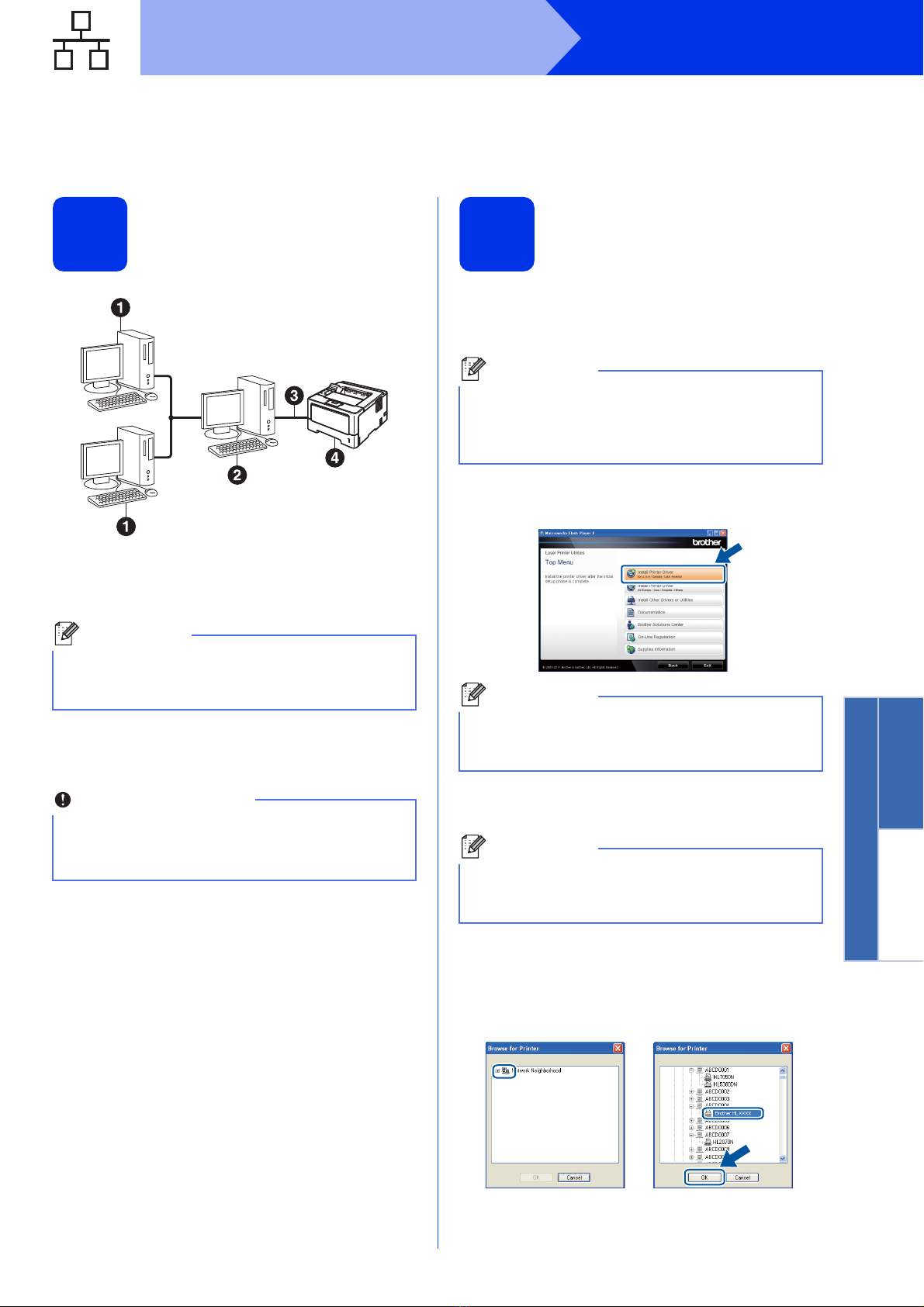

For Wired Network Interface Cable Users for Windows
®
(For Peer-to-Peer network users)
9
Before you install
aRouter
bMachine
aMake sure that your computer is ON and you
are logged on with Administrator rights.
bRemove the protective cap from the Ethernet
port marked with a symbol.
cConnect the network interface cable to the
Ethernet port, and then connect it to a free port
on your hub.
dMake sure your machine's power switch is on.
10
Install the printer driver
aPut the installer CD-ROM into your CD-ROM
drive. If prompted, select your model and
language.
bClick Install Printer Driver, and click Yes if
you accept the license agreement.
cChoose Wired Network Connection
(Ethernet) and then click Next.
Note
If you are going to connect the machine to your
network, we recommend that you contact your
system administrator prior to installation.
Important
• If there are any programs running, close them.
• The screens may differ depending on your
operating system.
TCP/IPTCP/IP
Note
If the Brother screen does not appear
automatically, go to My Computer (Computer),
double-click the CD-ROM icon, and then
double-click start.exe.
Note
For Windows Vista®and Windows®7 users,
when the User Account Control screen
appears, click Allow or Yes.
Note
If you want to install the PS driver (BR-Script3
printer driver), choose Custom Install and then
follow the on-screen instructions.

12
Windows®
Wired Network
dChoose Brother Peer-to-Peer Network
Printer and then click Next.
eThe installation will automatically start.
fWhen the On-Line Registration appears,
make your selection and follow the on-screen
instructions. Once you have completed the
registration process, click Next.
gWhen the Setup Complete screen appears,
check the box of the action you want to
perform, and then click Finish.
Note
Choose the option of the Firewall setting, and
then click Next.
Important
DO NOT cancel any of the screens during the
installation. It may take a few seconds for all
screens to appear.
Note
• If prompted, choose your machine from the list,
and then click Next.
• If there is more than one of the same model
connected on your network, the IP Address and
Node Name will be displayed to help you
identify the machine.
• You can find your machine’s IP Address and the
node name by printing out the Printer Settings
Page. See Print the Printer Settings
Page on page 31.
Note
Depending on your security settings, a Windows®
Security or antivirus software window may appear
when using the machine or its software. Please
allow or permit the window to continue.
Finish
The installation is now
complete.
Note
XML Paper Specification Printer Driver
The XML Paper Specification Printer Driver is the
most suitable driver for Windows Vista®and
Windows®7 when printing from the applications
that use the XML Paper Specification documents.
Please download the latest driver by accessing
the Brother Solutions Center at
http://solutions.brother.com/.

13
Windows®
Wired Network
Windows®Macintosh
Wired Network
For Wired Network Interface Cable Users for Windows
®
(For shared network users)
9
Before you install
aClient computer
bComputer known as “Server” or “Print server”
cTCP/IP or USB
dMachine
aMake sure that your computer is ON and you
are logged on with Administrator rights.
bMake sure your machine's power switch is on.
10
Install the printer driver
aPut the installer CD-ROM into your CD-ROM
drive. If prompted, select your model and
language.
bClick Install Printer Driver, and click Yes if
you accept the license agreement.
cChoose Wired Network Connection
(Ethernet) and then click Next.
dChoose Network Shared Printer and then
click Next.
eChoose your machine’s queue, and then click
OK.
Note
If you are going to connect the machine to your
network, we recommend that you contact your
system administrator prior to installation.
Important
• If there are any programs running, close them.
• The screens may differ depending on your
operating system.
TCP/IP
Note
If the Brother screen does not appear
automatically, go to My Computer (Computer),
double-click the CD-ROM icon, and then
double-click start.exe.
Note
For Windows Vista®and Windows®7 users,
when the User Account Control screen
appears, click Allow or Yes.
Note
If you want to install the PS driver (BR-Script3
printer driver), choose Custom Install and then
follow the on-screen instructions.

14
Windows®
Wired Network
fThe installation will automatically start.
gWhen the On-Line Registration screen
appears, make your selection and follow the
on-screen instructions. Once you have
completed the registration process, click Next.
hWhen the Setup Complete screen appears,
check the box of the action you want to
perform, and then click Finish.
Note
Contact your administrator if you do not know the
location or the name of the machine queue on the
network.
Important
DO NOT cancel any of the screens during the
installation. It may take a few seconds for all
screens to appear.
Note
Depending on your security settings, a Windows®
Security or antivirus software window may appear
when using the machine or its software. Please
allow or permit the window to continue.
Finish
The installation is now
complete.
Note
XML Paper Specification Printer Driver
The XML Paper Specification Printer Driver is the
most suitable driver for Windows Vista®and
Windows®7 when printing from the applications
that use the XML Paper Specification documents.
Please download the latest driver by accessing
the Brother Solutions Center at
http://solutions.brother.com/.

15
Macintosh
Wired Network
Windows®Macintosh
Wired Network
For Wired Network Interface Cable Users for Macintosh
9
Before you install
aMake sure your machine is connected to the
power and your Macintosh is ON. You must be
logged on with Administrator rights.
bRemove the protective cap from the Ethernet
port marked with a symbol.
cConnect the network interface cable to the
Ethernet port, and then connect it to a free port
on your hub.
dMake sure your machine's power switch is on.
10
Install the printer driver
aPut the installer CD-ROM into your CD-ROM
drive.
bDouble-click the Start Here OSX icon. If
prompted, select your model.
cChoose Wired Network Connection
(Ethernet) and then click Next. Follow the
on-screen instructions.
dChoose your machine from the list, and then
click OK.
Important
For users of Mac OS X 10.5.7 or lower, upgrade
to Mac OS X 10.5.8 - 10.7.x. (For the latest
drivers and information for the Mac OS X you are
using, visit http://solutions.brother.com/.)
Note
If you want to add the PS driver (BR-Script3
printer driver), please go to the Brother Solutions
Center at http://solutions.brother.com/ and visit
FAQ's on your model page for instructions.
Note
It may take a few minutes for the installation to
complete.
Note
• If there is more than one of the same model
connected on your network, the MAC Address
(Ethernet Address) will be displayed after the
model name.
• You can find your machine’s MAC Address
(Ethernet Address) and IP Address by printing
out the Printer Settings Page. See Print the
Printer Settings Page on page 31.

16
Macintosh
Wired Network
eWhen this screen appears, click Next.
Note
When the Brother Support screen appears,
make your selection and follow the on-screen
instructions.
Finish
The installation is now
complete.

17
For Wireless Network Users
Wireless Network
Windows®Macintosh
For Wireless Network Interface Users
9
Before you begin
First you must configure the wireless network settings of your machine to communicate with your wireless access
point/router. After the machine is configured to communicate with your wireless access point/router, computers
and mobile devices on your network will have access to the machine. To use the machine from a computer, you
will need to install the printer driver. The following steps will guide you through the configuration and installation
process.
Infrastructure Mode
Important
• If you are going to connect the machine to your network, we recommend that you contact your system
administrator prior to installation. You must know your wireless network settings before you proceed with this
installation.
• If you have previously configured the wireless settings of the machine, you must reset the network (LAN)
settings before you can configure the wireless settings again.
1. On your machine, press aor bto choose Network, and press OK.
2. Press aor bto choose Network Reset, and press OK.
3. When Reboot OK? appears, press ato choose Yes for reboot.
Note
• To achieve optimum results with normal everyday document printing, place the Brother machine as close to
the wireless access point/router as possible with minimal obstructions. Large objects and walls between the
two devices as well as interference from other electronic devices can affect the data transfer speed of your
documents.
Due to these factors, wireless may not be the best method of connection for all types of documents and
applications. If you are printing large files, such as multi-page documents with mixed text and large graphics,
you may want to consider choosing wired Ethernet for a faster data transfer or USB for the fastest throughput
speed.
• Although the Brother HL-5470DW(T) and HL-6180DW(T) can be used in both a wired and wireless network,
only one of the connection methods can be used at a time.
• If you use your machine in an IEEE 802.1x supported wireless network, see Using IEEE 802.1x
authentication in the Network User's Guide.
aWireless access point/router
bWireless Network machine (your machine)
cWireless capable computer connected to
the wireless access point/router
dWired computer connected to the wireless
access point/router
eMobile device connected to the wireless
access point/router

18
For Wireless Network Users
10
Choose your wireless setup method
The following instructions will offer three methods for setting up your Brother machine on a wireless network. If
you began the wireless setup from step 5on page 5 (for Macintosh and mobile devices), go to method b(Setup
Wizard). For all other users, choose the method you prefer for your environment.
Note
To setup your machine in any other wireless environment, you can find instructions in the Network User's
Guide.
aSetup using the Installer CD-ROM and temporarily using a USB cable (Windows®only)
It is recommended that you use a PC wirelessly connected to your network for this method.
* The Network Key may also be described as the Password, Security Key or Encryption Key.
Now go to
page 20
Important
• You need to temporarily use a USB cable during configuration (cable not included).
• If you are using Windows®XP, or using a network cable to connect your computer with your wireless
access point/router, you need to know the SSID and Network Key of your wireless access point/router
before you proceed. Please write down your wireless network settings in the area below.
• Please do not contact Brother Customer Service for assistance without the wireless security
information. We cannot assist you in locating your network security settings.
Item Record the current wireless network settings
SSID (Network Name)
Network Key (Security Key/Encryption Key)
Note
• If you do not know this information (SSID and Network Key), you cannot continue the wireless setup.
• How can I find this information (SSID and Network Key)?
1. You should see the documentation provided with your wireless access point/router.
2. The initial network name could be the manufacturer’s name or the model name.
3. If you do not know the security information, please consult the router manufacturer, your system
administrator, or internet provider.

19
For Wireless Network Users
Wireless Network
Windows®Macintosh
bManual setup from the control panel using the Setup Wizard (Macintosh, mobile devices and
Windows®)
If your wireless access point/router does not support WPS (Wi-Fi Protected Setup™) or AOSS™,
write down the wireless network settings of your wireless access point/router in the area below.
* The Network Key may also be described as the Password, Security Key or Encryption Key.
Now go to
page 22
Important
Please do not contact Brother Customer Service for assistance without the wireless security
information. We cannot assist you in locating your network security settings.
Item Record the current wireless network settings
SSID (Network Name)
Network Key (Security Key/Encryption Key)
Note
• If you do not know this information (SSID and Network Key), you cannot continue the wireless setup.
• How can I find this information (SSID and Network Key)?
1. You should see the documentation provided with your wireless access point/router.
2. The initial network name could be the manufacturer’s name or the model name.
3. If you do not know the security information, please consult the router manufacturer, your system
administrator, or internet provider.
cOne push setup using WPS or AOSS™ (Windows®and Macintosh)
If your wireless access point/router supports automatic wireless (one-push) setup (WPS or AOSS™)
Now go to
page 24

20

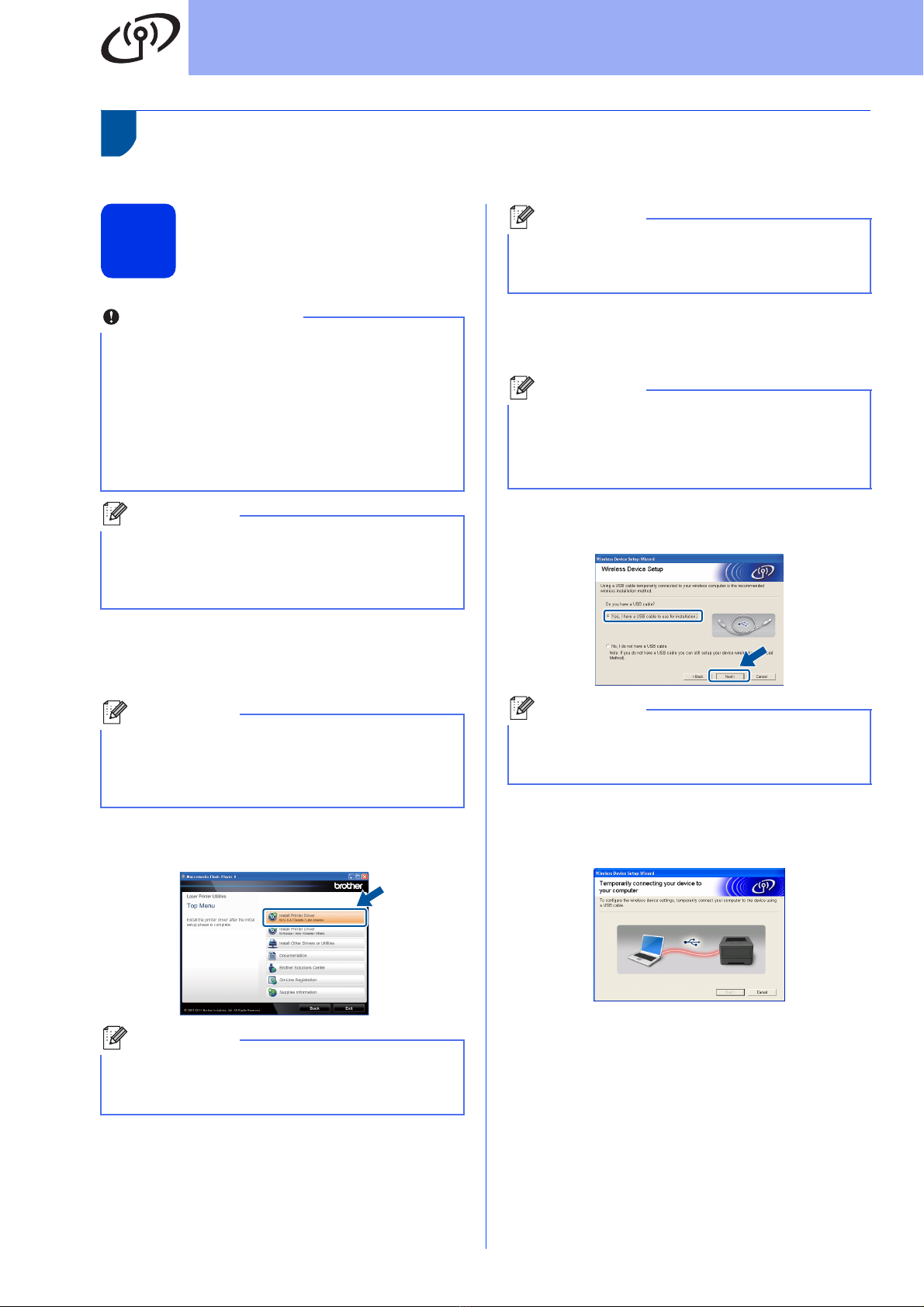

For Wireless Network Users
Setup using the Installer CD-ROM and temporarily using a USB
cable (Windows
®
only)
11
Setup the wireless
settings
aPut the installer CD-ROM into your CD-ROM
drive. If prompted, select your model and
language.
bClick Install Printer Driver and then click Yes
if you accept the license agreement.
cChoose Wireless Network Connection and
then click Next.
dChoose Brother Peer-to-Peer Network
Printer or Network Shared Printer, and then
click Next.
eChoose Yes, I have a USB cable to use for
installation, and then click Next.
fTemporarily connect the USB cable (not
included) directly to the computer and the
machine.
gDo one of the following:
If the Installation confirmation screen
appears, check the box and click Next, go
to h.
Otherwise, go to i.
Important
• You need to temporarily use a USB cable during
configuration (cable not included).
• If you are using Windows®XP, or using a
network cable to connect your computer with
your wireless access point/router, you need to
know the SSID and Network Key of your
wireless access point/router you wrote down in
step 10-a on page 18 before you proceed.
Note
If you use your machine in an IEEE 802.1x
supported wireless network, see Using IEEE
802.1x authentication in the Network User's
Guide.
Note
If the Brother screen does not appear
automatically, go to My Computer (Computer),
double-click the CD-ROM icon, and then
double-click start.exe.
Note
For Windows Vista®and Windows®7 users,
when the User Account Control screen
appears, click Allow or Yes.
Note
If you want to install the PS driver (BR-Script3
printer driver), choose Custom Install and then
follow the on-screen instructions.
Note
• If you choose Network Shared Printer, choose
your machine’s queue, and then click OK.
• Choose the option of the Firewall setting, and
then click Next.
Note
If the Important Notice screen appears, read the
notice. Check the box after you confirm the SSID
and Network Key, and then click Next.
