Brother PL-PRN015 User manual

Revised, February 2001
First edition, December 2000
PL-PRN015
B
BR RO OT T E ER R L LA AS SE ER R P PR RI IN NT TE ER R
L L- -3 32 26 60 0N N
P
PA AR RT TS S R RE EF FE ER RE EN NC CE E L LI IS ST T
Brother Industries, Ltd.
L-3260N
PARTS REFERENCE LIST
This catalog gives the numbers and names of parts on this machine.
CONTENTS
Main Unit (HL-326 N)
Finisher/Stapler (FS-5 5 )
Bridge Unit (BU-5 )
4 bin Mail Box (MX-5 )
Interchange Unit (SP-5 )
Duplex Unit (DX-5 )
Multi-purpose Tray (MP-5 )
2 sheets Tray Table (LT-52 )
5 sheets x 2 Tray Table (LT-51 )

BROTHER LASER PRINTER
HL-3260N
PARTS REFERENCE LIST
NOTE: The periodical maintenance parts (parts for the Maintenance Kit) are bolded in the parts lists.
LOCATION OF UNIT............................................... 2
1.EXTERIOR 1 (HL3260N)..................................... 6
2.EXTERIOR 2 (HL3260N)..................................... 8
3.LASER UNIT (HL3260N).................................... 10
4.TRANSFER UNIT (HL3260N)............................ 12
5.PAPER FEED SECTION 1 (HL3260N).............. 14
6.PAPER FEED SECTION 2 (HL3260N).............. 16
7.PAPER FEED SECTION 3 (HL3260N).............. 18
8.TONER HOPPER UNIT (HL3260N)................... 20
9.PAPER REGISTRATION (HL3260N)................. 22
10.PAPER TRAY 1 (HL3260N) .............................. 24
11.PAPER TRAY 2 (HL3260N) .............................. 26
12.FUSING UNIT 1 (HL3260N).............................. 28
13.FUSING UNIT 2 (HL3260N).............................. 30
14.PAPER EXIT (HL3260N)................................... 32
15.DRIVE SECTION 1 (HL3260N)......................... 34
16.DRIVE SECTION 2 (HL3260N)......................... 36
17.DRIVE SECTION 3 (HL3260N)......................... 38
BROTHER LASER PRINTER (HL-3260N)
PARTS REFERENCE LIST
This catalog gives the numbers and names of parts on this machine.
CONTENTS
18.ELECTRICAL SECTION 1 (HL3260N).............. 40
19.ELECTRICAL SECTION 2 (HL3260N).............. 42
20.FRAME SECTION (HL3260N)........................... 44
21.PRINT CONTROL BOARD (HL3260N)............. 46
22.ACCESSORIES AND AC CORDS (HL3260N) . 48
23.PACKING MATERIALS (HL3260N)................... 50
24.MAINTENANCE KIT (HL3260N) ....................... 52
25.SPECIAL TOOLS (HL3260N)............................ 54

2
LOCATIONS OF UNITSLOCATIONS OF UNITS
1. EXTERIOR 1 (HL3260)
See Page 6
2. EXTERIOR 2 (HL3260)
See Page 8
3. LASER UNIT (HL3260)
See Page 10
LOCATIONS OF UNITS
4. TRANSFER UNIT (HL3260)
See Page 12
LOCATIONS OF UNITS
5. PAPER FEED SECTION 1 (HL3260)
See Page 14
LOCATIONS OF UNITS
6. PAPER FEED SECTION 2 (HL3260)
See Page 16
3
LOCATIONS OF UNITSLOCATIONS OF UNITS
7. PAPER FEED SECTION 3 (HL3260)
See Page 18
8. TONER HOPPER UNIT (HL3260)
See Page 20
9. PAPER REGISTRATION (HL3260)
See Page 22
LOCATIONS OF UNITS
10. PAPER TRAY 1 (HL3260)
See Page 24
LOCATIONS OF UNITS
11. PAPER TRAY 2 (HL3260)
See Page 26
LOCATIONS OF UNITS
12. FUSING UNIT 1 (HL3260)
See Page 28

4
LOCATIONS OF UNITSLOCATIONS OF UNITS
13. FUSING UNIT 2 (HL3260)
See Page 30
14. PAPER EXIT (HL3260)
See Page 32
15. DRIVE SECTION 1 (HL3260)
See Page 34
LOCATIONS OF UNITS
16. DRIVE SECTION 2 (HL3260)
See Page 36
LOCATIONS OF UNITS
17. DRIVE SECTION 3 (HL3260)
See Page 38
LOCATIONS OF UNITS
18. ELECTRICAL SECTION 1 (HL3260)
See Page 40
5
LOCATIONS OF UNITSLOCATIONS OF UNITS
19. ELECTRICAL SECTION 2 (HL3260)
See Page 42
LOCATIONS OF UNITSLOCATIONS OF UNITSLOCATIONS OF UNITS

6

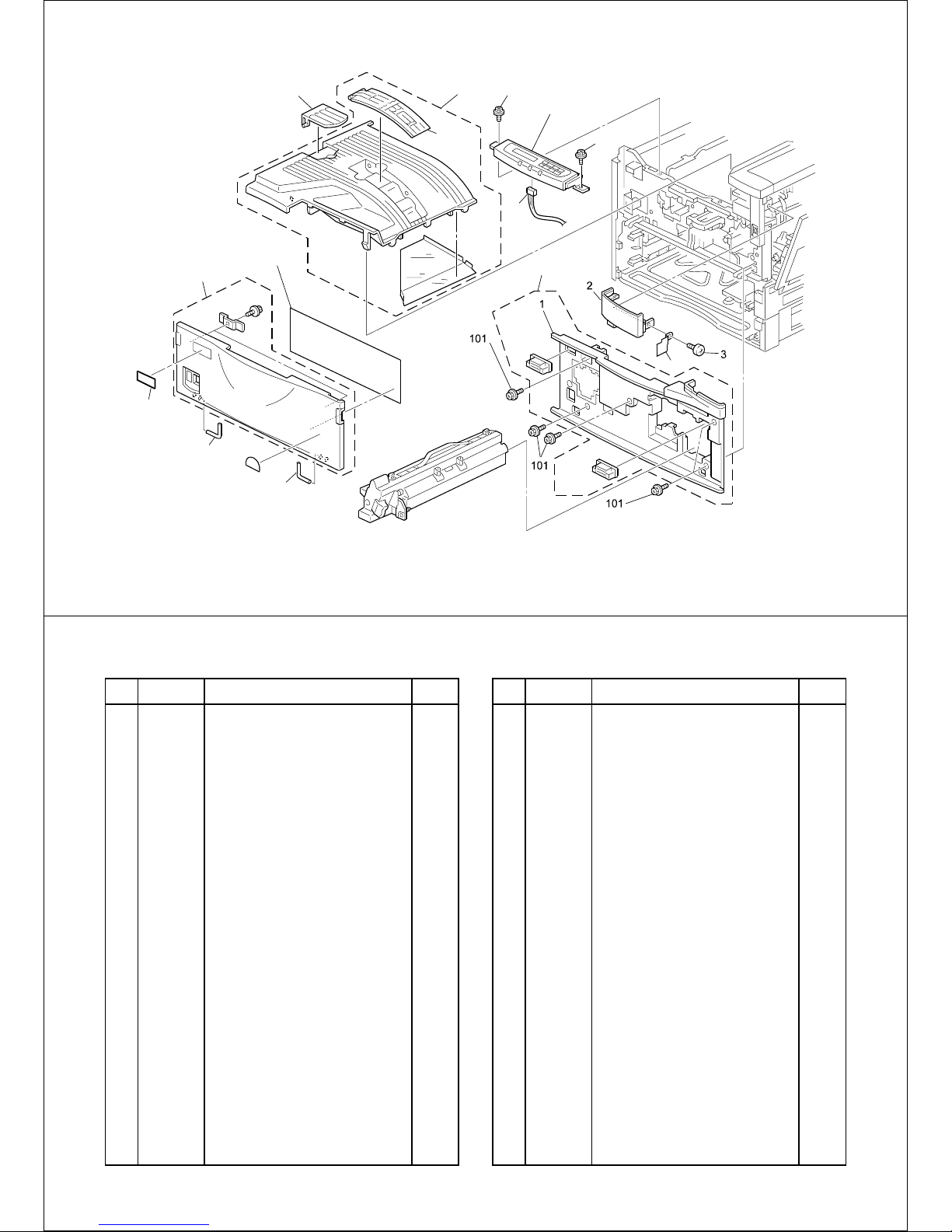

1.EXTERIOR 1 (HL3260N)
5
4
4
6
7
11 9
10
14
102
8
102
12
13
7
1 LJ2928001 INNER COVER 1
2 LJ2460001 UPPER RIGHT FRONT COVER 1
3 LJ3069001 SCREW – M3X4.5 1
4 LJ3068001 HINGE – FRONT COVER 2
5 LJ2507001 MODEL PLATE – BR 1
6 LJ2462001 FRONT DOOR ASS’Y 1
7 LJ2457001 OPERATION INSTRUCTION SHEET 1
8 LJ2463001 OPERATION PANEL ASS’Y – BR 1
9 LJ2438001 COPY TRAY 1
10 LJ2930001 PAPER SUPPORT COVER 1
11 LJ2929001 SUB PAPER TRAY 1
12 LJ2456001 FRONT COVER ASS’Y 1
13 LJ3111001 SHEET – SCREW – PLATE 1
14 LJ8708001 HARNESS – OPERATION PANEL – RP2 1
101 LJ2483001 TAPPING SCREW – M3X8
102 LJ2748001 TAPPING SCREW – M3X8
Description Q’ty Per
Assembly
Part No.
Index
No.
Description Q’ty Per
Assembly
Part No.
Index
No.
1.EXTERIOR 1 (HL3260N)

8
2.EXTERIOR 2 (HL3260N)
4
7
16
17
6
5
8
15
15
13
14
9
10
12
11
9
1 LJ2439001 PAPER EXIT COVER 1
2 LJ2466001 LEFT COVER 1
3 LJ3069001 SCREW – M3X4.5 8
4 LJ2467001 REAR PAPER EXIT COVER 1
5 LJ3083001 REAR COVER 1
6 LJ2471001 REAR COVER 1
7 LJ2459001 UPPER PAPER EXIT COVER 1
8 LJ2458001 RIGHT REAR COVER 1
9 LJ2971001 RIGHT REAR LOWER COVER 1
10 LJ2970001 RIGHT FRONT LOWER COVER 1
11 LJ2441001 MIDDLE RIGHT COVER 1
12 LJ3067001 SCREW – M4 1
13 LJ3084001 REAR CAP COVER – LARGE 1
14 LJ3085001 REAR CAP COVER – SMALL 1
15 LJ3086001 RIVET – 5 3
16 LJ2916001 RIVET – M14 1
17 LJ3110001 COVER – IC CARD 1
101 LJ2483001 TAPPING SCREW – M3X8
Description Q’ty Per
Assembly
Part No.
Index
No.
Description Q’ty Per
Assembly
Part No.
Index
No.
2.EXTERIOR 2 (HL3260N)

10
3.LASER UNIT (HL3260N)
1
11
1 LJ2474001 LASER UNIT ASS’Y 1
Description Q’ty Per
Assembly
Part No.
Index
No.
Description Q’ty Per
Assembly
Part No.
Index
No.
3.LASER UNIT (HL3260N)

12
4.TRANSFER UNIT (HL3260N)
25
26 27
24
22
20
19 13
14
15
16
21
11
12
17
18
23
13
1 LJ2503001 RIGHT COVER 1
2 LJ8619001 ID SENSOR 1
3 LJ3015001 SHUTTER LEVER 1
4 LJ2866001 PRESSURE SPRING 1
5 LJ2863001 PRESSURE SPRING REAR 1
6 LJ2957001 BUSHING – DRIVEN ROLLER 2
7 LJ2967001 CLEANER – RESIST DRIVEN ROLLER 1
8 LJ2897001 REGISTRATION DRIVEN ROLLER – RP2 1
9 LJ3014001 GROUNDING TERMINAL 1
10 LJ2966001 R GUIDE PLATE – RESIST ROLLER 1
11 LJ2865001 PRESSURE SPRING 1
12 LJ3009001 LEVER – TRANSFER / SEPARATION UNIT 1
13 LJ2868001 REAR BUSHING – TRANSFER ROLLER 1
14 LJ2867001 PRESSURE SPRING 1
15 LJ3007001 TERMINAL – TRANSFER ROLLER 1
16 LJ3008001 TERMINAL – SEPARATION 1
17 LJ2915001 SPRING PLATE – BAND STOPPER 1
18 LJ3016001 BAND – VERTICAL TRANSPORT COVER 1
19 LJ2875001 FRONT DISCHARGE SHEET 1
20 LJ2876001 REAR DISCHARGE SHEET 1
21 LJ3013001 COVER – ID SENSOR 1
22 LJ2504001 COVER – TRANSFER UNIT 1
23 LJ2434001 TRANSFER / SEPARATION UNIT: ASS’Y 1
24 LJ3006001 DECAL: COVER: RIGHT 1
25 LJ2862001 PRESSURE SPRING FRONT 1
26 LJ2869001 BUSHING: TRANSFER ROLLER: FRONT 1
27 LJ3012001 ROLLER: TRANSFER ROLLER: REAR 1
101 LJ2478001 TAPPING SCREW – M3X8
102 LJ2482001 TAPPING SCREW – M3X6
Description Q’ty Per
Assembly
Part No.
Index
No.
Description Q’ty Per
Assembly
Part No.
Index
No.
4.TRANSFER UNIT (HL3260N)

14
5.PAPER FEED SECTION 1 (HL3260N)
5
6
8
7
910
11
10 11
13
12
15
1 LJ2974001 LOWER PAPER GUIDE PLATE 1
2 LJ2903001 RUBBER PAD – H5 4
3 LJ2779001 SHOE – RIGHT RAIL 2
4 LJ2780001 SHOE – SUPPORTER 2
5 LJ2977001 VERTICAL TRANSPORT GUIDE 1
6 LJ8617001 PUSH SWITCH 1
7 LJ2979001 STOPPER BAND 1
8 LJ2499001 SNAP RING 1
9 LJ2899001 PULL OUT ROLLER – OPTION TRAY 1
10 LJ2841001 BUSHING – VERTICAL TRANSPORT 2
11 LJ2840001 SPRING – VERTICAL TRANSPORT 2
12 LJ2469001 COVER – VERTICAL TRANSPORT 1
13 LJ2978001 DECAL – RIGHT COVER 1
101 LJ2482001 TAPPING SCREW – M3X6
102 LJ2487001 RETAINING RING – M3
103 LJ3125001 CLAMP
104 LJ3122001 CLAMP – ES-0510
105 LJ2491001 PHILIPS SCREW – M4X8
Description Q’ty Per
Assembly
Part No.
Index
No.
Description Q’ty Per
Assembly
Part No.
Index
No.
5.PAPER FEED SECTION 1 (HL3260N)

16
6.PAPER FEED SECTION 2 (HL3260N)
45
7
15
6
9
15
1
23
8
10
8
17
11
12
15
15
13
14
15
12
16
17
1 LJ8616001 PUSH SWITCH – PAPER SIZE 1
2 LJ2789001 LOCK LEVER – FEED ROLLER 1
3 LJ2790001 TENSION SPRING – LOCK LEVER 1
4 LJ8604001 PHOTOINTERRUPTER 1
5 LJ8679001 RELAY HARNESS – PAPER END SENSOR 1
6 LJ2444001 FEELER – PAPER END SENSOR 1
7 LJ2429001 PAPER FEED ROLLER 1
8 LJ2799001 BUSHING – MOTOR SHAFT 2
9 LJ2984001 TORSION SPRING – LOCK LEVER 1
10 LJ2440001 BUSHING – ROLLER GUIDE 1
11 LJ8614001 PHOTOINTERRUPTER 1
12 LJ2502001 C RING – PAPER FEED ROLLER 2
13 LJ2956001 ROLLER CLUTCH – VERTICAL TRANS 1
14 LJ2952001 UPPER ROLLER GUIDE 1
15 LJ3118001 BUSHING – PAPER FEED ROLLER 5
16 LJ2896001 DRIVEN ROLLER – RP2 1
17 LJ2842001 BUSHING – M4 1
101 LJ2482001 TAPPING SCREW – M3X6
102 LJ2484001 TAPPING SCREW – 3X30
103 LJ2488001 RETAINING RING – M4
104 LJ3122001 CLAMP – ES-0510
105 LJ3129001 HARNESS CLALMP – LWS-0306ZC
106 LJ2496001 PHILIPS SCREW WITH WASHER – M3X4
107 LJ3127001 HARNESS CLAMP – RLMC-05TV0
Description Q’ty Per
Assembly
Part No.
Index
No.
Description Q’ty Per
Assembly
Part No.
Index
No.

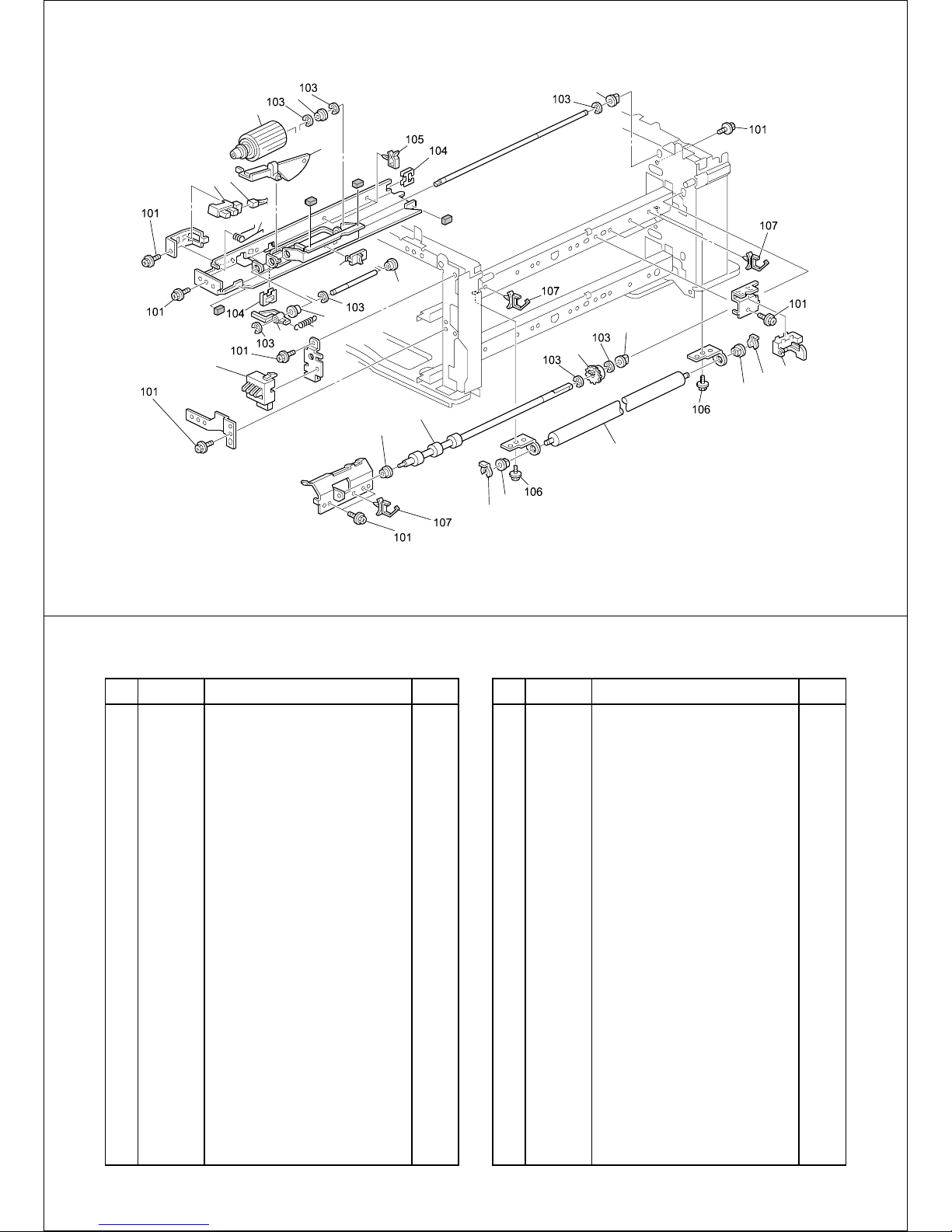

6.PAPER FEED SECTION 2 (HL3260N)

18
7.PAPER FEED SECTION 3 (HL3260N)
8
9
12
13
11
10
13
103
7
6
5
4
3
2
19
1 LJ8614001 PHOTO INTERRUPTER 1
2 LJ2895001 ROLLER-VERTICAL TRANSPORT – RP2 1
3 LJ2842001 BUSHING – M4 1
4 LJ8615001 PUSH SWITCH 1
5 LJ8616001 PUSH SWITCH – PAPER SIZE 1
6 LJ2789001 LOCK LEVER – FEED ROLLER 1
7 LJ2790001 TENSION SPRING – LOCK LEVER 1
8 LJ8604001 PHOTOINTERRUPTER 1
9 LJ8679001 RELAY HARNESS – PAPER END SENSOR 1
10 LJ2984001 TORSION SPRING – LOCK LEVER 1
11 LJ2444001 FEELER – PAPER END SENSOR 1
12 LJ2429001 PAPER FEED ROLLER 1
13 LJ2799001 BUSHING – MOTOR SHAFT 2
14 LJ3118001 BUSHING – PAPER FEED ROLLER 1
101 LJ2482001 TAPPING SCREW – M3X6
102 LJ3127001 HARNESS CLAMP – RLMC-05TV0
103 LJ2488001 RETAINING RING – M4
104 LJ3122001 CLAMP – ES-0510
105 LJ3129001 HARNESS CLAMP – LWS-0306ZC
Description Q’ty Per
Assembly
Part No.
Index
No.
Description Q’ty Per
Assembly
Part No.
Index
No.
7.PAPER FEED SECTION 3 (HL3260N)

20
8.TONER HOPPER UNIT (HL3260N)
1
3
2
21
1 LJ2468001 TONER SUPPLY UNIT: R: OEM2: ASS’Y 1
2 LJ2451001 TONER BOTTLE MOTOR – DC 2.6W 1
3 LJ8688001 TONER BOTTLE HARNESS 1
101 LJ2482001 TAPPING SCREW – M3X6
Description Q’ty Per
Assembly
Part No.
Index
No.
Description Q’ty Per
Assembly
Part No.
Index
No.
8.TONER HOPPER UNIT (HL3260N)

22
9.PAPER REGISTRATION (HL3260N)
1
3
2
12
6
7
4
4
13
5
9
8
10
11
5
23
1 LJ2973001 SUB GUIDE PLATE – UPPER ENTRANCE 1
2 LJ2845001 CUSHION – LINK 2
3 LJ2972001 UPPER ENTRANCE GUIDE PLATE 1
4 LJ2501001 SNAP RING M4 2
5 LJ2953001 BUSHING – REGISTRATION ROLLER 2
6 LJ8613001 REGISTRATION SENSOR 1
7 LJ2960001 BRACKET – REGISTRATION SENSOR 1
8 LJ2894001 REGISTRATION ROLLER ASS’Y – RP2 1
9 LJ2500001 SNAP RING – M6 1
10 LJ8618001 QUENCHING LAMP – RP2 1
11 LJ2961001 REGISTRATION ROLLER CLEANER 1
12 LJ8684001 RELAY HARNESS – RESIST SENSOR 1
13 LJ2958001 LEFT GUIDE PLATE – RESIST ROLLER 1
101 LJ2482001 TAPPING SCREW – M3X6
102 LJ2485001 TAPPING SCREW – M3X8
103 LJ3129001 HARNESS CLAMP – LWS-0306ZC
104 LJ3125001 CLAMP
Description Q’ty Per
Assembly
Part No.
Index
No.
Description Q’ty Per
Assembly
Part No.
Index
No.
9.PAPER REGISTRATION (HL3260N)

24
10.PAPER TRAY 1 (HL3260N)
16
102
102
103
10
11
12
8
104
2
9
7
8
14
13
3
4
15
5
6
1
25
1 LJ2472001 1ST PAPER TRAY ASSEMBLY 1
2 LJ2821001 SPONGE – PAPER FEED TRAY 2
3 LJ2815001 BASE SLIDER 1
4 LJ2736001 END FENCE 1
5 LJ2812001 UPPER SLIDER 1
6 LJ2809001 BOTTOM PLATE 1
7 LJ2814001 GEAR – 16Z 1
8 LJ2778001 ROLLER – PAPER TRAY 2
9 LJ2817001 SPRING PLATE - GROUNDING 1
10 LJ2430001 FRICTION PAD 1
11 LJ2794001 PRESSURE SPRING – FRICTION PAD 1
12 LJ2820001 SHEET – PAPER TRAY HOLDER 1
13 LJ2737001 FRONT SIDE FENCE 1
14 LJ2816001 SPRING PLATE - SLIDER 1
15 LJ2822001 SEAL – END FENCE 1
16 LJ2738001 REAR SIDE FENCE 1
101 LJ2481001 TAPPING SCREW – 4X8
102 LJ2487001 RETAINING RING – M3
103 LJ2489001 RETAINING RING – M6
104 LJ2495001 RETAINING RING – M4
Description Q’ty Per
Assembly
Part No.
Index
No.
Description Q’ty Per
Assembly
Part No.
Index
No.

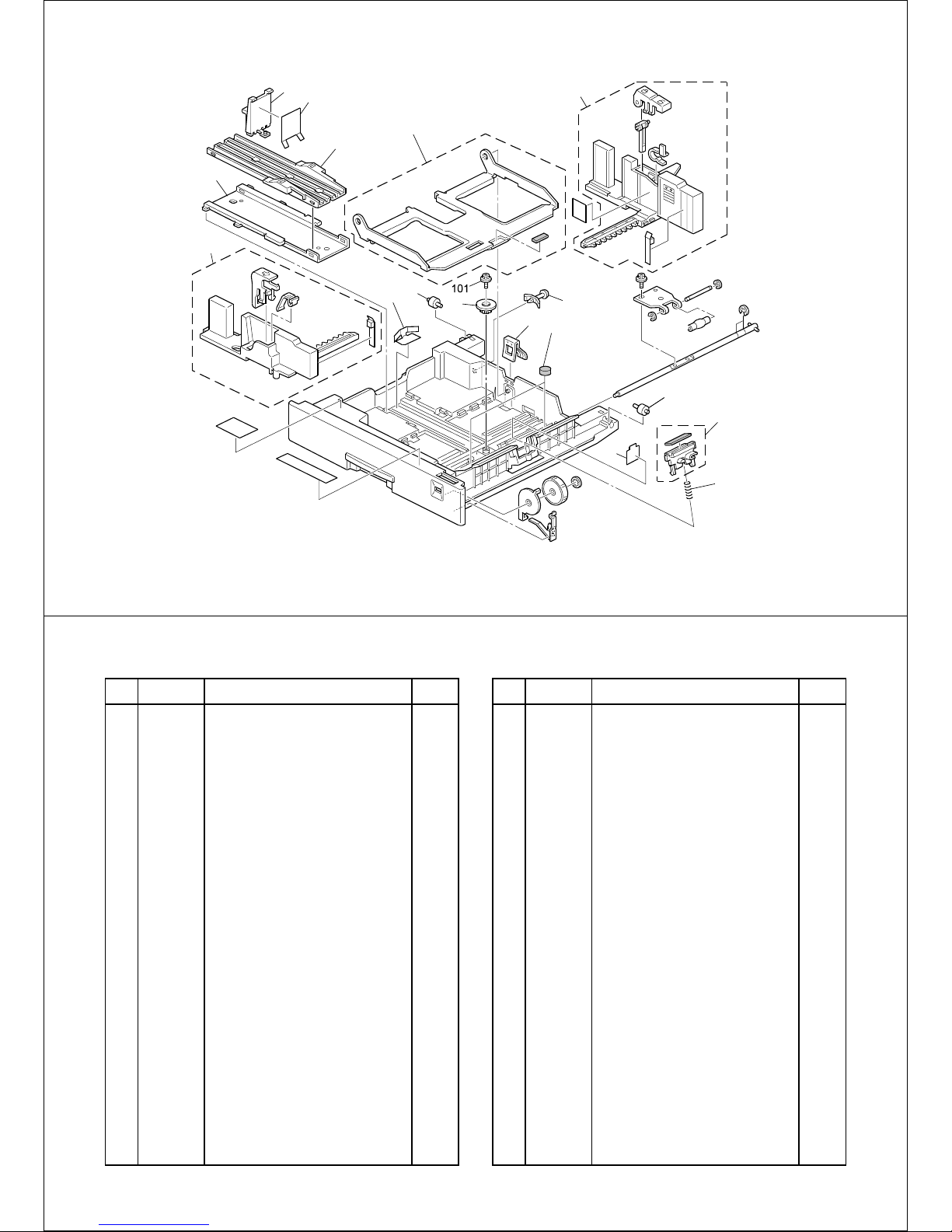

10.PAPER TRAY 1 (HL3260N)

26
11.PAPER TRAY 2 (HL3260N)
13
3
4
15
5
6
14
8
7102
92
16
8
12
11
12
27
1 LJ2473001 2ND PAPER TRAY ASSEMBLY 1
2 LJ2821001 SPONGE – PAPER FEED TRAY 2
3 LJ2815001 BASE SLIDER 1
4 LJ2736001 END FENCE 1
5 LJ2812001 UPPER SLIDER 1
6 LJ2809001 BOTTOM PLATE 1
7 LJ2814001 GEAR – 16Z 1
8 LJ2778001 ROLLER – PAPER TRAY 2
9 LJ2817001 SPRING PLATE - GROUNDING 1
10 LJ2430001 FRICTION PAD 1
11 LJ2794001 PRESSURE SPRING – FRICTION PAD 1
12 LJ2820001 SHEET – PAPER TRAY HOLDER 1
13 LJ2737001 FRONT SIDE FENCE 1
14 LJ2816001 SPRING PLATE – SLIDER 1
15 LJ2822001 SEAL – END FENCE 1
16 LJ2738001 REAR SIDE FENCE 1
101 LJ2481001 TAPPING SCREW – 4X8
102 LJ3124001 SPACER – 12.7MM
Description Q’ty Per
Assembly
Part No.
Index
No.
Description Q’ty Per
Assembly
Part No.
Index
No.
11.PAPER TRAY 2 (HL3260N)
Description Q’ty Per
Assembly
Part No.
Index
No.
Description Q’ty Per
Assembly
Part No.
Index
No.

28
12.FUSING UNIT 1 (HL3260N)
1
3
2
4
15
16
2
6
10
79
9
8
7
11
12
14
13
11
14
5
29
1 LJ2873001 STEPPED SCREW 1
2 LJ3035001 TENSION SPRING – PRESSURE ROLLER 2
3 LJ3031001 SPRING – FUSING STRIPPER 5
4 LJ2433001 HOT ROLLER STRIPPER 5
5 LJ3102001 FUSING DRAWER ASS’Y (120V) 1
5 LJ3103001 FUSING DRAWER ASS’Y (230V) 1
6 LJ2435001 FUSING LAMP – 120V 770W 1
6 LJ2436001 FUSING LAMP – 230V 770W 1
7 LJ2505001 C RING – HOT ROLLER 2
8 LJ2447001 GEAR – 48Z 1
9 LJ2448001 BALL BEARING – 30X42X7 2
10 LJ2431001 HOT ROLLER 1
11 LJ2449001 BALL BEARING – 8X19X6 2
12 LJ2432001 PRESSURE ROLLER 1
13 LJ2446001 SPRING – HOT ROLLER 1
14 LJ3044001 KNOB SCREW 2
15 LJ3043001 SHIELD: OPEN AND CLOSE: FUSING 1
16 LJ3042001 SPRING: OPEN AND CLOSE: GUIDE 1
101 LJ2482001 TAPPING SCREW – M3X6
102 LJ2497001 SCREW – M3X6
103 LJ2479001 TAPPING SCREW – M3X10
104 LJ2489001 RETAINING RING – M6
105 LJ2487001 RETAINING RING – M3
106 LJ2748001 TAPPING SCREW – M3X8
Description Q’ty Per
Assembly
Part No.
Index
No.
Description Q’ty Per
Assembly
Part No.
Index
No.
12.FUSING UNIT 1 (HL3260N)

30
13.FUSING UNIT 2 (HL3260N)
1
2
3
4
5
6
102
31
1 LJ2892001 FUSING CLEANING ROLLER 1
2 LJ8685001 THERMOFUSE 1
3 LJ2914001 SPUR 2
4 LJ8606001 THERMOSTAT 1
5 LJ3029001 THERMOSTAT HOLDER 1
6 LJ3025001 FUSING ENTRANCE GUIDE 1
101 LJ2497001 SCREW – M3X6
102 LJ2498001 PHILIPS SCREW – M3X12
Description Q’ty Per
Assembly
Part No.
Index
No.
Description Q’ty Per
Assembly
Part No.
Index
No.
13.FUSING UNIT 2 (HL3260N)

32
14.PAPER EXIT (HL3260N)
3
4
18
2
2
6
8
7
8
19
17
15
16
11
14
12
13
10
9
5
33
1 LJ2461001 PAPER EXIT GUIDE COVER 1
2 LJ2898001 DRIVEN ROLLER 4
3 LJ3100001 STAND 1
4 LJ2882001 GEAR – 19Z 1
5 LJ3048001 FEELER – PAPER FEED SENSOR 1
6 LJ8617001 PUSH SWITCH 1
7 LJ8678001 RELAY HARNESS – PAPER EXIT 1
8 LJ8605001 PHOTOINTERRUPTER 2
9 LJ2893001 EXIT ROLLER 1
10 LJ3049001 FEELER – PAPER OVERFLOW 1
11 LJ3050001 SHAFT– PAPER OVERFLOW1
12 LJ3047001 SPRING PLATE – TENSION ROLLER 2
13 LJ3052001 STOPPER 2
14 LJ2900001 TENSION ROLLER 2
15 LJ3051001 SPRING PLATE – TENSION ROLLER 2
16 LJ3053001 OUTER STOPPER 2
17 LJ2901001 TENSION ROLLER 2
18 LJ3046001 GUIDE PLATE – PAPER EXIT 1
19 LJ3054001 SENSOR COVER – PAPER FEED 1
101 LJ2492001 TAPPING SCREW WITH WASHER – M3X6
102 LJ2482001 TAPPING SCREW – M3X6
103 LJ2777001 BUSHING – 6MM
104 LJ2488001 RETAINING RING – M4
105 LJ3706001 TAPPING SCREW – M4X8
Description Q’ty Per
Assembly
Part No.
Index
No.
Description Q’ty Per
Assembly
Part No.
Index
No.
14.PAPER EXIT (HL3260N)

34
15.DRIVE SECTION 1 (HL3260N)
15
14
16
13
10
19
19
10
12
17 10
19
6
7
11
3
9
5
4
2
8
14
14
20
18
112
112
35
1 LJ2464001 PCB BANK 1
2 LJ2850001 TRAY HOLDER 2
3 LJ2799001 BUSHING – MOTOR SHAFT 2
4 LJ2982001 LEVER – DC MOTOR 2
5 LJ2993001 HOLDER – PRESSURE SPRING 2
6 LJ2798001 HOLDER – SPRING 2
7 LJ2445001 COMPRESSION SPRING – RETURN 2
8 LJ2797001 BUSHING – DC MOTOR SHAFT 2
9 LJ2450001 DC MOTOR – 1.92W 2
10 LJ2872001 SPACER – M6 3
11 LJ2994001 SHUTTER - PHOTOINTERRUPTER 2
12 LJ2791001 SUB PRESSURE LEVER 2
13 LJ2443001 TENSION SPRING – SUB 2
14 LJ8604001 PHOTOINTERRUPTER 6
15 LJ2470001 TRAY LIFT ASSEMBLY 2
16 LJ2734001 TENSION SPRING - STOPPER 2
17 LJ2442001 TENSION SPRING – MAIN 2
18 LJ2947001 SPRING GUARD – PAPER FEED 2
19 LJ2506001 PIN – M6 6
20 LJ8699001 BANK CONNECTING HARNESS 1
101 LJ2482001 TAPPING SCREW – M3X6
102 LJ2488001 RETAINING RING – M4
103 LJ2483001 TAPPING SCREW – M3X8
104 LJ2775001 HARNESS CLAMP
105 LJ2748001 TAPPING SCREW – M3X8
106 LJ3122001 CLAMP – ES-0510
107 LJ2491001 PHILIPS SCREW – M4X8
108 LJ2484001 TAPPING SCREW – 3X30
109 LJ3129001 HARNESS CLAMP – LWS-0306ZC
110 LJ2489001 RETAINING RING – M6
111 LJ3125001 CLAMP
112 LJ2769001 HARNESS CLAMP – LWS – 3S
Description Q’ty Per
Assembly
Part No.
Index
No.
Description Q’ty Per
Assembly
Part No.
Index
No.
15.DRIVE SECTION 1 (HL3260N)
Description Q’ty Per
Assembly
Part No.
Index
No.
Description Q’ty Per
Assembly
Part No.
Index
No.

36
16.DRIVE SECTION 2 (HL3260N)
7
3
2
4
1
5
6
37
1 LJ2453001 MAGNETIC CLUTCH 1
2 LJ8698001 MANUAL FEED UNIT HARNESS 1
3 LJ2859001 TIMING BELT – S3M - 342 1
4 LJ2857001 TIMING BELT – S3M – 420 1
5 LJ8611001 PCU DETECTOR BOARD 1
6 LJ3076001 SHOULDER SCREW – M3X2.5 2
7 LJ2858001 TIMING BELT – S3M - 225 1
101 LJ2482001 TAPPING SCREW – M3X6
102 LJ3125001 CLAMP
103 LJ3126001 HARNESS CLAMP
104 LJ2489001 RETAINING RING – M6
105 LJ2492001 TAPPING SCREW WITH WASHER – M3X6
106 LJ8662001 CONNECTOR – 54111-1615
107 LJ2483001 TAPPING SCREW – M3X8
108 LJ2488001 RETAINING RING – M4
109 LJ2493001 TAPPING SCREW WITH WASHER – M3X8
Description Q’ty Per
Assembly
Part No.
Index
No.
Description Q’ty Per
Assembly
Part No.
Index
No.
16.DRIVE SECTION 2 (HL3260N)
