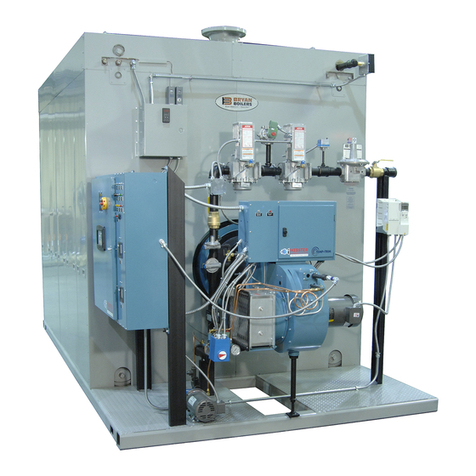

BRYAN BOILERS RV SERIES FORCED DRAFT
KNOCKDOWN WATER BOILERS
Form # >> 2167
Date >> 2/17/09
BOILER MODEL RV450 RV500 RV550 RV600 RV700 RV800
INPUT MBH 4,500 5,000 5,500 6,000 7,000 8,000
(KW) 1,318.5 1,465.0 1,611.5 1,758.0 2,051.0 2,344.0
OUTPUT* MBH 3,780 4,200 4,620 5,040 5,880 6,720
(KW) 1,107.5 1,230.6 1,353.6 1,476.7 1,722.8 1,968.9
BOILER HORSEPOWER* HP 113 125 138 151 176 201
(KW) 1,106.6 1,229.6 1,352.5 1,475.5 1,721.4 1,967.3
TUBE DIAMETER INCHES 1.50 1.50 1.50 1.50 1.50 1.50
(CM) 3.81 3.81 3.81 3.81 3.81 3.81
NUMBER OF TUBES 61 67 75 81 95 109
PRESSURE VESSEL
VOLUME GAL 181 200 216 236 278 309
(L) 685.1 757.0 817.6 893.3 1,052.2 1,169.6
HEATING SURFACE SQ FT 544 597 668 722 847 972
(SQ M) 50.6 55.5 62.1 67.1 78.7 90.3
OPERATING WEIGHT LBS 9,979 10,897 11,771 12,648 14,428 16,176
(KG) 4,526.5 4,943.1 5,339.2 5,736.9 6,544.4 7,337.5
SHIPPING WEIGHT LBS 8,470 9,230 9,970 10,680 12,110 13,600
(KG) 3,842.0 4,186.7 4,522.4 4,844.4 5,493.1 6,169.0
* Output and Boiler HP based on an average natural gas combustion effiiciency.
