Electronic
Air Cleaner
Model EACA
USER’S
INFORMATION
MANUAL FOR
THE
OPERATION
OF
ELECTRONIC
AIR CLEANER
NOTE TO
INSTALLER:
This manual
must be
left with the
equipment user.

—2—
BREATH OF
SPRING-FRESH AIR . . .
YEAR-ROUND
Congratulations on your excellent
choice and sound investment in this
addition to your home comfort
system.
Your electronic air cleaner represents
both the latest in engineering develop-
mentandtheculminationofmany years
of experience from one of the most rep-
utable manufacturers of comfort sys-
tems.
Your new unit is among the most
energy-efficient and reliable air filtra-
tion products available today.To assure
its dependability, spend just a few min-
utes with this booklet now. Learn about
the operation of your electronic air
cleaner and the small amount of mainte-
nanceittakestokeepitoperatingatpeak
efficiency.
With minimal care, your electronic air
cleaner will provide you and your fam-
ily with clean, healthy, and comfortable
air—from season to season, and year to
year.
YOUR ELECTRONIC
AIR CLEANING UNIT
YOUR INDOOR AIR POLLUTION
SOLUTION
The highest value of clean air is in its
contributiontothe good healthandcom-
fort of you and your family. Additional
benefits include potential savings in
homeheating,cooling,andmaintenance
costs.
Your new air cleaner will electronically
filter out microscopic particles as small
as 0.01 micron. At that size, it would
take 100,000 particles to cover the head
of a pin. Such particles are 500 times
smaller than the smallest grains of dust
trapped by conventional furnace filters.
Airbornepollutantscommonlyfoundin
thehouseholdarelint,dust,ash,pethair
and dander, pollen, fungus, spores, bac-
teria, viruses, cooking grease, and pos-
sibly tobacco smoke odors.
By ridding your home of most of these
pollutants,thewhole familycan breathe
fresher, safer air. Moreover, family
members suffering from hay fever,
asthma, or allergies may find relief,
since electronic filtering removes many
of the airborne particles responsible for
aggravating these ailments. Electronic
filtering removes airborne particles
before they have a chance to settle, so
walls, windows, draperies, and
furnishings stay clean and bright
longer.
Ifyourhomeisequippedwithcentralair
conditioning or a heat pump, electronic
air cleaning can optimize your system’s
performance by keeping the indoor
coil clean. At today’s energy rates,
the potential savings can be
significant.
HOWYOUR AIR CLEANER
WORKS
Contaminatedairenterstheprefilter(the
mesh filter) where the larger airborne
particles are removed. These include
hair, fibers from carpets and drapes, pet
hair, and some lint particles. (See Fig.
1a.)
The air then passes through the ionizer/
collector cells. The ionizer wires pro-
ducepositiveionsthatgiveairbornepar-
ticles a positive electrical charge.
(See Fig. 1b.)
Opposites attract:Airflow continues,
passing between the collector plates.
The positively charged particles are
attracted and trapped by the grounded
collector plates. (See Fig. 1c.) These
particles continue to cling to the plates
until you or your service technician
remove the plates for cleaning.
Meanwhile, the purified air leaves the
air cleaner and circulates into your liv-
ing space. (See Fig. 1d.)
Fig. 2—Typical
EAC Installations
OPERATINGYOUR
ELECTRONIC
AIR CLEANER
Your new electronic air cleaner is
designed to operate as part of your
heating/cooling system.After the air
cleaner is turned on, it will operate
whenever the furnace or air handler
blower is running.
Your electronic air cleaner will perform
at maximum efficiency if these recom-
mendations are followed:
• Consider running the heating/cooling
system blower continuously—day and
night, winter and summer. Continuous
blower operation provides for constant
air filtration. It may also contribute
to greater personal comfort since
continuous blower operation minimizes
temperature differences throughout
the home.
DOWNFLOW UPFLOW
HORIZONTAL
Fig. 1—Air Cleaner Process
















CLEAN
AIR CLEAN
AIR
ABCD

—3—

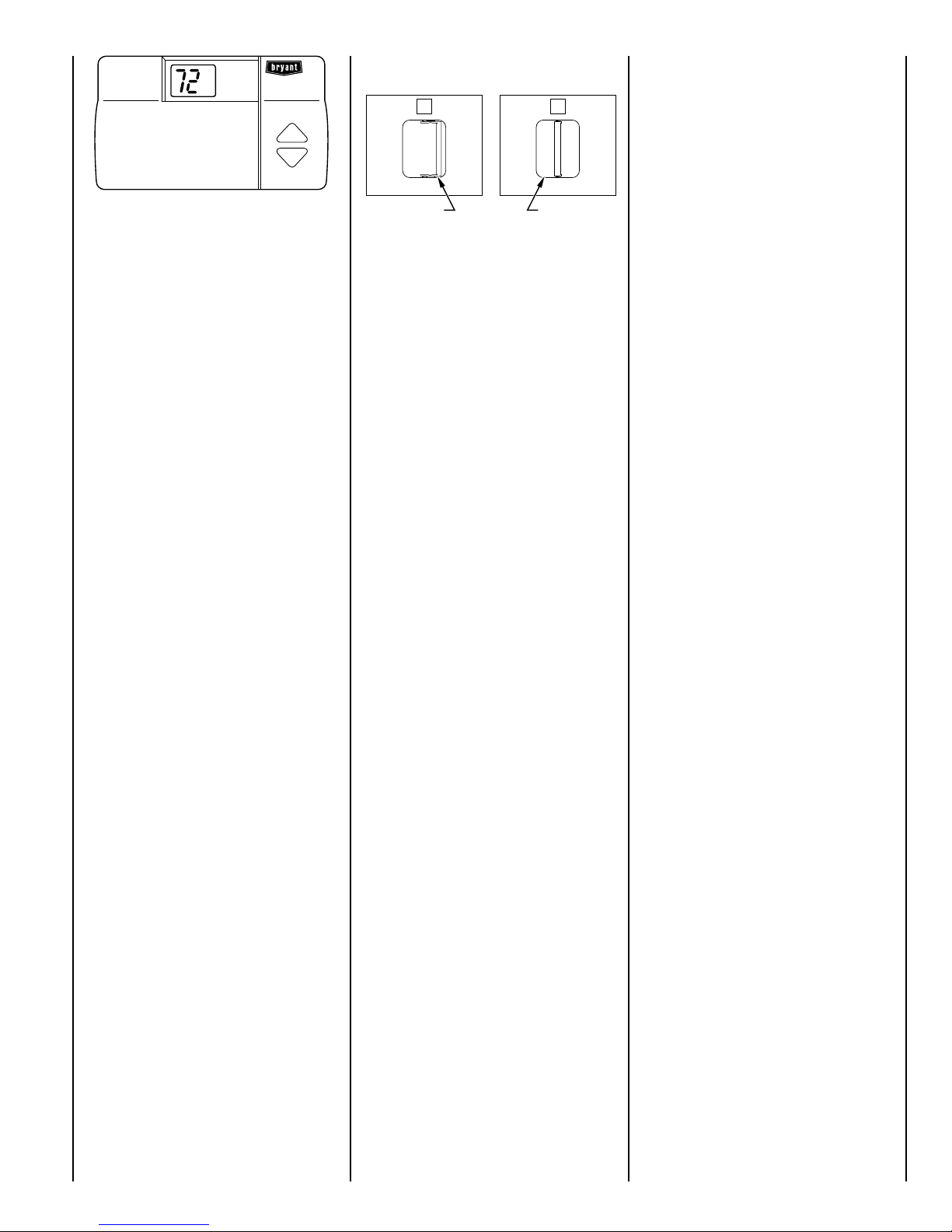

Fig. 3—Thermostat
• Supply-airandreturn-airgrillesshould
not be blocked. Drapes, furniture, and
toys are some of the items commonly
found obstructing grilles. Restricted air-
flow reduces the efficiency of the air
cleaner, as well as that of the whole
comfort system.
• The electronic air cleaner must be
properly cleaned and maintained.
START-UP PROCEDURES
1. Setthetemperaturecontrolselectoron
your indoor thermostat. Choose a set-
tingabovecurrentroomtemperatureif
heating is required. Set the tempera-
ture control selector below room tem-
perature if cooling is needed.
2. SettheFAN mode on thethermostat.
When set to AUTO, the air cleaner
and system blower will run only
while the thermostat operates the
heating or cooling equipment.When
the FAN mode is set at the ON posi-
tion, the air cleaner and blower will
run continuously—regardless of
whether the cooling or heating
equipment is operating.
3. Select operating mode of HEAT,
COOL, or AUTO.
4. Ensure the air cleaner’s door handle
is engaged, powering unit.
NOTE: The operation light indicates
that power is available to the cells. It
does not indicate that power is available
to the EAC.
NOTE: An occasional arcing (snap-
ping) noise is normal during the opera-
tion of your air cleaner. Continuous
arcing, however, indicates that cleaning
is required. Refer to directions on clean-
ing your electronic air cleaner.
ELECTRICAL POWER
DISCONNECT
PROCEDURE
To disconnect the electrical power to
your air cleaner, disengage the air
cleaner handle.You may continue to
operate the rest of your comfort system,
or turn the power off according to the
manufacturer’s specifications.
PERFORMING ROUTINE
MAINTENANCE
With the proper maintenance and care,
your electronic air cleaner will operate
economically and dependably. Mainte-
nance can be accomplished easily by
referring to the following directions.
However, before performing any main-
tenance,considertheseimportantsafety
precautions:
• DISCONNECT ALL ELECTRICAL
POWER TO THE AIR CLEANER
BEFORE PERFORMINGANY SER-
VICE OR MAINTENANCE.
NOTE: THERE MAY BE MORE
THAN 1 ELECTRICAL DISCON-
NECT SWITCH.
The prefilter and ionizer/collector cells
should be checked for dirt regularly.
Accumulated dirt needs to be removed
from these components to maintain effi-
cient air filtration.
Regular inspection allows you to deter-
mine the cleaning schedule best suited
to your home’s operating conditions.
The first electronic air cleaning of your
home may collect more particles over a
shorter period than will be normal for
future operation.
As your air cleaner collects particles, its
cleaning efficiency will decline which
makes it all the more important to clean
your air cleaner regularly.
Atminimum,theprefilterandcollection
cellswillneedtobecleaned twoorthree
timesperyear.Askyourdealeraboutthe
installation of a Bryant thermostat
which has a “Clean Filter” capability to
remind homeowners to check/clean
their air cleaner.
CLEANING PROCEDURES
Cleaning your cells in the dishwasher is
not encouraged by the manufacturer
since many of the captured particles can
stain the inside of your appliance. Dish-
washer cleaning is solely at the discre-
tion of the equipment owner.
1. Turn off electrical supply to the fur-
nace or fan coil.
2. Swing door handle on air cleaner
away from cabinet.
3. Remove door of air cleaner by gen-
tly pulling out and down on door
handle.
4. Remove cells from air cleaner cabi-
net by grasping handle of front cell
and slowly pulling cell out until en-
tire front cell is out of cabinet. Sup-
port cell with other hand as it is
pulledoutofcabinet.DONOTPULL
CELLS OUT QUICKLY since front
cellis connectedtobackcellandcells
will be damaged if dropped. Note lo-
cation of cell handle for easy reinstal-
lation after cleaning.
5. Tilt front cell to 1 side to disengage
clips connecting front cell to back
cell. Set front cell aside.
6. Remove back cell by grasping han-
dleandslowly pullingoutofcabinet.
7. Carry cells by their handles to the
cleaning area.
8. Remove prefilters from each cell.
9. Clean the prefilter. Use a vacuum
cleaner and soft brush attachment to
remove accumulations of dust and
lint. If further cleaning is required,
wash the prefilter with mild deter-
gent and water (or use pressurized
sprayfromagardenhoseorcoin-op-
erated carwash sprayer). Rinse.
Then drain excess water from the
prefilter. Thorough drying is op-
tional.
10. Tocleanthecollectorcells, fillalarge
container with hot water. Add one-
half cup of mild detergent for every
10 gallons of water used. Submerge
the cells in the soapy solution and al-
low to soak for 20 minutes. Rinse
with a garden hose or soak in clean,
hot water for 10 minutes. Allow ex-
cess water to drain from the cells.Al-
low cells to dry thoroughly.
11. Inspect the cells. Check for broken
wires or bent collector plates. If
damage is suspected, contact your
servicing dealer for immediate re-
pair.
12. Carry cells by handles back to air
cleaner cabinet. Reattach prefilters
to each cell.
13. Position both cells so that each han-
dleisclosesttotheequipmentowner
and so furnace arrow on each cell
points towards the furnace.
14. Either cell can be installed as the
front or back cell. Hold cell handle
with one hand and bottom of cell
with other hand and gently slide cell
®
DOOR HANDLE
"OFF" POSITION
DOOR HANDLE
"ON" POSITION

—4—
onto rails found in the bottom of the
cabinetuntil cellcontactsthebackof
the cabinet.
15. Hold second cell handle with one
hand and bottom of cell with other
hand and gently slide cell onto rails
inthecabinetuntil frontcellcontacts
rear cell. Handle of cell may need to
be lowered to allow cell to clear
power tray. Gently push on front cell
until cell locks onto rear cell. Cells
must be locked for power circuit to
be complete.
16. Reinstall door of air cleaner and
swing handle into air cleaner.
17. Turn on electrical supply to the fur-
naceorfancoil.Indicator light onair
cleaner comes on.
• Check
thesetting
on your
indoor
thermo-
stat. The
FAN
should be
set at ON
position
for contin-
uous blower and electronic air cleaner
operations, or AUTO if you wish the
blower and air cleaner to function only
when heating or cooling is required.
• Check the power switch on your elec-
tronic air cleaner. Be sure it is ON and
the power indicator lamp is glowing.
• Check the main power disconnect
switch. Verify that the circuit breakers
are ON or that fuses have not blown. If
youmustresetbreakersorreplacefuses,
do so only once. Contact your servicing
dealer for assistance if breakers trip or
fuses blow a second time.
• Check electronic air cleaner compo-
nents. Check for proper orientation of
the prefilter and ionizer/collector cells.
Theprefiltermust be on the farthestside
from the furnace.Arrows stamped on
the sides of the cells must point in the
direction of the furnace. The prefilter
and cells must be clean and dry.
• Check for sufficient airflow. Check
for blocked return-air or supply-air
grilles. Be sure grilles are open and
unobstructed.
If your comfort system still fails to oper-
ate, contact your servicing dealer for
troubleshooting and repairs. Specify
your apparent problem, and state the
model and serial numbers of your
equipment.
With this information, your dealer may
be able to offer helpful suggestions over
thephone,orsavevaluabletimethrough
knowledgeable preparation for the ser-
vice call.
REGULAR DEALER
MAINTENANCE
In addition to the routine maintenance
that you perform, your electronic air
cleaner should be inspected regularly by
a properly trained service technician.
Theinspection(preferablyeachyear,but
at least every other year) should include
the following:
• Routine inspection of ionizer wires.
Service should include realignment or
replacement as required.
• A check of all electrical wiring and
connections.
• Operational check of the complete
comfort system to determine actual
working condition. Necessary repair
and/or adjustment should be performed
at this time.
Your servicing dealer may offer an eco-
nomicalservicecontractthat covers sea-
sonal inspections.Ask for further
details.
Record the model and serial numbers of
your new electronic air cleaner in the
spaces provided below. This informa-
tion, along with the other ready-refer-
ence facts requested below, may be
required if you should ever need infor-
mation or service.
CAUTION: Do not push too hard
or power supply in rear of cabinet
could be stressed.
!

—5—
Model No.
Serial No.
Date Installed
Dealer Name
Address
City
State Zip
Telephone

—6—

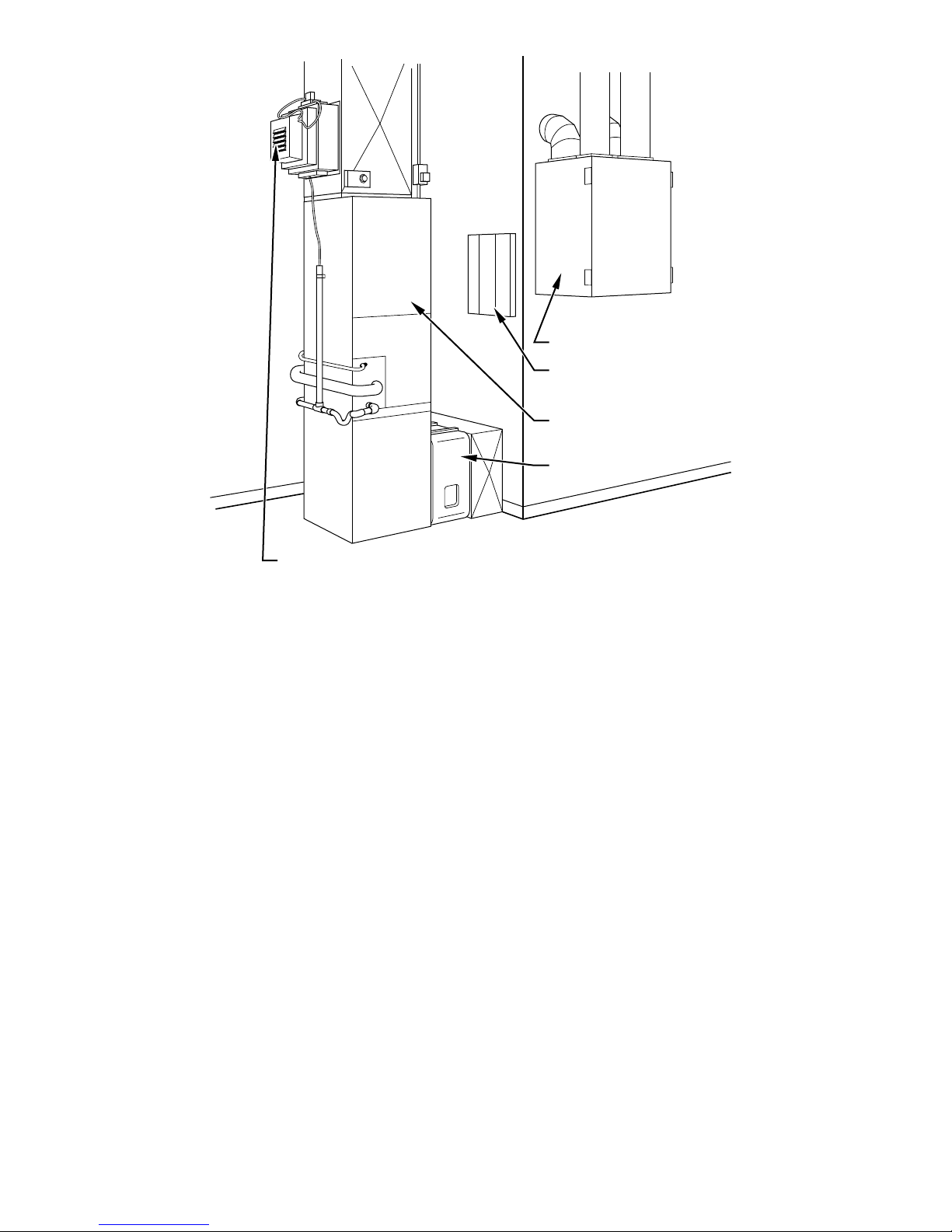

AIR CLEANER
ZONING CONTROL CENTER
HUMIDIFIER
HEAT RECOVERY VENTILATOR
FAN COIL
A96636

—7—

—8—
Cancels: New OM09-6
© 1997 Bryant Heating & Cooling Systems, Printed in U.S.A. Catalog No. 92-33EA-CA7B 1-97
7310 W. Morris St., Indianapolis, IN 46231
