Bryant CK3B User manual
Form No. PDS CK3B.24.2

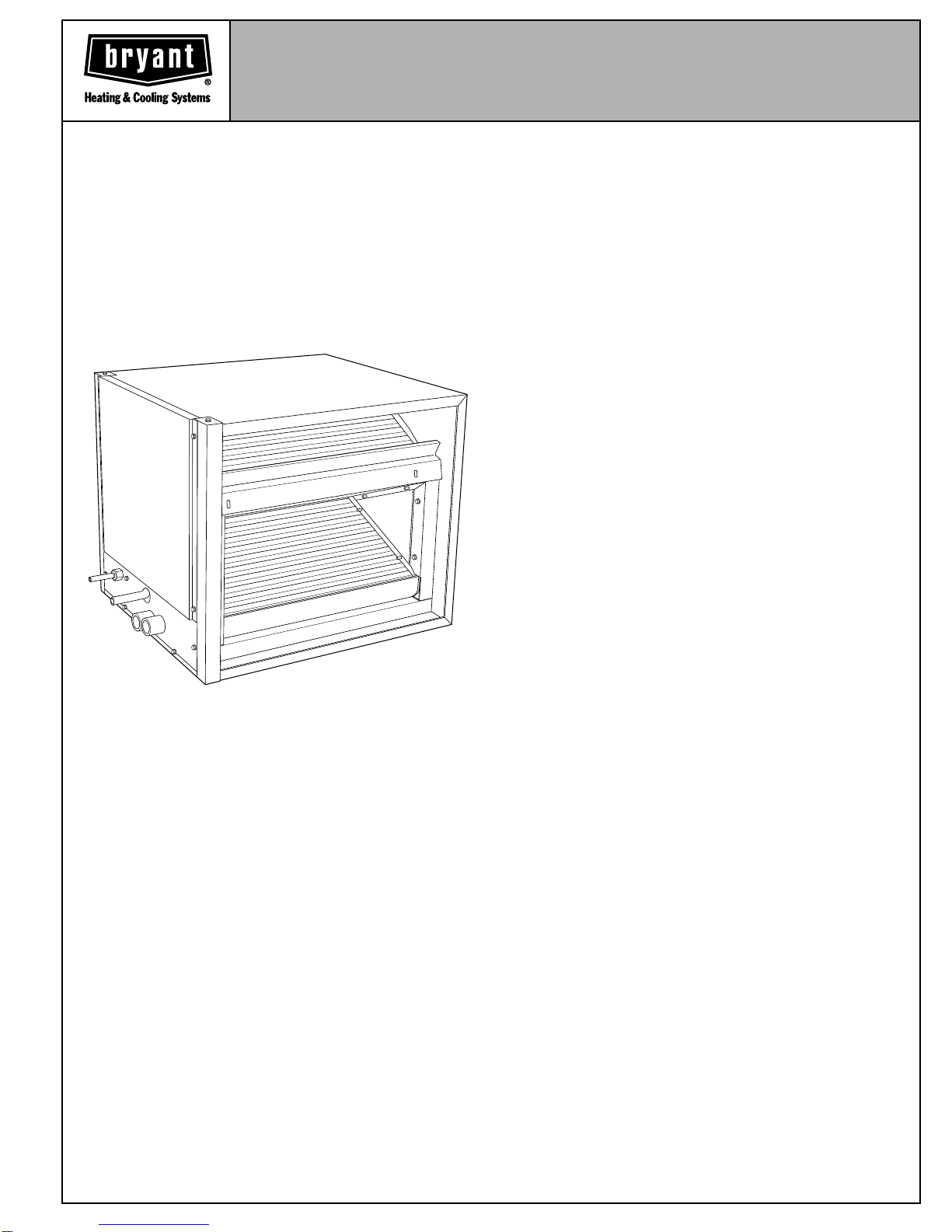

Cased Horizontal
Furnace Coil
CK3B
Sizes A024 thru A060
This horizontal N-Coil is designed to provide the highest
standard of reliability and durability. The CK3B coil casing is
unpainted embossed galvanized steel. The cabinet is fully
insulated to minimize energy loss.
The CK3B is designed for application with horizontal furnaces.
The 2-directional airflow allows for either horizontal-right or
horizontal-left furnace fit-up. This coil is ideally suited for either
attic or crawl space installation.
Our advanced manufacturing methods give a better bond of the
fin and tube. Contaminants are not introduced into coil during
manufacturing. Galvanic action is minimized. The coils are
approved for air conditioning or heat pump application in the
horizontal configuration.
The CK3B coil includes a refrigerant control metering device for
improved serviceability over check valves and expansion
devices used in conventional coils. Sweat-type connections are
furnished for installation of the refrigerant tubes.
The coil is designed to provide improved condensate removal.
The robust condensate pan has brass inserts in the primary and
secondary drain connections and meets FHA requirements.
—2—
MODEL NUMBER NOMENCLATURE
CK3
C—Coil
K—Cased, N-Coil
3—Horizontal
5—Upflow/Downflow
CERTIFICATION APPLIES ONLY WHEN
USED WITH PROPER COMPONENTS
AS LISTED WITH ARI
BXA024
024—2 Ton
030—2-1/2 Ton
036—3 Ton
042—3-1/2 Ton
048—4 Ton
060—5 Ton
A—Standard
N—Narrow
W—Wide
X—Max. Cap.
Position
A—Painted
B—Embossed
• CERTIFICATION • LISTING
• TESTING • INSPECTION
®
®
M
A
N
U
F
A
C
T
U
R
E
R
C
E
R
T
I
F
I
E
D
T
O
A
R
I
A
S
C
O
M
P
L
Y
I
N
G
W
I
T
H
A
R
I
S
T
A
N
D
A
R
D
2
4
0
U
N
I
T
A
R
Y
H
E
A
T
P
U
M
P
E
Q
U
I
P
M
E
N
T
®
M
A
N
U
F
A
C
T
U
R
E
R
C
E
R
T
I
F
I
E
D
T
O
A
R
I
A
S
C
O
M
P
L
Y
I
N
G
W
I
T
H
A
R
I
S
T
A
N
D
A
R
D
2
1
0
U
N
I
T
A
R
Y
A
I
R
C
O
N
D
I
T
I
O
N
I
N
G
E
Q
U
I
P
M
E
N
T
—3—
A97521
DIMENSIONS (In.)
UNIT
ABCDE
SHIPPING
WEIGHT
In. In. In. In. In. Lb
CK3BXA024 17-9/16 19-1/16 10-1/16 5/8 16 36.0
CK3BXA030 17-9/16 19-1/16 10-1/16 3/4 16 39.5
CK3BXA036 17-9/16 22-1/16 10-1/4 3/4 16 45.5
CK3BXA042 21-1/16 22-1/16 10-1/4 7/8 19-1/2 47.0
CK3BXA048 21-1/16 22-1/16 10-1/4 7/8 19-1/2 51.0
CK3BXA060 24-9/16 28-1/8 13-3/6 7/8 23 64.0
C
A
D SUCTION LINE
9 1⁄8″
4 3⁄8″
3″
3⁄8 IN.
LIQUID
LINE
3⁄4 IN. NPT DRAIN
B
1 11⁄16″
20 3⁄4″
3 15⁄16″
1 1⁄2″
3⁄8″
E
OPTIONAL
DUCT
FILLER
PANEL
18 7⁄8″
2 7⁄8″
1 1⁄4″
FRONT RIGHT SIDE
DUCT
OPENING
TYPICAL
BOTH
ENDS
—4—
COOLING CAPACITIES (MBH)
See notes on page 5.
UNIT
SIZE
INDOOR COIL
AIR SATURATED TEMPERATURE LEAVING EVAPORATOR (
°
F)
30 35 40 45 50
CFM EWB TC SHC BF TC SHC BF TC SHC BF TC SHC BF TC SHC BF
A024
600 72 38.7 17.9 0.00 35.4 16.4 0.00 32.0 15.0 0.13 28.1 13.3 0.08 23.7 11.6 0.07
67 32.6 19.5 0.07 29.1 17.9 0.06 25.6 16.3 0.06 21.5 14.5 0.05 16.6 12.5 0.06
62 27.0 20.9 0.05 23.4 19.2 0.05 19.8 17.4 0.05 16.2 15.5 0.08 13.3 13.3 0.18
800 72 44.0 20.4 0.21 40.4 18.9 0.17 36.8 17.3 0.13 32.4 15.6 0.11 27.2 13.7 0.10
67 37.4 22.8 0.10 33.5 21.1 0.10 29.5 19.4 0.09 25.0 17.5 0.08 19.7 15.4 0.09
62 30.6 25.0 0.07 27.0 23.2 0.08 23.4 21.4 0.09 19.7 19.3 0.12 16.6 16.6 0.23
1000 72 47.9 22.3 0.18 44.0 20.7 0.17 40.1 19.2 0.16 35.5 17.4 0.14 30.0 15.4 0.13
67 40.7 25.5 0.13 36.6 23.8 0.13 32.4 22.0 0.12 27.3 20.0 0.11 21.9 17.9 0.12
62 33.7 28.6 0.10 30.0 26.7 0.11 26.2 24.9 0.12 22.7 22.5 0.17 19.4 19.4 0.28
A030
750 72 54.4 25.3 0.00 48.7 22.7 0.00 43.1 20.1 0.00 36.6 17.3 0.07 29.3 14.5 0.06
67 45.1 26.5 0.07 39.1 23.7 0.07 33.2 20.9 0.06 26.7 18.1 0.05 20.0 15.2 0.08
62 36.0 27.3 0.05 30.5 24.5 0.06 25.0 21.8 0.07 19.7 19.0 0.09 16.1 16.1 0.21
1000 72 64.1 29.5 0.00 57.7 26.7 0.00 51.2 23.9 0.19 43.9 20.9 0.12 35.2 17.6 0.10
67 53.6 31.8 0.11 46.8 28.7 0.10 40.1 25.6 0.10 32.3 22.3 0.09 24.1 18.8 0.11
62 43.4 33.4 0.10 36.9 30.3 0.10 30.4 27.2 0.10 24.3 24.0 0.12 20.1 20.1 0.26
1250 72 72.1 33.0 0.00 64.7 29.9 0.00 57.3 26.8 0.20 49.4 23.7 0.15 40.1 20.3 0.14
67 59.6 35.8 0.14 52.4 32.7 0.14 45.3 29.5 0.13 36.8 25.9 0.13 27.5 22.0 0.15
62 49.0 38.4 0.14 42.0 35.2 0.13 35.0 32.1 0.13 28.6 28.4 0.16 23.7 23.7 0.30
A036
900 72 63.4 29.6 0.00 57.2 26.8 0.00 50.9 23.9 0.00 44.3 21.0 0.00 36.3 17.9 0.00
67 52.1 31.0 0.00 46.0 28.1 0.00 39.8 25.1 0.00 32.8 22.1 0.00 24.9 18.8 0.01
62 42.8 32.7 0.00 36.7 29.6 0.00 30.5 26.6 0.01 23.9 23.0 0.04 19.2 19.2 0.18
1200 72 75.1 34.7 0.00 67.8 31.6 0.00 60.5 28.5 0.05 52.1 25.1 0.03 43.4 21.8 0.02
67 61.6 37.2 0.02 54.5 34.0 0.02 47.5 30.8 0.02 39.3 27.3 0.02 30.2 23.4 0.04
62 51.1 40.2 0.02 44.0 36.7 0.03 36.9 33.2 0.03 29.3 28.9 0.08 24.2 24.2 0.22
1500 72 83.3 38.5 0.17 75.5 35.3 0.13 67.6 32.1 0.09 58.5 28.5 0.06 48.4 24.8 0.06
67 69.4 42.5 0.06 61.3 38.9 0.06 53.1 35.4 0.05 44.4 31.7 0.05 34.5 27.5 0.07
62 56.6 46.2 0.04 49.3 42.5 0.06 42.0 38.8 0.07 34.3 34.3 0.11 28.8 28.8 0.25
A042
1050 72 75.4 35.0 0.00 68.0 31.8 0.00 60.7 28.6 0.02 52.7 25.3 0.00 43.6 21.7 0.00
67 62.1 37.3 0.00 55.0 34.0 0.00 47.8 30.7 0.00 39.3 26.9 0.01 30.2 23.1 0.03
62 51.5 39.8 0.01 44.2 36.2 0.01 36.9 32.7 0.02 29.1 28.3 0.06 23.7 23.7 0.20
1400 72 87.8 40.6 0.18 79.4 37.1 0.13 71.0 33.6 0.07 61.3 29.8 0.05 51.0 25.9 0.05
67 72.9 44.4 0.05 64.4 40.7 0.04 55.9 36.9 0.04 46.7 33.0 0.04 36.1 28.5 0.06
62 60.0 48.3 0.03 52.0 44.3 0.05 44.0 40.3 0.06 35.5 35.5 0.10 29.7 29.7 0.24
1750 72 96.3 44.6 0.16 87.4 41.1 0.13 78.5 37.5 0.11 67.9 33.5 0.09 55.9 29.1 0.09
67 80.8 50.1 0.08 71.5 46.1 0.08 62.2 42.2 0.08 51.9 37.9 0.08 40.9 33.4 0.10
62 65.7 55.1 0.07 57.6 50.9 0.08 49.5 46.6 0.10 41.7 41.7 0.15 35.0 35.0 0.28
A048
1200 72 79.8 36.9 0.00 72.6 33.7 0.00 65.4 30.6 0.12 57.0 27.1 0.08 47.5 23.4 0.07
67 66.6 39.8 0.07 59.1 36.4 0.06 51.7 33.0 0.06 43.2 29.3 0.05 33.3 25.2 0.07
62 55.2 42.8 0.06 47.6 39.1 0.06 40.0 35.4 0.06 32.2 31.3 0.08 26.7 26.7 0.20
1600 72 91.0 42.1 0.22 83.0 38.7 0.18 75.0 35.4 0.13 65.4 31.7 0.11 54.5 27.6 0.10
67 76.7 46.9 0.10 68.1 43.1 0.10 59.5 39.4 0.09 50.1 35.4 0.09 39.4 31.0 0.11
62 62.7 51.0 0.08 54.9 47.2 0.09 47.1 43.4 0.10 39.3 39.0 0.13 33.1 33.1 0.25
2000 72 99.2 46.1 0.19 90.7 42.7 0.17 82.2 39.4 0.15 72.0 35.5 0.14 60.0 31.2 0.13
67 84.0 52.6 0.13 74.8 48.8 0.13 65.7 44.9 0.12 55.1 40.5 0.12 44.0 36.0 0.13
62 69.0 58.5 0.11 60.8 54.3 0.12 52.6 50.2 0.14 45.4 45.4 0.18 38.5 38.5 0.30
A060
1600 72 101.0 46.7 0.00 90.8 42.2 0.00 80.4 37.6 0.12 69.1 33.0 0.08 56.0 28.0 0.07
67 83.8 49.9 0.07 73.5 45.2 0.07 63.1 40.5 0.06 51.1 35.3 0.06 38.0 29.8 0.08
62 68.7 53.0 0.07 58.2 48.0 0.07 47.7 43.0 0.07 38.2 37.6 0.11 31.6 31.6 0.24
2000 72 113.0 52.2 0.00 102.0 47.4 0.00 90.4 42.6 0.14 77.5 37.5 0.11 63.5 32.3 0.10
67 94.0 56.8 0.10 82.6 51.8 0.10 71.2 46.8 0.09 58.5 41.3 0.10 43.7 35.2 0.11
62 77.0 61.2 0.09 66.0 56.0 0.10 55.1 50.7 0.10 45.0 44.7 0.15 37.3 37.3 0.28
2400 72 123.0 56.6 0.26 111.0 51.6 0.21 98.4 46.7 0.16 84.2 41.2 0.13 69.4 35.8 0.13
67 103.0 62.8 0.13 89.9 57.4 0.13 77.3 52.0 0.12 64.3 46.5 0.12 48.3 40.0 0.14
62 83.0 68.4 0.11 72.2 63.0 0.12 61.4 57.5 0.13 51.1 51.1 0.18 42.5 42.5 0.32
—5—
CFM
— Cubic Ft per Minute
EWB
— Entering Wet Bulb (
°
F)
LWB
— Leaving Wet Bulb (
°
F)
TC
— Total Cooling Capacity 1000 Btuh
SHC
— Total Sensible Capacity 1000 Btuh
BF
— Bypass Factor
MBH
— 1000 Btuh
NOTES:
1. Contact manufacturer for cooling capacities at conditions other than
shown in table.
2. Formulas:
Leaving db = entering db —
Leaving wb = wb corresponding to enthalpy of air leaving coil (h
LWB
)
h
LWB
= h
EWB
—
where h
EWB
= enthalpy of air entering coil.
3. Direct interpolation is permissible.Do not extrapolate.
4. SHC is based on 80
°
F db temperature of air entering coil.
Below 80
°
F db, subtract (Correction Factor x CFM) from SHC.
Above 80
°
F db, add (Correction Factor x CFM) to SHC.
5. All data points are based on 10
°
F superheat leaving coil.
6. Bypass Factor = 0 indicates no psychometric solution. Use bypass
factor of next lower EWB for approximation.
Interpolation is permissible.
Correction Factor = 1.09 x (1 – BF) x (db – 80)
sensible heat cap.
1.09 x CFM
total capacity (Btuh)
4.5 x CFM
BYPASS
FACTOR
ENTERING AIR DRY BULB TEMPERATURE (
°
F)
79 78 77 76 75 Under 75
81 82 83 84 84 Over 85
Correction Factor
0.10
0.98 1.96 2.94 3.92 4.91 Use formula
shown below
0.20
0.87 1.74 2.62 3.49 4.36
0.30
0.76 1.53 2.29 3.05 3.82
COIL STATIC PRESSURE DROP (In. WC)
UNIT SIZE BULB AIR QUANTITY (CFM)
A024
600 700 800 900 — —
WET 0.08 0.10 0.13 0.16 — —
DRY 0.06 0.08 0.11 0.13 — —
A030
700 800 900 1000 1100 —
WET 0.08 0.12 0.15 0.19 0.23 —
DRY 0.08 0.10 0.14 0.17 0.21 —
A036
900 1000 1100 1200 1300 —
WET 0.16 0.19 0.23 0.27 0.32 —
DRY 0.13 0.17 0.21 0.25 0.29 —
A042
1000 1100 1200 1300 1400 —
WET 0.18 0.21 0.24 0.27 0.31 —
DRY 0.14 0.17 0.20 0.23 0.26 —
A048
1300 1400 1500 1600 1700 —
WET 0.19 0.22 0.25 0.28 0.31 —
DRY 0.18 0.21 0.24 0.27 0.30 —
A060
1600 1700 1800 1900 2000 2100
WET 0.19 0.22 0.24 0.26 0.28 0.30
DRY 0.18 0.20 0.21 0.24 0.26 0.28
—6—
TYPICAL N-COIL HORIZONTAL INSTALLATIONS
Horizontal Left
FILLER PLATE
N-COIL
AIRFLOW
FURNACE
DRAIN
CONNECTION A97203
FILLER PLATE
N-COIL
AIRFLOW
FURNACE DRAIN
CONNECTION
Horizontal Right
A97037
—7—
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
UNIT MUST BE INSTALLED IN ACCORDANCE
WITH INSTALLATION INSTRUCTIONS
Cancels: PDS CK3B.24.1B
© 1997 Bryant Heating & Cooling Systems, 7310 W. Morris St., Indpls., IN 46231
—8—
PRINTED IN U.S.A. Catalog No. 12CK-3B0 9-97
