Brymen BM195 User manual

USER'S
MANUAL
BM195
BM197
Versatile
Clamp-on
Multimeter
Series

1
1) SAFETY
This manual contains information and warnings that must be followed for operating the
instrument safely and maintaining the instrument in a safe operating condition. If the
instrument is used in a manner not specified by the manufacturer, the protection
provided by the instrument may be impaired.
The meter protection rating, against the users, is double insulation per
UL/IE /EN61010-1 Ed. 2 & 3, IE /EN61010-2-030 Ed. 1, AN/ SA 22.2 No. 61010-
1 Ed. 2 & 3, IE /EN61010-2-032 Ed. 2 & IE /EN61010-031 Ed. 1.1:
Measurement ategory IV 1000V A & D .
Per IEC61010-1 (2010) OVERVOLTAGE CATEGORY
OVERVOLTAGE CATEGORY ll (CAT II) is for equipment intended to be supplied
from the building wiring. It applies both to plug-connected equipment and to
PERMANENTLY ONNE TED EQUIPMENT.
OVERVOLTAGE CATEGORY lll (CAT III) is for equipment intended to form part of a
building wiring installation. Such equipment includes socket outlets, fuse panels, and
some MAINS installation control equipment.
OVERVOLTAGE CATEGORY lV (CAT IV) is for equipment installed at or near the
origin of the electrical supply to a building, between the building entrance and the main
distribution board. Such equipment may include electricity tariff meters and primary
overcurrent protection devices.
TERMS IN THIS MANUAL
WARNING identifies conditions and actions that could result in serious injury or even
death to the user.
CAUTION identifies conditions and actions that could cause damage or malfunction
in the instrument.

2
WARNING
To reduce the risk of fire or electric shock, do not expose this product to rain or
moisture. The meter is intended only for indoor use.
To avoid electrical shock hazard, observe the proper safety precautions when working
with voltages above 60 VD or 30 VA rms. These voltage levels pose a potential
shock hazard to the user. Before and after hazardous voltage measurements, test the
voltage function on a known source such as line voltage to determine proper meter
functioning.
Keep your hands/fingers behind the hand/finger barriers (of the meter and the test
leads) that indicate the limits of safe access of the hand-held part during measurement.
Inspect test leads, connectors, and probes for damaged insulation or exposed metal
before using the instrument. If any defects are found, replace them immediately. Only
use the test lead provided with the equipment or UL Listed Probe Assembly rated AT
IV 1000V or better.
This lamp-on meter is designed to apply around or remove from uninsulated
hazardous live conductors. But still, individual protective equipment must be used if
hazardous live parts in the installation where measurement is to be carried out could
be accessible.
CAUTION
Disconnect the test leads from the test points before changing meter functions.
INTERNATIONAL ELECTRICAL SYMBOLS
!
!!
!
aution ! Refer to the explanation in this Manual
aution ! Risk of electric shock
Earth (Ground)
Double Insulation or Reinforced insulation
Fuse
A --Alternating urrent
D --Direct urrent
Application around and removal from hazardous live conductors is permitted
2) CENELEC irectives
The instruments conform to ENELE Low-voltage directive 2006/95/E and
Electromagnetic compatibility directive 2004/108/E

3
3) PRO UCT ESCRIPTION
This user's manual uses only representative model(s) for illustrations. Please refer
specification details for function availability to each model.
1) Antenna for Non- ontact EF-
Detection
2) Hand/Finger Barrier to
indicate the limits of safe
access of the meter during
measurement
3) Rotary-switch Selector to turn
the power ON/OFF and
Select a function
4) Push-buttons for special
functions & features.
5) Input Jack for all functions
EX EPT non-invasive D A
& A A current functions
6) ommon (Ground reference)
Input Jack for all functions
EX EPT non-invasive D A &
A A current functions
7) 3-5/6 digits 6000 counts & 3-
1/2 digits 2000 counts dual
numeric L D display
8) Jaw trigger for opening the
clamp jaw
9) Jaw center (& D A polarity)
Indicator, at where best D A &
A A accuracy is specified
10) Hall-effect lamp Jaw for
A & D current magnetic field
pick up

4
4) OPERATION
CAUTION: Before and after hazardous voltage measurements, test the voltage
function on a known source such as line voltage to determine ro er meter functioning.
AutoCheckTM mode
This innovative AutoCheckTM feature automatically selects measurement function of
ACV Hz, CV, or Resistance (Ω
ΩΩ
Ω) based on the input via test leads.
●With no input, the meter displays “Auto” when it is ready.
●With no voltage signal but a resistance below 10MΩ (nominal) is present, the meter
displays the resistance value. When the resistance is below the “Audible Threshold”,
the meter further gives a continuity beep tone.
●When a signal above the voltage threshold of 1.5V D or A up to the rated 1000V is
present, the meter displays the voltage value in appropriate D V or A V, whichever
larger in peak magnitude.
Note:
*Range-Lock and Function-Lock Feature: When a measurement reading is being
dis layed in AutoCheckTM mode, ress the RANGE or ELECT button momentarily 1
time can lock the range or function it was in. Press the button momentarily re eatedly

5
to ste through the ranges or functions.
*As Hazardous-Alert: When making resistance measurements in AutoCheckTM
mode, an unex ected dis lay of voltage readings alerts you that the object under test
is being energized.
*Ghost-voltage Buster: Ghost-voltages are unwanted stray signals cou led from
adjacent hard signals, which confuse common multimeter voltage measurements. Our
AutoCheckTM mode rovides low (ram -u ) in ut im edance (a rox. 2.5kΩ at low
voltage) to drain ghost voltages leaving mainly hard signal values on meter readings. It
is an invaluable feature for recise indication of hard signals, such as distinguishing
between hot and o en wires (to ground) in electrical installation a lications.
WARNING:
AutoCheckTM mode in ut im edance increases abru tly from initial 2.5kΩ to a few
hundred kΩ’s on high voltage hard signals. “LoZ” dis lays on the LCD to remind the
users of being in such low im edance mode. Peak initial load current, while robing
1000VAC for exam le, can be u to 566mA (1000V x 1.414 / 2.5kΩ), decreasing
abru tly to a rox. 3.37mA (1000V x 1.414 / 420kΩ) within a fraction of a second. Do
not use AutoCheckTM mode on circuits that could be damaged by such low in ut
im edance. Instead, use rotary-switch selector or high in ut im edance voltage
modes to minimize loading for such circuits.
VF -ACV
Hz
& ACV
Hz
functions
Inputs are made through the test leads terminals.
VF -ACV Hz function is to deal with VFD (Variable Frequency Device) signals. It,
however, further pre-selects the most appropriate voltage-ranges and thus the Hz
trigger levels to best cope with most VFD-Voltage and VFD-Frequency applications.
Note: The Hz trigger level is determined by the AC/ C+AC Voltage or Current
function-range being in use. Press RANGE button to select
different
function-ranges
and thus
trigger levels manually.
CV & C+ACV
Hz
(Model 197 only) functions
Inputs are made through the test leads terminals. Defaults at CV Function. Press
SELECT button momentarily and release to select C+ACV Hz.

6
ACA
Hz
, CA & C+ACA
Hz
(Model 197 only) functions
Input is made through the clamp jaws for non-invasive current measurements. Defaults
at ACA Hz Function. Press SELECT button momentarily and release to select the
subject functions in sequence.

7
CAUTION (Application and removal of the Clamp-on meter)
For non-invasive current measurements, press the jaw trigger and clamp the jaws
around conductor(s) of only one single pole of a circuit for load current measurement.
Make sure the jaws are completely closed, or else it will introduce measurement errors.
Enclosing conductor(s) of more than one pole of a circuit may result in differential
current (like identifying leakage current) measurement. Locate the conductor(s) at the
Jaws center as much as possible to get the best measuring accuracy. For removal,
press the jaw trigger and remove the jaws from the conductor(s).
Adjacent current-carrying devices such as transformers, motors and conductor wires
will affect measurement accuracy. Keep the jaws away from them as much as possible
to minimize influence.
Ω
ΩΩ
Ω Resistance & Continuity functions
Inputs are made through the test leads terminals. Defaults at Ω
ΩΩ
Ω Resistance. Press
SELECT button momentarily and release to select. Continuity
Capacitance & iode functions
Inputs are made through the test lead terminals. Defaults at Capacitance. Press
SELECT button momentarily and release to select iode.
Note
When using Diode test function, normal forward voltage dro (forward biased) for a
good silicon diode is between 0.400V to 0.900V. A reading higher than that indicates a
leaky diode (defective). A zero reading indicates a shorted diode (defective). An OL
indicates an o en diode (defective). Reverse the test leads connections (reverse
biased) across the diode. The digital dis lay shows OL if the diode is good. Any other
readings indicate the diode is resistive or shorted (defective).
CAUTION
1. Using Resistance, Continuity, Diode or Ca acitance function in a live circuit will
roduce false results and may damage the meter. In many cases the sus ected
com onent(s) must be disconnected from the circuit to obtain an accurate
measurement reading.
2. When using Ca acitance function, discharge ca acitor(s) before making any
measurements. Large value ca acitors should be discharged through an a ro riate
resistance load

8

9

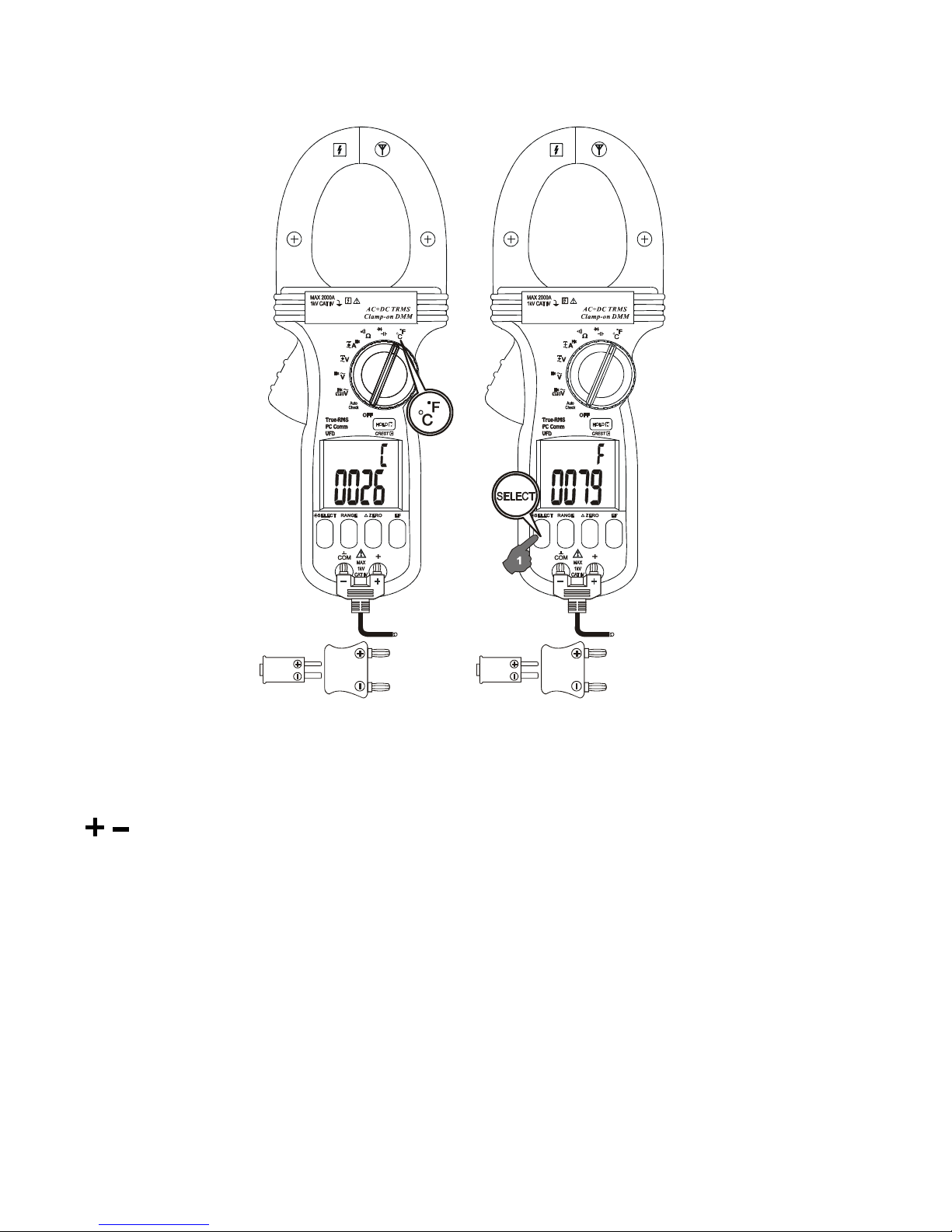

Temperature function (Model 197 only)
Defaults at oC ( elsius) readings. Press SELECT button momentarily and release to
select oF (Fahrenheit) readings. Inputs are made through the test leads terminals. Be
sure to insert the banana plug type-K temperature bead probe Bkp60 with correct
polarities. You can also use a plug adapter Bkb32 (Optional purchase) with
banana pins to type-K socket to adapt other type-K standard mini plug temperature
probes.

10
Electric Field EF- etection
In Voltage or urrent function, press the EF button momentarily and release to toggle
to EF-Detection feature. The meter displays “E.F.” when it is ready. Signal strength is
indicated as a series of bar-graph segments on the display together with variable beep
tones.
●Non- ontact EF-Detection: An antenna is located along the top-right end of the
clamp jaw, which detects electric field surrounds energized conductors. It is ideal for
tracing live wiring connections, locating wiring breakage and to distinguish between live
or earth connections.
●Probe- ontact EF-Detection: For more precise indication of live wires, such as
distinguishing between live and ground connections, use the Red (+) test probe for
direct contact measurements.
PC computer interface capabilities
The instrument equips with an optical isolated interface port at the meter back for data
communication. Optional purchase P interface kit BRUA-19X is required to connect

11
the meter to the P computer RS232 or USB ports. Press and hold the HOLD
button while turning the meter on to enable meter PC-COMM out ut.
Hold
The hold feature freezes the display for later view. Press the HOL button momentarily
and release to toggle the hold feature.
5ms CREST-MAX capture mode
Press CREST (HOLD) button for one second or more and release to activate REST-
MAX capture (Instantaneous Peak-Hold) mode to capture signal peak of voltage or
current in duration as short as 5ms. The L D “C” & “MAX” turn on. Press again the
button momentarily and release can toggle the combination use of HOLD feature.
Press the button for 1 second or more and release to exit REST-MAX capture mode.
Auto-ranging and Auto-Power-Off are disabled automatically in this mode.
Backlighted LC display (Models 197 only)
Press the SELECT button for 1 second or more to toggle the L D backlight. The
backlight will also be turned off automatically after 32 seconds to extend battery life.
Relative-Zero ( ) mode
Relative-Zero allows the user to offset the meter consecutive measurements with the
main display displaying reading as the reference value. Press the REL button
momentarily and release to toggle Relative-Zero mode.
Manual or Auto-ranging
Press the RANGE button momentarily and release to select manual-ranging, and the
meter will remain in the range it was in, the L D turns off. Press the button
again to step through the ranges. Press and hold the button for 1 second or more and
release to resume auto-ranging.
Note: Manual-ranging feature is not available in Hz and function ranges.
Set Beeper Off
Press the RANGE button while turning the meter on to temporarily disable the Beeper
feature. Turn the rotary switch OFF and then back on to resume.
Auto-Power-Off (APO)
The Auto-Power-Off (APO) mode turns the meter off automatically to extend battery life
after approximately 34 minutes of no rotary switch or push button operations. To wake
up the meter from APO, press the SELECT button momentarily and release or turn the
rotary switch OFF and then back on. Always turn the rotary switch to the OFF position

12
when the meter is not in use
isabling Auto-Power-Off
Press and hold the SELECT button while turning the meter on to temporarily disable
the Auto-Power-Off (APO) feature. Turn the rotary switch OFF and then back on to
resume.
5) MAINTENANCE
WARNING
To avoid electrical shock, disconnect the meter from any circuit, remove the test leads
from the input jacks and turn OFF the meter before opening the case. Do not operate
with open case.
Trouble Shooting
If the instrument fails to operate, check batteries and test leads etc., and replace as
necessary. Double check operating procedure as described in this user’s manual.
If the instrument voltage-resistance input terminal has subjected to high voltage
transient (caused by lightning or switching surge to the system under test) by accident
or abnormal conditions of operation, the protective impedance components in series
might be blown off (become high impedance) like fuses to protect the user and the
instrument. Most measuring functions through this terminal will then be open circuit.
Such components should then be replaced by qualified technician. Refer to the
LIMITED WARRANTY section for obtaining warranty or repairing service.
Accuracy and Calibration
Accuracy is specified for a period of one year after calibration. Periodic calibration at
intervals of one year is recommended to maintain meter accuracy. Refer to the
LIMITED WARRANTY section for obtaining calibration, repairing or warranty service.
Cleaning and Storage
Periodically wipe the case with a damp cloth and mild detergent; do not use abrasives
or solvents. If the meter is not to be used for periods of longer than 60 days, remove
the batteries and store them separately.

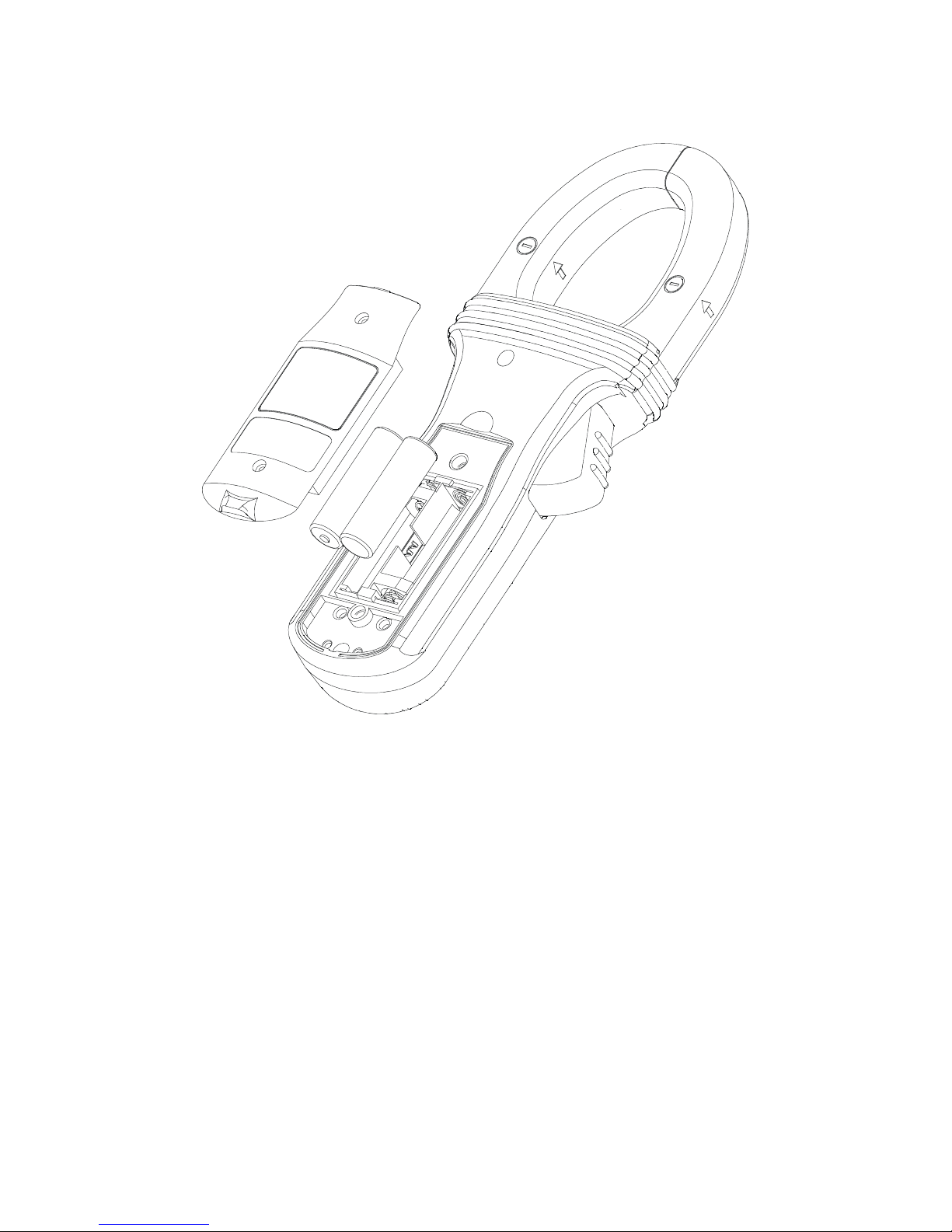

Battery replacement
The meter uses standard 1.5V AA Size (IE LR6) battery X 2

13
Loosen the 2 captive screws from the battery cover case. Lift the battery cover case.
Replace the batteries. Replace battery cover case. Re-fasten the screws.

14
GENERAL SPECIFICATIONS
isplay: 3-5/6 digits 6000 counts. & 3-1/2 digits 1,999 counts for Hz
Polarity: Automatic
Update Rate: 5 per second nominal;
Operating Temperature: 0° to 40°
Relative Humidity: Maximum relative humidity 80% for temperature up to 31° decreasing
linearly to 50% relative humidity at 40°
Pollution degree: 2
Storage Temperature: -20° to 60°, < 80% R.H. (with battery removed)
Altitude: Operating below 2000m
Temperature Coefficient: nominal 0.15 x (specified accuracy)/ ° @(0° -- 18° or 28° -
- 40°), or otherwise specified
Sensing: Average sensing for model 195; True RMS for model 197
Safety: Double insulation per
UL/IE /EN61010-1 Ed. 2 & 3, IE /EN61010-2-030 Ed. 1,
AN/ SA 22.2 No. 61010-1 Ed. 2 & 3, IE /EN61010-2-032 Ed. 2 & IE /EN61010-
031 Ed. 1.1
to AT IV 1000V A & D
Transient Protection: 12kV (1.2/50µs surge)
Overload Protections:
lamp-on jaws: 2000A rms continuous
“ + “ & OM Terminals (all other functions): 1000V rms
E.M.C.: Meets EN61326-1:2006 (EN55022, EN61000-3-2, EN61000-3-3, EN61000-4-2,
EN61000-4-3, EN61000-4-4, , EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11)
In an RF field of 3V/m:
apacitance function is not specified
Other function ranges: Total Accuracy = Specified Accuracy + 200 digits
Performance above 3V/m is not specified
Power Supply: 1.5V AA Size (IE LR6) battery X 2
Power Consumption: Typical 14mA for urrent functions, and 5.2mA for others
Low Battery: Below approx. 2.4V
APO Timing: Idle for 34 minutes
APO Consumption: 10µA typical
imension: L264mm X W97mm X H43mm
Weight: 608 gm
Jaw opening & Conductor diameter : 55mm max
Accessories: Test leads (pair), user's manual, Bkp60 banana plug K-type thermocouple x 1
(Model 197 only), Soft carrying pouch
Optional purchase accessories: USB interface kit BRUA-19X; BKB32 banana plug to type-
K socket plug adaptor (Model 197 only)
Special Features: Auto heck
TM
V&
Ω
; VFD-V & VFD-Hz; Backlighted L D (Model 197
only);
5ms REST-MAX apture
mode (Peak Hold); Auto-ranging Relative-Zero mode;

15
Display Hold; EF-Detection (N V); Optional Interface capabilities with P computers
Electrical Specifications
Accuracy is ±(% reading digits + number of digits) or otherwise specified, at 23° ± 5° &
less than 75% relative humidity.
True RMS model 197 voltage accuracies are specified from 5 % to 100 % of range or
otherwise specified. Maximum rest Factor < 1.4 : 1 at full scale & < 2.8 : 1 at half scale, and
with frequency components within the specified frequency bandwidth for non-sinusoidal
waveforms.
C Voltage
RANGE Accuracy
6.000V, 60.00V,
600.0V & 1000V 0.5%+5d
Input Impedance: 10MΩ, 50 pF nominal
AutoCheck
TM
_ CV
RANGE Accuracy
6.000V, 60.00V,
600.0V & 1000V 1.3% + 5d
Auto heck
TM
Lo-Z D V Threshold:
> +1.5VD & < -1.5VD nominal
Auto heck
TM
Lo-Z D V Input Impedance:
Initially approx. 2.5kΩ, 600pF nominal;
Impedance increases abruptly within a
fraction of a second as display voltage is
above 50V (typical). Ended up impedances
vs display voltages typically are:
10kΩ @100V
60kΩ @300V
200kΩ @600V
420kΩ @1000V
AC Voltage
RANGE Accuracy
50Hz ~ 400Hz
6.000V, 60.00V,
600.0V & 1000V 1.2% + 5d
Input Impedance: 10MΩ, 50 pF nominal
AC+ C Voltage (Model 197 Only)
RANGE Accuracy
D , 50Hz ~ 400Hz
6.000V, 60.00V,
600.0V & 1000V 1.4% + 7d
Input Impedance: 10MΩ, 50 pF nominal
AutoCheck_ACV
RANGE Accuracy
1)
50Hz ~ 60Hz
6.000V, 60.00V,
600.0V & 1000V 1.5%+5d
Auto heck
TM
Lo-Z A V Threshold:
> 1.5V(50/60Hz) nominal
Auto heck
TM
Lo-Z A V Input Impedance:
Initially approx. 2.5kΩ, 600pF nominal;
Impedance increases abruptly within a
fraction of a second as display voltage is
above 50V (typical). Ended up impedances
vs display voltages typically are:
10kΩ @100V
60kΩ @300V
200kΩ @600V
420kΩ @1000V

16
VF _ACV (with Low Pass Filter )
RANGE Accuracy
1)
10Hz ~ 20Hz
6.000V, 60.00V,
600.0V & 1000V
4%+80d
20Hz ~ 200Hz
6.000V, 60.00V,
600.0V & 1000V
2%+60d
200Hz - 400Hz
2)
6.000V, 60.00V,
600.0V & 1000V
7%+80d
1)
Not specified for fundamental frequency >
400Hz
2)
Accuracy linearly decreases from 2% +
60d @ 200Hz to 7% + 80d @ 400Hz
CREST-MAX Capture Mode
Accuracy: Specified accuracy plus 250
digits for changes > 5ms in duration
Ohm & AutoCheck
TM
_Ohm
1)
RANGE Accuracy
600.0Ω, 6.000KΩ, 60.00KΩ 0.5%+5d
600.0KΩ 0.8%+5d
6.000MΩ 1.2%+5d
40.00MΩ 2.3%+5d
Open ircuit Voltage: 0.45VD typical
1)
Auto heck
TM
Ohm Threshold:
< 10.00MΩ nominal
Audible Continuity Tester
Audible Threshold: Between 10Ω and 200Ω
Response time: 32ms approx.
Capacitance
RANGE Accuracy
1)
60.00nF, 600.0nF, 6.000µF 2.0%+5d
60.00µF,600.0uF 3.5%+5d
2)
2000µF 4.0%+5d
2)
1)
Accuracies with film capacitor or better
2)
Temperature oefficient: 0.25 x (specified
accuracy)/ ° @(0° -- 18° or 28° --
40°)
iode Tester
RANGE Accuracy
1.000V 1.0% + 3d
Test urrent: 0.56mA typically
Open ircuit Voltage: < 1.8VD typically
CA Current (Clamp on)
RANGE Accuracy
1) 2)
200.0A 2.0%+5d
0~500A 2.0%+5d
500~2000A 3.0%+5d
1)
Induced error from adjacent current-
carrying conductor: <0.1A/A
2)
Specified with Relative Zero mode
applied to offset the non-zero residual
readings, if any
Temperature (Model 197 only)
RANGE Accuracy
-50
o
~ 1000
o
0.3% +4d
-58
o
F ~ 1832
o
F 0.3% + 6d
K-type thermocouple range & accuracy not
included

17
ACA Current (Clamp on)
RANGE Accuracy
1)
50Hz ~ 60Hz
200.0A 2.0%+5d
0~500A 2.5%+5d
500~2000A 3.0%+5d
40Hz ~ 50Hz & 60Hz ~ 400Hz
200.0A 2.5%+5d
0~500A 3.0%+5d
500~1000A 3.5%+5d
1000~2000A unspecified
True RMS rest Factor (Model 197 only):
< 1.4 : 1 at full scale & < 2.8: 1 at half
scale
1)
Induced error from adjacent current-
carrying conductor: < 0.1A/A
C+ACA Current (Clamp on)
(Model 197 Only)
RANGE Accuracy
1) 2)
D , 50Hz ~ 60Hz
200.0A, 2000A 3.0%+8d
40Hz ~ 50Hz & 60Hz ~ 400Hz
200.0A 3.5%+8d
0~1000A 3.5%+8d
1000~2000A unspecified
True RMS rest Factor:
< 1.4 : 1 at full scale & < 2.8 : 1 at half
scale
1)
Induced error from adjacent current-
carrying conductor: < 0.1A/A
2)
Specified with Relative Zero mode
applied to offset the non-zero residual
readings, if any
Hz Line Level Frequency
Function Sensitivity
(Sine RMS)
Range
6V 2V
2)
40Hz ~ 1999
Hz
60V 20V
2)
40Hz ~ 1999Hz
600V 100V
2)
40Hz ~ 1999Hz
1000V 600V
3)
40Hz ~ 1999Hz
200A 10A
2)
20Hz ~ 400Hz
2000A 100A
2)
20Hz ~ 400Hz
VFD 6V
1)
0.6V~2.4V
2)
10Hz ~ 400Hz
VFD 60V
1)
6~24V
2)
10Hz ~ 400Hz
VFD 600V
1)
60V~240V
2)
10Hz ~ 400Hz
Accuracy: 0.1%+4d
1)
VFD sensitivity linearly decreases from
10% F.S. @ 200Hz to 40% F.S. @ 400Hz
2)
D -bias, if any, not more than 50% of Sine
RMS
3)
D -bias, if any, not more than 100V
Non-Contact EF- etection
Typical Voltage Bar-
Graph
Indication
20V (tolerance: 10V ~ 36V) -
55V (tolerance: 23V ~ 85V) - - -
110V (tolerance: 59V ~ 1000V)
- - - - -
Indication: Bar-graph segments & audible
beep tones proportional to the field
strength
Detection Frequency: 50/60Hz
Detection Antenna: Top side of the
stationary jaw
Probe- ontact EF-Detection: For more
precise indication of live wires, such as
distinguishing between live and ground
connections, use the Red (+) test probe for
direct contact measurement

- NOTE -

LIMITE WARRANTY
BRYMEN warrants to the original product purchaser that each product it manufactures
will be free from defects in material and workmanship under normal use and service
within a period of one year from the date of purchase. BRYMEN's warranty does not
apply to accessories, fuses, fusible resistors, spark gaps, batteries or any product
which, in BRYMEN's opinion, has been misused, altered, neglected, or damaged by
accident or abnormal conditions of operation or handling.
To obtain warranty service, contact your nearest BRYMEN authorized agent or send
the product, with proof of purchase and description of the difficulty, postage and
insurance prepaid, to BRYMEN TE HNOLOGY ORPORATION. BRYMEN assumes
no risk for damage in transit. BRYMEN will, at its option, repair or replace the
defective product free of charge. However, if BRYMEN determines that the failure was
caused by misused, altered, neglected, or damaged by accident or abnormal
conditions of operation or handling, you will be billed for the repair.
THIS WARRANTY IS EX LUSIVE AND IS IN LIEU OF ALL OTHER WARRANTIES,
EXPRESSED OR IMPLIED, IN LUDING BUT NOT LIMITED TO ANY IMPLIED
WARRANTY OR MER HANTABILITY OR FITNESS FOR A PARTI ULAR
PURPOSE OR USE. BRYMEN WILL NOT BE LIABLE FOR ANY SPE IAL,
INDIRE T, IN IDENTAL OR ONSEQUENTIAL DAMAGES.
BRYMEN TE HNOLOGY ORPORATION
TEL:[phone]
FAX:[phone]
http://www.brymen.com
PRINTED ON RE Y LABLE PAPER, PLEASE RE Y LE
OPYRIGHT © MMXII Btc, ALL RIGHTS RESERVED
P/N: 7M1 -1221-A000 PRINTED IN TAIWAN
