BSD-Racing Ramasoon User manual

RAMASOON
RAMASOONRAMASOON
E
E
10
10
NEPARTAK
NEPARTAK
NEPARTAK
E
E
10
10
BS910T
1/10 BRUSHLESS
TRUCK
BS912T
1/10 BRUSHLESS
TRUGGY
BS914T
1/10 BRUSHLESS
TRUGGY
www.bsdracing.com
BS913T
1/10 BRUSHLESS
TRUCK
INSTRUCTION MANUAL
All manuals and user guides at all-guides.com
all-guides.com

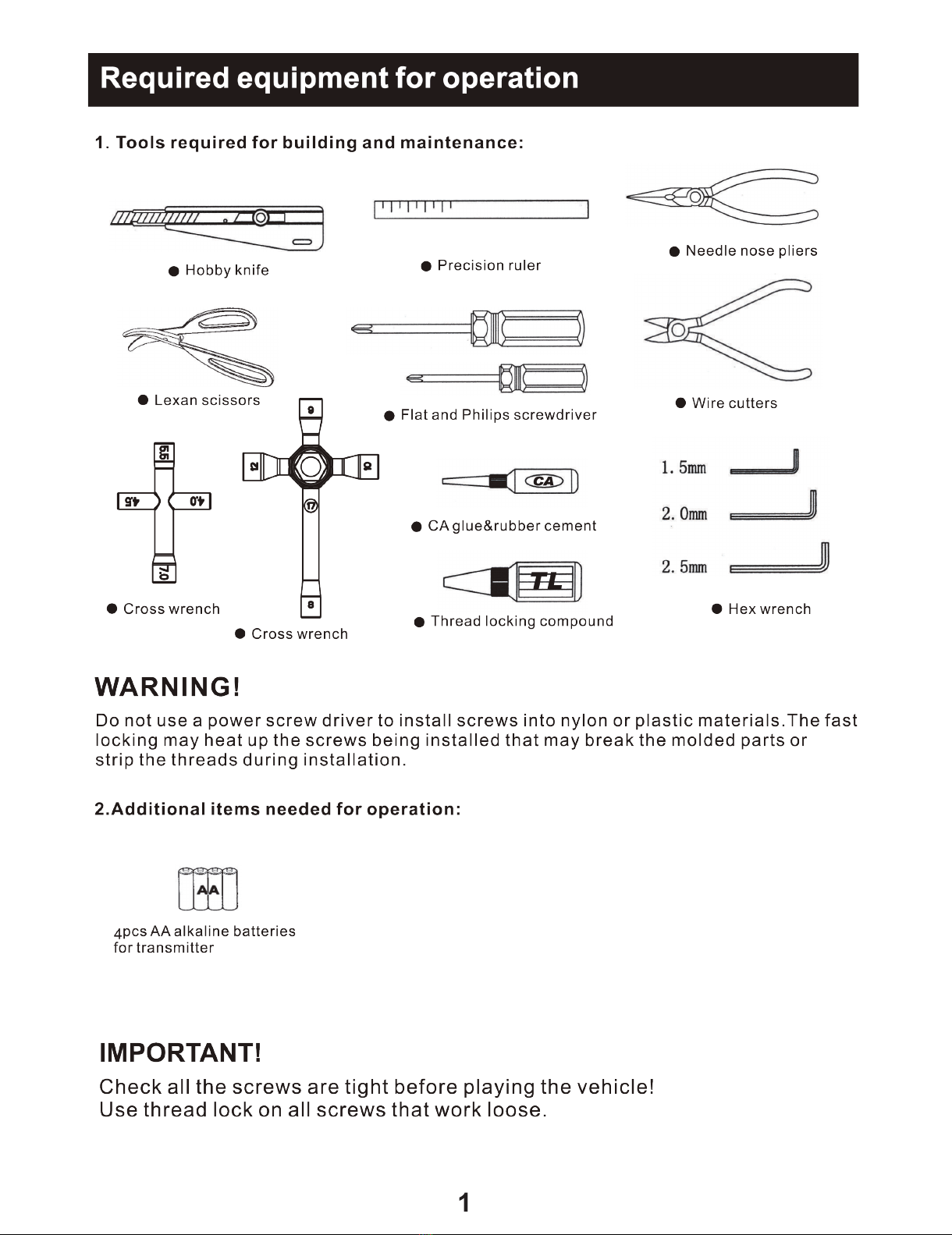

1
All manuals and user guides at all-guides.com

2
All manuals and user guides at all-guides.com

200mm
162mm
SERVO DIRECTION:

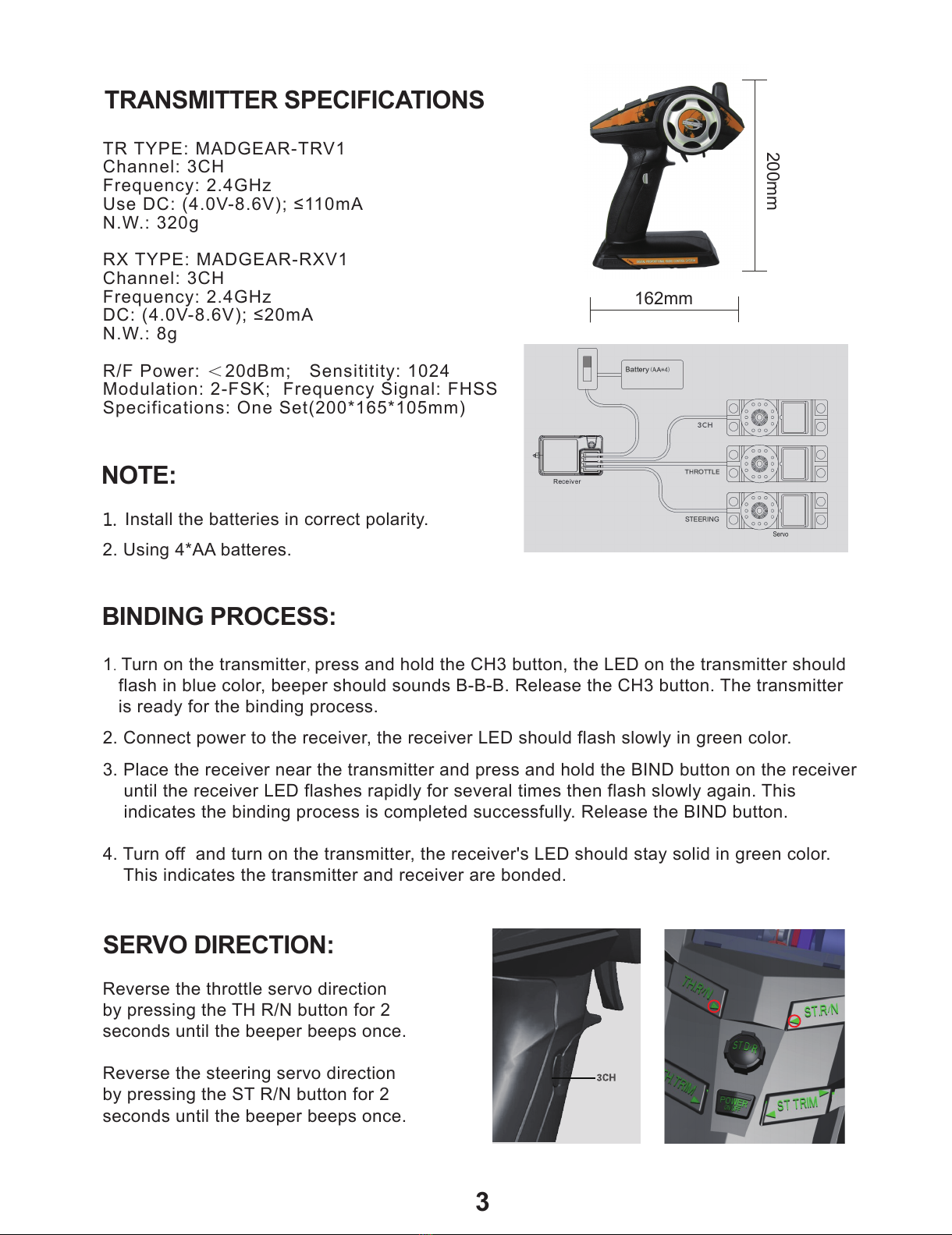

TRANSMITTER SPECIFICATIONS
NOTE:
BINDING PROCESS:
TR TYPE: MADGEAR-TRV1
Channel: 3CH
Frequency: 2.4GHz
Use DC: (4.0V-8.6V); ≤110mA
N.W.: 320g
RX TYPE: MADGEAR-RXV1
Channel: 3CH
Frequency: 2.4GHz
DC: (4.0V-8.6V); ≤20mA
N.W.: 8g
R/F Power: ＜20dBm; Sensititity: 1024
Modulation: 2-FSK; Frequency Signal: FHSS
Specifications: One Set(200*165*105mm)
Install the batteries in correct polarity.
2. Using 4*AA batteres.
Reverse the throttle servo direction
by pressing the TH R/N button for 2
seconds until the beeper beeps once.
Reverse the steering servo direction
by pressing the ST R/N button for 2
seconds until the beeper beeps once.
1. Turn on the transmitter, press and hold the CH3 button, the LED on the transmitter should
flash in blue color, beeper should sounds B-B-B. Release the CH3 button. The transmitter
is ready for the binding process.
2. Connect power to the receiver, the receiver LED should flash slowly in green color.
3. Place the receiver near the transmitter and press and hold the BIND button on the receiver
until the receiver LED flashes rapidly for several times then flash slowly again. This
indicates the binding process is completed successfully. Release the BIND button.
4. Turn off and turn on the transmitter, the receiver's LED should stay solid in green color.
This indicates the transmitter and receiver are bonded.
3
All manuals and user guides at all-guides.com

NOTE:
AUX CHANNEL(3CH)
STEERING DUAL RATES ADJUSTMENT
(ST.D/R)
FAIL SAFE SETUP(S/F)
TH.TRIM AND ST.TRIM ADJUSTMENT
Press the CH3 button once, servo turns 90 degrees,
press again, servo turns back 90 degrees.
During the binding process, the CH3 button functions as
a bind button and does not provide channel 3 functionality.
Adjust the dual rate for steering by turning
the ST D/R knob.
The fail safe function set the throttle to the lowest position automatically when the radio
signal is weak or lost.
1. Receiver should memorize the setting once it is setup.
2. For electrical powered model, the F/S functions is setup by default.
3. For gas powered model, put the throttle trigger at the brake position, press and hold the
F/S button on the receiver until the LED flashes rapidly in green color for several times,
then turns solid. release the F/S button. the F/S setup is completed.
4. Redo the F/S setup after each binding process.
Caution: Verify the F/S setup before operation.
Adjust the throttle trim with the TH TRIM button,
adjust the steering trim with the ST TRIM button.
Caution: after each binding process, need to
manually adjust the TH TRIM to the lowest
position.
4
All manuals and user guides at all-guides.com

PARTS LIST
BS910T & BS912T COMMON PARTS
BS910T PARTS
BS910-001 Fr/Rr. Bumper Unit
BS910-002 Brace Unit
BS910-003 Fr. Buffer Block Unit
BS910-004 Rim Hub With Pin 4pcs
BS910-005 C Hubs Unit L
BS910-006 Transverse Drive Shaft Set 2pcs
BS910-007 Upper Arm Unit
BS910-008 Lower Suspension Arm 2pcs
BS910-009 Fr. Center drive shaft
BS910-010 Fr. Steering linkage set 2pcs
BS910-011 C Hubs Unit R
BS910-012 Upper Desk
BS910-013 Servo Case Unit
BS910-014 Battery Cover
BS910-016 Diff Gear Set
BS910-017 Master / Slave Gear Set
BS910-018 Diff Gear Box Unit
BS910-019 Rr. Brace
BS910-020 Rr. Center Drive Shaft
BS910-021 Wire Mount Unit
BS910-022 15T Motor Gear
BS910-023 KV 3421 Motor Unit
BS910-024 ESC Case
BS910-025 Battery Case Unit
BS910-026 Pin 3*32.9mm 5pcs
BS910-027 Rr. Steering linkage set 2pcs
BS910-028 Rr. Buffer Block Unit
BS910-029 Brace
BS910-031 Joint Unit
BS910-032 Gear Box
BS910-033 Spur Gear Set
BS910-034 Spur Gear Linkage
BS910-035 Gear Linkage
BS910-036 Motor Mount
BS910-037 B head hex UNF screwHM4*11 12pcs
BS910-038 Fr. Chassis
BS910-039 Middle Chassis
BS910-040 Rr. Chassis
BS501-057 B head hex fine pitch screws HM4*16 12pcs
BS810-058 Bumper
BS810-059 Bumper brace
BS501-058 B head hex fine pitch screws HM4*20 12pcs
BS810-061 Brace
BS810-060 Body Mount
BS903-007 Body Pin 6pcs
BS502-024 HM3*14mm B-Head Hex Screw 12pcs
BS701-004B Shock Absorber Unit
(Metal Cap and ring ) 2pcs
BS501-067 B head hex fine pitch screws HM4*22
12pcs
BS810-034 Pin 3*70 5pcs
BS810-006B Brace Mount
BS808-003 M5 locknut 6pcs
BS903-014 Ball Bearing(6*12*4) 2pcs
BS810-035 Pin 3*81 5pcs
BS810-011 Fr.Left/Right Bracket
BS810-016 Steering saver unit
BS810-025 Rr.Left/Right Bracket
BS810-057 The spring for Steering Saver unit
BS910-046 4x8x3 ball bearing 2pcs
BS810-038 Flat Hex Screw fine pitch screws 2.5*12
12pcs
BS810-045 Joint B
BS903-087 Ball Bearing(12*18*4) 2pcs
BS810-063 Diff gear box
BS903-081 Cap Head Hexagon Screw(HM3*10)
12pcs
BS903-097 Diff. Gearbox
BS810-066 Ball Bearing(5*11*4）2pcs
BS903-086 Ball Bearing(5*10*4）2pcs
BS702-054 Shaft drive screw 12pcs
BS810-065 Joint A
BS810-018 Servo Unit
B7018W 9KG Servo
BS810-062 Servo mount and horn
BS803-028 7.4V 3200Mah Lipo battery
BS701-047 45A ESC
BS502-022 B head hex fine pitch screws HM3*10
12pcs
BS501-057 B head hex fine pitch screws HM4*16
12pcs
BS910-015 Body
BS910-041 Tire unit (plastic) 2pcs
BS912T PARTS
BS913-013 Body
BS910-030 Rear Wing Mount
BS804-001 Tire Unit 2pcs
BS709-026 Rear Wing
5
All manuals and user guides at all-guides.com
all-guides.com

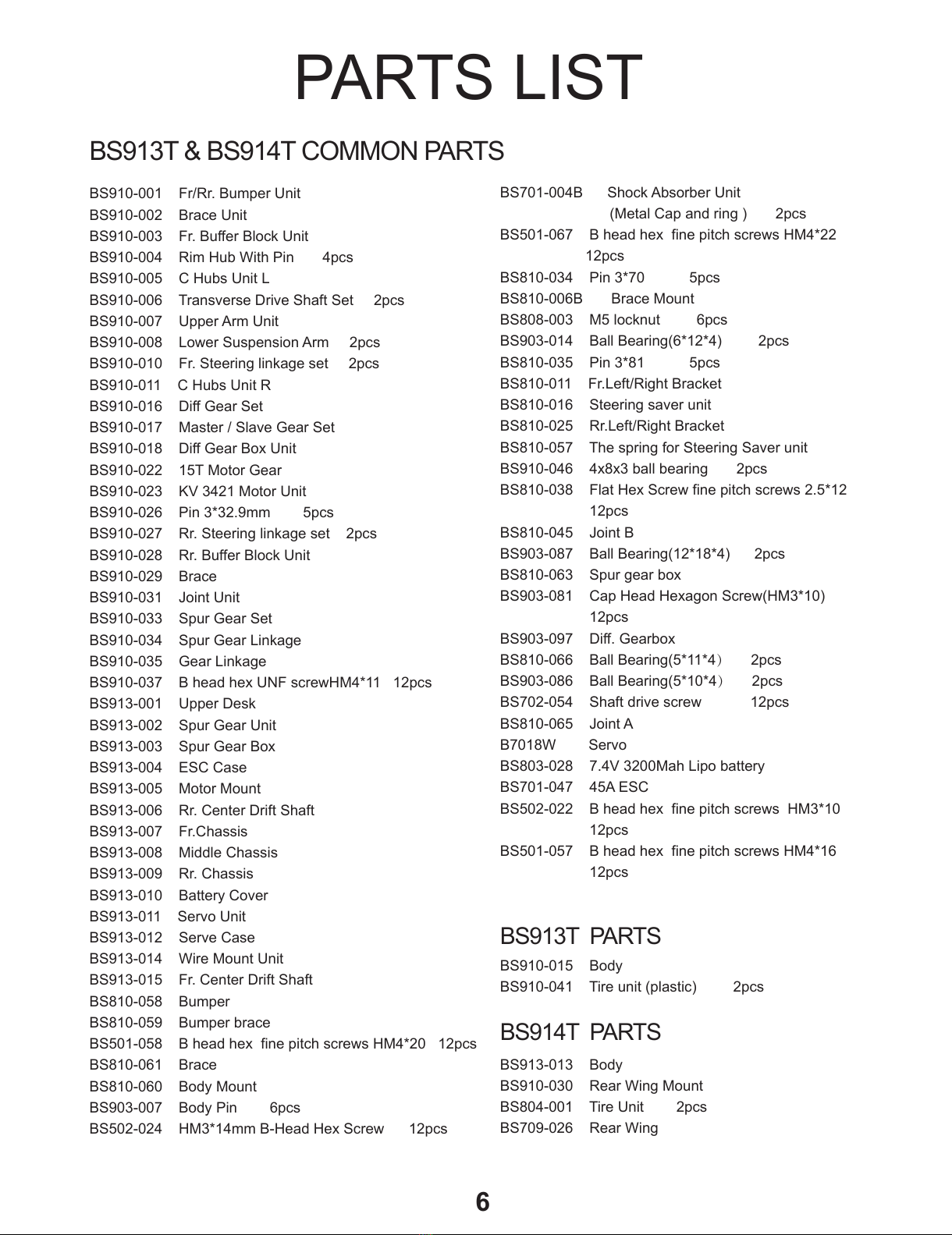

PARTS LIST
BS913T & BS914T COMMON PARTS
BS913T PARTS
BS910-001 Fr/Rr. Bumper Unit
BS910-002 Brace Unit
BS910-003 Fr. Buffer Block Unit
BS910-004 Rim Hub With Pin 4pcs
BS910-005 C Hubs Unit L
BS910-006 Transverse Drive Shaft Set 2pcs
BS910-007 Upper Arm Unit
BS910-008 Lower Suspension Arm 2pcs
BS910-010 Fr. Steering linkage set 2pcs
BS910-011 C Hubs Unit R
BS910-016 Diff Gear Set
BS910-017 Master / Slave Gear Set
BS910-018 Diff Gear Box Unit
BS910-022 15T Motor Gear
BS910-023 KV 3421 Motor Unit
BS910-026 Pin 3*32.9mm 5pcs
BS910-027 Rr. Steering linkage set 2pcs
BS910-028 Rr. Buffer Block Unit
BS910-029 Brace
BS910-031 Joint Unit
BS910-033 Spur Gear Set
BS910-034 Spur Gear Linkage
BS910-035 Gear Linkage
BS910-037 B head hex UNF screwHM4*11 12pcs
BS913-001 Upper Desk
BS913-002 Spur Gear Unit
BS913-003 Spur Gear Box
BS913-004 ESC Case
BS913-005 Motor Mount
BS913-006 Rr. Center Drift Shaft
BS913-007 Fr.Chassis
BS913-008 Middle Chassis
BS913-009 Rr. Chassis
BS913-010 Battery Cover
BS913-011 Servo Unit
BS913-012 Serve Case
BS913-014 Wire Mount Unit
BS913-015 Fr. Center Drift Shaft
BS810-058 Bumper
BS810-059 Bumper brace
BS501-058 B head hex fine pitch screws HM4*20 12pcs
BS810-061 Brace
BS810-060 Body Mount
BS903-007 Body Pin 6pcs
BS502-024 HM3*14mm B-Head Hex Screw 12pcs
BS701-004B Shock Absorber Unit
(Metal Cap and ring ) 2pcs
BS501-067 B head hex fine pitch screws HM4*22
12pcs
BS810-034 Pin 3*70 5pcs
BS810-006B Brace Mount
BS808-003 M5 locknut 6pcs
BS903-014 Ball Bearing(6*12*4) 2pcs
BS810-035 Pin 3*81 5pcs
BS810-011 Fr.Left/Right Bracket
BS810-016 Steering saver unit
BS810-025 Rr.Left/Right Bracket
BS810-057 The spring for Steering Saver unit
BS910-046 4x8x3 ball bearing 2pcs
BS810-038 Flat Hex Screw fine pitch screws 2.5*12
12pcs
BS810-045 Joint B
BS903-087 Ball Bearing(12*18*4) 2pcs
BS810-063 Spur gear box
BS903-081 Cap Head Hexagon Screw(HM3*10)
12pcs
BS903-097 Diff. Gearbox
BS810-066 Ball Bearing(5*11*4）2pcs
BS903-086 Ball Bearing(5*10*4）2pcs
BS702-054 Shaft drive screw 12pcs
BS810-065 Joint A
B7018W Servo
BS803-028 7.4V 3200Mah Lipo battery
BS701-047 45A ESC
BS502-022 B head hex fine pitch screws HM3*10
12pcs
BS501-057 B head hex fine pitch screws HM4*16
12pcs
BS910-015 Body
BS910-041 Tire unit (plastic) 2pcs
BS914T PARTS
BS913-013 Body
BS910-030 Rear Wing Mount
BS804-001 Tire Unit 2pcs
BS709-026 Rear Wing
6
All manuals and user guides at all-guides.com

BS910T&BS912T EXPLODED VIEW
7 8
804-001
BS7056W
All manuals and user guides at all-guides.com

BS913T&BS914T EXPLODED VIEW
9 10
804-001
All manuals and user guides at all-guides.com

BS910-002 Brace Unit BS910-003 Fr. Buffer Block Unit BS910-005 C Hubs Unit L
BS910-011 C Hubs Unit R
BS910-004 Rim Hub With Pin
4pcs
BS910-006 Transverse Drive
Shaft Set 2pcs BS910-007 Upper Arm Unit BS910-008 Lower Suspension Arm
2pcs
BS910-009 Fr. Center
drive shaft
BS910-010 Fr. Steering linkage set
2pcs
BS910-012 Upper Desk BS910-013 Servo Case Unit BS910-014 Battery Cover BS910-016 Diff Gear Set
BS910-017 Master / Slave
Gear Set BS910-018 Diff Gear Box Unit BS910-019 Spur gear unit BS910-021 Wire Mount Unit
BS910-020 Rr. Center Drive Shaft
BS910-022 15T Motor Gear BS910-023 KV 3421 Motor Unit BS910-024 ESC Case BS910-025 Battery Case Unit
BS910-026 Pin 3*32.9 5pcs
BS910-027 Rr. Steering linkage
set 2pcs BS910-031 Joint Unit
BS910-029 Brace
BS910-028 Rr. Buffer Block Unit
BS910-001 Fr/Rr. Bumper Unit

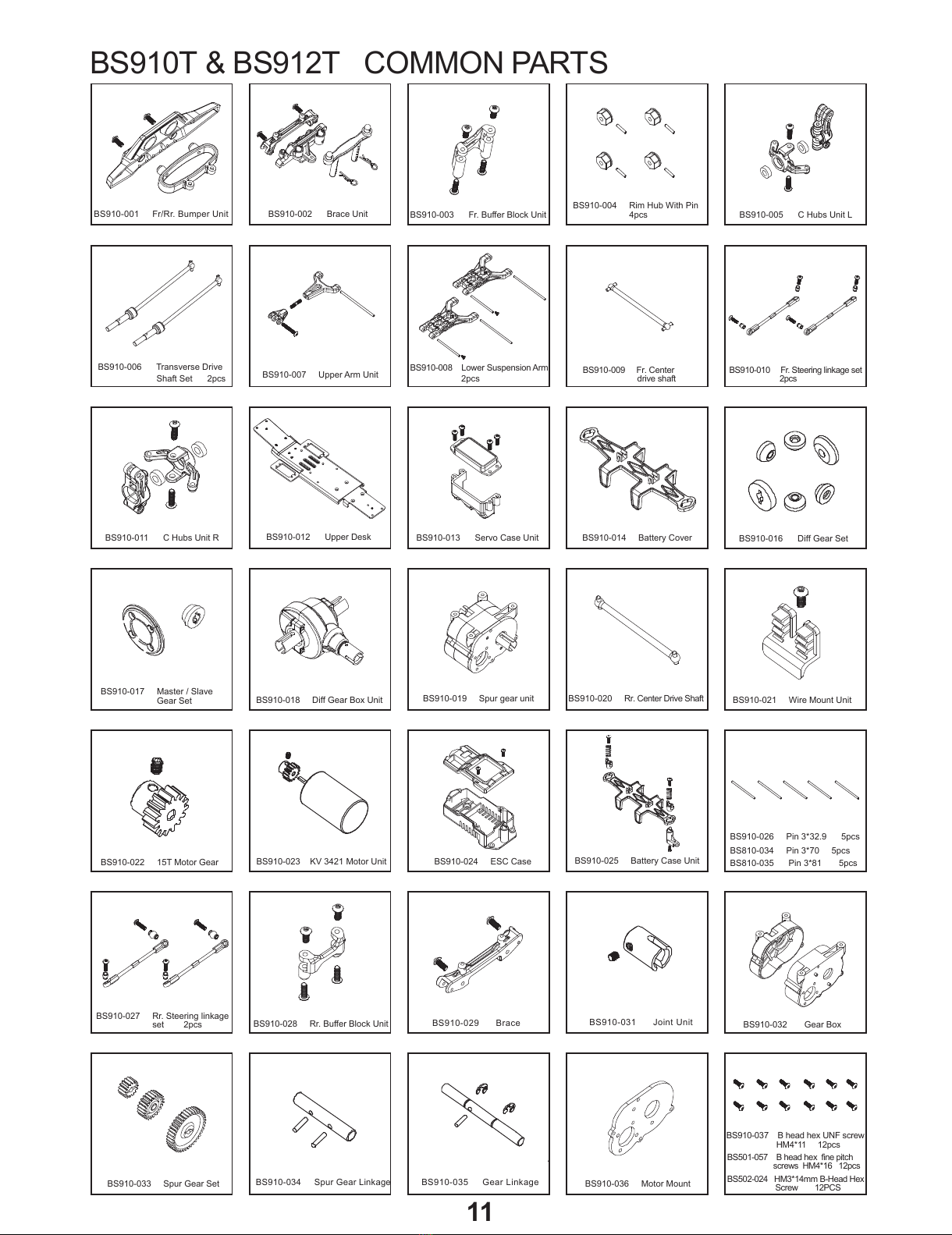

BS910T & BS912T COMMON PARTS
BS810-035 Pin 3*81 5pcs
BS502-024 HM3*14mm B-Head Hex
Screw 12PCS
BS910-037 B head hex UNF screw
HM4*11 12pcs
BS910-032 Gear Box
BS910-033 Spur Gear Set BS910-034 Spur Gear LinkageBS910-035 Gear Linkage
BS810-034 Pin 3*70 5pcs
BS910-036 Motor Mount
BS501-057 B head hex fine pitch
screws HM4*16 12pcs
11
All manuals and user guides at all-guides.com

BS903-007 Body Pin 6pcs
BS810-006B Brace Mount
BS810-060 Body MountBS810-061 Brace
BS810-011 Fr.Left/Right Bracket
BS810-025 Rr.Left/Right Bracket
BS810-059 Bumper brace
BS810-058 Bumper BS810-045 Joint B 2pcs
BS810-057 The spring for Steering
Saver unit
BS903-087 Ball Bearing(12*18*4)
2pcs
BS810-063 Diff gear box
BS903-081 Cap Head Hexagon
Screw(HM3*10) 12pcs
BS810-065 Joint A
BS701-047 45AESC
B7080-B 2.4G Radio
B7081 2.4G Receiver
BS502-022 B head hex fine pitch
screws HM3*10 12 pcs
BS501-057 B head hex fine pitch
screws HM4*16 12 pcs
BS810-018 Servo Unit
B7018W Servo
BS810-062 Servo mount
and horn
BS910T & BS912T COMMON PARTS
BS803-028 7.4V 3200Mah
Lipo battery
BS903-097 Diff. Gearbox
BS810-066 Ball Bearing(5*11*4)
2pcs
BS903-086 Ball Bearing(5*10*4)
2pcs
BS810-016 Steering saver unit
BS901-046 4x8x3 ball bearing
2pcs
BS810-038 Flat Hex Screw fine pitch
screws 2.5*12 12pcs
BS810-038 Flat Hex Screw fine pitch
screws 2.5*12 12pcs BS808-003 M5 locknut 6pcs
BS903-014 Ball Bearing(6*12*4)
2pcs
BS701-004B Shock Absorber Unit
(Metal Cap and ring ) 2pcs
BS910-038 Fr. Chassis
BS501-067 B head hex fine pitch
screws HM4*22 12 pcs
BS910-039 Middle Chassis BS910-040 Rr. Chassis
BS702-054 Shaft drive screw
12pcs
12
All manuals and user guides at all-guides.com
all-guides.com

BS910-043 11.1V 3200Mah
Lipo battery
BS910-015 Body
BS913-013 Body
B7056W 60A ESC
BS910-030 Rear Wing Mount BS709-026 Rear Wing
BS804-001 Tire Unit 2pcs
BS910T
BS912T
UPGRADE PARTS
BS910-041 Tire unit (plastic)
2pcs
BS910-042 KV 3000 Motor Unit
13
All manuals and user guides at all-guides.com

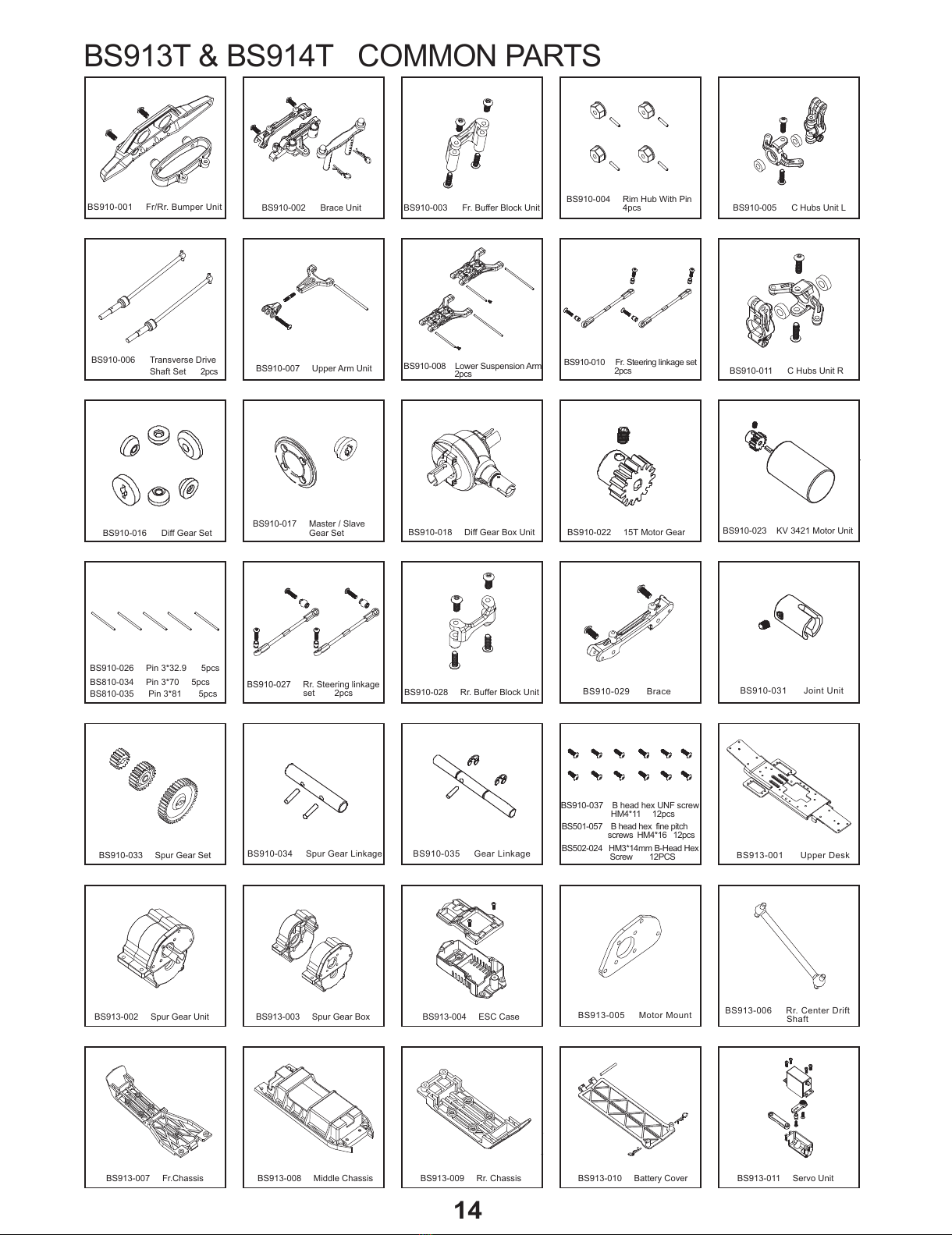

BS910-002 Brace Unit BS910-003 Fr. Buffer Block Unit BS910-005 C Hubs Unit L
BS910-011 C Hubs Unit R
BS910-004 Rim Hub With Pin
4pcs
BS910-006 Transverse Drive
Shaft Set BS910-007 Upper Arm Unit BS910-008 Lower Suspension Arm BS910-010 Fr. Steering linkage set
2pcs
BS910-016 Diff Gear Set
BS910-017 Master / Slave
Gear Set BS910-018 Diff Gear Box Unit BS910-022 15T Motor Gear BS910-023 KV 3421 Motor Unit
BS910-026 Pin 3*32.9 5pcs
BS910-027 Rr. Steering linkage
set 2pcs BS910-031 Joint Unit
BS913-001 Upper Desk
BS913-005 Motor Mount BS913-006 Rr. Center Drift
Shaft
BS910-029 Brace
BS910-028 Rr. Buffer Block Unit
BS910-001 Fr/Rr. Bumper Unit
BS913T & BS914T COMMON PARTS
BS810-035 Pin 3*81 5pcs
BS502-024 HM3*14mm B-Head Hex
Screw 12PCS
BS910-037 B head hex UNF screw
HM4*11 12pcs
BS910-033 Spur Gear Set
BS913-002 Spur Gear Unit
BS913-007 Fr.Chassis BS913-008 Middle Chassis BS913-009 Rr. Chassis BS913-010 Battery Cover BS913-011 Servo Unit
BS913-003 Spur Gear Box BS913-004 ESC Case
BS910-034 Spur Gear LinkageBS910-035 Gear Linkage
BS810-034 Pin 3*70 5pcs
BS501-057 B head hex fine pitch
screws HM4*16 12pcs
14
2pcs
2pcs
All manuals and user guides at all-guides.com

BS903-007 Body Pin 6pcs
BS810-006B Brace Mount
BS810-060 Body MountBS810-061 Brace
BS810-011 Fr.Left/Right Bracket BS810-025 Rr.Left/Right Bracket
BS810-059 Bumper brace
BS913-012 Serve Case BS913-014 Wire Mount Unit
BS810-045 Joint B 2pcs
BS810-057 The spring for Steering
Saver unit
BS903-087 Ball Bearing(12*18*4)
2pcs
BS810-063 Spur gear box
BS903-081 Cap Head Hexagon
Screw(HM3*10) 12pcs
BS810-065 Joint A
BS701-047 45AESC B7080-B 2.4G Radio
B7081 2.4G Receiver
BS502-022 B head hex fine pitch
screws HM3*10 12 pcs
BS501-057 B head hex fine pitch
screws HM4*16 12 pcs
B7018W Servo
BS913T & BS914T COMMON PARTS
BS803-028 7.4V 3200Mah
Lipo battery
BS903-097 Diff. Gearbox
BS810-066 Ball Bearing(5*11*4)
2pcs
BS903-086 Ball Bearing(5*10*4)
2pcs
BS810-016 Steering saver unit
BS901-046 4x8x3 ball bearing
2pcs
BS810-038 Flat Hex Screw fine pitch
screws 2.5*12 12pcs
BS501-058 Flat Hex Screw fine pitch
screws 2.5*12 12pcs
BS808-003 M5 locknut 6pcs
BS903-014 Ball Bearing(6*12*4)
2pcs
BS701-004B Shock Absorber Unit
(Metal Cap and ring ) 2pcs
BS501-067 B head hex fine pitch
screws HM4*22 12 pcs
BS702-054 Shaft drive screw
12pcs
BS810-058 Bumper
BS913-015 Fr. Center Drift Shaft
15
All manuals and user guides at all-guides.com

BS910-015 Body
BS913-013 Body BS910-030 Rear Wing Mount BS709-026 Rear Wing
BS804-001 Tire Unit 2pcs
BS913T
BS914T
BS910-041 Tire unit (plastic)
2pcs
16
BS910-043 11.1V 3200Mah
Lipo battery
B7056W 60A ESC
UPGRADE PARTS
BS910-042 KV 3000 Motor Unit
All manuals and user guides at all-guides.com

17
All manuals and user guides at all-guides.com
all-guides.com

BSD Racing
http://www.bsdracing.com
PRINTED IN CHINA
NOT RESPONSIBLE FOR TYPOGRAPHICAL ERRORS
All manuals and user guides at all-guides.com
