BSL AEGLE User manual

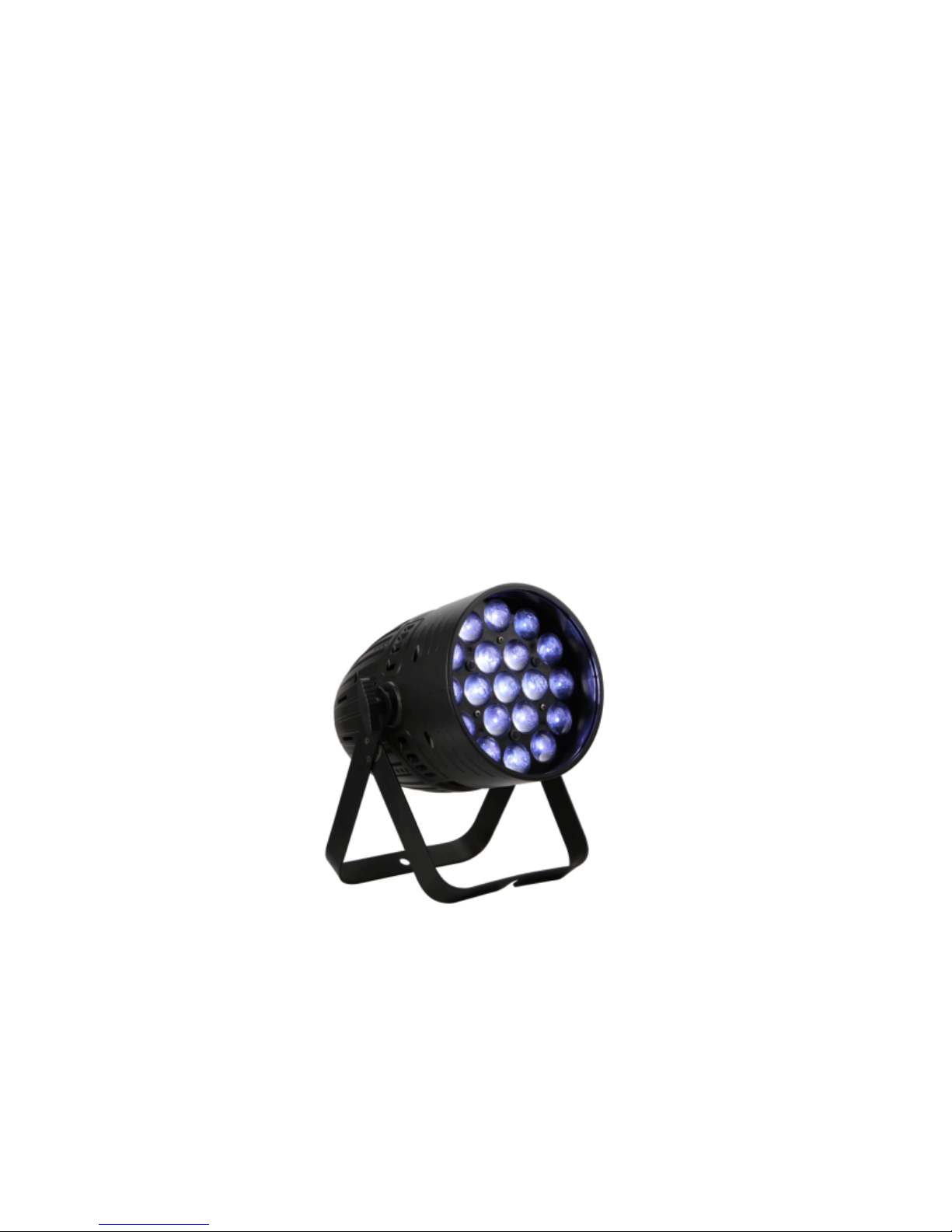

BSL AEGLE
MANUAL

2
Unpacking: Thank you for purchasing our products. Every unit has been thoroughly tested and
has been shipped in perfect operating condition. Carefully check the shipping carton for damage
that may have occurred during shipping. If the carton appears to be damaged, carefully inspect
your fixture for any damage and be sure all accessories necessary to operate the unit has arrived
intact. In the case damage has been found or parts are missing, please contact the manufacturer
or your dealer for further instructions. Do not return this unit to your dealer without first contacting.
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR
INSTALLING AEGLE. SAVE IT FOR FUTURE REFERENCE.
Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself;
doing so will void your manufactures warranty. In the unlikely event your unit may require service
please contact the manufacturer or your dealer.
PLEASE recycle the shipping carton whenever possible.
General Instructions: To op ti miz e th e p er forma nc e o f t his p rod uc t, p lea se re ad th ese
operating instructions carefully to familiarize you with the basic operations of this unit. These
instructions contain important safety information regarding the use and maintenance of this unit.
Features
l Multi-Colors
l Color Strobe
l Electronic Dimming 0-100%
l DMX-512 protocol
l Master/Slave synchronization
l Sound Control
l LED operation menu with function
buttons
l Daisy Chain Units Together in DMX
Mode
Safety Precautions
l To re duce the r isk o f e le ctr ical shock o r f ire , do not expose this unit to rain or moisture.
l Do not spill water or other liquids into or on to your unit.
l Be sure that the local power outlet matches that of the required voltage for your unit.
l Do not attempt to operate this unit if the power cord has been frayed or broken. Do not attempt to remove
or break off the ground prong from the electrical cord. This prong is used to reduce the risk of electrical
shock and fire in case of an internal short.
l Disconnect from main power before making any type of connection.
l Do not remove the cover under any conditions. There are no user serviceable parts inside.
l Never operate this unit when it’s cover is removed.
l Never plug this unit in to a dimmer pack.
l Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6” (15cm)
between this device and a wall.
l Do not attempt to operate this unit, if it becomes damaged.
l This unit is intended for indoor use only; use of this product outdoors voids all warranties.
l During long periods of non-use, disconnect the unit’s main power.
l Always mount this unit in safe and stable matter.
l Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed
upon or against them, paying particular attention to the point they exit from the unit.
l Cleaning -The fixture should be cleaned only as recommended by the manufacturer. See “Cleaning” for
Warning! To pre ve nt o r re du ce t he ris k of ele ct ric al shock or fir e, do n ot e xp os e th is unit to rai n
or moisture.
PLEASE consider that damages caused by manual modifications to the device are not subject
to warranty.

3
details.
l Heat -The appliance should be situated away from heat sources such as radiators, heat registers, stoves,
or other appliances (including amplifiers) that produce heat.
l The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the appliance.
C. The appliance has been exposed to rain or water.
D. The appliance does not appear to operate normally or exhibits a marked change in performance.
Set Up:
Power Supply: Before plugging your unit in, be sure the source voltage in your area matches the required
voltage for your device, the model is Auto power supply, it is workable at 90-250V/50~60Hz. Please make sure
your unit voltage matches the wall outlet voltage before attempting to operate your fixture.
Connection to the mains
For protection from electric shock, the fixture must be earthed!
Install a suitable plug on the power cord; note that the cores in the power cord are colored according to the
following table. The earth has to be connected!
If you have any doubts about proper installation, consult a qualified electrician.
Core (EU)
Core (US)
Connection
Plug Terminal Marking
Brown
Light blue
Yellow/Green
Black
White
Green
Live
Neutral
Earth
L
N

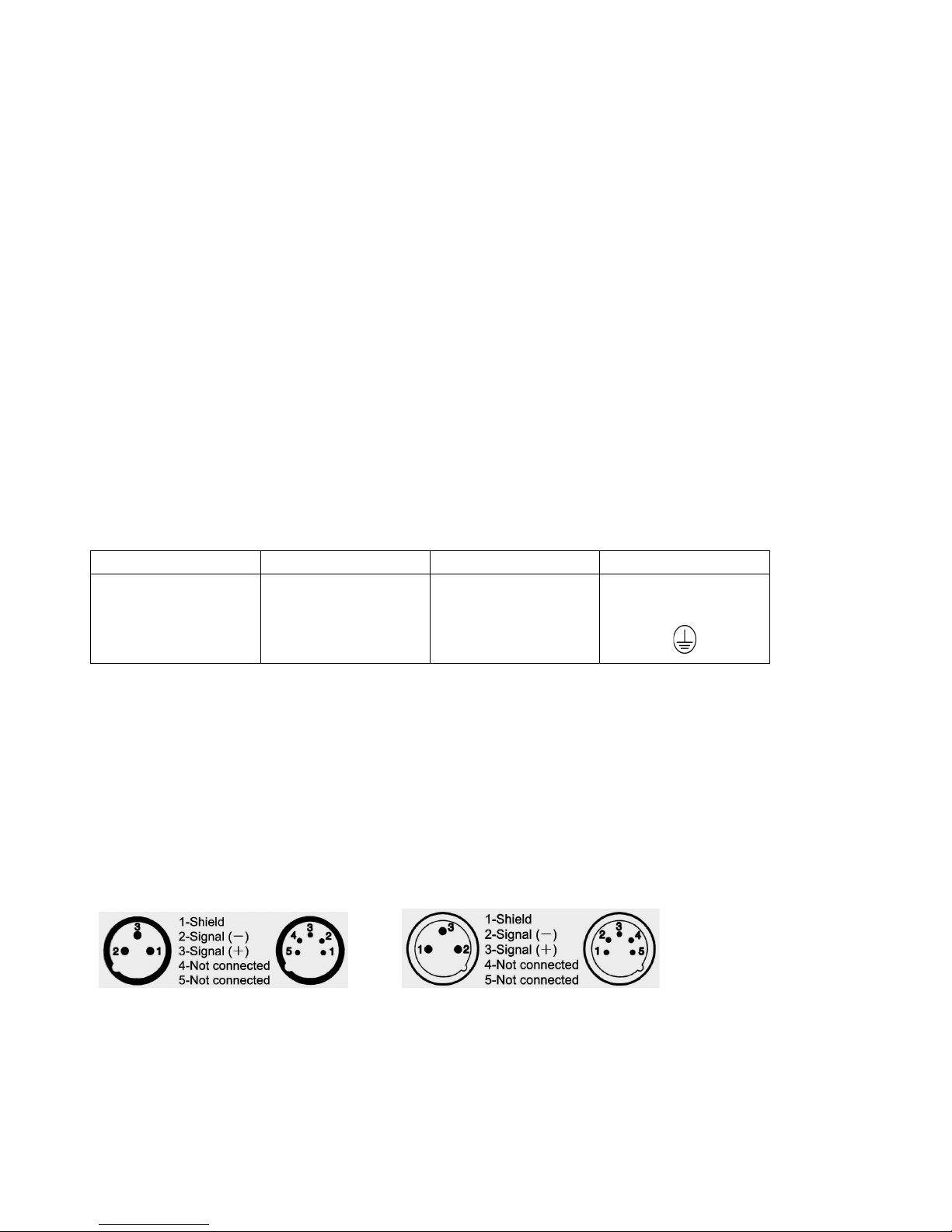

DMX512 connection
The fixture is equipped with 3-pin or 5-pin XLR sockets for DMX input and output. The sockets are wired in
parallel.
Only use a shielded twisted-pair cable designed for RS-485 and 3-pin or 5-pin XLR-plugs and connectors in
order to connect the controller with the fixture or one fixture with another.
DMX-output DMX-input
XLR mounting-sockets (rear view): XLR mounting-plugs (rear view):
DMX Linking: To en su re p ro pe r DM X d at a tr an sm iss io n, w he n u sin g s ev era l D MX fix tu res tr y to us e th e
shortest cable path possible. The order in which fixtures are connected in a DMX line does not influence the
DMX addressing. For example; a fixture assigned a DMX address of 1 may be placed anywhere in a DMX line,
at the beginning, at the end, or anywhere in the middle. When a fixture is assigned a DMX address of 1, the
DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX
chain.

4
Operating Modes: You can use this device in 4 ways:
l Auto Mode - The unit will automatically chase through the different colors and built-in programs.
l Slave Mode – The unit will run under slave mode.
l DMX control mode - This function will allow you to control each individual fixtures traits with a standard
DMX 512 controller.
l Sound mode- This function allows you to control fixture via sound.
DMX Mode: Operating through a DMX controller give the user the freedom to create their own programs
tailored to their own individual needs. This function also allows you to use your fixtures as spot lights.
1. This function will allow you to control each individual fixture’s traits with a standard DMX 512 controller.
2. It uses 5/7/8 DMX channels (RGBW version) to operate. Please see “DMX Values and Functions” for the
DMX traits.
3. To r un y ou r fi xt ure in D MX mo de , p lug in t he f ixt ur e v ia t he X LR c on ne cti on s t o any s ta ndard DMX controller.
Set your desired DMX address following the setup specifications that come with your DMX controller.
Main Control Menu
The control board on the fixture base is your interface to access and control all
functions on the unit, It’s digital display gives you a code vide of functions
5Chs Mode 7Chs Mode 8Chs Mode Auto Run Sound Control Manual Control/OFF Manual Control/ON
001-511 001-511 001-511
Strobe Red Green Blue White Zoom
000-255 000-255 000-255 000-255 000-255 5°-60°
DMX Chart:
[d.001] Mode (5 DMX Channels)
CHANNEL
VALUE
FUNCTION
1
0-255
Zoom function 5°-60°
2
0-255
Red intensity
3
0-255
Green intensity

5
4
0-255
Blue intensity
5
0-255
White intensity
[A.001] Mode ( 7 DMX Channels)
CHANNEL
VALUE
FUNCTION
1
0-255
Zoom function 5°-60°
2
0-255
Dimmer
3
0-3
No function
4-127
Strobe ( Slow-Fast)
128-131
No function
132-255
Random Strobe ( Slow-Fast)
4
0-255
Red intensity
5
0-255
Green intensity
6
0-255
Blue intensity
7
0-255
White intensity
[P.001] Mode (8 DMX Channels)
CHANNEL
VALUE
FUNCTION
1
0-255
Zoom function 5°-60°
2
0-255
Dimmer
3
0-3
No function
4-127
Strobe ( Slow-Fast)
128-131
No function
132-255
Random Strobe ( Slow-Fast)
0-7
No Function
8-15
Red
16-23
Green
24-31
Blue
32-39
White
40-47
Red+Green
48-55
Green+Blue
56-63
Red+Blue
64-71
Red+White
72-79
Green+White
4
80-87
Blue+White
88-95
Red+Green+Blue
96-103
Red+Green+White
104-111
Red+Blue+White
112-119
Green+Blue+White
120-127
Red+Green+Blue+White
128-135
Off

6
136-143
Red Fade in/out
144-151
Green Fade in/out
152-159
Blue Fade In/out
160-167
White Fade In/out
168-175
Red+Green Fade in/out
176-183
Red+Blue Fade in/out
184-191
Green+Blue Fade In/out
192-199
Red+White Fade In/out
200-207
Green+White Fade In/out
208-215
Blue+White Fade In/out
216-223
Red+Blue+White Fade In/out
224-231
Red+Green+Blue Fade In/out
232-239
Red+Gree+White Fade In/out
240-249
Green+Blue+White Fade In/out
250-255
Red+Gree+Blue+White In/out
5
0-255
Red intensity
6
0-255
Green intensity
7
0-255
Blue intensity
8
0-255
White intensity
Cleaning
Due to fog residue, smoke, and dust cleaning the internal and external optical lenses must be carried out
periodically to optimize light output.
1. Use normal glass cleaner and a soft cloth to wipe down the outside casing.
2. Clean the external optics with glass cleaner and a soft cloth every 20 days.
3. Always be sure to dry all parts completely before plugging the unit back in.
Cleaning frequency depends on the environment in which the fixture operates (i.e. smoke, fog residue, dust,
dew).
Unit not respond to DMX:
1. Check that the DMX cables are connected properly and are wired correctly (pin 3 is “hot”; on some other
DMX devices pin 5 may be ‘hot’). Also, check that all cables are connected to the right connectors; it does
matter which way the inputs and outputs are connected.
TROUBLE SHOOTING:
Listed below are a few common problems the user may encounter, with solutions.

7
Specifications
Model: Aegle
Working Position: Any safe working position
Voltage: 90-250V / 50~60Hz
Power: 300W
LED Lamp: 19 high power 15W LEDs, 4in1(RGBW
DMX Channel: 5/7/8 channel mode
Zoom angle: 5°-60°
Waterproof rate: IP20
Gross Weight: 7 Kgs
Carton Package: 2pcs / master box
Warranty: 2 Years
Note: All information is subject to change without prior notice.
