BT DIVERSE 4010 CLASSIC User manual

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413
X
Diverse 4010 Classic
Digital Cordless Telephone
User
Guide
*YOU MUST
SUBSCRIBE TO A
CALLER DISPLAY AND
CALL WAITING SERVICE
BEFORE YOUR DIVERSE 4010
CLASSIC WILL DISPLAY THIS
INFORMATION A QUARTERLY
FEE IS PAYABLE
This equip ent is not designed for aking e ergency telephone calls when the power fails.
Alternative arrange ents should be ade for access to e ergency services.
This product is intended for connection to analogue public switched telephone networks
and private switchboards in the United Kingdo .
The Art of Communication

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413
Please open this page for an ‘At a glance’
guide to your Diverse 4010 Classic.

1
4
9
WXYZ
7
PQRS
8TUV
GHI
3DEF
5JKL
2ABC
6MNO
0
R

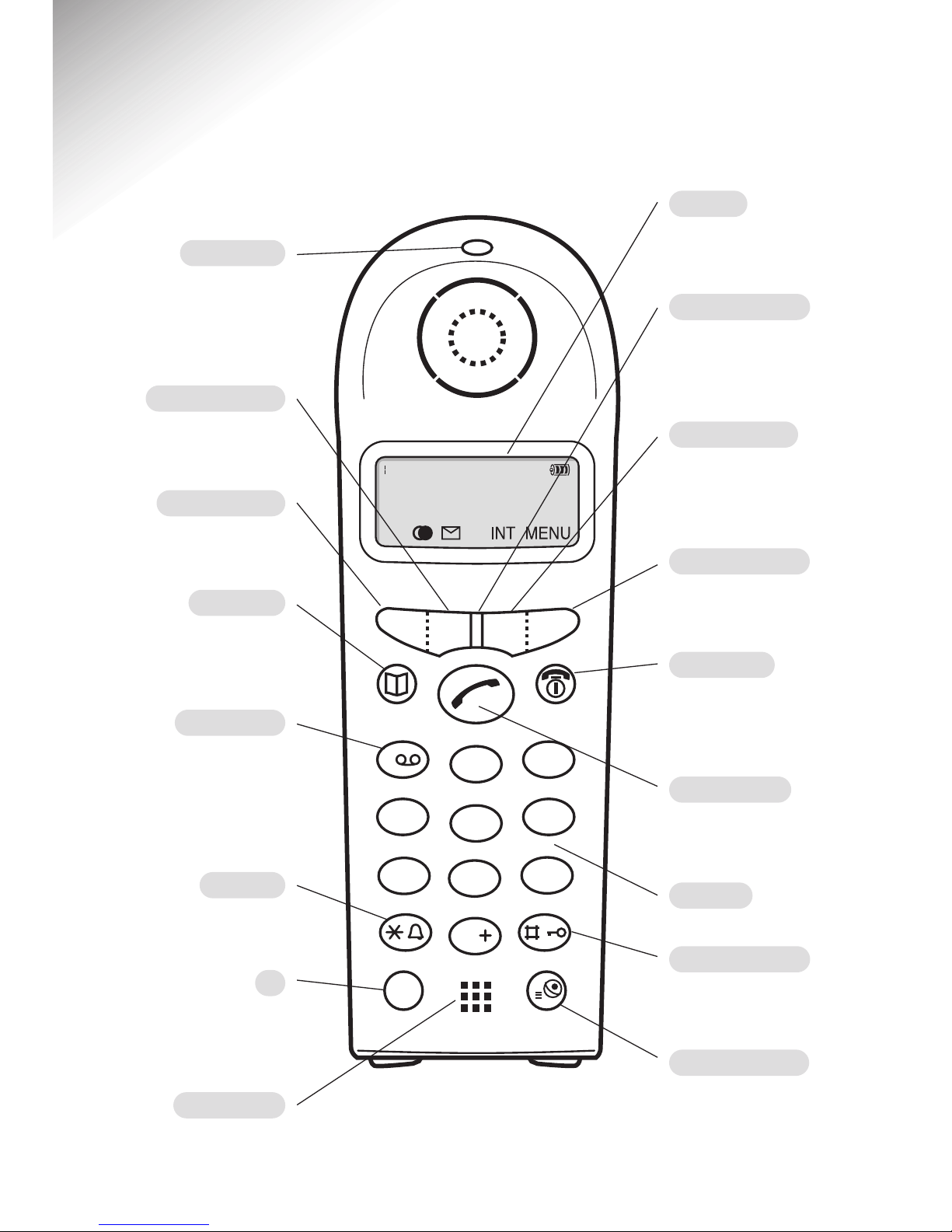

At a glance
Option buttons
Lets you select from
the menu options shown
on the display.
Green phone
For making and
answering calls.
One button
Apart from being the
number one button,
hold down to access
your Voice Mail service
or answering machine.
In use light
Lights up to indicate an
incoming call, an alarm
call or when the handset
is in use.
Star/Bell
Switches the handset
ringer on and off.
Hash/Keyguard
Switches the keypad
guard on and off.
R
For use with
switchboards and certain
Network Services.
Keypad
Microphone
Display
Displays the status of
your handset.
Extra Directory
Used to store
10 additional names
and numbers.
Red phone
To end a call, return to
idle and turn the power
off and on.
Directory
Used to store and
dial numbers in the
directory.
1
Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413
Right hand side
Takes you into
the calls list.
eft hand side
Takes you into
the redial list. Right hand side
Takes you into the
menu options.
eft hand side
To access list of internal
handsets registered to
the base

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413
2
Base
Contact points
Display option buttons
The OPTION buttons allow
you to select options within
each menu that are shown
on the display.
INT MENU-> ->
Press the right side of the
button to confirm (OK)
menu selection.
Press the left side of the
button for and right side of
the button for when going
through the menu options.
Handset display
When in MENU mode
Base underside
Po er socket Page button
Telephone line cord socket

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413
3
In this guide
At a glance 1
Menu structure 4
Quick guide 6
Quick guide to handset
display icons 7
Introduction 8
Unpacking your Diverse 4010 Classic 8
For your records 8
afety information 9
etting up 10
Registering and charging
the handset 11
Using the telephone 15
Making and ending calls 15
Call timer 1
Name and number directory 1
Extra directory 18
Redial 19
Secrecy 20
Paging and Internal calls 20
Alarm clock 22
Caller Display and
other elect ervices 24
Caller Display 24
Calls list 24
Call Waiting 27
Call Divert 28
Withhold number 28
Ring Back 29
Voice Mail 29
Handset settings 31
Keyguard 33
Base station settings 34
Base Station PIN (Personal
Identification Number) 34
Using additional handsets
and bases 36
Registering additional handsets 3
Help 39
General information 41
Guarantee 41
Technical information 42
Switchboard compatibility 42
Setting pauses 44
Index 45
Hints and tips boxes
In this user guide, we’ve included
helpful tips and important notes.
They are shown in boxes like this.
Helpline
If you experience any difficulties
with your Diverse 4010 Classic,
please call the BT Diverse Helpline
on 08457 908 070.

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413
4
Menu tructure
Sel Services Withhold No.
Call Waiting
Ringback Off
Call Divert
Alarm Clock Enter alarm call time
Audio Set H/Set Vol set
Ringer set
Melody set
Base Set Audio Set up Ringer Vol set
Melody set
Date/Time Date Set
Clock Set
Clock Mode 24H
12H
System PIN enter
Base Reset default
Add Features Dial Mode Tone
Pulse
DTMF-EARTH
tbr 100 MS
120 MS
180 MS
250 MS
300 MS
600 MS
Repeater Sure? on/off
Barge In on/off
Voice Mail Set key 1 Mailbox Input No.
Register hs PIN enter
Please note
If your handset is registered to a Diverse 4016 answering machine base, you will
have additional menu’s in No.6 Voice Mail. Please refer to your Diverse 4016 guide
to see what further menus are now available.

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413
5
IMPORTANT
If you make a mistake, you can return to the previous menu by pressing the RED
PHONE button. If you keep pressing the RED PHONE button you will return to the
idle screen.
Menu structure for message handling
Ans M 01 / 02 (If handset is registered to an answering achine base)
Press to open list
Mailbox Takes you into your net ork messaging service
Press to open list e.g Call Minder (requires subscription)
Calls 02 / 06 Delete delete entry
Press to open list Copy To Dir copy no. to directory
Time display date/time
Status indicate ne /old
Delete List
List Mode Missed
All

Menu structure for directory, redial list, extra directory
Opens directory
Edit entry
Opens extra directory Ne entry
Sho entry
Delete
Redial list Edit entry
Copy to dir.

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413
6
Quick guide

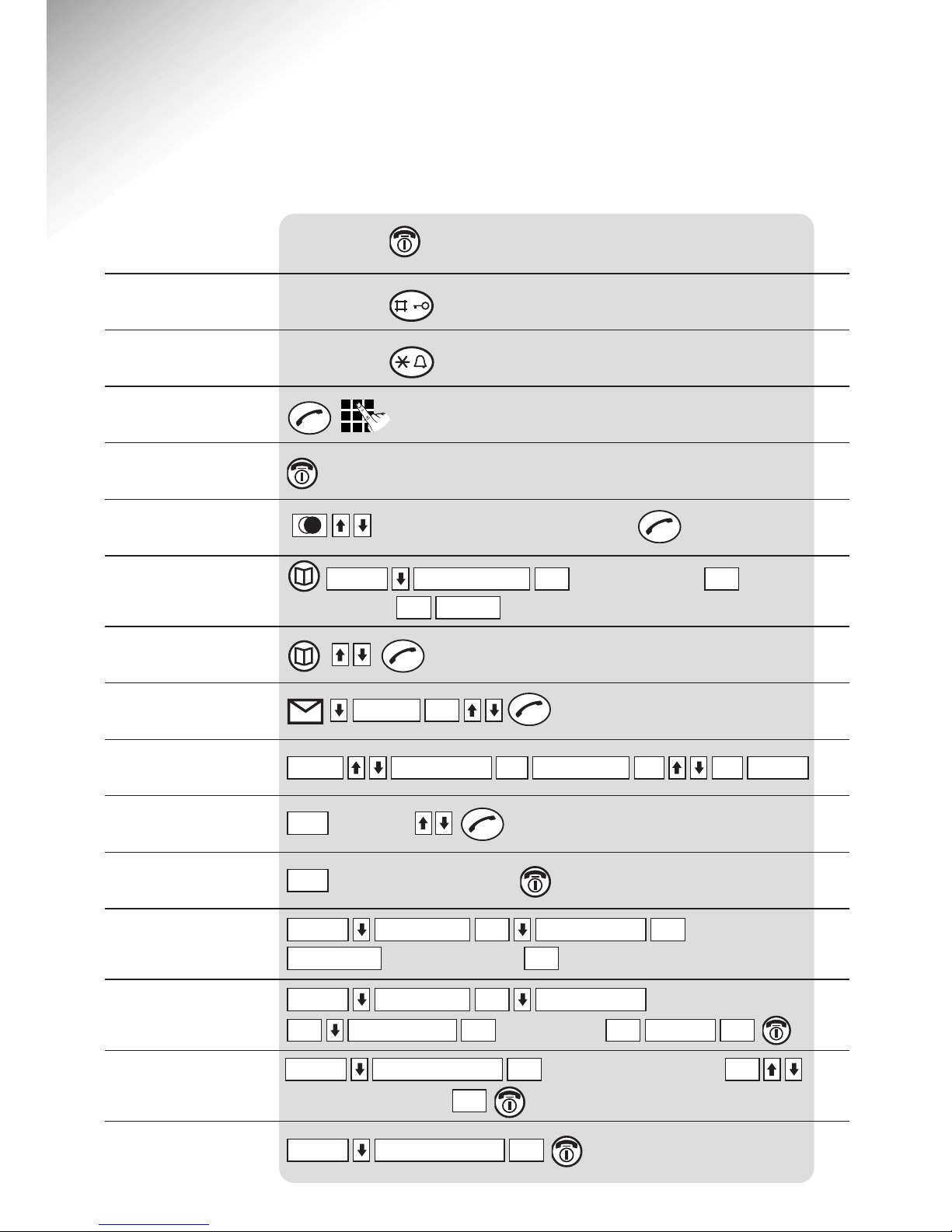

Commonly used handset functions and settings
Hold down
Hold down
Hold down
Select one of last 5 numbers
Enter number
Enter name
Call all or
Handset no. (e.g. 2)
Enter the date
Enter time
Enter the alarm time
To select AM/PM
OK ALARM CLOCK MENU
OK
OKOK ALARM CLOCK MENU
OKAM/PMOKOKCLOCK SETOK
DATE/TIMEOKBASE SETMENU
OKDATE SET
OKDATE/TIMEOKBASE SETMENU
INT
INT
SAVEDOKOKH/SET VOLOKAUDIO SETMENU
OKCALLS
SAVEDOK
OKOKNEW ENTRYMENU
S itch handset on/off
S itch keyguard on/off
S itch handset
ringer on/off
Make an external call
To end a call
Redial a number
To store a name and
number in the directory
Dial from the directory
Dial from the Calls list
Handset earpiece volume
Make internal call
Transfer call to handset
Set date
Set time
Set the alarm
Cancel the alarm
15
33
31
15
15
19
16
17
25
32
20
21
13
13
22
23
Page
no.

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413
7
Quick guide to handset
display icons
Redial, lists up to the last 5 dialled nu ber.
Flashes to indicate new essages (if a ailbox service is used) or issed calls.
For calling other handsets.
Opens the enu.
Shows the status of the handset battery.
Scroll through the enu.
Confir s the function displayed.
Scroll left and right when entering nu bers or essages.
Deletes nu bers/characters (fro left to right).
Do not disturb/Ringer off.
Handset locked.
Displayed when the Alar clock is set.
Shows the nu ber of the handset and is displayed in top left hand corner.
eg.
Helpline
If you experience any difficulties with your Diverse 4010 Classic, please call the
BT Diverse Helpline on 08457 908 070.

Diverse 4010 Classic ~ Issue 2 ~ 6th Edition ~ 1st March ’02 ~ 4413
8
Introduction
Unpacking your
Diverse 4010 Classic
If anything is missing, please contact
your place of purchase immediately.
One Diverse 4010
Classic base station
One Diverse 4000
Classic handset
One power supply
for the base station
One telephone
line cord
Two AA rechargeable
batteries
One belt clip
Battery
compartment cover
For guarantee purposes proof of
purchase is required so please keep
your receipt.
Enter your base station PIN code here:
For more information on your base PIN
codes see page 34.
For your records
Date of purchase:
Place of purchase:
INTRODUCTION
1
4
9
WXYZ
7
PQRS
8
TUV
GHI
3
DEF
5
JKL
2
ABC
6
MNO
0
R

Helpline
If you experience any difficulties
with your Diverse 4010 Classic,
please call the BT Diverse Helpline
on 08457 908 070.
