BTEK D70ES User manual

D70ES Quick Start Guide
1. Unpacking and install
Take the D70ES terminal, quick start guide, sealing screws, and
sense shorting plug out of the packaging.

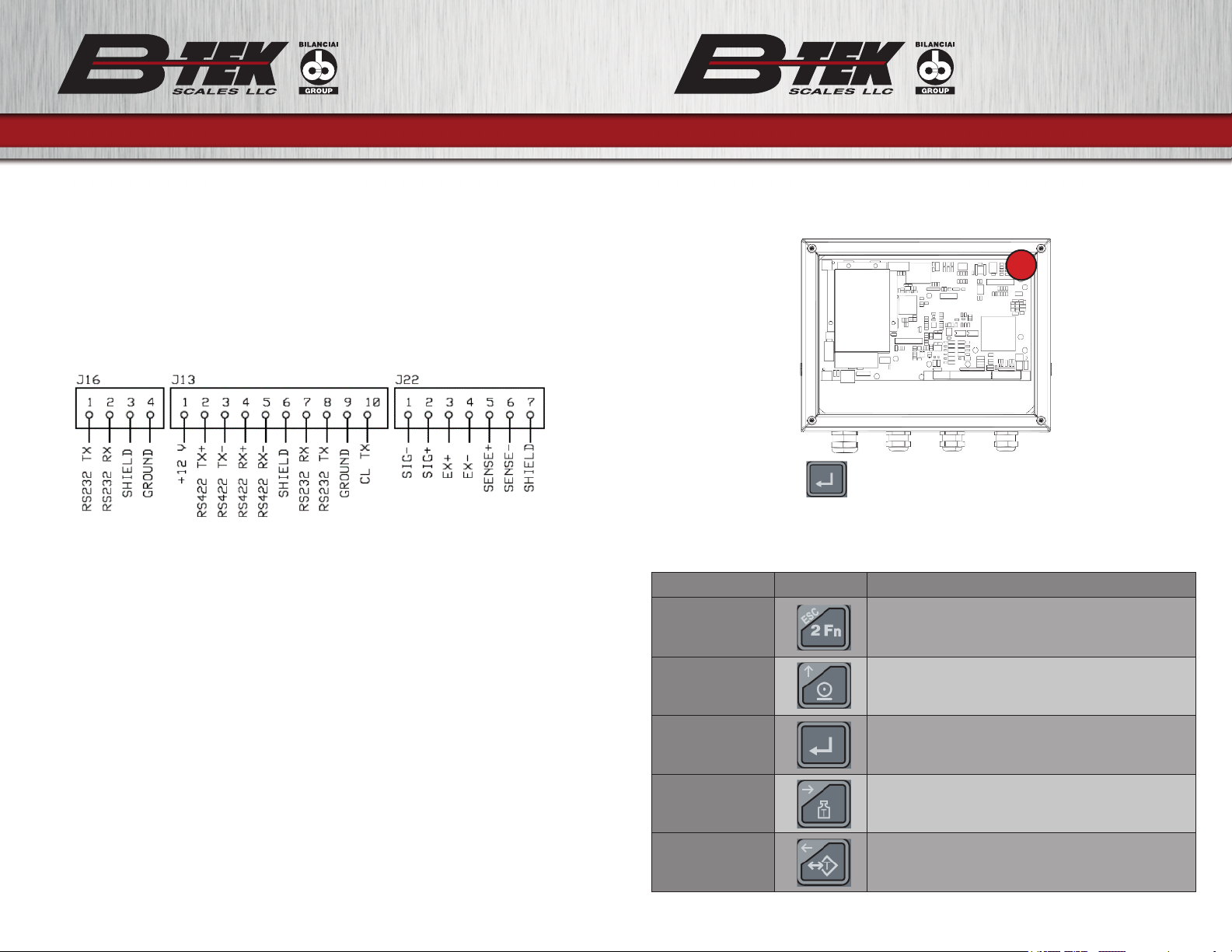

2. Wiring of analog load cells and serial ports
Diagram shows terminal strip wiring to connect the scale, 4 wire
(local sense) install the jumper plug wires oriented over the Ex &
SEN (the plug will have the two open positions on the left) 6 wire
(Remote Sense) remove the jumper, as well as com ports wiring.
Com1 Default - TM-295 Printer, you must use TX, RX, and GND.
Message "Prn.Off" will display if dip switch 3 on printer is off
Com 2 Default - Continuous B-TEK String - RS-232
3. Turn the indicator on using the power button
If D70ES ask for time and date (Appears "SEt.tiN" on 7 segment
display) you can key in HH:MM:SS and press enter to except.
4. To enter parameters - Click for Setup Video
Press the calibration button in the upper right corner of the main board
or hold Enter Key while turning on the indicator until “SETUP”
appears. (This will not let you modify scale conguration)
Full manual can be found at www.b-tek.com
CAL
Key functions while in parameters
Function Key Operation
2 FN / ESC Parameter down for header and sub
parameter selections
Print Up for header and sub parameter selections
Enter Enter and advance to the next sub parameter
Keyed Tare Display values while in sub parameters
Auto Tare Exit or back out of sub parameters
B-TEK Scales, LLC
800.266.8900 • Fax: [phone]
Monday - Friday 7:00 AM - 5:00 PM
www.B-TEK.com • [email protected]
D70ES Quick Start Guide
COM 1 COM 2 SCALE

D70ES Quick Start Guide
5. Menu Structure - Click for Menu Tree Link
Step Display Press
key Description
0Press “Cal” Button to enter setup
mode
1 Start calibration procedure
2 Select zero sampling
3 For a second, then current weight
on display the 0
 Sample dead load; wait for stability
before pressing key
4 Press Tare to enter span weight
sampling
5 For a second, then sampling
weight on display
 Enter a new SPAN weight value
using the numeric keypad.
6 Load the scale and press enter
twice to accept the value
7 Press FN key or “Cal” button to
save the calibration
6. Span Calibration - Click Calibration Video Link
D70ES Quick Start Guide
For Example Truck Inbound / Outbound - Click Here
