TECHNICAL SHEETS
Dimensional data
Description
2 WIRE handsfree handset for wall mounted installation.
It’s tted with keys for: EP activation/cycling, door lock release, staircase light switching
on and 4 programmable keys, which operating mode is set through the conguration.
Specic audible and visual signals mean that it is also suitable for use by disabled people.
Fixing bracket supplied.
Technical data
Power supply from SCS BUS: 18 – 27 Vdc
Stand by absorption: 5 mA
Max. operating absorption: 55 mA
Operating temperature: 5 - 40°C
Legend
1- Call signalling LED
2- Loudspeaker
3- Staircase light key
4- Loudspeaker volume adjustment
5- Connection key+ LED
6- Microphone
7- Door lock key + LED
8- Bell volume adjustment and exclusion + LED
9- EP Activation/cycling
10 - 4 programmable keys (through conguration)
11 - Clamps for the connection to the 2 WIRE BUS
12 - Line termination ON/OFF micro-switch
13 - Congurator socket
14 - Clamps for the connection of the Floor call auxiliary services and extra bell
Audio
POLYX
Front
Rear view

2
BT00641-a
344082
-EN
TECHNICAL SHEETS
N - handset number
Assigns to each handset an identication number within the system. The handsets
must be congured in progressive order. Handsets with parallel connection (max 3 are
allowed inside apartments without item 346850) must be congured using the same
N congurator.
P - entrance panel association
The P congurator identies the associated EP, or the rst entrance panel on which the
audio is activated when the ( ) key is pressed, as well as which door lock is activated
when the key is pressed while the handset is idle.
M - Operating mode of the keys
In addition to the door lock opening key and the staircase light key ( ), the
handset also has 4 programmable keys ( - - - ).
These keys may be associated to dierent operating modes (e.g. activation of external
actuators, intercom, activation of additional EPs, etc., based on the type of congurator
connected to M).

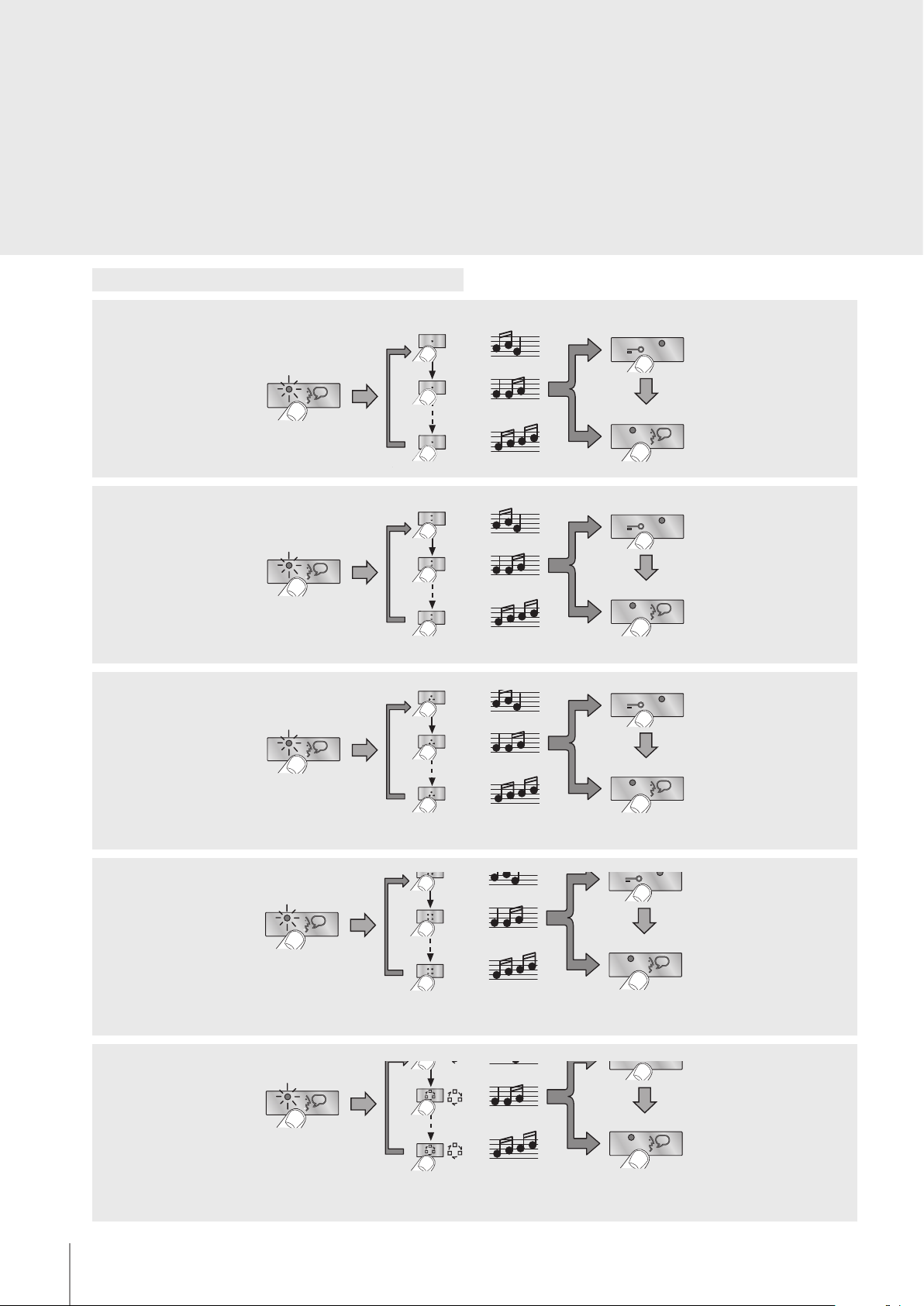

Thehandsetoers the possibility toselect among16 types of bells with pre-programmed
ringtones, which can be associated to the following type of calls:
- Calls from the entrance panel (congured with S=0 - S=4)
- Calls from the entrance panel (congured with S=0 - S=5)
- Intercom call
- Floor call
(See the bell programming table in the following pages)
Conguration Congurator in P key ( ) function
0-9 Entrance panel audio activation
(congured with P=0-9)
Congurator in P key function
0-9 Opening of the EP door lock
(congured with P=0-9)

3
344082
BT00641-a-EN
TECHNICAL SHEETS
Below are the various operating modes that can be assigned to the 4 programmable keys:
Conguration
MODE KEY FUNCTION NOTES
MOD =
1Intercom on itself, it sends the call to all handsets with the same address.
2EP activation (congured with P+1), directly, without call, or activation of the
actuator, item 346200 (congured with P+1 and MOD=9)
3
EP door lock release (congured with P+1), directly, without call, or activation of
the actuator, item 346200 (congured with P+1 and MOD=5), or activation of door
lock actuators 346230-346260 (congured with P+1)
4
EP door lock release (congured with P+2), directly, without call, or activation of the
actuator, item 346200 (congured with P+2 and MOD=5), or activation of door lock
actuators 346230-346260 (congured with P+2)
1
MOD =
1Intercom on itself, it sends the call to all handsets with the same address.
2Intercom inside the apartment, in systems with apartment interface item 346850,
or intercom among apartments without apartment interface. 2
N=1N=2
2
N=2N=3
2
N=3N=2
3EP activation (congured with P+1), directly, without call, or activation of the
actuator, item 346200 (congured with P+1 and MOD=9)
4
EP door lock release (congured with P+1), directly, without call, or activation of
the actuator, item 346200 (congured with P+1 and MOD=5), or activation of door
lock actuators 346230-346260 (congured with P+1)
2
MOD =
1Intercom inside the apartment, in systems with apartment interface item 346850,
or intercom among apartments without apartment interface. 1
N=1N=3
1
N=2N=1
1
N=3N=1
2Intercom inside the apartment, in systems with apartment interface item 346850,
or intercom among apartments without apartment interface. 2
N=1N=2
2
N=2N=3
2
N=3N=2
3
EP door lock release (congured with P+1), directly, without call, or activation of
the actuator, item 346200 (congured with P+1 and MOD=5), or activation of door
lock actuators 346230-346260 (congured with P+1)
4
EP door lock release (congured with P+2), directly, without call, or activation of
the actuator, item 346200 (congured with P+2 and MOD=5), or activation of door
lock actuators 346230-346260 (congured with P+2)

4
BT00641-a
344082
-EN
TECHNICAL SHEETS
MODE KEY FUNCTION NOTES
3
MOD =
1Intercom inside the apartment, in systems with apartment interface item 346850,
or intercom among apartments without apartment interface. 1
N=1N=5
1
N=2N=1
1
N=3N=1
1
N=4N=1
1
N=5N=1
2Intercom inside the apartment, in systems with apartment interface item 346850,
or intercom among apartments without apartment interface. 2
N=1N=2
2
N=2N=5
2
N=3N=2
2
N=4N=2
2
N=5N=2
3Intercom inside the apartment, in systems with apartment interface item 346850,
or intercom among apartments without apartment interface.
3
N
=
N1
=
3
3
N=2N=3
3
N=3N=5
3
N=4N=3
3
N=5N=3
4Intercom inside the apartment, in systems with apartment interface item 346850,
or intercom among apartments without apartment interface. 4
N=1N=4
4
N=2N=4
4
N=3N=4
4
N=4N=5
4
N=
5N
=4
4
MOD = 1EP activation (congured with P+1), directly, without call, or activation of the
actuator, item 346200 (congured with P+1 and MOD=9)
2Intercom inside the apartment, in systems with apartment interface item 346850,
or intercom among apartments without apartment interface. 2
N=1N=2
2
N=2N=1
3
EP door lock release (congured with P+1), directly, without call, or activation of
the actuator, item 346200 (congured with P+1 and MOD=5), or activation of door
lock actuators 346230-346260 (congured with P+1)
4
EP door lock release (congured with P+2), directly, without call, or activation of
the actuator, item 346200 (congured with P+2 and MOD=5), or activation of door
lock actuators 346230-346260 (congured with P+2)
5
MOD =
1
EP door lock release (congured with P+1), directly, without call, or activation of
the actuator, item 346200 (congured with P+1 and MOD=5), or activation of door
lock actuators 346230-346260 (congured with P+1)
2
EP door lock release (congured with P+2), directly, without call, or activation of
the actuator, item 346200 (congured with P+2 and MOD=5), or activation of door
lock actuators 346230-346260 (congured with P+2)
3
EP door lock release (congured with P+3), directly, without call, or activation of
the actuator, item 346200 (congured with P+3 and MOD=5), or activation of door
lock actuators 346230-346260 (congured with P+3)
4
EP door lock release (congured with P+4), directly, without call, or activation of
the actuator, item 346200 (congured with P+4 and MOD=5), or activation of door
lock actuators 346230-346260 (congured with P+4)

5
344082
BT00641-a-EN
TECHNICAL SHEETS
MODE KEY FUNCTION NOTES
6
MOD = 1Activation of the scenario saved in the scenario module (SCENARIO 1)
2Activation of the scenario saved in the scenario module (SCENARIO 2)
3
EP door lock release (congured with P+1), directly, without call, or activation of
the actuator, item 346200 (congured with P+1 and MOD=5), or activation of door
lock actuators 346230-346260 (congured with P+1)
4
EP door lock release (congured with P+2), directly, without call, or activation of
the actuator, item 346200 (congured with P+2 and MOD=5), or activation of door
lock actuators 346230-346260 (congured with P+2)
7
MOD =
1Intercom inside the apartment, in systems with apartment interface item 346850,
or intercom among apartments without apartment interface. 1
N=1N=3
1
N=2N=1
1
N=
3N
=1
2Intercom inside the apartment, in systems with apartment interface item 346850,
or intercom among apartments without apartment interface. 2
N=1N=2
2
N=2N=3
2
N=3N=2
3Activation of the scenario saved in the scenario module (SCENARIO 1)
4Activation of the scenario saved in the scenario module (SCENARIO 2)
8
MOD = 1Activation of the scenario saved in the scenario module (SCENARIO 1)
2Activation of the scenario saved in the scenario module (SCENARIO 2)
3Activation of the scenario saved in the scenario module (SCENARIO 3)
4Activation of the scenario saved in the scenario module (SCENARIO 4)
1
MOD = 1General Intercom, sends a call to all the handsets of the system.
2EP activation (congured with P+1), directly, without call, or activation of the
actuator, item 346200 (congured with P+1 and MOD=9)
3
EP door lock release (congured with P+1), directly, without call, or activation of
the actuator, item 346200 (congured with P+1 and MOD=5), or activation of door
lock actuators 346230-346260 (congured with P+1)
4
EP door lock release (congured with P+2), directly, without call, or activation of
the actuator, item 346200 (congured with P+2 and MOD=5), or activation of door
lock actuators 346230-346260 (congured with P+2)
1 2
MOD =
1Intercom between apartments, in systems with apartment interface, item 346850
1
N=1
2Intercom between apartments, in systems with apartment interface, item 346850
2
N=2
3
EP door lock release (congured with P+1), directly, without call, or activation of
the actuator, item 346200 (congured with P+1 and MOD=5), or activation of door
lock actuators 346230-346260 (congured with P+1)
4
EP door lock release (congured with P+2), directly, without call, or activation of
the actuator, item 346200 (congured with P+2 and MOD=5), or activation of door
lock actuators 346230-346260 (congured with P+2)

6
BT00641-a
344082
-EN
TECHNICAL SHEETS
MODE KEY FUNCTION NOTES
1 3
MOD =
1Intercom between apartments, in systems with apartment interface, item 346850
1
N=1
2Intercom between apartments, in systems with apartment interface, item 346850
2
N=2
3Intercom between apartments, in systems with apartment interface, item 346850
3
N=3
4Intercom between apartments, in systems with apartment interface, item 346850
4
N=4
1 6
MOD = 1Activation of the scenario saved in the scenario module (SCENARIO 1)
2Activation of the scenario saved in the scenario module (SCENARIO 2)
3General Intercom, sends a call to all the handsets of the system.
4
EP door lock release (congured with P+1), directly, without call, or activation of
the actuator, item 346200 (congured with P+1 and MOD=5), or activation of door
lock actuators 346230-346260 (congured with P+1)

7
344082
BT00641-a-EN
TECHNICAL SHEETS
Conguration
A B C D E
0 0
+
20 = B
40 = C
60 = D
80 = E
20 40 60 80
1 0 30 50 70 90
0 1 21 41 61 81
0 2 22 42 62 82
1 2 32 52 72 92
0 3 23 43 63 83
1 3 33 53 73 93
0 4 24 44 64 84
0 5 25 45 65 85
0 6 26 46 66 86
1 6 36 56 76 96
0 7 27 47 67 87
0 8 28 48 68 88
AConguration selected for the operation of the keys (see previous pages)
BConguration selected for the operation of the keys + OFFICE function
CConguration selected for the operation of the keys + PAGING function
DConguration selected for the operation of the keys + HANDSFREE function (Can be activated only on a single device for each unit system)
EConguration selected for the operation of the keys, OFFICE and PAGING function

8
BT00641-a
344082
2
1
3
CLAK
>3s
Led ON
Led ON
>3s
BEEP
BEEP
BEEP
EXIT
EXIT
>3s
Led ON
>3s
BEEP
BEEP
BEEP
EXIT
EXIT
>3s
Led ON
Led ON
>3s
BEEP
BEEP
BEEP
EXIT
EXIT
>3s
Led ON
>3s
BEEP
BEEP
BEEP
EXIT
EXIT
-EN
TECHNICAL SHEETS
OFFICE FUNCTION DETAIL
With the function active, when a call is received from
the entrance panel, the video handset rings and the
associated door lock is automatically released, without
the need for pressing the door lock release key on the
handset.
To ENABLE the function
To DISABLE the function
WARNING: the“OFFICE”function cannot be activated together with the“DOOR STATUS”function.

9
344082
BT00641-a
>3s
>3s
BEEP
EXIT
EXIT
BEEP
BEEP
>3s
>3s
BEEP EXIT
EXIT
BEEP
BEEP
BEEP
>3s
BEEP
BEEP
>3s
>3s
>3s
BEEP
EXIT
EXIT
BEEP
BEEP
>3s
>3s
BEEP EXIT
EXIT
BEEP
BEEP
BEEP
>3s
BEEP
BEEP
>3s
-EN
TECHNICAL SHEETS
DOOR STATUS function PUSH TO TALK function
PAGING function
HANDSFREE function
This function noties the status of the door lock. If open, the “door lock LED”ashes, if
closed, the LED stays o.
NOTA: è attivabile solo se l’impianto lo prevede; NON è attivabile contemporaneamente
alla OFFICE function.
Enable/disable key sound
In the base conguration, when a key is pressed, a beep is emitted. This function may be
disabled/enabled with the following procedure:
If the entrance panel is in a particularly noisy position, during the conversation it will
be possible to enable the “PUSH TO TALK” function, which will provide a better quality
of communication.
To enable the PUSH TO TALK function during the conversation proceed as follows:
- Press the Connection key for at least 2 seconds, to enable the communication with the
entrance panel.
The LED stays green.
-
Release the key to listen to the entrance panel. The LED turns red.
- To end the connection press the Connection key briey. The LED turns o.
This function can be used to send voice messages using the microphone of the device
through the speakers of the sound system. To activate briey press the ”Connection” key
while the device is in the idle condition.The activation of the function is conrmed by the
green LED coming on.To DISABLE the function press the ”Connection”key again.
The HANDSFREE function automatically activates the microphone and the loudspeaker
when a call is received, without the need for pressing the Connection key to answer (the
connection is automatically established when the call is received).
To ENABLE the function
To ENABLE the function
To DISABLE the function
To DISABLE the function

10
BT00641-a
344082
EXIT
OK
1
17
2
>3s
2
2
2
EXIT
OK
1
17
2
>3s
1
1
1
EXIT
OK
1
17
2
>3s
3
3
3
EXIT
OK
1
16
2
>3s
4
4
4
EXIT
OK
1
17
2
>3s
EXIT
OK
1
17
2
>3s
2
2
2
EXIT
OK
1
17
2
>3s
1
1
1
EXIT
OK
1
16
2
>3s
3
3
3
EXIT
OK
1
17
2
>3s
4
4
4
EXIT
OK
1
17
2
>3s
EXIT
OK
1
16
2
>3s
2
2
2
EXIT
OK
1
17
2
>3s
1
1
1
EXIT
OK
1
17
2
>3s
3
3
3
EXIT
OK
1
17
2
>3s
4
4
4
EXIT
OK
1
17
2
>3s
EXIT
OK
1
17
2
>3s
2
2
2
EXIT
OK
1
16
2
>3s
1
1
1
EXIT
OK
1
17
2
>3s
3
3
3
EXIT
OK
1
17
2
>3s
4
4
4
EXIT
OK
1
17
2
>3s
EXIT
OK
1
17
2
>3s
2
2
2
EXIT
OK
1
17
2
>3s
1
1
1
EXIT
OK
1
17
2
>3s
3
3
3
EXIT
OK
1
17
2
>3s
4
4
4
EXIT
OK
1
16
2
>3s
EXIT
OK
1
17
2
>3s
2
2
2
EXIT
OK
1
17
2
>3s
1
1
1
EXIT
OK
1
17
2
>3s
3
3
3
EXIT
OK
1
16
2
>3s
4
4
4
EXIT
OK
1
17
2
>3s
EXIT
OK
1
17
2
>3s
2
2
2
EXIT
OK
1
17
2
>3s
1
1
1
EXIT
OK
1
16
2
>3s
3
3
3
EXIT
OK
1
17
2
>3s
4
4
4
EXIT
OK
1
17
2
>3s
EXIT
OK
1
16
2
>3s
2
2
2
EXIT
OK
1
17
2
>3s
1
1
1
EXIT
OK
1
17
2
>3s
3
3
3
EXIT
OK
1
17
2
>3s
4
4
4
EXIT
OK
1
17
2
>3s
EXIT
OK
1
17
2
>3s
2
2
2
EXIT
OK
1
16
2
>3s
1
1
1
EXIT
OK
1
17
2
>3s
3
3
3
EXIT
OK
1
17
2
>3s
4
4
4
EXIT
OK
1
17
2
>3s
EXIT
OK
1
17
2
>3s
2
2
2
EXIT
OK
1
17
2
>3s
1
1
1
EXIT
OK
1
17
2
>3s
3
3
3
EXIT
OK
1
17
2
>3s
4
4
4
EXIT
OK
1
16
2
>3s
EXIT
OK
1
17
2
>3s
2
2
2
EXIT
OK
1
17
2
>3s
1
1
1
EXIT
OK
1
17
2
>3s
3
3
3
EXIT
OK
1
16
2
>3s
4
4
4
EXIT
OK
1
17
2
>3s
EXIT
OK
1
17
2
>3s
2
2
2
EXIT
OK
1
17
2
>3s
1
1
1
EXIT
OK
1
16
2
>3s
3
3
3
EXIT
OK
1
17
2
>3s
4
4
4
EXIT
OK
1
17
2
>3s
EXIT
OK
1
16
2
>3s
2
2
2
EXIT
OK
1
17
2
>3s
1
1
1
EXIT
OK
1
17
2
>3s
3
3
3
EXIT
OK
1
17
2
>3s
4
4
4
EXIT
OK
1
17
2
>3s
EXIT
OK
1
17
2
>3s
2
2
2
EXIT
OK
1
16
2
>3s
1
1
1
EXIT
OK
1
17
2
>3s
3
3
3
EXIT
OK
1
17
2
>3s
4
4
4
EXIT
OK
1
17
2
>3s
EXIT
OK
1
17
2
>3s
2
2
2
EXIT
OK
1
17
2
>3s
1
1
1
EXIT
OK
1
17
2
>3s
3
3
3
EXIT
OK
1
17
2
>3s
4
4
4
EXIT
OK
1
16
2
>3s
EXIT
OK
1
17
2
>3s
2
2
2
EXIT
OK
1
17
2
>3s
1
1
1
EXIT
OK
1
17
2
>3s
3
3
3
EXIT
OK
1
16
2
>3s
4
4
4
EXIT
OK
1
17
2
>3s
EXIT
OK
1
17
2
>3s
2
2
2
EXIT
OK
1
17
2
>3s
1
1
1
EXIT
OK
1
16
2
>3s
3
3
3
EXIT
OK
1
17
2
>3s
4
4
4
EXIT
OK
1
17
2
>3s
EXIT
OK
1
16
2
>3s
2
2
2
EXIT
OK
1
17
2
>3s
1
1
1
EXIT
OK
1
17
2
>3s
3
3
3
EXIT
OK
1
17
2
>3s
4
4
4
EXIT
OK
1
17
2
>3s
EXIT
OK
1
17
2
>3s
2
2
2
EXIT
OK
1
16
2
>3s
1
1
1
EXIT
OK
1
17
2
>3s
3
3
3
EXIT
OK
1
17
2
>3s
4
4
4
EXIT
OK
1
17
2
>3s
EXIT
OK
1
17
2
>3s
2
2
2
EXIT
OK
1
17
2
>3s
1
1
1
EXIT
OK
1
17
2
>3s
3
3
3
EXIT
OK
1
17
2
>3s
4
4
4
EXIT
OK
1
16
2
>3s
EXIT
OK
1
17
2
>3s
2
2
2
EXIT
OK
1
17
2
>3s
1
1
1
EXIT
OK
1
17
2
>3s
3
3
3
EXIT
OK
1
16
2
>3s
4
4
4
EXIT
OK
1
17
2
>3s
EXIT
OK
1
17
2
>3s
2
2
2
EXIT
OK
1
17
2
>3s
1
1
1
EXIT
OK
1
16
2
>3s
3
3
3
EXIT
OK
1
17
2
>3s
4
4
4
EXIT
OK
1
17
2
>3s
EXIT
OK
1
16
2
>3s
2
2
2
EXIT
OK
1
17
2
>3s
1
1
1
EXIT
OK
1
17
2
>3s
3
3
3
EXIT
OK
1
17
2
>3s
4
4
4
EXIT
OK
1
17
2
>3s
EXIT
OK
1
17
2
>3s
2
2
2
EXIT
OK
1
16
2
>3s
1
1
1
EXIT
OK
1
17
2
>3s
3
3
3
EXIT
OK
1
17
2
>3s
4
4
4
EXIT
OK
1
17
2
>3s
EXIT
OK
1
17
2
>3s
2
2
2
EXIT
OK
1
17
2
>3s
1
1
1
EXIT
OK
1
17
2
>3s
3
3
3
EXIT
OK
1
17
2
>3s
4
4
4
EXIT
OK
1
16
2
>3s
-EN
TECHNICAL SHEETS
Programming of bells
Bell selection from MAIN ENTRANCE PANEL (S=0)
Bell selection from SECONDARY ENTRANCE PANEL (S=1)
INTERCOM CALL bell selection
EXTERNAL INTERCOM CALL bell selection
(only with interface item 346850)
FLOOR CALL bell selection
