Btwin LD920E User manual
LD920E
UTILISATION - USE
<140 kg
<308,64 lbs
+
25km/h
ECO 150 KM
TOUR 100 KM
TURBO 80 KM
27 KG
59.52 LBS
Use
Utilisation
Uso
Verwendung
Uso
Gebruik
Utilização
100%

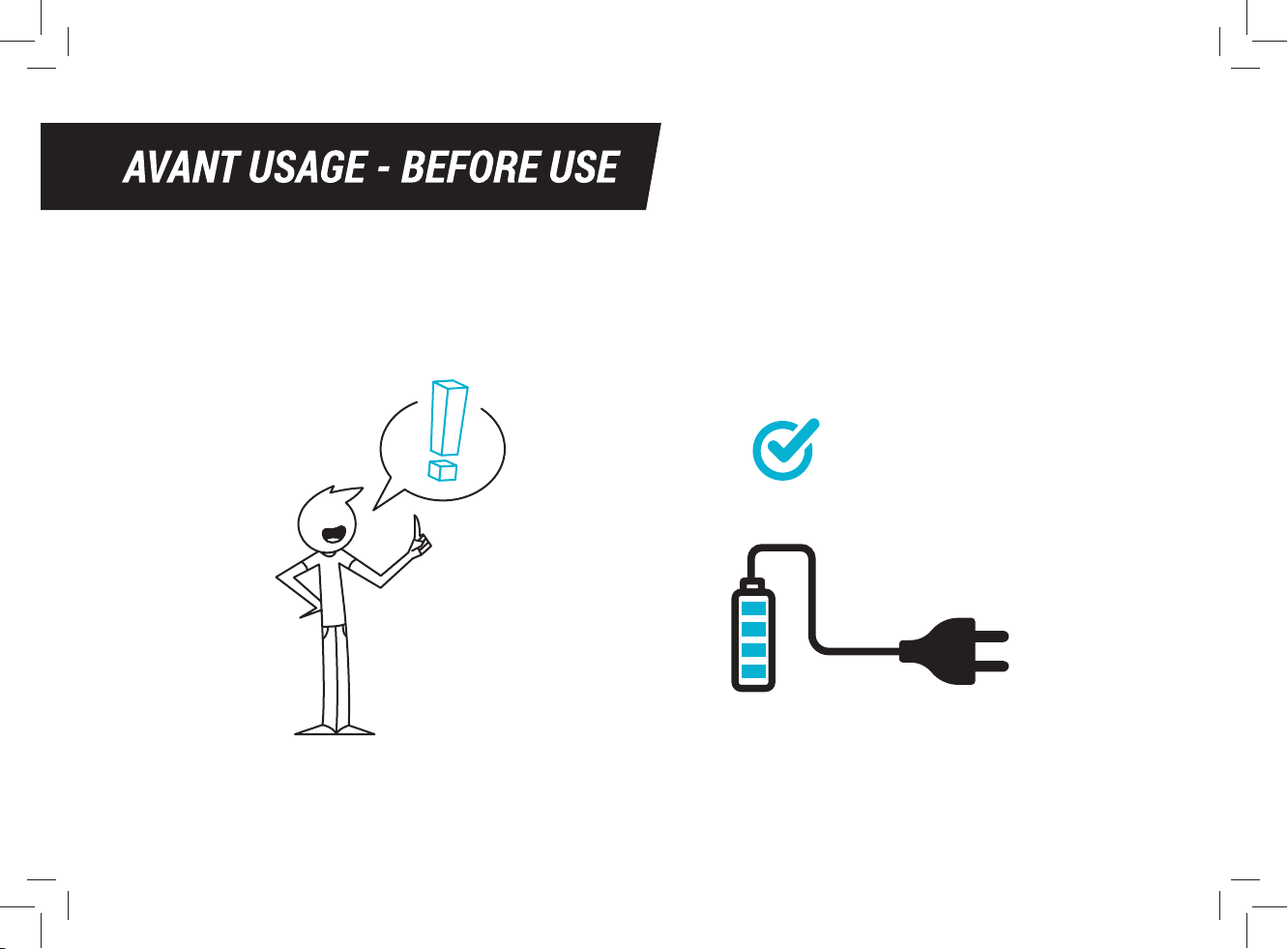

Before use
Avant usage
Antes de usar
Vor Verwendung
Prima dell'uso
Vóór gebruik
Antes da utilização

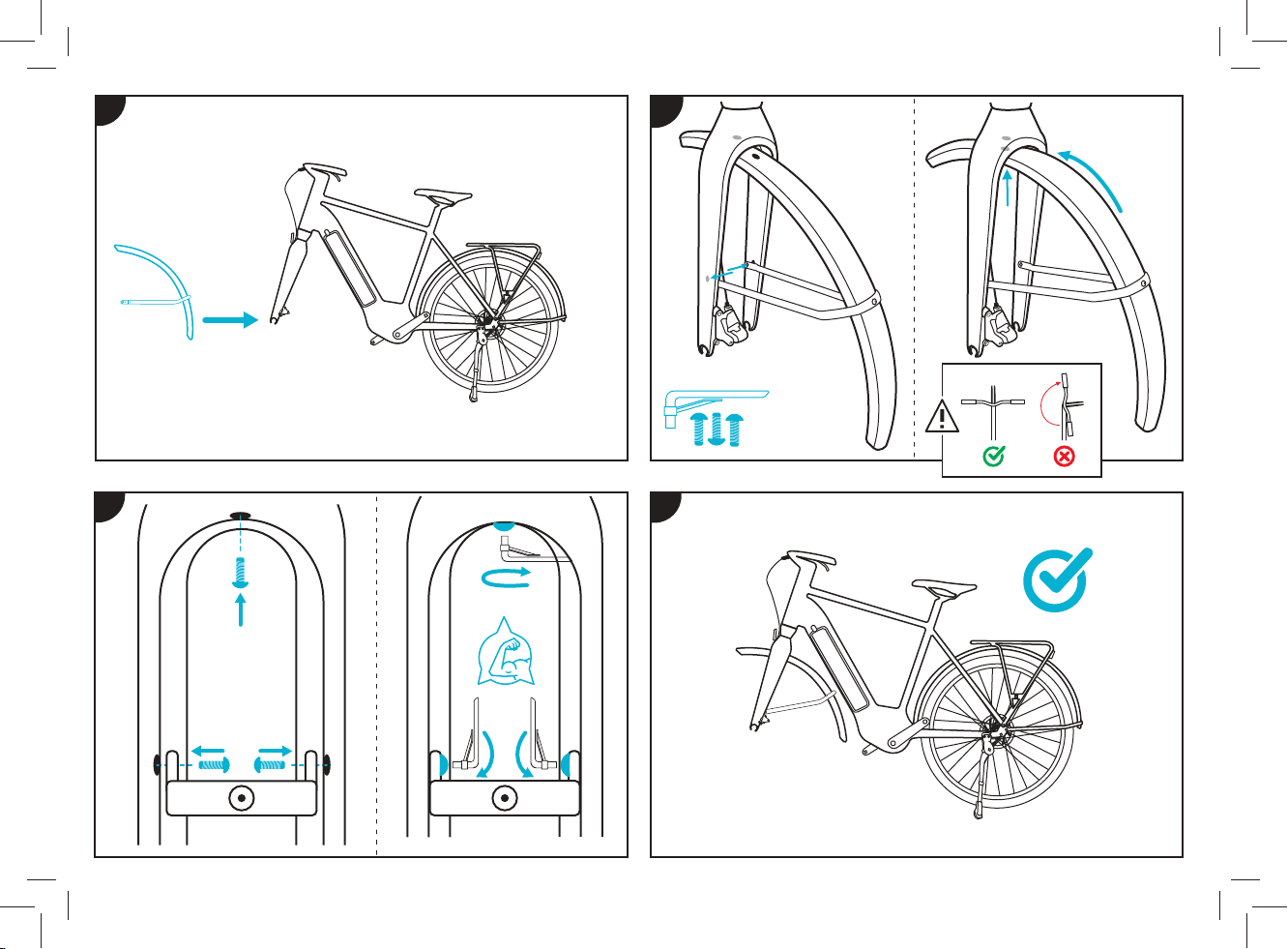

MONTAGE - ASSEMBLY
Assembly
Montage
Ensamblaje
Montage
Montaggio
Monteren
Montagem
1
2
34
5 N.m
90°
5
9
7
8
+
A B
6
910
11
MIN 3 - MAX 5,5 BAR
MIN 43- MAX 80 PSI
MIN 3 - MAX 5,5 BAR
MIN 43- MAX 80 PSI
LR
LEFT
START
DÉMARRAGE
LIGHT
ÉCLAIRAGE
3’’
Getting arted
Démarrage
Arranque
Start
Accensione
Start
Iniciação
Lighting
Eclairages
Alumbrado
Beleuchtung
Illuminazioni
Verlichting
Luzes

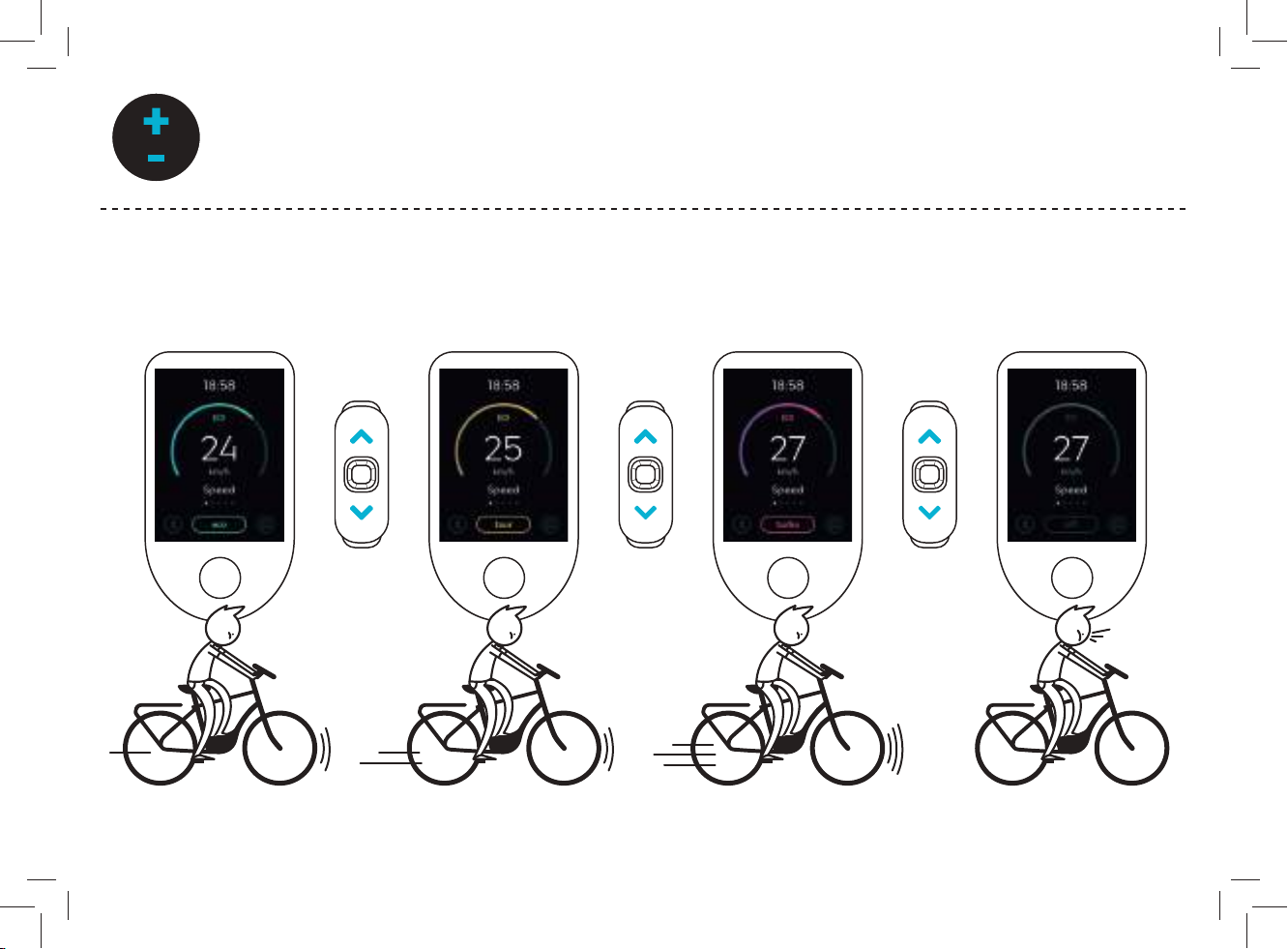

NAVIGATION ASSISTANCE MODES
NAVIGATION MODES D’ASSISTANCE
Navigation assiance modes
Navigation modes d’assiance
Navegación por los modos de
asiencia
Navigation durch die Assienzmodi
Navigazione modalità di assienza
Wisselen van
ondereuningsand
Alternar entre modos de assiência
INFORMATIONS DE SESSION
SESSION INFORMATIONS
Session information
Informations de session
Información de la sesión
Sitzungsinformationen
Informazioni sulla sessione
Sessie
informatie
Informações da sessão
PEDALING RATE
CADENCE DE PEDALAGE
Pedaling cadence
Cadence de pédalage
Cadencia de pedaleo
Trittfrequenz
Cadenza della pedalata
Trapfrequentie
Cadência
no Pedalar
BATTERY LEVEL
NIVEAU DE BATTERIE
20% 10%
Battery level
Niveau de la batterie
Nivel de carga de la batería
Batterieand
Livello batteria
Accuniveau
Nível da bateria
Dear Cuomers,
Thank you for purchasing a DECATHLON electrically-assied bike.
We invite you to read the inruction manual to get the mo out of your LD920E bike. Never forget that an electrically-assied bike is not a moped. It needs your
help to go further, faer and longer.
We sugge that you learn how to use your electrically-assied bike in an open area in order to get used to the feel of the motor kicking in and thus ensure optimum
control of your bicycle.
An electrically-assied bike is heavier than a conventional bike. The LD920E itself weights 27kg. Without power assiance, pedalling can be more dicult. You
mu always make sure you are capable of riding the entire journey without assiance, in case your battery runs at. Here is what you need to do to get the mo
out of your power-assied bike.
Your bicycle refers to category 1 of the EN 17406 andard. It is not intended for use in categories 2, 3, 4, 5 and 6 of this same andard. This bike is designed for
everyday commuting use with moderate eort in urban areas, on roads and cycle paths. It is not a mountain bike and it is not suitable for competition or jumping.
Failure to comply with the use may result in bodily injury and/or material damage to your bike as well as a reriction of the warranty conditions.
Important, this inruction manual only applies to the electrical characteriics of your bicycle.
You should refer to the user manuals common to all our bicycles that accompany this document and are
also available on our website www.decathlon.com or on reque in our DECATHLON ores.
EN
How to get the mo from your e-bike
B
A
1. You need to pedal to go further
3 - 5,5 bar
2. The bike will operate better and more eciently with
tyres inated between 3 and 5 bar.
< 3 bar
3. Under-inated tyres are more prone to punctures
A
B
A
B
+/- 20° +/- 5°
4. Cold weather reduces battery life
A
B
A
B
5. Overloading the bicycle will reduce the battery life 6. The battery mu be fully charged at lea once every
3 months
A
B
A
B
7. Battery life will drop when cycling uphill 8. It is advisable to reduce the power assiance mode
when the battery charge is low
PRODUCT DESCRIPTION
ELECTRICALLY-ASSISTED BIKE TECHNICAL FEATURES
A
BATTERY
B
CENTRAL MOTOR
C
REMOTE AND DISPLAY
GENERAL OPERATION OF THE ELECTRICAL ASSISTANCE
The power assied bike can be used with or without assiance by pressing the buttons up/down on the remote «C» and altering the modes ECO-TOUR-TURBO-OFF. The selectable ECO-TOUR-TURBO-OFF
assiance modes selectable on the remote button «C» allow you to choose a power assi level in addition to the eort provided. Power assiance will only work if you are pedalling, with a selected mode other
than OFF. Assiance cuts o when the speed is above 25km/h. In case of intensive use and in exceptional climatic conditions, assiance may be cut o to safeguard the whole syem.
The power supplied is calculated by the controller based on your pedalling and the assiance mode selected.
The central motor «B» will provide more or less power depending on the mode selected and the force applied.
Power assiance does not kick in or shuts down in the following situations:
- The speed is above 25km/h
- You’re not pedalling
- The battery «A» remaining charge is not sucient
- «OFF» is the power assiance mode selected
- When the display is switched o
A
B
C
MOTOR
Motor «B» on your power-assied bike is a «Continuous Variation transmission (CVT)»-type motor, allowing you to have high torque (65 N.m).
The CVT acts as an automatic gearing transmission.
This means you don’t need shifting gears, because the motor naturally adapts the gear according to your pedaling cadence, whatever the road conditions & prole.
The cadence can be chosen according to your riding preferences.
The A-weighted emission sound pressure level at the driver ears is less than 70 dB(A)
REMOTE AND DISPLAY
Light ON/OFF
Joyick
While riding
UP/DOWN : cadence setting +/-
LEFT/RIGHT : secondary information switch
CENTRAL : back to main screen
Within menus
UP/DOWN/LEFT/RIGHT : navigation
CENTRAL : validation
Horn
Increase assi mode
Decrease assi mode
Long press (1 second) : Switch bike ON
Short press : Menu / Back to main screen
Long press (3 seconds) : Switch bike OFF
ASSISTANCE MODES
ECO
+ 50% TOUR
+ 75%
TURBO
+100%
OFF
NO ASSISTANCE
Your bike can be paired with your smartphone. Download the Decathlon Mobility App on your smartphone and follow the instructions on the app to pair them together.
CADENCE SETTINGS HORN
You can increase or decrease the pedalling cadence pushing the joystick up and down. The
cadence can be adjusted by steps of 5 rpm from 40 to 90 rpm. The pop-up screen disappears
after 3 seconds without any move. Short press on the button of the remote to honk.
LIGHT
Short press on the button of the remote to turn the bike light on/off.
This bike is connected and is equipped with a GPS tracking system. It allows you, via the De-
cathlon Mobility application, to check the position of your bike in real time and to have a certain
amount of information concerning your journeys and the state of your bike. Additional services
are provided, such as insurance against theft. For more details, contact a Decathlon store.
MAIN INFORMATIONS DURING YOUR TRIP
Speed Battery level Range Trip distance
During your trip, you can navigate between the screens and consult the main datas : your speed, the battery capacity, the range remaining and the diance already covered.
SETTINGS
Access the menu by pressing the display button. Then, navigate through the settings with the joyick :
up/down to go up and down
left to go to the previous page
right to go to the next page
press the joyick’s top to validate your choice
You can set the language, the time, units, screen brightness and access the about section.
LOW BATTERY
20% 10%
20%
The popup shows up to warn you there is only 20% battery left.
You have to press the joyick top to remove the popup and
conrm you got the information. It will automatically deactivate
TOUR and TURBO assiance modes to switch to ECO mode.
10%
The popup shows up to warn you there is only 10% battery left.
You have to press the joyick top to remove the popup and
conrm you got the information. It will automatically deactivate
TURBO assiance mode to switch to TOUR or ECO mode.
5%
The battery level as reached a critical point. All assiance modes
are deactivated to preserve the engine variator, the lights and the
screen.
BATTERY AND CHARGER
BATTERY AND CHARGER PROPERTIES
On r use, remember to connect your battery to wake it up and recharge it. Make sure your electrical syem is working properly.
Inall the charged battery, turn on the bike by pressing the ON/OFF button, then select the desired assiance mode.
All batteries in our electric bikes use Lithium-Ion cell technology and have no memory eect. The battery can be recharged at any time. There’s no need to wait until it’s completely discharged.
Recharging the battery after each use is recommended.
You should recharge your battery at lea every 3 months even if you do not use it.
BATTERY CHARGER
48 V / 15 AH
702 WH
INPUT: 100-240 V
OUTPUT: 54,6 V 4 A
Your battery is guaranteed for 2 years or 500 charging and discharging cycles (1 cycle = 1 charge from 0% to 100% + 1 discharge from 100% to 0% or 1 cycle = 2 charges to 50%) subject to compliance with
the proper conditions of use and orage.
BATTERY & E-BIKE RANGE
The range of your ebike tour is determined by several factors: tyres pressure, external temperature, riding mode, eort on the pedals, total weight, terrain, wind conditions... Refer to page 4 to know how to
optimize your range.
RECHARGING THE BATTERY
4H30
Beginning of charge : red LED.
End of charge : green LED.
LED ashing red : problem during charging.
Contact cuomer service.
