Buffalo terastation 3000 User manual

TeraStation 3000
User Manual
www.buffalotech.com
35013005-03
2013-11

2
Contents
Chapter 1 Installation ......................................................10
Diagrams .............................................................................................10

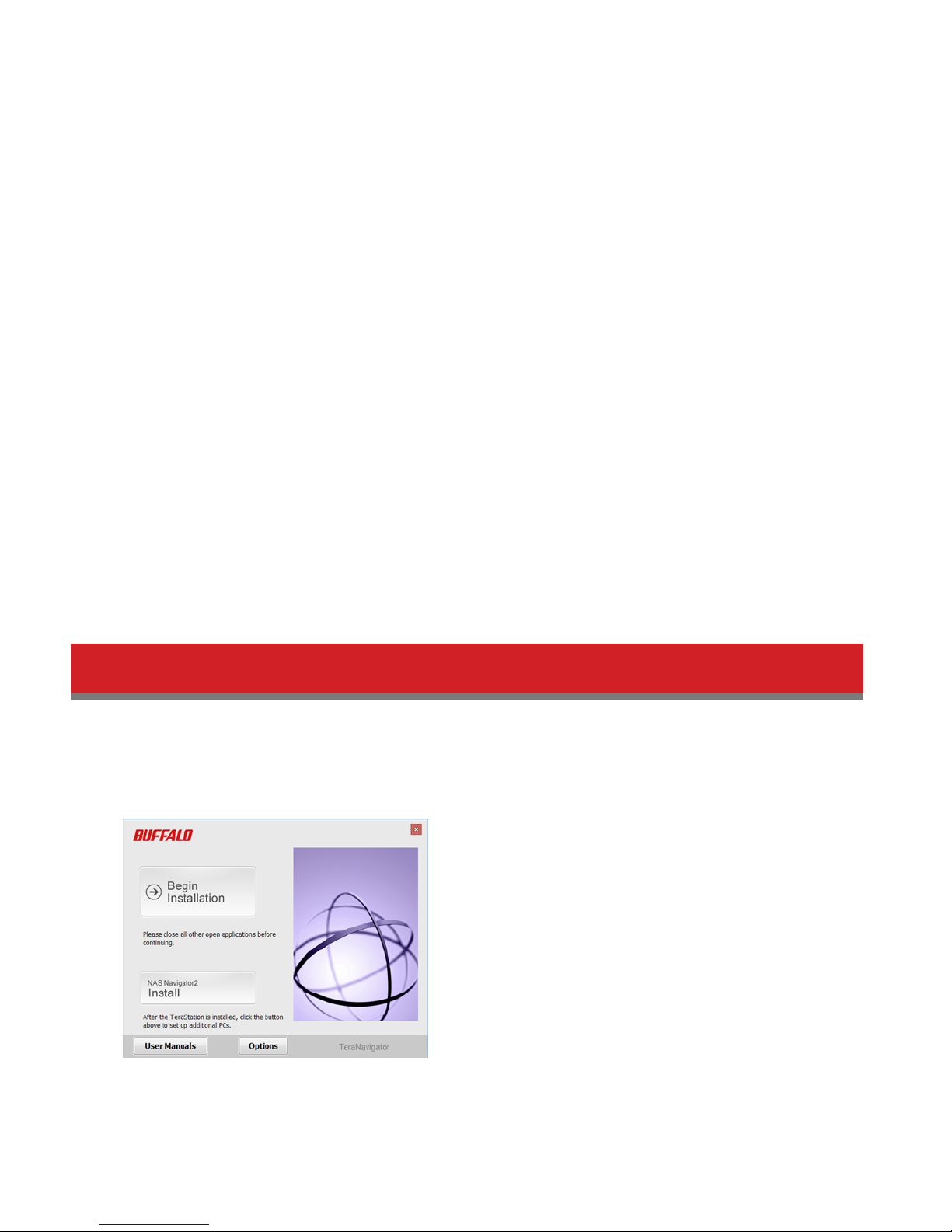

Installation ..........................................................................................12
Turning the TeraStation On and Off..................................................15
Changing the Administrator Password ............................................16
Chapter 2 Configuration .................................................18

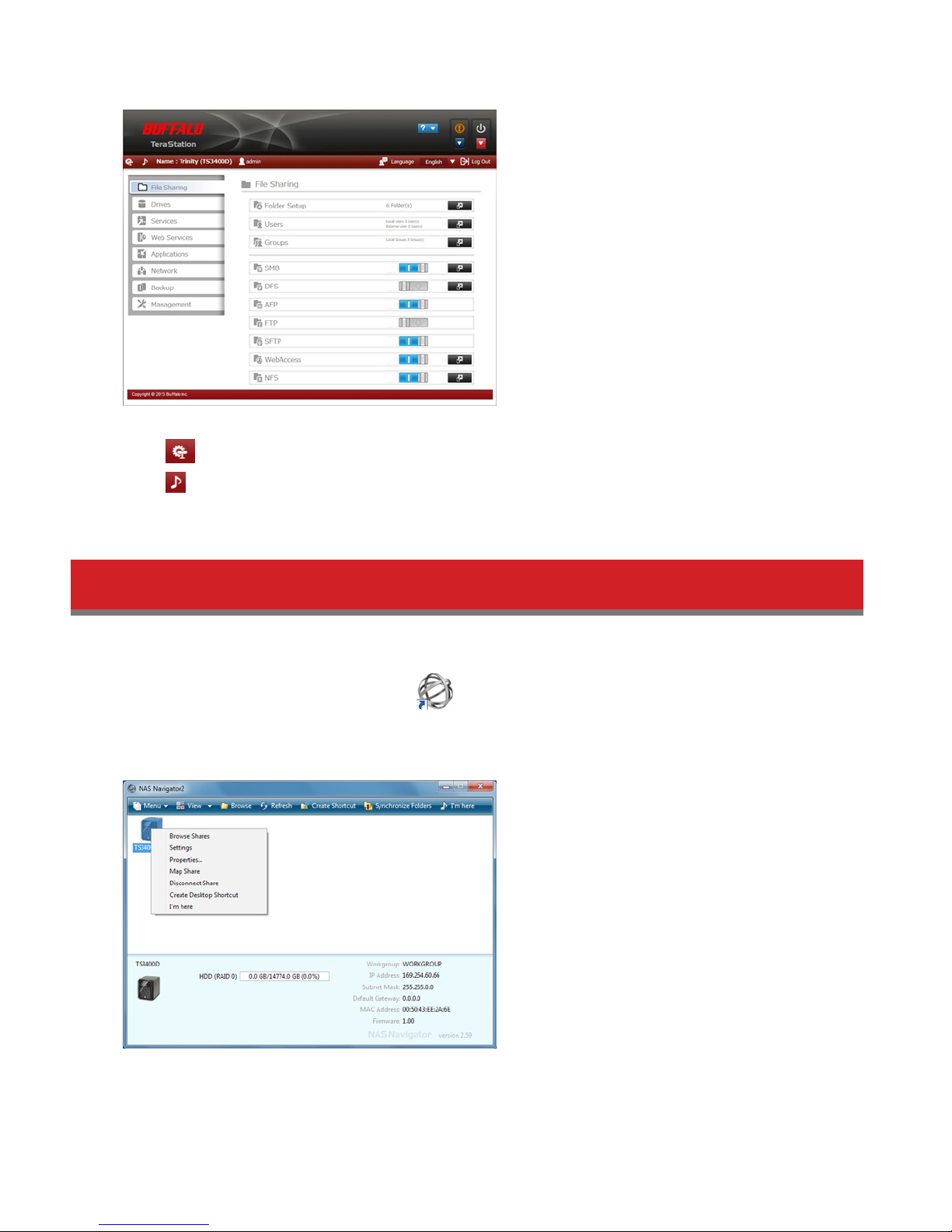

Opening Settings ...............................................................................18
Opening Easy Admin .........................................................................19
Chapter 3 Access Restrictions .........................................21
Configuring Access Restrictions on Users and Groups ...................21
Adding a Shared Folder ................................................................................21
Adding Users .................................................................................................23
Adding Groups ..............................................................................................24
Access Restrictions ........................................................................................25
Active Directory .................................................................................27
NT Domains ........................................................................................29
Delegating Authority to an External SMB Server ............................31
Chapter 4 Managing Your Storage .................................34
RAID Arrays .........................................................................................34

3
Working with RAID Arrays .................................................................35
Using JBOD ....................................................................................................35
Changing RAID Mode ...................................................................................35
Configuring a Hot Spare ...............................................................................36
RMM (RAID Mode Manager) .........................................................................37
RAID Scanning...............................................................................................39
Adding an External Hard Drive .........................................................40
Dismounting Drives ...........................................................................40
Checking Drives .................................................................................41
Formatting Drives ..............................................................................42
Encrypting Drives ...............................................................................43
Media Cartridges ................................................................................44
Erase Data on the TeraStation Completely .......................................44
Disk Quotas ........................................................................................45
Quotas for Users ............................................................................................46
Quotas for Groups ........................................................................................46
Size Limits ......................................................................................................47
Using the TeraStation as an iSCSI Device .........................................49
Introduction ..................................................................................................49
Using the iSCSI Connection Tool ..................................................................54
Creating and Expanding Volumes ...............................................................57
Disconnecting Volumes ................................................................................58
Setting Access Restrictions ..........................................................................59
Hard Drive Replacement ...................................................................61
Hard Drive Replacement Examples .............................................................62

4
Chapter 5 Backup ............................................................68
Back Up from the TeraStation ...........................................................68
Preparing a Backup Destination ..................................................................68
Configuring a Backup Job ............................................................................70
Replication ..........................................................................................73
Failover ...............................................................................................75
Ethernet Cable Connection Methods ..........................................................75
Configuring Failover .....................................................................................76
Backing Up Your Mac with Time Machine ........................................77
Copying from a USB Device ...............................................................81
Amazon S3 ..........................................................................................82
Chapter 6 Remote Access ................................................84
WebAccess ..........................................................................................84
Configuration ................................................................................................84
WebAccess Remote ............................................................................87
FTP .......................................................................................................88
Chapter 7 BitTorrent ........................................................91
Configuration .....................................................................................91
Chapter 8 Multimedia .....................................................93
DLNA ...................................................................................................93
Configuration ................................................................................................93
Playing Files ..................................................................................................95

5
Connected DLNA-compatible Devices ........................................................95
Streaming to DLNA-compatible Devices ....................................................96
Disabling Playback from Specific Devices ..................................................96
iTunes Server ......................................................................................97
Chapter 9 Surveillance Server ........................................99
Getting Started ..................................................................................99
Installing Client Tools ...................................................................................99
Connecting Devices to the Network ......................................................... 100
Enabling Surveillance Cameras ................................................................ 100
Enabling the Free License ......................................................................... 102
Registering Recording Policies ................................................................. 104
Checking Recording ................................................................................... 107
Email Error Notification ............................................................................. 108
Configuration .................................................................................. 108
Viewing Saved Video ................................................................................. 108
Export Recorded Data as a MOV Video File ............................................. 109
Viewing Video Real-time ........................................................................... 111
Moving Recorded Video Data to Another TeraStation ............................ 111
Backing Up Recorded Video to Another TeraStation .............................. 112
Automatically Delete Old Data when Space is Low ................................. 113
Changing Where Recorded Video Is Saved .............................................. 115
Client Utilities .................................................................................. 115
Camera Policies .......................................................................................... 115
Live Viewer ................................................................................................. 116
Data Service Policies .................................................................................. 117
Vault Admin ................................................................................................ 117

6
Surveillance Video Manager ..................................................................... 118
Network Activity ........................................................................................ 119
Mini Vault Stats .......................................................................................... 119
Activating Additional Licenses ...................................................... 120
When the TeraStation is Connected to the Internet ................................ 120
TeraStation Not Connected to the Internet ............................................. 122
Troubleshooting .............................................................................. 125
Chapter 10 Advanced Features ....................................126
Antivirus Software .......................................................................... 126
Licenses ...................................................................................................... 126
Activating Antivirus Scanning .................................................................. 127
Configuring Security Settings .................................................................. 128
Connecting through a Proxy Server ......................................................... 129
Updating ..................................................................................................... 129
Antivirus Scanning .................................................................................... 130
Excluding a Specific Folder from Antivirus Scanning ............................. 131
Checking the Log ....................................................................................... 132
Online Help ................................................................................................. 133
Email Notification ........................................................................... 134
Sleep Mode ...................................................................................... 134
Wake-on-LAN .................................................................................. 136
UPS (Uninterruptible Power Supply) ............................................. 137
Port Trunking ................................................................................... 138
Connecting a Printer ....................................................................... 139
Setting Up a Printer with Windows 8, Windows 7, or Windows Vista ..... 139

7
Setting Up a Printer with Windows XP ..................................................... 140
TeraSearch ....................................................................................... 141
Offline Files ...................................................................................... 142
DFS ................................................................................................... 145
Accessing from an NFS Client ......................................................... 146
Encrypting Data Transmission ....................................................... 149
Encrypting Settings Data .......................................................................... 149
Encrypting FTP Transfer Data ................................................................... 149
SSL Keys ...................................................................................................... 149
Web Server ....................................................................................... 150
MySQL Server .................................................................................. 151
SNMP ................................................................................................ 152
Saving and Applying Settings ........................................................ 152
Saving Settings .......................................................................................... 153
Applying Settings ...................................................................................... 154
Restoring Factory Defaults ............................................................. 154
Initializing the TeraStation ........................................................................ 154
Initializing from Settings .......................................................................... 154
Creating an Initialization Drive ................................................................. 155
Initializing with the USB Drive .................................................................. 155
Logs .................................................................................................. 156
Updating the Firmware ................................................................... 157
Name, Date, Time, and Language .................................................. 157
Beep Alerts ...................................................................................... 159
LCD and LEDs ................................................................................... 160

8
Jumbo Frames ................................................................................. 161

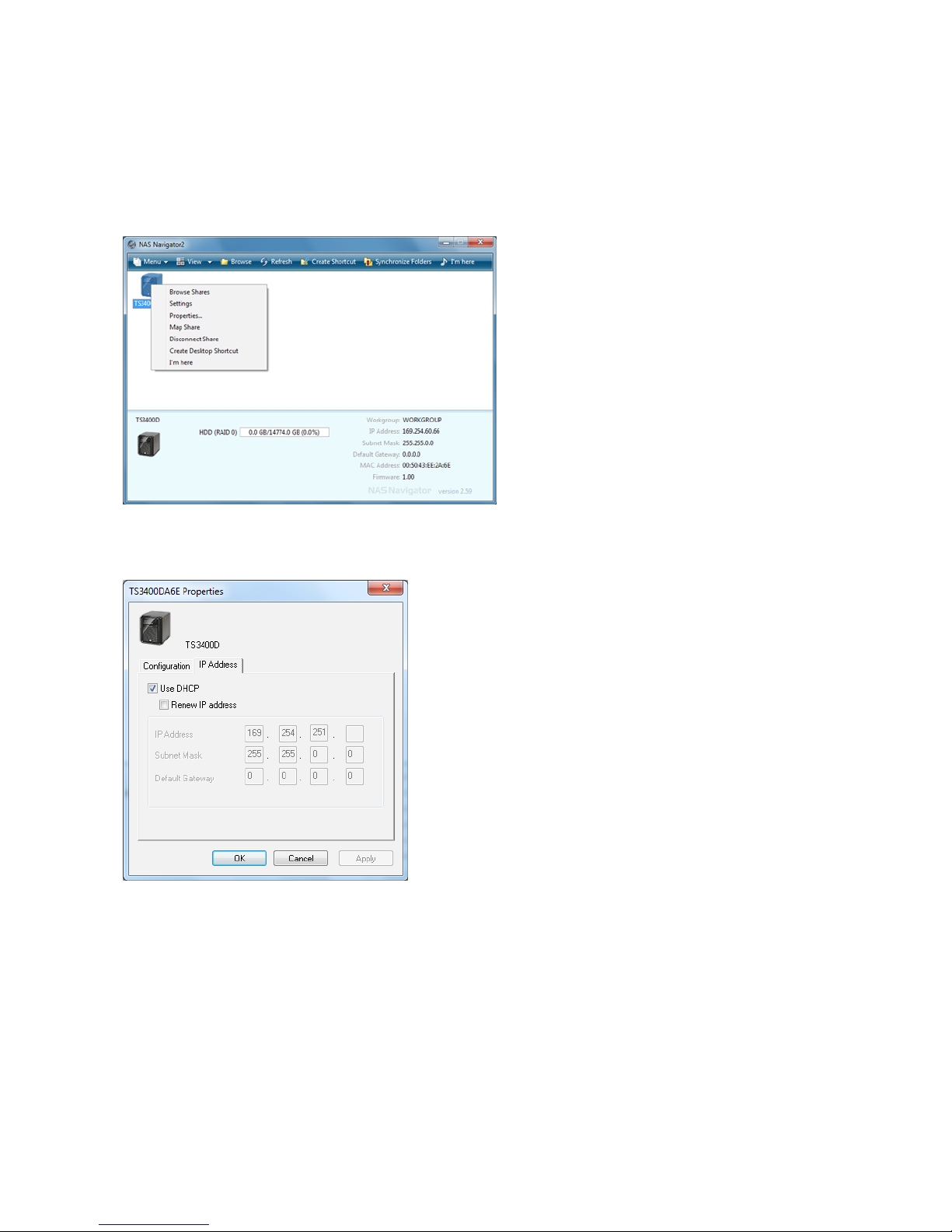

Changing the IP Address ................................................................ 162
Chapter 11 Utilities ........................................................164

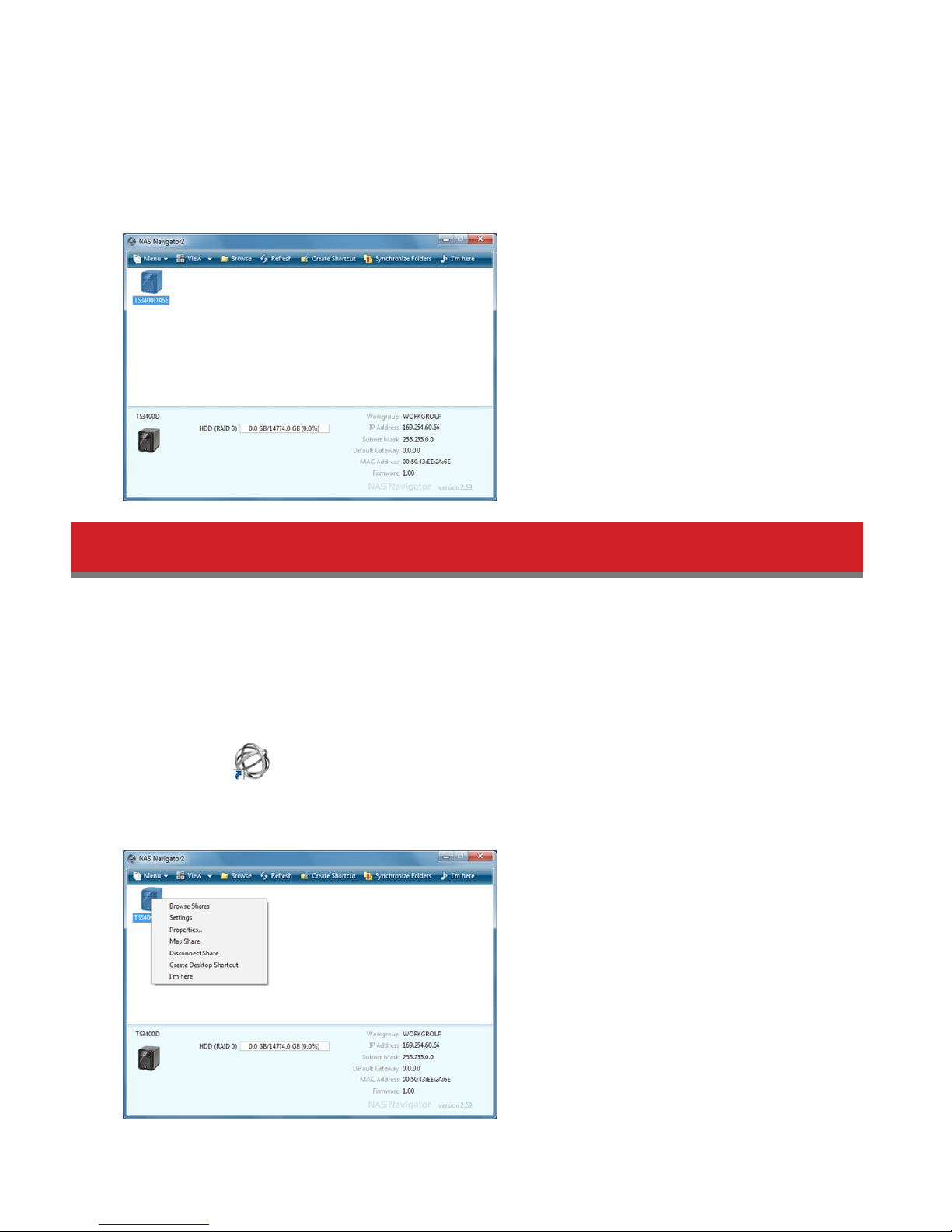

NAS Navigator2 for Windows ......................................................... 164
Mount as Network Drive............................................................................ 166
NAS Navigator2 for Mac ................................................................. 167
Mount as Network Drive............................................................................ 168
iSCSI Connection Tool ..................................................................... 169
Menu ........................................................................................................... 170
NovaBACKUP ................................................................................... 170
Installation ................................................................................................. 170
Chapter 12 Appendix ....................................................172
LCD Display ...................................................................................... 172
Modes ......................................................................................................... 172
Errors ........................................................................................................... 172
Status .......................................................................................................... 173
Default Settings .............................................................................. 176
Specifications .................................................................................. 176
Compliance Information ................................................................. 177
FCC Warning ............................................................................................... 177
CE Mark Warning ........................................................................................ 178
Environmental Information ...................................................................... 178
KC ................................................................................................................ 178
BSMI ............................................................................................................ 178

9
CCC .............................................................................................................. 178
󰈏
Models ........................................................................................................ 179

10
Chapter 1 Installation
Diagrams
TS3400D
TS3400R
TS3200D

11
1 Power Button
To power on, connect the power cable and wait for 10 seconds, then hold down the power button for 1 second. To
power off, hold down the power button for 3 seconds (until it beeps).
2 Info LED
If there is a status message, the amber info LED will light up. Check the LCD panel to see the status message.
3 Error LED
If there is an error, the red error LED will light up. Check the LCD panel to see the error message.
4 LAN1 LED
When LAN port 1 is connected, this LED glows green. It blinks when the connection is active.
5 LAN2 LED
When LAN port 2 is connected, this LED glows green. It blinks when the connection is active.
6 LCD Panel
This display shows the status of many TeraStation settings. It also displays errors and messages when available.
7 Display Button
Switches between the different display modes. Also, if the TeraStation is beeping, press this button to stop it.
8 Function Button
Use this button for Direct Copy, dismounting USB devices, rebuilding RAID arrays, and configuring failover.
9 Drive Lock
Open the front panel with the key to replace hard drives or press the reset button.
10 Init Button
Hold down this button to initialize the TeraStation’s admin username and password, IP address, SSL, and service
port restriction settings to their factory default values. The behavior of this button can be modified in Settings.
11 Status LEDs
Normally, these LEDs blink green when hard drives are accessed. If a drive fails, its LED will turn red or amber.
12 Factory Use Only
13 Boot Mode Switch
Leave the switch in the HDD position during normal operation. To recover settings, insert the recovery USB drive
into a USB 2.0 port, move the boot switch to the USB position, and press the power button.
14 UPS Port
Connect to a UPS.
15 USB 3.0 Port
Compatible Buffalo USB 3.0 hard drives can be connected. USB hubs are not supported.
16 USB 2.0 Port
Compatible Buffalo USB hard drives, USB flash drives, digital cameras, and USB UPS connection can be connected.
USB hubs are not supported.

12
17 LAN Port 1
Use an Ethernet cable to connect this port to your network.
18 LAN Port 2
This second Ethernet port may be used for network redundancy or backup. You may connect a second TeraStation
directly to this port for backup.
19 Power Connector
Use the included power cable to connect to an UPS, surge protector, or outlet.
20 Fan
Do not block the fan.
21 Anti-Theft Security Slot
Use this slot to secure your TeraStation with a cable lock (not included).
22 UID Button
Press the UID button on the front or the back of the unit to cycle the blue LED on and off.
23 Serial Number
This sticker shows the TeraStation’s serial number.
24 Factory Use Only
25 Link and Act LEDs
These LEDs show network activity. They blink orange when the TeraStation is accessed over the network.
Installation
1 Insert the TeraNavigator CD into your computer.
TeraNavigator will launch.
2 Click Begin Installation.
3 Follow the steps on the screen to connect the TeraStation’s Ethernet and power cables and turn it on.
Note: Use LAN port 1 for initial setup. After setup, you may connect a second cable to LAN port 2. If you use LAN

13
port 2, configure the IP address at Network - IP Address in Settings.
4 Follow the steps on the screen to install NAS Navigator2.
5 Click Finish. NAS Navigator2 will open.
6 Right-click on your TeraStation’s icon and choose Properties.
Note: For Mac OS, select the TeraStation’s icon while holding down the control key, then click Configure.
7 Click the IP Address tab, enter the desired settings, and click OK.
If you are prompted to enter the administrator password for the TeraStation, it is “password” by default.
8 Right-click on your TeraStation’s icon and choose Settings.

14
9 Changing the password from the default is recommended.
10 Go to Management - Name/Time/Language and configure the TeraStation’s time and date.
Notes:
• For best results, use an NTP server to maintain the time settings on the TeraStation and other network devices.
Clocks for the network devices may run at slightly different speeds. If these devices get out of sync it may cause
network problems.
• Buffalo is not responsible for any losses and damages incurred from using the ntp.jst.mfeed.ad.jp service or ser-
vice outages.

15
• If the TeraStation cannot automatically obtain the time from an NTP server, check its DNS settings. If the NTP
server is specified by a hostname instead of an IP address, make sure that a DNS server address is configured in
Network - IP Address.
11 In NAS Navigator2, double-click your TeraStation’s icon. This will open the shared folder of the TeraStation. For Mac
OS, the TeraStation is mounted as a drive icon on the desktop or it is displayed in the sidebar of the Finder. You can
now use the TeraStation’s shared folder to save files just like any other folder.
Turning the TeraStation On and Off
Press the power button on the TeraStation to turn it on.
To turn off the TeraStation, press the power button twice. Don’t unplug the TeraStation without turning it off first. You
can also shut it down and restart it remotely from Settings.
Shutdown or Restart from Settings:
1 Double-click the icon.
2 Right-click your TeraStation’s icon and select Settings. For a Mac, select your TeraStation’s icon while holding down
the control key, then select Settings.

16
3 Enter the username and password, then click OK.
Note: The default username and password are “admin” and “password”.
4 Settings will open.
5 Click at the top-right of Settings and choose either Restart or Shut Down.
When all the LEDs on the front of the TeraStation turn off, the shutdown process is complete.
Changing the Administrator Password
After initial setup, follow this procedure to change your password.
1 Double-click the icon. NAS Navigator2 will start.
2 Right-click on your TeraStation’s icon and select Settings. On the Mac, select the TeraStation’s icon while holding

17
down the control key, then select Settings.
3 Enter your username and password.
4 Click Change Password.
5 Enter the new password (twice).
6 Click OK. You have changed the admin password.

18
Chapter 2 Configuration
Configure and administer your TeraStation using the Settings interface, accessible from a browser window. Open
the interface using the procedure below or type the TeraStation’s IP address in the URL field of your browser. Within
Settings, the Easy Admin page gives you quick access to commonly used settings.
Note: Internet Explorer 9, Firefox 8, Google Chrome 15, Safari 5, and later are supported. If you have difficulty
viewing Settings, check the following:
• If there are a large number of registered users, groups, or shared folders, use Firefox instead of Internet Explorer.
• If you have a proxy server enabled in the browser settings, disable the proxy server.
• With Internet Explorer, set security to Local intranet. On Windows Server 2008, higher-level security is configured
by default. Set the security to a lower level temporarily.
Opening Settings
1 Open NAS Navigator2 by double-clicking the icon.
2 Right-click on your TeraStation’s icon in NAS Navigator and select Settings. For Mac OS, click your TeraStation’s icon
while holding down the control key, then select Settings.
3 Enter the username and password and click OK.
Username/Password Combinations:
Username Password Settings Available
admin password All
guest blank TeraStation name, IP address, workgroup, drive
status, hardware version
your username your password TeraStation’s name, IP address, workgroup, drive
status, firmware version, and your password.
Notes:
• If the time-out period is set to “10 minutes”, you will be logged out of Settings after 10 minutes of inactivity.
• Click Secure Connection to log in with an encrypted connection.

19
4 Settings will open.
Notes:
• Click to open Easy Admin.
• Click to play a tone from the TeraStation for easy location.
• You can also use Bonjour to log in to Settings from OS X 10.4 or later. In Safari, click View - Show Bookmarks Bar.
From Bookmarks, click Bonjour - TeraStation name.
Opening Easy Admin
The Easy Admin page makes it easy to change common settings. Follow the steps below to open Easy Admin.
1 Open NAS Navigator2 by double-clicking the icon.
2 Right-click on your TeraStation’s icon and choose Settings. For Mac OS, click the TeraStation’s icon while holding
down the control key, then select Settings.
3 Click Easy Admin.

20
4 The Easy Admin screen will open.
Notes:
• If you click any buttons , you will need to enter a username and password.
• You can open Easy Admin anytime by clicking the icon at the top left of Settings.
