Bulls Iconic Evo TR1 Quick guide

TRANSLATION OF THE ORIGINAL OPERATING INSTRUCTIONS
IMPORTANT
READ CAREFULLY BEFORE USE
KEEP SAFE TO CONSULT AT A LATER DATE
21-17-1093, 21-18-1060, 21-18-1062
MY21B01 - 22_1.0_10.09.2020
Iconic Evo TR1, Iconic Evo TR2, Sonic Evo AM4, Sonic Evo AM-I

MY21B01 - 22_1.0_10.09.2020 2
Contents
Contents
1 About these operating instructions 7
1.1 Manufacturer 7
1.2 Language 7
1.3 Laws, standards and directives 7
1.4 For your information 7
1.4.1 Warnings 7
1.4.2 Markups 8
1.5 Nameplate 9
1.6 Type number and model 10
1.7 Identifying the operating instructions 10
2 Safety 11
2.1 Residual risks 11
2.1.1 Risk of battery fire and explosion 11
2.1.2 Risk of fire and explosion due to
short circuit in the battery 11
2.1.3 Fire hazard caused by overheated
charger 11
2.1.4 Electric shock caused by electric drive
system 11
2.1.5 Risk of a fall due to incorrectly set quick
releases 12
2.1.6 Risk of fire and burns due to hot motor 12
2.1.7 Key breaking off 12
2.2 Toxic substances 12
2.2.1 Brake fluid 12
2.2.2 Suspension oil 12
2.2.3 Defective battery 12
2.3 Requirements for the rider 12
2.4 Vulnerable groups 12
2.5 Personal protective equipment 12
2.6 Safety markings and safety instructions 13
2.7 What to do in an emergency 13
2.7.1 Dangerous situation in road traffic 13
2.7.2 Leaked brake fluid 13
2.7.3 Battery vapours emitted 14
2.7.4 Battery fire 14
2.7.5 Leaked brake fluid 14
2.7.6 Oil and lubricant leaks from the fork 14
2.7.7 Oil and lubricant leaks from the rear
frame damper 14
3Overview 15
3.1 Description 16
3.1.1 Wheel 16
3.1.1.1 Valve 16
3.1.2 Suspension 16
3.1.2.1 Rigid fork 16
3.1.2.2 Suspension fork 16
3.1.2.3 Steel suspension fork 17
3.1.2.4 Air suspension fork 17
3.1.2.5 Suntour rear frame damper 18
3.1.2.6 FOX rear frame damper 18
3.1.3 Brake system 19
3.1.3.1 Rim brake 19
3.1.3.2 Disc brake 19
3.1.3.3 Back-pedal brake 20
3.1.3.4 ABS 20
3.1.4 Electric drive system 21
3.1.5 Rechargeable battery 21
3.1.5.1 Frame battery 22
3.1.5.2 Pannier rack battery 23
3.1.5.3 Integrated battery 23
3.1.6 On-board computer 24
3.1.6.1 USB port 24
3.1.7 Riding light 24
3.1.8 Charger 24
3.2 Proper use 25
3.3 Improper use 26
3.3.1 Maximum permitted total weight 27
3.3.2 On-board computer 27
3.3.3 Data privacy information 27
3.4 Technical data 28
3.4.1 Pedelec 28
3.4.2 Emissions 28
3.4.3 Tightening torque 28
3.4.4 Bicycle lighting 28
3.4.5 Kiox on-board computer 28
3.4.6 Active Line motor 28
3.4.7 Active Line Plus motor 29
3.4.8 Performance Line motor 29
3.4.9 Performance Line CX motor 29
3.4.10 PowerPack 300 battery 29
3.4.11 PowerPack 400 battery 29
3.4.12 PowerPack 500 battery 29
3.4.13 PowerTube 400 battery 30
3.4.14 PowerTube 500 battery 30
3.4.15 PowerTube 625 battery 30
3.4.16 BOSCH Pedelec ABS BAS100 30
3.5 Description of controls and screens 31
3.5.1 Handlebars 31
3.5.2 Battery level indicator 31
3.5.3 On-board computer 31
3.5.3.1 Start screen 32
3.5.3.2 Status bar 33
3.5.3.3 Status screen 33
3.5.3.4 Quick menu 33
3.5.3.5 Settings 34
3.5.3.6 Additional journey information for eShift
Shimano DI2 and Rohloff 35
3.5.3.7 Additional eShift system setting 35
3.5.3.8 System message 35
3.5.4 ABS indicator lamp 36

MY21B01 - 22_1.0_10.09.2020 3
Contents
3.5.5 Control panel 36
3.6 Environmental requirements 37
4 Transporting and storing 39
4.1 Physical transport characteristics 39
4.1.1 Designated handles/lifting points 39
4.2 Transporting 40
4.2.1 Using the brake transport securing
system 40
4.2.2 Transporting the pedelec 40
4.2.3 Shipping a pedelec 40
4.2.4 Transporting the battery 40
4.2.5 Shipping the battery 40
4.3 Storing 41
4.3.1 Storage mode 41
4.3.1.1 Activating 41
4.3.1.2 Deactivating 41
4.3.2 Break in operation 41
4.3.2.1 Preparing a break in operation 41
4.3.2.2 Carrying out a break in operation 42
5 Assembly 43
5.1 Required tools 43
5.2 Unpacking 43
5.2.1 Scope of delivery 43
5.3 Commissioning 43
5.4 Preparing the battery 44
5.4.1 Checking the battery 44
5.4.2 Retrofitting a PowerTube
Adapter 400 or 500 44
5.4.3 Fit battery cover onto Bosch
PowerTube 625 battery (horizontal) 45
5.4.4 Fit battery cover onto Bosch
PowerTube 500 battery (horizontal) 46
5.5 Preparing the on-board computer 46
5.5.1 Installing the wheel in the Suntour fork 47
5.5.1.1 Screw-on axle (15 mm) 47
5.5.1.2 Screw-on axle (20 mm) 47
5.5.1.3 Quick release axle 48
5.5.1.4 Quick release 49
5.5.2 Installing the wheel in the FOX fork 50
5.5.2.1 Quick release (15 mm) 50
5.5.2.2 Kabolt axle 51
5.5.3 Checking the stem and handlebars 51
5.5.3.1 Checking the connections 51
5.5.3.2 Firm hold 52
5.5.3.3 Checking the headset backlash 52
5.6 Pedelec sale 52
6 Operation 53
6.1 Risks and hazards 53
6.1.1 Personal protective equipment 54
6.2 Tips for a greater range 54
6.3 Error message 56
6.3.1 On-board computer 56
6.3.2 Rechargeable battery 58
6.4 Instruction and customer service 59
6.5 Adjusting the pedelec 59
6.5.1 Adjusting the saddle 59
6.5.1.1 Adjusting the saddle tilt 59
6.5.1.2 Determining the seat height 59
6.5.1.3 Adjusting the seat height with quick
release 60
6.5.1.4 Adjusting the seat position 60
6.5.2 Adjusting the handlebars 61
6.5.3 Adjusting the stem 61
6.5.3.1 Adjusting the height of the handlebars 61
6.5.3.2 Adjusting the quick release clamping
force 61
6.5.4 Setting the brake 61
6.5.4.1 Setting the grip distance on a
Magura HS33 brake lever 61
6.5.4.2 Setting the grip distance on a
Magura HS22 brake lever 62
6.5.4.3 Setting the grip distance on a
Magura disc brake lever 62
6.5.4.4 Setting the pressure point on a
Magura brake lever 63
6.5.5 Retracting the brake linings 63
6.5.6 Adjusting the Suntour fork 63
6.5.6.1 Adjusting the negative deflection 64
6.5.6.2 Adjusting the steel suspension fork
negative deflection 64
6.5.6.3 Adjusting the air suspension fork
negative deflection 64
6.5.6.4 Adjusting the air suspension fork
rebound 65
6.5.7 Adjusting the FOX fork 65
6.5.7.1 Adjusting the negative deflection 65
6.5.7.2 Adjusting the rebound 66
6.5.8 Setting the Suntour rear frame damper 67
6.5.8.1 Adjusting the negative deflection 67
6.5.8.2 Adjusting the rebound 67
6.5.8.3 Setting the compression 68
6.5.9 Setting the FOX rear frame damper 68
6.5.9.1 Adjusting the negative deflection 68
6.5.9.2 Adjusting the rebound 69
6.5.10 Setting up the smart app 69
6.5.10.1 Creating a user ID 69
6.5.10.2 Connecting the on-board with the
smartphone 69
6.6 Accessories 70
6.6.1 Child seat 70
6.6.2 Trailer 71
6.6.3 Pannier rack 71
6.6.4 Mobile holder 71

MY21B01 - 22_1.0_10.09.2020 4
Contents
6.7 Check list before each ride 72
6.8 Using the kickstand 73
6.8.1 Raising the kickstand 73
6.9 Using the pannier rack 73
6.10 Using the saddle 73
6.11 Rechargeable battery 74
6.11.1 Frame battery 74
6.11.1.1 Removing the frame battery 74
6.11.1.2 Inserting the frame battery 74
6.11.2 Pannier rack battery 74
6.11.2.1 Removing the pannier rack battery 74
6.11.2.2 Inserting the pannier rack battery 74
6.11.3 Integrated battery 74
6.11.3.1 Removing the integrated battery 74
6.11.3.2 Inserting the integrated battery 75
6.11.4 Charging the battery 75
6.11.5 Charging the dual battery 76
6.11.5.1 Charging process when two batteries
are used 76
6.11.5.2 Charging process when one battery
is used 76
6.11.6 Using double battery model with a
single battery only 76
6.11.7 Waking the battery 76
6.12 Electric drive system 77
6.12.1 Switching on the electric drive system 77
6.12.2 Switching off the electric drive system 77
6.13 On-board computer 78
6.13.1 Inserting the on-board computer 78
6.13.2 Securing the on-board computer 79
6.13.3 Removing the on-board computer 79
6.13.3.1 Charging on the pedelec 79
6.13.3.2 Charging using the USB port 79
6.13.3.3 Switching the on-board computer on 80
6.13.4 Switching off the on-board computer 80
6.13.5 Lock (premium function) 80
6.13.6 Using the USB port 80
6.13.6.1 Using the riding light 80
6.13.7 Using the push assist system 81
6.13.8 Selecting the level of assistance 81
6.13.9 Operating the on-board computer 82
6.13.10 Opening the start screen 82
6.13.11 Opening screens 82
6.13.12 Opening the quick menu 82
6.13.13 Opening the status screen 82
6.13.14 Changing the settings 82
6.13.14.1Registration with eBike Connect 83
6.13.14.2Resetting daily mileage or average
values manually 83
6.13.14.3Resetting daily mileage or average
values automatically 83
6.13.14.4Resetting the range 83
6.13.14.5Configuring eShift 83
6.13.14.6Switching on Bluetooth® 83
6.13.14.7Switching off Bluetooth® 84
6.13.14.8Adding new device to Bluetooth® 84
6.13.14.9Removing device from Bluetooth® 84
6.13.14.10Setting the brightness 84
6.13.14.11Setting the clock 84
6.13.14.12Setting the date 84
6.13.14.13Setting the time zone 84
6.13.14.14Setting the clock format 84
6.13.14.15Selecting the backlight 84
6.13.14.16Selecting the unit of speed 84
6.13.14.17Select the language 84
6.13.14.18Resetting to factory settings 84
6.14 Brake 85
6.14.1 Using the brake lever 86
6.14.2 Using the back-pedal brake 86
6.14.3 Using ABS 86
6.14.3.1 While riding 87
6.15 Suspension and damping 88
6.15.1 Adjusting the compression in the
Suntour fork 88
6.15.2 Adjusting the rebound in the
RockShox rear frame damper 88
6.15.3 Adjusting the compression in a
RockShox damper 89
6.16 Gear shift 90
6.16.1 Using the derailleur gears 90
6.16.2 Using a hub gear 90
6.16.3 Using eShift 91
6.16.3.1 eShift with Shimano DI2 automatic hub
gears 91
6.16.3.2 eShift with manual Shimano DI2 hub
gears 91
6.16.3.3 eShift with Shimano DI2 automatic hub
gears 91
6.17 Parking the pedelec 92
7 Cleaning and servicing 93
7.1 Cleaning after each ride 93
7.1.1 Cleaning the suspension fork 93
7.1.2 Cleaning the pedals 93
7.2 Basic cleaning 94
7.2.1 Cleaning the frame 94
7.2.2 Cleaning the stem 94
7.2.3 Cleaning the wheel 94
7.2.4 Cleaning the drive elements 94
7.2.5 Cleaning the chain 95
7.2.6 Cleaning the battery 95
7.2.7 Cleaning the on-board computer 95
7.2.8 Cleaning the motor 95
7.2.9 Cleaning the brake 96
7.2.10 Cleaning the saddle 96

MY21B01 - 22_1.0_10.09.2020 5
Contents
7.3 Servicing 96
7.3.1 Servicing the frame 96
7.3.2 Servicing the stem 96
7.3.3 Servicing the fork 96
7.3.4 Servicing the drive elements 96
7.3.5 Servicing the pedals 96
7.3.6 Servicing the chain 96
7.4 Maintenance 97
7.4.1 Wheel 97
7.4.1.1 Checking the tyres 97
7.4.1.2 Checking the rims 97
7.4.1.3 Checking and adjusting the tyre
pressure – Dunlop valve 97
7.4.1.4 Checking and adjusting the tyre
pressure – Presta valve 98
7.4.1.5 Checking and adjusting the tyre
pressure – Schrader valve 98
7.4.2 Brake system 98
7.4.3 Checking the brake linings for wear 98
7.4.4 Checking the pressure point 98
7.4.5 Checking the brake discs for wear 98
7.4.6 Checking the electrical cables and
brake cables 99
7.4.7 Checking the gear shift 99
7.4.8 Checking the stem 99
7.4.9 Checking the USB port 99
7.4.10 Checking the chain tension 99
8 Maintenance 100
8.1 Suspension system 101
8.1.1 Rear frame damper 101
8.1.2 Suspension fork 102
8.1.3 Suspension seat post 103
8.2 Axle with quick release 103
8.2.1 Checking the quick release 104
8.3 Maintaining the stem 104
8.4 Adjusting the gear shift 104
8.4.1 Cable-operated gear shift, single-cable 104
8.4.2 Cable-operated gear shift, dual-cable 104
8.4.3 Cable-operated twist grip, dual-cable 105
9 Troubleshooting, fault clearance
and repair 106
9.1 Troubleshooting and fault clearance 106
9.1.1 The drive system or display do not
start up 106
9.1.2 Error message 106
9.1.3 Assistance function errors 107
9.1.4 Battery error 108
9.1.5 Display errors 109
9.1.6 Lighting does not work 109
9.1.7 Other errors 110
9.2 Repair 110
9.2.1 Original parts and lubricants 110
9.2.2 Replacing the lighting 110
9.2.3 Adjusting the headlight 110
9.2.4 Tyre clearance check 110
10 Recycling and disposal 111
10.1 Documents 112
10.2 Parts list 112
10.2.1 Iconic Evo TR1 27.5″112
10.2.2 Iconic Evo TR2 27.5″113
10.2.3 Sonic Evo AM4 114
10.2.4 Sonic Evo AM-I Carbon 115
10.3 Assembly report 116
10.4 Maintenance instructions 118
10.5 Charger operating instructions 122
12 Glossary 130
12.1 Abbreviations 132
12.2 Simplified terms 132
13 Appendix 133
I. Translation of the original EC/EU
Declaration of Conformity 133
II. Directive declaration of conformity
with RED Directive 134
III. Declaration of conformity for
incomplete machine 135
14 Keyword index 138

MY21B01 - 22_1.0_10.09.2020 6
About these operating instructions
Thank you for your trust!
BULLS pedelecs are premium quality bicycles.
You have made an excellent choice. Your
specialist dealer will provide you with guidance
and instruction and assemble your product. Your
specialist dealer will also be happy to assist you in
the future, whether you require maintenance,
conversion or repair.
You are receiving these operating instructions
with your new pedelec. Please take time to
become familiar with your new pedelec. Use the
tips and suggestions in the operating instructions.
They will help you to enjoy your pedelec for a long
time to come. We hope you have fun and wish you
well on all of your rides!
The operating instructions are mainly designed for
the rider or the operator. They aim to ensure that
non-professionals can use the pedelec safely.
Download the operating instructions onto your
phone at the following link, so that you can use
them when you are out riding:
www.bulls.de/service/
downloads.
Copyright
© ZEG Zweirad-Einkaufs-Genossenschaft eG
Distribution or reproduction of these operating
instructions and utilisation or communication of
their content is prohibited unless expressly
approved. Any infringement will render the
offender liable for compensation. All rights
reserved in the event that a patent, utility model or
industrial design is registered.
Editing
Text and images:
ZEG Zweirad-Einkaufs-Genossenschaft eG
Longericher Strasse 2
50739 Köln, Germany
Translation
RKT Übersetzungs- und Dokumentations-GmbH
Markenstrasse 7
40227 Düsseldorf, Germany
In case of any questions or problems
regarding these operating instructions,
please contact:
[email protected]
Notice
These operating instructions are not a substitute
for personal instruction by the supplying specialist
dealer.
These operating instructions are an integral part
of the pedelec. Therefore, if it is re-sold at a later
time, they must be handed over to the subsequent
owner.
Sections are also designed especially for the
specialist dealer. These sections aim to ensure
that specialist dealers complete initial assembly
and maintenance safely and reliably. The
sections for specialist dealers are highlighted in
grey and marked with a spanner symbol.

MY21B01 - 22_1.0_10.09.2020 7
About these operating instructions
1 About these operating
instructions
1.1 Manufacturer
The pedelec manufacturer is:
ZEG Zweirad-Einkaufs-Genossenschaft eG
Longericher Strasse 2
50739 Köln, Germany
Tel.: [phone]
Fax: [phone]
E-mail: [email protected]
Subject to internal changes
The information contained in these operating
instructions are the approved technical
specifications at the time of printing. Any
significant changes are included in a new
published version of the operating instructions.
You will find any modifications to these operating
instructions at:
www.bulls.de/service/downloads.
1.2 Language
The original operating instructions are written in
German. A translation is invalid without the
original operating instructions.
1.3 Laws, standards and directives
The operating instructions comply with the
essential requirements specified in:
• Machinery Directive 2006/42/EC
• Electromagnetic Compatibility Directive
2014/30/EU
• ISO 20607:2018 Safety of machinery –
Instruction handbook – General drafting
principles
• EN 15194:2018 Cycles – Electrically power
assisted cycles – pedelec bicycles
• EN 11243:2016, Cycles – Pannier racks for
bicycles – Requirements and test methods
• ISO 17100:2016-05 Translation Services –
Requirements for translation services.
1.4 For your information
Different markings are used in the operating
instructions to make them easier to read.
1.4.1 Warnings
Warnings indicate hazardous situations and
actions. You will find warnings in the operating
instructions:
Will lead to serious or even fatal injuries if
ignored. High-risk hazard.
May lead to serious or even fatal injuries if
ignored. Medium-risk hazard.
May lead to minor or moderate injuries if ignored.
Low-risk hazard.
Notice
May lead to material damage if ignored.
DANGER
!
WARNING
!
CAUTION
!

MY21B01 - 22_1.0_10.09.2020 8
About these operating instructions
1.4.2 Markups
You will find stylised forms of typeface in the
operating instructions:
Instructions for specialist dealers are highlighted
in grey. They are indicated by a screwdriver
symbol. Information for specialist dealers does
not require non-professionals to take any action.
Stylised form Use
Italics Glossary term
Underlined in blue Link
Underlined in grey Cross references
Check marks Requirements
Triangle Instruction for action
1Instruction for
action
Several instructions for
action in specified order
Result of the action
SPACED Indicators on the display
screen
• Bulleted lists
Only applies to pedelecs
with this equipment Each type has a different
kind of equipment. A
note beneath the
heading indicates
components which can
be used as an
alternative.
Table 1: Markups

MY21B01 - 22_1.0_10.09.2020 9
About these operating instructions
1.5 Nameplate
The nameplate is situated on the frame. You can
see the exact position of the nameplate in Figure 2.
You will find thirteen pieces of information on the
nameplate.
Figure 1: Example Nameplate
ZEG Zweirad-Einkaufs-
Genossenschaft eG
Longericher Str. 2
50739 Köln, Germany
Typ:
21-17-1017
0,25 kW / 25 km/h
zGG 150 kg
EPAC 25 kg
BJ 2020 / MJ 2021
EN 15194
nach
EPAC
2
3
1
4
5
6
7
89
12
13
10
11
No. Designation Description
1CEmarking The manufacturer uses the CE marking to declare that the pedelec complies with
applicable requirements.
2 Manufacturer's contact details You can contact the manufacturer at the address. You can find more information in
Section 1.
3 Type number All pedelec models have an eight-digit type number, which is used to specify the design
model year, the type of pedelec and the version. You can find more information in
Section 1.
4 Maximum continuous power The maximum continuous power is the greatest possible power for the electric motor
output shaft over 30 minutes.
5 Maximum permitted total weight The maximum permitted total weight is the weight of the fully assembled pedelec with the
rider and baggage.
6 Year of manufacture The year of manufacture is the year in which the pedelec was manufactured. The
production period is from August 2020 to July 2021.
7 Pedelec type You can find more information in Section 3.2.
8 Safety markings You can find more information in Section 1.4.
9 Disposal instructions You can find more information in Section 10.
10 Area of use You can find more information in Section 3.2.
11 Model year The model year refers to the first production year that the series-manufactured pedelec was produced in the version concerned. The year of manufacture is different to the model
year in some cases.
12 Weight of the ready-to-ride pedelec The weight of the ready-to-ride pedelec is specified as a weight of 25 kg or above and refers to its weight at the time of purchase. You must add each additional accessory to
the weight.
13 Shut-off speed The speed that the pedelec reaches at the moment when the current has dropped to zero
or to the no-load current value.
Table 2: Nameplate details

MY21B01 - 22_1.0_02.09.2020 10
About these operating instructions
1.6 Type number and model
These operating instructions are an integral part
of pedelecs with the type numbers:
1.7 Identifying the operating
instructions
The Identification number position is located on
bottom left-hand side on each page. The
identification number is composed of the
document number, the version number and the
release date.
Type no. Model Pedelec type
21-17-1093 Iconic Evo TR1 27.5″Mountain bike
21-17-1093 Iconic Evo TR2 27.5″Mountain bike
21-18-1060 Sonic Evo AM4 27.5″Mountain bike
21-18-1060 Sonic Evo AM4 29″Mountain bike
21-18-1062 Sonic Evo AM- I Carbon
27.5″Mountain bike
21-18-1062 Sonic Evo AM- I Carbon
29″Mountain bike
Table 3: Type number, model and pedelec type
Identification number MY21B01 - 22_1.0_10.09.2020

MY21B01 - 22_1.0_02.09.2020 11
Safety
2 Safety
2.1 Residual risks
2.1.1 Risk of battery fire and explosion
The safety electronics may fail if the batteries are
damaged or faulty. The residual voltage can
cause a short circuit. The battery may self-ignite
and explode.
Only use and charge the battery and
accessories if they are in perfect condition.
Never open or repair the battery.
Batteries with external damage must be
removed from service immediately.
If a battery is dropped or struck, remove it from
service and observe it for at least 24 hours.
Faulty batteries are hazardous goods. Dispose
of faulty batteries in the correct manner. Store
battery in a dry place until disposal. Never
store in the vicinity of flammable substances.
The battery is only protected from spray water.
Penetration by water can cause a short circuit.
The battery may self-ignite and explode.
Never immerse the battery in water.
Put battery out of service if you suspect water
has penetrated it.
Temperatures over 60 °C can also cause liquid to
leak from the battery and the battery will become
damaged. The battery may self-ignite and
explode.
Protect the battery against heat.
Never store next to hot objects.
Never expose the battery to sustained direct
sunlight.
Avoid wide temperature fluctuations.
2.1.2 Risk of fire and explosion due to
short circuit in the battery
Metal objects may connect the battery's electrical
terminals. The battery may self-ignite and
explode.
Never insert paper clips, screws, coins, keys
and other small parts into the battery.
Chargers with excessive voltage damage
batteries. This may result in fire or an explosion.
Only use batteries approved for the pedelec.
Clearly label the supplied charger.
2.1.3 Fire hazard caused by overheated
charger
The charger heats up when charging the battery.
In case of insufficient cooling, this can result in fire
or burns to the hands.
Never use charger on a highly flammable
surface.
Never cover the charger during charging.
Never leave the battery unattended during
charging.
2.1.4 Electric shock caused by electric
drive system
Damaged chargers, cables and plug connectors
increase the risk of electric shock.
Check the charger, cable and plug connector
before each use. Never use a damaged
charger.
If water penetrates into the charger, there is a risk
of electric shock.
Never charge the battery outdoors.

MY21B01 - 22_1.0_02.09.2020 12
Safety
2.1.5 Risk of a fall due to incorrectly set
quick releases
Excessively high clamping force will damage the
quick release and cause it to lose its function.
Insufficient clamping force will result in
unfavourable transmission of force. This can
cause components to break. This will cause a
crash with injuries.
Never fasten a quick release using a tool (e.g.
hammer or pliers).
Only use the clamping lever with the specified
set clamping force.
2.1.6 Risk of fire and burns due to hot
motor
The motor housing becomes hot when riding.
Touching it may cause burns to the skin or other
objects.
Never touch the motor housing directly after
riding.
Never place the pedelec on a flammable
surface, such as grass or wood, directly after
use.
2.1.7 Key breaking off
If you leave a key inserted when riding or
transporting the pedelec, it may break off or the
locking system may open accidentally.
Remove the key to the battery lock.
2.2 Toxic substances
2.2.1 Brake fluid
Brake fluid may leak out after an accident or due
to material fatigue. Brake fluid can be fatal if
swallowed or inhaled.
Never dismantle the brake system.
Avoid contact with skin.
Do not inhale vapours.
2.2.2 Suspension oil
Suspension oil in the fork and the rear frame
damper is toxic to the touch, irritates respiratory
tracts and causes cancer, sterility and mutation in
germ cells.
Never dismantle the rear frame damper or the
suspension fork.
Avoid contact with skin.
2.2.3 Defective battery
Liquids and vapours may leak from damaged or
faulty batteries. Excessively high temperatures
may also cause liquids and vapours to leak from
the battery. Such liquids and vapours can irritate
the airways and cause burns.
Never dismantle the battery.
Avoid contact with skin.
Do not inhale vapours.
2.3 Requirements for the rider
The rider must demonstrate adequate physical,
motor and mental abilities to ride on public roads.
A minimum age of 14 years is recommended.
2.4 Vulnerable groups
Keep batteries and charger away from children
and people with reduced physical, sensory or
mental capabilities or lacking in experience and
knowledge.
If minors use the pedelec, a legal guardian must
should provide them with comprehensive
instructions.
2.5 Personal protective equipment
Wear a suitable cycling helmet, sturdy footwear
and typical close-fitting clothing to provide
protection.

MY21B01 - 22_1.0_02.09.2020 13
Safety
2.6 Safety markings and safety
instructions
The nameplate contains these safety markings
and safety instructions:
2.7 What to do in an emergency
2.7.1 Dangerous situation in road traffic
In the event of any hazards or dangers in road
traffic, apply the brakes on the pedelec until it
comes to a halt. The brake acts as an
emergency stop system in such cases.
2.7.2 Leaked brake fluid
Remove those affected from the danger area to
fresh air.
Never leave those affected unattended.
Immediately remove any clothing items
contaminated with brake fluid.
Never inhale vapours. Ensure sufficient
ventilation.
Wear gloves and safety gloves as protective
equipment.
Keep unprotected persons away.
Take care with leaked brake fluid as it poses a
slip hazard.
Keep leaked brake fluid away from naked
flames, hot surfaces and sources of ignition.
Avoid contact with skin and eyes.
After inhalation
Take in fresh air. Immediately consult a doctor
in case of any discomfort.
After skin contact
Wash affected skin with soap and water and
rinse well. Remove contaminated clothing.
Consult doctor in the event of pain or
discomfort.
After contact with eyes
Rinse eyes under flowing water for at least ten
minutes with the lids open; also rinse under
lids. Immediately consult a doctor in case of
any pain or discomfort.
After swallowing
Rinse out mouth with water. Never induce
vomiting. Risk of aspiration!
Symbol Explanation
General warning
Adhere to the instructions for use
Table 4: Meaning of safety markings
Symbol Explanation
Read the instructions
Separate collection of electrical
and electronic devices
Separate collection of ordinary
and rechargeable batteries
Must not be thrown into fire
(burning prohibited)
It is forbidden to open any
batteries
Device of protection class II
Only suitable for use indoors
Fuse (device fuse)
EU conformity
Recyclable material
Protect from temperatures
above 50 °C and direct sunlight
Table 5: Safety instructions
max. 50°C

MY21B01 - 22_1.0_02.09.2020 14
Safety
If a person is lying on their back and vomiting,
place them in the recovery position. Seek
medical advice immediately.
Environmental protection measures
Never allow brake fluid to flow into the sewage
system, water courses or groundwater.
Notify the relevant authorities if fluid
penetrates the ground, water courses or the
sewage system.
Consult a doctor immediately in the event of
any pain or discomfort caused by combustion
gas or leaking fluids.
2.7.3 Battery vapours emitted
Vapours may be emitted if the battery is damaged
or used improperly. The vapours may cause
respiratory tract irritation.
Get into fresh air.
Consult doctor in the event of pain or
discomfort.
After contact with eyes
Carefully rinse eyes with plenty of water for at
least 15 minutes. Protect unaffected eye. Seek
medical advice immediately.
After skin contact
Remove any solid particles immediately.
Rinse the affected area with plenty of water for
at least 15 minutes. Then dab the affected skin
gently. Do not rub dry.
Remove contaminated clothing immediately.
Immediately consult a doctor if there is any
redness, pain or discomfort.
2.7.4 Battery fire
The safety electronics may fail if the battery is
damaged or faulty. The residual voltage can
cause a short circuit. The battery may self-ignite
and explode.
1Keep your distance if the battery becomes
deformed or starts to emit smoke.
2If charging, remove the plug connector from
the socket.
3Contact the fire service immediately.
Use Class fire extinguishers to put out the fire.
Never extinguish damaged batteries with water
or allow them to come into contact with water.
Inhaling vapours can cause intoxication.
Stand on the side of the fire where the wind is
blowing from.
Use breathing apparatus if possible.
2.7.5 Leaked brake fluid
The brake system must be repaired immediately if
brake fluid leaks out. Dispose of leaking brake
fluid in an environmentally responsible way in
accordance with statutory regulations.
Contact your specialist dealer.
2.7.6 Oil and lubricant leaks from the fork
Dispose of oils and lubricants which have leaked
from the rear frame damper in an environmentally
responsible way in compliance with statutory
regulations.
Contact your specialist dealer.
2.7.7 Oil and lubricant leaks from the rear
frame damper
Dispose of oils and lubricants which have leaked
from the rear frame damper in an environmentally
responsible way in accordance with statutory
regulations.
Contact your specialist dealer.

MY21B01 - 22_1.0_02.09.2020 15
Overview
3Overview
Figure 2: Pedelec viewed from right: BULLS Copperhead Evo AM3 used as example
1 Front wheel
2Fork
3 Front wheel guard
4 Handlebars
5Stem
6Frame
7 Rear frame damper
8 Seat post
9 Saddle
10 Reflector
11 Pannier rack
12 Rear wheel guard
13 Kickstand
14 Rear wheel
15 Chain
16 Motor
17 Pedal
18 Battery and nameplate
1
2
4
0198
15 16 18
567
17
3
1112
13
14

MY21B01 - 22_1.0_02.09.2020 16
Overview
3.1 Description
3.1.1 Wheel
Figure 3: Visible wheel components
1Tyres
2 Rim
3 Spoke
4 Spoke nipples
5Hub
6Valve
The wheel comprises the wheel itself, an inner
tube with a valve and a tyre.
3.1.1.1 Valve
Each wheel has a valve. It is used to fill the tyre
with air. There is a valve cap on each valve. The
screw-on valve cap keeps out dust and dirt.
The pedelec either has a conventional Dunlop
valve, a Presta valve or a Schrader valve.
3.1.2 Suspension
Both forks and suspension forks are fitted in this
model series.
3.1.2.1 Rigid fork
Rigid forks do not feature suspension. They transfer
the used muscle and motor power to the road to
optimum effect. Pedelecs with rigid forks consume
less energy on steep roads and have a greater range
than pedelecs with adjusted suspension.
3.1.2.2 Suspension fork
A suspension fork is based either on a steel spring or
air suspension.
Unlike a rigid fork, a suspension fork has two
functions which improve floor contact and comfort:
suspension and damping. The suspension prevents
an impact, such as one caused by a stone lying in the
pedelec's path, from being channelled directly into
the rider's body via the fork. The impact is absorbed
by the suspension system instead. This causes the
suspension fork to compress.
Figure 4: Without suspension (1) and with suspension (2)
After compressing, the suspension fork returns to
its original position. If there is a damper, it
decelerates movement, preventing the
suspension system from springing back in an
uncontrolled manner and stopping the fork from
vibrating up and down. Dampers which dampen
compressive deflection movements, i.e. a
compression load, are called compression
dampers or compression dashpots.
Dampers which dampen rebound deflection
movements, i.e. a rebound load, are called
rebound dampers or dashpots.
The compression can be disabled in any suspension
fork. A suspension fork will then behave like a rigid
fork.
1
2
3
6
5
4
12

MY21B01 - 22_1.0_02.09.2020 17
Overview
3.1.2.3 Steel suspension fork
The stem and handlebars are fastened to the fork
steerer (1). The wheel is fastened to the quick
release axle (6).
Figure 5: Example showing Suntour fork
Other elements: the setting wheel for negative
deflection (9), crown (3), Q-Loc (5), dust seal (4),
fork end (7) and stanchion (8)
3.1.2.4 Air suspension fork
The air suspension fork features air suspension and
a compression damper plus a rebound damper in
some cases.
Figure 6: Example showing Yari fork
You can see these components in the diagram: Air
valve (1), valve cap (2) fork lock (3), quick
release (4) and rebound damper adjuster (5) and
the assembly groups: Air suspension fork (A),
compression damper assembly group (B) and
rebound damper assembly group (C)
1
1
2
3
4
5
6
8
9
7
A
B
C
1
2
3
4
5
A
B
C

MY21B01 - 22_1.0_02.09.2020 18
Overview
3.1.2.5 Suntour rear frame damper
The rear frame damper features air suspension, a
compression damper and a rebound damper.
Figure 7: Example showing Suntour rear frame damper
1 Upper eye
2.1 Total damper length
2.2 Negative deflection in the rear frame damper
3 Lower eye
4O-ring
5 Sleeve
6 Damper unit
7 IFP (internal floating piston)
8 Air valve
9 Air chamber
10 Lockout lever
11 Rebound lever (rebound setting)
3.1.2.6 FOX rear frame damper
The rear frame damper features air suspension, a
compression damper and a rebound damper.
Figure 8: Example showing FOX rear frame damper
1 Guide rod eye
2 Air valve
3 Setting wheel
4 Lever
5 Air chamber
6O-ring
1
2.2
3
4
5
6
78
910
11
2.1
25-30%
1
2
4
3

MY21B01 - 22_1.0_02.09.2020 19
Overview

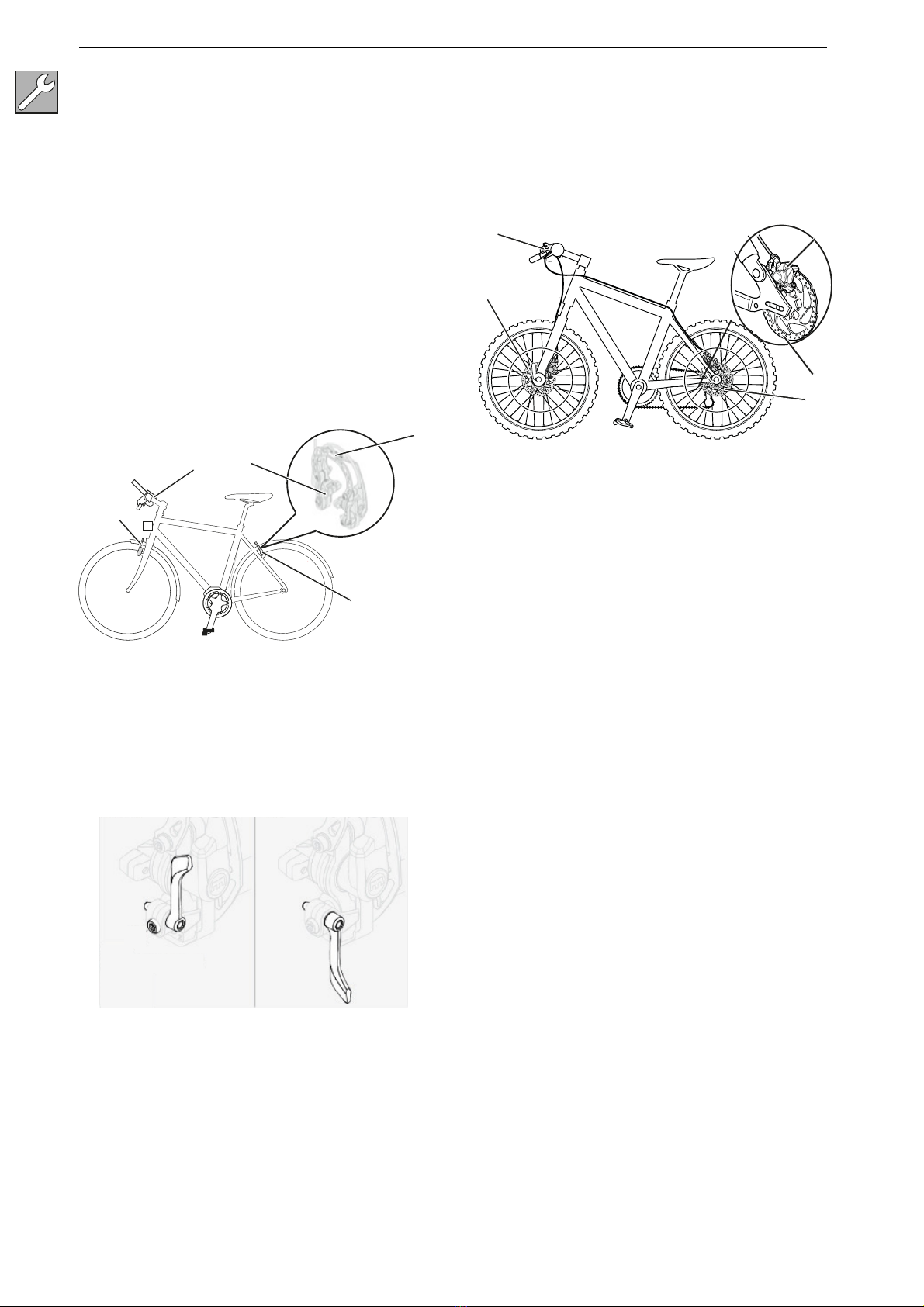

3.1.3 Brake system
Every pedelec has a hydraulic brake system. The
brake fluid is in a closed hose system. If the rider
pushes the brake lever, the brake fluid activates
the brake on the wheel.
The pedelec has either:
• a rim brake on the front and rear wheels
• a disc brake on the front and rear wheels or
• a rim brake on the front and rear wheels and an
additional back-pedal brake.
The mechanical brakes are used as an
emergency stop system and bring the bicycle to a
halt quickly and safely in the event of an
emergency.
3.1.3.1 Rim brake
Figure 9: Brake system with rim brake in detail –
Magura HS22 used as an example
1 Rear wheel rim brake
2 Brake booster
3 Brake lining
4Handlebars with brake lever
5 Front wheel rim brake
Figure 10: Rim brake locking lever, closed (1) and open (2)
The rim brake stops the wheel moving when the
rider pushes the brake lever, causing two brake
linings, positioned opposite one another, to be
pressed onto the rims. The hydraulic rim brake
features a locking lever. The rim brake locking
lever is not marked with any lettering. Only a
specialist dealer may set the rim brake locking
lever.
3.1.3.2 Disc brake
Figure 11: Brake system with disc brake – example
1Brakedisc
2 Brake calliper with brake linings
3Handlebars with brake lever
4 Front wheel brake disc
5 Rear wheel brake disc
On a pedelec with a disc brake, the brake disc is
screwed permanently to the wheel hub.
The brake lever is pushed to increase brake
pressure. The brake fluid is used to transfer
pressure through the brake cables to the cylinders
in the brake calliper. The braking force is boosted
by a speed reduction and applied to the brake
linings. These apply the brake disc mechanically.
If the brake lever is pushed, the brake linings are
pressed against the brake disc and the wheel
movement is decelerated until it comes to a stop.
1
2
3
4
5
21
1
2
3
4
5

MY21B01 - 22_1.0_02.09.2020 20
Overview
3.1.3.3 Back-pedal brake
Figure 12: Brake system with a back-pedal brake –
example
1 Rear wheel rim brake
2Handlebars with brake lever
3 Front wheel rim brake
4Pedal
5 Back-pedal brake
The back-pedal brake stops the movement of the
rear wheel when the rider pedals in the opposite
direction to the direction of travel.
3.1.3.4 ABS
Figure 13: BOSCH ABS
1 ABS control unit with housing
2 Display screen
3 ABS indicator lamp
4 Control panel
5 Front wheel brake lever
6 Brake calliper
7 Bike speed sensor
8 Sensor disc
ABS is an added function in some pedelecs.
BOSCH ABS
The rear wheel brake function does not depend on
the anti-blocking system (ABS) functioning
correctly.
When the brakes are applied, the ABS function
detects critical slippage thanks to the wheel speed
sensors on the front and rear wheels. The ABS
limits slippage on the front wheel by reducing
brake pressure there, thus stabilising the wheel.
Once the wheel has been stabilised, the wheel is
brought to the blocking limit by building up
pressure selectively.
If the wheel blocks again, the pressure is reduced
again. This process is repeated to keep the wheel
at its limit of traction, thus making optimum use of
the coefficient of friction between the tyres and the
road surface.
The ABS stops when one of the following events
occurs:
• The buffer chamber in the ABS control unit is filled
completely.
• The pedelec is stationary.
• The rider releases the brake.
Besides slippage, the ABS also detects when the
rear wheel is raised during full braking. The ABS
thus counteracts a flip-over during extremely hard
braking manoeuvres.
If the battery is low, the ABS deactivates the motor
assistance first. However, the electric drive sys-
tem, including the display, lighting and ABS, will
remain active until the battery is empty. The elec-
tric drive system the ABS will not switch off until
the battery has almost fully discharged. The brake
system itself remains functional. The ABS is not
active if there is no battery on the pedelec or the
battery is empty.
The indicator lamp lights up for about 5 seconds
before the system switches off completely. The
ABS indicator lamp will go out if the ABS is
unavailable.
5
2
3
4
1
1
1
2
(1) (2) (3) (4) (5)
(6)
(6)
(7)
(8)
