Bully Dog Gauge GT Tuner User manual

INSTALLATION
1
OWNERS MANUAL
Part 1: Physical Installation
Part 2: Operations and Downloading
Part 3: Internet Updates
Appendix: OEM pyrometers, pyrometer calibration, and other topics.

INSTALLATION
REMEMBER TO UPDATE!!!
UsetheUpdateAgentto
update the GT software
before installation on
vehicle. This will ensure
that the GT has the lat-
est programming avail-
able from Bully Dog.
Plug in the GT to the
USB Cable. SD card must be
installed in the GT.
Plug the USB cable
into a PC that has
the Bully Dog Internet
Update software: The
Update Agent.
1.
2.
3.

INSTALLATION
INTRODUCTION
Congratulations on the purchasing of the GT. The GT is one of the most technologically
advanced tuning and monitoring devices available in the market place, second only to our
Performance ManagementTool (GT). The GT includes our Patent pending feature called the
Driving coach which assist users in maximizing driving eciency. Using the driving coach
feature end users can see improvements in fuel economy that will save enough money on
their monthly bill to completely oset the cost of the GT itself.

INSTALLATION
PART 1
Physical Installation
These operating instructions are split into four sections:
SECTION 1:Parts Included
SECTION 2: Parts Description
SECTION 3:Installation Overview
SECTION 4:Installation
SECTION 5:Mounting the GT using theWindshield mount

INSTALLATION
SECTION 1:Parts Included
The list below includes by name the major parts included in your GT package. The tools list
indicates all of the tools necessary to complete the GT install.
1. The GT/Watch Dog Head Unit
3. Main Wire Harness
5. Micro SD Card
3. Windshield Mount
4. The GT/Watch PowerWire
2. OBDII Adapter Plug
TOOLS NEEDED
• Fuse Puller
• Voltage Meter (optional)
EXTRA PARTS (optional)
• Fuse Jack
• Spade connector

INSTALLATION
SECTION 2: Parts Description
This section describes each of the parts in the Parts List, each description provides a physical
set of attributes and a purpose for each part. The parts descriptions also list everything that is
included in each assembly.
THE GAUGETUNER:
The main component is the GT Head Unit. The Head Unit is the interface through which all oper-
ating functions take place including: Downloading, Monitoring, and the Driving Coach feature.
GT Front Side:
The GT has seven capacitive
touch buttons. Capacitive
touch buttons are a button
style that is sensitive to the
presence of your nger. Ca-
pacitive buttons do not need
to be pushed, only touched to
activate. The GT interface fea-
tures a 2.4”LCD screen.
1
2
4
3
GT Parts Back side:
1.T-slot Mount Socket, this will work with a large
range of o the shelve mounting options.
2. Main harness port, electronic port for the main
harness.
3. Micro SD Card Slot
4. Mini USB port

INSTALLATION
OBDII ADAPTER PLUG
The OBDII Adapter is a communication hub for the GT. The OBD
ll Adaptor plugs directly into the vehicle OBD ll port. Notice the
OBD ll Adaptor has many ports to support various other func-
tions of the GT. The diagram below illustrates all of the OBDII
parts and ports.
1
5
6
7
2
3
4
1. OBD ll Male End: this is the part of the adapter plug that plugs into the vehicle OBDll port.
2. Main Harness port: the main harness will plug into the GT and into this port during installation.
3. Power wire port: the power wire will run from this port to the vehicle fuse pox during instal-
lation. Plug into the GT and into this port during installation.
4. Power Supply Switch: use this switch to change power from running o of the Power Wire
to OBD ll power as a power supply for the GT.
5. Four Pin USB: This port is used if a Bully Dog pyrometer kit is purchased for the GT.
6. Five Pin USB
7. Adapter Plug Fuse

INSTALLATION
GT MAINWIRE HARNESS
The main harness connects the GT to the OBD ll Adapter Plug and acts as the main line of com-
munication for the GT.
POWERWIRE
The Power wire connects the OBD ll Adaptor Plug to the vehicle fuse box to
supply power to the GT.

INSTALLATION

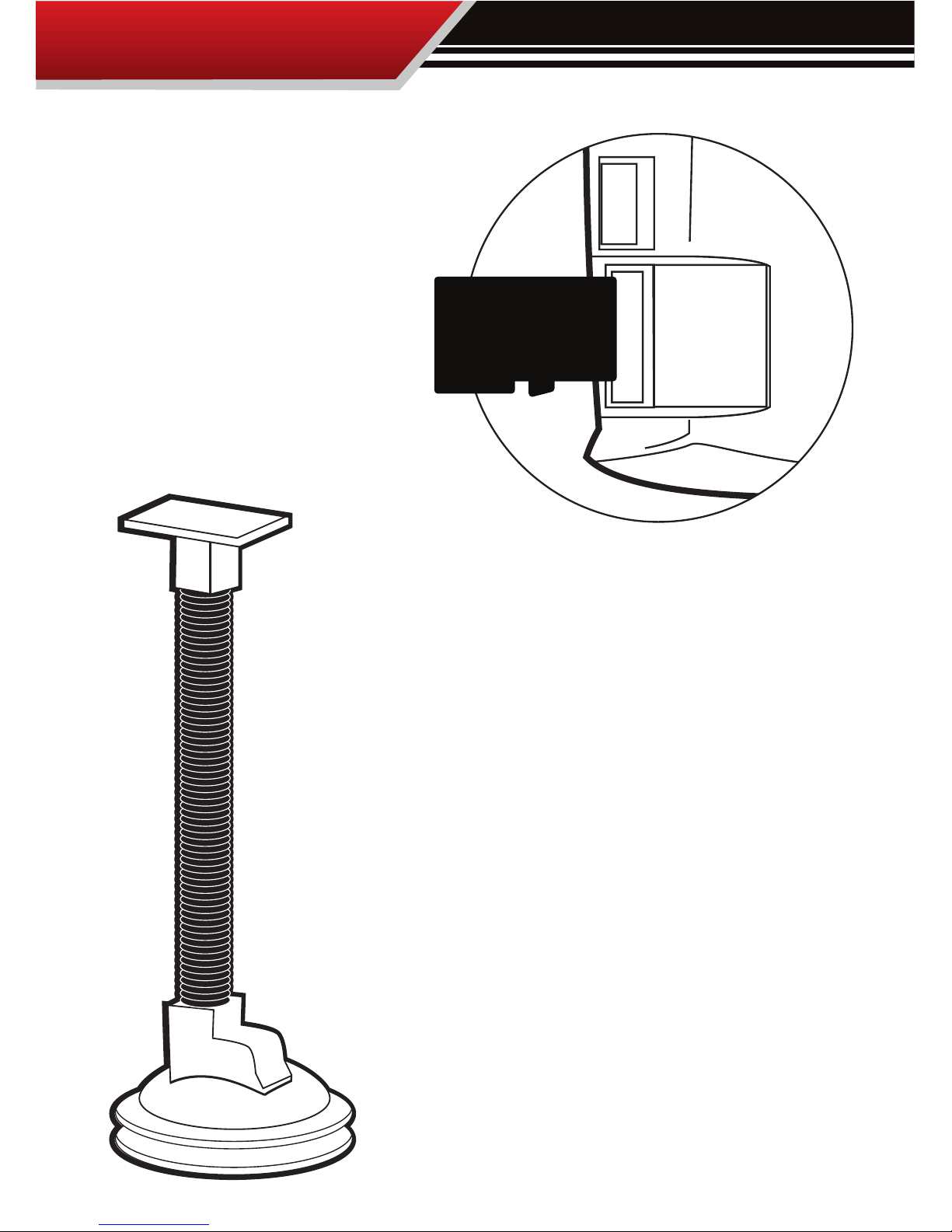

MICRO SD CARD
The Micro SD Card holds all of the elec-
tronic les necessary to properly start up
the GT, the SD card must be installed into
the micro SD card slot on the side of the
GT at all times.
UNIVERSALWINDSHIELD MOUNT
This universal windshield mount is used to install the GT rmly onto
the windshield, it is a suction cup mount that will work on any vehicle
windshield. Check our web site for other mounting options, the GT is
adaptable to a range of other mounting styles.

INSTALLATION
GT & Windshield Mount
OBDII Adapter Plug
OBDII Port
Power Cable
Fuse Box
Fire wall grommet
SECTION 3:Installation Overview

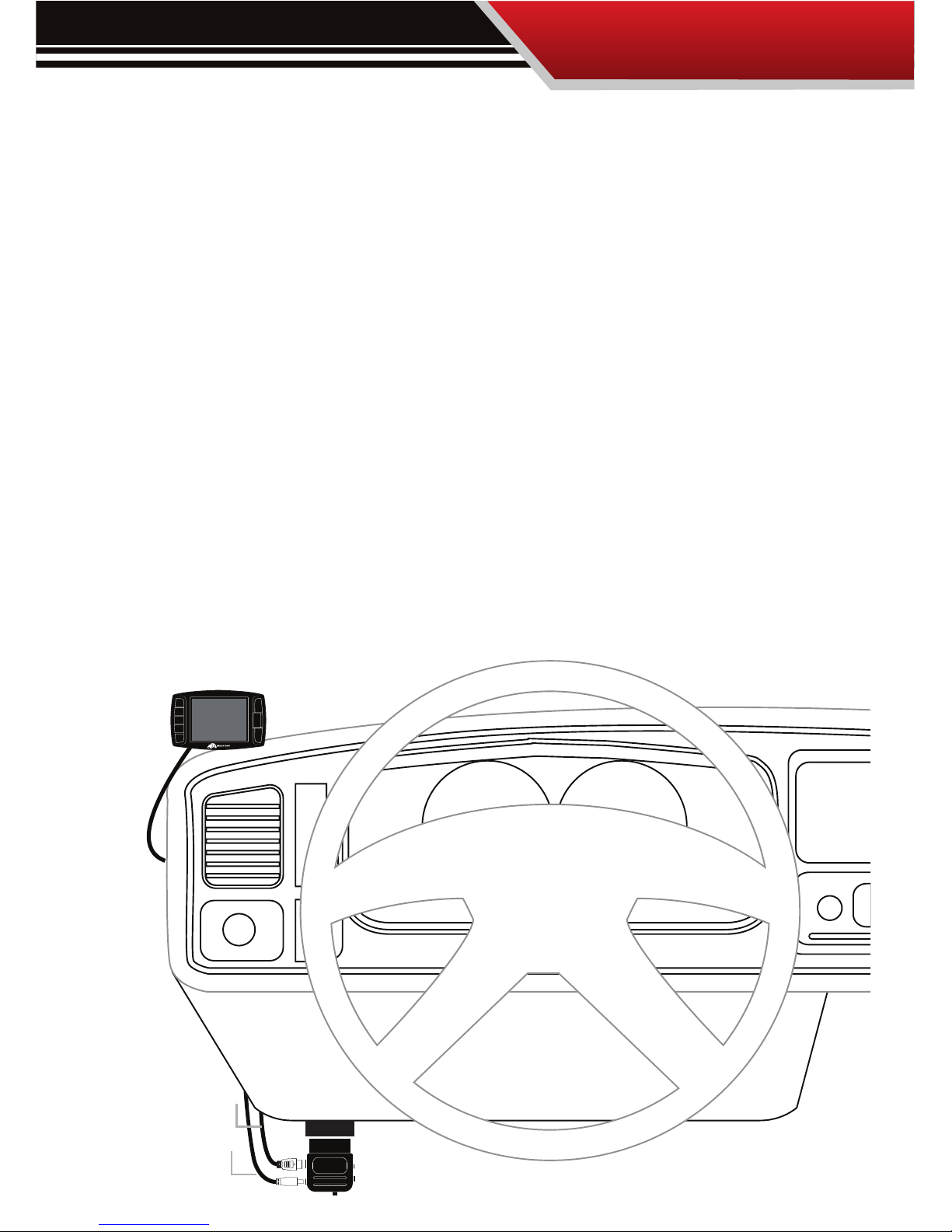

The installation overview illustrates a properly installed GT. This overview is meant to help refer-
ence the general location of installed parts and pieces of the GT. Note that some fuse boxes will
be located inside the cab of the vehicle and will not require that the power wire go through the
vehicle re wall.

INSTALLATION
SECTION 4:Installation
These installation instructions are split into ve Easy Steps. Follow the steps for the easi-
est installation of this product.
STEP 1:CONNECT THE OBD ll ADAPTER TO THE VEHICLE OBD ll PORT
This step involves locating the vehicle’s OBD ll port and then simply plugging the OBD ll Adapter
Plug into the OBD ll port.

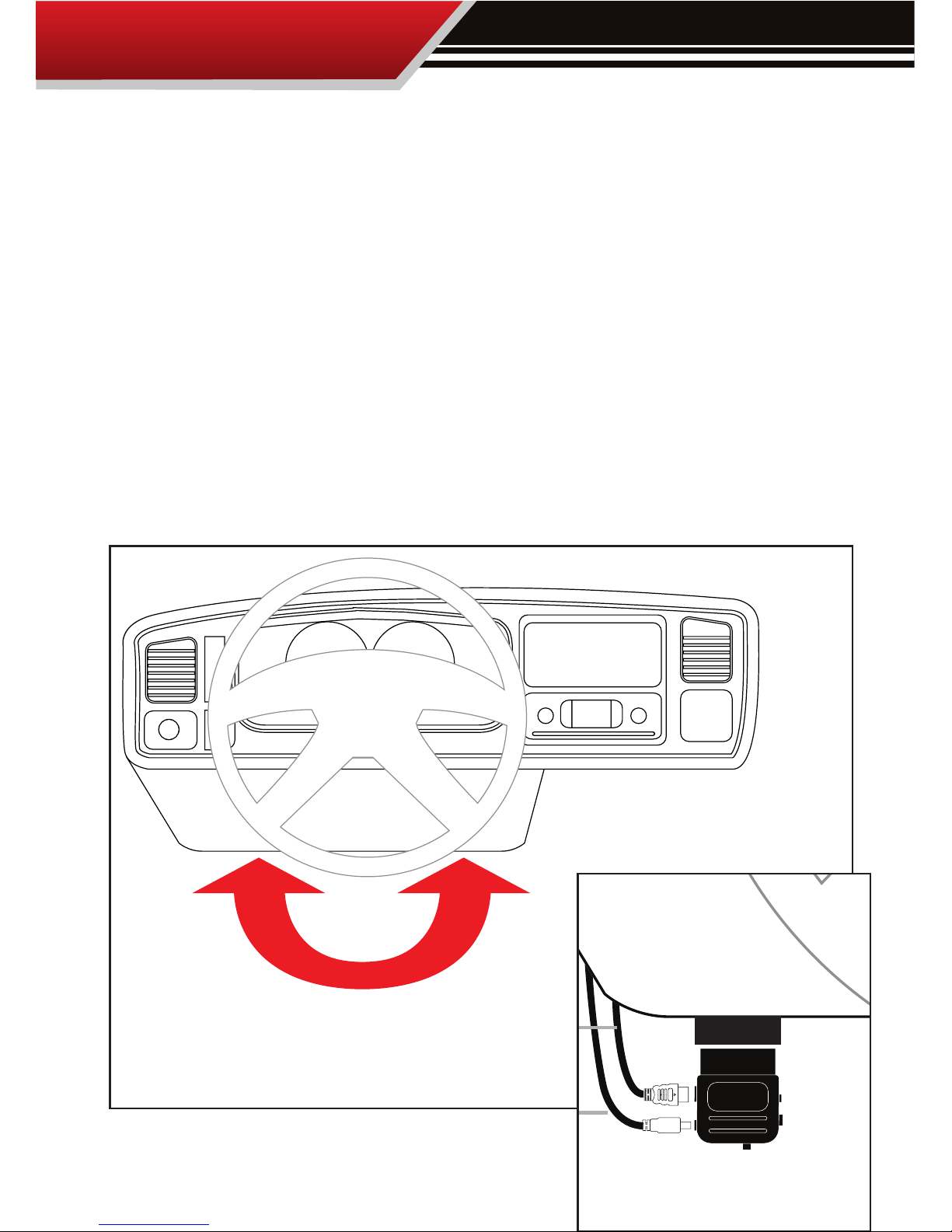

1. As the illustration below shows, OBD ll ports are always located somewhere under the drivers
side dash. The OBD ll port is a male receiver that will have the same shape as the end of the
OBD ll Adaptor plug.
2. Once the OBD ll port is located, then simply plug the OBD ll Adaptor plug into the OBD ll port.
OBDll Port Location
All OBDll ports are located under the
dash on the drivers side of the vehicle.
OBDII Plug
Main Cable
Power Wire
OBDII Adapter Plug Installation Diagram
GT

INSTALLATION
STEP 2: CONNECT THE POWER WIRE TO THE VEHICLE FUSE BOX
Step two involves locating the correct fuse within the vehicle fuse box, and connecting the power
wire from the OBD ll Adaptor plug to the fuse in the fuse box.
IDENTIFYTHE CORRECT FUSE:
1. Locate the vehicle fuse box; the vehicle owners manual will indicate where the fuse box is located
within the vehicle.
2. Open the fuse box and identify a fuse that has“key on power.”To identify the correct fuse, nd an
accessory fuse using the fuse diagram in the vehicle owners manual. If the vehicle manual does not
help identify an accessory fuse use a voltage meter to identify a fuse that supplies power only when
the key is in the on position.
CONNECT THE POWER WIRE FROMTHE OBD II BLOCKTOTHE CORRECT VEHICLE FUSE:
1. Connect the power wire to the power wire port on the OBD ll Adaptor plug.
2. Run the raw end of the power wire to the vehicle fuse box, in many cases this will mean taking the
power wire through the vehicle re wall. On most vehicles the power wire can run through an exist-
ing port, it is not necessary to drill.
3. Remove the correct fuse from the fuse box and plug the fuse back into its original location along
with the power wire.
GT & Windshield Mount
OBDII Adapter Plug
OBDII Port
Power Cable
Fuse Box
Fire wall grommet

INSTALLATION
FOR A CLEAN INSTALL INTO THE FUSE LOCATIONS:
There are multiple dierent fuse types in OEM vehicles. For a clean install, use a fuse tap and
spade connector that will work with the specic fuse being used for this install.
1. Once the end of the power wire is near the fuse box, prepare the end of the power wire by attaching
a spade connector to the end of the wire.
2. Remove the correct fuse from its location and then replace that fuse with a fuse tap that is made
for that size of fuse.
3. Connect the spade connect to the end of the fuse tap.
4. Use zip ties to secure any loose wire left hanging from excess slack in the power wire.

INSTALLATION
STEP 3: RUN GT MAIN WIRE HARNESS
In this section you will connect the GT Main Harness to the OBD ll Adaptor plug and then run the
other end of the main harness up the side of the vehicle dash and connect it to the back of the GT.
1. Plug one end of the Main Harness into the Main Harness port on the OBD ll adapter plug.
2. Runtheotherend of the harnessupthroughthevehicledashonthe driver’s sideso thatthe endof the
harness emerges from the dash near the vehicle A-pillar. It may be necessary to temporarily remove
the vehicle weather stripping and dash panel to achieve an installation where the Main Harness can-
not be seen.
3. Plug the Main Harness into the back side of the GT, make sure that there is enough slack in the main
harness to accommodate mounting the GT to the windshield.
OBDII Plug
Main Cable
Power Wire
OBDII Adapter Plug Installation Diagram
GT

INSTALLATION

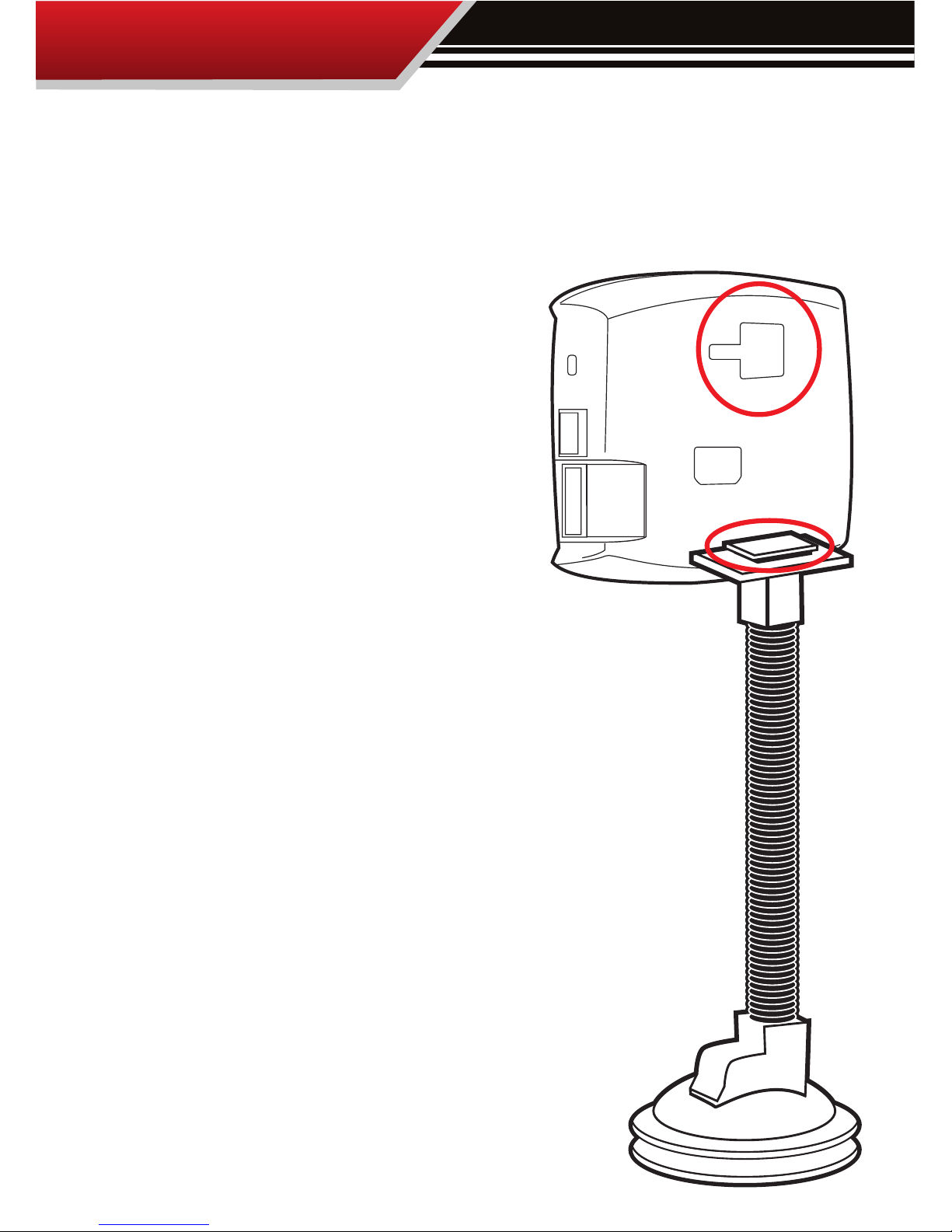

SECTION 5:Mounting the GT using theWindshield mount
The final step to installation is mounting the GT to the windshield using the univer-
sal windshield mount.
1. Locate the T-shaped mount socket on the back
side of the GT.
2. Notice that the top of the universal mount will t
into T-shaped socket and slide forward to secure
the GT to the mount.
3. With the GT connected to the mount use the
windshield mount to secure the GT to the wind-
shield. Be sure that the position of the GT does
not obstruct the view of the road or distract the
driver from their primary responsibility, which is
driving responsible.
INSTALLATION

OPERATION
PART 2
Operating Instructions
These operating instructions are split into four sections:
SECTION 1:Button Navigation
SECTION 2: Set upWizard for installing download
SECTION 3:Exploring the General Display
SECTION 4:The Driving Coach
SECTION 5:Main Menu and Sub Menus

OPERATION
®
SECTION 1:Button Navigation
Capacitive Touch Buttons: The buttons used on the GT are Capacitive touch. Capaci-
tive touch buttons only require a touch on the button area rather than a push like
regular buttons require. It is not necessary to apply any significant force to the but-
ton while navigating through product screens.
Press the top left button to enter the Main Menu, also use this button to exit menus.
Press any of the four buttons on the left to
select items on the screen that are adjacent to
the button position.
In general these buttons work as up and down
buttons, they may also be used to select items
on the screen adjacent to these buttons.

OPERATION
SECTION 2: Set upWizard for installing download
The Setup Wizard is a step by step process through the vehicle selection process and
download process. The Setup Wizard appears on the screen automatically and will
only appear the very first time the GT is installed. Opting out of the Setup Wizard
is OK, the vehicle selection process and download process can also be performed
through the main menu.
STEP 1: THE SETUP WIZARD:
1. Once physical installation is complete
insertthe keyintothevehicleignition
and turn it to the on/run position.
2. The GT screen will now light up and
the Setup Wizard will appear on the
screen.
Turn key to the“ON”position
when theTuner
calls for it.
Do not start
the engine unless
the instructions or the
tuner specically
calls for it.
®
WELCOME
Welcome to the GT Wizard.
The ne xt f ew steps will take you
through the initial setup and
download process .
(Press MORE to continue to the nex t screen )
MORE
TROUBLE SHOOTING: If the SetupWizard does not appear automatically and the GT displays
the Main Screen then the vehicle selection process and download process will have to be
performed through the main menu. From the main screen enter the main menu and navigate
to the Change Vehicle screen. Once the correct vehicle is selected, enter the download menu
from the main menu.

OPERATION
STEP 2:VEHICLE SELECTION
Select the option from the vehicle selection screen that most matches the vehicle in use; the GT will
not be able to perform a download or monitor correctly if the correct vehicle type is not specied.
The list of vehicles in the illustration below demonstrate the vehicle selection list for the Diesel
version of the GT; the Gasoline version will have a completely dierent list.
‘03-’07 Ford 6.0L PowerStroke
‘08 Ford 6.4L Power Stroke
‘06-’07 Dodge 5.9L Cummins
‘08 Dodge 6.7L Cummin
‘01-’05 GM 6.6L Duramax
‘06-’07 GM 6.6L Duramax
‘08 GM 6.6L Duramax
Go Back

OPERATION
®
INSTALL DOWNLOAD?
YES
NO
STEP 3THE DOWNLOAD:
In Step 2, select whether to install a performance download now or later. The setup wizard
will initiate the download. For details on the download process see the Install download sec-
tion on page 34. It is OK to opt out of the Download at this point in the setup wizard. It is very
easy to load and unload the download from the main menu.
Opt in: To complete the download in the setup wizard process simply press the up arrow button to select
“Yes.”Then simply follow the on screen instructions to complete a download.
Opt out: If you choose to not download at this time you will still have monitoring capabilities even though
no download has been entered into the vehicle.To download at a later time see the Install Download
instructions when ready.
®
SETUP WIZARD STEP2
Do you want to download?
You can either install a download
now or install later from the main
menu.
Your GT will only be able to run
monitoring features until the
download is completed.
(Press MORE to continue to the next screen)
MORE
