Bully Dog GT User manual

INSTALLATION
1
OWNERS MANUAL
Part 1: Physical Installation
Part 2: Operations and Downloading
Part 3: Internet Updates
Appendix: OEM pyrometers, pyrometer calibration, and other topics.

INSTALLATION
2
REMEMBER TO UPDATE!!!
Always update the GT before installing on a vehicle using the Update Agent internet
update software. Visit www.bullydog.com to download the Update Agent and get in-
stallation instructions for the Update Agent. The diagram below shows just how easy
it is to update any of our electronic products. For detailed update instructions check the
operating instructions.
UsetheUpdateAgentto
update the GT software
before installation on
vehicle. This will ensure
that the GT has the lat-
est programming avail-
able from Bully Dog.
Plug in the GT to the
USB Cable. SDcard mustbe
installed in the GT.
Plug the USB cable
into a PC that has
the Bully Dog Internet
Update software: The
Update Agent.
1.
2.
3.

INSTALLATION
3
INTRODUCTION
Congratulations on the purchasing of the GT. The GT is one of the most technologically
advanced tuning and monitoring devices available in the market place, second only to our
Performance ManagementTool (GT). The GT includes our Patent pending feature called the
Driving coach which assist users in maximizing driving eciency. Using the driving coach
feature end users can see improvements in fuel economy that will save enough money on
their monthly bill to completely oset the cost of the GT itself.
This product is a relatively easy product to install, if installation assistance is required this prod-
uct can be installed by any Bully Dog dealer and can also be installed using the assistance of
our technical support team.
At any time during installation and for operating or updating questions please call our techni-
cal support line: (866)-285-5936.
For other information visit our web site: www.bullydog.com
This instruction set outlines how to install and operate the GT gauge Tuner.

INSTALLATION
4
DODGE
5.9L Cummins‘03-’07 2500
5.9L Cummins‘03-’07 3500
6.7L Cummins‘07-’09 2500
6.7L Cummins‘07-’09 3500
6.7L Cummins‘07-’09 4500
6.7L Cummins‘07-’09 5500
RAM
DIESEL applications

INSTALLATION
5
CHEVROLET/GMC
6.6L Duramax ’06-’09 2500
6.6L Duramax ’06-’09 3500
EXPRESS
6.6L Duramax ’06-’09 2500
6.6L Duramax ’06-’09 3500
SAVANNAH
6.6L Duramax ’01-’09 2500
6.6L Duramax ’01-’09 3500
SILVERADO
6.6L Duramax ’01-’09 2500
6.6L Duramax ’01-’09 3500
SIERRA
6.6L Duramax ’06-’09 4500
6.6L Duramax ’06-’09 5500
KODIAK
6.6L Duramax ’06-’09 4500
6.6L Duramax ’06-’09 5500
TOPKICK
FORD
6.0L Power Stroke ’03-’07
6.4L Power Stroke ’08-’09
7.3L Power Stroke ’99-’03
7.3L Power Stroke ’99-’03
7.3L Power Stroke ’99-’03
7.3L Power Stroke ’99-’03
7.3L Power Stroke ’99-’03
F250
6.0L Power Stroke ’03-’07
6.4L Power Stroke ’08-’09
F350
6.0L Power Stroke ’03-’07
6.4L Power Stroke ’08-’09
F450
6.0L Power Stroke ’03-’07
6.4L Power Stroke ’08-’09
F550
6.0L Power Stroke ’03-’07
E250
6.0L Power Stroke ’03-’09
E350
6.0L Power Stroke ’03-’09
E450
6.0L Power Stroke ’03-’06
EXCURSION
Coming Soon
Coming Soon
Coming Soon
Coming Soon
Coming Soon

INSTALLATION
6
CHEVROLET/GMC/CADILLAC
EXPRESS /SAVANNAH 5.3L V8‘03-’09 1500
5.3L V8‘03-’05 2500
6.0L V8‘03-’04 1500
6.0L V8‘03-’08 2500
6.0L V8‘03-’08 3500
8.1L V8‘01-’03 3500
4.8L V8‘03-’09 2500
4.8L V8‘04-’09 3500
TAHOE
5.3L V8‘00-’09
4.8L V8‘00-’09
SIERRA/SILVERADO
5.3L V8 ‘99-’09 1500
8.1L V8‘01 1500
4.8L V8‘99-’09 1500
6.0L V8 ‘02-’07 Denali
6.0L V8 ‘07-’08 Vortec
6.0L V8 ‘99-’08 2500
6.2L V8 ‘07-’09 Denali
6.0L V8 ‘01-’07 Classic
5.3L V8 ‘99-’00 2500
8.1L V8‘01-’07 2500
YUKON/SUBURBAN
5.3L V8‘00-’09
5.3L V8‘00-’09 XL
4.8L V8‘00-’09
6.2LV8‘07-’09 Denali XL
6.2L V8‘01-’06 XL
6.0L V8‘01-’06 Denali
6.0LV8‘00-’08 Suburban
6.0LV8‘01-’06 Denali XL
6.2L V8 ‘07-’09 Denali
6.0L V8‘01-’06 XL
8.1LV8‘01-’06 Suburban
ESCALADE 5.3L V8‘02-’05
6.0L V8‘02-’06
6.2L V8‘07-’09
AVALANCHE 5.3L V8‘02-’09
6.0L V8‘07-’08
8.1L V8‘02-’06
GAS applications

INSTALLATION
7
5.7L V8 Hemi‘03-’08 1500
5.7L V8 Hemi‘03-’08 2500
5.7L V8 Hemi‘03-’08 3500
DODGE
RAM
FORD/LINCOLN
F150 / E150 4.6L V8‘04-’08
5.4L V8‘04-’08
F250 / E250 4.6L V8‘04-’05
5.4L V8‘04-’08
6.8L V10‘04-’08
F350 / E350 5.4L V8‘04-’08
6.8L V10‘04-’08
MOTORHOME 5.4L V8‘04
6.8L V10‘04-’08
EXCURSION 5.4L V8‘04-’05
6.8L V10‘04-’05
EXPEDITION 4.6L V8‘04-’05
5.4L V8‘05-’07
EXPLORER 4.6L V8‘07
5.4L V8‘05-’07
MARK LT 5.4L V8‘05-’07
MUSTANG 4.0L V6‘07-’08
4.6L V8‘05-’08
6.8L V10‘04-’08
F450 / E450
F550 / E550 6.8L V10‘04-’08
NISSAN/INFINITY
TITAN 5.6L V8‘05-’09
ARMADA
QX56
PATHFINDER
FRONTIER
PATHFINDER
5.6L V8‘05-’09
5.6L V8‘05-’09
5.6L V8‘08-’09
4.0L V6‘05-’09
4.0L V6‘05-’09
4.0L V6‘05-’09

INSTALLATION
8
PART 1
Physical Installation
These operating instructions are split into four sections:
SECTION 1:Parts Included
SECTION 2: Parts Description
SECTION 3:Installation Overview
SECTION 4:Installation
SECTION 5:Mounting the GT using theWindshield mount

INSTALLATION
9
PART 1 PHYSICAL INSTALLATION CONTENTS
ONLINE UPDATES.............................................................................................. PG.2
INTRODUCTION ............................................................................................... PG. 3
GT DIESEL APPLICATIONS.............................................................................PGS. 45
GT GAS APPLICATIONS..................................................................................PGS. 67
TABLE OF CONTENTS ........................................................................................ PG. 9
BILL OF MATERIALS ........................................................................................PG. 10
PARTS DESCRIPTION ................................................................................PGS. 1114
GT Head Unit.................................................................................................pg. 11
OBD II Adapter Plug.....................................................................................pg. 512
GT Main Wire Harness.................................................................................... pg.13
Power Wire ...................................................................................................pg. 13
Micro SD Card................................................................................................pg. 14
Universal Windshield Mount..........................................................................pg. 14
INSTALLATION.........................................................................................PGS. 1520
Installation Overview....................................................................................pg. 15
Installation ..................................................................................................pg. 16
Step 1: Connecting the OBDII........................................................................pg. 16
Step 2: Connecting the PowerWire ..............................................................pg. 17
Step 3: Running GT MainWire Harness .........................................................pg. 19
Mounting GT to Windshield Mount ................................................................pg. 20

INSTALLATION
10

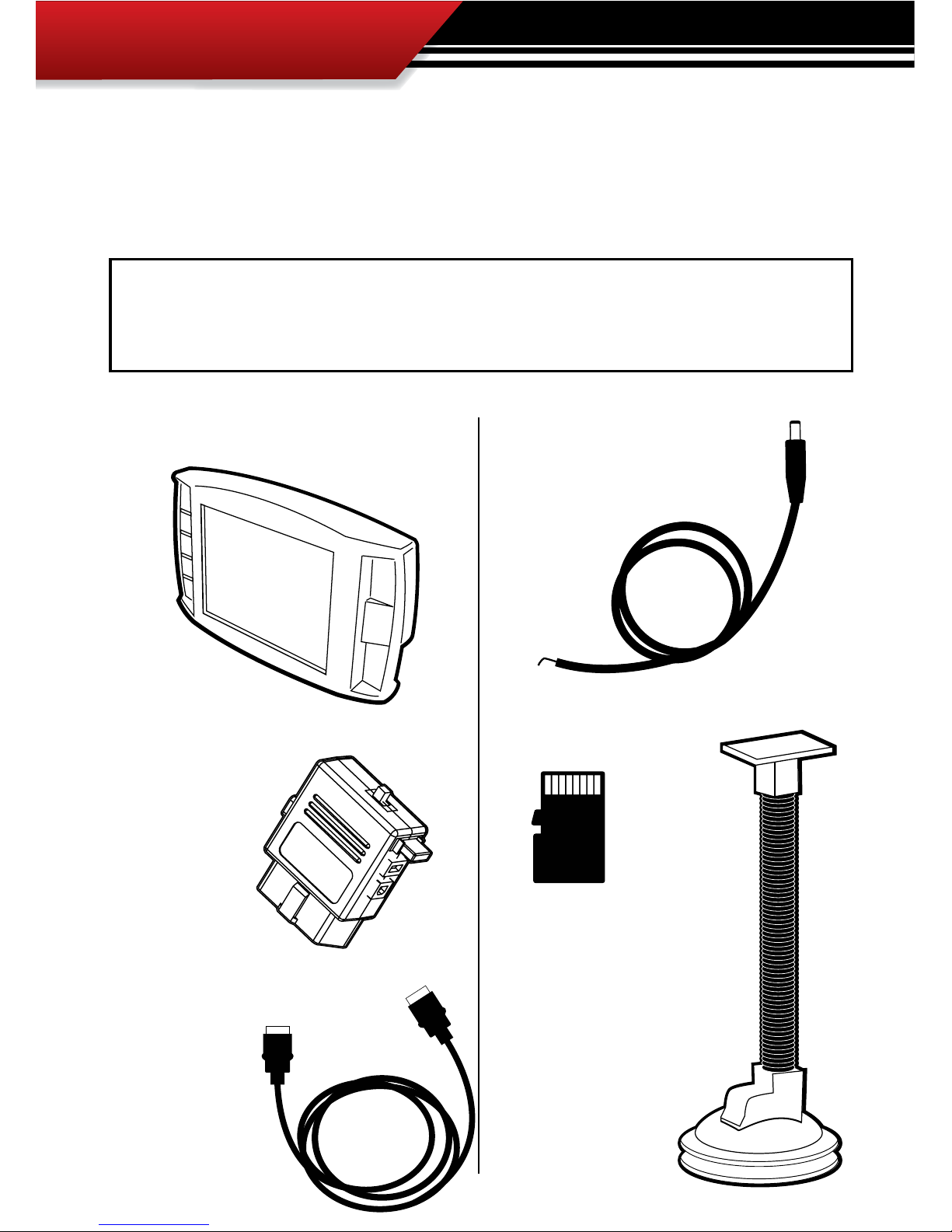

SECTION 1:Parts Included
The list below includes by name the major parts included in your GT package. The tools list
indicates all of the tools necessary to complete the GT install.
1. The GT/Watch Dog Head Unit
3. Main Wire Harness
5. Micro SD Card
3. Windshield Mount
4. The GT/Watch PowerWire
2. OBDII Adapter Plug
TOOLS NEEDED
• Fuse Puller
• Voltage Meter (optional)
EXTRA PARTS (optional)
• Fuse Jack
• Spade connector

INSTALLATION
11
SECTION 2: Parts Description
This section describes each of the parts in the Parts List, each description provides a physical
set of attributes and a purpose for each part. The parts descriptions also list everything that is
included in each assembly.
THE GAUGETUNER:
The main component is the GT Head Unit. The Head Unit is the interface through which all oper-
ating functions take place including: Downloading, Monitoring, and the Driving Coach feature.

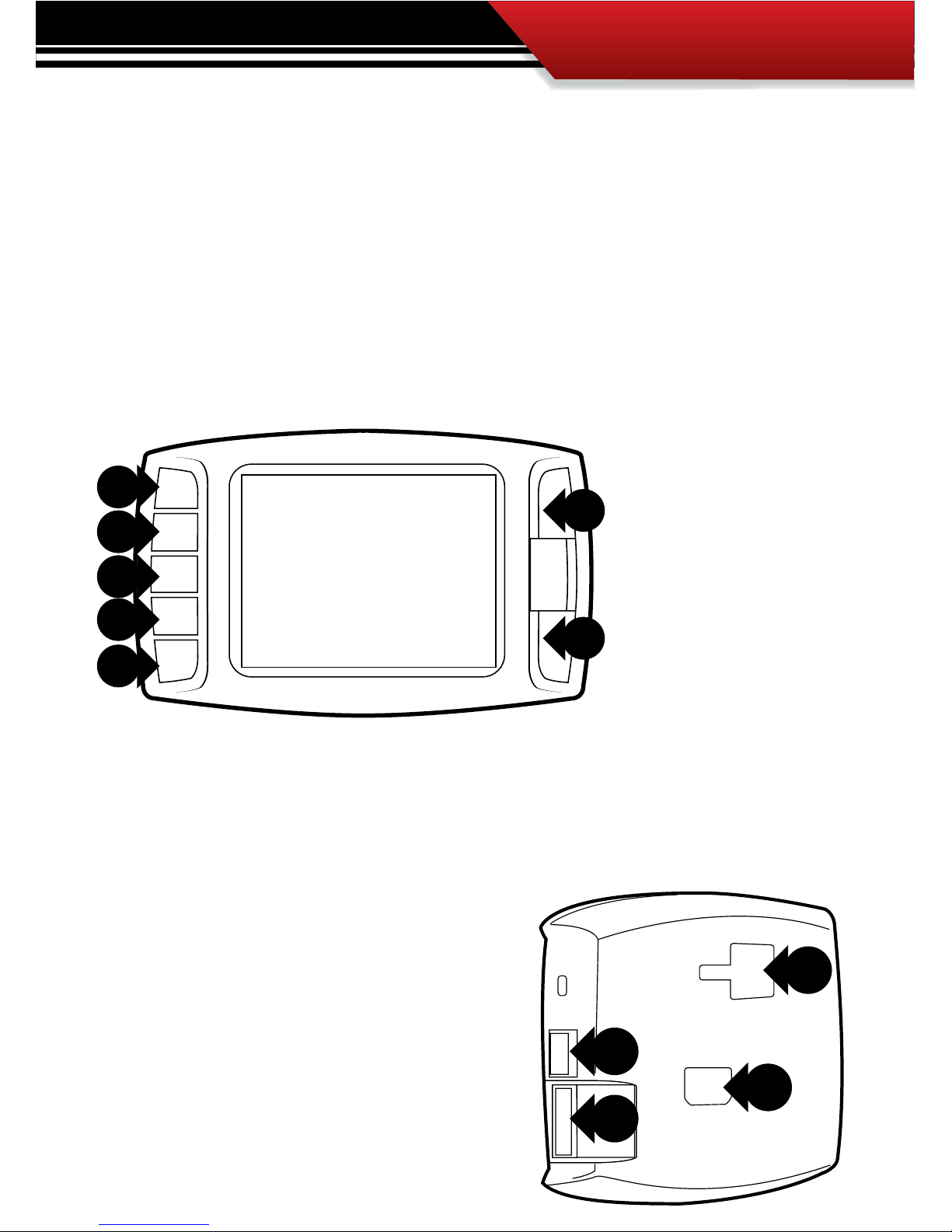

GT Front Side:
The GT has seven capacitive
touch buttons. Capacitive
touch buttons are a button
style that is sensitive to the
presence of your nger. Ca-
pacitive buttons do not need
to be pushed, only touched to
activate. The GT interface fea-
tures a 2.4”LCD screen.
1
2
4
3
GT Parts Back side:
1.T-slot Mount Socket, this will work with a large
range of o the shelve mounting options.
2. Main harness port, electronic port for the main
harness.
3. Micro SD Card Slot
4. Mini USB port

INSTALLATION
12
OBDII ADAPTER PLUG
The OBDII Adapter is a communication hub for the GT. The OBD
ll Adaptor plugs directly into the vehicle OBD ll port. Notice the
OBD ll Adaptor has many ports to support various other func-
tions of the GT. The diagram below illustrates all of the OBDII
parts and ports.
1
5
6
7
2
3
4
1. OBD ll Male End: this is the part of the adapter plug that plugs into the vehicle OBDll port.
2. Main Harness port: the main harness will plug into the GT and into this port during installation.
3. Power wire port: the power wire will run from this port to the vehicle fuse pox during instal-
lation. Plug into the GT and into this port during installation.
4. Power Supply Switch: use this switch to change power from running o of the Power Wire
to OBD ll power as a power supply for the GT.
5. Four Pin USB: This port is used if a Bully Dog pyrometer kit is purchased for the GT.
6. Five Pin USB
7. Adapter Plug Fuse

INSTALLATION
13
GT MAINWIRE HARNESS
The main harness connects the GT to the OBD ll Adapter Plug and acts as the main line of com-
munication for the GT.
POWERWIRE
The Power wire connects the OBD ll Adaptor Plug to the vehicle fuse box to
supply power to the GT.

INSTALLATION
14

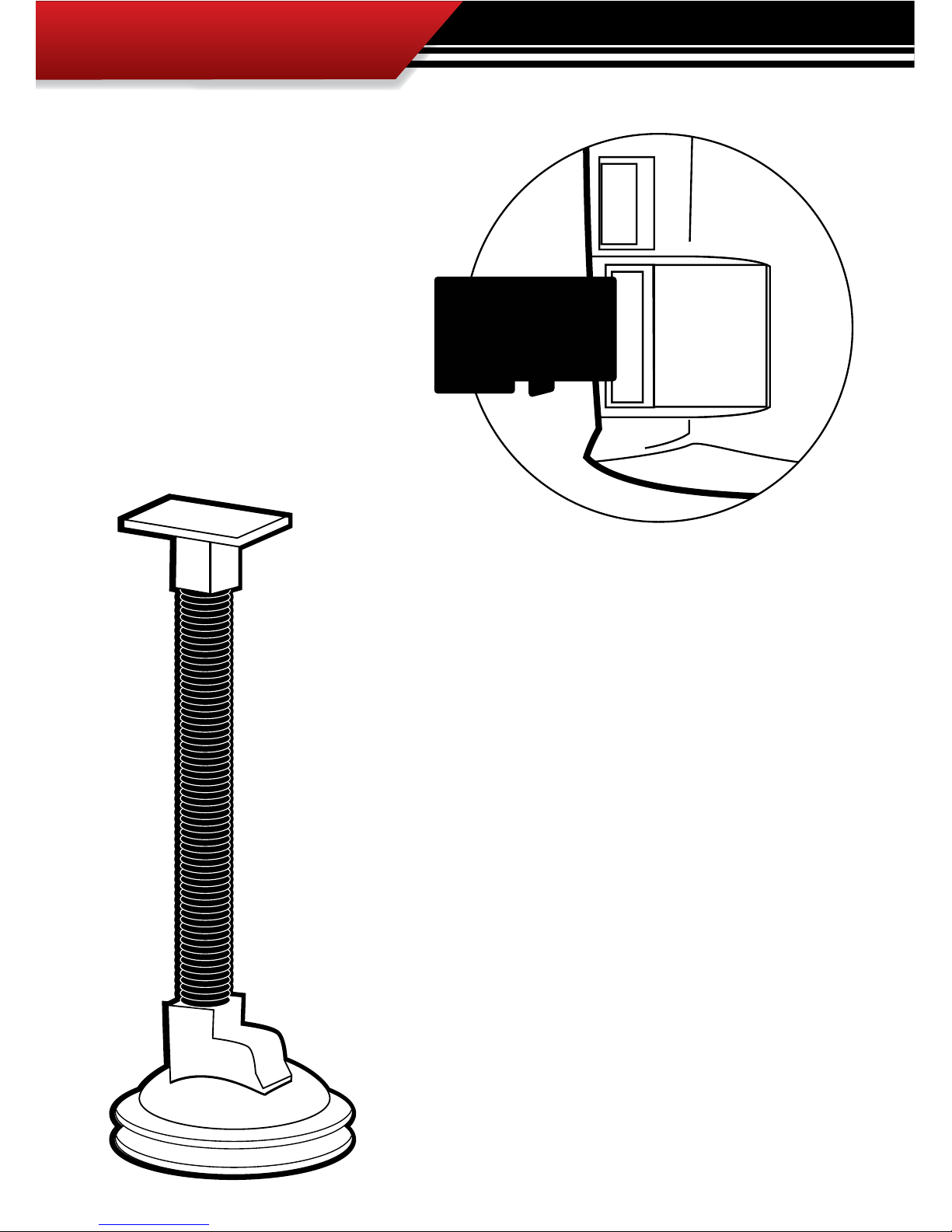

MICRO SD CARD
The Micro SD Card holds all of the elec-
tronic les necessary to properly start up
the GT, the SD card must be installed into
the micro SD card slot on the side of the
GT at all times.
UNIVERSALWINDSHIELD MOUNT
This universal windshield mount is used to install the GT rmly onto
the windshield, it is a suction cup mount that will work on any vehicle
windshield. Check our web site for other mounting options, the GT is
adaptable to a range of other mounting styles.

INSTALLATION
15
GT & Windshield Mount
OBDII Adapter Plug
OBDII Port
Power Cable
Fuse Box
Fire wall grommet
SECTION 3:Installation Overview
The installation overview illustrates a properly installed GT. This overview is meant to help refer-
ence the general location of installed parts and pieces of the GT. Note that some fuse boxes will
be located inside the cab of the vehicle and will not require that the power wire go through the
vehicle re wall.

INSTALLATION
16
SECTION 4:Installation
These installation instructions are split into ve Easy Steps. Follow the steps for the easi-
est installation of this product.
STEP 1: CONNECT THE OBD ll ADAPTER TO THE VEHICLE OBD ll PORT
This step involves locating the vehicle’s OBD ll port and then simply plugging the OBD ll Adapter
Plug into the OBD ll port.
1. As the illustration below shows, OBD ll ports are always located somewhere under the drivers
side dash. The OBD ll port is a male receiver that will have the same shape as the end of the
OBD ll Adaptor plug.
2. Once the OBD ll port is located, then simply plug the OBD ll Adaptor plug into the OBD ll port.
Possible OBDII Port Locations
(location may vary)

INSTALLATION
17
STEP 2: CONNECT THE POWER WIRE TO THE VEHICLE FUSE BOX
Step two involves locating the correct fuse within the vehicle fuse box, and connecting the power
wire from the OBD ll Adaptor plug to the fuse in the fuse box.
IDENTIFYTHE CORRECT FUSE:
1. Locate the vehicle fuse box; the vehicle owners manual will indicate where the fuse box is located
within thevehicle.
2. Open the fuse box and identify a fuse that has“key on power.”To identify the correct fuse, nd an
accessoryfuseusing thefusediagraminthe vehicleowners manual.Ifthevehiclemanualdoes not
helpidentify anaccessoryfuseuseavoltagemetertoidentifyafuse thatsuppliespoweronlywhen
the key is in the on position.
CONNECT THE POWERWIRE FROM THE OBD II BLOCKTOTHE CORRECT VEHICLE FUSE:
1. Connect the power wire to the power wire port on the OBD ll Adaptor plug.
2. Run the raw end of the power wire to the vehicle fuse box, in many cases this will mean taking the
power wire through the vehicle re wall. On most vehicles the power wire can run through an exist-
ing port, it is not necessary to drill.
3. Remove the correct fuse from the fuse box and plug the fuse back into its original location along
with the power wire. For a the cleanest install see our clean install instructions on the next page.
GT & Windshield Mount
OBDII Adapter Plug
OBDII Port
Power Cable
Fuse Box
Fire wall grommet

18
INSTALLATION
FOR A CLEAN INSTALL INTO THE FUSE LOCATIONS:
There are multiple dierent fuse types in OEM vehicles. For a clean install, use a fuse tap and
spade connector that will work with the specic fuse being used for this install.
1. Once the end of the power wire is near the fuse box, prepare the end of the power wire by attaching
aspade connectortothe end ofthewire.
2. Remove the correct fuse from its location and then replace that fuse with a fuse tap that is made
for that size of fuse.
3. Connect the spade connect to the end of the fuse tap.
4. Use zip ties to secure any loose wire left hanging from excess slack in the power wire.

INSTALLATION
19
STEP 3: RUN GT MAIN WIRE HARNESS
In this section you will connect the GT Main Harness to the OBD ll Adaptor plug and then run the
other end of the main harness up the side of the vehicle dash and connect it to the back of the GT.
1.Plugone endofthe MainHarness intothe MainHarness portonthe OBDlladapter plug.
2. Runthe other end oftheharnessup throughthe vehicledash on the driver’ssideso thattheend of the
harness emerges from the dash near the vehicle A-pillar. It may be necessary to temporarily remove
the vehicle weather stripping and dash panel to achieve an installation where the Main Harness can-
notbeseen.
3.Plugthe MainHarness intothe backsideofthe GT,make surethatthereis enough slack in the main
harness to accommodate mounting the GT to the windshield.

INSTALLATION
20
SECTION 5:Mounting the GT using theWindshield mount
The final step to installation is mounting the GT to the windshield using the univer-
sal windshield mount.
1. Locate the T-shaped mount socket on the back
side of the GT.
2. Notice that the top of the universal mount will t
into T-shaped socket and slide forward to secure
the GT to the mount.
3. With the GT connected to the mount use the
windshield mount to secure the GT to the wind-
shield. Be sure that the position of the GT does
not obstruct the view of the road or distract the
driver from their primary responsibility, which is
driving responsible.
INSTALLATION
