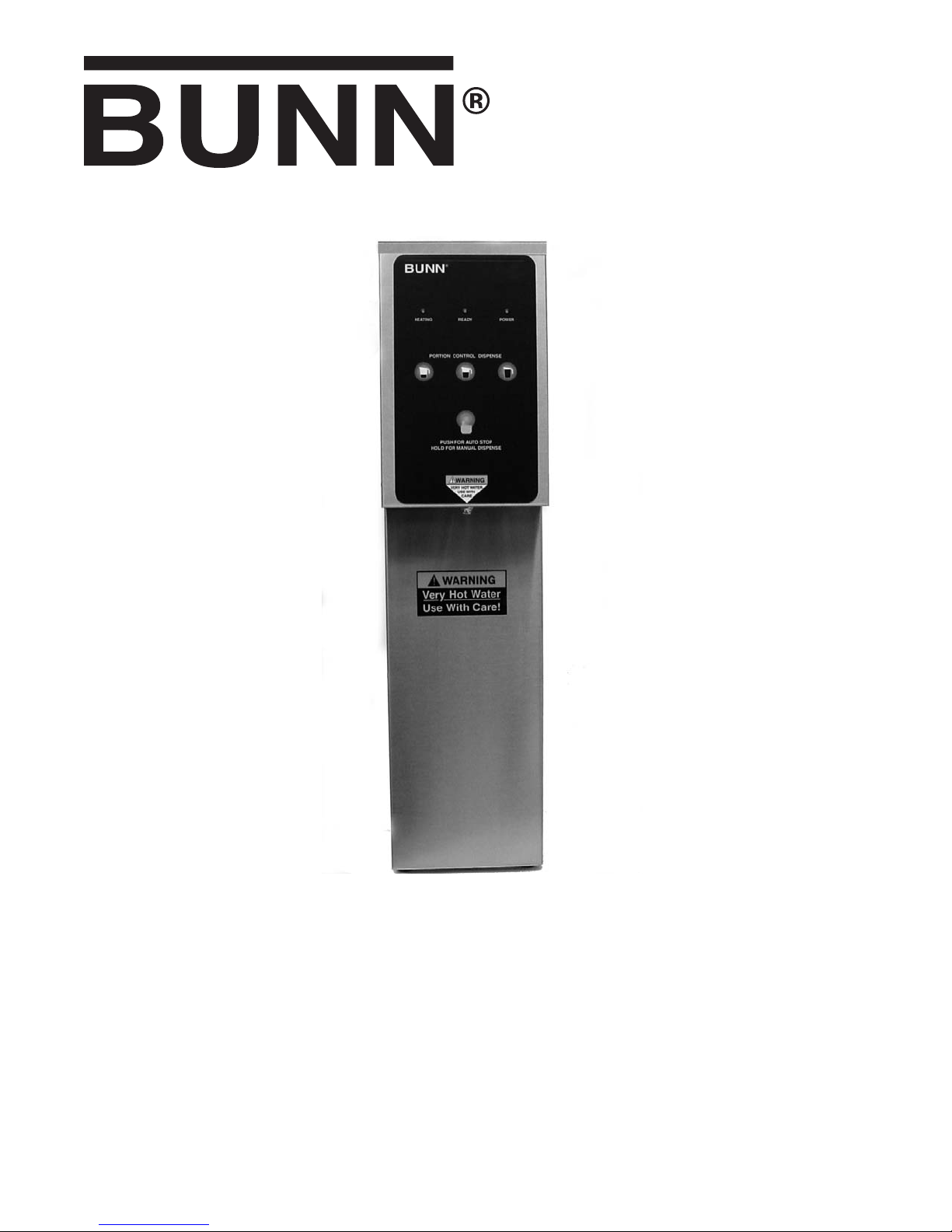

H5E-DV PC
INSTALLATION & OPERATING MANUAL

2
INTRODUCTION
This equipment heats and dispenses water on demand for beverages and cooking purposes. It has a panel
above the dispense valve that indicates the status of the dispenser. This equipment is for indoor use, either
wall-mounted or on a sturdy counter or shelf.
BUNN-O-MATIC COMMERCIAL PRODUCT WARRANTY
Bunn-O-Matic Corp. (“BUNN”) warrants equipment manufactured by it as follows:
1) All equipment other than as specified below: 2 years parts and 1 year labor.
2) Electronic circuit and/or control boards: parts and labor for 3 years.
3) Compressors on refrigeration equipment: 5 years parts and 1 year labor.
4) Grinding burrs on coffee grinding equipment to grind coffee to meet original factory screen sieve analysis:
parts and labor for 3 years or 30,000 pounds of coffee, whichever comes first.
These warranty periods run from the date of installation BUNN warrants that the equipment manufactured by
it will be commercially free of defects in material and workmanship existing at the time of manufacture and
appearing within the applicable warranty period. This warranty does not apply to any equipment, component or
part that was not manufactured by BUNN or that, in BUNN’s judgment, has been affected by misuse, neglect,
alteration, improper installation or operation, improper maintenance or repair, damage or casualty. This warranty is
conditioned on the Buyer 1) giving BUNN prompt notice of any claim to be made under this warranty by telephone
at [phone] or by writing to Post Office Box 3227, Springfield, Illinois 62708-3227; 2) if requested by
BUNN, shipping the defective equipment prepaid to an authorized BUNN service location; and 3) receiving prior
authorization from BUNN that the defective equipment is under warranty.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR
ORAL, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF EITHER
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. The agents, dealers or employees of BUNN
are not authorized to make modifications to this warranty or to make additional warranties that are binding on
BUNN. Accordingly, statements by such individuals, whether oral or written, do not constitute warranties and
should not be relied upon.
If BUNN determines in its sole discretion that the equipment does not conform to the warranty, BUNN, at its
exclusive option while the equipment is under warranty, shall either 1) provide at no charge replacement parts
and/or labor (during the applicable parts and labor warranty periods specified above) to repair the defective
components, provided that this repair is done by a BUNN Authorized Service Representative; or 2) shall replace
the equipment or refund the purchase price for the equipment.
THE BUYER’S REMEDY AGAINST BUNN FOR THE BREACH OF ANY OBLIGATION ARISING OUT OF THE SALE OF
THIS EQUIPMENT, WHETHER DERIVED FROM WARRANTY OR OTHERWISE, SHALL BE LIMITED, AT BUNN’S
SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND.
In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales,
loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute
equipment, facilities or services, or any other special, incidental or consequential damages.
39338 100606
BUNN, and H5E-DV PC are either trademarks or registered trademarks of Bunn-O-Matic Corporation.

3
!WARNING
Very Hot Water
Use With Care!

4
ELECTRICAL REQUIREMENTS
WARNING - The dispenser must be disconnected from the power source until specified in Initial Set-Up.
Refer to Data Plate on the Brewer, and local/national electrical codes to determine circuit requirements.
Electrical Hook-Up
CAUTION – Improper electrical installation will damage electronic com-
ponents.
1. An electrician must provide electrical service as specified.
2. Using a voltmeter, check the voltage and color coding of each conductor
at the electrical source.

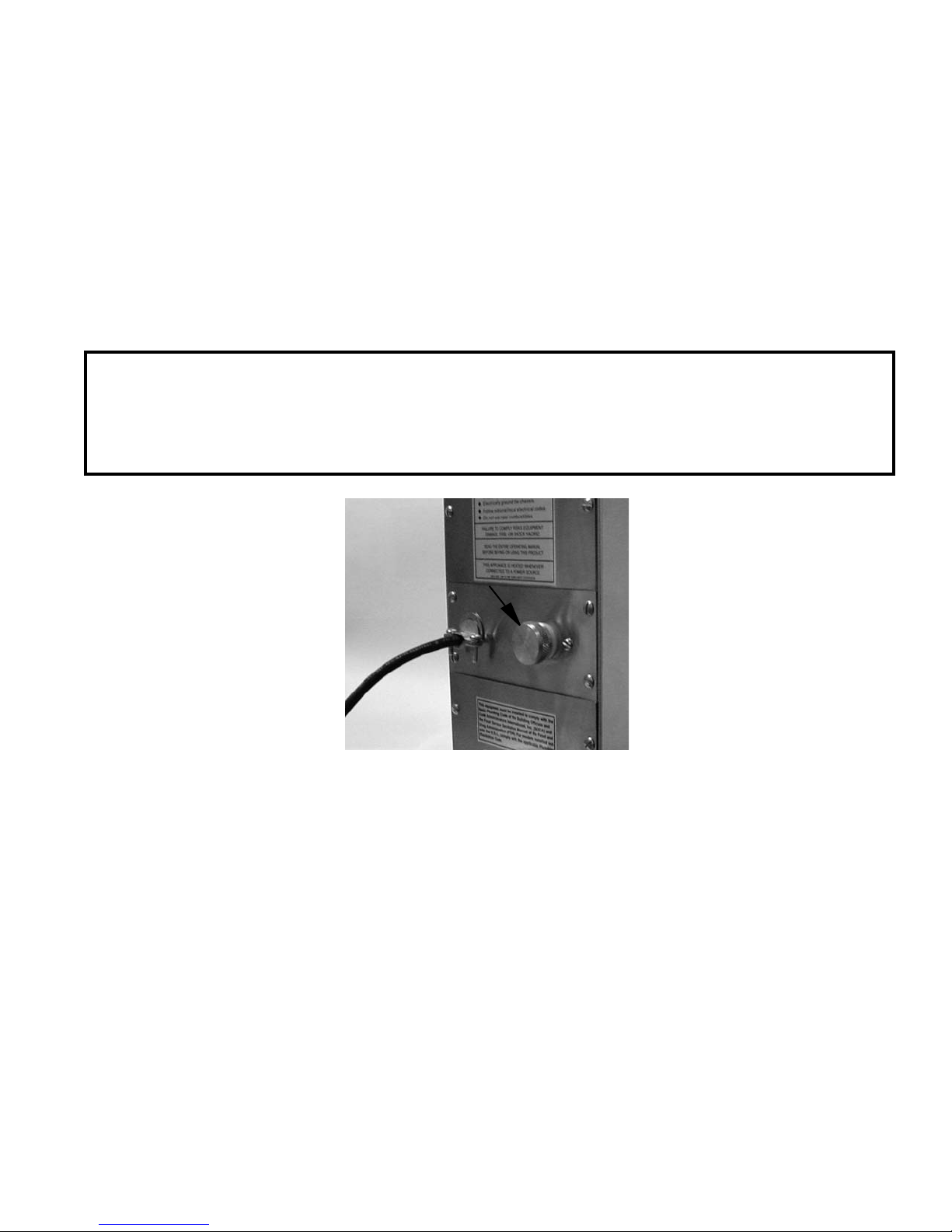

3. Locate the master switch (right side, lower rear corner) and place it in the
“OFF” position, Fig 1.
4. Remove the upper and lower rear panels.
5. Make sure the toggle switch below the circuit board is set to the desired
voltage (120 volts or 208/240 volts) and the red switch on the circuit board
is in the "SET" position, Fig 2.
6. Install a strain relief and the proper electrical wiring to the terminal
block.
7. Connect the dispenser to the power source and verify the voltage at the
terminal block before proceeding. Reinstall both rear panels.
8. If plumbing is to be hooked-up later be sure the dispenser is disconnected
from the power source. If Plumbing has been hooked-up, the dispenser
is ready for Initial Set
120/208 & 120/240V ac
single phase models
Note: This electrical service
consists of 3 current carrying
conductors (Neutral, L1 and
L2) and a separate conductor
for earth ground.
GREEN GREEN
BLK
RED
120V. A.C.
120V. A.C.
208 or 240V. A.C.
WHI
L1
L2
N
FIG 1
FIG 2
39338 100606
P3745
P3744

5
PLUMBING REQUIREMENTS
This dispenser must be connected to a COLD WATER system with operating pressure between 20 and 90 psi
(138 and 620 kPa) from a 1⁄2" or larger supply line. A shut-off valve should be installed in the line before the dis-
penser. Install a regulator in the line when pressure is greater than 90 psi (620 kPa) to reduce it to 50 psi (345
kPa). The water inlet fitting is 1⁄4" flare.
NOTE - Bunn-O-Matic recommends 1⁄4" copper tubing for installations of less than 25 feet and 3⁄8" for more than
25 feet from the 1⁄2" water supply line. At least 18 inches of an FDA approved flexible beverage tubing, such as
reinforced braided polyethylene or silicone, before the dispenser will facilitate movement to clean the countertop.
It can be purchased direct from Bunn-O-Matic (part number 00326-0000). Bunn-O-Matic does not recommend
the use of a saddle valve to install the dispenser. The size and shape of the hole made in the supply line by this
type of device may restrict water flow.
This equipment must be installed to comply with the Basic Plumbing Code of the Building
Officials and Code Administrators International, Inc. (BOCA) and the Food Service Sanita-
tion Manual of the Food and Drug Administration (FDA). For models installed outside the
U.S.A., you must comply with the applicable Plumbing/Sanitation Code for your area.
PLUMBING HOOK UP
1. Remove the shipping cap from the fitting on the rear of the dispenser, Fig 3.
2. Attach the flare elbow fitting (supplied separately with the dispenser) to the fitting.
3. Flush the water line and securely attach it to the flare elbow fitting.
4. Turn on the water supply.
FIG 3
39338 100606
P3746

6
INITIAL SET-UP
CAUTION - The dispenser must be disconnected from the power source throughout the initial set-up, except
when specified in the instructions.
1. Remove the upper panel from the rear of the dispenser.
2. Make sure the toggle switch below the circuit board is set to the desired voltage (120 volts or 208/240 volts)
and the red switch on the circuit board is in the "SET" position.
3. Connect the dispenser to the power source and turn-on the water supply.
4. Place the master switch in the "ON" position.
5. Water will automatically flow into the tank to the proper level and shut-off. This will take approximately 10
minutes.
6. The water will heat to the factory default setting of 90° F (32° C).
7. Refer to PROGRAMMING to set the tank temperature, ready temperature, and dispense volumes.
DRAINING THE DISPENSER
CAUTION - The dispenser must be disconnected from the power source throughout these steps.
1. Disconnect the dispenser from the power source.
2. Shut-off and disconnect the incoming water supply
3. Remove the 4-40 screws at the sides of the top panel.
4. Gently remove one of the grommets from the tank lid.
5. Insert a syphon tube to the bottom of the tank and syphon ALL of the water out.
CLEANING
The use of a damp cloth rinsed in any mild, non-abrasive, liquid detergent is recommended for cleaning all
surfaces on Bunn-O-Matic equipment.
WALL MOUNTED INSTALLATION
If the dispenser is wall mounted, the bottom of the dispenser should be at the same height as a counter or
table top. Use B.O.M. part #12542.0000 for side mounted Wall Bracket Kit or # 13125.0001 for front mounted
Wall Bracket Kit .
SUPPORT FOR LARGE RECEPTACLES
CAUTION: If the dispenser is to be used with larger receptacles such as pitchers or pots, those receptacles must
be adequately supported during dispensing of hot water to avoid spillage of very hot water. This support may be
provided by a table or counter top, or use B.O.M. part #12599.0000 Shelf Kit
39338 100606

7
OPERATING CONTROLS
(a) VOLUME SELECTOR BUTTONS
Press and release the button corresponding to the Small, Medium, or Large volume, to select the desired
amount of water to be dispensed. Pressing a different button after a cycle has been initiated does not change
the volume in progress.
(b) AUTO STOP/MANUAL DISPENSE BUTTON
Press and release button to stop a dispense cycle. Press and hold button to dispense manually.
(c) HIDDEN PROGRAMMING BUTTON
(d) LED INDICATORS
(e) DISPENSE NOZZLE
e.
a.
b.
c.
39338 100606
d.
P3743

8
PROGRAMMING
When power is applied to the dispenser, the display located on the bottom of the main circuit board will show
the revision level of the software for 5 seconds, and then go to (-). While the tank is filling, the display will read
(FIL). When the tank is full the display will return to (-).
LEVEL 1 PROGRAMMING
TANK WATER TEMPERATURE & READY TEMPERATURE SET-UP
1. Press and hold the center button until P1 appears on the display (approximately 3
seconds) then release button. The tank water temperature set point will appear on
the display (Factory default is 90° F).
2. Use the (+) button to increase the temperature set point, and the (-) button to de-
crease the set point.
3. Press and release the center button once more. The display will read P2, then show
the ready temperature set point (Factory default is 85°F).
4. Use the (+) button to increase the temperature set point, and the (-) button to de-
crease the set point.
5. To exit Level 1 Program press and release the center button once more. The display
will read (-).
LEVEL 2 PROGRAMMING
DISPENSE TEMPERATURE LOCKOUT, FAHRENHEIT OR CENTIGRADE SELECTION, &
FACTORY DEFAULTS
1. Press and hold the center button until H1 appears on the display (approximately 6
seconds) then release button. The display will either read noL (LOCKOUT DISABLED)
or Loc (LOCKOUT ENABLED).
2. Use the (+) and (-) buttons to alternate between Loc and noL.
39338 100606
P3747

9
3. Press and release the center button once more. The display will read H2, then show
either FAH (Degrees in Fahrenheit) or Cen (Degrees in Centigrade).
4. Use the (+) and (-) buttons to alternate between FAH and CEn.
5. Press and release the center button once more. The display will read H3, then show
(- - -).
6. Press and hold both (+) and (-) buttons to initiate the resetting of the factory de-
fault settings. The display (- - -) will flash on and off during this time (about 5 to 7
seconds).
7. When the factory default numbers are loaded in, the display will stop flashing, then
read don (DONE). You can now release the two buttons.
NOTE: If you release the two buttons at any time before the display reads don, the Factory Default numbers will
not be entered. The old numbers will remain in the memory.
8. To exit Level 2 Program press and release the center button once more. The display will read (-).
ADJUSTING DISPENSE VOLUMES
NOTE: The dispenser should be at operating temperature before setting dispense volumes.
1. Press and hold the hidden programming button, located under the ® next to the BUNN logo on the front of
the dispenser until the 3 LED's begin flashing from the left to the right. Release the button.
2. Place an empty graduated container under the dispense nozzle.
3. Press and release the batch size to be set. The LED's will stop flashing, and the LED over the button just
pressed will come on solid. Water will begin to dispense into the container.
4. When the desired amount of water is dispensed, press and release the same button. The water will stop
dispensing and the batch size is now set.
5. The LED's will begin flashing from left to right again. Repeat steps 2 thru 4 to set up the other batch sizes.
6. To exit the programming set up at any time, press and release the hidden button once. The dispenser is now
ready for use.
39338 100606

10
WIRING DIAGRAMS
J7-4
J7-1
L1
J2-10
MAIN
CONTROL
BOARD
J2-1
J2-5
N.O.
COM
J4-1
J6-1
J1-11
J1-5
J1-1
PINK-22
J5-1
J5-3
GRN-18
BLK
WHI
J3-5
J3-8
J3-1
WHT-14
WHT-18
WHT-18
WHT-18
1800 W
TANK HEATER
GRN
RED-14
BRN-14
WHI/VIO-14
VIO-18
BLK-18
WHI/BLU-18
WHI-18
4000 W
TANK HEATER
L2N
MASTER ON/OFF
SWITCH
BLK-14 RED-14
SCHEMATIC WIRING DIAGRAM
H5E-DV PC
BLU-14
SELECTOR
SWITCH
BLK-14
LIMIT
THERMOSTAT
OVERFLOW
PROTECTION SWITCH
BLK-14
BLK-18
N.C.
TANK
t°
REFILL
SOL
DISPENSE
SOL
39333.0000B 10/06 ©2006 BUNN-O-MATIC CORPORATION
120V AC 2 WIRE + GND
120/208V AC 3 WIRE + GND
120/240V AC 3 WIRE + GND
SINGLE PHASE
WHT-14
39338 110806
