ILLUSTRATED PARTS CATALOG
Designs, materials, weights, specifications, and dimensions for equipment or replacement parts
are subject to change without notice.
H5E
H5M
H5X
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: [phone] FAX: [phone]
www.bunnomatic.com
10786.0000H 10/07 ©1994 Bunn-O-Matic Corporation

210786 100407
BUNN-O-MATIC COMMERCIAL PRODUCT WARRANTY
Bunn-O-Matic Corp. (“BUNN”) warrants equipment manufactured by it as follows:
1) All equipment other than as specified below: 2 years parts and 1 year labor.
2) Electronic circuit and/or control boards: parts and labor for 3 years.
3) Compressors on refrigeration equipment: 5 years parts and 1 year labor.
4) Grinding burrs on coffee grinding equipment to grind coffee to meet original factory screen sieve analysis:
parts and labor for 3 years or 30,000 pounds of coffee, whichever comes first.
These warranty periods run from the date of installation BUNN warrants that the equipment manufactured by
it will be commercially free of defects in material and workmanship existing at the time of manufacture and
appearing within the applicable warranty period. This warranty does not apply to any equipment, component or
part that was not manufactured by BUNN or that, in BUNN’s judgment, has been affected by misuse, neglect,
alteration, improper installation or operation, improper maintenance or repair, damage or casualty. This warranty is
conditioned on the Buyer 1) giving BUNN prompt notice of any claim to be made under this warranty by telephone
at [phone] or by writing to Post Office Box 3227, Springfield, Illinois 62708-3227; 2) if requested by
BUNN, shipping the defective equipment prepaid to an authorized BUNN service location; and 3) receiving prior
authorization from BUNN that the defective equipment is under warranty.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR
ORAL, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF EITHER
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. The agents, dealers or employees of BUNN
are not authorized to make modifications to this warranty or to make additional warranties that are binding on
BUNN. Accordingly, statements by such individuals, whether oral or written, do not constitute warranties and
should not be relied upon.
If BUNN determines in its sole discretion that the equipment does not conform to the warranty, BUNN, at its
exclusive option while the equipment is under warranty, shall either 1) provide at no charge replacement parts
and/or labor (during the applicable parts and labor warranty periods specified above) to repair the defective
components, provided that this repair is done by a BUNN Authorized Service Representative; or 2) shall replace
the equipment or refund the purchase price for the equipment.
THE BUYER’S REMEDY AGAINST BUNN FOR THE BREACH OF ANY OBLIGATION ARISING OUT OF THE SALE OF
THIS EQUIPMENT, WHETHER DERIVED FROM WARRANTY OR OTHERWISE, SHALL BE LIMITED, AT BUNN’S
SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND.
In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales,
loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute
equipment, facilities or services, or any other special, incidental or consequential damages.
BrewWISE, BUNN Gourmet Ice, BUNN Pour-O-Matic, BUNN, Bunn-OMatic, Bunn-O-Matic, BUNNserve, BUNN Espress,
DBC, Dr. Brew, Dual, EasyClear, Easy Pour, FlavorGard, Gourmet Ice, Gourmet Juice, High Intensity, IMIX, Infusion Se-
ries, Legendary for Quality, The Mark of Quality in Beverage Equipment Worldwide, My Café, PowerLogic, Safety-Fresh,
Single, Smart Funnel, Smart Hopper, Soft Heat, SplashGard, System III, ThermoFresh, AXIOM, Beverage Profit Calculator,
Beverage Bar Creator, BrewLOGIC, BrewMETER, BrewWIZARD, BUNNlink, BUNNSERVE, BUNNsource, Coffee At Its Best,
Coffee Spot, Cool Froth, Digital Brewer Control, Earth-1st, Earth 1st, Earth First, EasyGard, Intellisteam, Nothing Brews
Like a BUNN, Pouring Profits, Pulse Wave, Quality Beverage Equipment Worldwide, Scale-Pro, Signature Series, Silver
Series, Smart Heat, SmartWAVE, Tea At Its Best, The Horizontal Red Line, Titan, Ultra, are either trademarks or registered
trademarks of Bunn-O-Matic Corporation.

TABLE OF CONTENTS
Electronic Control & Decorative Panel With Indicator Lights ..............................................................................6
Housing, Covers & Panels ..................................................................................................................................4
Mechanical Thermostat & Decorative Front Panel.............................................................................................10
Numerical Index................................................................................................................................................28
Strainer/Flow Control - Solenoid & Water Lines (Early Models)........................................................................20

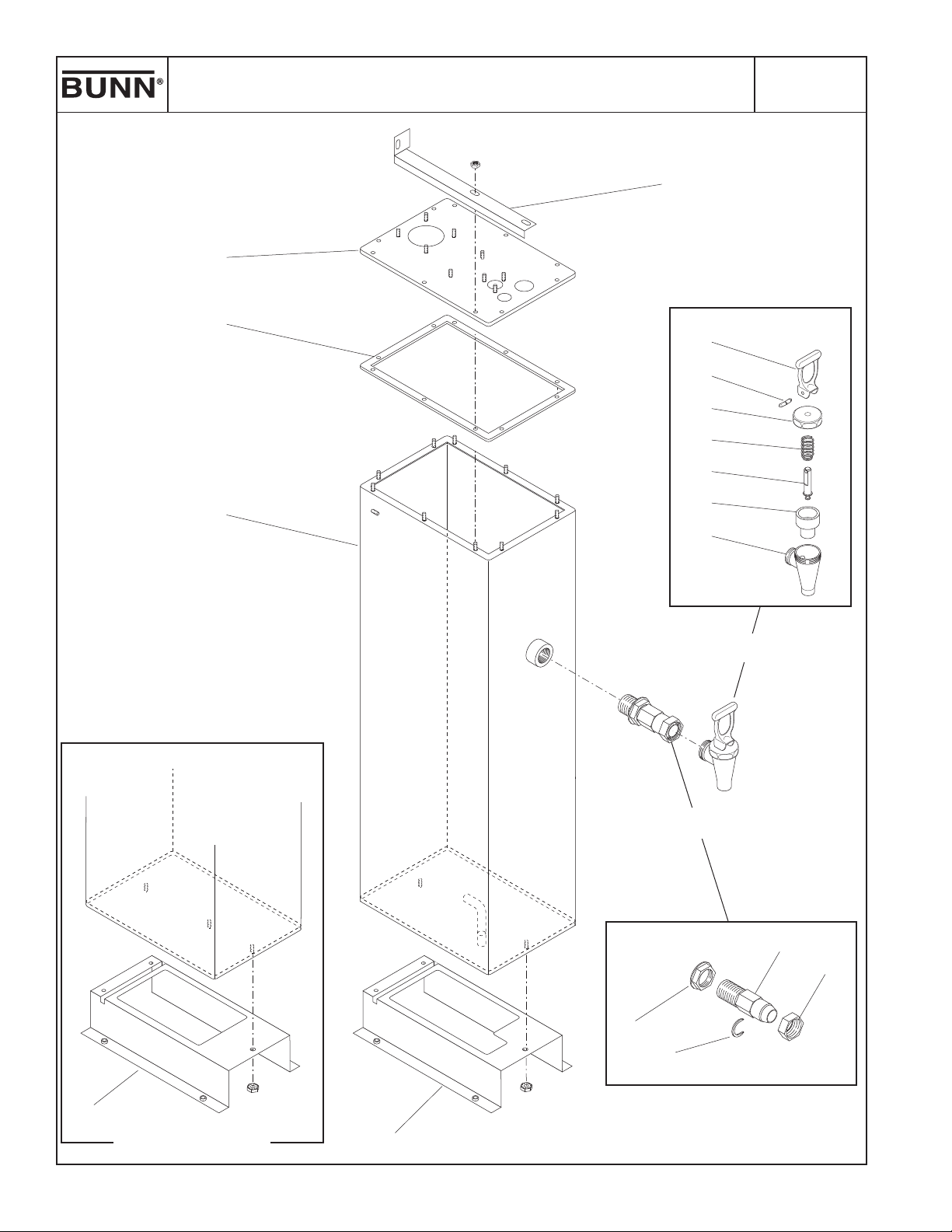

Tank & Faucet ...................................................................................................................................................18

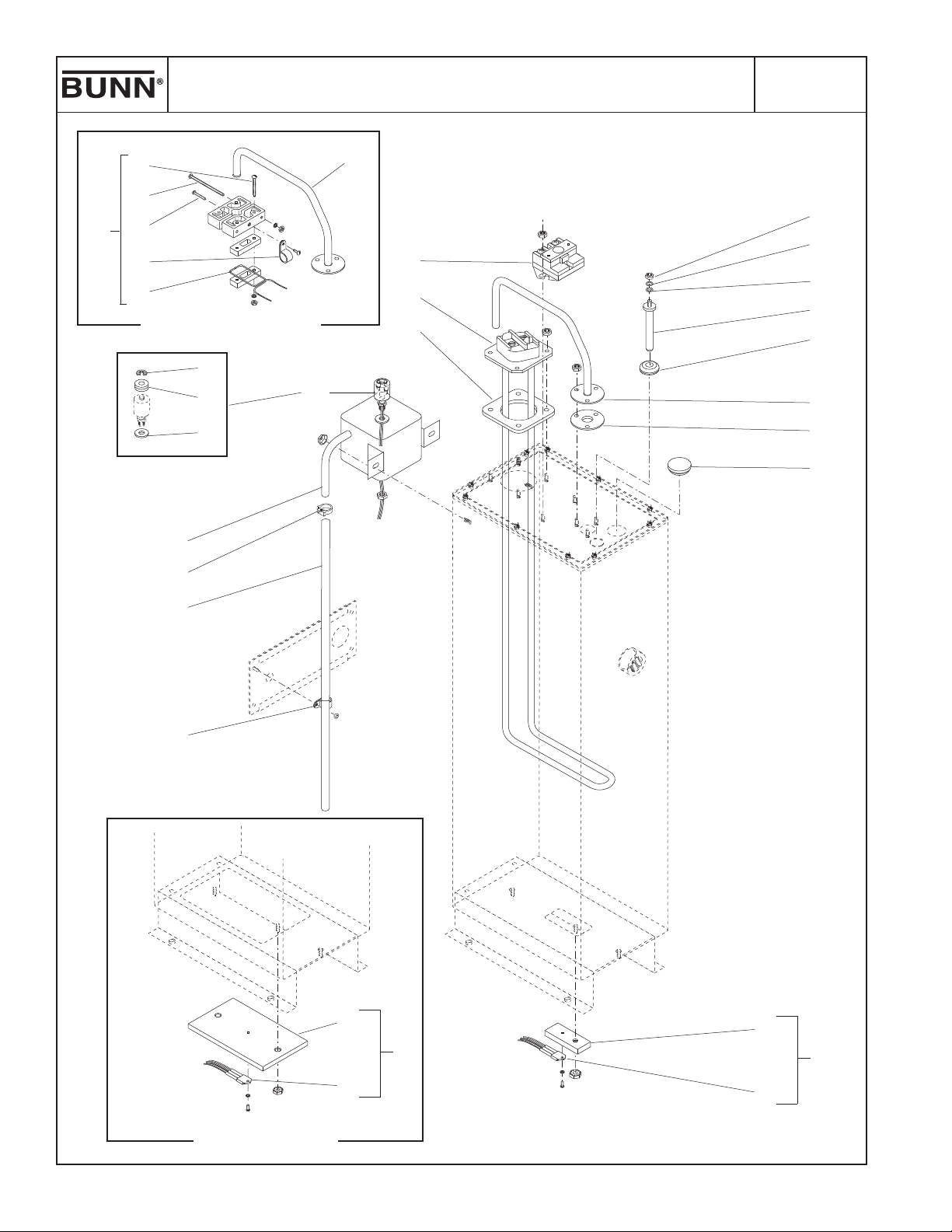

Tank Heater & Safety Devices ...........................................................................................................................14
Wall Brackets, Drip Tray & Wire Shelf...............................................................................................................26
Water Inlet Valve & Lines (Late Models) ...........................................................................................................24
310786 101707

4
H5
HOUSING, COVERS & PANELS
14
13
16
12
14
11
10
9
8
14
2
7
6
P532
2
1
15
3
4
5
10786 101707

ITEM PART NO. QTY. DESCRIPTION
5
HOUSING, COVERS & PANELS
1 27353.0000 1 Cover W/Decal (Includes item 14) (For 208 & 240V Dispensers also order item 2)
01303.0000 3 Screw, Pan Head #4 - 40 X .50”
2 12537.0000 2 Decal - Notice 200-240V Components (Used on 208 & 240V Dispensers only)
3 23535.0000 1 Housing W/Decal (Includes item 4)
23535.0002 1 Housing W/Decal (Includes item 4)(Dispensers w/Master ON/OFF Switch)
23535.0001 1 Housing W/Decal (Includes items 4 & 15)(Dispensers W/Ready Light)
23535.0003 1 Housing W/Decal (Includes items 4 & 15)(Dispensers W/Ready Light & Master ON/
OFF Switch)
4 12593.0000 1 Decal, Warning Very Hot Water (Not used on 72° & 100° F Dispensers)
5 12509.0000 1 Plate, Bottom
01315.0000 7 Screw, Truss Head #8 - 32 X .38”
6 00731.0000 4 Foot, Rubber
01390.0000 4 Screw, Round Head #8 - 32 X .62”
7 23534.0000 1 Panel W/Decal, Rear - Lower (Includes items 8 & 14) (For 208 & 240V Dispensers
also order item 2)
01311.0000 4 Screw, Truss Head #8 - 32 X .25”
8 00656.0000 1 Decal, Comply To Plumbing Code
9 12507.0000 1 Panel, Rear - Middle (Early Models)
12507.0001 1 Panel, Rear - Middle (Late Models)
01311.0000 3 Screw, Truss Head #8 - 32 X .25”
01317.0000 1 Screw, Truss Head #8 - 32 X .50”
10 23533.0001 1 Panel W/Decal, Rear - Upper (Includes items 11 & 14) (Also order item 12)
01311.0000 5 Screw, Truss Head #8 - 32 X .25”
01315.0000 1 Screw, Truss Head #8 - 32 X .38”
11 00831.0000 1 Decal, Warning - Electrical
12 10331.0000 1 Schematic, Electrical 120V H5E
10332.0000 1 Schematic, Electrical 208-240V H5E
10410.0000 1 Schematic, Electrical 120V H5X
10411.0000 1 Schematic, Electrical 208-240V H5X
10262.0000 1 Schematic, Electrical 240V (Dispensers W/Ready Light)
10243.0000 1 Schematic, Electrical 120V (Dispensers W/Ready Light)
- - - - - - - - 1 Schematic, Electrical 230V H5MA
- - - - - - - - 1 Schematic, Electrical 230V H5EA, H5XA
13 00917.0000 9 Clip, J-Type #8 - 32
14 37881.0000 3 Decal, No Serviceable Parts
15 20749.0000 1 Decal, Ready
16 00912.0000 1 Clip, J-Type #8 - 32
10786 101707

6
H5
2
3
4
1
LED INDICATOR
KIT
7 5 6
9
8
10
11
21
16
19
22
12
17
20
13
18
23
15 4

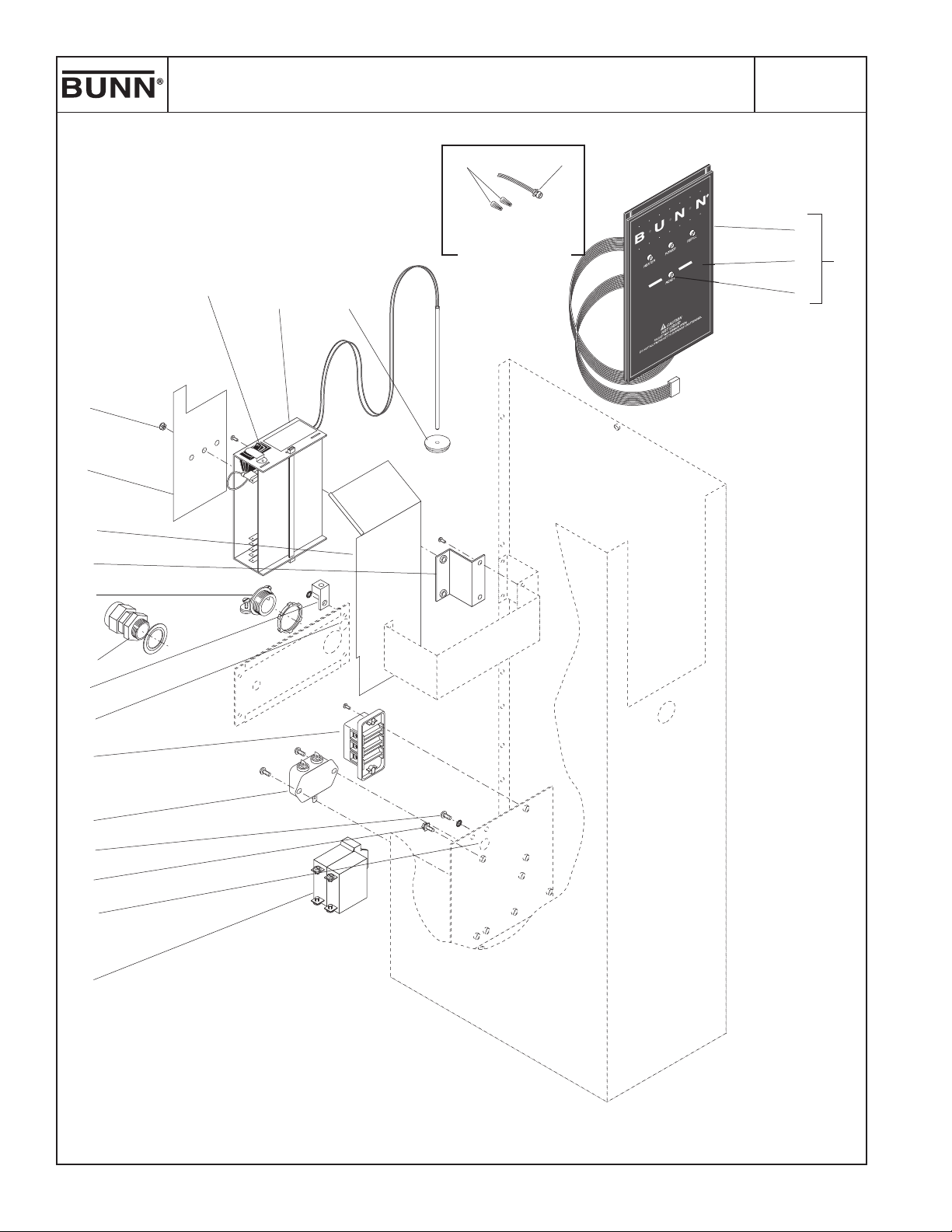

ELECTRONIC CONTROL & DECORATIVE
PANEL WITH INDICATOR LIGHTS
P2582
10786 101707

ITEM PART NO. QTY. DESCRIPTION
7
ELECTRONIC CONTROL & DECORATIVE
PANEL WITH INDICATOR LIGHTS
1 21112.1000 1 Panel Assy W/LED Indicators (Includes items 2, 3 & 4)
2 21033.0000 1 Panel W/Decal (Includes item 3)
3 21031.0000 1 Decal, Decorative - Front Panel
4 - - - - - - - - 4 LED, Indicator (Order item 14)
5 12560.1007 1 Control Assy, Electronic, Multi-Range
12560.1001 1 Control Assy, Electronic 120V 100° F
12560.1002 1 Control Assy, Electronic 120V 200° F
12560.1003 1 Control Assy, Electronic 208-240V 100° F
12560.1004 1 Control Assy, Electronic 208-240V 200° F
12560.1025 1 Control Assy, Electronic 208-240V 200° F (RoHS Compliant)
12560.1016 1 Control Assy, Electronic 120V 72° F
12560.1020 1 Control Assy, Electronic 120V 108° F
12560.1024 1 Control Assy, Electronic 120V 155° F
12592.1001 1 Control Assy, Electronic 120V 212° F
12592.1002 1 Control Assy, Electronic 208-240V 212° F
01311.0000 2 Screw, Pan Head #8 - 32 x .25”
6 12570.0000 1 Grommet, Temp. Sensor
7 04786.0002 1 Switch, On/Off
8 12559.0000 1 Decal, Caution/Warning
9 00619.0002 1 Plug, Hole .250” Dia.
10 22920.0000 1 Shield, ECA Control
11 22921.0000 1 Bracket, Electronic Control Mounting
02308.0000 2 Screw, Pan Head #8 - 32 x .375”
12 01106.0000 1 Terminal Block, 2 Pole (120V)
01106.0003 1 Terminal Block, 2 Pole (230V)
07038.0000 1 Terminal Block, 3 Pole (208-240V) (Shown)
01317.0000 2 Screw, Truss Head #8 - 32 x .50”
13 01309.0000 1 Ground Screw W/Terminal Washer #10 - 32 x .50” (Early Models)
37804.0000 1 Ground Screw W/Terminal Washer #8 - 32 x .50” (Late Models)
14 12517.0001 1 Kit, LED Indicator (Includes one LED & item 15)(Not Illustrated)
25292.0000 1 Lockwasher M6
34130.0000 1 Nut M6
15 01570.0000 2 Wire Nut, 2-24 AWG Min. Yellow
16 32833.0000 1 Strain Relief, Cord
01531.0000 1 Washer, Reducing
17 29446.0000 1 EMI Filter
01311.0000 2 Screw, Truss Head #8-32 x .25”
18 00824.0000 1 Decal, Ground
19 27705.0000 1 Terminal Lug
01512.0000 1 Lockwasher, Ext. tooth #10
Includes item
6 thru 9
10786 101707
230V Models
(Continued)

8
H5
ELECTRONIC CONTROL & DECORATIVE
PANEL WITH INDICATOR LIGHTS
10786 101707
2
3
4
1
LED INDICATOR
KIT
7 5 6
9
8
10
11
21
16
19
22
12
17
20
13
18
23
15 4
P2582
(Continued)

ITEM PART NO. QTY. DESCRIPTION
9
ELECTRONIC CONTROL & DECORATIVE
PANEL WITH INDICATOR LIGHTS
20 23531.0000 1 Screw (230V)
01511.0000 1 Lockwasher, Ext. tooth #8
21 01590.0001 1 Cable Connector
22 00824.0001 1 Decal, Ground
23 38894.0001 1 Switch, Master ON/OFF
01308.0002 2 Screw, Truss Head, Locking #6-32 x .25" (Mounting)
01327.0000 4 Screw, Pan Head #10-32 x .38"
01512.0000 4 Lockwasher #10
The following items are not illustrated
24 12575.0002 1 Wiring Harness, 120V
12576.0004 1 Wiring Harness, 208-240V
12576.0002 1 Wiring Harness, 230V
25 21014.0034 1 Lead Assy, 14AWG Blk 7.0” Tank Heater to Limit (120/240V)
27945.0000 1 Lead, Thermal Cut-off, Blk 8.5” (230V)
26 38920.0000 1 Wiring Harness, Master Switch 40-240V 200° F
38920.0004 1 Wiring Harness, Master Switch 18-120V 85-115° F
10786 101707
Terminals

10
H5

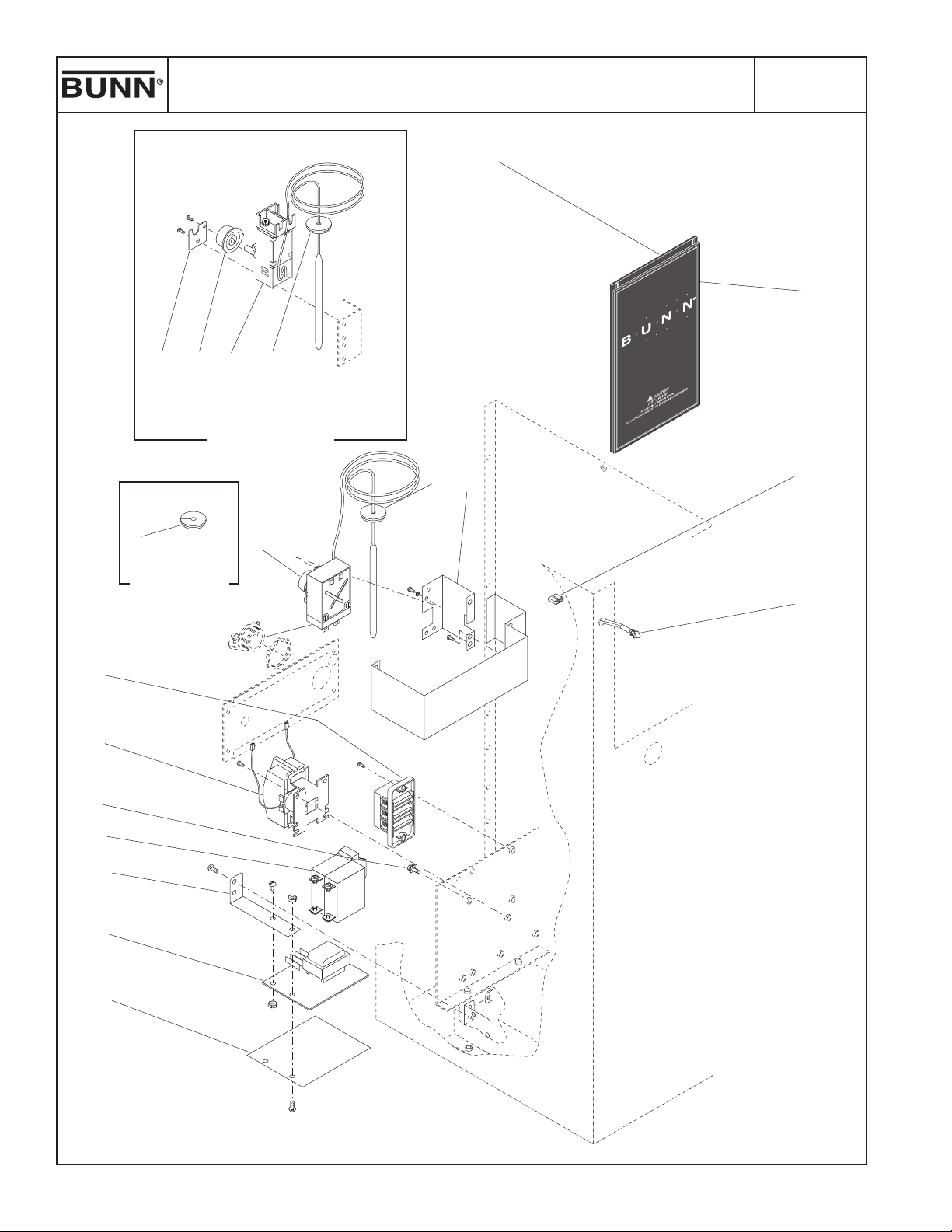

MECHANICAL THERMOSTAT & DECORATIVE FRONT PANEL
1
7
8
9
15
10
11
12
P534.75
2
3 4 5 6
6
6 3
4
5
13
14
EARLY MODELS
REPLACEMENT
PART
10786 101707

ITEM PART NO. QTY. DESCRIPTION
11
MECHANICAL THERMOSTAT & DECORATIVE FRONT PANEL
1 21033.0001 1 Panel W/Decal (Includes item 2)
2 21031.0001 1 Decal, Front - Decorative
3 01074.0000 1 Bracket, Thermostat Mounting (Early Models)
01311.0000 1 Screw, Truss Head #8 - 32 x .25”
28195.0000 1 Bracket, Thermostat Mounting (Late Models)
01311.0000 2 Screw, Truss Head #8-32 x .25”
4 00720.0000 1 Knob, Thermostat
5 - - - - - - - - 1 Thermostat Kit (Includes item 4)(EarlyModel. Order Late Model Kit)
03024.0005 1 Thermostat Kit (Includes item 4)(Late Model)
01310.0000 2 Screw, Pan Head #6 - 32 x .25” (Mounting)
01520.0000 2 Lockwasher, Split #6
20762.0000 2 Screw, Binding Head #8-32 x .25” (Terminal)
6 07073.0000 1 Grommet, Thermostat
7 01106.0000 1 Terminal Block, 2 Pole (120V)
01106.0001 1 Terminal Block, 2 Pole (230V)
07038.0000 1 Terminal Block, 3 Pole (208-240V) (Shown)
01317.0000 2 Screw, Truss Head #8 - 32 x .50”
8 06335.1000 1 Contactor Assy, 120V Coil
06335.1002 1 Contactor Assy, 240V Coil
27906.1000 1 Contactor Assy, 230V Coil
01311.0000 2 Screw, Truss Head #8 - 32 x .25”
9 01309.0000 1 Ground Screw W/Terminal Washer #10 - 32 x .50” (Early Models)
37804.0000 1 Ground Screw W/Terminal Washer #8 - 32 x .50” (Late Models)
10 02537.0000 1 Bracket, Liquid Level Board Mounting
01311.0000 2 Screw, Truss Head #8 - 32 x .25”
00912.0000 2 Clip, “J” - Type #8 - 32
11 07074.1000 1 Control Board, Liquid Level 120V
07074.1009 1 Control Board, Liquid Level 208-240V
38711.1001 1 Control Board, Liquid Level 208-240V (RoHS Compliant)
01311.0000 2 Screw, Truss Head #8 - 32 x .25”
00970.0000 2 Nut, Keps #8 - 32
12 07105.0000 1 Shield, Protective
13 04243.0000 2 Terminal Housing
14 12984.0002 1 Lamp Assy, Green 120V (Includes item 13)(Optional)
12984.0004 1 Lamp Assy, Green 240V (Includes item 13)(Optional)
15 38894.0001 1 Switch, Master ON/OFF
01308.0002 2 Screw, Truss Head, Locking #6-32 x .25" (Mounting)
01327.0000 4 Screw, Pan Head #10-32 x .38"
01512.0000 4 Lockwasher #10
(Continued)
10786 101707
Terminals

12
H5
MECHANICAL THERMOSTAT & DECORATIVE FRONT PANEL
P534.75
(Continued)
10786 101707
1
7
8
9
15
10
11
12
2
3 4 5 6
6
6 3
4
5
13
14
EARLY MODELS
REPLACEMENT
PART

ITEM PART NO. QTY. DESCRIPTION
13
MECHANICAL THERMOSTAT & DECORATIVE FRONT PANEL
The following items are not illustrated
16 12522.0002 1 Wiring Harness, 120V
12529.0005 1 Wiring Harness, 208-240V
12529.0002 1 Wiring Harness, 230V
17 27919.0000 1 Wiring Harness, 120V Ready Light
27919.0001 1 Wiring Harness, 240V Ready Light
18 21012.0013 1 Lead Assy, 12AWG Red 6.50” Terminal Block to Contactor
19 21012.0015 1 Lead Assy, 12AWG Blk 7.5” Terminal Block to Contactor
20 01069.0003 1 Lead Assy, 16AWG Blk 4.0” Thermostat to Main Harness
21 01069.0004 1 Lead Assy, 16AWG Blu/Blk 4.0” Thermostat to Main Harness
22 21004.0286 1 Lead Assy, 16AWG Grn 4.5” Harness Grounding (230V)
23 00985.0000 1 Decal, Individual Circuit Info (230V)
24 27705.0000 1 Terminal Lug (230V)
37804.0000 1 Screw, Pan-hd #8-32 x .50”
01512.0000 1 Lockwasher, Ext-th #10
01317.0000 1 Screw, Truss-hd #8-32 x .50”
25 27945.0009 1 Lead, Thermal Cut-off BLK 36” (230V)
26 27945.0010 1 Lead, Thermal Cut-off RED 36” (230V)
27 38920.0000 1 Wiring Harness, Master Switch 40-240V 200° F
38920.0004 1 Wiring Harness, Master Switch 18-120V 85-115° F
28 00824.0001 1 Decal, Ground (230V)
10786 101707

14
H5
.0000
.0002
TANK HEATER & SAFETY DEVICES
20
21
20
21
19
30 AMP DISPENSERS
4
3
2
1
11
10
9
13
14
12A
12
15
16
17
18
19
5
8
7
6
16
27
26
25
24
23
22
P535.65
“X” MODEL DISPENSERS
10786 051598

ITEM PART NO. QTY. DESCRIPTION
15
1 00603.0000 1 Clamp
00970.0000 1 Nut, Keps #8 - 32
2 - - - - - - - - 1 Tube, Silicone .312” I.D. x 21.50” (Order item 29)
3 12422.0000 1 Clamp, Hose .47”/.54” I.D.
4 22728.0000 1 Overflow Cup Assy
00971.0000 2 Nut, Keps #10 - 32
5 03803.0000 1 Switch Assy, Liquid Level 120V (Includes items 6, 7 & 8)
03803.0002 1 Switch Assy, Liquid Level 230V (Includes items 6, 7 & 8)
00946.0000 1 Nut, Hex .125” FPT
6 03633.0000 2 Gasket, Float Switch (Only 1 used in this application)
7 - - - - - - - - 3 Washer, Adjusting (DO NOT USE IN THIS APPLICATION)
8 03807.0000 1 Clip, Spring
9 12398.0000 1 Gasket, Tank Heater
10 12524.1000 1 Tank Heater Kit 1800W 120V
12322.1000 1 Tank Heater Kit 4000W 240V & 230V
12305.1000 1 Tank Heater Kit 4000W 208V
12453.1000 1 Tank Heater Kit 6000W 240V
12452.1000 1 Tank Heater Kit 6000W 208V
00908.0000 4 Nut, Hex #8 - 32
11 23717.0003 1 Thermostat, Limit
00971.0000 2 Nut, Keps #10 - 32
12 02645.1000 1 Probe Kit, Water Level (Includes items 12A, 13, 14 & 15)
12A 01501.0000 1 Washer .164” I.D. x .375” O.D.
13 00908.0000 1 Nut, Hex #8 - 32
14 20203.0100 1 Lockwasher, Internal Tooth #8
15 02536.0000 1 Grommet (Late Models)
00929.0001 1 Nut/Sleeve, Compression .38" (Early Models)
16 12518.0000 1 Tube, Overflow
12585.0000 1 Tube, Overflow (“X” Model Dispensers)
00908.0000 3 Nut, Hex #8 - 32
17 05515.0000 1 Gasket, Overflow Tube
18 12570.0002 1 Plug, Hole (Early Models)
19 12527.0001 1 Triac/Heat Sink Assy 120V (20 AMP Dispensers)
12527.0002 1 Triac/Heat Sink Assy 120V (30 AMP Dispensers)
12527.0009 1 Triac/Heat Sink Assy 230V (40 AMP Dispensers)
00971.0000 1 Nut, Keps #10 - 32 (2 used on 30 AMP Dispensers)
20 12561.0000 1 Heat Sink, Copper (20 AMP Dispensers)
12397.0000 1 Heat Sink, Copper (30 AMP Dispensers)
TANK HEATER & SAFETY DEVICES
(Continued)
Includes items 20, 21 & 28
Includes item 9
10786 101707

16
H5
(Continued)
TANK HEATER & SAFETY DEVICES
P535.65
10786 051598
.0000
.0002
20
21
20
21
19
4
3
2
1
11
10
9
13
14
12A
12
15
16
17
18
19
5
8
7
6
16
27
26
25
24
23
22
“X” MODEL DISPENSERS
30 AMP DISPENSERS

ITEM PART NO. QTY. DESCRIPTION
17
21 12565.0002 1 Triac Assy 120V
12565.0023 1 Triac Assy 120V (Models w/Master ON/OFF Switch)
12565.0014 1 Triac Assy 230V
02328.0003 1 Screw, Pan Head #6 - 32 x .312”
01520.0000 1 Lockwasher, Split #6
22 12586.0000 1 Thermistor Assy (Includes items 23 thru 26) (“X” Model Dispensers only)
23 12551.0000 1 Thermistor
24 04831.0000 1 Clamp, Thermistor
01382.0000 1 Screw,Truss Head #6 - 32 x .38”
25 01388.0000 1 Screw, Truss Head #6 - 32 X .75”
26 02370.0002 2 Screw, Pan Head #6 - 32 x 2.0”
01520.0000 2 Lockwasher, Split #6
00906.0000 2 Nut #6 - 32
27 02370.0001 2 Screw, Pan Head #6 - 32 x 1.25”
01520.0000 2 Lockwasher, Split #6
00906.0000 2 Nut #6 - 32
28 M2522.1000 - Heat Sink Compound 5 oz.
29 03236.1001 - Tube, Silicone .312” I.D. x 36.0”
TANK HEATER & SAFETY DEVICES
Not illustrated
10786 101707

18
H5
.0002
TANK & FAUCET
P536
17
16
15
14
13
12
11
10
6
7
8
9
5
1
2
3
30 AMP DISPENSERS
4
4
18
10786 101707

ITEM PART NO. QTY. DESCRIPTION
19
TANK & FAUCET
1 - - - - - - - - 1 Lid, Tank - Flat (First type. Not available order Second type Tank Lid)
25922.0003 1 Lid, Tank - Flanged (Second type) (Shown)
00906.0000 10 Nut #6 - 32
2 12377.0000 1 Gasket, Tank lid
3 - - - - - - - - 1 Tank - Flat bottom (First type. Not available order Second type Tank & item 4
for first replacement)
25920.0004 1 Tank - Flanged bottom (Second type) (Shown)
4 - - - - - - - - 1 Bracket, Tank Mounting (20 AMP Dispensers) (First type. Not available order
Second type Bracket)
12514.0000 1 Bracket, Tank Mounting (20 AMP Dispensers W/Mechanical Thermostat) (Second
type shown)
12514.0005 1 Bracket, Tank Mounting (20 AMP Dispensers W/Electronic Control Assy)
- - - - - - - - 1 Bracket, Tank Mounting (30 AMP Dispensers) (First type. Not available order
Second type Bracket)
12514.0006 1 Bracket, Tank Mounting (30 AMP Dispensers) (Second type shown)
00971.0000 2 Nut, Keps #10 - 32 (Only 1 used on 30 AMP Dispensers)
5 07061.0000 1 Faucet Shank Assy (Includes items 6 thru 9) (Also see item 18)
6 - - - - - - - - 1 Faucet Shank Body (Not available order item 5)
7 07119.0000 1 Faucet Shank Nut
8 01221.0000 1 Faucet Shank C-Ring
9 01268.0000 1 Faucet Union Nut
10 07094.0002 1 Faucet Assy (Includes items 11 thru 17)
11 - - - - - - - - 1 Faucet Body (Not available order item 10)
12 00600.0000 1 Faucet Seat Cup
13 01284.0000 1 Faucet Stem W/Pin (Includes item16)
14 00601.0000 1 Faucet Spring
15 07127.0000 1 Faucet Bonnet Nut
16 01219.0000 1 Faucet Handle Pin
17 07244.0000 1 Faucet Handle
18 28715.0000 1 Bracket, Tank Supporting (Top)
00912.0000 1 Fastener, “J”-type #8-32
19 28710.0000 - Faucet Repair Kit (Includes items 12,13,14 & 17)
20 M2517.0000 1 Sealant, Pipe-PST 6 ml (Not illustrated)
10786 101707

20
H5
STRAINER/FLOW CONTROL, SOLENOID & WATER LINES (Early Models)
P537.64
4
5
6
7
8
2
3
10
9
19
29
28
27
26
18 17 16 45 15
INTERNAL MOUNTING
EARLY MODELS W/EXTERNAL MOUNTING
25
24
23
22
21
20
39
40
41
37
36
35
34
33
32
30
31
38
29
42
10
2
3
9
27
28
1 2 3
11
11
12
12
13 14
13 14
SOLENOIDS WITH 1.48’ DIA COIL
SOLENOIDS W/1” DIA COIL
SOLENOID REPAIR PARTS
43
44
10
230V MODELS
10786 101707
