burroughs EF675 User manual

EF675 Printer
User’s Manual
June 2010 8218 2098–001

NO WARRANTIES OF ANY NATURE ARE EXTENDED BY THIS DOCUMENT. Any product or related information
described herein is only furnished pursuant and subject to the terms and conditions of a duly executed agreement to
purchase or lease equipment or to license software. The only warranties made by Burroughs Payment Systems, Inc.
if any, with respect to the products described in this document are set forth in such agreement. Burroughs Payment
Systems, Inc. cannot accept any financial or other responsibility that may be the result of your use of the information
in this document or software material, including direct, special, or consequential damages.
You should be very careful to ensure that the use of this information and/or software material complies with the
laws, rules, and regulations of the jurisdictions with respect to which it is used.
The information contained herein is subject to change without notice. Revisions may be issued to advise of such
changes and/or additions.
Notice to U.S. Government End Users: This is commercial computer software or hardware documentation developed
at private expense. Use, reproduction, or disclosure by the Government is subject to the terms of Burroughs
Payment Systems, Inc. standard commercial license for the products, and where applicable, the restricted/limited
rights provisions of the contract data rights clauses.
Burroughs is a registered trademark licensed to Burroughs Payment Systems, Inc. in the United States and other countries.
All other brands and products referenced in this document are acknowledged to be the trademarks or registered trademarks of their respective holders.
© 2010 Burroughs Payment Systems, Inc.

EF675
User’s Manual
8218 2098-001
675u_6.book Page 1 Thursday, November 27, 2003 10:22 AM

Manual
This manual is applied to the EF675 with an autocutter
(factory option) and without an autocutter. The illustrations
used in this manual might be different from your printer.
675u_6.book Page 2 Thursday, November 27, 2003 10:22 AM
Any items and cleaning supplies for EF675 printers are available from
Burroughs Payment Systems for world-wide delivery.
Product and Services: 800-448-1424
Maintenance and Warranty Services: 800-328-0440 select prompt 2 and then prompt 1
Burroughs Payment Systems Web Store: www.burroughsstore.com

EF675 User’s Manual 1
English
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in
any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior
written permission of Seiko Epson Corporation. No patent liability is assumed with respect to the use of the
information contained herein. While every precaution has been taken in the preparation of this book, Seiko
Epson Corporation assumes no responsibility for errors or omissions. Neither is any liability assumed for
damages resulting from the use of the information contained herein.
Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties
for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or
abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the
U.S.) failure to strictly comply with Seiko Epson Corporation’s operating and maintenance instructions.
Seiko Epson Corporation shall not be liable against any damages or problems arising from the use of any options
or any consumable products other than those designated as Original Epson Products or Epson Approved
Products by Seiko Epson Corporation.
EPSON and ESC/POS are registered trademarks of Seiko Epson Corporation.
NOTICE: The contents of this manual are subject to change without notice.
Copyright © 1999 by Seiko Epson Corporation, Nagano, Japan.
EMC and Safety Standards Applied
Product Name: EF675
Model Name: M146A (without autocutter)
M146B (with autocutter)
The following standards are applied only to the
printers that are so labeled. (EMC is tested using the
EPSON power supplies.)
Europe: CE marking
Safety: EN 60950
North America: EMI: FCC/ICES-003 Class A
Safety: UL 1950/CSA C22.2 No. 950
Japan: EMC: VCCI Class A
JEIDA-52
Oceania: EMC: AS/NZS 3548 Class B
WARNING
The connection of a non-shielded printer interface
cable to this printer will invalidate the EMC standards
of this device.
You are cautioned that changes or modifications not
expressly approved by SEIKO EPSON Corporation
could void your authority to operate the equipment.
CE Marking
The printer conforms to the following Directives and
Norms:
Directive 89/336/EEC EN 55022 Class B
EN 55024
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-11
Directive 90/384/EEC EN45501
FCC Compliance Statement
For American Users
This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference when the equipment is operated in a
commercial environment.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area is
likely to cause harmful interference, in which case the
user will be required to correct the interference at his
own expense.
FOR CANADIAN USERS
This Class A digital apparatus complies with
Canadian ICES-003.
.
675u_6.book Page 1 Thursday, November 27, 2003 10:22 AM

2EF675 User’s Manual
English
Safety Precautions
This section presents important information intended to ensure
safe and effective use of this product. Please read this section
carefully and store it in an accessible location.
WARNING:
Shut down your equipment immediately if it produces smoke, a strange
odor, or unusual noise. Continued use may lead to fire or electric shock.
Immediately unplug the equipment and contact your dealer or a SEIKO
EPSON service center for advice.
Never attempt to repair this product yourself. Improper repair work can
be dangerous.
Never disassemble or modify this product. Tampering with this product
may result in injury, fire, or electric shock.
Be sure to use the specified power source. Connection to an improper
power source may cause fire or shock.
Never insert or disconnect the power plug with wet hands. Doing so
may result in severe shock.
Do not allow foreign matter to fall into the equipment. Penetration of
foreign objects may lead to fire or shock.
If water or other liquid spills into this equipment, unplug the power cord
immediately, and then contact your dealer or a SEIKO EPSON service
center for advice. Continued usage may lead to fire or shock.
Do not place multiple loads on the power outlet (wall outlet).
Overloading the outlet may lead to fire.
Always supply power directly from a standard domestic power outlet.
Handle the power cord with care. Improper handling may lead to fire or
shock.
Do not modify or attempt to repair the cord.
Do not place any object on top of the cord.
Avoid excessive bending, twisting, and pulling.
Do not place cord near heating equipment.
Check that the plug is clean before plugging it in.
Be sure to push the prongs all the way in.
If the cord becomes damaged, obtain a replacement from your dealer
or a SEIKO EPSON service center.
675u_6.book Page 2 Thursday, November 27, 2003 10:22 AM

EF675 User’s Manual 3
English
CAUTION:
Do not connect cables in ways other than those mentioned in this
manual. Different connections may cause equipment damage and
burning.
Be sure to set this equipment on a firm, stable, horizontal surface.
Product may break or cause injury if it falls.
Do not use in locations subject to high humidity or dust levels. Excessive
humidity and dust may cause equipment damage, fire, or shock.
Do not place heavy objects on top of this product. Never stand or lean
on this product. Equipment may fall or collapse, causing breakage and
possible injury.
To ensure safety, please unplug this product prior to leaving it unused for
an extended period.
Do not touch the print head. Wait for the head to cool. The head can
be very hot after printing for a long time. Touching it may cause burns.
Labels
WARNING:
Do not connect a telephone line to the drawer kick-out connector or
the display module connector; otherwise the printer and the telephone
line may be damaged.
CAUTION:
Do not touch the print head. Wait for the head to cool. The head can
be very hot after printing for a long time. Touching it may cause burns.
Connectors
drawer kick-out
DM power
interface
675u_6.book Page 3 Thursday, November 27, 2003 10:22 AM

4EF675 User’s Manual
English
Opening the Paper Roll Cover
If you open the cover of an autocutter-equipped printer except to
install a paper roll, be sure to follow the steps below to prevent a
paper jam.
1. Feed the roll paper approximately 50 mm (1.97").
2. Cut the paper with the manual cutter.
3. Close the cover.
Installing the Paper Roll
Note:
Do not use paper rolls that have the paper glued or taped to the core
because they might cause a paper jam.*
You need to install a paper roll even if you are using only the slip or
validation sections of the printer.
with an autocutter
without an autocutter
➀
➁
675u_6.book Page 4 Thursday, November 27, 2003 10:22 AM
*To order call 1-800-448-1424

EF675 User’s Manual 5
English
Turn on the printer. Hold both edges of the paper and insert it into
the paper slot. It will be fed automatically into the printer.
For 2-ply paper, insert the journal paper into the take-up spool as
shown below. Be sure that 40mm to 60 mm (1.5" to 2.25") of paper
extends beyond the spool and that the edge of the paper is against
the flange.
Insert the take-up spool and tear off the receipt paper, as shown
below.
If you need to remove roll paper before it is all gone, follow these
steps:
1. Lift up the take-up spool with the journal paper attached.
2. Cut the paper off behind the paper insert slot.
3. Push the release lever (located on the right side of the paper
roll).
675u_6.book Page 5 Thursday, November 27, 2003 10:22 AM

6EF675 User’s Manual
English

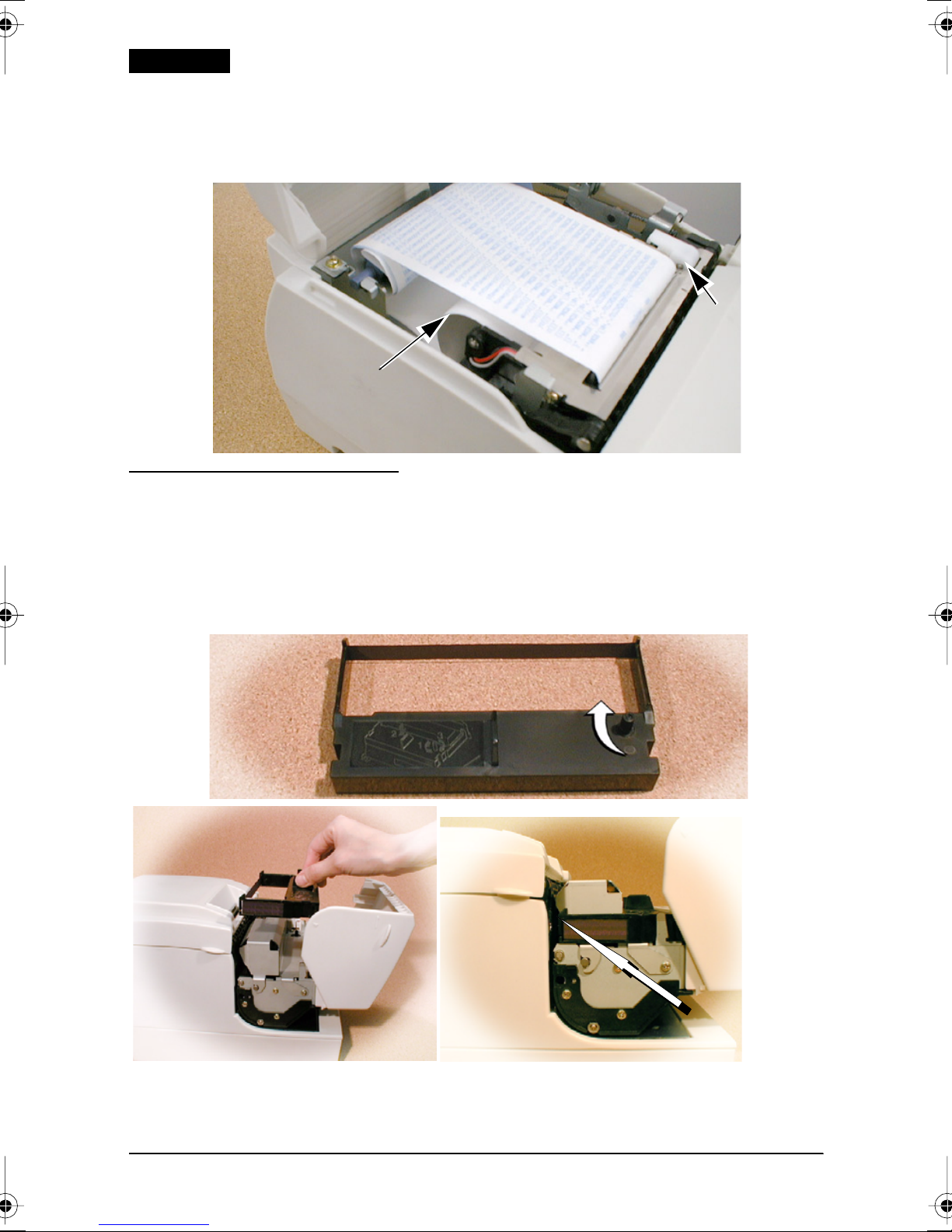

Then pull out the remaining paper in the paper feed direction.
Always pull paper in the paper feed direction to prevent damage to
the printer mechanism.
Installing the Ribbon
Burroughs recommends the use of genuine Burroughs ribbon cassettes.*
Turn on the printer. Turn the knob on the ribbon cartridge. Open
the front cover of the printer, and insert the new ribbon. Turn the
knob two or three times and check the ribbon position.
.
➀
➁
➂
ribbon
position
675u_6.book Page 6 Thursday, November 27, 2003 10:22 AM
*To order ribbons call 1-800-448-1424

TM-U675 User’s Manual 7
English

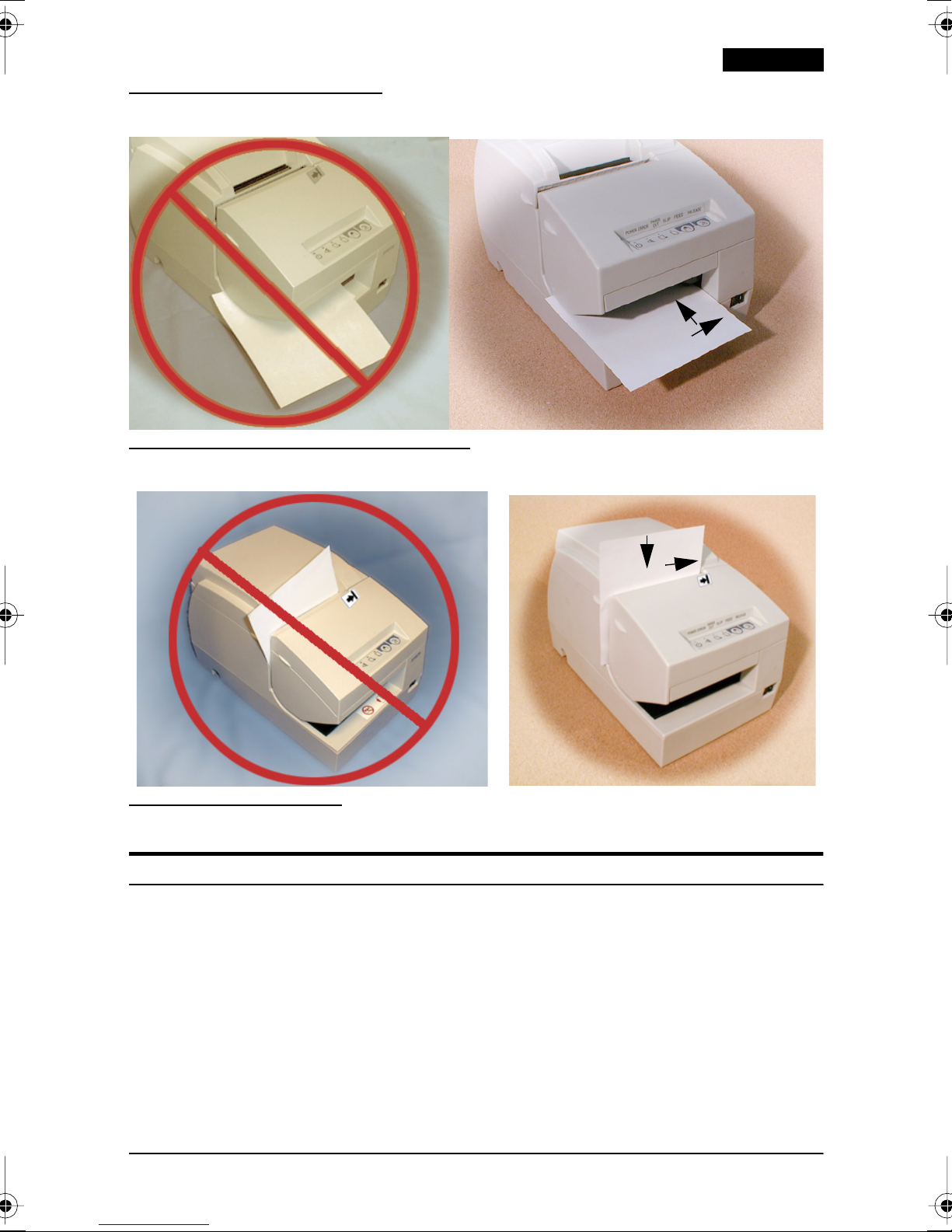

Inserting Slip Paper
Inserting Validation Paper
Troubleshooting
Error light on or blinking.
Make sure that the printer cover is properly closed.
Turn off the printer and check for a paper jam. After removing the
paper jam, turn on the printer.
➀
➁
➀
➁
675u_6.book Page 7 Thursday, November 27, 2003 10:22 AM

8EF675 User’s Manual
English

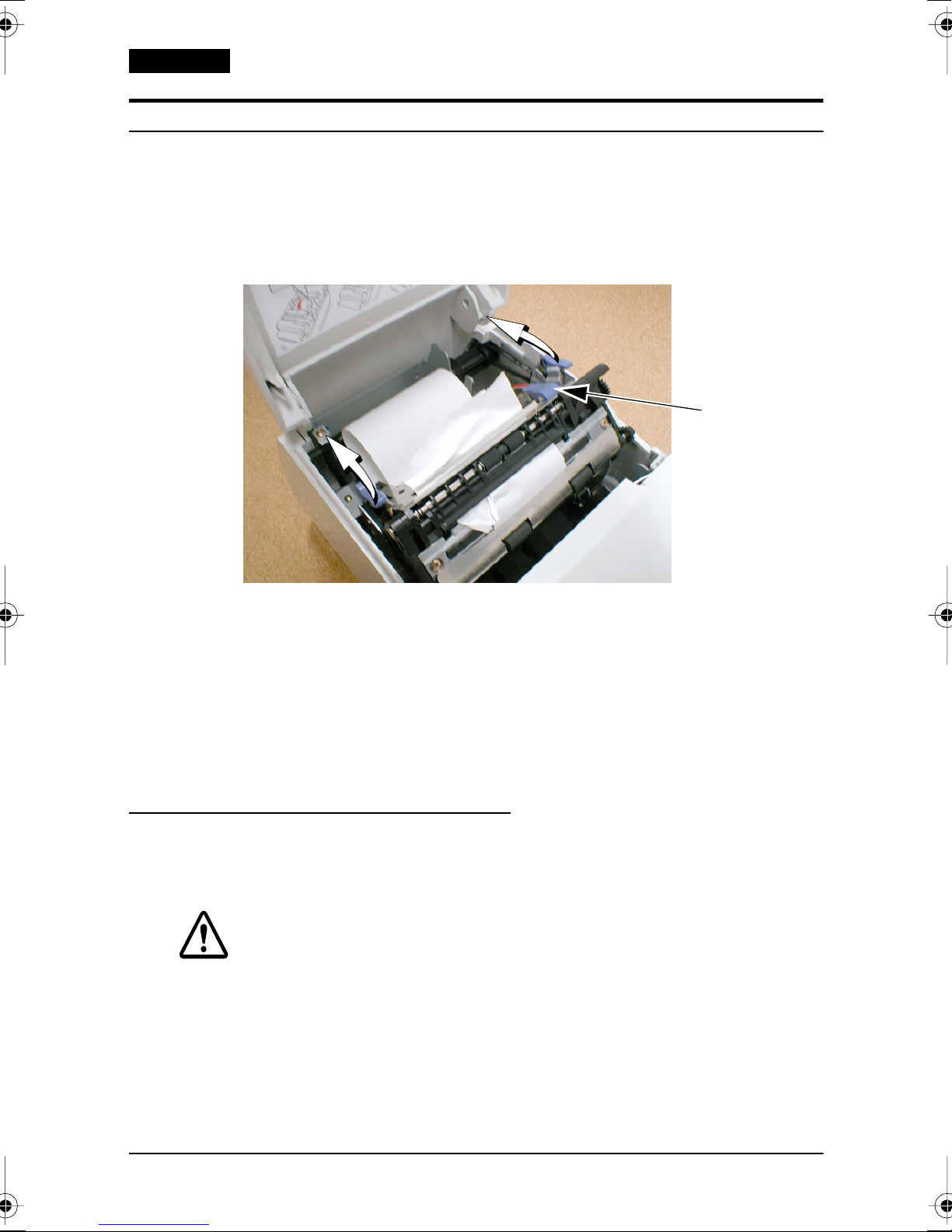

Opening the printer mechanism
For difficult paper jams or to remove objects that have fallen in the
printer, follow the steps below:
1. Turn off the printer and open the paper roll cover. Raise the
mechanism by pushing the levers backward in the direction
indicated by the arrows.
2. Press the paper release lever and pull the jammed paper out in
the paper feed direction or remove the object that was dropped
in the printer. Always pull paper in the paper feed direction to
prevent damage to the printer mechanism. Then push the
mechanism back into place until you feel it click.
Turn on the printer. If you cannot solve the problem, contact
your dealer or a qualified service person.
MICR Option (factory option)
Reading MICR Characters On Personal Checks
CAUTION:
Do not insert checks with staples in them. This may cause paper jams,
MICR reading errors, and damage to the MICR head.
Be sure the checks are flat, without curls, folds, or wrinkles.
paper
release lever
675u_6.book Page 8 Thursday, November 27, 2003 10:22 AM

EF675 User’s Manual 9
English
1. Wait until the SLIP light blinks. Then insert the check face up
with the right side of the check against the right side of the
paper inlet as far as it will go. Be sure that the MICR characters
are on the right.
2. The printer will detect the check and start drawing it in. When
the printer starts drawing it in, let go of the check immediately.
When the printer ejects the check and the SLIP light starts
blinking again; remove the check by pulling it straight up; do
not pull it at an angle.
Cleaning the MICR Mechanism
Once a year clean the MICR head with a moistened cleaning sheet.
Use the following or an equivalent commercially available cleaning
sheet: PRESAT brand (KIC) “CHECK READER CLEANING CARD.”
To order call 1-800-448-1424
Note:
Be sure not to use an adhesive cleaning sheet.
Follow the steps below:
1. Load a paper roll in the printer; turn off the power; then open
the paper roll cover and turn the power back on while holding
down the RELEASE button.
2. Press the RELEASE button seven times; then close the paper roll
cover. The printer prints the following message on receipt
paper and the SLIP light flashes.
MICR
characters
on this side
face up
675u_6.book Page 9 Thursday, November 27, 2003 10:22 AM

10 EF675 User’s Manual
English
3. Insert the cleaning sheet like a standard check.
CAUTION:
Be sure that the sheet is inserted with the correct side up and that it is
inserted in the correct direction.
Use a cleaning sheet only one time; then discard it.
4. When the sheet is ejected, press the RELEASE button, and
remove the sheet from the printer.
Notes on Using the MICR Reader
Do not install the printer near any magnetic fields. Be especially
careful where you install your display device and be sure to check
the recognition rate of the MICR reader with the display device in
place.
Make sure that the printer is not subjected to any impact or
vibration when it is performing a MICR reading.
675u_6.book Page 10 Thursday, November 27, 2003 10:22 AM

EF675 User’s Manual 11
English
* LPS: Lines Per Second
** CPI: Characters Per Inch, CPI means the number of characters per 25.4 mm
EF675 Specifications
Print method: 9-pin serial impact dot matrix
Print font: 5 ×9 / 7 ×9
Columns: 37 / 50 columns (receipt)
45 / 60 columns (slip/validation)
Character size: 1.56 mm ×3.1 mm / 1.24 mm × 3.1 mm {0.006” ×0.12” / 0.49” ×
0.12”}
Character sets: 95 alphanumeric, 37 international characters
128 ×12 pages extended graphic characters
Print speed: Approximately 5.14 LPS* (40 columns at 17.8 CPI**)
Paper dimensions:
Receipt: paper width: 76 mm ±0.5 mm {2.99” ±0.0197”} or 82.5 mm ±0.5
mm {3.25” ±0.0197”}
outside diameter: 60 mm {2.36”} or less for single-ply journal
89 mm {3.50”} or less for single-ply receipt
83 mm {3.27”} or less for 2-ply or 3-ply
spool diameter (inside): 10 mm {0.39”} or more
Slip: 68 mm -230 mm ×100 mm - 297 mm {2.68” - 9.06” × 3.94” - 11.69”}
(W × L)
Validation: 68 mm -230 mm ×68 mm - 230 mm {2.68” - 9.06” × 2.68” - 9.06”}
(W × L)
Paper thickness (1-ply): Receipt: 0.06 mm - 0.085 mm {0.0024” - 0.0033”}
Slip/validation: 0.09 mm - 0.2 mm {0.0035” - 0.0079”}
Copy capability: Receipt: 1 original + 2 copies
Slip/validation: 1 original + 2 copies
Inked ribbon: ERC-32
Ribbon life: 6 million characters
Interface (compatible): RS-232C / Bidirectional parallel / RS-485 (dealer option)
Data buffer: Selectable for 45 bytes or 4 Kbytes using DIP switch
D.K.D. function: 2 drives
Power supply: +24 VDC ±10%
Current consumption: 1.8 A (mean)
Temperature: Operating: 5°C to 45 °C {41 °F to 113 °F}
Storage: −10 °C to 50 °C {14 °F to 122 °F}
Humidity: 10 to 90 % without condensation
Reliability: MTBF: 180,000 hours
MCBF: 37 million lines
Overall dimensions: 195 mm ×186 mm ×298 mm {7.68” ×7.32” ×11.73”} (H×W×D)
Weight: Approximately 4.8 Kg. {10.6 lb}
With an autocutter: approximately 5.8 Kg. {12.8 lb}
675u_6.book Page 11 Thursday, November 27, 2003 10:22 AM

.

*82182098-001*
© 2010 Burroughs Payment Systems, Inc.
82182098-001
All rights reserved.
