BURT ZQJ4116Q User manual

10 13 14 17 20
DRILL PRESS
INSTRUCTION MANUAL
Wereservetherightoftheamendmentadditionanddeletionofthe
specifications, explanatorywording, etc.printedinthismanual 1005#
PDF 件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

DRILLPRESS MANUAL
Wereservetherightoftheamendmentadditionanddeletiono
fthe
specifications, explanatorywording, etc.printedinthismanual
2
WARNING
Somedustcreatedbypowersanding,sawing,grinding,drilling,and
otherconstructionactivitiescontainschemicalsknowntotheStateof
Californiatocausecancer,birthdefectsor other reproductiveharm.
Someexamplesof thesechemicalsare:
Leadfromlead-based paints.
Crystalline silicafrombricks, cement, andothermasonryproducts.
Arsenicandchromiumfromchemicallytreated lumber.
Yourriskfromtheseexposuresvaries,dependingonhowoftenyou do
thistypeofwork.Toreduceyourexposure tothesechemicals:workin
awell ventilated area,andworkwithapprovedsafetyequipment, such
asthosedustmasksthatarespeciallydesignedtofilterout
microscopicparticles.
PDF 件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

DRILLPRESS MANUAL
Wereservetherightoftheamendmentadditionanddeletiono
fthe
specifications, explanatorywording, etc.printedinthismanual
3
TableOfContents PAGE
1. SAFETY
SAFETYRULES FORALL TOOLS............................……......................................…4
ADDITIONALSAFETYINSTRUCTIONSFORDRILL PRESS …………..........................….5
2. CIRCUITREQUIREMENTS
GROUNDING ................................................…...............................................…....6
EXTENSIONCORDS............................……..…….............................................................…..7
3.INTRODUCTION
UNPACKING.............................................…........................................................…………...7
PIECEINVENTORY..............................…..................................................................7
CLEANUP.................................................………….............................................................8
SITECONSIDERATIONS................….....……..….............................................................8
4.ASSEMBLY
BEGINNINGASSEMBLY.................………......................................................................9
COLUMN/BASE.................................…….....................................................................9
TABLESUPPORT.............................…………....................................................................9
HEADSTOCK.....................................……………..................................................................11
HANDLES .............................................………………...............................................................11
INSTALLINGLIGHTBULB........................………………..........................................................11
DRILLCHUCKAND ARBOR................…………...............................................................11
ARBORREMOVAL................................……………..............................................................12
5.ADJUSTMENTS
SPEEDCHANGES ...............................…………...............................................................12
DEPTHSTOP.........................................……………...............................................................13
TABLEADJUSTMENTS...........................…………….............................................................14
6. OPERATIONS
TESTRUN....................................................…………….........................................................15
DRILL BITCHANGES.....................................……………….....................................................15
7. MAINTENANCE
GENERAL.......................................…….....................................................................16
TABLES.............................................……...................................................................16
LUBRICATION..................................……....................................................................16
V-BELT............................................…......................................................................16
8. TECHICALDATA .......……………….........................................................................17
9. PARTSLISTS&EXPODEDVIEWS .………..............................................17--22
PDF 件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

DRILLPRESS MANUAL
Wereservetherightoftheamendmentadditionanddeletiono
fthe
specifications, explanatorywording, etc.printedinthismanual
4
1. SAFETY
SafetyInstructionsForPowerTools
For YourOwn SafetyRead Instruction
Manual BeforeOperatingThisEquipment
I
Thepurposeofsafetysymbolsistoattractyourattention topossiblehazardousconditions.
Thismanualusesaseriesofsymbolsand signalwordswhichareintended toconveythe
levelofimportanceofthe safetymessages. The progression ofsymbolsisdescribed below.
Rememberthat safetymessagesbythemselvesdo not eliminatedangerandarenot a
substituteforproperaccident prevention measures.
1.KEEP GUARDSINPLACE and inworking order.
2.REMOVE ADJUSTING KEYSAND WRENCHES. Form habitof checkingtosee that
keys andadjustingwrenchesareremovedfromtoolbeforeturningon.
3.KEEP WORK AREACLEAN. Cluttered areasandbenchesinviteaccidents.
4.DO NOTUSE INDANGEROUSENVIRONMENT. Donotusepowertoolsindampor
wet locations,orwhereanyflammableornoxiousfumesmayexist. Keepworkarea
well lighted.
5.KEEP CHILDRENAND VISITORSAWAY. All children andvisitorsshouldbe kepta
safedistancefromworkarea.
6.MAKEWORKSHOPCHILDPROOF withpadlocks, masterswitches,orbyremoving
starterkeys.
7.DO NOTFORCETOOL. It will dothe jobbetterand saferatthe rateforwhichit was
designed.
8.USE RIGHTTOOL. Donotforcetoolorattachment todo ajob forwhichitwasnot
designed.
9.USE PROPEREXTENSIONCORD.Makesureyourextension cordisingood
condition. Conductorsizeshouldbe inaccordancewiththechartbelow. Theamperage
ratingshouldbelistedonthe motorortoolnameplate. Anundersizedcordwill causea
dropinlinevoltageresultinginloss ofpowerand overheating.Yourextensioncord
must alsocontainagroundwireandplugpin.Always repairorreplaceextensioncords
iftheybecomedamaged.
MinimumGaugeforExtensionCords
AMP
RATING LENGTH
25 f t 50 f t 100ft
0---6 18 16 16
7---10 18 16 14
11---12 16 16 14
13---16 14 12 12
17---20 12 12 10
21---30 10 10 No
PDF 件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

DRILLPRESS MANUAL
Wereservetherightoftheamendmentadditionanddeletiono
fthe
specifications, explanatorywording, etc.printedinthismanual
5
10.WEARPROPERAPPAREL. Donot wearlooseclothing,gloves, neckties, rings,
bracelets,orotherjewelrywhichmayget caughtinmoving parts. Non-slipfootwearis
recommended. Wearprotectivehaircoveringtocontainlonghair.
11.ALWAYS USE SAFETYGLASSES. Alsousefaceordust maskifcutting operationis
dusty. Everydayeyeglassesonlyhaveimpactresistant lenses, theyareNOTsafety
glasses.
12.SECUREWORK. Useclampsoravisetoholdworkwhenpractical.It’ssaferthan
usingyourhandandfreesbothhandstooperatetool.
13.DO NOTOVERREACH. Keepproperfootingand balanceat all times.
14.MAINTAINTOOLSWITHCARE.Keeptoolssharpand cleanforbestand safest
performance. Followinstructionsforlubricatingandchangingaccessories.
15.USE RECOMMENDEDACCESSORIES. Consulttheowner’smanualfor
recommended accessories. The useof improperaccessoriesmaycauserisk of injury.
16.REDUCETHERISKOFUNINTENTIONALSTARTING. Onmachineswithmagnetic
contactstartingswitchesthereisarisk of startingif themachineisbumpedorjarred.
Always disconnectfrompowersourcebeforeadjusting orservicing.Makesureswitch
isinOFF positionbeforereconnecting.
17.MANYWOODWORKING TOOLSCAN “KICKBACK THEWORKPIECE towardthe
operatorifnothandledproperly. Knowwhat conditionscancreate “kickback”and know
howtoavoidthem.Read themanualaccompanying themachinethoroughly.
18.CHECK DAMAGEDPARTS. Beforefurtheruseof thetool,aguardorotherpartthat is
damagedshouldbecarefullycheckedtodeterminethatit will operateproperlyand
perform itsintended function. Checkforalignmentofmovingparts,bindingofmoving
parts,breakageof parts,mounting,and anyotherconditionsthat mayaffectits
operation.Aguardorotherpart thatisdamagedshouldbe properlyrepaired or
replaced.
19.NEVERLEAVE TOOLRUNNINGUNATTENDED.TURNPOWEROFF. Donot leave
tooluntil it comestoacompletestop.
20.NEVEROPERATEAMACHINEWHENTIRED, ORUNDERTHEINFLUENCEOF
DRUGSORALCOHOL. Full mentalalertnessisrequired atall timeswhen runninga
machine.
21.NEVERALLOWUNSUPERVISEDORUNTRAINEDPERSONNELTOOPERATE
THEMACHINE. Makesureanyinstructionsyougiveinregardstomachine operation
areapproved,correct, safe, andclearlyunderstood.
22.IFATANYTIMEYOUAREEXPERIENCING DIFFICULTIES performingthe intended
operation,stopusingthe machine! Thencontactourservicedepartmentoraska
qualifiedexperthowthe operationshouldbeperformed.
Additional SafetyInstructionsForDrill Presses
1.ALWAYS OPERATEYOURDRILL PRESSATSPEEDS thatareappropriateforthe
PDF 件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

DRILLPRESS MANUAL
Wereservetherightoftheamendmentadditionanddeletiono
fthe
specifications, explanatorywording, etc.printedinthismanual
6
drill bit sizeand thematerialthat youaredrilling.
2.FEEDTHEDRILL BITEVENLYINTO THEWORKPIECE. Back thebitoutofdeep
holesandclearthechipswithabrushafteryouhaveturnedthemachineoff.
3.MAKESURETHEDRILL BITYOUAREUSING ISTIGHTENEDPROPERLY. Use
onlyround,hexortriangularshankdrill bits.
4.NEVERDO MAINTENANCEORCHANGESPEEDSWITHTHISMACHINE
PLUGGEDIN.
5.NEVERUSE TOOLSTHATAREINPOORCONDITION. Cutting toolsthataredull or
damagedaredifficult tocontrolandmaycauseseriousinjury.
6.NEVERDRILL SHEETMETALUNLESS ITISCLAMPEDSECURELYTOTHE
TABLE.
7.WORK SHOULDBEPOSITIONEDINSUCHAWAYASTOAVOIDDRILLING INTO
THETABLE.
8.AFACESHIELDUSEDWITHSAFETYGLASSES ISRECOMMENDED.
9.ALWAYS CLAMPWORKPIECESECURELYTOTABLEBEFOREDRILLING. Never
holdaworkpiecebyhandwhiledrilling.
10.IFATANYTIMEYOUAREEXPERIENCING DIFFICULTIES performingthe intended
operation,stopusingthe machine! Thencontactourservicedepartmentoraska
qualifiedexperthowthe operationshouldbeperformed.
11.REMOVE ADJUSTING KEYSAND WRENCHES. Beforeturningthemachine on,
makeitahabittocheck thatall adjustingkeys and wrencheshavebeenremoved.
12.HABITS—GOODANDBAD—AREHARD TO BREAK. Developgood habitsinyour
shopandsafetywill becomesecond-naturetoyou.
2.CIRCUIT REQUIREMENTS
Grounding
Intheevent of anelectricalshort, groundingreducesthe risk ofelectricshock byproviding
electriccurrent apathof least resistance. Thistoolisequippedwithapowercordhaving
an equipment-groundingconductor. SeeFigure1. Theoutletmustbeproperlyinstalled
andgrounded inaccordancewithall localcodesand ordinances.
PDF 件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

DRILLPRESS MANUAL
Wereservetherightoftheamendmentadditionanddeletiono
fthe
specifications, explanatorywording, etc.printedinthismanual
7
Figure1
Extension Cords
Ifyoufindit necessarytouseanextensioncordwiththe ModelG7943/44, makesurethe
cordisratedHardService(grade S)orbetter.Refertothechartinthestandardsafety
instructionstodeterminetheminimumgaugeforthe extension cord. Theextensioncord
must alsocontainagroundwireandplugpin.Always repairorreplaceextensioncords
whentheybecomewornordamaged.
3.INTRODUCTION
Unpacking
Ifmoving thismachineup ordownstairs, themachinemustbedismantledand
movedinsmallerpieces. Make surefloorand stairstructuresarecapableof
supporting thecombinedweightofthemachinepartsand thepeoplemoving them
The Drill Pressisshippedfromthemanufacturerinacarefullypackedcarton. If you
discoverthemachine isdamagedafteryou’vesignedfordelivery, immediatelycall
CustomerServiceforadvice.
When youarecompletelysatisfied withthecondition ofyourshipment, you should
inventoryitsparts.
PieceInventory
Afullpartslistand breakdowncanbefound towardtheendofthismanual. For
easierassembly, ortoidentifyspecificparts, pleaserefertothedetailedillustrations
attheend ofthemanual.
Afterall the partshavebeenremovedfromthe carton, youshouldhave:
PDF 件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

DRILLPRESS MANUAL
Wereservetherightoftheamendmentadditionanddeletiono
fthe
specifications, explanatorywording, etc.printedinthismanual
8
Headstock
TableAssembly
Base
ColumnAssembly
Drill Chuck andKey
DriftKey
HexBolts,M10 x25 or40(4)
Intheevent thatanynonproprietarypartsaremissing (e.g. anutorawasher), wewould
be gladtoreplacethem,or,forthesakeofexpediency,replacementscan beobtainedat
yourlocalhardwarestore.
.
Figure2AFigure2B
Clean Up
The unpainted surfacesarecoatedwithawaxyoiltoprotectthemfromcorrosion during
shipment.Removethisprotectivecoatingwithasolventcleanerorcitrus-baseddegreaser.
Avoidchlorine-based solventsastheymaydamagepaintedsurfacesshouldtheycomein
contact. Always followtheusageinstructionsontheproduct youchooseforcleanup.
SiteConsiderations
FLOORLOAD
Yourdrill pressrepresentsamoderateweight loadinasmall footprint. Mostcommercial
orhomeshopfloorsshouldbesufficienttocarrythe weightofthedrill press. Ifyou
questionthestrengthofyourfloor, youcanopt toreinforceit.Ensurethatthestandor
benchyouusewiththedrill pressiscapableof supportingthemachine.
WORKING CLEARANCES
Workingclearancescan bethoughtofasthe distancesbetweenmachinesandobstacles
that allowsafeoperationof everymachinewithoutlimitation. Considerexistingand
anticipatedmachineneeds,sizeofmaterialtobeprocessedthrougheachmachine,and
spaceforauxiliarystandsand/orworktables.Alsoconsidertherelativepositionof each
machinetooneanotherforefficient materialhandling.Besuretoallowyourselfsufficient
roomtosafelyrunyourmachinesinanyforeseeableoperation.
LIGHTING AND OUTLETS
PDF 件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

DRILLPRESS MANUAL
Wereservetherightoftheamendmentadditionanddeletiono
fthe
specifications, explanatorywording, etc.printedinthismanual
9
Lightingshouldbe brightenough toeliminateshadowandpreventeyestrain.Electrical
circuitsshouldbededicatedorlargeenoughtohandlecombinedmotoramploads.Outlets
shouldbelocatedneareachmachinesopowerorextension cordsarenotobstructing
high-trafficareas.Besuretoobservelocalelectricalcodesforproperinstallationofnew
lighting,outlets, orcircuits.
4:ASSEMBLY
BeginningAssembly
Most ofyourDrill Presshasbeen assembledat thefactory, but somepartsmust be
assembledorinstalled afterdelivery. Wehaveorganizedtheassemblyprocess intosteps.
Pleasefollowalong intheorderpresented here.
Column/Base
Drill press mustbesecuredtothefloorusinganchorbolts,orthe baseshouldbesecured
toapieceof plywood.
1.Unplugmachinebeforeassembly.
2.Securethebasetothefloorusingtheappropriateanchorbolts.
3.Placethecolumnonthebaseand line upthemountingholes. Insertand tightenthe
M10-1.5hexheadboltswithawrench.
TableSupport

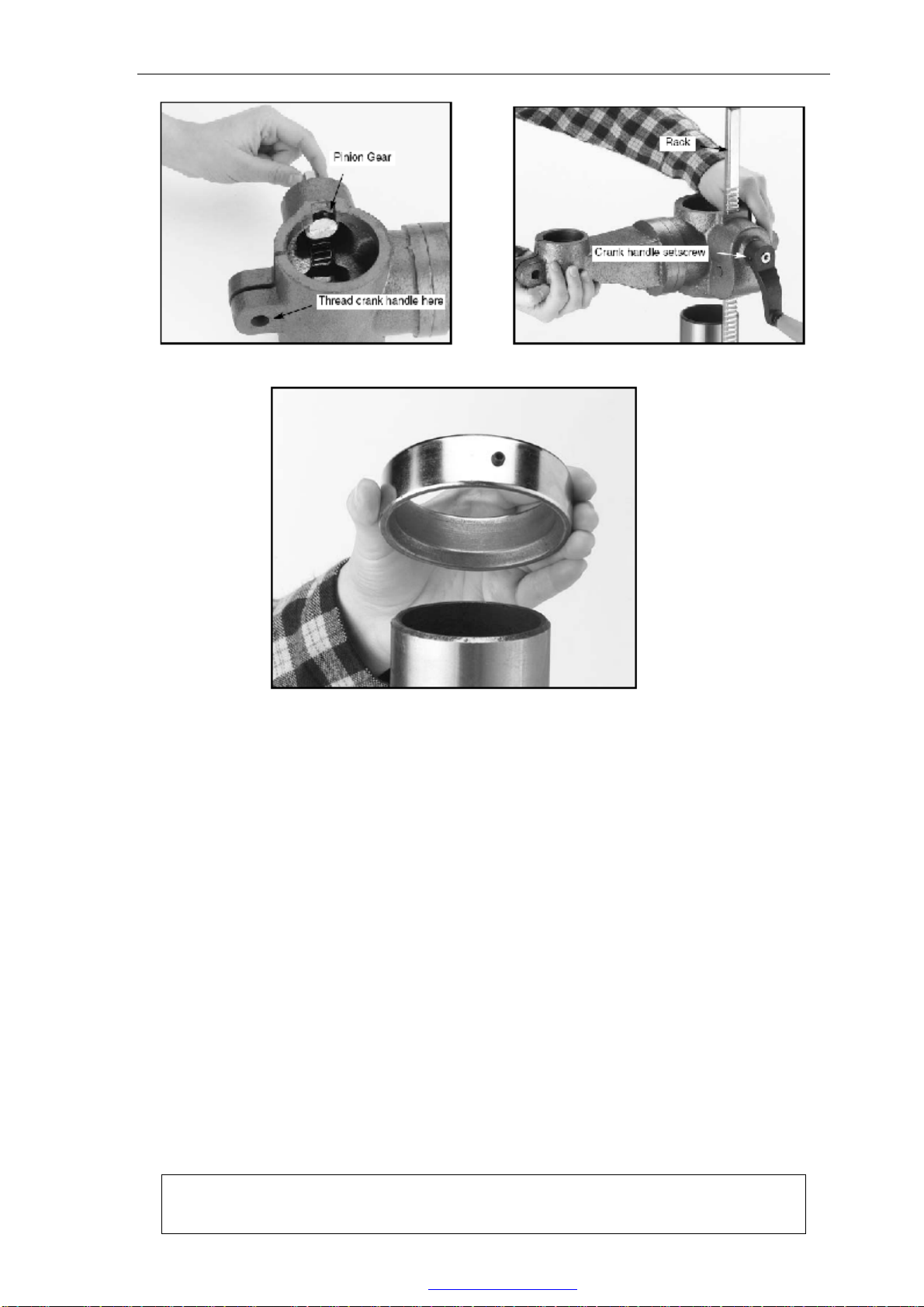

1.Threadthe12mm tablelock handle3turnsintothetablesupportbracketasshownin
Figure3.
2.Insert thepiniongearintotheholeontheside of the tablesupportbracket fromthe
inside, startingwiththepinionshaft asshownin Figure3. Align setscrewincrank
handlewithflatonpiniongearshaftandsecureusing the3mm Allen®wrenchprovided
asshownin Figure4.
3.Examinetherackandnotethatthegearteethextendfartherononeendthantheother.
The endoftherack wherethe gearteethareclosest totheendshouldbepositioned
down. Inserttherack intothetablesupportbracket and alignit withthepocket as
shownin Figure4.Thegearteethontherack must alsofaceout.
4.Slide thetablesupportbracketontothecolumnwhileholding therackinplace.Allow
thebrackettogodownuntil the bottomof therackcontactsthe shoulderonthecolumn
supportasshownin Figure4. Securethetablesupport bracket withthelock handle.
PDF 件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

DRILLPRESS MANUAL
Wereservetherightoftheamendmentadditionanddeletiono
fthe
specifications, explanatorywording, etc.printedinthismanual
10
Figure 3Figure 4
Figure5
5.Slide thecolumnring ontothecolumnwiththeinside bevelinthedownposition as
shownin Figure5.Adjusttheringuntil thetipof the rack fitsinsidethebevel. Tighten
thesetscrewon thering.
Headstock
1. Thereisapocket inthebottomoftheheadstock forthecolumntobeplaced.Seek
assistancetohelppositionthe headstockoverthecolumn.Allowthe headstocktoslide
downuntil it stops(approximately4").

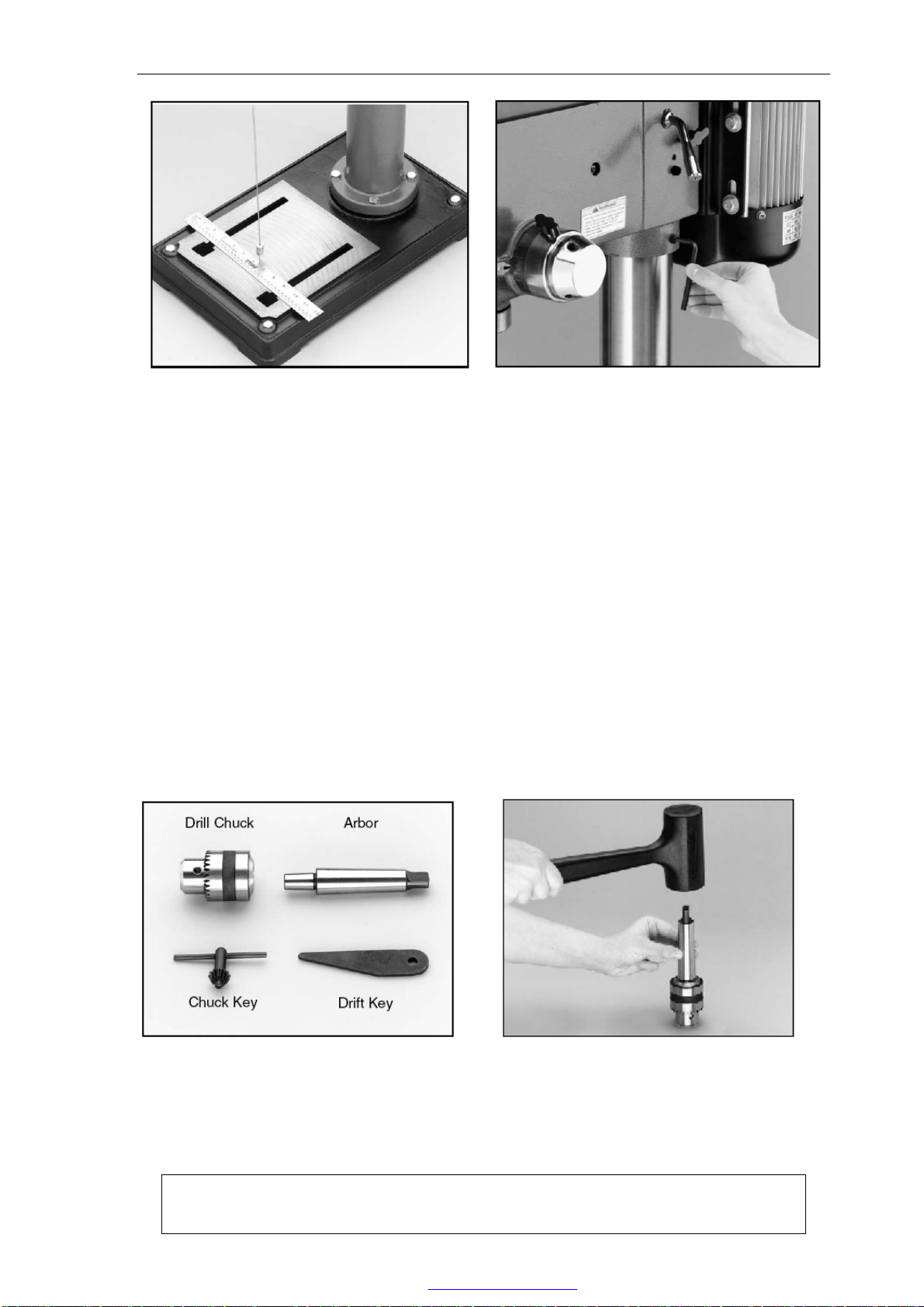

2. Positiontheheadstock directlyoverthebasebyusing aplumbbob.Useameasuring
tapeorruleracrossthedrill press basetofinditscenter.Suspendtheplumblinefrom
thecenterof theheadstock labelandlowerthebobuntil it isnearthetape/ruleras
shownin Figure6.Adjustheadstock fromsidetoside until thetipisequidistant from
boththeleft andrightsides.
3. Tighten thetwosetscrewsshownin Figure7 tosecureheadstock tothecolumn.
PDF 件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

DRILLPRESS MANUAL
Wereservetherightoftheamendmentadditionanddeletiono
fthe
specifications, explanatorywording, etc.printedinthismanual
11
Figure 6Figure7
Handles
Threehandlesaresuppliedwiththe drill press. Threadthemintothehandlehub.
Installing LightBulb
The drill presshasalight socketthatutilizesstandardsized 40wattbulbs.Beforeinstalling
alightbulb, unplugthedrill press.Securebulbinopeningbehindthe spindle.
Useonlybulbsthatare “safetycoated and shatterresistant. Thebulbwillbe
exposedatthebottomoftheheadcasting whichhelpswithillumination. Impacts
withabulbnot “safetycoated mayshatter, exposing theelectricalfilamentsand
creating anelectricalshock hazard.
Drill Chuck and Arbor
Figure8 Figure9
The drill chuck attachestothedrill spindlebymeansof adrill chuck arbor. Matched tapers
on thearborandback of thechuckcreateanalmost permanent assemblywhen properly
joined.Figure8 Toassemblethe drill chuck andmount ittothespindle, carefullyfollow
PDF 件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

DRILLPRESS MANUAL
Wereservetherightoftheamendmentadditionanddeletiono
fthe
specifications, explanatorywording, etc.printedinthismanual
12
theinstructionsbelow:
1.The drill chuck,arborandspindlesocket mustbe thoroughlycleanedanddriedbefore
assembly. It isrecommended that mineralspiritsbeusedforthistask. Refertothe
safetywarningsonthecontainerof themineralspirits. Failuretocleanthemating
surfacesmayresultinseparation and anunsafecondition. Separation isusually
causedbyoil orgreaseonthe taper.
2.Usethe providedchuck keytoadjustthejawsof the chuck until theyarewell insidethe
drill chuckbody.
3.Placethedrill chuckonaworkbenchfacedown. The arborhasashort taperandalong
taper.Placethe shorttaperintothe socket inthe back of thedrill chuckand tapwitha
rubberorwoodenmalletasshownin Figure9.If the chuck failstoremainsecureon
thearbor, repeat step1and 2.
4.Slide thearborintothespindlesocket whileslowlyrotatingdrill chuck.Thesockethas
arectangularpocket inwhichthe tang (orflat portion ofthearbor) fitsinto.Oncethe
tangisorientedcorrectlythedrill chuck will not rotatewithoutturningthe spindle.

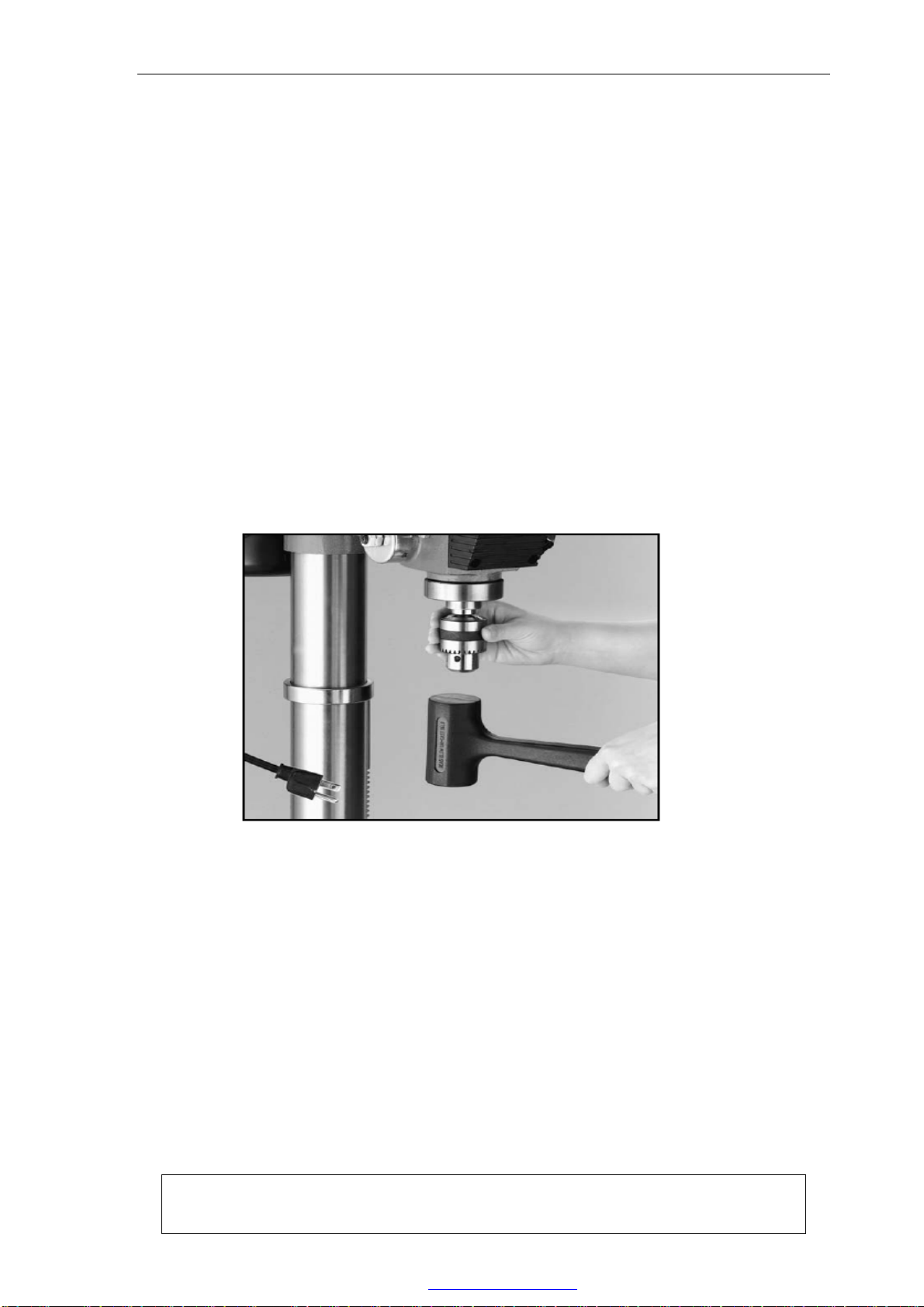

5.Tap theendof the drill chuck witharubberorwoodenmallet toseatit asshownin
Figure10.
Figure10
ArborRemoval
Adriftkeyisincluded toaidinthedrill chuck arborremoval.
1. Rotatethespindlehandlesuntil the slot isexposedinthesideofthequill.
2. Rotatethespindleuntil theinnerslot isalignedwiththe outerasshownin Figure11.
You will seethroughthespindlewhentheslotisproperlyaligned.
3. Insertthedrift keyintotheslotandallowthequill torise,trapping thedrift key. Holdthe
drill chuckwithonehandand taponthedriftkeywithahammerasshownin Figure12.
PDF 件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

DRILLPRESS MANUAL
Wereservetherightoftheamendmentadditionanddeletiono
fthe
specifications, explanatorywording, etc.printedinthismanual
13
Figure11 Figure12
5:ADJUSTMENTS
Speed Changes
Unplug thedrillpress beforechanging speeds. Thedrill press has12speeds.
Thereisaspeedchart locatedunderthebelt guard. Refertothechart whilereadingthese
instructions.
1. Loosenthebelt tension lock knobsonbothsidesoftheheadstock byturning
counterclockwiseasshownin Figure13.
2. The motorshouldbefree tomove. Rotatethebelttensionlevercounterclockwiseto
taketensionofftheV-beltsasshownin Figure14.
3. Locatethedesiredspeedonthechart andmovethe V-beltstothedesiredV-grooves
on themotor, idlerandspindlepulleys.
4. Rotatethebelt tensionleveruntil the beltsaretight. Tightenbothlock knobs.
5. Closethecover.
Figure13 Figure14
Depth Stop
PDF 件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

DRILLPRESS MANUAL
Wereservetherightoftheamendmentadditionanddeletiono
fthe
specifications, explanatorywording, etc.printedinthismanual
14
Yourdrill presscomeswithadepthstopadjustmentforusewhendrilling.
1. Loosenthedepthcollarlockknobasshownin Figure15.
2. Securethewood stockyouwill bedrilling ontothedrill press table.
3. Withthedesiredbit installed, lowerthespindleuntil the tipofthebit just touchesthe
woodstock you will be drilling.Holdthespindleinthisposition.
4. Turnthedepthcollartothedesireddepthindicatedbythescaleonthe collar.Secure
thecollarbytighteningthe lock knob.
5. Removethewoodstock andtestthedepthstop bymeasuringhowfarthespindle
travelswhenthehandlesarerotatedasshownin Figure16.
Figure15 Figure16
You canalsolock thespindleinthedownposition foroperationssuchasspindlesanding.
1. Loosenthedepthcollarlockknobasshownin Figure15.
2. Rotatethespindletothedesireddepthandholditsteady.
4. Rotatethethe collarclockwiseuntil it stops, andtightenthelock knob.
5. Slowlyreleasethe drill presshandle.Thespindleshouldnot move.
TableAdjustment
The tablecanbeadjustedforheight, rotationandangle.
1. Loosenthesupport bracket lockknob. Turnthetablehand cranktoliftorlowerthe
tableasshownin Figure17.
2. Always lock the support bracket inplacebeforeoperatingthemachine.
Adjust rotation:
1. Loosenthelock handlelocatedunderthetableasshownin Figure18. Rotatethe
tablethe desired amount.
PDF 件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

DRILLPRESS MANUAL
Wereservetherightoftheamendmentadditionanddeletiono
fthe
specifications, explanatorywording, etc.printedinthismanual
15
2.Always lockthe tablerotationinplacebeforeoperatingthemachine.
Adjust angle:
1. Turnthenut indicatedbythe arrowin Figure17,inaclockwisedirection. Thiswill draw
thelocationpinoutof thecasting.Onceloose,pullthepinandnutout,andset it ina
safeplaceuntil needed.
2.Loosenthe largebolt inthe centerofthesupport bracket.
3.Rotatethebracket tothe desired angle. Usethescaleontheside ofthebracket ora
protractortosettheangle.Lockinplacebytighteningthebolt.
Figure17Figure18
When repositioningthetableto0°position,loosen thelargeboltinthecenterof the
supportcasting. Rotatethesupport castinguntil thedegree scalereads0°. Carefullytap
thelocationpinbackintothe holefromwhichit cameuntil it stops. Unscrewthenutonthe
location pinuntil it isflushwiththeendof the threads.Thiswill protect thethreadswhen
you tapit intoplacewithahammer. Turnthenutclockwiseuntil itissnugagainstthe
castingandthentightenthelargebolt inthecenter. Thetableisnowset tothefactory
pre-setangle.
6:OPERATIONS
TestRun
Onceassemblyiscompleteandadjustmentsaredone toyoursatisfaction, youareready
totest run themachine.
Turnon thepowersupplyatthemainpanel. Flipthe STARTbutton. Makesurethatyour
fingerispoisedon thepaddleswitch, just incasethereisaproblem.Thedrill press should
run smoothly, withlittleornovibrationorrubbingnoises.Strangeorunnaturalnoises
shouldbeinvestigated andcorrected beforeoperating themachinefurther.
Ifyoucannot easilylocatethesourceofanunusualnoiseorvibration, contactourservice
departmentforhelp.
Drill BitChanges
PDF 件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

DRILLPRESS MANUAL
Wereservetherightoftheamendmentadditionanddeletiono
fthe
specifications, explanatorywording, etc.printedinthismanual
16
Makesuretosecurethebit firmlyinplace.Whenchanging bits,proceedasfollows:
1. Disconnectthemachinefrompowersource.
2. Openthechuck wide enoughtoacceptanewbit.
3. Install thebit sothe chuck jawswill grabasmuchofthebitshankasitcan. Donot
allowthe chuck tograbthefluted bodyofthedrill bit. Makesuresmall drill bitsdonot
gettrapped between theedgesof twojaws.
4. Tighten thechuckwiththechuck keyusinganyofthethree keyendlocations.
5. Removethechuckkeyandreconnectpowersource.
6. Reversestepstoremovedrill bit.
7:MAINTENANCE
General
Regularperiodicmaintenanceonyourdrill press will ensureitsoptimumperformance.
Makeahabit of inspectingyourmachineeachtimeyouuseit. Checkforthefollowing
conditionsandrepairorreplacewhennecessary:
1. Loosemountingbolts.
2. Wornswitch.
3. Wornordamagedcordsandplugs.
4. DamagedV-belt.
5. Anyotherconditionthat couldhamperthesafeoperationofthismachine.
Tables
The nonpaintedsurfacesonthedrill pressshouldbe protectedagainst rust andpitting.
Wipingthemachinecleanaftereveryuseensuresthat wooddust will nottrapmoisture
againstbaremetalsurfaces.
Somewoodworkersrecommendusingautomotivepastewaxonexposedsteelandcast
iron surfaces. Thewaxprovidesalayerofprotection,aswell asreducingfriction between
lumberandthetable, making cutsfasterandsmoother.Avoidwaxesthat containsilicone
orothersyntheticingredients. Thesematerialscanfindtheirwayintolumberthatisbeing
worked, andcanmakestainingand finishingdifficult. Ifyou usepastewax, makesurethat
it is100%Carnaubawax.
Lubrication
Inspectregularlyfortension andwear. Checkpulleys toensurethat theyareproperly
PDF 件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

DRILLPRESS MANUAL
Wereservetherightoftheamendmentadditionanddeletiono
fthe
specifications, explanatorywording, etc.printedinthismanual
17
aligned. Seepulley/V-beltsectionsforpropertension andpulleyalignmentprocedures.
V-Belt
Sinceall bearingsareshieldedandpermanentlylubricated, simplyleavethemaloneuntil
theyneedtobe replaced. Donot lubricatethem.
WIRING DIAGRAM230V
WIRING DIAGRAM400V
PDF 件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

DRILLPRESS MANUAL
Wereservetherightoftheamendmentadditionanddeletiono
fthe
specifications, explanatorywording, etc.printedinthismanual
18
8:TECHICALDATA
10
13
14
Model
Bench
ZQJ4116Q
ZQJ4116
ZQJ4119
ZQJ4119
Q
Floor
ZQJ4116QA
ZQJ4116A
ZQJ4119A
ZQJ4119
Q
A
SpindleTaper
MT2
MT2
MT2
MT2
Chuck (mm)
3
-
16mm
SpindleTravel
60mm
80mm
80mm
80mm
Swing(mm)
254mm/10
330mm/13
356mm/14
Speeds
12s
12s (16s)
12s (16s)
Height
Bench
840mm
960mm
980mm
960mm
Floor
1500mm
1580mm
1630mm
1580mm
Motor
See Nameplate
N.W./G.W.
Bench
37/42kgs
53/57kgs
70/73kgs
62/65kgs
Floor
47/51kgs
60/66kgs
80/86kgs
70/76kgs
17
20
Model
Bench
Floor
ZQJ4125
Q
ZQJ4125
ZQJ4132
SpindleTaper
MT3
MT3
MT4
Chuck (mm)
3
-
16mm
SpindleTravel
80mm
120mm
120mm
Swing(mm)
432mm/17
508mm/20
Speeds
12s
12s
Height
Bench
Floor
1650mm
1700mm
1710mm
Motor
See Nameplate
N.W./G.
W.
Bench
Floor
90/96kgs
128/138kgs
138/148kgs
9:PARTSLISTS&EXPODEDVIEWS
PDF 件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

DRILLPRESS MANUAL
Wereservetherightoftheamendmentadditionanddeletiono
fthe
specifications, explanatorywording, etc.printedinthismanual
19
PARTSLIST10
PDF 件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

DRILLPRESS MANUAL
Wereservetherightoftheamendmentadditionanddeletiono
fthe
specifications, explanatorywording, etc.printedinthismanual
20
PARTSLIST:ZQJ4116Q DRILL PRESS
NO Description NO Description
1 BASE 38 HEX. KEY
2 BOLT 39 HEADLESS SETSCREW
3 COLOMN 40 SLIDEBARBOLT
4 RACKRING 41 SCREW
5 HEADLESS SETSCREW 42 SLIDEBAR
6 RACK 43 INSTRUCTIONALMANUAL
7 RAMBLEARMBRACKET 44 CHUCKKEY
8 NUT 45 SPRING
9 WARMGEAR 46 SPRINGSEAT
10 GEAR 47 NUT
11 SHAFT 48 PLASTICJAMNUT
12 HANDLE 49 SCREW
13 SETBOLT 50 SWITCH
14 PLUG 51 WIRECLAMP
15 CLAMPBOLT 52 SCREW
16 TABLE 53 MOTIRBASE
17 PIN 54 MOTOR
18 NUT 55 BOLT
19 SETSCREW 56 WASHER
20 CHUCK 57 NUT
21 ARBOR 58 V-BELT
22 SPINDLE 59 CENTERPULLEY
23 BALLBEARING 60 HEADLESS SETSCREW
24 SPINDLESLEEVE 61 CHUCKGUARD
25 BALLBEARING 62 RETAINRING
26 RETAINRING 63 BALLBEARING
27 RUBBERWASHER 64 COLLAR
28 FEEDSHAFT 65 DRIVE SLEEVE
29 CLAMPBOLT 66 SPINDLEPULLEY
30 SCALERING 67 PULLEYNUT
31 HANDLEBODY 68 SCREW
32 HANDLE 69 WASHER
33 KNOB 70 PULLEYCOVER
34 HEADLESS SETSCREW 71 V-BELT
35 NUT 72 MOTORPULLEY
36 BODY 73 CENTERSHAFT
37 HEX. KEY 74 BALLBEARING
PDF 件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn
