Intended use

| 1473-1-7878

— 3 —

Pos: 6 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Über schriften (--> Für alle Dokumen te< --)/1. Ebene/A - F/Bestim mungsgemäßer Gebrauch @ 18\mod_130 2763321316_15.doc x @ 103483@ 11 @ 1

1 Intended use

Pos: 7 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Bes timmungsgemäßer Gebrauc h/Sonstige Bereic he/Bestimmungsgemaess er Gebrauch -Rutenbeck Kompak t-Universal-Anschlussdose n @ 23\mod_1334068144316_ 15.docx @ 207753 @ @ 1

The device serves for connecting data cables with a diameter of 6 - 10 mm.

Pos: 8 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Über schriften (--> Für alle Dokumen te< --)/1. Ebene/U - Z/Umwel t @ 18\mod_1302614158967_ 15.docx @ 103383 @ 11 @ 1

2 Environment

Pos: 9 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Umwel t (--> Für alle Dokumente <--)/ Hi nwe is e/ Hin wei s - Um welt - Hinweis Elektrogeräte @ 18\mod_13 02763973434_15.doc x @ 103500 @ @ 1

Consider the protection of the environment!

Used electric and electronic devices must not be disposed of with domestic waste.

– The device contains valuable raw materials which can be recycled. Therefore, dispose of the

device at the appropriate collecting depot.

Pos: 10 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/ Überschriften (--> Für alle Dokume nte <--)/2. Ebene/A - F/Entsorgung @ 20\mo d_1325760636580_15.doc x @ 136573 @ 12 @ 1

2.1 Disposal

Pos: 11 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/ Umwelt (--> Für alle Dokumente <--) /Hi nwe is e/ Hin wei s - Umwelt - Entsorgung E lektrogeräte @ 20\mod_1325760 695972_15.docx @ 136583 @ @ 1

All packaging materials and devices bear the markings and test seals for proper disposal. Always dispose of the

packaging material and electric devices and their components via the authorized collecting depots and disposal

companies.

The products meet the legal requirements, in particular the laws governing electronic and electrical devices and

the REACH ordinance.

(EU Directive 2002/96/EC WEEE and 2002/95/EC RoHS)

(EU REACH ordinance and law for the implementation of the ordinance (EC) No.1907/2006)

Pos: 12 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Steuer module - Onli ne-Dokumentation (--> Für alle Dokument e <--)/++++++++++++Seitenumbruch++++++++++++@ 9\mod_1268898668093_ 0.docx @ 52149 @ 2 @ 1

Operation

| 1473-1-7878

— 4 —

Pos: 13 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/ Überschriften (--> Für alle Dokument e <--)/1. Ebene/A - F/Bedienung @ 11\mod_1279 185541649_15.doc x@ 83043 @ 1 @ 1

3 Operation

Pos: 14 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Bedien ung/Sonstige Ber eiche/Bedienung - Rutenbec k Kompakt-Universal-Anschluss dosen @ 23\mod_1333349390750 _15.docx @ 207533 @ 2 @ 1

Caution

Use only patch cables with plugs which, according to the manufacturer's specifications, meet the

valid EN/IEC standards.

- The use of non-standard components voids the warranty.

1. Insert the plug of the connecting conductor from the signal source into the connecting socket.

2. Insert the plug of the connecting conductor from the player into the connecting socket.

3. Insert the plugs into the socket with as little force as possible to avoid twisting or tilting the contacts in the

plug.

Pos: 15 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/ Überschriften (--> Für alle Dokume nte <--)/1. Ebene/S - T/Technische Date n @ 11\mod_1279185386320_ 15.docx @ 83019 @ 11 @ 1

4 Technical data

Pos: 16 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/ Technische Daten/Sonstige Ber eiche/Technisc he Daten -Rutenbeck Kompakt-Universa l-Anschlussdosen @ 23\mod_13331107 90095_15.docx @ 207441 @ 21 @ 1

Designation

Value

Screen housing

Die-cast zinc

Housing

ABS form mass, die-cast zinc

Screen connection / strain

relief

360° contacting, contacting bracket for data cable with ø 6-10 mm, strain relief via cable ties

Cable diameter

6-10 mm

Wire diameter

AWG 26 – AWG 22

Operating temperature

-40°C to +70°C

Protection type according to

DIN EN 60 529

IP21

Dimensions

80.8 mm (Width) x 80.8 mm (Height) x 42.4 mm (Depth)

Construction

DIN IEC 60 603-7-51 Ed. 1

Pos: 17 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Steuer module - Onli ne-Dokumentation (--> Für alle Dokument e <--)/++++++++++++Seitenumbruch++++++++++++@ 9\mod_1268898668093_ 0.docx @ 52149 @ 1 @ 1

Mounting / Installation

| 1473-1-7878

— 5 —

Pos: 18 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/ Überschriften (--> Für alle Dokume nte <--)/1.Ebene/ M - O/Montage / Installati on @ 18\mod_1302613966111_15. docx @ 103373 @ 1 @ 1

5 Mounting / Installation

Pos: 19 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Sic herheit (--> Für alle Dokument e <--)/Warnhinweise/Sic herheit - Niederspannungs- und 230 V-Lei tungen @ 18\mod_130261782 1491_15.docx @ 103465 @ 11 @ 1

Warning

Electric voltage!

Risk of death and fire due to electrical voltage of 230 V.

– Low-voltage and 230 V cables must not be installed together in a flush-mounted socket!

In case of a short-circuit there is the danger of a 230 V load on the low-voltage line.

Pos: 20 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Sic herheit (--> Für alle Dokument e <--)/Warnhinweise/Sic herheit - Fachkenntnisse @ 18\mod_1302 774384017_15.doc x@ 103564 @ 12 @ 4

5.1 Requirements for the electrician

Warning

Electric voltage!

Install the device only if you have the necessary electrical engineering knowledge and experience.

•Incorrect installation endangers your life and that of the user of the electrical system.

•Incorrect installation can cause serious damage to property, e.g. due to fire.

The minimum necessary expert knowledge and requirements for the installation are as follows:

•Apply the "five safety rules" (DIN VDE 0105, EN 50110):

1. Disconnect from power;

2. Secure against being re-connected;

3. Ensure there is no voltage;

4. Connect to earth;

5. Cover or barricade adjacent live parts.

•Use suitable personal protective clothing.

•Use only suitable tools and measuring devices.

•Check the type supply network (TN system, IT system, TT system) to secure the following

power supply conditions (classic connection to ground, protective earthing, necessary

additional measures, etc.).

Pos: 21 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Steuer module - Onli ne-Dokumentation (--> Für alle Dokument e <--)/++++++++++++Seitenumbruch++++++++++++@ 9\mod_1268898668093_ 0.docx @ 52149 @ 2 @ 1

Mounting / Installation

| 1473-1-7878

— 6 —

Pos: 22 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/ Überschriften (--> Für alle Dokume nte <--)/2. Ebene/M - O/Montag e @ 18\mod_1302615960458_15. docx @ 103424 @ 122 @ 1

5.2 Mounting

Pos: 23 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Mon tage/alle Geräte/Mo ntage - UP-Dosen - DIN 49073-1 oder geeigne tes Aufputzgehaeuse - Ohne Doc variable @ 20\mod_1325766034 453_15.docx @ 136593 @ 2 @ 1

The device may only be installed in suitable flush-mounted sockets (DIN 49073-1) or a suitable surface-mounted

housing.

Pos: 24 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Mon tage/Sonstige Bereic he/Montage - Rutenbeck Kompak t-Universal-Anschlussdo sen @ 23\mod_1333110834999_1 5.docx @ 207456 @ 22 @ 1

Fig. 1: Preparing the cable

1. Remove approximately 100 mm of insulation from the cable (see diagonal of the packaging).

2. Push the braid screen back and shorten it by approximately 10 mm.

Fig. 2: Cable feed

3. Feed the cable into the housing at the top or the bottom (in the photo at the bottom).

4. Bend the cable to a quarter circle and feed it in as far as possible.

5. If necessary, adjust the feed-in position (± 30°).

6. Fasten the screw.

Fig. 3: Pre-sorting

7. Pre-sort the twisted pairs.

–Ensure that you adhere to the hints on the securing webs, which are normally legible (Pos. 2).

8. The upper twisted pairs (Pos. 3) belong to the left socket. The twisted pairs on the left (Pos. 4) belong to the

right socket.

Mounting / Installation

| 1473-1-7878

— 7 —

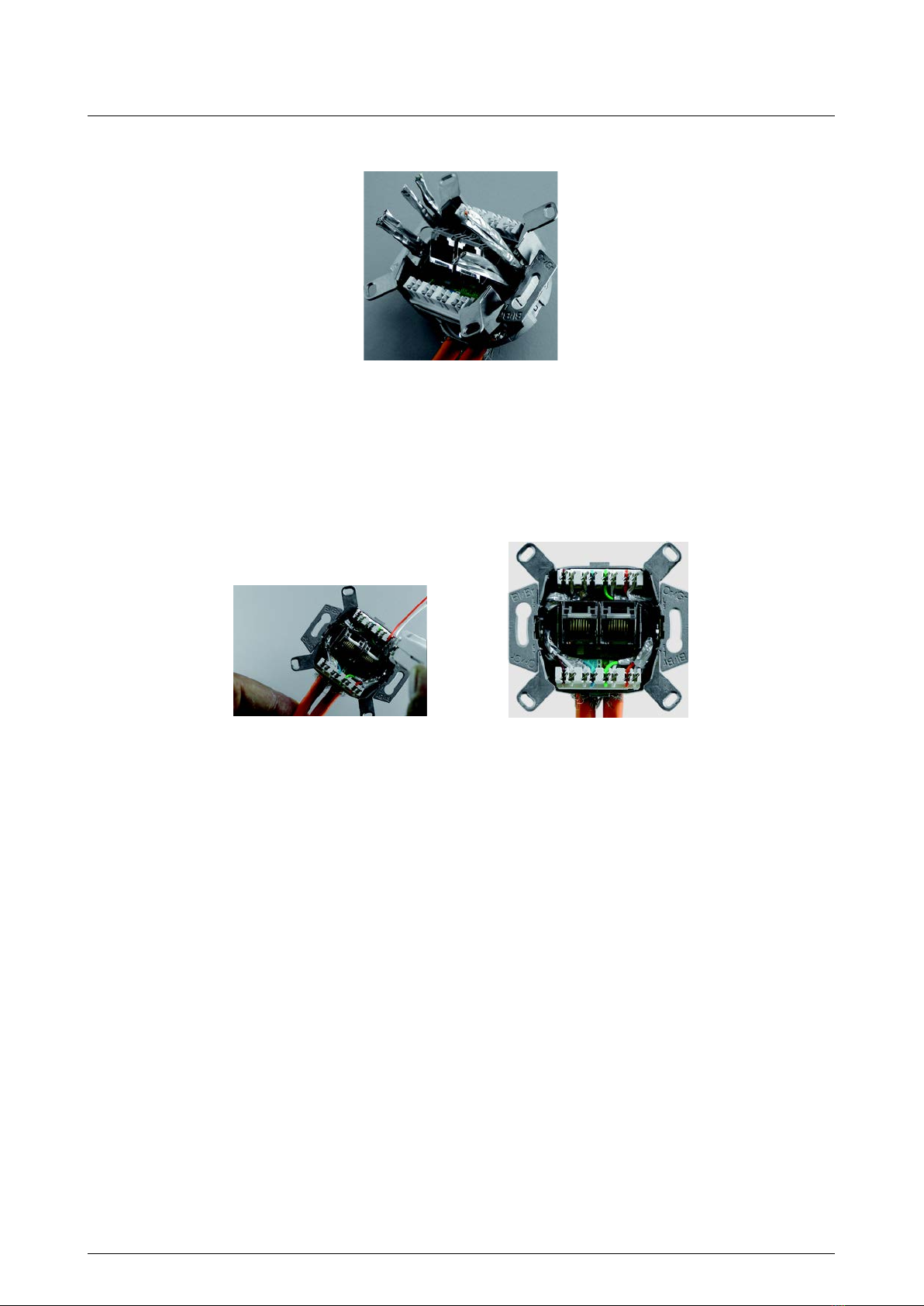

Fig. 4: Connection of assembly

9. Position the connection assembly.

10. Feed the twisted pairs with screen laterally through the assembly.

–The sockets must always point down.

11.Press the assembly together.

Fig. 5: Positioning the wires

–Maintain the pairs screen and the twist of the pairs as long as possible.

–Adhere to the assignment according to the colour code in the patch bay and on the socket (see chapter

"Colour code").

12. Install the wires from the centre to the outside.

Mounting / Installation

| 1473-1-7878

— 8 —

Fig. 6: Finishing

13. Position the cover on the housing.

14. Latch the cover to the bottom part.

Fig. 7: Earthing (if required)

15. Plug a 6.3 mm flat plug connector onto the rear of the earth connection contact (Pos. 5).

Fig. 8: Web version (if required)

16. Break off the fixing points that are not required with a suitable tool.

The cable is now installed.

Pos: 25 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Steuer module - Onli ne-Dokumentation (--> Für alle Dokument e <--)/++++++++++++Seitenumbruch++++++++++++@ 9\mod_1268898668093_ 0.docx @ 52149 @ @ 1

Connection

| 1473-1-7878

— 9 —

Pos: 26 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/ Überschriften (--> Für alle Dokume nte <--)/1. Ebene/A - F/Anschluss @ 19\mod_ 1309248278435_15.doc x@ 107 413 @ 21 @ 1

6 Connection

Pos: 27 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/ Überschriften (--> Für alle Dokume nte <--)/2. Ebene/A - F/Farbc ode @ 23\mod_1333353619453_15.d ocx@ 207 591 @ 12 @ 1

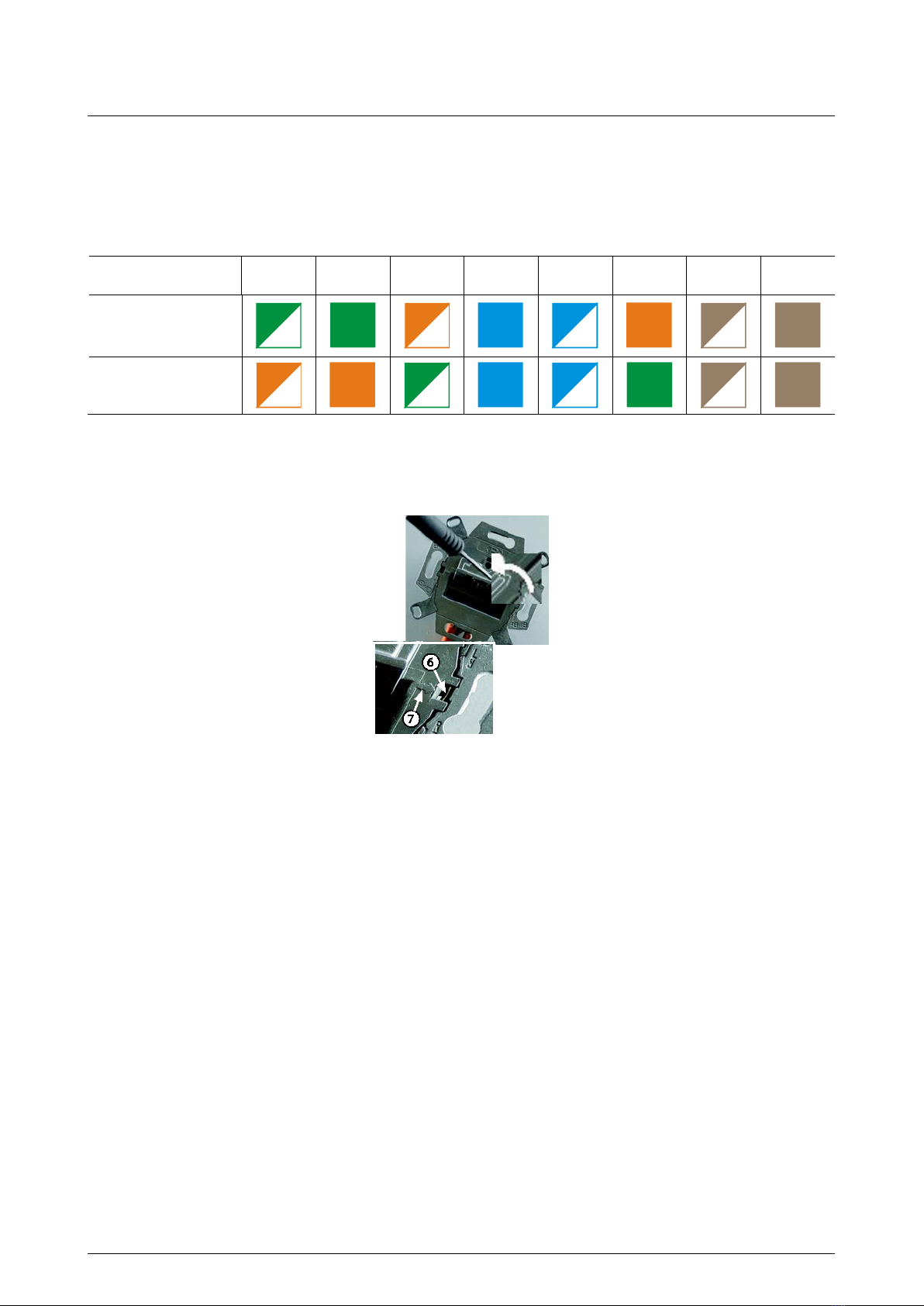

6.1 Colour code

Pos: 28 /Busch-Jaeger ( Neustruktur)/Modul-Struk tur/Online-Doku mentation/Anschluss/So nstige Bereiche/ Anschluss - Rutenbeck Kompak t-Universal-Anschlus sdosen @ 23\mod_1333110893934 _15.docx @ 207471 @ 12 @ 1

Connecting terminal /

terminal block

1 2 3 4 5 6 7 2

TIA/EIA

-568-A

TIA/EIA

-568-B

Pos: 29 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/ Überschriften (--> Für alle Dokume nte <--)/1. Ebene/A - F/Demontage @ 19\mod_1 322137578612_15.doc x @ 110602 @ 21 @ 1

7 Dismantling

Pos: 30 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Mon tage/Sonstige Berei che/Demontage - Rutenbeck K ompakt-Universal-Ansch lussdosen @ 23\mod_133311105 7319_15.docx @ 207486 @ 1 @ 1

Fig. 9: Dismantling

1. Unlatch the lugs on the right and left (Pos. 6).

– To do this, insert a screwdriver into the recess on the side of the arrow (Pos. 7).

2. Remove the cover.

=== Ende der Liste für Textmarke Con tent ===
