Busch-Jaeger 0261/1 Series User manual

1473
-1-7882 │ │ 16.04.2012
Pos: 2 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Tite lblätter/Sonstige B ereiche/Datendosen Rutenbec k/Titelblatt - Rutenbeck USB-Kommuni kationsadapter @ 22\mod_13329 27957724_15.doc x@ 2064 80@ @ 1
0261/1…
USB socket
=== Ende der Liste für Textmarke Co ver ===

| 1473-1-7882
— 2 —
Pos: 4 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Inhal tsverzeichnis ( --> Für alle Dokumente <--)/ Inhaltsverzeichni s @ 19\mod_1320649044386_15.d ocx @ 109653 @ @ 1
1Intended use ............................................................................................................................................................ 3
2Environment............................................................................................................................................................. 3
2.1 Disposal .................................................................................................................................................. 3
3Operation ................................................................................................................................................................. 4
4Technical data.......................................................................................................................................................... 4
5Mounting / Installation .............................................................................................................................................. 5
5.1 Requirements for the electrician ............................................................................................................. 5
5.2 Mounting ................................................................................................................................................. 6
6Connection............................................................................................................................................................... 8
6.1 Assignment ............................................................................................................................................. 8
7Fault rectification...................................................................................................................................................... 9
=== Ende der Liste für Textmarke TOC ===

Intended use
| 1473-1-7882
— 3 —
Pos: 6 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Über schriften (--> Für alle Dokumen te< --)/1. Ebene/A - F/Bestim mungsgemäßer Gebrauch @ 18\mod_130 2763321316_15.doc x @ 103483@ 11 @ 1
1 Intended use
Pos: 7 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Bes timmungsgemäßer Gebrauc h/Sonstige Bereic he/Bestimmungsgemaess er Gebrauch -Rutenbeck USB-Kommunik ationsadapter @ 23\mod_133 4067874819_15.doc x@ 207738 @ @ 1
The device serves for connecting multi-media devices via a USB connection.
Pos: 8 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Über schriften (--> Für alle Dokumen te< --)/1. Ebene/U - Z/Umwel t @ 18\mod_1302614158967_ 15.docx @ 103383 @ 11 @ 1
2 Environment
Pos: 9 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Umwel t (--> Für alle Dokumente <--)/ Hi nwe is e/ Hin wei s - Um welt - Hinweis Elektrogeräte @ 18\mod_13 02763973434_15.doc x @ 103500 @ @ 1
Consider the protection of the environment!
Used electric and electronic devices must not be disposed of with domestic waste.
– The device contains valuable raw materials which can be recycled. Therefore, dispose of the
device at the appropriate collecting depot.
Pos: 10 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/ Überschriften (--> Für alle Dokume nte <--)/2. Ebene/A - F/Entsorgung @ 20\mo d_1325760636580_15.doc x @ 136573 @ 12 @ 1
2.1 Disposal
Pos: 11 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/ Umwelt (--> Für alle Dokumente <--) /Hi nwe is e/ Hin wei s - Umwelt - Entsorgung E lektrogeräte @ 20\mod_1325760 695972_15.docx @ 136583 @ @1
All packaging materials and devices bear the markings and test seals for proper disposal. Always dispose of the
packaging material and electric devices and their components via the authorized collecting depots and disposal
companies.
The products meet the legal requirements, in particular the laws governing electronic and electrical devices and
the REACH ordinance.
(EU Directive 2002/96/EC WEEE and 2002/95/EC RoHS)
(EU REACH ordinance and law for the implementation of the ordinance (EC) No.1907/2006)
Pos: 12 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Ste uermodule - Onli ne-Dokumentation (--> Für alle Dokumen te <--)/++++++++++++Seitenumbruch++++++++++++@ 9\mod_1268898668093_ 0.docx @ 52149 @ 2 @ 1

Operation
| 1473-1-7882
— 4 —
Pos: 13 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/ Überschriften (--> Für alle Dokume nte <--)/1. Ebene/A - F/Bedienung @ 11\mod_1279 185541649_15.doc x@ 83043 @ 1 @ 1
3 Operation
Pos: 14 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Bedien ung/Sonstige Ber eiche/Bedienung - Rutenbec k HDMI-USB-VGA-Kom munikationsadapter @ 22\mod_1332 942845284_15.doc x@ 206 753@ 2 @ 1
Caution
Use only standardized accessories.
–The use of non-standardized accessories can lead to malfunction or can damage the devices.
1. Insert the connecting line plug from the signal source, such as DVD player or MP3 player, into the socket of
the communication adapter.
2. Insert the connecting line plug of the player, such as LCD/Plasma TV or music system, into the socket of the
second communication adapter.
3. Insert the plugs into the socket with as little force as possible to avoid twisting or tilting the contacts in the
plug.
Pos: 15 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/ Überschriften (--> Für alle Dokumente <--)/ 1. Ebene/S - T/Technische Daten @ 11\mod_127 9185386320_15.doc x@ 83019 @ 11 @ 1
4 Technical data
Pos: 16 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/ Technische Daten/Sonstige Ber eiche/Technisc he Daten -Rutenbeck USB-Kommunika tionsadapter @ 22\mod_13329 35443929_15.docx @ 206595 @ 21 @ 1
Designation
Value
Case
Flush-type installation
Screw contacts
5 screw contacts
Material
Die-cast zinc
Dimensions
70 mm (Width) x 70 mm (Height) x 41 mm (Depth)
Pos: 17 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Steuer module - Onli ne-Dokumentation (--> Für alle Dokument e <--)/++++++++++++Seitenumbruch++++++++++++@ 9\mod_1268898668093_ 0.docx @ 52149 @ 1 @ 1

Mounting / Installation
| 1473-1-7882
— 5 —
Pos: 18 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/ Überschriften (--> Für alle Dokume nte <--)/1. Ebene/M - O/Montag e / Installation @ 18\mod_13026139 66111_15.docx @ 103373 @ 1 @ 1
5 Mounting / Installation
Pos: 19 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Sic herheit (--> Für alle Dokument e <--)/Warnhinweise/Sic herheit - Niederspannun gs-und 230 V-Lei tungen @ 18\mod_130261782149 1_15.docx @ 103465 @ 11 @ 1
Warning
Electric voltage!
Risk of death and fire due to electrical voltage of 230 V.
– Low-voltage and 230 V cables must not be installed together in a flush-mounted socket!
In case of a short-circuit there is the danger of a 230 V load on the low-voltage line.
Pos: 20 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Sic herheit (--> Für alle Dokument e <--)/Warnhinweise/Sic herheit - Fachkenntnisse @ 18\m od_1302774384017_15.d ocx @ 103564 @ 12 @ 4
5.1 Requirements for the electrician
Warning
Electric voltage!
Install the device only if you have the necessary electrical engineering knowledge and experience.
•Incorrect installation endangers your life and that of the user of the electrical system.
•Incorrect installation can cause serious damage to property, e.g. due to fire.
The minimum necessary expert knowledge and requirements for the installation are as follows:
•Apply the "five safety rules" (DIN VDE 0105, EN 50110):
1. Disconnect from power;
2. Secure against being re-connected;
3. Ensure there is no voltage;
4. Connect to earth;
5. Cover or barricade adjacent live parts.
•Use suitable personal protective clothing.
•Use only suitable tools and measuring devices.
•Check the type supply network (TN system, IT system, TT system) to secure the following
power supply conditions (classic connection to ground, protective earthing, necessary
additional measures, etc.).
Pos: 21 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Steuer module - Onli ne-Dokumentation (--> Für alle Dokument e <--)/++++++++++++Seitenumbruch++++++++++++@ 9\mod_1268898668093_ 0.docx @ 52149 @ 2 @ 1

Mounting / Installation
| 1473-1-7882
— 6 —
Pos: 22 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/ Überschriften (--> Für alle Doku mente <--)/2. Ebene/M - O/Montag e @ 18\mod_1302615960458 _15.docx @ 103424 @ 122 @ 1
5.2 Mounting
Pos: 23 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Mon tage/alle Geräte/Mo ntage - UP-Dosen - DIN 49073-1 oder geeigne tes Aufputzgehaeuse - Ohne Doc variable @ 20\mod_1325766034 453_15.docx @ 136593 @ 2 @ 1
The device may only be installed in suitable flush-mounted sockets (DIN 49073-1) or a suitable surface-mounted
housing.
Pos: 24 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Mon tage/Sonstige Bereic he/Montage - Rutenbeck USB-Ko mmunikationsadapter @ 22\mod _1332930576250_15.doc x@ 206539 @ 22 @ 1
USB is a serial bus which has replaced many serial and parallel interfaces.
The USB socket KM-USB supports the USB 2.0 standard and can therefore also be used for USB 1.0/1.1 plugs
with type A plug face.

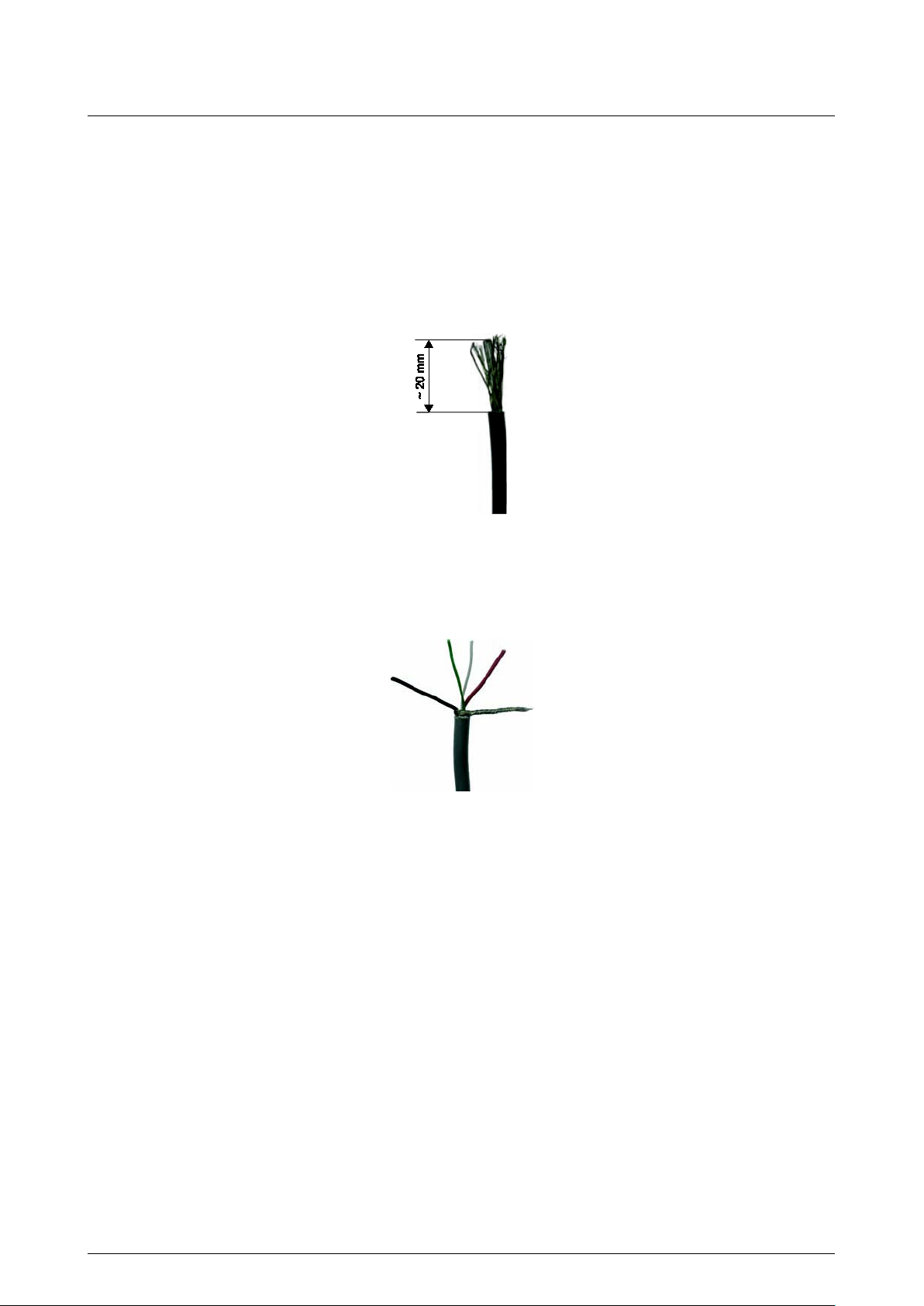

Fig. 1:
1. Remove approximately 20 mm of the outer sheath.
Fig. 2:
2. Twist the braid.
3. Remove the foil screen from the cables.

Mounting / Installation
| 1473-1-7882
— 7 —
Fig. 3:
4. Remove approximately 5 mm of insulation from the wires.
5. Tin-coat the ends of the wires with a soldering iron. Or 0.34 mm wire-end sleeves may be used.
Fig. 4:
6. Fix the cable with a cable tie to the strain relief of the support web (1).
7. Insert the wires and the shielding according to their markings into their respective positions.
The cable is now installed.
Pos: 25 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Steuer module - Onli ne-Dokumentation (--> F üralle Dok umente <--)/++++++++++++Seitenumbruch++++++++++++ @ 9\mod_1268898668093_ 0.docx @ 52149 @ @1

Connection
| 1473-1-7882
— 8 —
Pos: 26 /Busch-Jaeger ( Neustruktur)/Modul-Struk tur/Online-Doku mentation/Überschri ften (--> Für alle Dokumente <--)/ 1. Ebene/A - F/Anschluss @ 19\mod_13092482 78435_15.docx @ 107413 @ 21 @ 1
6 Connection
Pos: 27 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/ Überschriften (--> Für alle Doku mente <--)/2. Ebene/A - F/Belegung @ 22\mod_1 332934163135_15.d ocx @ 206582 @ 12 @ 1

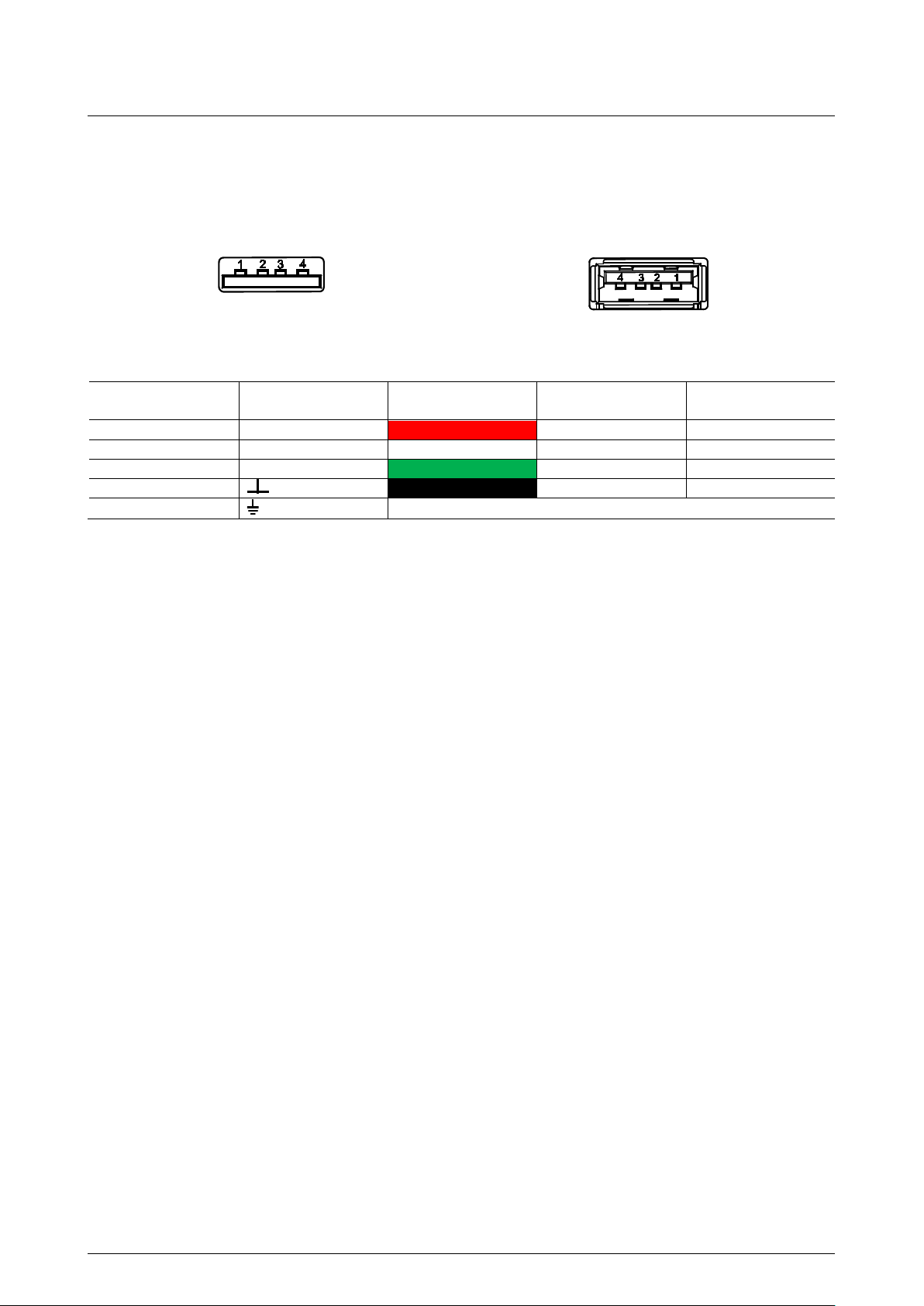

6.1 Assignment
Pos: 28 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Ansc hluss/Sonstige Ber eiche/Anschluss - Rutenb eck USB-Kommunikationsad apter @ 22\mod_1332934099819_15.doc x @ 206567 @ 12 @ 1
Plug (from the front)
Socket (from the front)
Fig. 5:
Terminal number
Terminal designation PIN no. of the socket Colour example for
the cable assignment
Description
5
5 V
PIN 1
Red
VCC (+5 V)
4
D-
PIN 2
White
D- (Data-)
3
D+
PIN 3
Green
D+ (Data+)
2
PIN 4
Black
GND (Dimensions)
1
Screen
Pos: 29 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Steuer module - Onli ne-Dokumentation (--> Für alle Dokument e <--)/++++++++++++Seitenumbruch++++++++++++@ 9\mod_126889 8668093_0.docx @ 52149 @ 2 @ 1

Fault rectification
| 1473-1-7882
— 9 —
Pos: 30 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/ Überschriften (--> Für alle Dokume nte <--)/1. Ebene/S - T/Störungsbesei tigung @ 18\mod_13085682083 99_15.docx @ 107037 @ 11 @ 1
7 Fault rectification
Pos: 31 /Busch-Jaeger ( Neustruktur)/Modul-Struktur /Online-Dokumentation/Störu ngsbeseitigung/So nstige Bereiche/ Störungsbeseitigung - Ru tenbeck USB-HDMI -Kommunikationsadapter @ 22\mod_1 332936193055_15.doc x@ 2066 64 @ 21 @ 1
Problem
Cause
Action
No signal at the player after the signal
source has been switched on.
Player has not been switched on.
Switch the player on.
The plug has come out. Check all plug connections for correct
seating.
Incorrect installation.
Check the installation.
No video signal at the player after the
signal source has been switched on.
Signal source is not recognized by the
player.
Select the signal source manually via the
remote control or via the channel
selection keys of the player.
Incorrect installation.
Check the installation.
No audio signal at the player after the
signal source has been switched on.
The volume has been set too low at the
signal source or on the player.
Increase the volume.
The sound on the player is set on mute.
Deactivate the mute function.
Incorrect installation.
Check the installation.
The player is not recognized.
The plug has come out. Check all plug connections for correct
seating.
Incorrect installation.
Check the installation.
No data transmission.
The plug has come out. Check all plug connections for correct
seating.
Incorrect installation.
Check the installation.
