Busch-Jaeger Busch-Welcome H82001-W03 User manual

2TMD042200D0004 │31.08.2022
Product manual
Busch-Welcome®IP
H82001-W-03 Audio IP

Table of contents
Product manual
2TMD042200D0004
│
2
Table of c ontents
1Notes on the instruction manual............................................................................................................4
2Safety..................................................................................................................................................4
3Intended use........................................................................................................................................4
4Environment.........................................................................................................................................5
4.1 Busch-Jaeger devices................................................................................................................5
5Product description...............................................................................................................................6
5.1 Device type ...............................................................................................................................6
5.2 Control elements........................................................................................................................7
5.3 Terminal description.................................................................................................................11
6Technical data....................................................................................................................................12
7Mounting/Installation...........................................................................................................................13
7.1 Requirement for the electrician.................................................................................................13
7.2 Product dimensions .................................................................................................................14
7.3 Installation height.....................................................................................................................14
7.4 Surface-mounted installation....................................................................................................15
8Commissioning...................................................................................................................................16
8.1 Setting on "Smart Access Point"...............................................................................................16

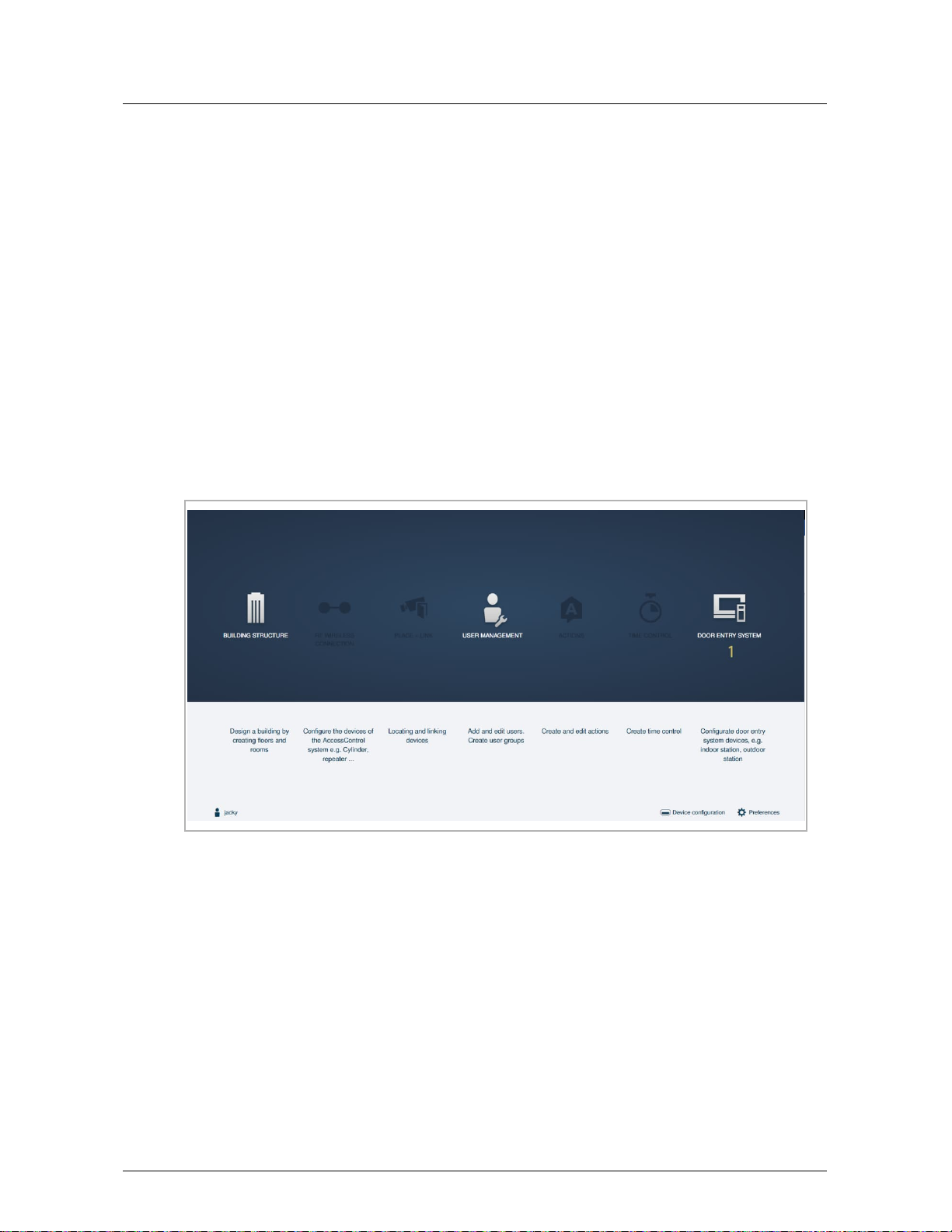

8.1.1 Adding Audio IP via "Smart Access Point".............................................................................. 16

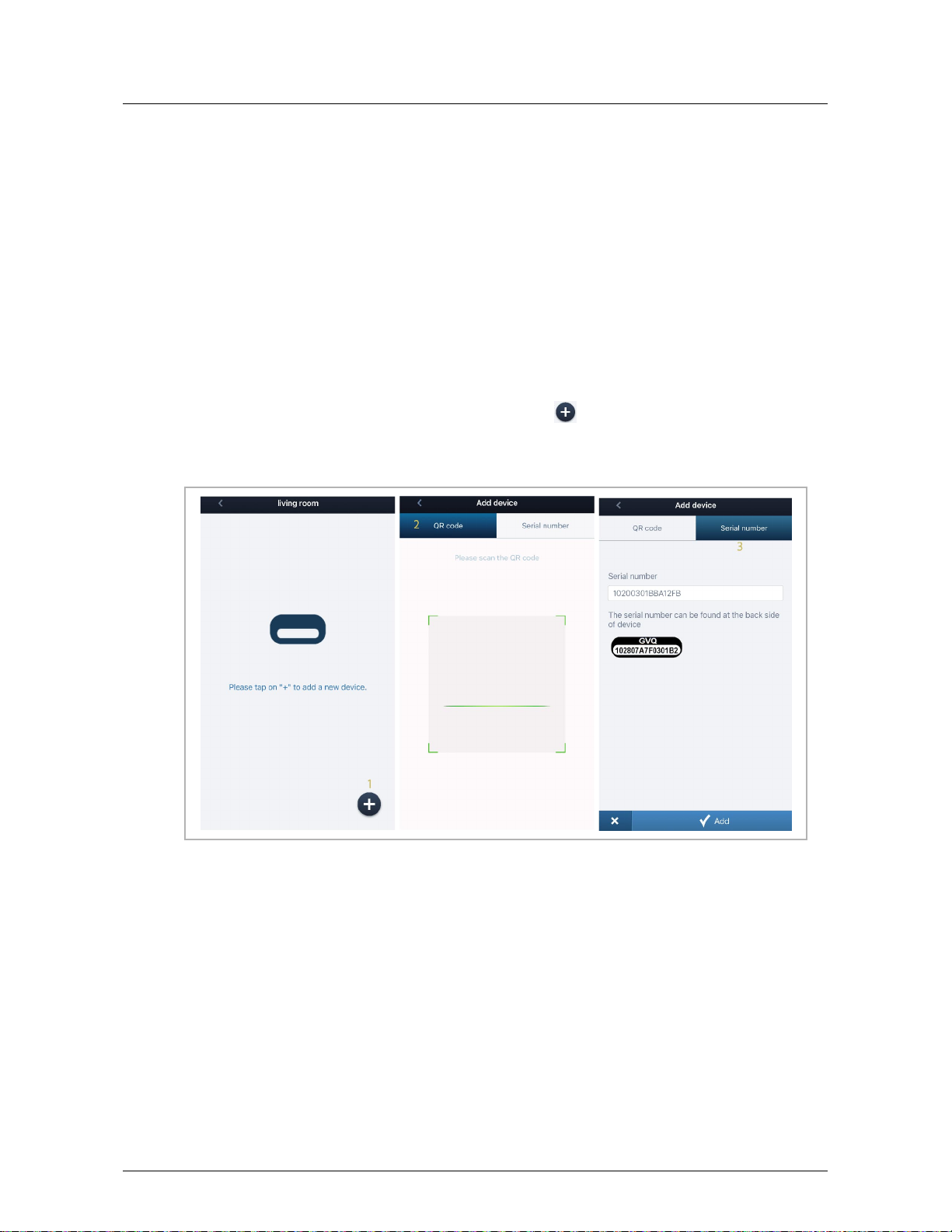

8.1.2 Adding Audio IP via App....................................................................................................... 18
8.1.3 Importing a building structure via App.................................................................................... 20
8.1.4 Accessing the setting screen................................................................................................. 23
8.1.5 Basic information.................................................................................................................. 24
8.1.6 Call button setting................................................................................................................. 25
8.1.7 Unlock button setting............................................................................................................ 27
8.1.8 Light button setting............................................................................................................... 29
8.1.9 Programmed button setting................................................................................................... 30
8.1.10 Guard unit setting................................................................................................................. 34
8.1.11 Physical address & IP address setting................................................................................... 35
8.1.12 Logical address setting......................................................................................................... 39
8.1.13 Ringtone setting................................................................................................................... 40
8.1.14 Renaming the device............................................................................................................ 41
8.1.15 Local Firmware update ......................................................................................................... 43
8.1.16 Online firmware update......................................................................................................... 46
8.1.17 Multiple devices setting......................................................................................................... 47
8.2 Setting on local device.............................................................................................................49
8.2.1 Ring volume setting.............................................................................................................. 49
8.2.2 Ringtone setting................................................................................................................... 50
8.2.3 Talking volume setting.......................................................................................................... 52
8.2.4 Auto unlock setting............................................................................................................... 53
8.2.5 Resetting the device............................................................................................................. 54
9Operation...........................................................................................................................................55
9.1.1 Incoming call........................................................................................................................ 55

Table of contents
Product manual
2TMD042200D0004
│
3
9.1.2 Intercom............................................................................................................................... 56
9.1.3 Unlock ................................................................................................................................. 57
9.1.4 Turn on a light...................................................................................................................... 58
9.1.5 SOS..................................................................................................................................... 59
10 Cyber security....................................................................................................................................60
10.1 Disclaimer ...............................................................................................................................60
10.2 Performance and service .........................................................................................................61
10.3 Deployment guideline...............................................................................................................61
10.4 Upgrading................................................................................................................................62
10.5 Malware prevention solution.....................................................................................................62
11 Notice................................................................................................................................................63

Notes on the instruction manual
Product manual
2TMD042200D0004
│
4
1Notes on the instruction manual
Please read through this manual carefully and observe the information it contains. This will
assist you in preventing injuries and damage to property and ensure both reliable operation and
a long service life for the device.
Please keep this manual in a safe place. If you pass the device on, also pass on this manual
along with it. Busch-Jaeger accepts no liability for any failure to observe the instructions in this
manual.
2Safety
Warning
Electric voltage!
Dangerous currents flow through the body when coming into direct or indirect
contact with live components.
This can result in electric shock, burns or even death.
– Disconnect the mains power supply prior to installation and/or disassembly!
– Permit work on the 100-240 V supply system to be performed only by
specialist staff!
3Intended use
This device is a part of the Busch-Welcome®IP system and operates exclusively with
components from this system. The device must only be installed in dry indoor rooms.

Environment
Product manual
2TMD042200D0004
│
5
4Environment
Consider the protection of the environment!
Used electric and electronic devices must not be disposed of with household
waste.
– The device contains valuable raw materials that can be recycled. Therefore,
dispose of the device at the appropriate collecting facility.
4.1 Busch-Jaeger devices
All packaging materials and devices from Busch-Jaeger bear the markings and test seals for
proper disposal. Always dispose of the packing materials and electric devices and their
components via an authorized collection facility or disposal company.
Busch-Jaeger products meet the legal requirements, in particular the laws governing electronic
and electrical devices and the REACH ordinance.
(EU-Directive 2012/19/EU WEEE and 2011/65/EU RoHS)
(EU-REACH ordinance and law for the implementation of the ordinance (EG) No.1907/2006)

Product description
Product manual
2TMD042200D0004
│
6
5Product description
5.1 Device type
Article
number Order number Product name Colour Size (DxHxW)
Unit: mm
H82001-W-
03 2TMA130010W0041 Audio IP, induction loop White 81 x 198 x 43

Product description
Product manual
2TMD042200D0004
│
7
5.2 Control elements
No. Description
1Handset
■During a call request, pick up the handset within 30 seconds to accept the call.
■During communication, hang up the handset to terminate the call.
2
Induction Loop symbol
The device is equipped with a hearing loop for coupling the audio signal into hearing aids.
■In order to be able to use such hearing loops, the hearing aid must have a so-called
telephone coil (short: "T-coil") that records the magnetic alternating field of the hearing
loop.
■The distance to the device should be a maximum of 80 cm for optimal reception.
3
Programmable button
The button can be programmed on the "Smart Access Point" for the functions below:
■Intercom to same unit (default)
■Intercom to another unit
■Call guard unit
■Open door with Outdoor station
■Open door with IP actuator
■Turn on the designated light
■SOS function
4
Light button
■In standby status, press the button to turn on the designated light.
■In standby status, hold the button for 5 seconds to set the ringtone type.
■During communication, hold the button for 5 seconds to set the call volume.
5
Call button
■Pick up the handset in standby mode and press the button to communicate with other
indoor stations within the same apartment (default setting). In doing so, all existing indoor
stations within the apartment will be called simultaneously. In this case, the group call is
stopped as soon as one of the indoor stations accepts the call.
The button can be programmed on the "Smart Access Point" to Intercom to another unit or call
guard unit.
1
2
3
4
56
7
8
910

Product description
Product manual
2TMD042200D0004
│
8

Product description
Product manual
2TMD042200D0004
│
9
No. Description
6
Unlock button
■*In standby status, pressthe button to release the default lock of the default outdoor
station. (A default outdoor station should be set on the "Smart Access Point" before use).
■In standby status, hold the button for 10 seconds to enable the "Automatic unlock" function.
The LED (red) illuminates to indicate that the "Automatic unlock" function is enabled. The
same operation will disable the"Automatic unlock" function and the LED (red) will turn off.
* The "Automatic unlock" function means the door will be unlocked automatically during a call
request. This function will be disabled automatically after 10 hours.
7LED (red)
8LED (blue)
9
Mute button
■In standby status, press the button to mute the ringtone.
■In standby status, hold the button for 3 seconds tomute the ringtone for all the indoor
stations in the same apartment.
■During a call request, press the button to mute the ringtone.
■During communication, press the button to mute the microphone.
10 Volume button
Adjust the three-level selector (maximum/medium/low) to set the ringtone volume.
1
2
3
4
56
7
8
910

Product description
Product manual
2TMD042200D0004
│
10
LED Overview
Icon Description
Red LED always on
Blue LED always on
Red LED flashes slowly
Blue LED flashes slowly
Red LED flashes fast
Blue LED flashes fast
LED status
LED status Description
"Auto-unlock" function is enabled.
Mute the speaker or the microphone.
& Unsigned status or enters the setting mode.
During an incoming call.
Operation failed.
Operation success.
& IP address conflicts or network connection is not working properly.
/ Two LEDs flash alternative, update the firmware.

Product description
Product manual
2TMD042200D0004
│
11
5.3 Terminal description
No. Description
1A potential-free contact, such as a doorbell
2Micro SD card slot (only for factory use)
3LAN (PoE), PoE is the only power supply for this device
4Reset button
1
2
3
4

Technical data
Product manual
2TMD042200D0004
│
12
6Technical data
Designation Value
Rating voltage 48 V ⎓
Operating voltage 38-57 V ⎓
Rating current 48 V ⎓, 40 mA
Operating temperature -10 °C…+55 °C
Storage temperature -25 °C…+70 °C
PoE standard IEEE802.3 af
IP level IP 30
Size (DxHxW) 81 x 198 x 43 mm

Mounting/Installation
Product manual
2TMD042200D0004
│
13
7Mounting/Installation
Warning
Electric voltage!
Dangerous currents flow through the body when coming into direct or indirect
contact with live components.
This can result in electric shock, burns or even death.
– Disconnect the mains power supply prior to installation and/or disassembly!
– Permit work on the 100-240 V supply system to be performed only by
specialist staff!
7.1 Requirement for the electrician
Warning
Electric voltage!
Install the device only if you have the necessary electrical engineering
knowledge and experience.
– Incorrect installation endangers your life and that of the user of the electrical
system.
– Incorrect installation can cause serious damage to property, e.g. due to fire.
The minimum necessary expert knowledge and requirements for the installation
are as follows:
– Apply the "five safety rules" (DIN VDE 0105, EN 50110):
1. Disconnect
2. Secure against being re-connected
3. Ensure there is no voltage
4. Connect to earth and short-circuit
5. Cover or barricade adjacent live parts.
– Use suitable personal protective clothing.
– Use only suitable tools and measuring devices.
– Check the type of supply network (TN system, IT system, TT system) to
secure the following power supply conditions (classic connection to ground,
protective grounding, necessary additional measures, etc.).

Mounting/Installation
Product manual
2TMD042200D0004
│
14
7.2 Product dimensions
Unit: mm
7.3 Installation height
198
81 20.9
43
1.5m
5feet

Mounting/Installation
Product manual
2TMD042200D0004
│
15
7.4 Surface-mounted installation
Surface-mounted box
Installation
1. Disassemble the upper part from the bottom part by using a screwdriver
2-A. Affix the bottom part on the wall
2-B. Affix the bottom part on the box
3. Connect the wires.
4. Latch the upper part onto the bottom part.
174
60
60
83.3
79.2
Global VDE&BS&CN NEMA&Italy Swiss
1
2-A
2-B
3
4
maximum length: 100 mm
Optional

Commissioning
Product manual
2TMD042200D0004
│
16
8Commissioning
8.1 Setting on "Smart Access Point"
8.1.1 Adding Audio IP via "Smart Access Point"
Precondition
■Audio IP must be powered on.
■Smart Access Point version should be 5.92 or later.
■Audio IP should not be signed by other "Smart Access Point". If Audio IP has been signed
by other "Smart Access Point", you need to clear the signature, e.g. reset the Audio IP by
pressing and holding the reset button for 3 seconds on the back.
Please follow the steps below:
[1] On the configuration screen of "Smart Access Point", click "Door entry system" to access
the corresponding screen.

Commissioning
Product manual
2TMD042200D0004
│
17
[2] Click "Add device".
[3] Select "Indoor station" from the drop-down list.
[4] Enter block number.
[5] Enter floor number
[6] Enter room number.
[7] Enter device ID:
■Master indoor station, device ID is 1.
■Slave indoor station:
– If Audio IP is connected to the common network, device ID can be 2-3.
– If Audio IP is connected to the home network, device ID can be 2-32.
[8] Enter the serial number pasted on the back of the device.
[9] Click "Save".

Commissioning
Product manual
2TMD042200D0004
│
18
8.1.2 Adding Audio IP via App
Precondition
■Audio IP must be powered on.
■Audio IP should not be signed by other "Smart Access Point". If Audio IP has been signed
by other "Smart Access Point", you need to clear the signature, e.g. reset the Audio IP by
pressing and holding the reset button for 3 seconds on the back.
■Select "Setup Welcome IP" when login into App.
■A project has been created on the App, this project includes the designated buildings, floors
and rooms.
Please follow the steps below:
[1] Open the App, go to a designated room screen, click .
[2] Scan the QR code on the back of Audio IP and then continue from step 4.
[3] Or click "Serial number" and enter the serial number pasted on the back of Audio IP.

Commissioning
Product manual
2TMD042200D0004
│
19
[4] Enter the device ID:
■Master indoor station, device ID is 1.
■Slave indoor station:
– If Audio IP is connected to the common network, device ID can be 2-3.
– If Audio IP is connected to the home network, device ID can be 2-32.
[5] Enter the location information.
[6] Set the device type to "Indoor station".
[7] Click "Add".
[8] On the designated room screen, the result is displayed on the screen.
PoEswitch
Smart Access Point
Outdoorstation
Master IS
Master IS
Standalone
Home router
Slave 1 Slave 2
Slave1
Slave2
Apartment1
Apartment2
Apartment3
*Max32indoor stationsinthesameapartment.
*Max3indoor stationsinthesameapartment.

Commissioning
Product manual
2TMD042200D0004
│
20
8.1.3 Importing a building structure via App
"Smart Access Point" can import the building structure from the App. It is permitted to import
one building or multiple buildings as a batch.
Importing rule
Building structure will be overwritten according to the building number.
App buildings "Smart Access Point" original
buildings "Smart Access Point" final buildings
B+ A, B, C A, B+, C
B+, C+ A, B, C A, B+, C+
D, E, F A, B, C A, B, C, D, E, F
+ means the building structure has been changed.
Precondition
App must be on the same network with the router connected to "Smart Access Point".
SmartAP
Router
APP
